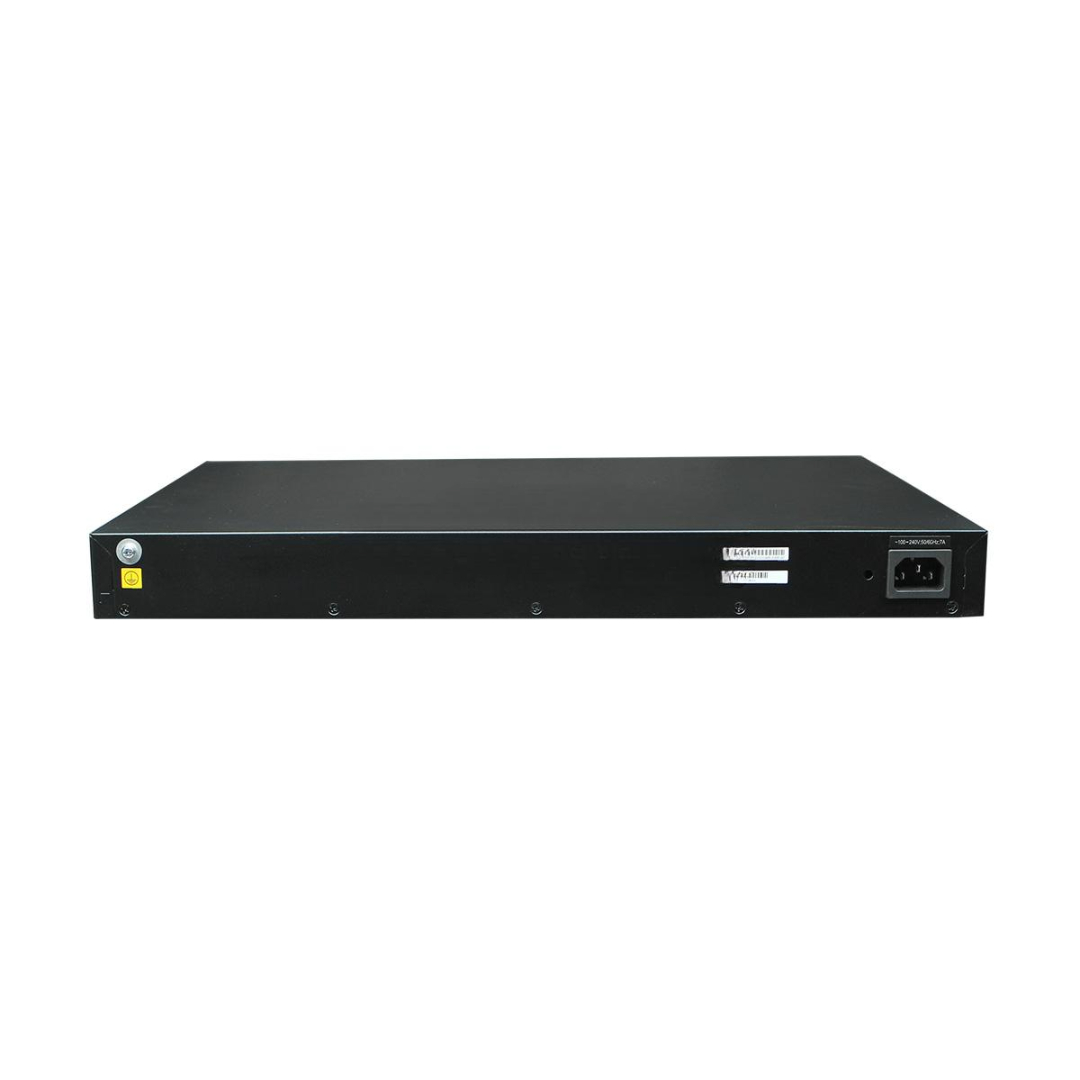

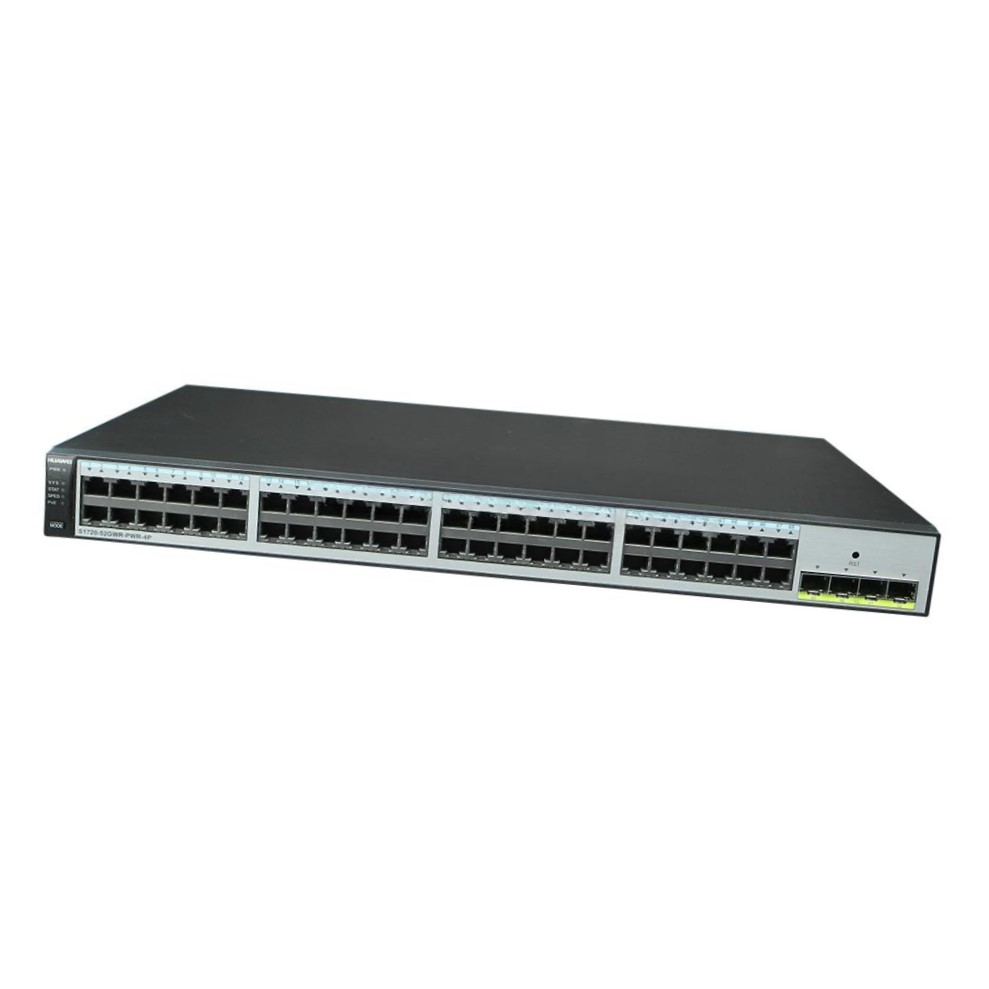

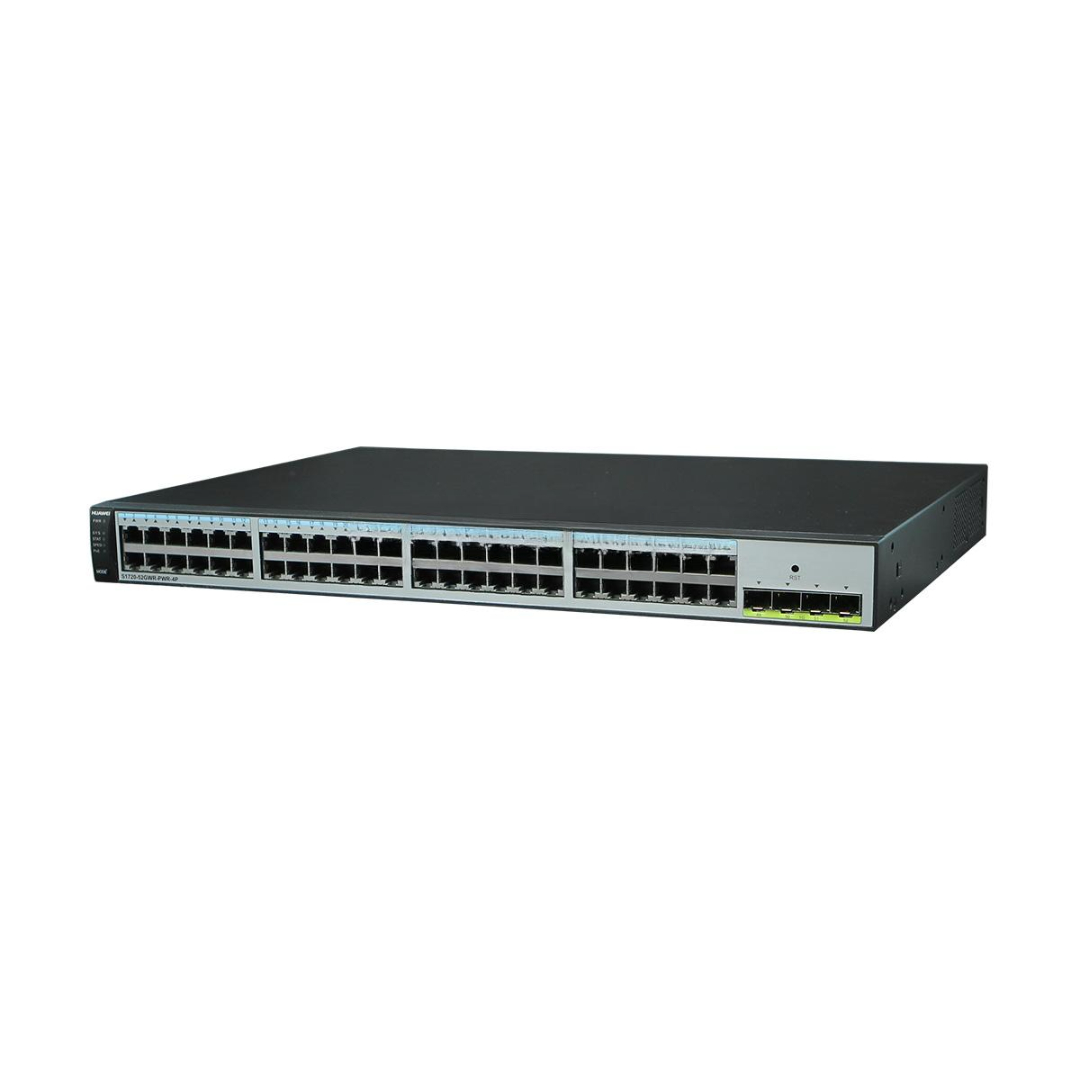

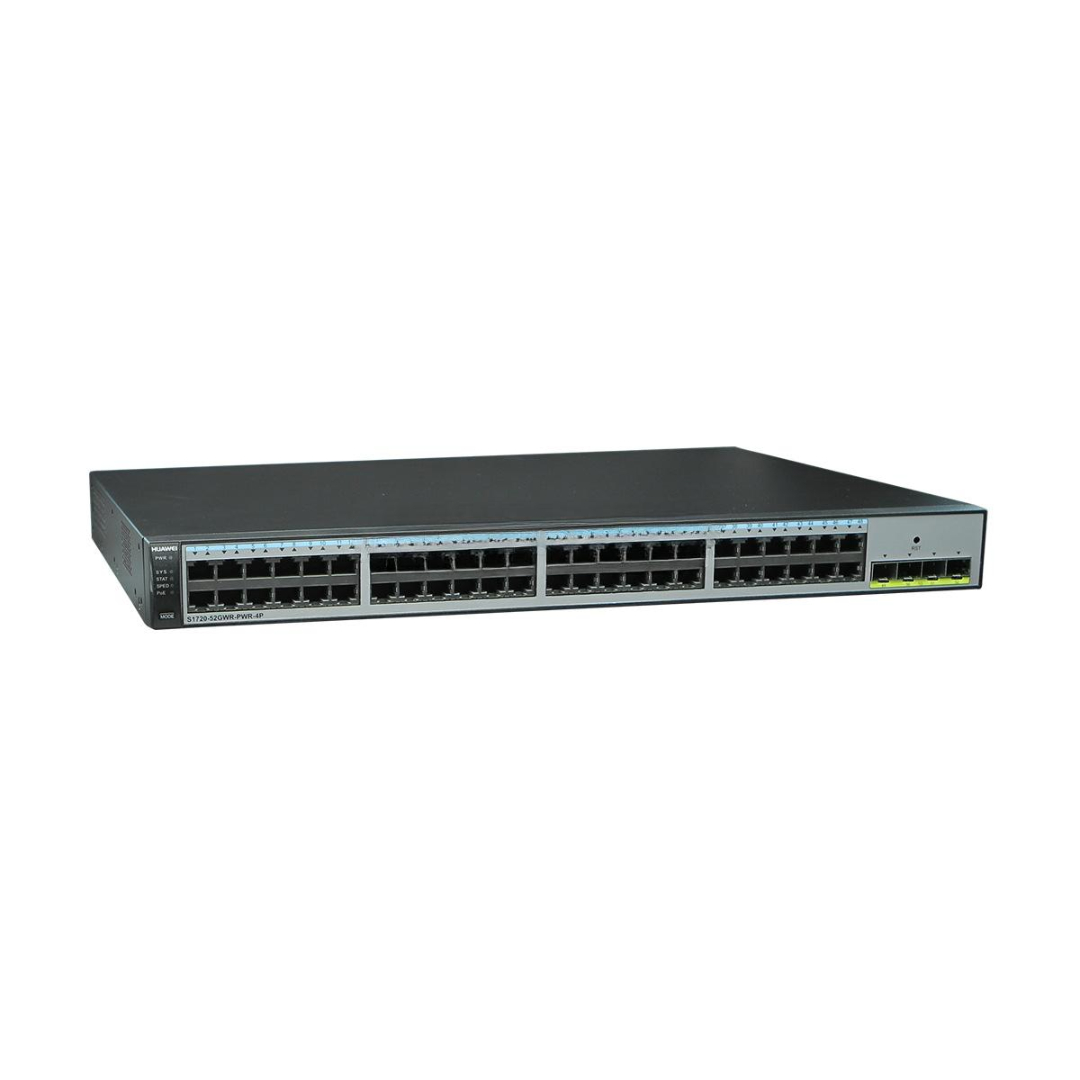

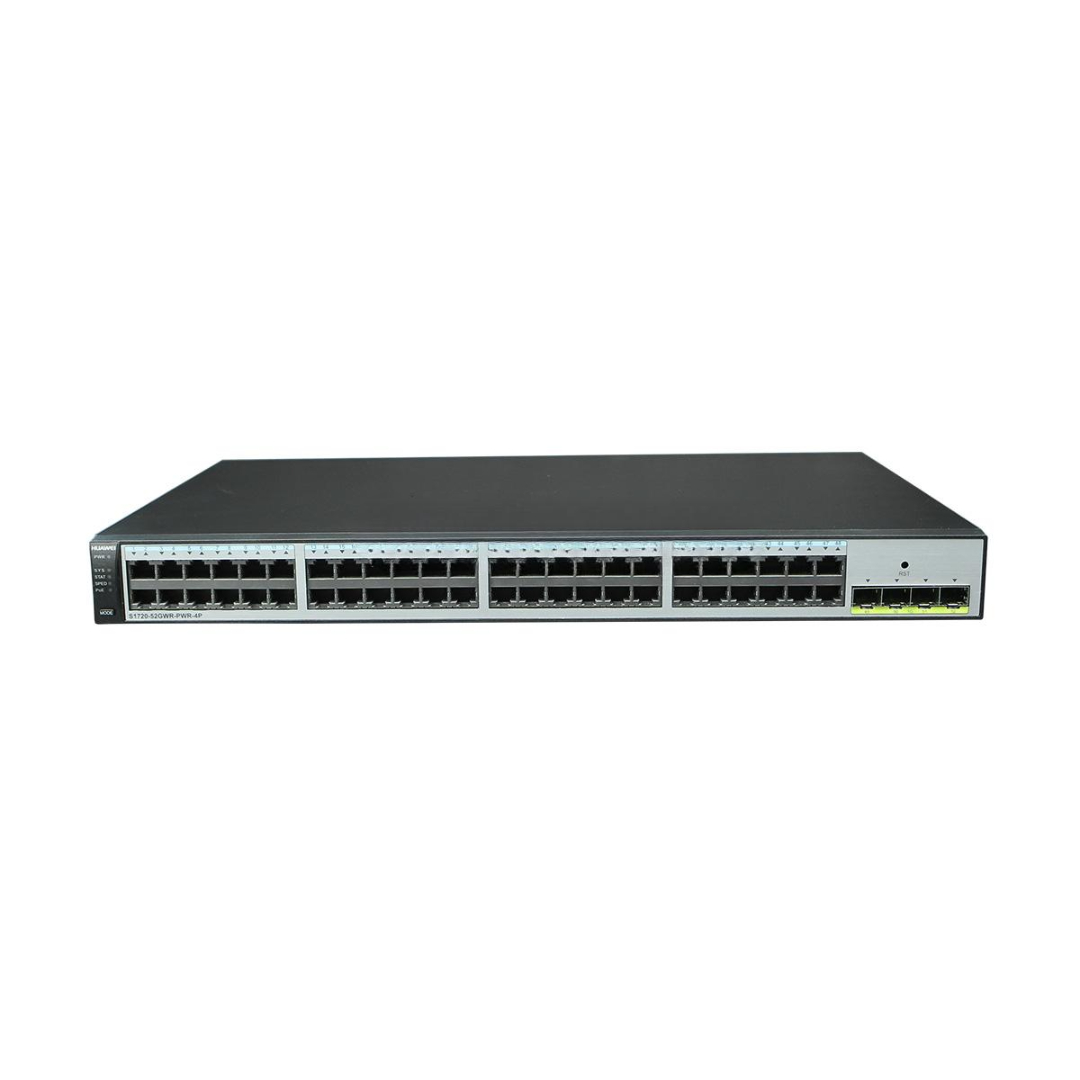

S1720-52GWR-PWR-4P-E Huawei Original New 48-Ports Power Fixed Switch
The S1720-52GWR-PWR-4P-E Huawei original brand new 48-port Power over Ethernet (PoE+) Layer 2 managed switch, designed for stable and efficient deployment in enterprise access networks, surveillance systems, and smart buildings. With 48 Gigabit PoE+ Ethernet ports and 4 GE uplink ports, it provides robust connectivity and centralized power distribution for IP terminals such as wireless access points, IP cameras, and IP phones.
Engineered for energy efficiency and low-noise environments, the switch features intelligent PoE power allocation, Layer 2 security mechanisms, and easy web-based management — making it ideal for campuses, retail, government, and small-to-medium enterprise (SME) deployments.
Key Features
- Model: S1720-52GWR-PWR-4P-E
- Condition: 100% Huawei Original Brand New
- Port Configuration: 48 × 10/100/1000Base-T PoE+ Ports
- Uplink Ports: 4 × GE Combo Ports (RJ45/SFP)
- PoE Standard: IEEE 802.3af/at
- PoE Power Budget: Up to 370W total
- Switching Capacity: 104 Gbps
- Forwarding Performance: 77 Mpps
- MAC Address Table: 16K entries
- VLANs Supported: 4,096
- Mounting: 1U Rack-Mountable
- Power Supply: Built-in AC power module
- Warranty: 1–3 Years Huawei Warranty
Technical Specifications
| Specification | Details |
|---|---|
| Model | S1720-52GWR-PWR-4P-E |
| Port Type | 48 × GE PoE+ RJ45 + 4 × GE Combo Ports |
| PoE Standard | IEEE 802.3af (PoE) / IEEE 802.3at (PoE+) |
| PoE Budget | Up to 370W |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77 Mpps |
| MAC Address Table | 16K entries |
| VLAN Support | 4,096 VLANs |
| Layer Support | Layer 2 |
| Power Supply | Integrated AC |
| Dimensions | 442 mm × 220 mm × 43.6 mm |
| Weight | Approx. 4.8 kg |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5%–95% RH, non-condensing |
| Compliance | CE, FCC, RoHS |
| Warranty | 1–3 Years Manufacturer Warranty |
S1720-52GWR-PWR-4P-E Huawei Applications
- Enterprise Access Layer — Provides power and data to IP phones, wireless APs, and surveillance devices
- Campus Networks — Enables VLAN isolation and secure PoE deployment across buildings
- Retail and Chain Stores — Easy centralized management of multiple IP devices
- Smart Buildings — Energy-efficient PoE+ supply for smart devices and IoT gateways
- Government Facilities — Reliable backbone for security, communications, and wireless
Customization & OEM Options
- Logo Branding — Company name or label can be applied on request
- Pre-Configured Settings — VLAN, trunking, or SNMP ready before delivery
- Power Variants — Optional configurations with reduced or expanded PoE budgets
- Deployment Kits — Include mounting brackets, patch cords, and accessories
- Extended Temp Version — Optional for demanding indoor/outdoor conditions
- Management Software Integration — NMS setup and MIB files included upon request
Wholesale & Global Supply Information
- Direct Huawei OEM Stock — Factory-sealed with full quality certification
- Volume Orders Supported — Ideal for SI projects, ISPs, and government procurement
- Safe Shipping Worldwide — Secured and labeled packaging for international transport
- Rapid Dispatch — Ready-to-ship inventory for urgent deployments
- Bulk Discount Rates — Competitive pricing for integrators and telecom partners
- Tech Support Available — Pre- and post-sale consultation on configuration and deployment
Why Choose S1720-52GWR-PWR-4P-E Huawei
Full PoE+ Capability — Centralized power and data for network endpoints
Reliable Huawei OEM Quality — Trusted worldwide in mission-critical networks
Energy-Efficient Design — Smart PoE power allocation and low-noise operation
Scalable VLAN Features — Enterprise-ready segmentation and access control
Compact Rack Design — Fits standard 19” network cabinets
Contact Us for OEM Services, Bulk Pricing & Technical Datasheets
Empower your enterprise network with the Huawei S1720-52GWR-PWR-4P-E — a reliable, high-performance 48-port PoE+ switch built for today’s intelligent network needs.
Inquire now for detailed quotes, OEM customization, or immediate shipment options.
