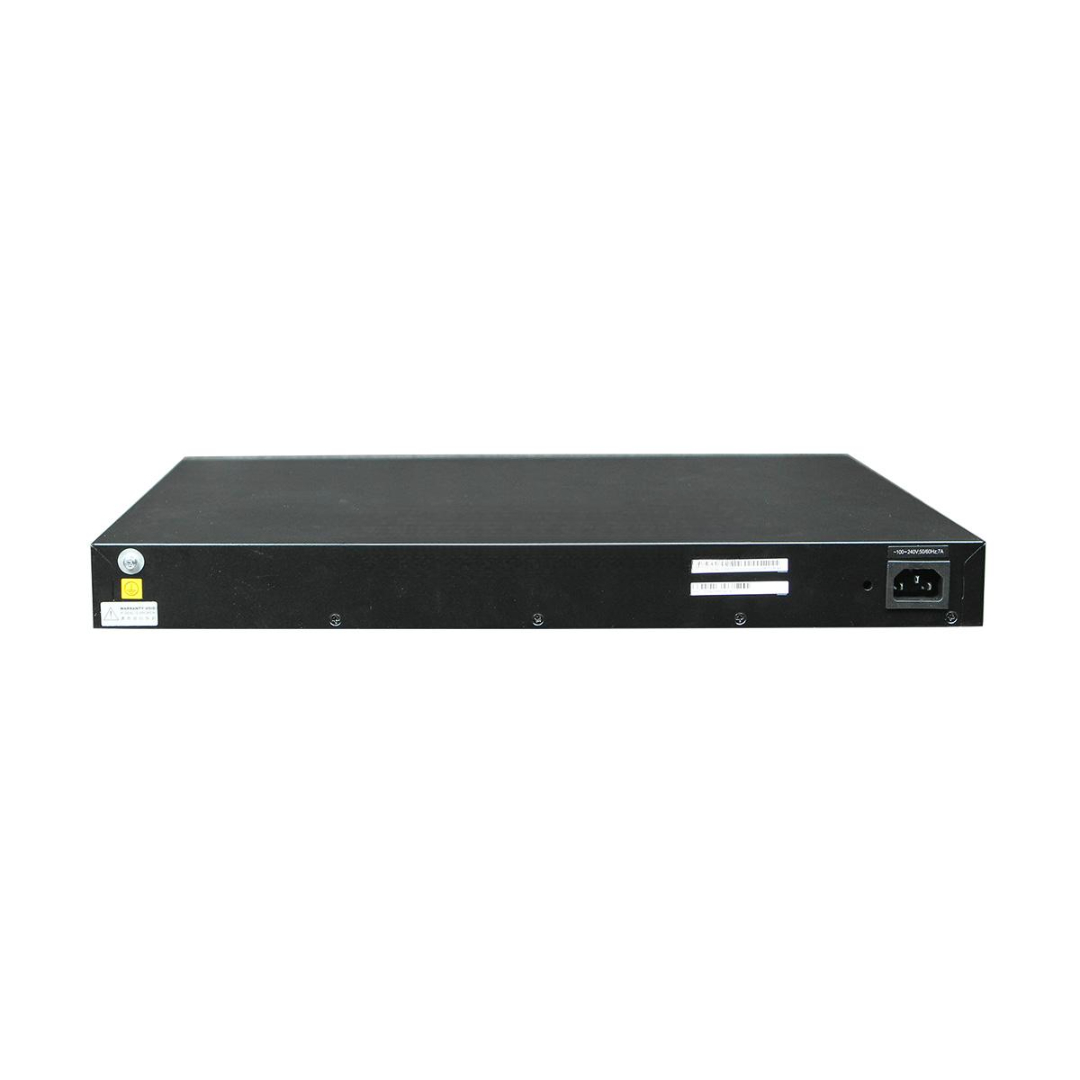

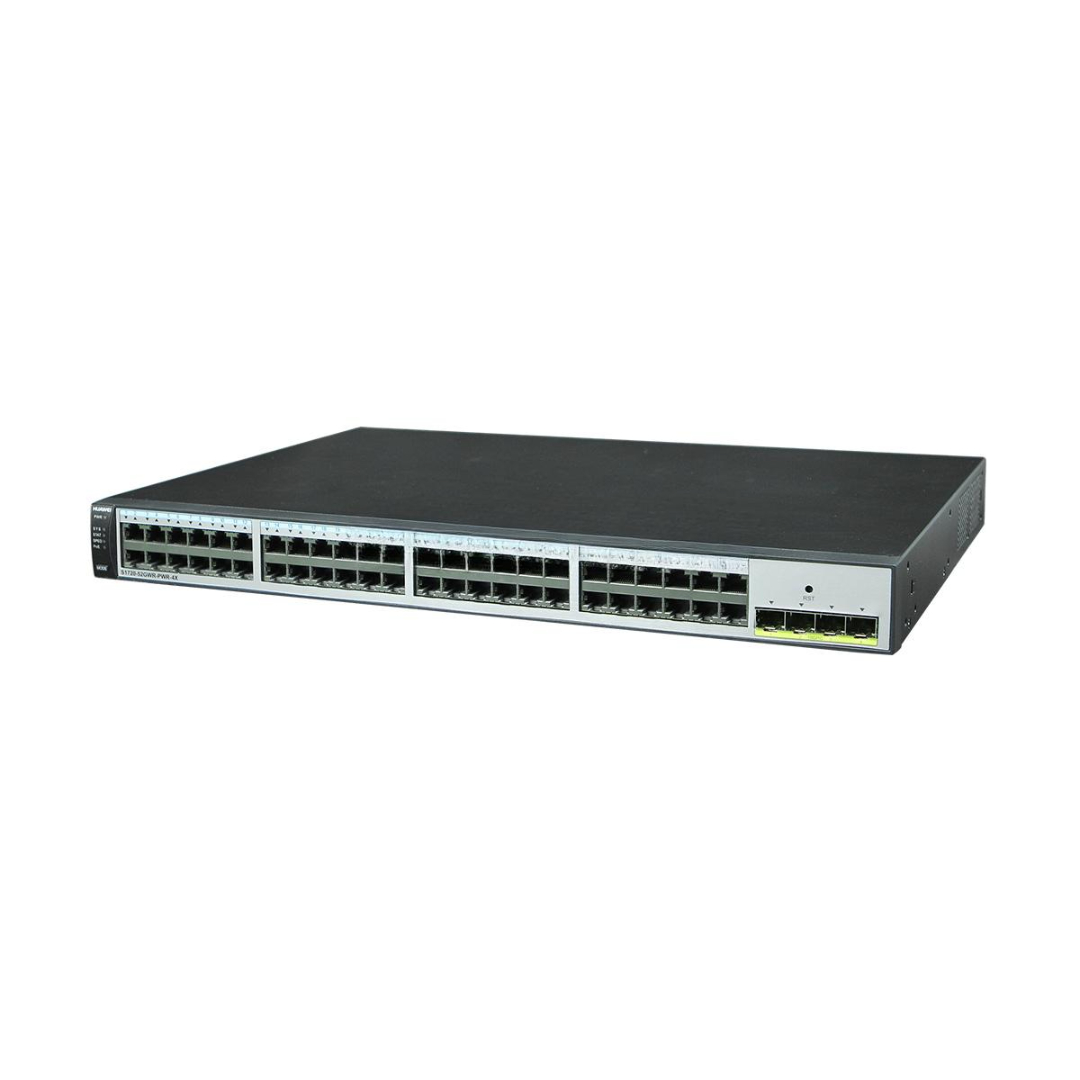

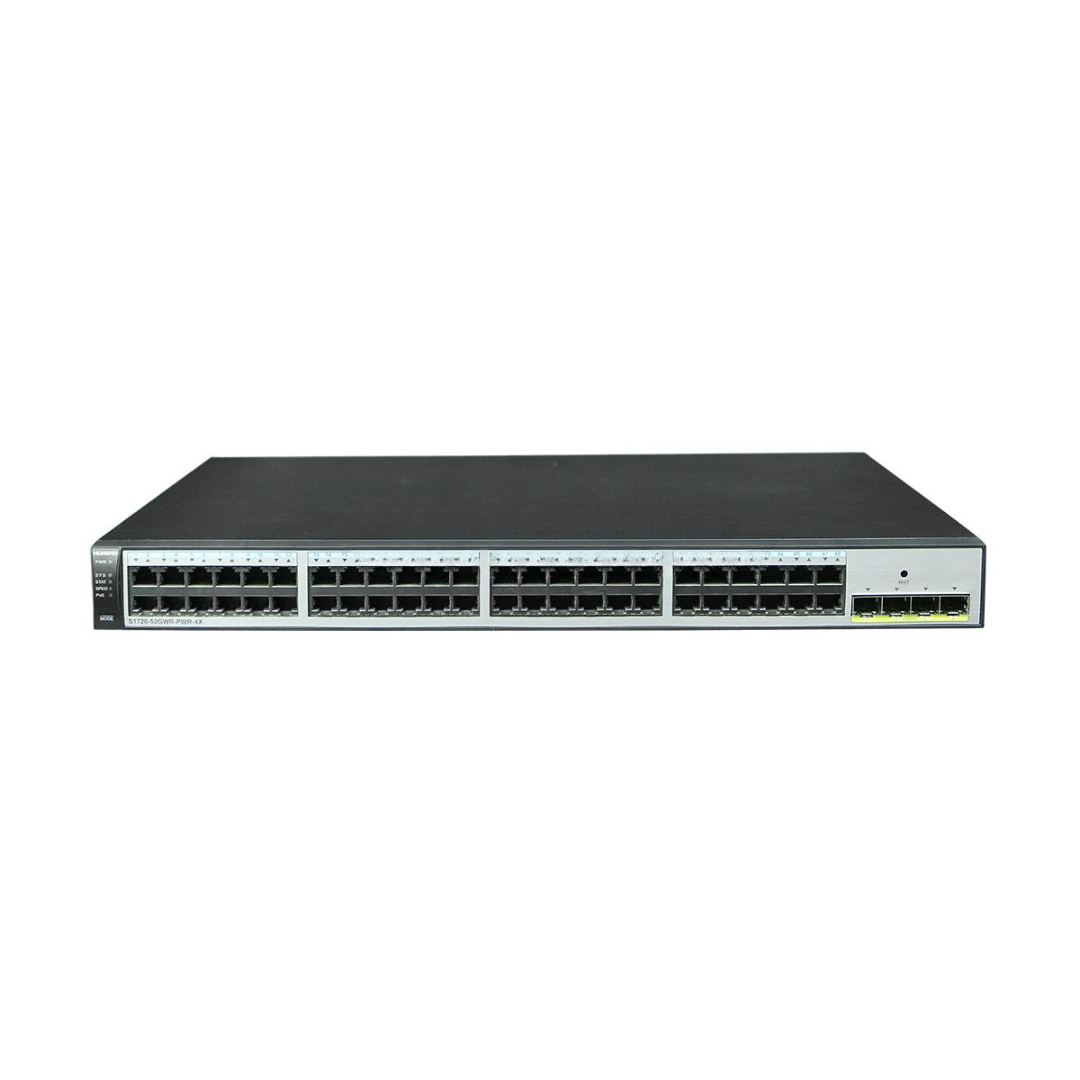

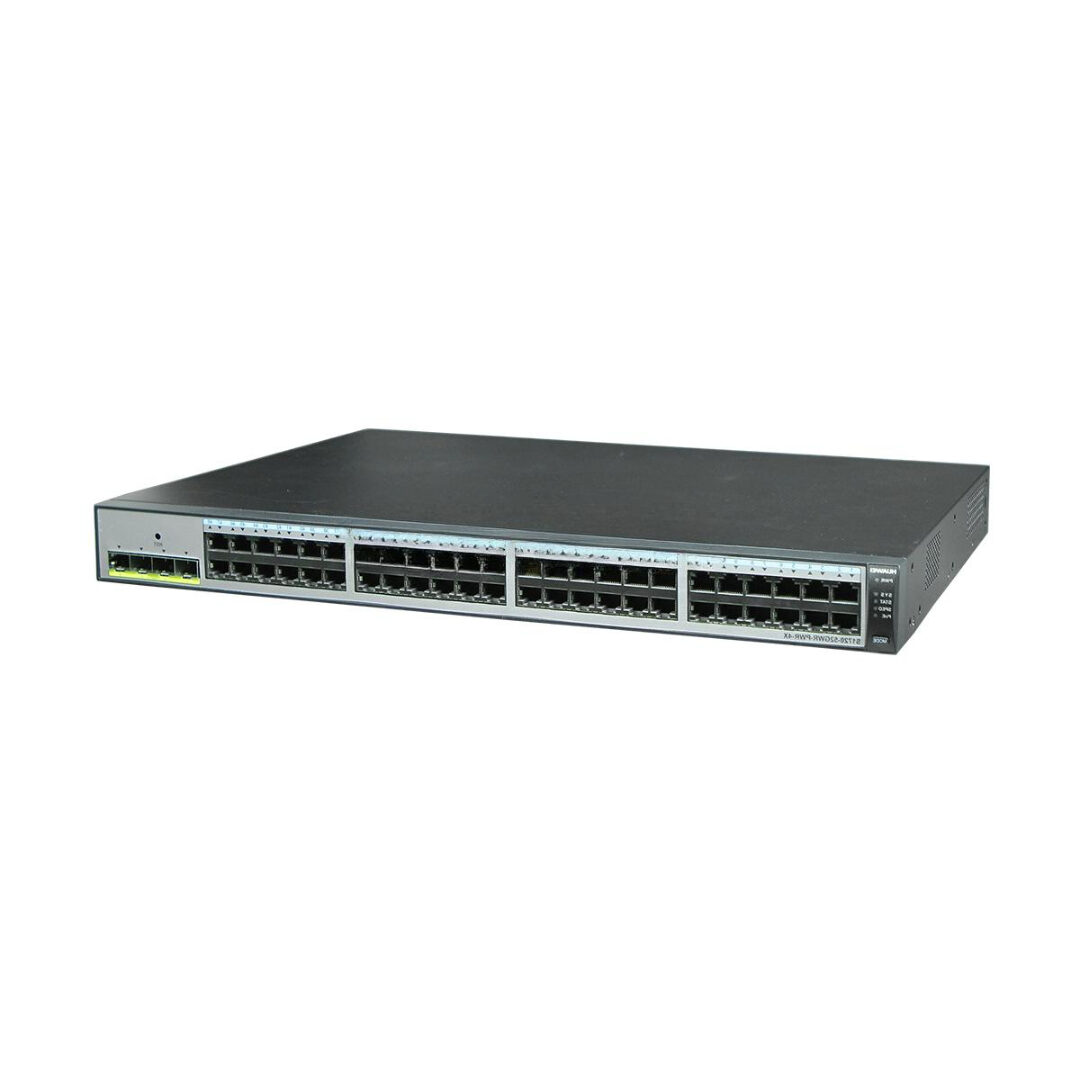

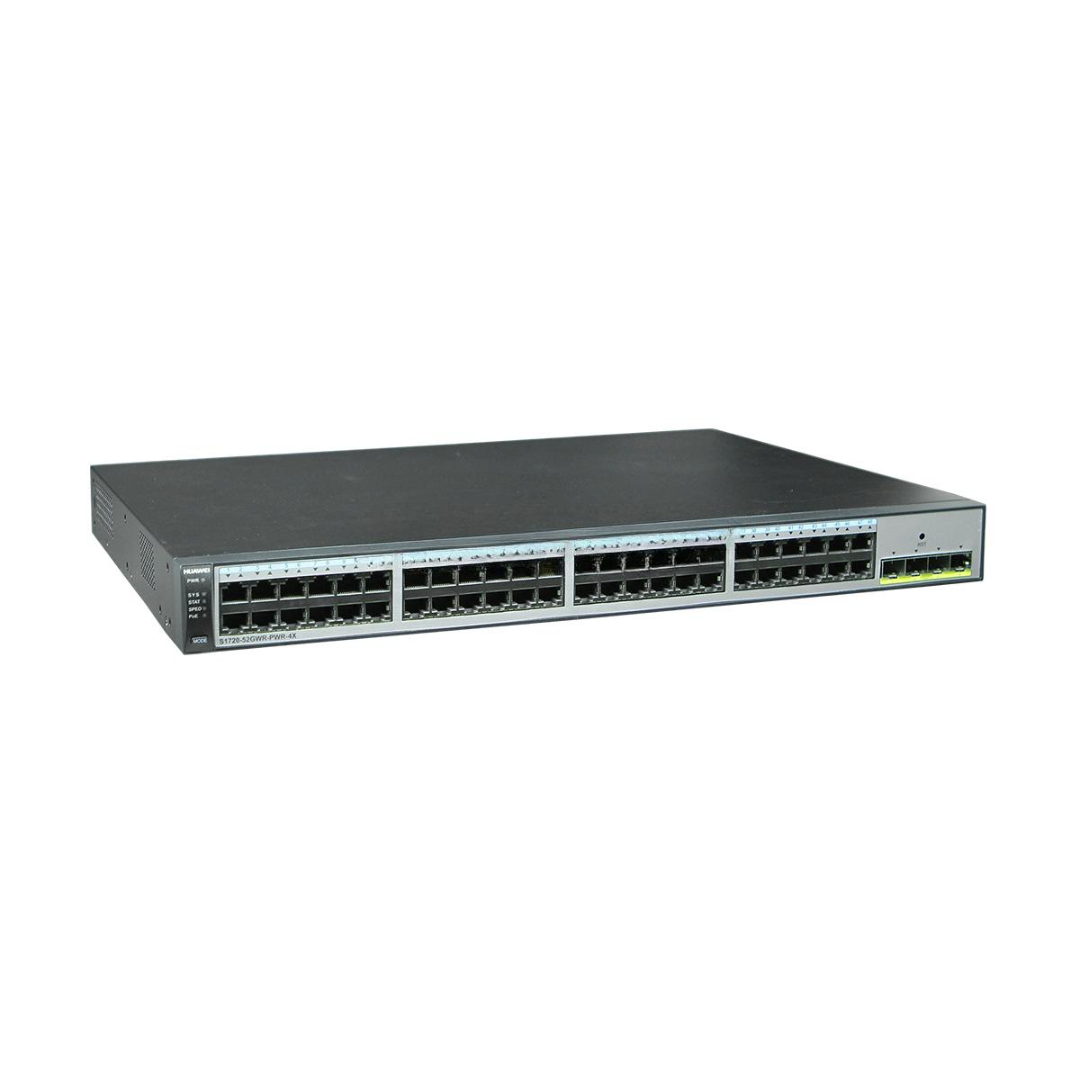

S1720-52GWR-PWR-4X-E Huawei Original New 48-Ports Power Fixed Switch
The S1720-52GWR-PWR-4X-E is a Huawei original new Layer 2 managed switch featuring 48 Gigabit Ethernet ports with PoE+ (Power over Ethernet Plus) capabilities, complemented by 4 Gigabit SFP uplink ports. Designed for enterprise campus networks, IP surveillance, Wi-Fi access points, and other power-demanding scenarios, this compact yet robust switch supports full Layer 2 switching, security, and energy efficiency.
It is part of the S1700 series known for its easy deployment, stable performance, and enterprise-grade features, including storm control, VLAN management, port security, and PoE scheduling. The S1720-52GWR-PWR-4X-E also supports fanless or low-noise cooling, making it ideal for noise-sensitive indoor environments.
Key Features
- Model: S1720-52GWR-PWR-4X-E
- Condition: 100% Original Brand New Huawei
- Port Configuration: 48 × 10/100/1000Base-T PoE+ Ports
- Uplink Ports: 4 × GE SFP
- PoE Standard: IEEE 802.3af/at supported
- PoE Budget: Up to 370W
- Switching Capacity: 104 Gbps
- Forwarding Performance: 77 Mpps
- MAC Address Table: 16K
- VLAN Support: Up to 4,096 VLANs
- Power Supply: Fixed AC
- Installation: 1U Rack-Mountable
- Warranty: 1–3 Years Manufacturer Warranty
Technical Specifications
| Specification | Details |
|---|---|
| Model | S1720-52GWR-PWR-4X-E |
| Port Type | 48 × GE PoE+ RJ45 + 4 × GE SFP |
| PoE Standard | IEEE 802.3af (PoE) / IEEE 802.3at (PoE+) |
| PoE Power Budget | 370W |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77 Mpps |
| MAC Address Table | 16K |
| VLAN IDs Supported | 4,096 |
| Stacking Support | No |
| Fan Type | Low-noise cooling |
| Power Supply | Built-in AC power module |
| Power Input | 100V–240V AC |
| Dimensions (W×D×H) | 442 × 220 × 43.6 mm |
| Weight | Approx. 4.8 kg |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5%–95% RH, non-condensing |
| Certifications | CE, FCC, RoHS |
| Warranty | 1–3 Years Manufacturer Warranty |
S1720-52GWR-PWR-4X-E Applications
- Enterprise Access Layer — Powering IP phones, wireless APs, and cameras
- Smart Office Networks — PoE-powered IoT and endpoint integration
- Campus Networking — Scalable and secure Layer 2 aggregation
- Retail & Chain Stores — Plug-and-play PoE deployment with simple management
- Industrial Surveillance Systems — Centralized power and data for security cameras
Customization & OEM Options
- Branding Options — Custom labeling with client logos and product codes
- Tailored Configuration — VLAN, QoS, or port priority pre-configuration
- Power Variants — Adaptable PoE budgets for different deployment scales
- Deployment Kits — Bundled with patch cords, rack-mount kits, or mounting brackets
- Environment Options — Conformal coating for dust/moisture resistance upon request
- Software Settings — Factory-set IP addresses, SNMP, or management credentials
Wholesale & Global Supply Information
- Original Huawei Equipment — Sourced directly from certified OEM stock
- Large Volume Availability — Ideal for SI partners, telcos, and government projects
- International Packaging — Secure shock-resistant packaging for global shipping
- Lead Time — Immediate dispatch for in-stock items
- Bulk Discount Rates — Competitive pricing tiers for resellers and integrators
- Logistics Support — Customs-ready with full shipping documentation
- Technical Guidance — Assistance on VLAN setup, firmware upgrades, and PoE planning
Why Choose S1720-52GWR-PWR-4X-E Huawei 48-Port Switch
PoE+ Enabled — Power and data through a single cable for efficient wiring
Enterprise-Grade Stability — Proven Huawei performance and reliability
Energy Efficient — Intelligent fan and load-based power management
Scalable VLAN Support — Excellent for segmentation and secure zones
Versatile Deployment — Perfect for small to medium enterprise networks
Contact Us for Bulk Orders, Pricing & Datasheets
Upgrade your network infrastructure with the Huawei S1720-52GWR-PWR-4X-E — a 48-port PoE+ powerhouse built for performance, flexibility, and smart power management.
Request a quote now for wholesale prices, OEM customization, and global shipment.
