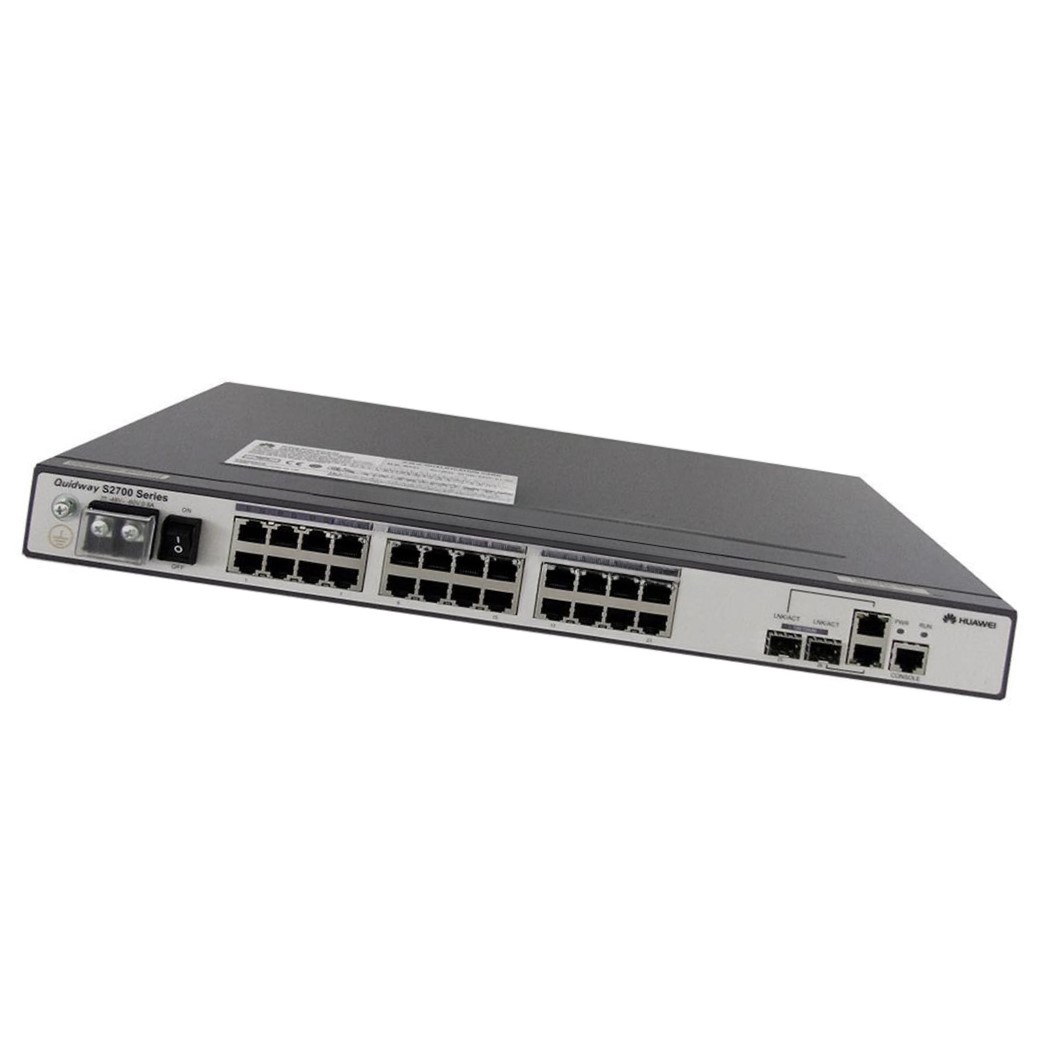

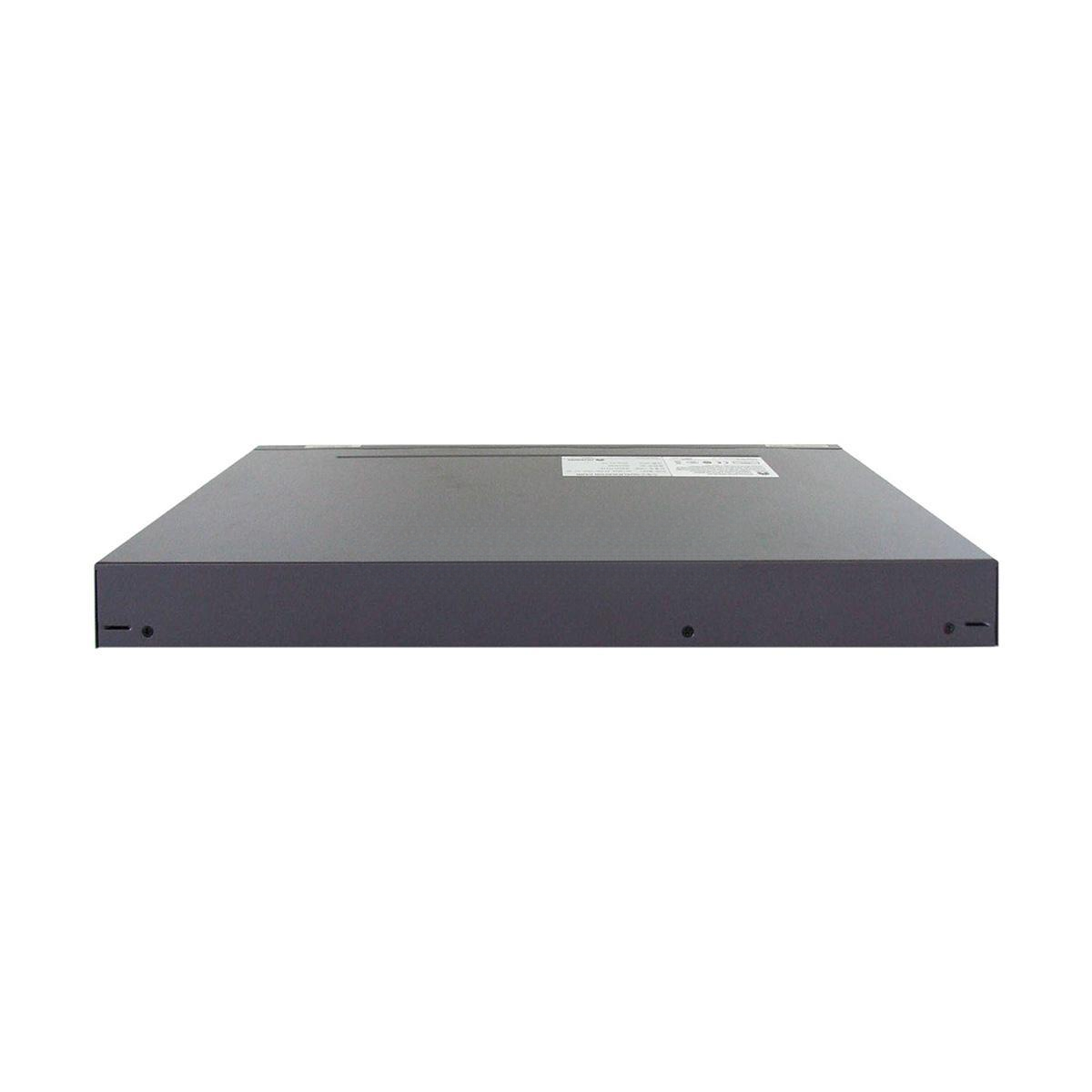

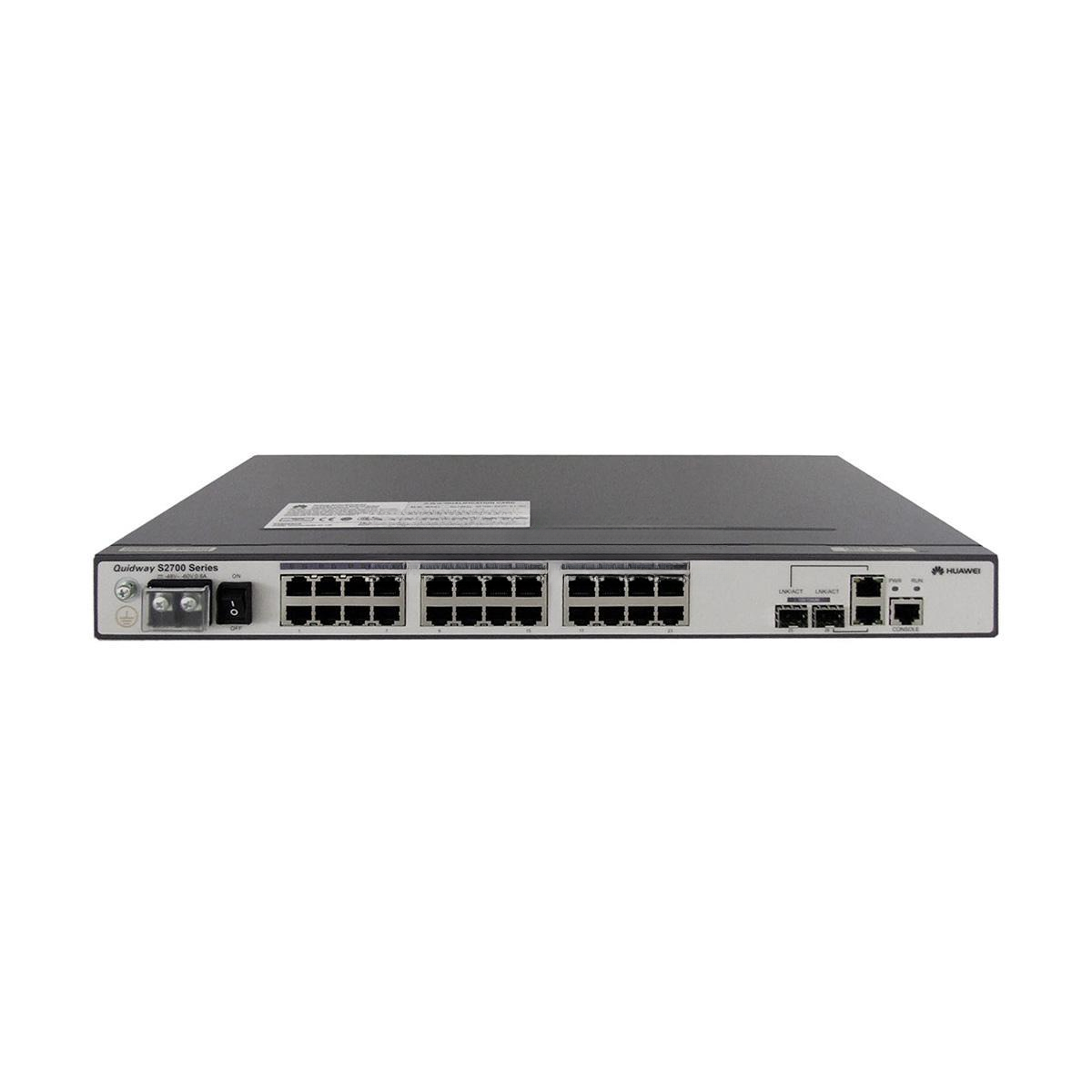

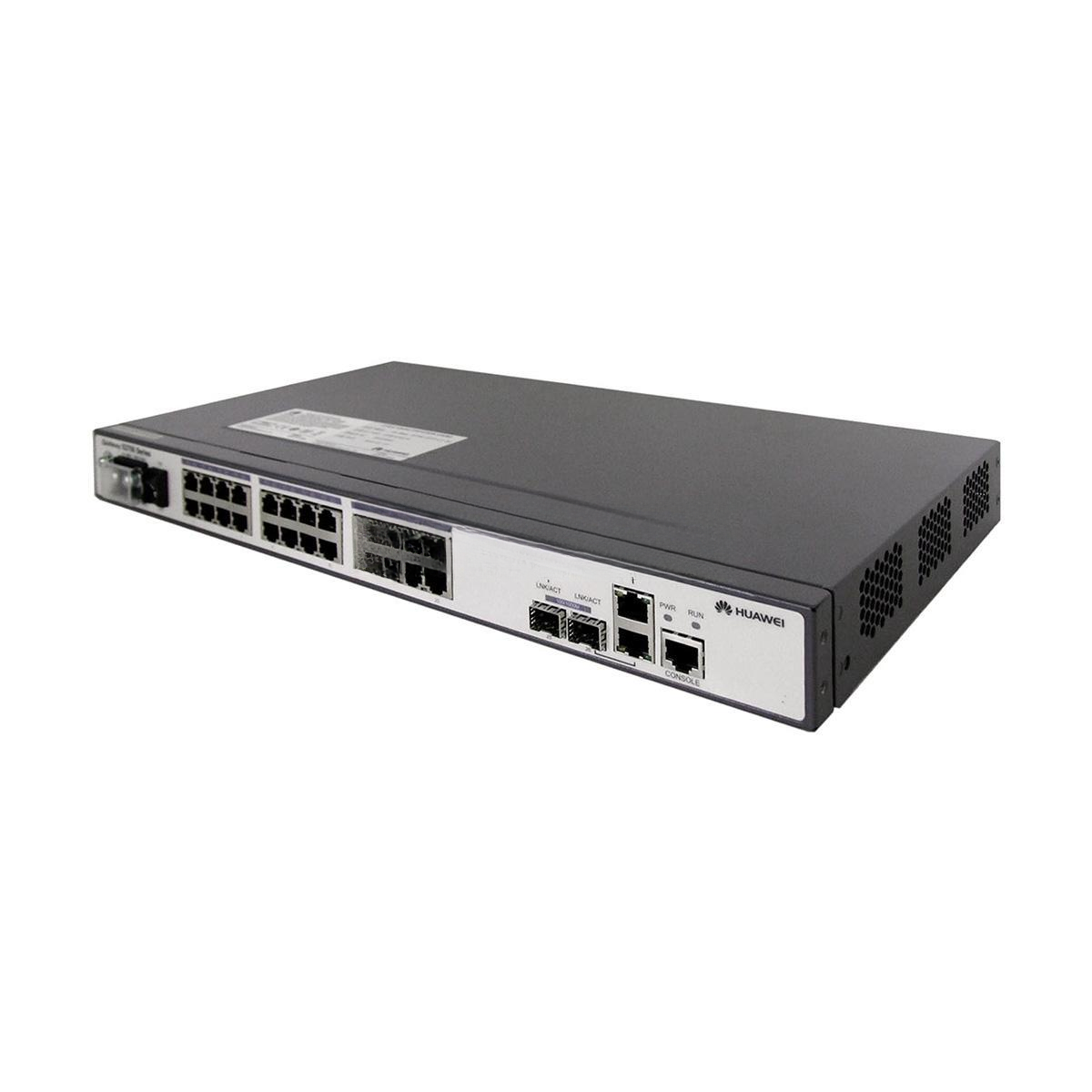

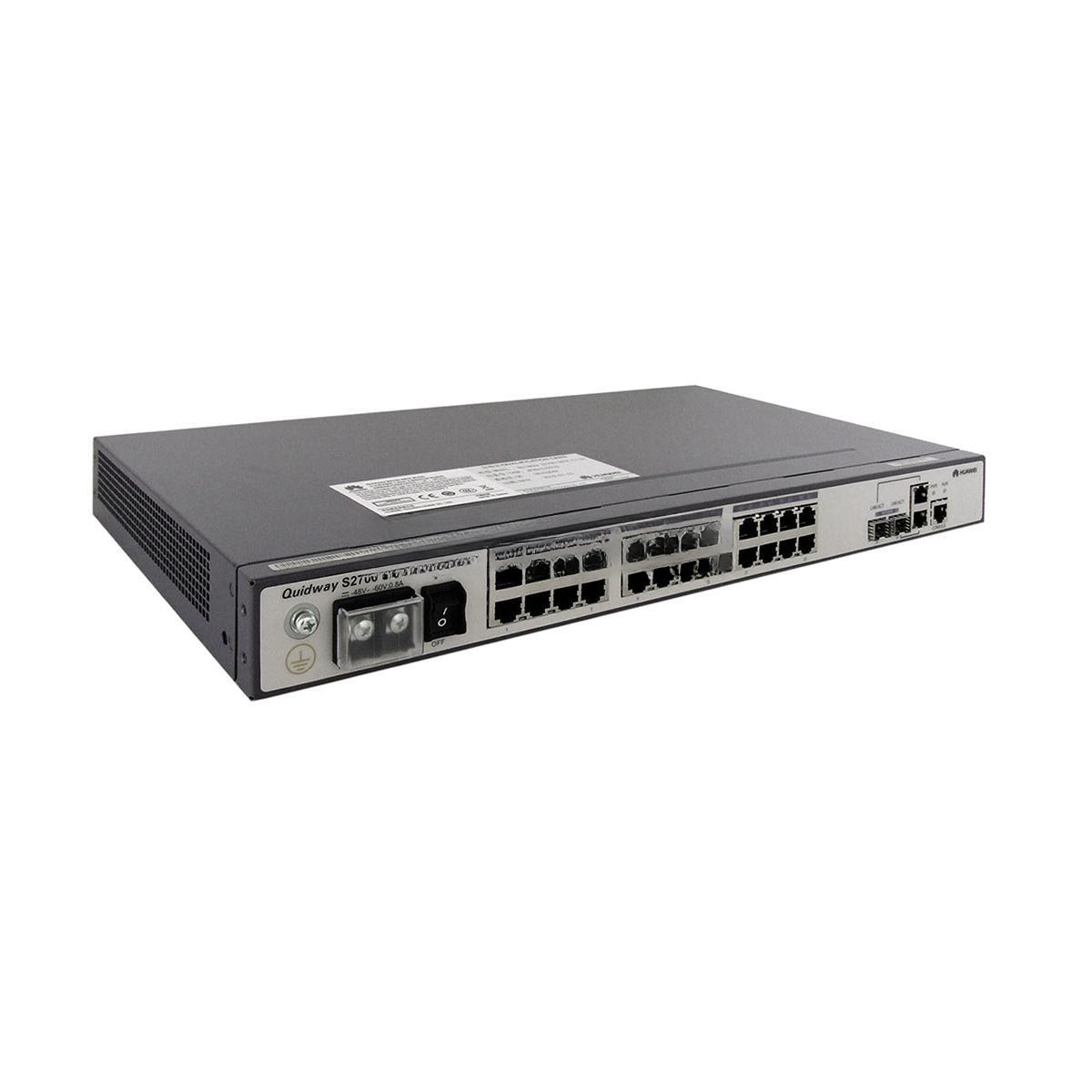

S2700-26TP-EI-DC Huawei High Quality 24-Port Gigabit Ethernet Switch
The S2700-26TP-EI-DC Huawei is a cost-effective, high-performance Layer 2 Ethernet switch designed for small to medium-sized enterprise networks, campus access layers, and secure departmental networking. Featuring 24 Fast Ethernet ports plus 2 dual-purpose uplink ports, this model provides flexible deployment, reliable DC power supply, and advanced security and management features.
Key Features
-
Model: S2700-26TP-EI-DC
-
Condition: 100% Brand New, Original Huawei
-
Switch Type: Layer 2 Managed Ethernet Switch
-
Ports: 24 x 10/100BASE-T Ethernet ports + 2 combo GE uplink ports (RJ45/SFP)
-
Power Supply: Fixed 1 x DC power module for stable and efficient operation
-
Forwarding Performance: High-speed switching with large MAC address table
-
Energy Efficient: Intelligent power management and fanless design for low noise and power savings
-
Security: Supports 802.1X authentication, DHCP snooping, port security, ARP inspection, and ACLs
-
Management: Intuitive CLI, SNMP, web-based GUI, and support for Huawei iManager NMS
-
Reliability: Surge protection, loop prevention, and link aggregation for network stability
Tech Specs
| Item | Description |
|---|---|
| Fixed Ports | 24× 10/100Base-TX Ethernet ports, 2 dual-purpose 10/100/1000 or SFP |
| Forwarding Performance | 6.6 Mpps |
| MAC Address Table | – 8K MAC address entries – Manual deletion of dynamic MAC entries – Configurable MAC aging time – Disable MAC learning per port/aggregation – Blackhole MAC addresses – MAC learning control by port |
| VLAN Features | – IEEE 802.1Q VLANs – Up to 4K active VLANs – Port-based VLAN assignment – MAC address-based VLAN assignment – Port-based QinQ |
| QoS | – Port-based & flow-based rate limiting – 4 or 8 priority queues per port – 802.1p priority to queue mapping – SP, WRR, SP+WRR scheduling algorithms |
| IPv6 Features | – IPv6 protocol support – MLD v1/v2 snooping – Static IPv6 routes |
| Multicast | – MVLAN support – IGMP v1/v2/v3 snooping – Port-based multicast rate limiting – Controllable multicast |
| Reliability | – STP (802.1d) – RSTP (802.1w) – MSTP (802.1s) – RRPP topology & multi-instance |
| Security & Access | – 802.1x authentication & user limit per interface – Storm suppression – IP Source Guard – AAA, RADIUS, TACACS+ authentication – 802.1x/MAC/MAC bypass authentication – DHCP snooping & relay – Port isolation & sticky MAC – Packet filtering by MAC address – Multicast/broadcast/unknown unicast suppression – MAC address learning limits – CPU defense |
| Surge Protection | Service port: 6 kV (PoE ports: 1 kV) |
| Management & Maintenance | – Automatic configuration – CLI configuration – Remote Telnet – SNMP v1/v2/v3 – SSHv2 – Web management |
| Power Supply | AC Rated: 100–240 V AC, 50/60 Hz AC Max: 90–264 V AC, 50/60 Hz |
| Operating Environment | – Temperature: –5°C to +50°C – Humidity: 10%–90% RH (non-condensing) |
| Dimensions (W×D×H) | 442 mm × 220 mm × 43.6 mm |
| Weight | < 2.4 kg |
| Power Consumption | < 15.5 W |
S2700-26TP-EI-DC Huawei Applications
The S2700-26TP-EI-DC is ideally suited for:
• Enterprise Campus Access: Stable connectivity for workstations, IP phones, and wireless APs
• Branch Office Networks: Secure VLAN segmentation and uplinks for remote sites
• SMB Access Layer: Reliable, affordable switch for business-critical applications
• Industrial & Commercial: Rugged DC power option for industrial environments
Customization & Value-Added Services
• Pre-Configuration: Ready-to-deploy VLANs, QoS, and port security
• OEM Branding: Private labeling and custom packaging for resellers and system integrators
• Bulk Bundling: Site-ready kitting with patch cords, transceivers, and rack mounts
• Burn-In Testing: Enhanced reliability for mission-critical installations
S2700-26TP-EI-DC Huawei Wholesale & Bulk Supply
• Competitive Factory Pricing: Attractive rates for large orders
• Global Delivery: Secure export packaging and fast international shipping
• Dedicated Account Managers: Support for planning, procurement, and deployment
• Steady Stock: Consistent availability to meet tight project timelines
• Genuine Huawei Warranty: Backed by Huawei’s official warranty and full technical support
Why Choose Us
100% Original Huawei — Fully tested and certified
Flexible OEM — Custom solutions to match your branding and network needs
Competitive Pricing — Ideal for resellers, VARs, and project integrators
Professional Logistics — Safe, reliable global fulfillment
Expert Technical Support — End-to-end assistance from planning to maintenance
S2700-26TP-EI-DC Huawei Contact Us for Best Pricing
Enhance your network with the S2700-26TP-EI-DC Huawei 24-Port High Quality 1 DC Power Fixed Switch — the perfect choice for reliable, secure, and energy-efficient Layer 2 switching for modern business environments.
