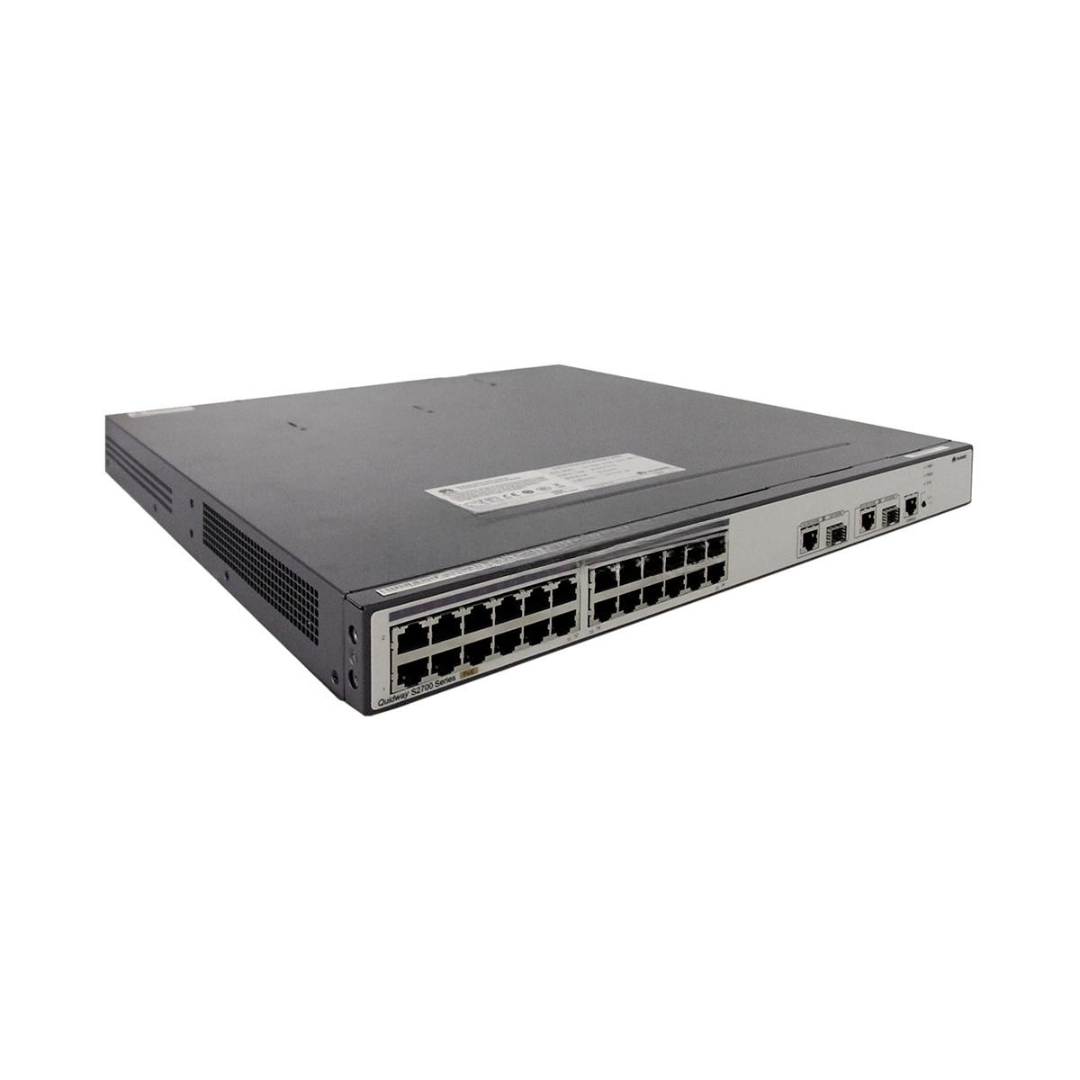

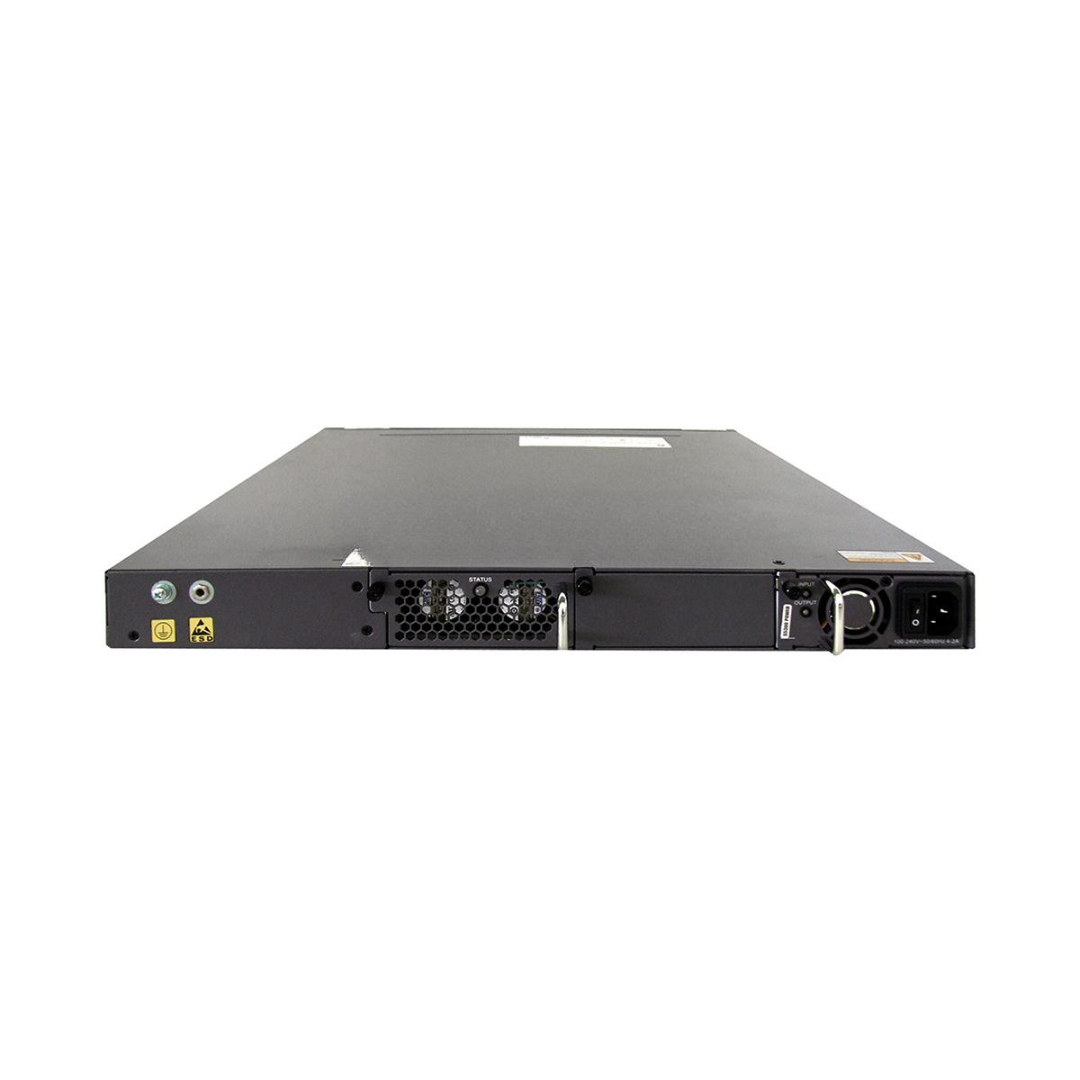

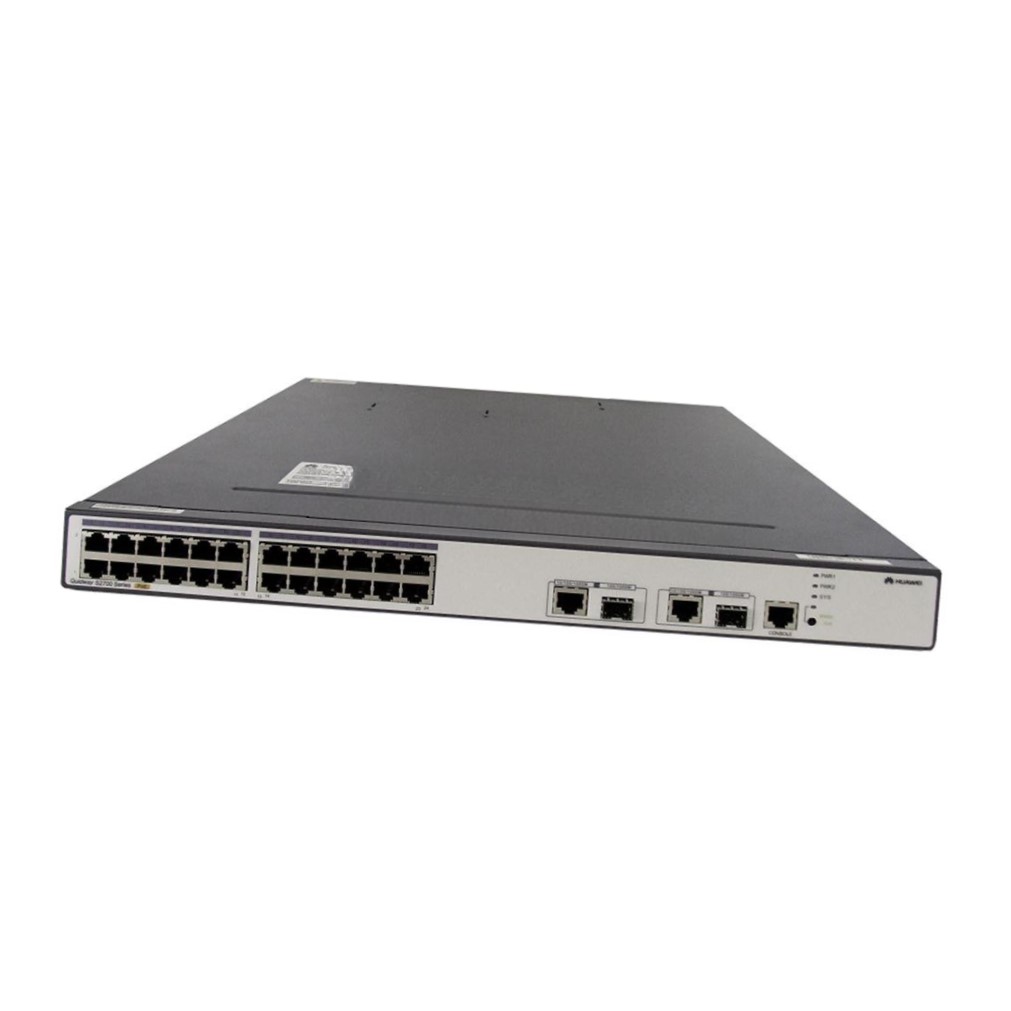

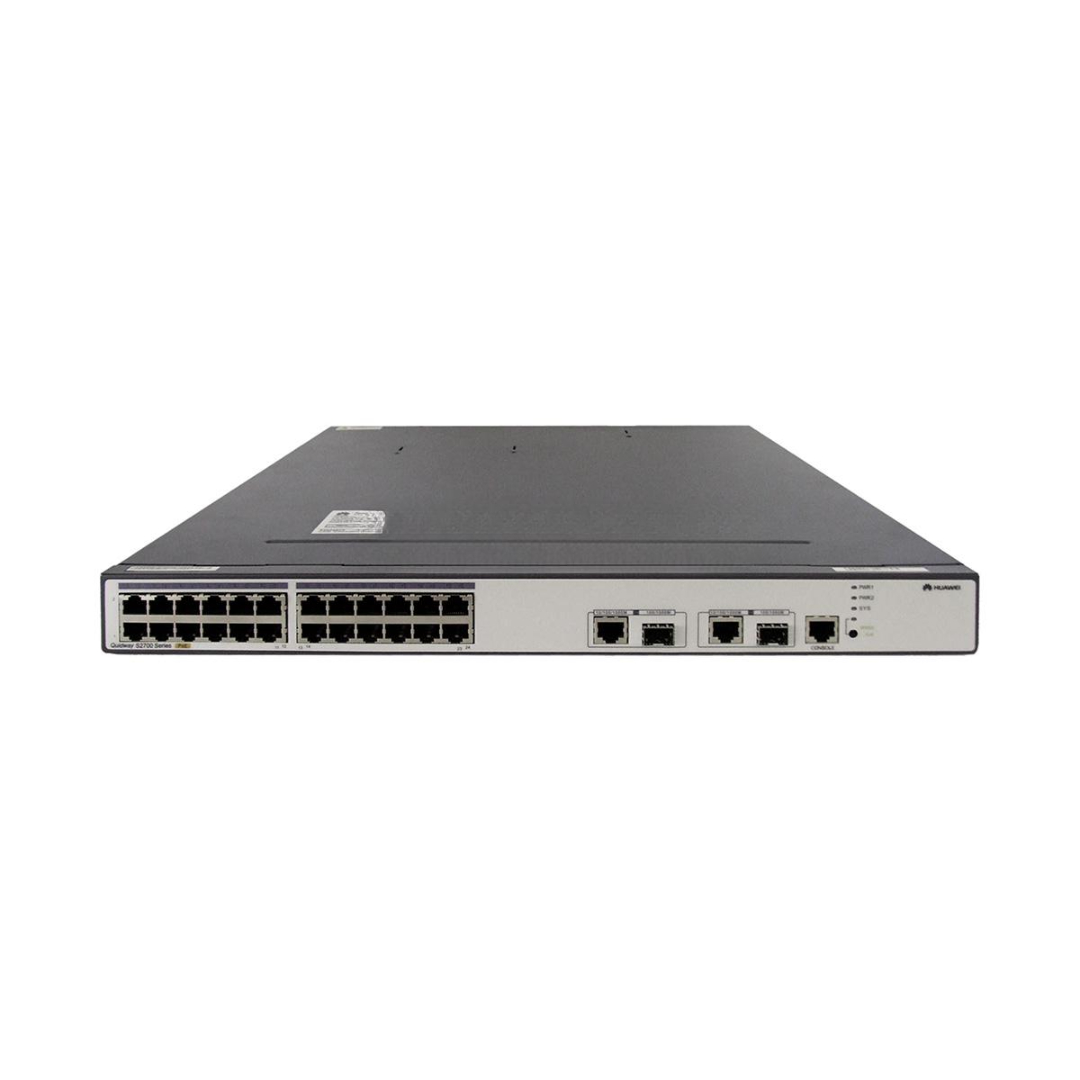

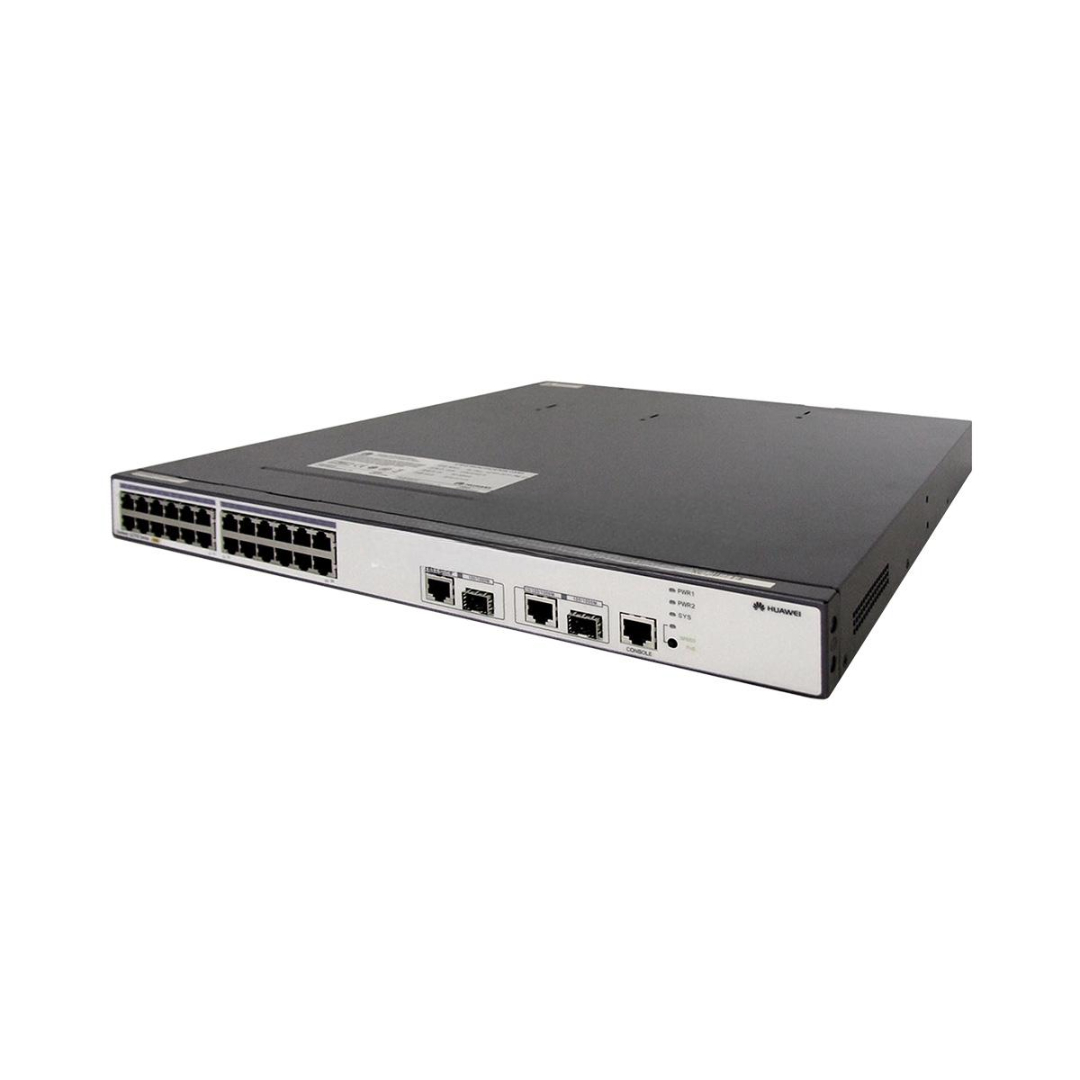

S2700-26TP-PWR-EI-AC Huawei Brand New 24-Ports Power Module
The S2700-26TP-PWR-EI-AC Huawei is a brand new Huawei Layer 2 Ethernet switch with built-in 24 PoE-enabled Fast Ethernet ports, ideal for powering devices such as IP phones, access points, and surveillance cameras. It includes 2 Gigabit uplink combo ports and an integrated AC power module, delivering reliable switching and PoE performance in a compact form factor. Engineered for small to medium-sized enterprises, branch offices, and smart campus networks, this switch balances high availability, energy efficiency, and simplified network management.
Designed as part of Huawei’s S2700-EI series, the S2700-26TP-PWR-EI-AC offers enhanced Layer 2 switching capabilities, advanced PoE power management, and robust security features — making it ideal for converged data and power transmission in modern enterprise environments.
Key Features
Model: S2700-26TP-PWR-EI-AC
Condition: 100% Brand New, Original Huawei
Access Ports: 24 × 10/100Base-TX PoE+ ports
Uplink Ports: 2 × Combo GE (RJ45/SFP) ports
PoE Standards: IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
PoE Power Budget: Up to 370W (with full AC input)
Switching Capacity: 12.8 Gbps
Forwarding Performance: 9.6 Mpps
MAC Address Table: 8K entries
Enhanced Image (EI): Supports advanced VLAN, security, QoS, and management functions
Security Features: DHCP snooping, MAC filtering, port security, broadcast storm control
Energy-Saving: Smart PoE scheduling and power adjustment
Cooling: Intelligent fan speed control
Form Factor: 1U rack-mountable metal chassis
Technical Specifications
| Specification | Details |
|---|---|
| Model | S2700-26TP-PWR-EI-AC |
| Type | Layer 2 Fast Ethernet PoE Switch |
| Access Ports | 24 × 10/100Base-TX PoE+ |
| Uplink Ports | 2 × Combo GE RJ45/SFP |
| PoE Power Output | Up to 30W per port (IEEE 802.3at) |
| PoE Budget | Max. 370W (AC power input) |
| Switching Capacity | 12.8 Gbps |
| Forwarding Rate | 9.6 Mpps |
| MAC Address Table | 8K entries |
| VLAN Support | Up to 4K VLANs |
| QoS Capabilities | Priority queuing, port-based traffic shaping |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions (W×D×H) | 442 mm × 220 mm × 43.6 mm |
| Weight | Approx. 4.2 kg |
| Installation Type | 1U Rack Mountable |
| Compliance | CE, FCC, RoHS, WEEE, REACH |
| Warranty | 1–3 Years Manufacturer Warranty |
S2700-26TP-PWR-EI-AC Huawei Applications
- Small and Medium Enterprises (SMEs) — Simplified wired network and PoE deployment
- Retail Chains & Branch Offices — Power + data for POS systems, IP cameras, and Wi-Fi APs
- Education Sector — Reliable edge switch for classrooms and student access networks
- Healthcare and Clinics — Secure and stable connection for surveillance and communication devices
- Smart Building Systems — Centralized PoE power for smart lighting, sensors, and IP-based infrastructure
Customization & OEM Options
Private Label Service — Custom branding with your logo and packaging design
Pre-configured Settings — VLANs, SNMP, IP addressing, and port settings configured prior to delivery
PoE Profile Customization — Set per-port power limits or time-based power control
Rugged Model Options — Enhanced variants with conformal coating or extended temp support
Power Cord Localization — Region-specific AC cable (EU, UK, US, AU types) supplied on request
Integrated Accessory Packs — Optional bundles with SFP modules, rack brackets, and patch cords
S2700-26TP-PWR-EI-AC Huawei Wholesale & Global Supply
Bulk Order Availability — Huawei original stock ready for global enterprise rollouts
OEM Pricing Advantage — Special pricing tiers for integrators and distributors
Secure Packaging — Anti-static protection, OEM foam box for global shipping
Compliance Documentation — Full export compliance and certification available
Fast Shipping — Dispatch within 24–48 hours for ready stock
Technical Support — Integration advice, firmware updates, and post-sales assistance
Why Choose the S2700-26TP-PWR-EI-AC Huawei PoE Switch
- Reliable PoE+ Output — Up to 30W per port for high-power devices
- Huawei Build Quality — Enterprise-grade durability and consistent performance
- Simple Management — Easy setup via CLI, Web UI, or SNMP-based tools
- Compact & Efficient — Low power consumption and quiet fan control
- Cost-Effective Deployment — Feature-rich PoE switch at affordable price
- Secure Network Edge — Prevents unauthorized access and broadcast storms
Get in Touch for Pricing, Datasheets & Bulk Orders
Upgrade your access layer with the Huawei S2700-26TP-PWR-EI-AC, a dependable 24-port PoE switch designed for smart, efficient, and scalable networking. Contact us now for custom quotations, OEM branding, and wholesale procurement options.
