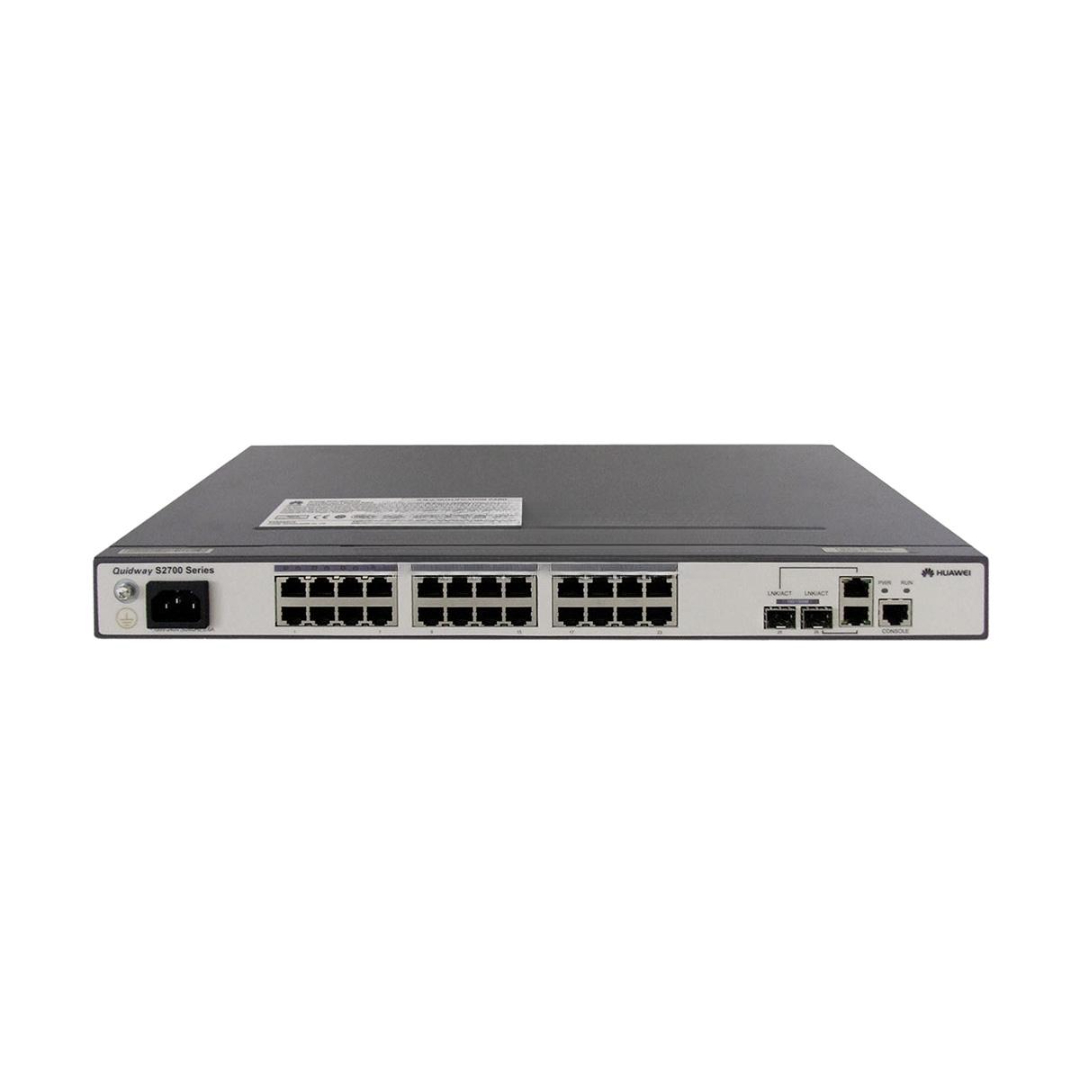

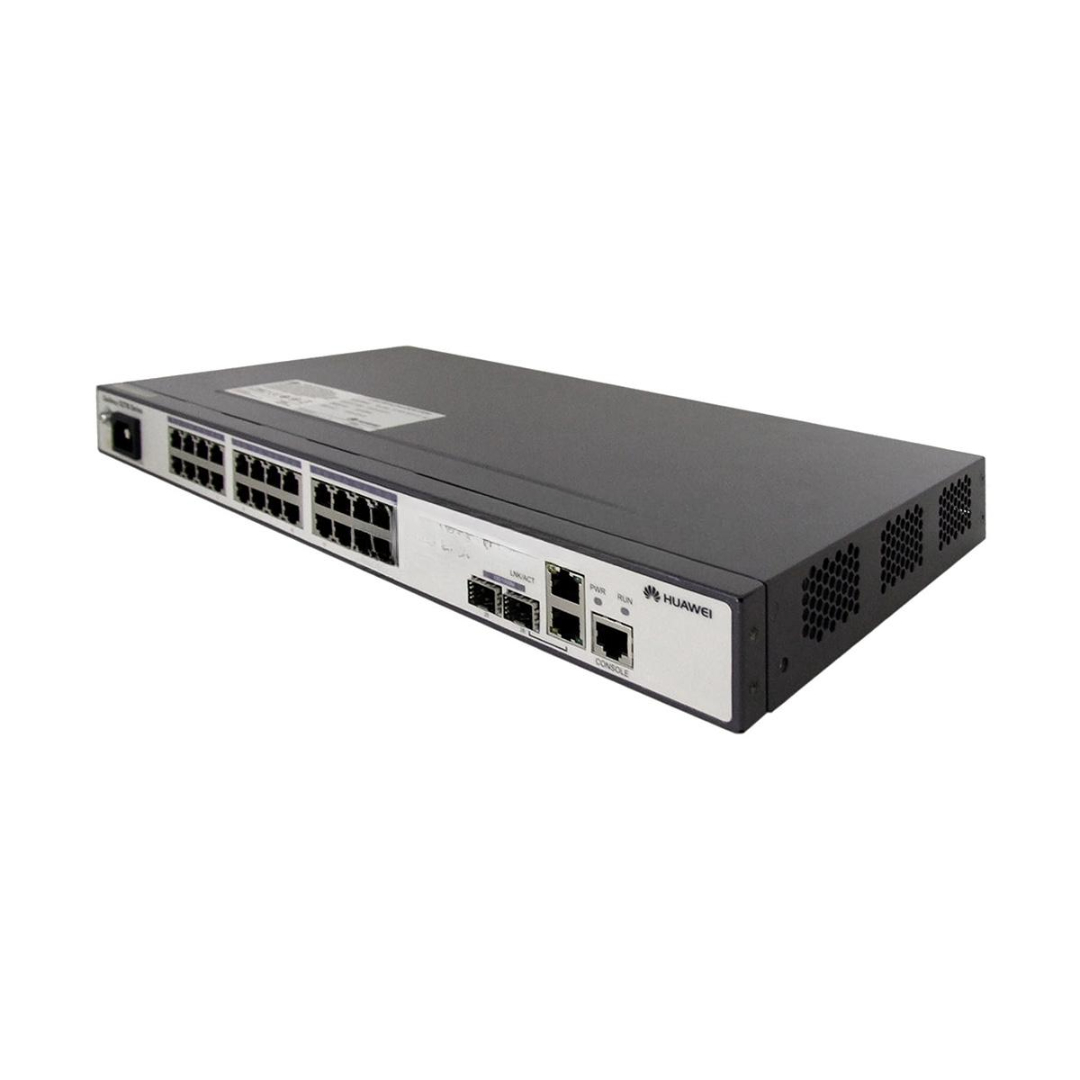

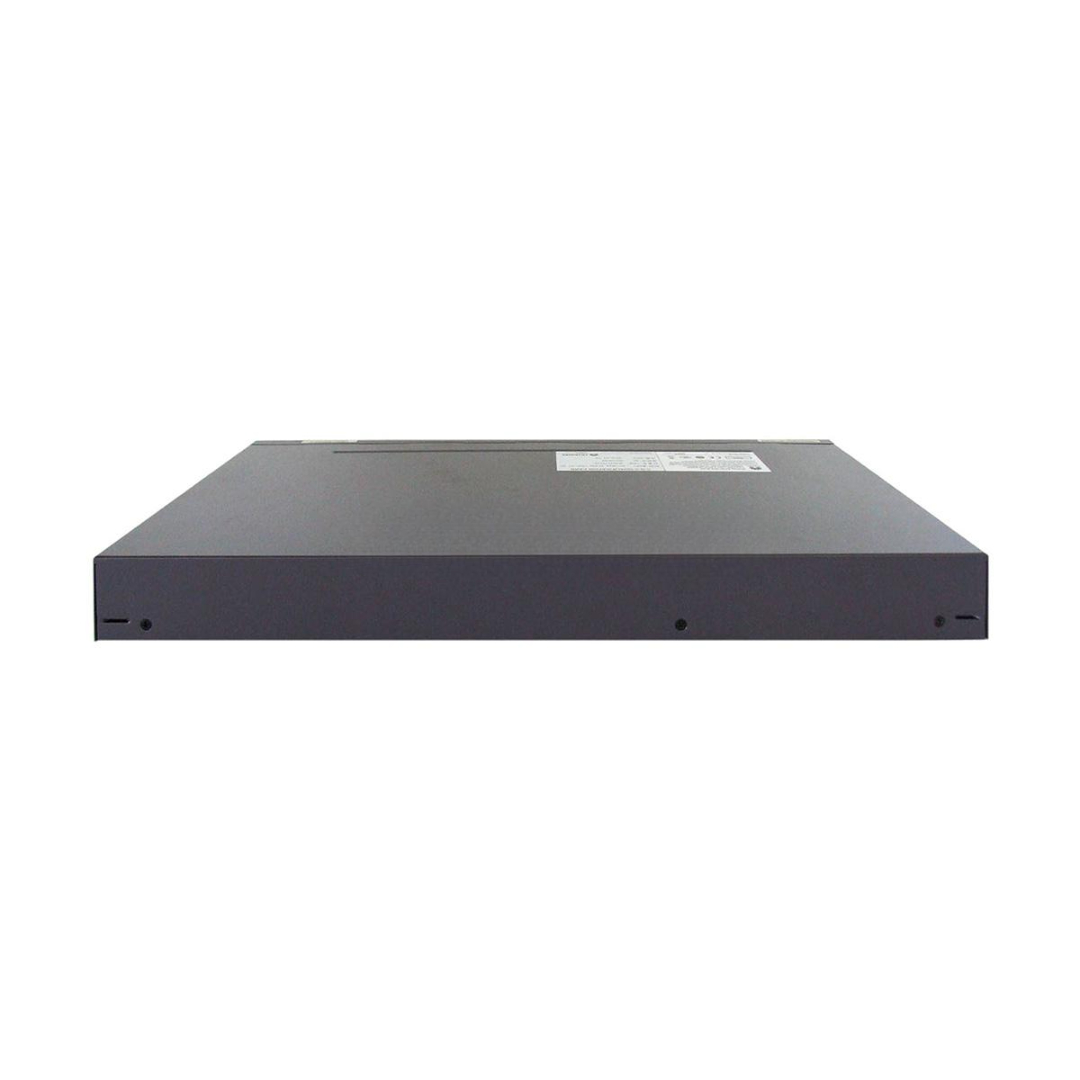

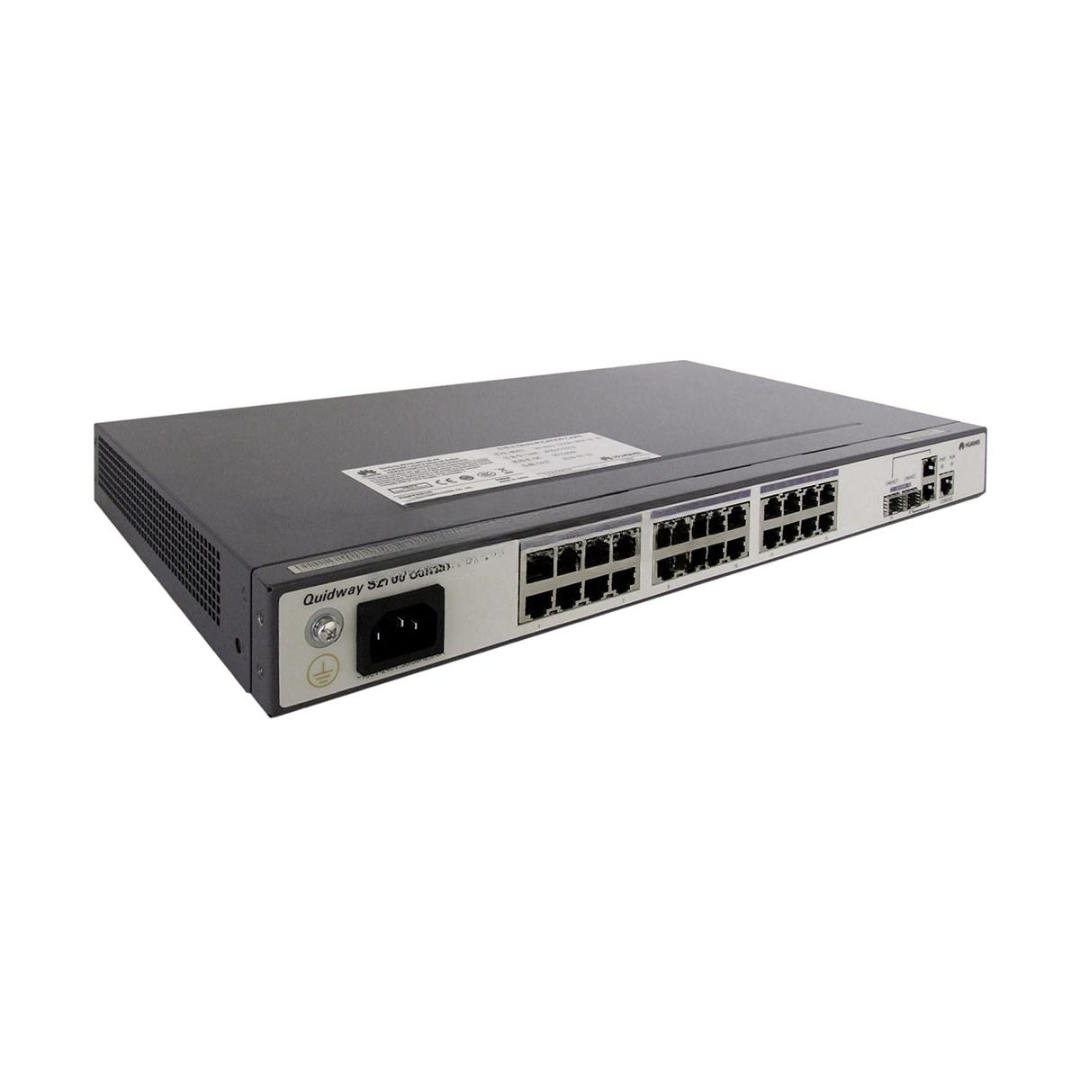

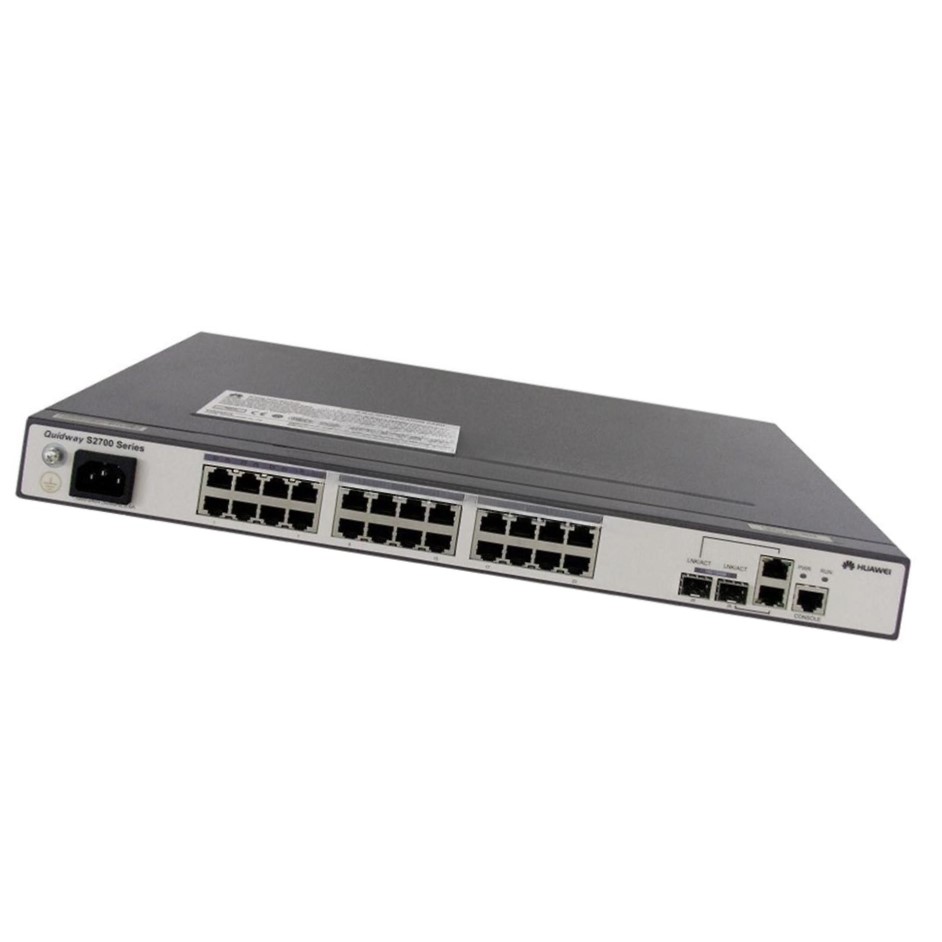

S2700-26TP-SI-AC Huawei High Quality 24-Port Ethernet Switch with Fixed AC Power
The S2700-26TP-SI-AC Huawei is a Layer 2 Fast Ethernet switch tailored for enterprise access, small business, and campus networks. It features 24 10/100Base-TX ports, 2 Gigabit combo uplink ports (RJ45/SFP), and a fixed AC power supply. Designed for reliable, energy-efficient, and secure performance, this model supports essential switching features, making it an excellent choice for cost-effective, high-density deployments.
Key Features
- Model: S2700-26TP-SI-AC
- Condition: 100% Brand New, Original Huawei
- Port Configuration: 24 × 10/100Base-TX + 2 × Combo GE (RJ45/SFP)
- Switching Capacity: 8.8 Gbps
- Forwarding Rate: 6.6 Mpps
- Power Supply: Built-in AC Power (1x AC, fixed)
- Layer Support: Layer 2 switching with QoS and security features
- Quiet Operation: Fanless design for office and quiet environments
- Energy Efficient Ethernet: Power-saving technology included
Technical Specifications
| Specification | Details |
|---|---|
| Model | S2700-26TP-SI-AC |
| Switching Capacity | 8.8 Gbps |
| Forwarding Rate | 6.6 Mpps |
| Fixed Ports | 24 × 10/100Base-TX |
| Uplink Ports | 2 × Combo GE (10/100/1000 RJ45 or SFP) |
| MAC Address Table | 8K entries |
| VLAN Support | Up to 4K VLANs |
| QoS | 4 queues per port, traffic shaping, WRR |
| Security | 802.1x, MAC address filtering, port security |
| Dimensions (W×D×H) | 442 mm × 220 mm × 43.6 mm |
| Weight | ≤ 3.5 kg |
| Power Supply | 100–240V AC, 50/60Hz (fixed) |
| Power Consumption | ≤ 20W |
| Operating Temperature | 0°C to 45°C |
| Humidity | 5% to 95% RH, non-condensing |
| Mounting Options | Desktop or rack-mounted |
| Warranty | 1–3 Years Manufacturer Warranty |
Applications of S2700-26TP-SI-AC Huawei
- Enterprise Access Networks – Aggregation of desktop and wireless traffic
- Campus Deployments – Department-level switching in schools and universities
- Retail & Office Spaces – Quiet and efficient LAN switching
- SMBs & Small Offices – Simple Layer 2 switching with Gigabit uplinks
- Security Networks – Aggregates IP camera traffic for small-scale surveillance
Customization & OEM Options
- Brand Customization – Private labeling with logo and packaging
- Pre-Configured Settings – VLANs, port mirroring, or STP enabled before shipment
- Custom Kits – Bundle with fiber SFPs, patch cords, and mounting brackets
- Enhanced QA Options – Factory burn-in and stress testing for long-term use
- Localized Firmware – Multi-language UI or CLI configurations available
Wholesale & Global Supply Information
- Bulk Purchase Deals – Competitive discounts for system integrators and resellers
- OEM-Certified Stock – Authentic Huawei devices with original firmware
- Fast Delivery Worldwide – Ready-to-ship inventory with secure packaging
- Flexible Shipping Options – Air freight, express courier, or sea freight
- Tech Support – Remote configuration support and installation guidance
Why Choose the S2700-26TP-SI-AC Huawei
Reliable Access Switching – Ideal for SMBs and branch networks
Energy-Saving & Quiet – No fans, low power consumption
Gigabit Uplinks – Combo ports support flexible core access
Huawei Quality – Stable and durable telecom-grade performance
Value-Oriented – Cost-effective solution for basic LAN connectivity
Contact Us for Quotes, Datasheets, and Bulk Orders
Get in touch today to request pricing, stock availability, and technical documentation for the Huawei S2700-26TP-SI-AC. Trusted by global enterprises and IT professionals for dependable network infrastructure.
