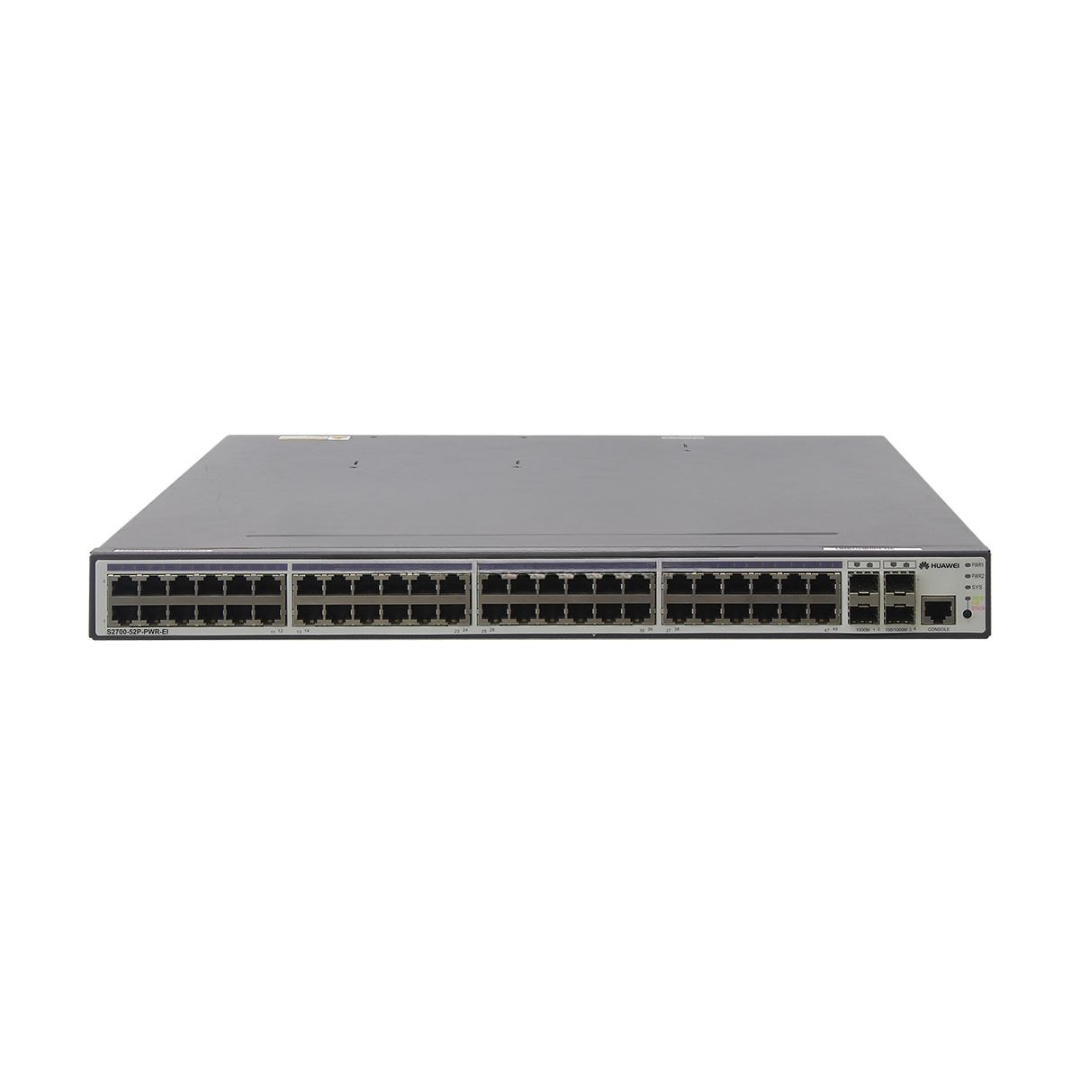

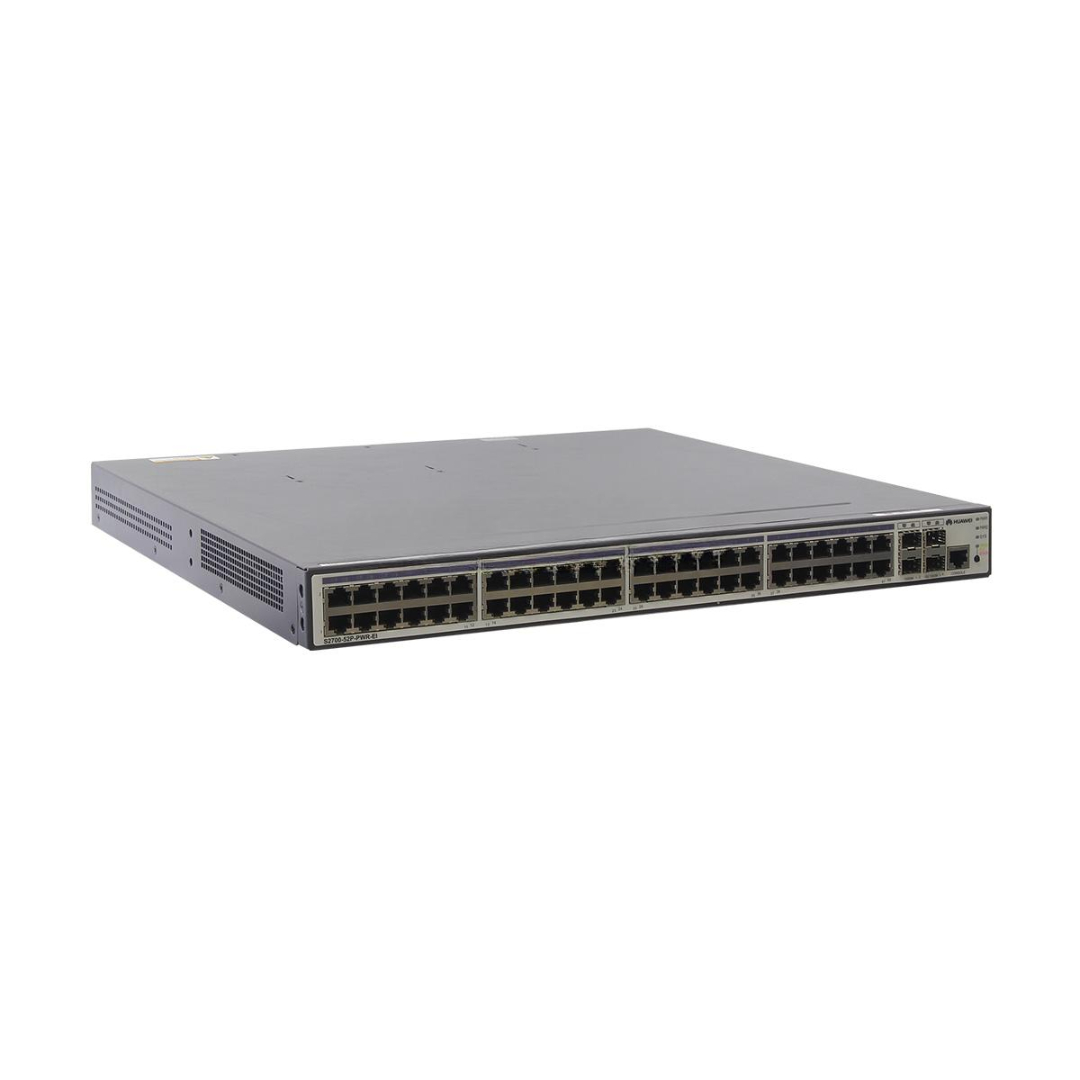

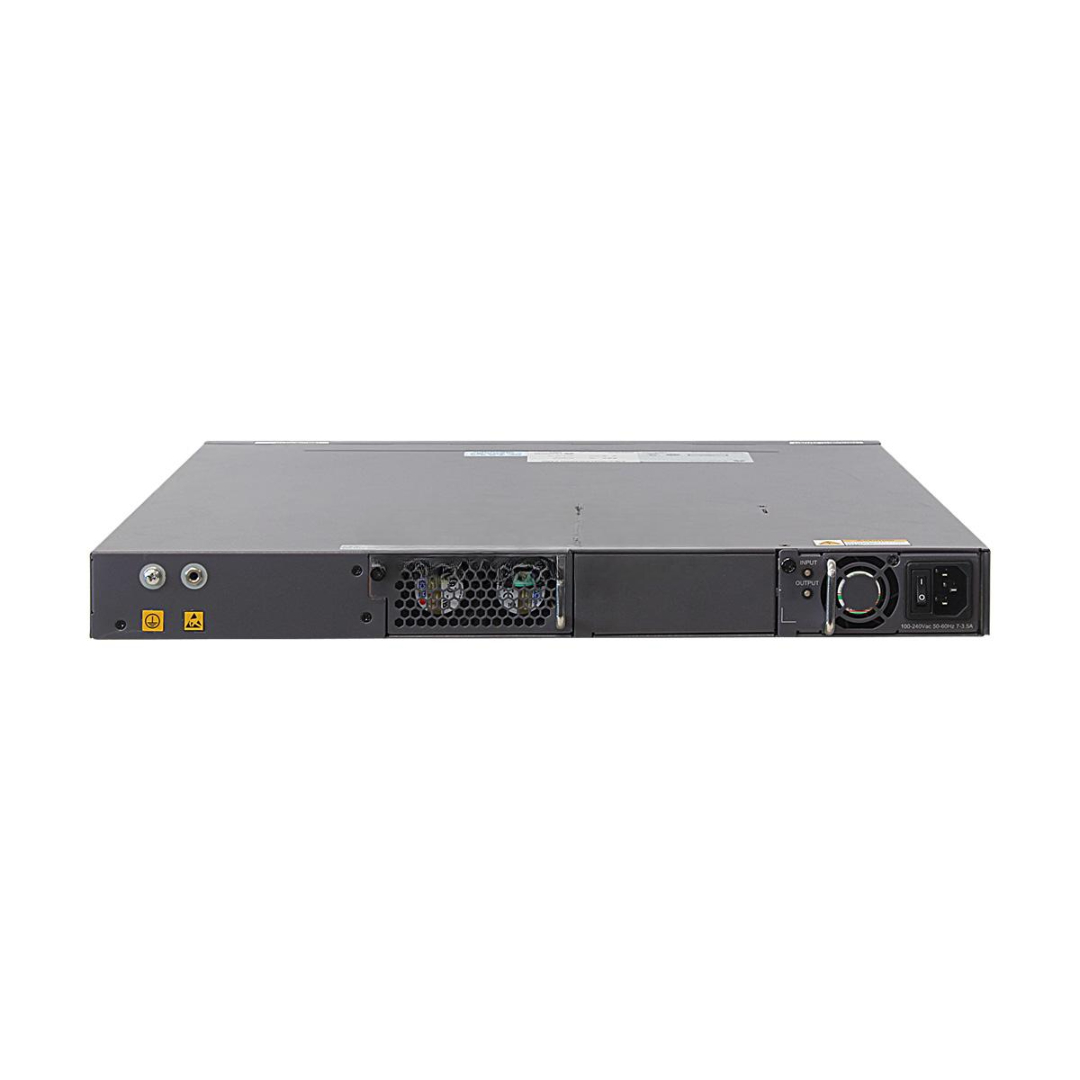

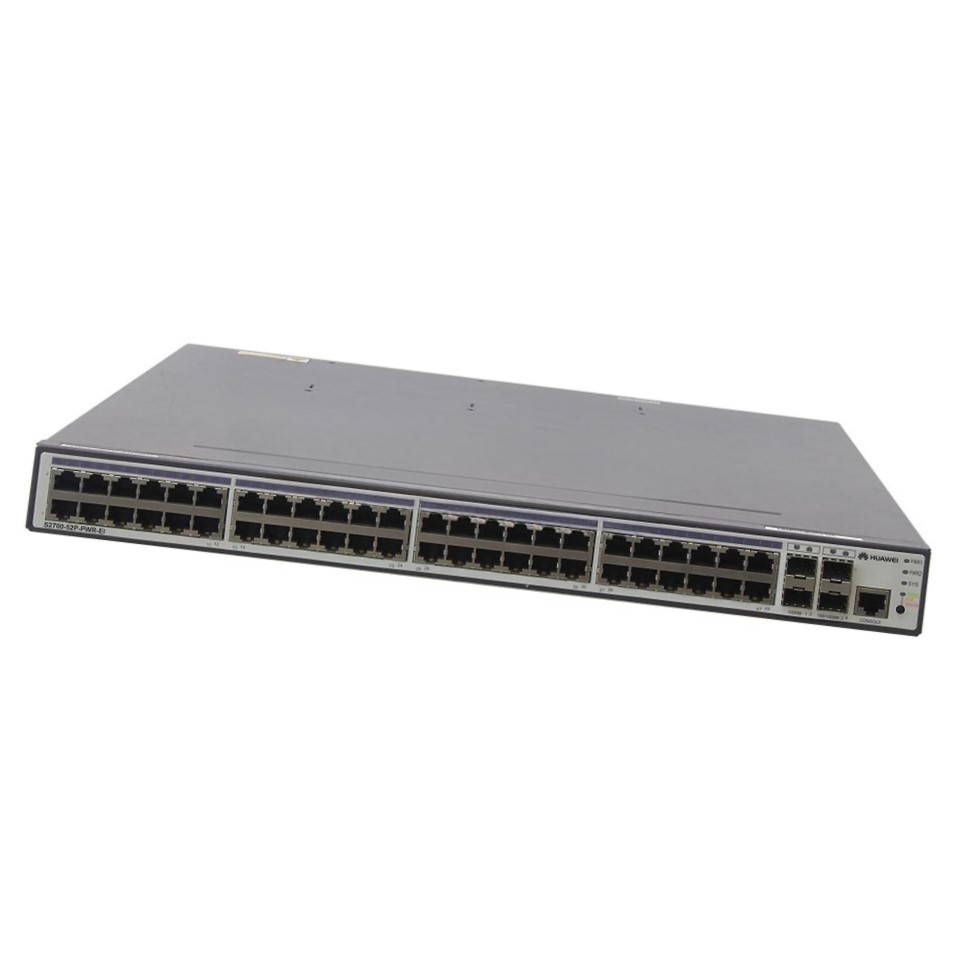

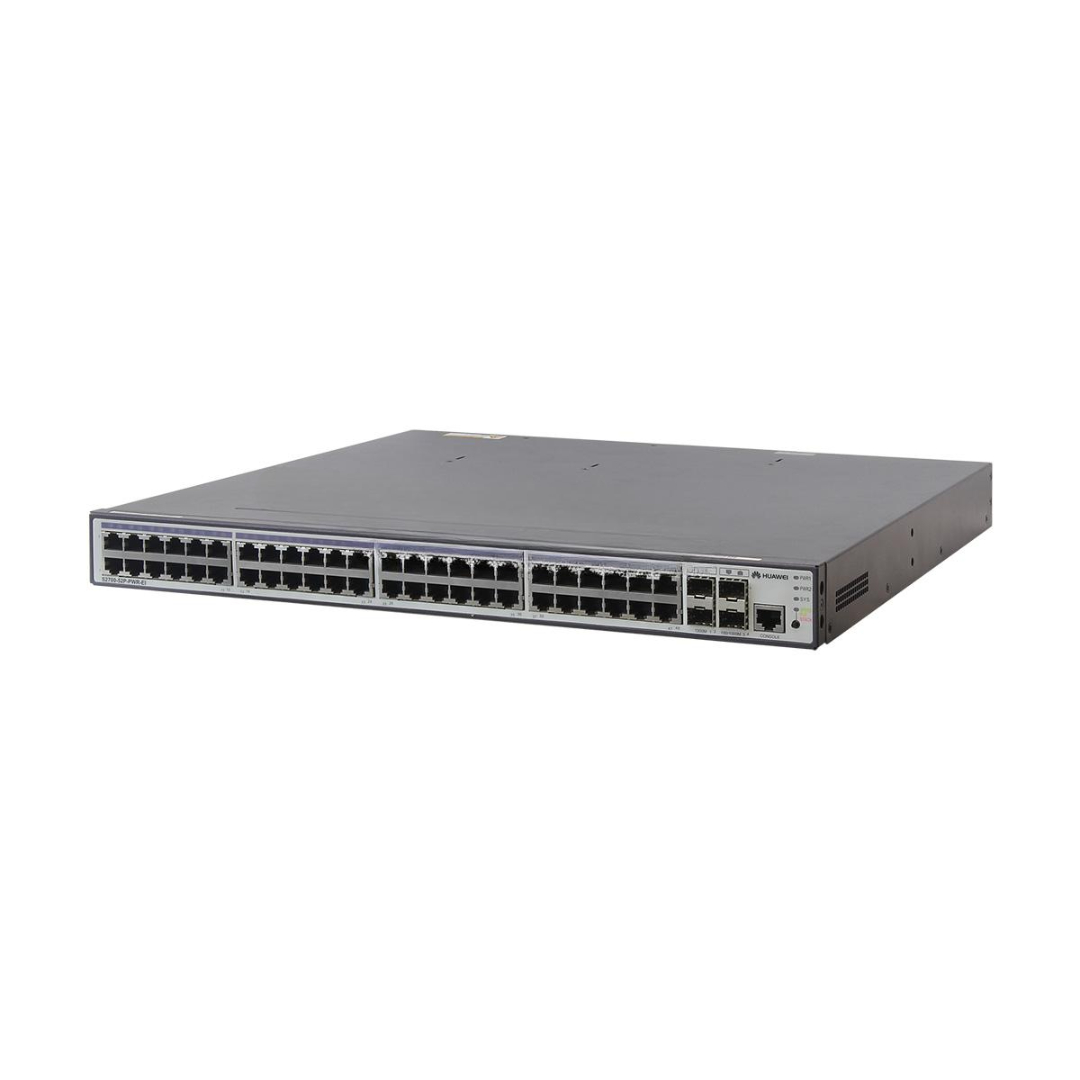

S2700-52P-PWR-EI Huawei Brand New Power Module Equipped Ethernet Switch
The S2700-52P-PWR-EI Huawei is a fully managed, enterprise-grade switch equipped with a built-in AC power module and PoE+ (Power over Ethernet Plus) capabilities. Designed to deliver intelligent, secure, and scalable Layer 2 networking, this model is part of Huawei’s S2700 Enterprise Switch Series — ideal for enterprise campus networks, small to medium-sized business infrastructures, and industry networks with high-density access and PoE power supply requirements.
Key Features
Model: S2700-52P-PWR-EI
Condition: 100% Brand New, Original Huawei
Power Supply: Built-in AC Power Module (Integrated, no need for external PSU)
PoE Capability: IEEE 802.3af/at PoE+ support on 48 ports
Total PoE Power Budget: Up to 370W
Port Configuration: 48 × 10/100 Base-T Ethernet Ports + 4 × Gigabit SFP (optical uplinks)
Layer 2 Switching: Supports VLAN, STP/RSTP/MSTP, LACP, DHCP snooping, and more
Security Features: Port isolation, ARP inspection, MAC address filtering, 802.1x authentication
Management: CLI, SNMP v1/v2/v3, Telnet, Web GUI, RMON, NMS compatibility
Energy Efficiency: Intelligent energy-saving technology with low power consumption
Installation: Rack-mountable (1U), built-in fan for heat dissipation
Application Flexibility: Supports IP surveillance, Wi-Fi APs, and VoIP deployments
Technical Specifications
| Specification | Details |
|---|---|
| Model | S2700-52P-PWR-EI |
| Switch Type | Fully Managed Layer 2 Ethernet Switch |
| Ethernet Ports | 48 × 10/100 Base-T RJ45 |
| Uplink Ports | 4 × Gigabit SFP Optical Ports |
| Power Supply | Internal AC Power Module |
| PoE Standard | IEEE 802.3af (PoE) / 802.3at (PoE+) |
| Total PoE Power | Up to 370W |
| Switching Capacity | 17.6 Gbps |
| Packet Forwarding Rate | 6.6 Mpps |
| MAC Address Table Size | 8K |
| VLAN Support | Up to 4K VLANs |
| Dimensions (W × D × H) | 442 mm × 420 mm × 43.6 mm |
| Weight | ≤ 6.5 kg (fully loaded) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5%–95% RH, non-condensing |
| Installation | 19-inch rack-mountable |
| Warranty | 1–3 Years Manufacturer Warranty |
S2700-52P-PWR-EI Huawei Applications
-
Enterprise Access Switching – Ideal for high-density user access in enterprise LANs
-
IP Surveillance – Powers and connects IP cameras with robust PoE capabilities
-
VoIP Deployments – Delivers power and connectivity to IP phones across office floors
-
Wireless LAN Support – Supports PoE power for Wi-Fi access points in campus environments
-
Smart Building Networks – Simplifies cabling and power supply for smart IoT devices
Customization & OEM Options
-
Private Labeling & Branding – Custom labels and model codes with your company’s brand
-
Pre-Configuration Services – VLAN setup, port security, and IP addressing before shipping
-
Bundled Solutions – Combine with Huawei routers, SFP modules, and patch cords
-
PoE Power Budget Customization – Tailored configurations based on deployment requirements
-
Extended Burn-In Testing – Extra QA cycles for mission-critical environments
S2700-52P-PWR-EI Huawei Wholesale & Global Procurement
-
Bulk Availability – Direct from Huawei OEM channels with consistent stock supply
-
Global Delivery – Secure, fast, and customs-compliant shipping worldwide
-
Safe Transport Packaging – OEM anti-static bag, foam box, and shockproof packaging
-
Competitive Pricing – Attractive wholesale rates for telecom resellers and system integrators
-
Technical Integration Support – Assistance for network planning, PoE load balancing, and switch configuration
Why Choose the S2700-52P-PWR-EI Huawei Ethernet Switch
-
All-in-One Access Switch – Combines switching, PoE power, and uplink capabilities
-
Enterprise Reliability – Huawei’s proven carrier-grade hardware and software stability
-
Energy Efficient Design – Intelligent PoE management for optimized power usage
-
Scalable and Secure – Ideal for growing networks with strong Layer 2 features and access control
-
Global Availability & Support – Reliable supply chain and multilingual technical assistance
Contact Us Now for Pricing, Datasheets & Bulk Orders
Empower your enterprise or project network with the Huawei S2700-52P-PWR-EI — a powerful, high-density PoE switch designed for intelligent connectivity and robust performance.
Let us help you scale confidently with Huawei’s trusted technology.
