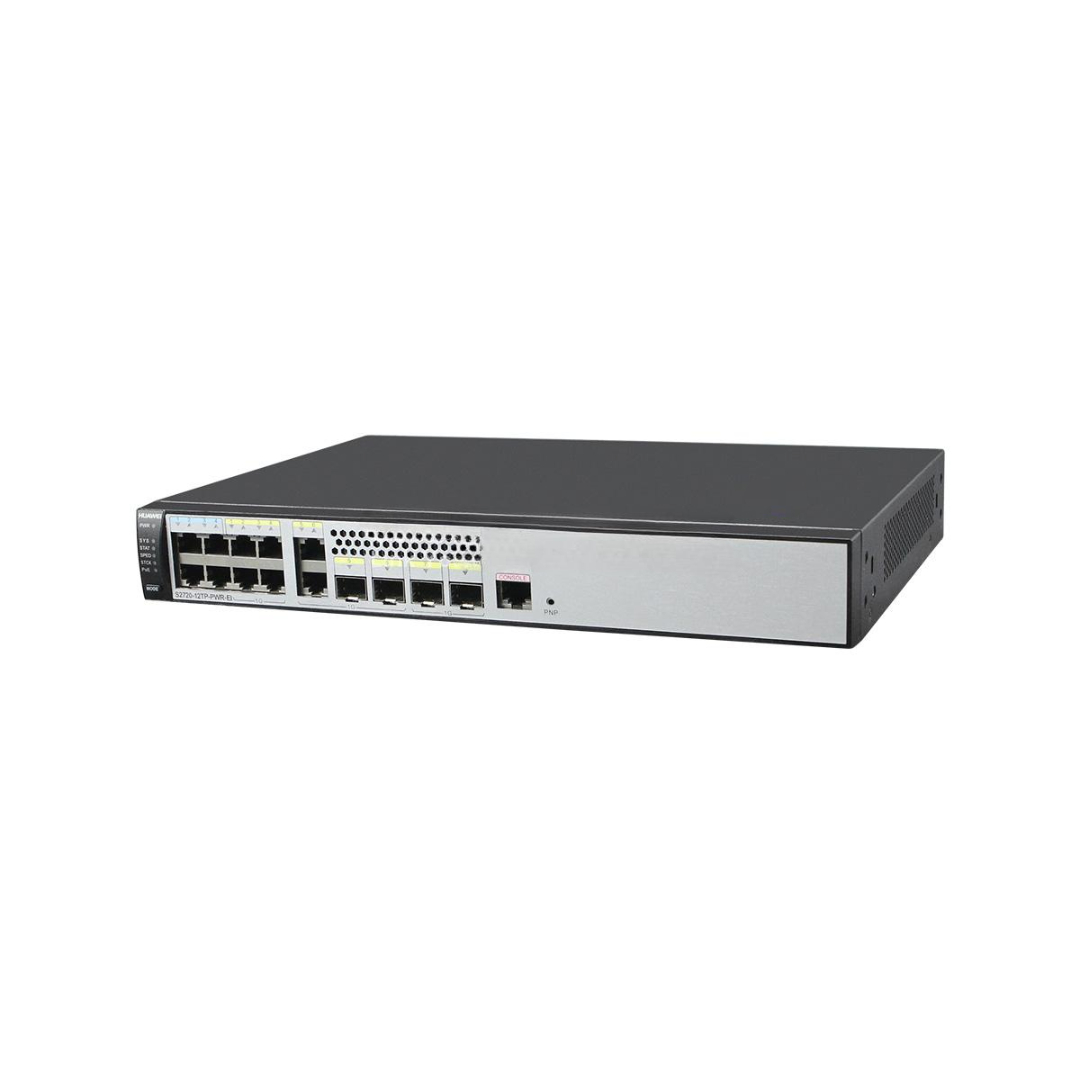

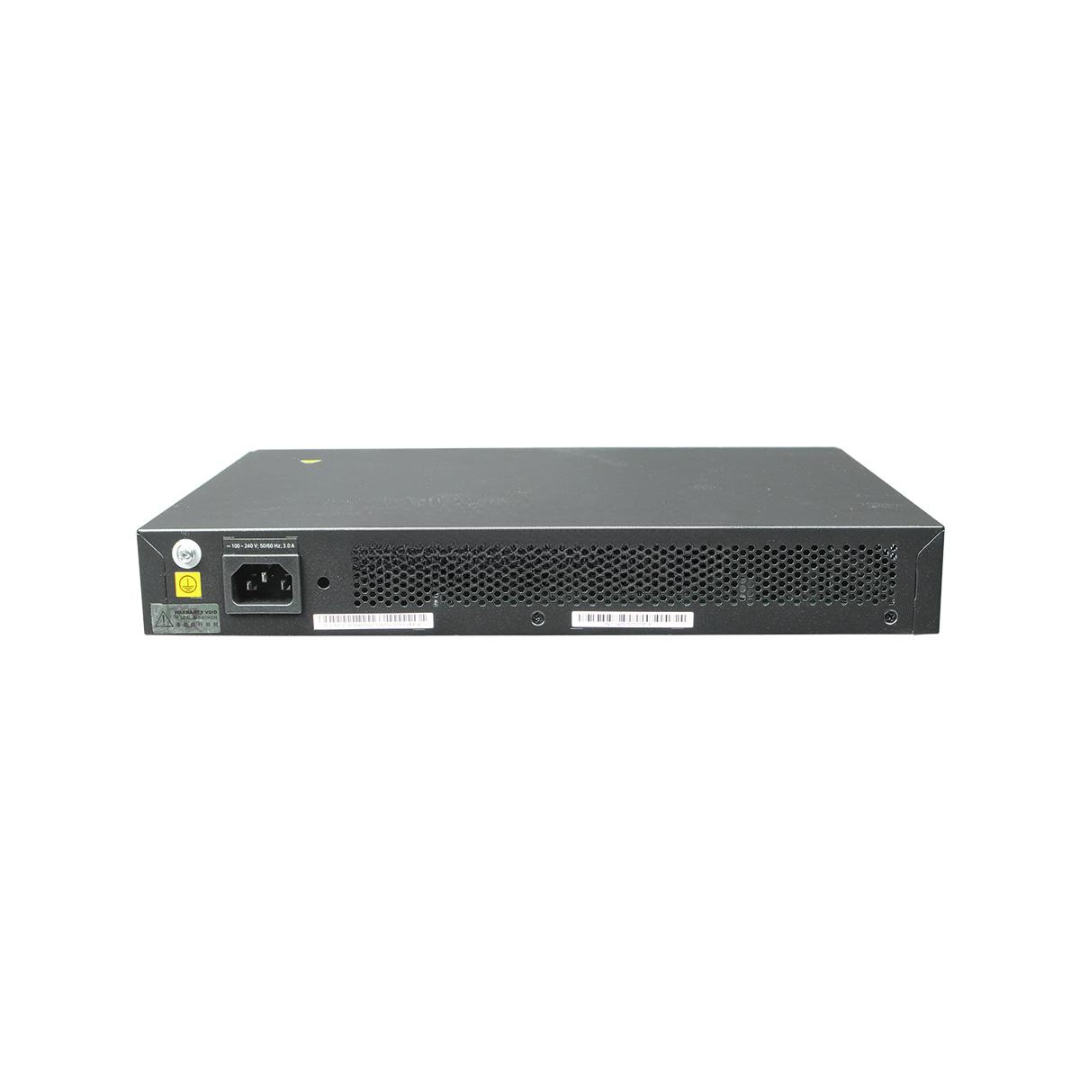

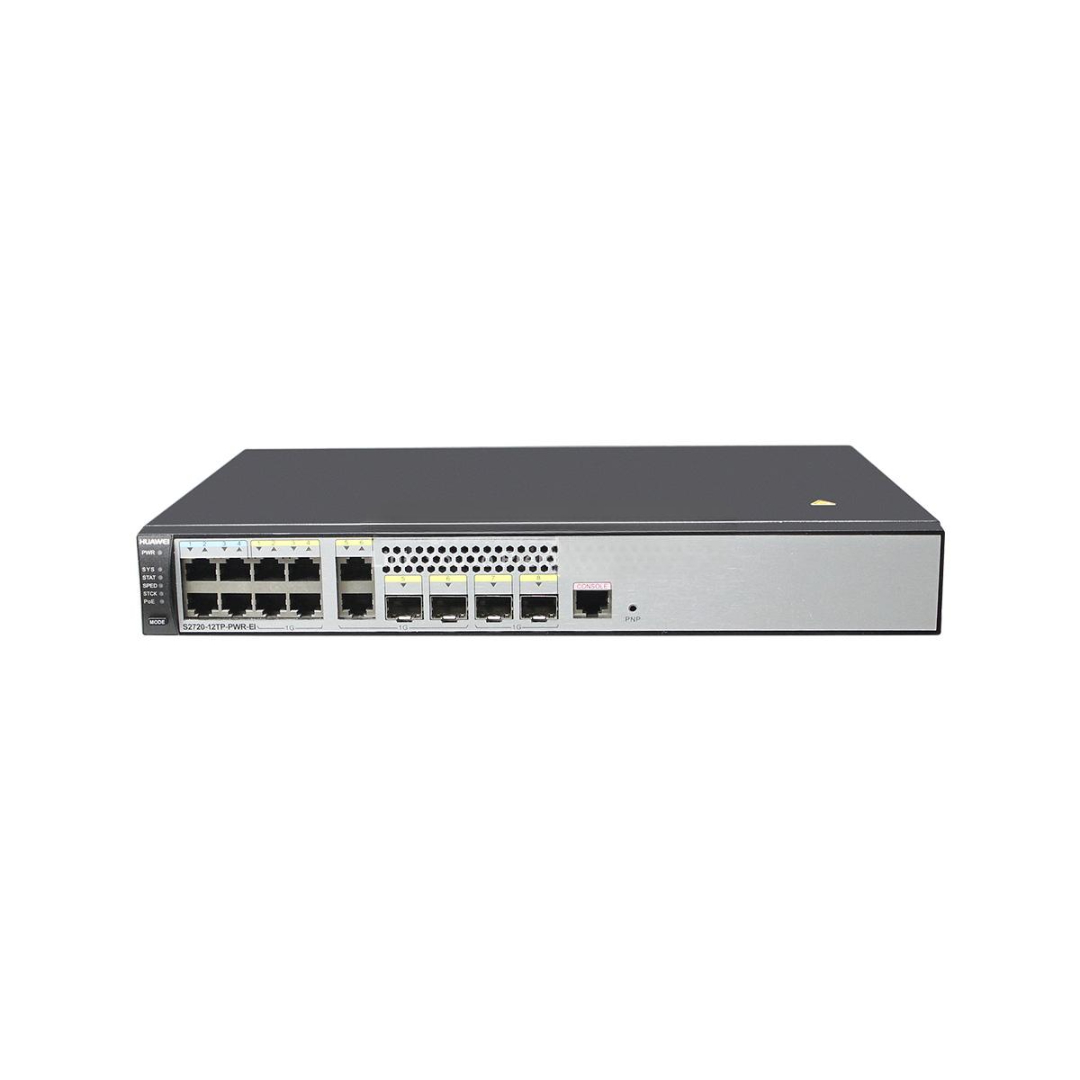

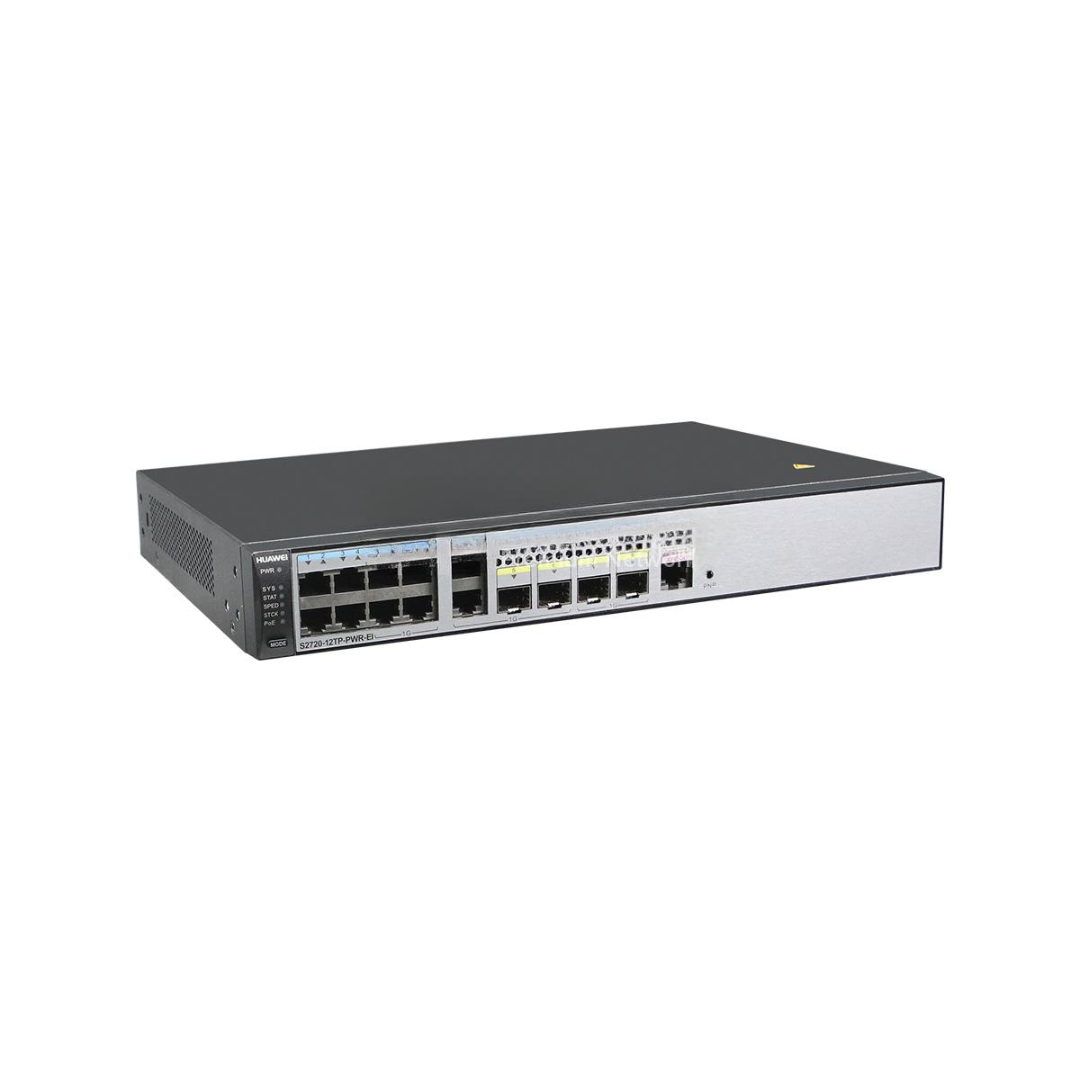

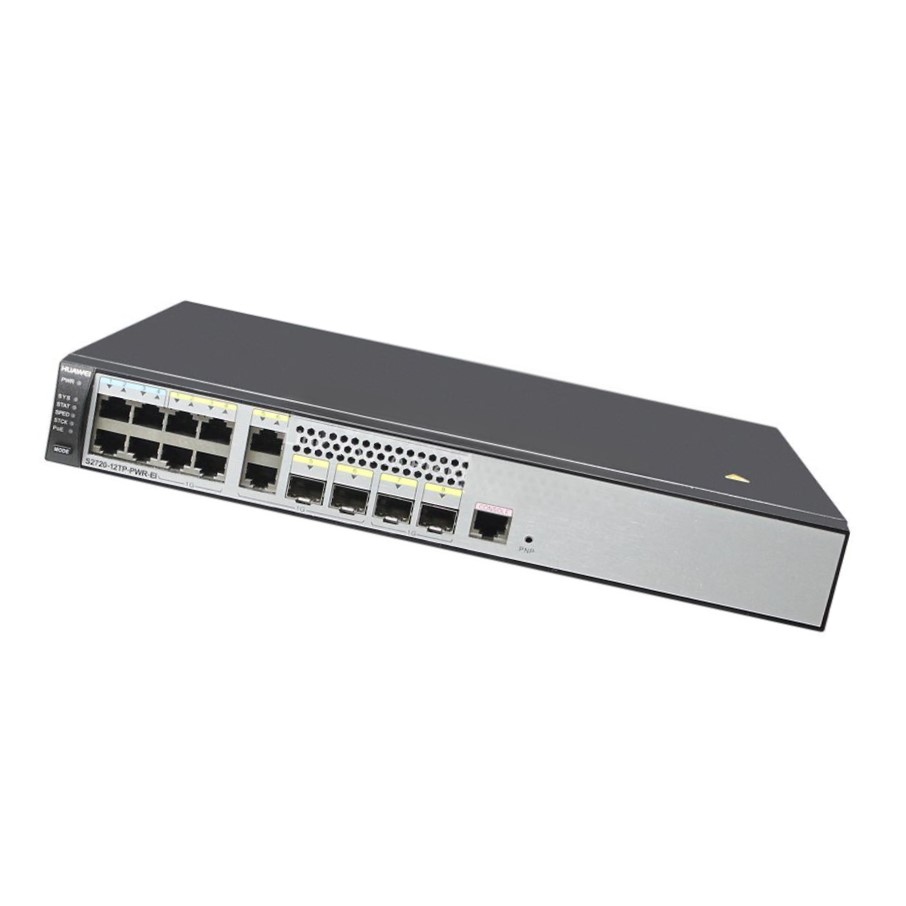

S2720-12TP-PWR-EI Huawei Brand New Power Module Equipped
The S2720-12TP-PWR-EI Huawei is a cost-effective enterprise-grade Layer 2 PoE+ switch, equipped with a built-in power module and designed for secure, intelligent access in small to medium-sized business networks. With its PoE+ support, compact size, and energy-efficient design, this switch is ideal for powering IP phones, wireless APs, and security cameras in enterprise, education, and retail environments.
Built with Huawei’s trusted networking technology, the S2720-12TP-PWR-EI ensures stable transmission, easy manageability, and long-term operational reliability.
Key Features
-
Model: S2720-12TP-PWR-EI
-
Condition: 100% Brand New, Original Huawei
-
PoE Support: Full support for IEEE 802.3af/at (PoE and PoE+)
-
Built-in Power Module: Integrated AC power supply for simplified deployment
-
Port Configuration:
-
8 × 10/100/1000BASE-T PoE+ ports
-
2 × GE SFP uplink ports
-
2 × Combo GE ports
-
-
Layer 2 Switching: Supports VLAN, STP, IGMP Snooping, and port security
-
Fanless Design: Silent operation, ideal for quiet office environments
-
Security Features: 802.1X, MAC filtering, broadcast storm suppression
Technical Specifications
| Specification | Details |
|---|---|
| Model | S2720-12TP-PWR-EI |
| Switching Capacity | 24 Gbps |
| Forwarding Rate | 18 Mpps |
| Downlink Ports | 8 × GE RJ45 PoE+ |
| Uplink Ports | 2 × SFP, 2 × Combo GE (RJ45/SFP) |
| PoE Budget | Up to 125W (typical) |
| PoE Standard | IEEE 802.3af/at |
| MAC Address Table | 16K entries |
| VLANs Supported | Up to 4094 VLANs |
| Operating Temperature | 0°C to +50°C |
| Humidity | 5% to 95%, non-condensing |
| Power Supply | Integrated AC power module |
| Dimensions (W × D × H) | 442 mm × 220 mm × 43.6 mm |
| Weight | Approx. 3.2 kg |
| Warranty | 1–3 Years Manufacturer Warranty |
S2720-12TP-PWR-EI Huawei Applications
-
Small & Medium Enterprises (SMEs) — Secure and manageable network access
-
Education & Retail — Power APs and surveillance in classrooms or retail zones
-
Offices & Branches — Reliable edge switch for VoIP and wireless deployments
-
Surveillance Networks — Centralized PoE powering for IP cameras
Customization & OEM Options
-
Custom Branding — Private label printing and packaging available
-
Pre-Configured Setup — VLANs, port mirroring, ACLs set at factory
-
Bundled Kits — Optional with matching SFP modules, patch cords, and mounting hardware
-
Power Customization — Optional external PSU for extended PoE budget
-
Environmental Testing — Enhanced thermal and electrical QA for special use cases
Wholesale & Global Procurement
-
Huawei Original Supply — 100% brand-new units direct from certified sources
-
Volume Pricing — Competitive rates for system integrators, resellers, and ISPs
-
Safe Packaging — OEM boxed with anti-static protection for global shipment
-
Fast Lead Time — Stock available for quick deployment in critical projects
-
Logistics Support — International shipping compliant with global customs standards
-
Documentation Included — Complete with user manuals, datasheets, and firmware
Why Choose S2720-12TP-PWR-EI Huawei
Compact & Cost-Efficient — Ideal for tight spaces and budget-conscious deployments
Integrated PoE+ Power — Supports high-power devices directly
Silent Operation — Fanless design for noise-sensitive environments
Robust Huawei Engineering — Enterprise-grade reliability and long service life
Flexible Uplink Options — Combo ports offer deployment versatility
Contact Us Today for Quotes, OEM Info & Bulk Supply
Upgrade your network edge with the Huawei S2720-12TP-PWR-EI — the perfect solution for small business and branch office networks requiring stable PoE+ delivery and simplified management.
Request pricing and datasheets now for wholesale, integration, and configuration support!
