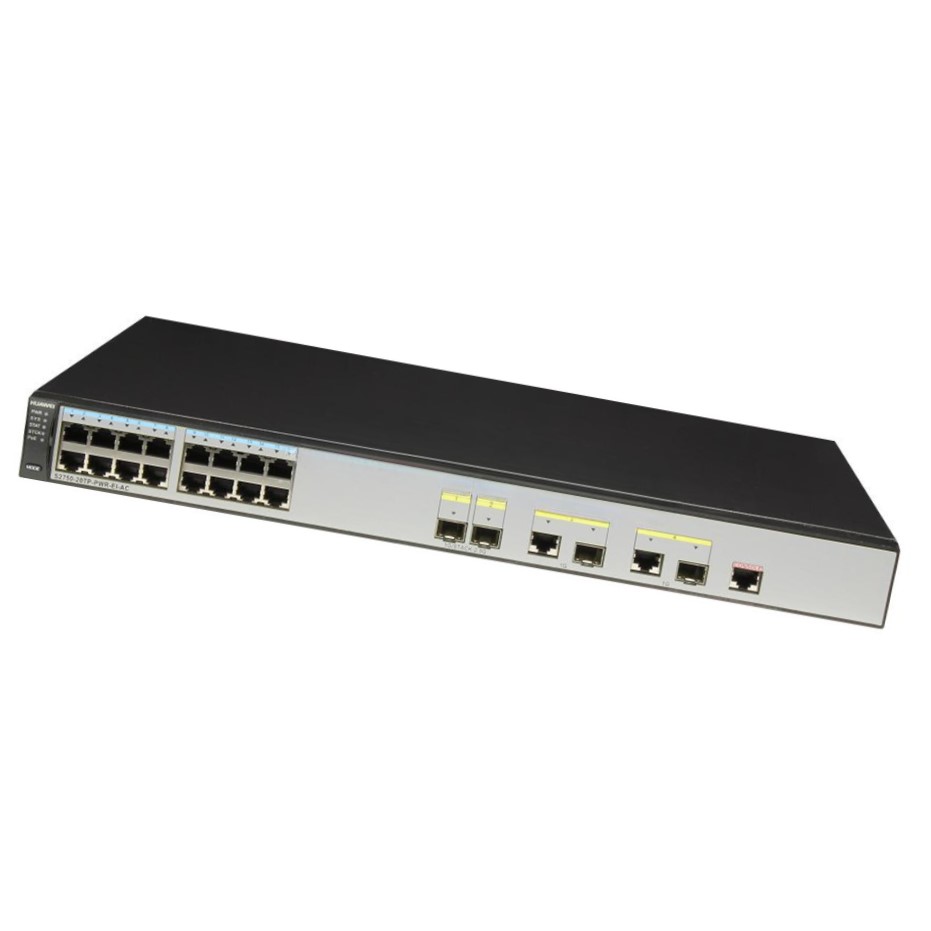

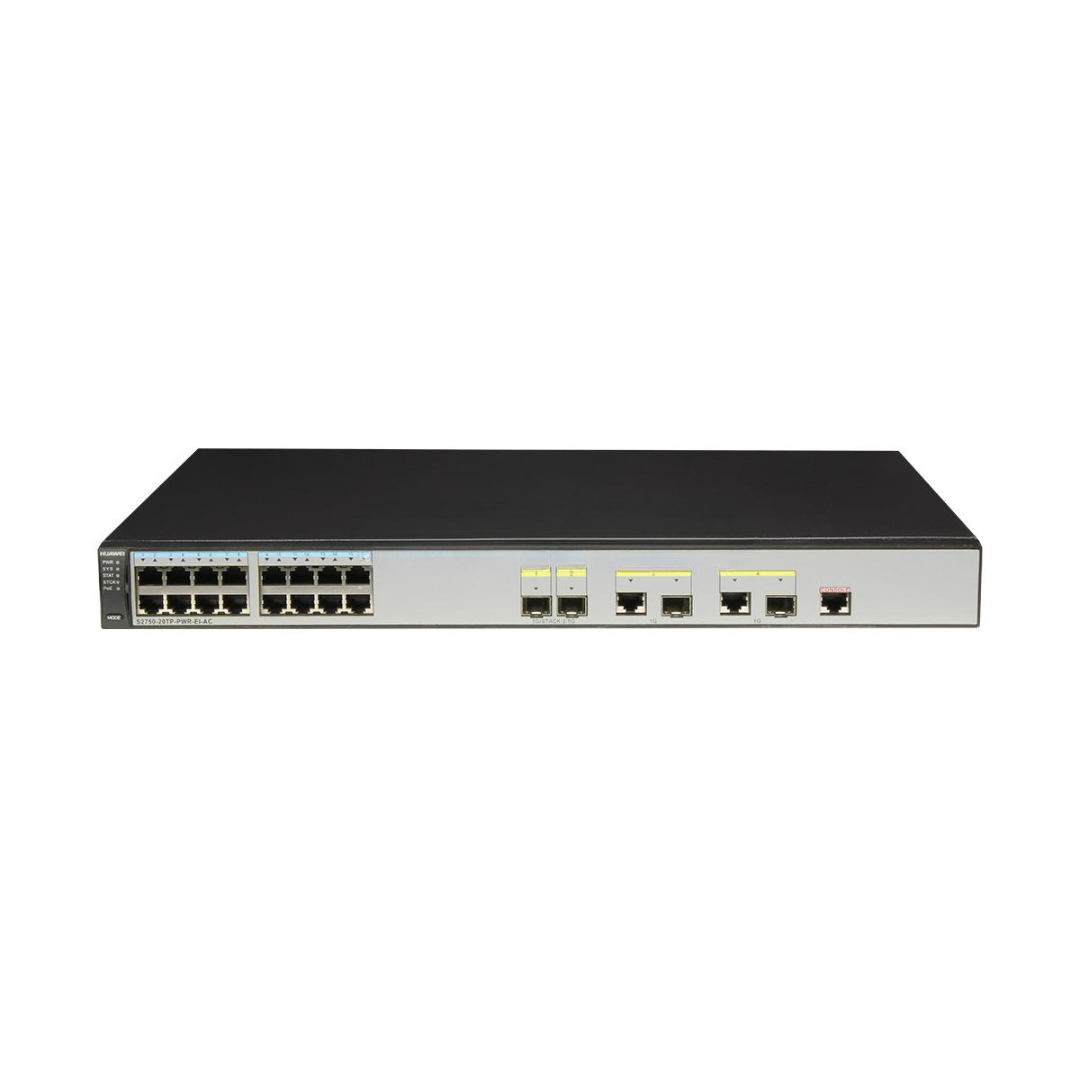

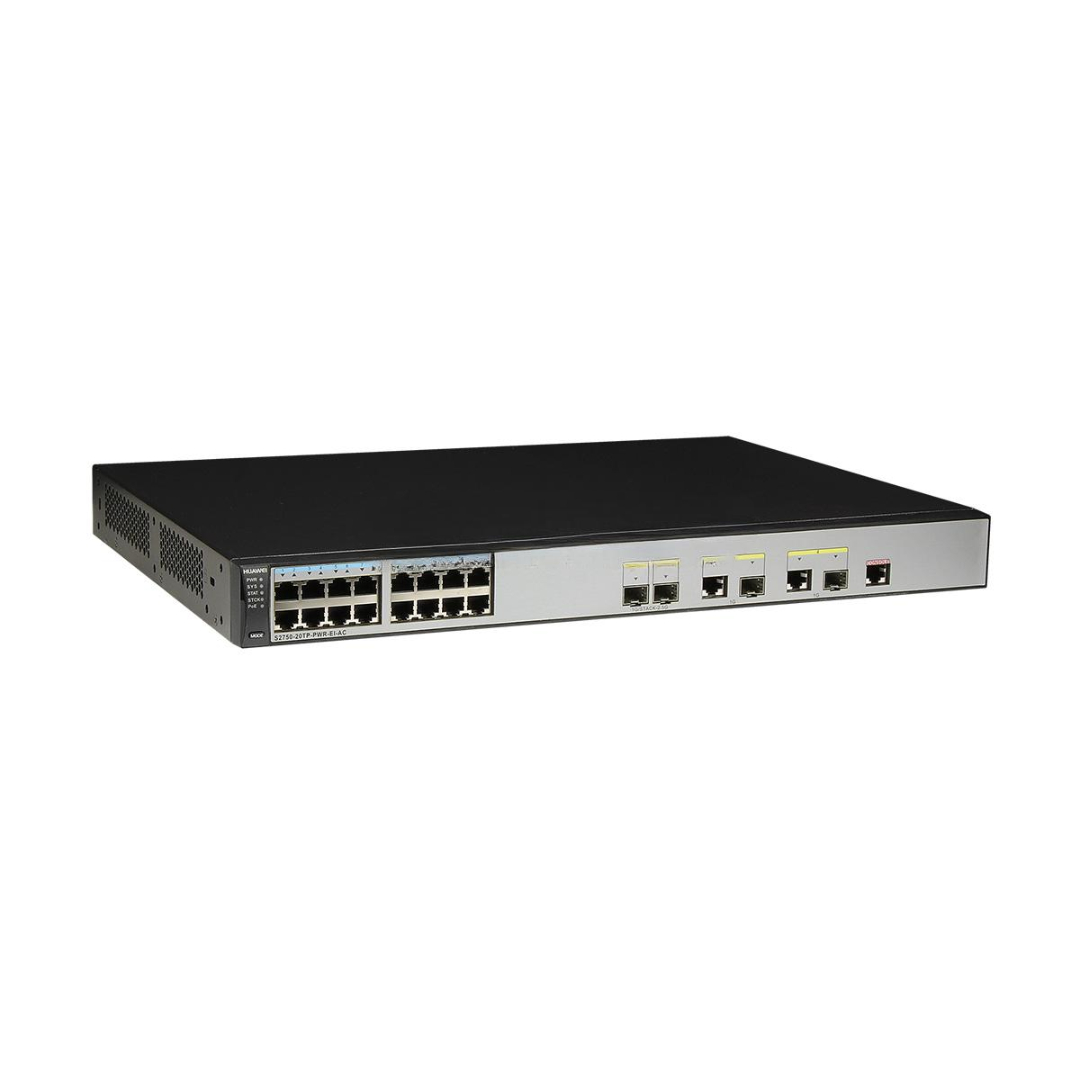

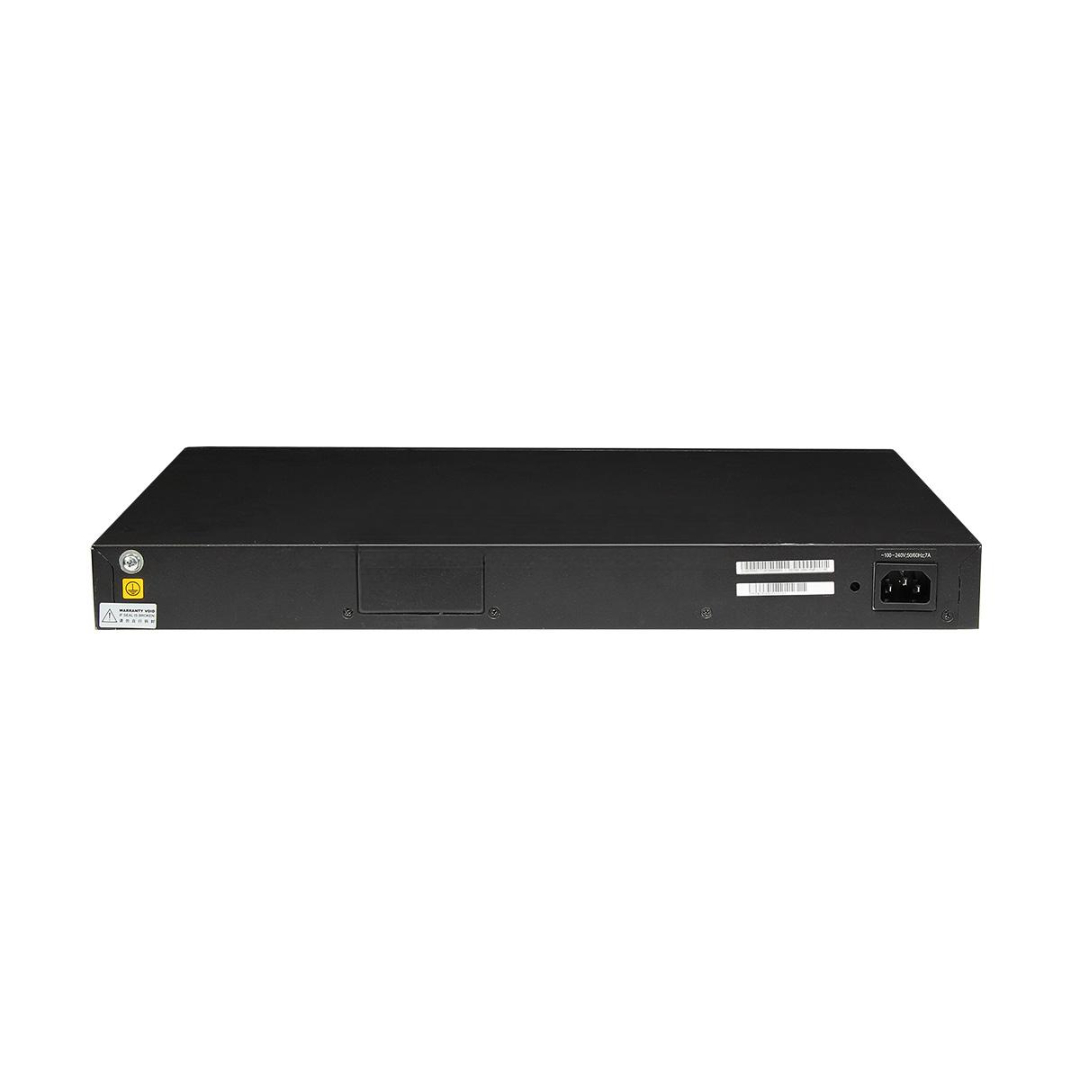

S2750-28TP-PWR-EI-AC Huawei Brand New 24-Ports Power Module
The S2750-28TP-PWR-EI-AC Huawei is a brand-new, enterprise-class Layer 2 Ethernet switch from Huawei, equipped with 24 PoE+ 10/100/1000Base-T ports and 4 Gigabit uplink ports (2 GE Combo + 2 SFP). It features a built-in AC power supply with Power over Ethernet (PoE) capabilities, ideal for powering access points, IP cameras, and VoIP phones in enterprise campus networks, retail branches, and industrial automation environments.
This switch is part of Huawei’s S2700 series, delivering advanced switching performance, intelligent energy-saving features, robust security functions, and simple management — making it a perfect fit for high-availability network deployments requiring intelligent PoE support.
Key Features
Model: S2750-28TP-PWR-EI-AC
Condition: 100% Brand New, Original Huawei
Access Ports: 24 × 10/100/1000Base-T PoE+ ports
Uplink Ports: 2 × 1000Base-X SFP + 2 × Combo GE RJ45/SFP ports
PoE Standard: IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
Total PoE Power Budget: Up to 370W (based on power supply)
Switching Capacity: 128 Gbps
Forwarding Rate: 42 Mpps
MAC Address Table: 16K entries
Software Feature Set: Enhanced Image (EI) – advanced security, QoS, and management
Security Functions: MAC filtering, ARP inspection, DHCP snooping, port isolation
Energy Efficiency: Port-based PoE management and dynamic power adjustment
Built-in Power Module: AC integrated power supply with no external PSU required
Fan Cooling System: Intelligent temperature-controlled fans for low-noise operation
Deployment: Rack-mountable 1U metal enclosure
Technical Specifications
| Specification | Details |
|---|---|
| Model | S2750-28TP-PWR-EI-AC |
| Type | Layer 2 PoE+ Gigabit Switch |
| PoE Ports | 24 × 10/100/1000Base-T |
| Uplink Ports | 2 × GE SFP + 2 × Combo GE ports |
| PoE Support | IEEE 802.3af (15.4W) / IEEE 802.3at (30W) per port |
| PoE Budget | 370W (AC power supply) |
| Switching Capacity | 128 Gbps |
| Forwarding Performance | 42 Mpps |
| MAC Address Table | 16K entries |
| VLAN Support | Up to 4K VLANs |
| QoS Features | Traffic shaping, priority queuing, storm suppression |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5%–95% (non-condensing) |
| Dimensions (W×D×H) | 442 mm × 220 mm × 43.6 mm |
| Weight | Approx. 4.5 kg |
| Compliance | CE, FCC, RoHS, REACH |
| Warranty | 1–3 Years Manufacturer Warranty |
S2750-28TP-PWR-EI-AC Huawei Applications
- Enterprise Networks — Smart PoE deployment for office APs, IP phones, and access control
- Retail and Chain Stores — Unified wired access and PoE power supply in compact environments
- Surveillance and Security — Delivers power and data for IP cameras and NVRs
- Educational Institutions — Low-maintenance PoE switches for classrooms and labs
- Smart City Infrastructure — Edge PoE aggregation for smart lighting and sensors
Customization & OEM Options
Private Label & Branding — Offer your company name and logo on switch chassis and packaging
Firmware Customization — Pre-configured VLANs, IPs, and SNMP settings based on deployment needs
Extended PoE Options — Customize PoE profiles for high-power end devices (e.g., PTZ cameras)
Industrial-Grade Config — Optional conformal coating and wide-temp models available for rugged use
Power Cord Customization — Region-specific plug types (US, EU, UK, AU) supplied upon request
Bundled Deployment Kits — SFP transceivers, cables, and patch panels available in bulk packages
S2750-28TP-PWR-EI-AC Huawei Wholesale & Global Procurement
Bulk Availability — In-stock Huawei S2750 switches available for large-scale deployment
Factory Direct Pricing — Access OEM Huawei stock at highly competitive distributor rates
Packaging & Delivery — Sealed anti-static bags with foam-protected OEM box packaging
Shipping Compliance — Full documentation for CE, RoHS, and international freight standards
Fast Turnaround — Lead times as short as 24–48 hours for common SKUs
After-Sales Support — Firmware upgrades, technical documentation, and RMA handling
Why Choose the S2750-28TP-PWR-EI-AC Huawei PoE Switch
- True PoE+ Performance — Supports power-hungry devices up to 30W per port
- Intelligent Energy Control — Reduce operational costs with smart PoE scheduling
- Enterprise-Grade Reliability — Backed by Huawei’s rigorous quality standards
- Flexible Deployment — Combo ports and compact 1U size fit diverse scenarios
- Advanced Features in L2 — Enhanced security, QoS, VLANs, and storm control
- All-in-One Power Solution — Integrated AC power and quiet fan operation
Request Datasheet, Pricing & OEM Bulk Orders
Looking to enhance your enterprise or retail network infrastructure with the Huawei S2750-28TP-PWR-EI-AC? Contact us today for competitive pricing, product datasheets, OEM partnership options, and wholesale supply support.
