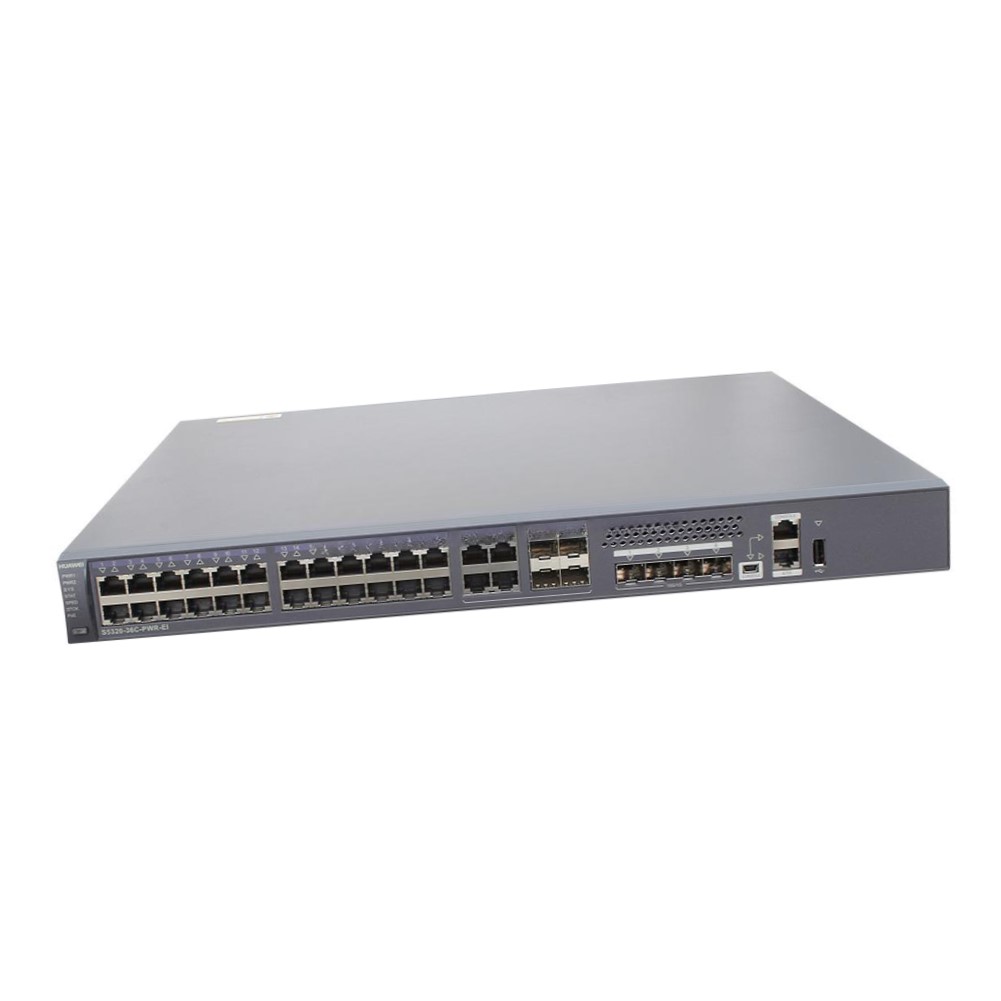

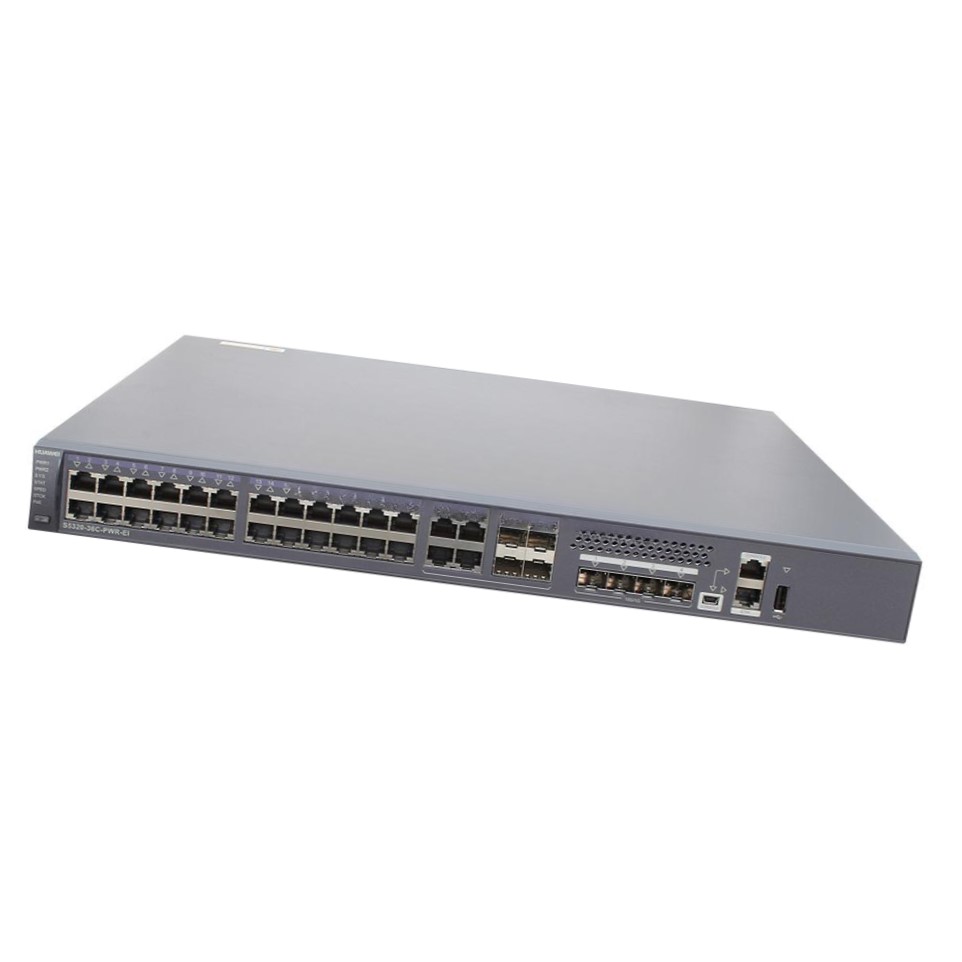

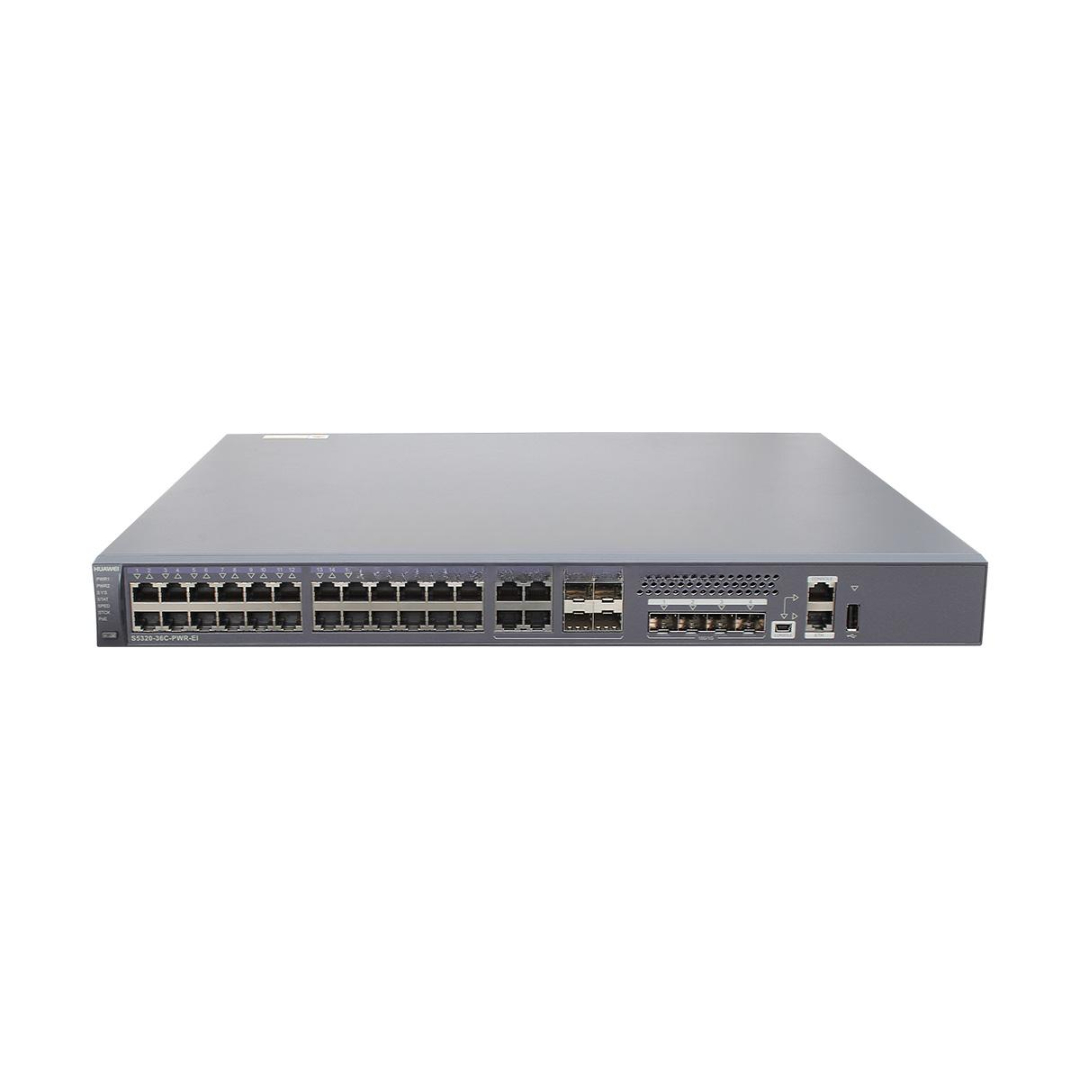

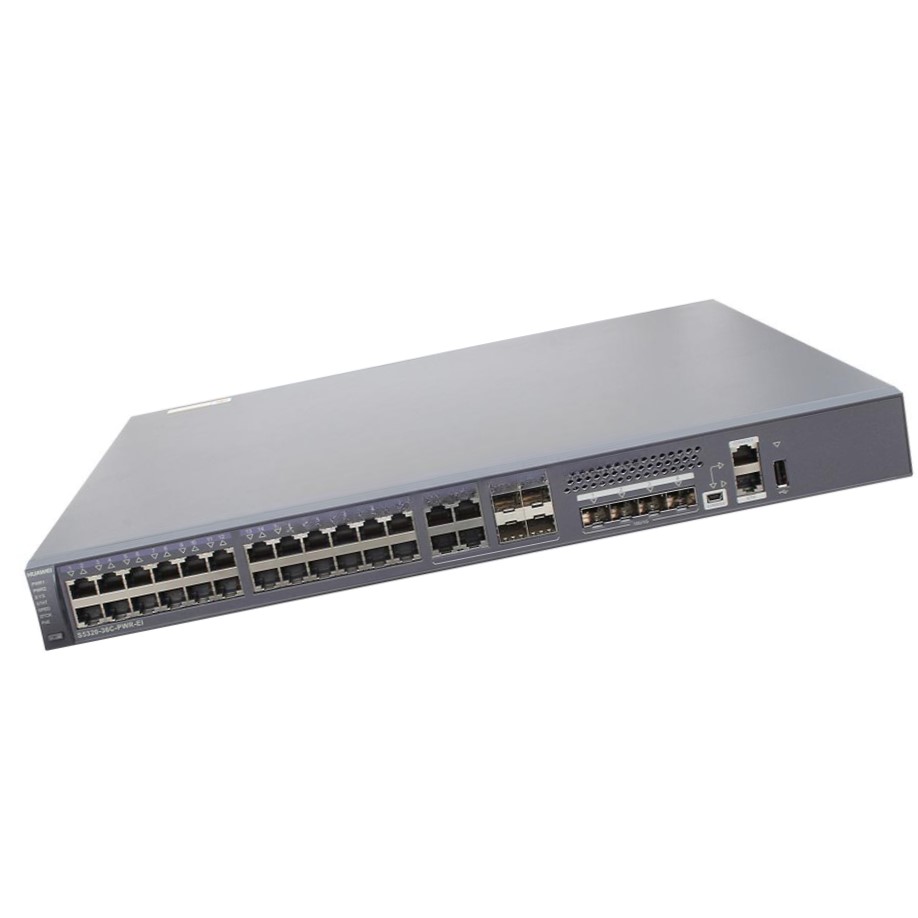

S5320-28X-PWR-SI-AC Huawei High Quality Switch Power Fixed
The S5320-28X-PWR-SI-AC Huawei is a full-featured Layer 3 access switch equipped with PoE+ capability and a fixed AC power supply, designed to meet the performance, reliability, and flexibility demands of enterprise campus networks, IP surveillance systems, and wireless access deployments. With advanced Layer 2/3 switching, 24 PoE+ ports, and 4 high-speed 10GE uplinks, it is an ideal choice for converged wired/wireless infrastructure.
Key Features
-
Model: S5320-28X-PWR-SI-AC
-
Condition: 100% Brand New, Original Huawei
-
Port Configuration: 24 × 10/100/1000BASE-T (PoE+), 4 × 10GE SFP+ uplinks
-
Power Supply: Fixed AC Power Module
-
PoE Budget: Up to 370W total PoE power
-
Layer 3 Functions: Static routing, RIP, OSPF, VRRP
-
Forwarding Capability: High-speed hardware forwarding for optimized traffic
-
Security Features: MAC authentication, 802.1X, IP source guard
-
Stacking Support: iStack for simplified management and scalability
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5320-28X-PWR-SI-AC |
| Switching Capacity | 336 Gbps |
| Forwarding Rate | 96 Mpps |
| Access Ports | 24 × GE PoE+ RJ45 ports |
| Uplink Ports | 4 × 10GE SFP+ slots |
| PoE Standard | IEEE 802.3af/at |
| PoE Budget | 370W (AC fixed power) |
| MAC Address Table | 32K entries |
| Stacking Support | Yes (via iStack technology) |
| Management | SNMP, RMON, Web UI, CLI, Huawei eSight |
| Operating Temperature | 0°C to +50°C |
| Power Supply | Built-in fixed AC (no external PSU required) |
| Installation | 19” rack-mountable |
| Warranty | 1–3 Years Manufacturer Warranty |
S5320-28X-PWR-SI-AC Huawei Applications
-
Enterprise Access Layer — Secure access switching for desktops, phones, and wireless APs
-
IP Surveillance — Power and backhaul for PoE-enabled CCTV cameras
-
Small and Medium Businesses (SMBs) — Unified data, voice, and wireless access
-
Educational Institutions — High-performance access switching for classrooms and labs
-
Retail Environments — Reliable power and data connectivity for POS and digital signage
Customization & OEM Options
-
Private Branding — Device labeling and packaging with your company logo
-
Pre-configured VLANs & ACLs — Ready-to-deploy setups to your specifications
-
Firmware Customization — Tailored bootloaders and secure OS images
-
Color & Faceplate Options — Bulk orders with colored casing or faceplate branding
-
Accessories Bundles — Cable kits, patch panels, and SFP+ modules bundled per request
Wholesale & Global Procurement Information
-
Factory Direct Supply — 100% Original Huawei with verified serial numbers
-
Global Stock Availability — Large inventory ready for urgent rollout projects
-
Packaging — Secure, anti-static OEM boxes with protective foam inserts
-
Worldwide Shipping — Supports international logistics and customs documentation
-
Compliance Certifications — CE, FCC, RoHS, ISO9001 certified
-
Technical Support — Remote configuration assistance and setup documentation available
Why Choose the S5320-28X-PWR-SI-AC Huawei
Built-in PoE+ — Eliminate external power injectors, up to 370W total power
10GE Uplinks — Scalable backbone-ready with high-speed optical slots
Layer 3 Routing — Rich feature set for advanced enterprise network control
Huawei Quality — Designed for performance, endurance, and simplified management
All-in-One Access — Data + Power + Routing in one compact platform
Contact Us for Pricing, Datasheets & Bulk Orders
Optimize your access network with the Huawei S5320-28X-PWR-SI-AC — a powerful and reliable Layer 3 PoE switch with 10GE uplinks and fixed AC power, perfect for campus, surveillance, and SMB applications.
Reach out today for customized quotes, bulk availability, and technical documentation!
