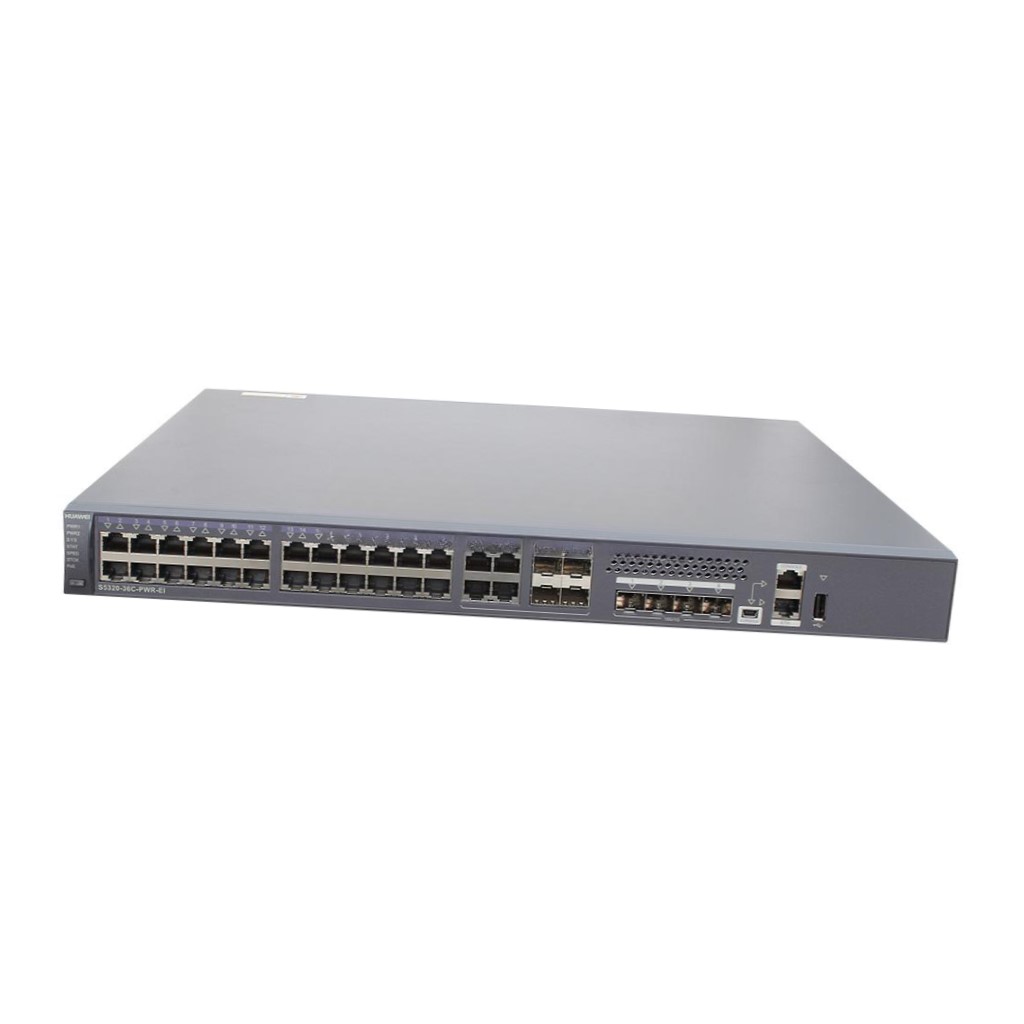

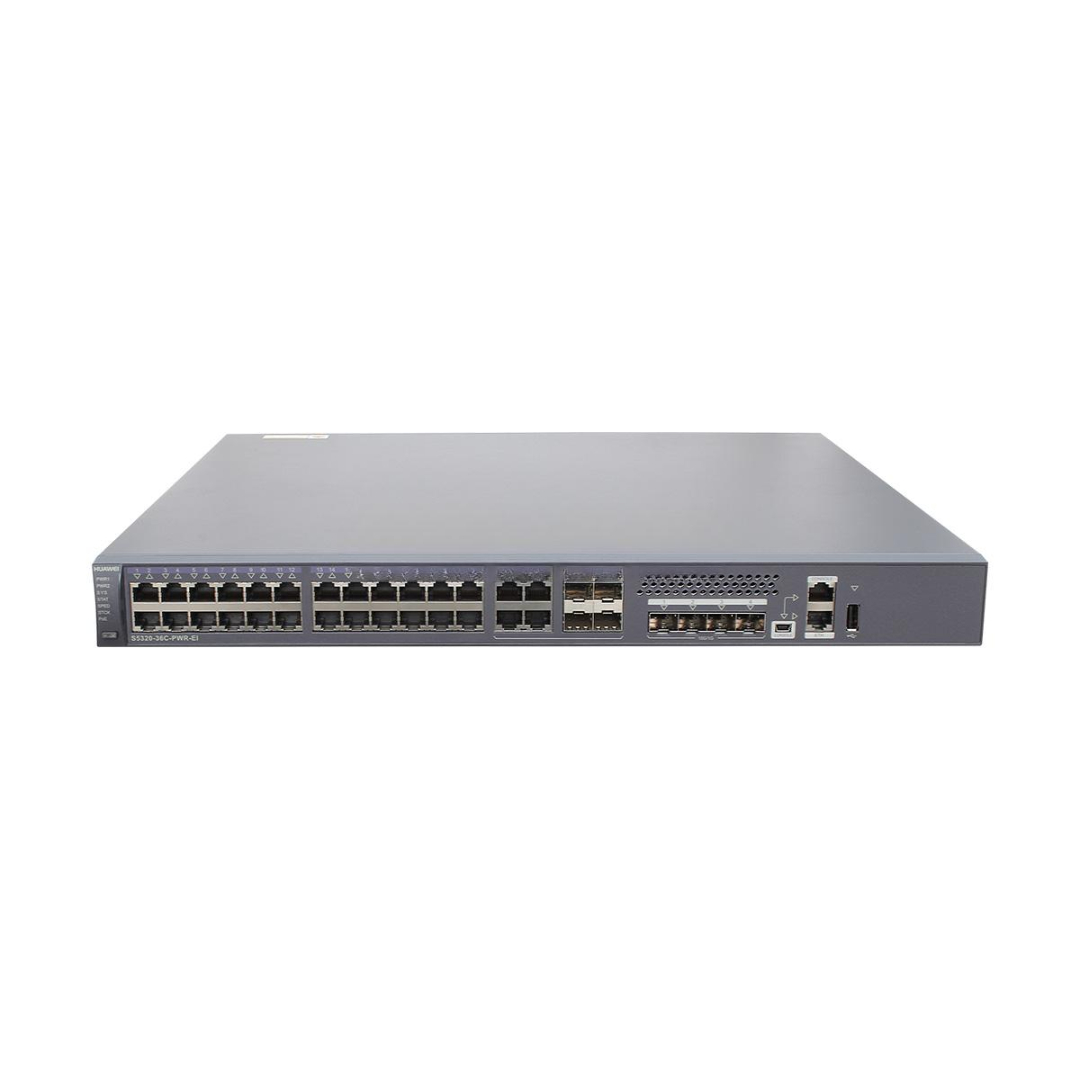

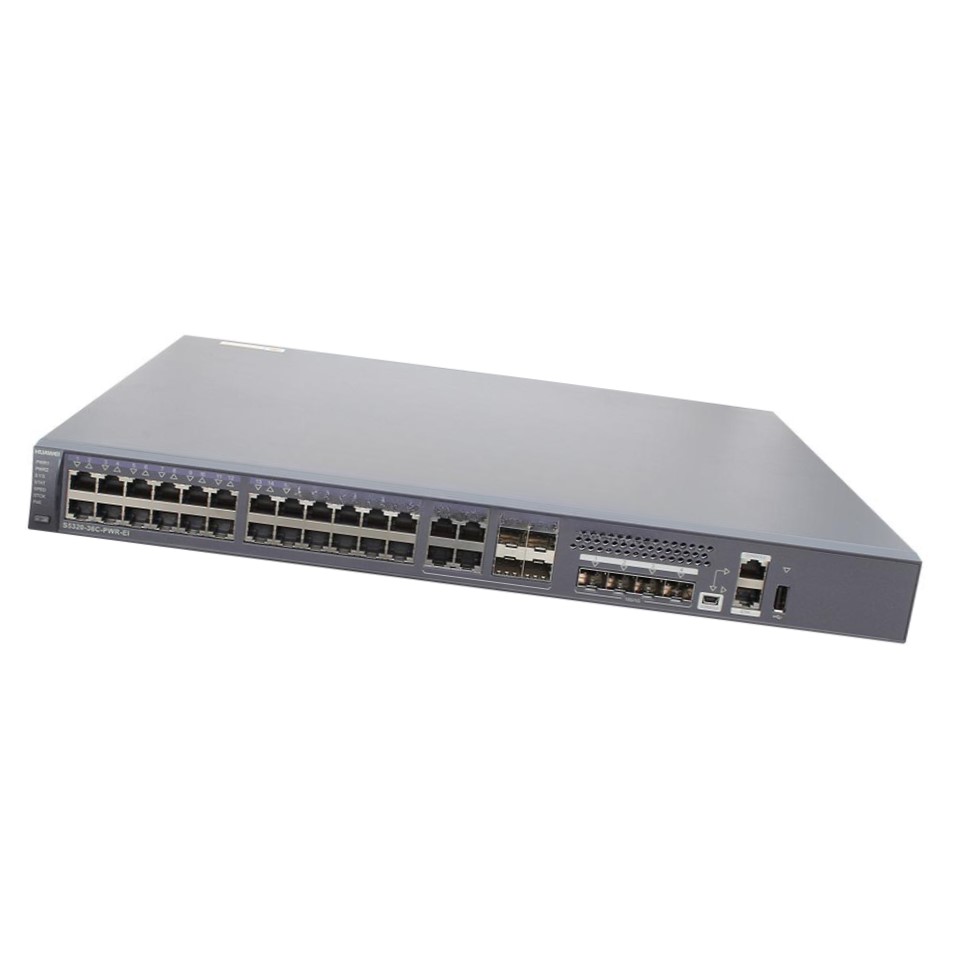

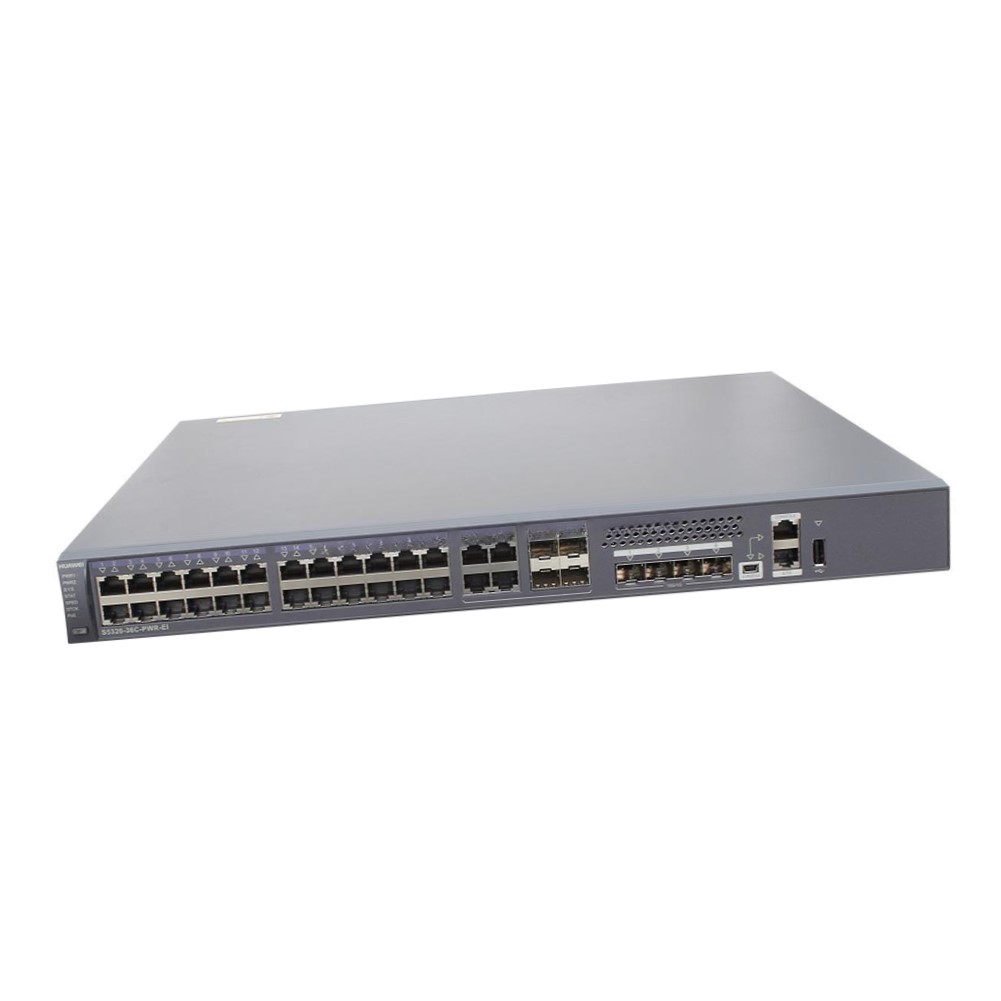

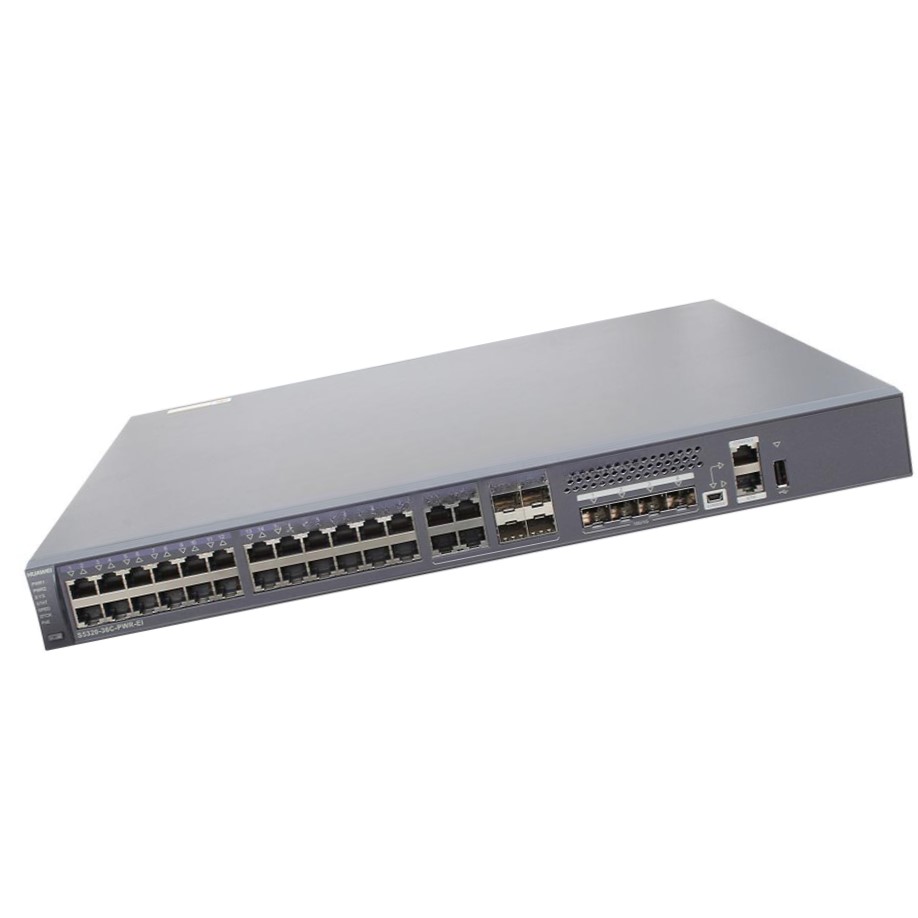

S5320-36C-PWR-EI-AC Huawei High Quality Switch Power Fixed
The S5320-36C-PWR-EI-AC Huawei is a high-performance Layer 3 PoE switch built for enterprise campus and commercial networks, equipped with fixed AC power supply and advanced PoE+ capabilities. With 24 Gigabit PoE+ ports, 8 non-PoE Gigabit ports, and 4 10GE uplink SFP+ ports, this switch is ideal for IP surveillance, VoIP, wireless access points, and converged networking.
It provides robust switching capacity, enhanced QoS, strong security features, and stackable architecture — all designed to meet the scalability and reliability needs of modern networks.
Key Features
-
Model: S5320-36C-PWR-EI-AC
-
Condition: 100% Brand New, Original Huawei
-
Port Configuration: 24 × 10/100/1000BASE-T PoE+, 8 × 10/100/1000BASE-T, 4 × 10GE SFP+
-
PoE Standards: IEEE 802.3af/at PoE+
-
PoE Power Budget: Up to 370W with AC power supply
-
Power Module: Fixed internal AC power supply
-
Layer 3 Functions: Static routing, RIP, OSPF, policy-based routing
-
Stacking Support: iStack technology for simplified management
-
Security: ARP inspection, DHCP snooping, 802.1X, port isolation
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5320-36C-PWR-EI-AC |
| Switching Capacity | 336 Gbps |
| Forwarding Performance | 96 Mpps |
| Ports | 24 × PoE+ GE, 8 × GE, 4 × 10GE SFP+ |
| PoE Power Budget | 370W (AC powered) |
| MAC Address Table | 32K entries |
| VLAN Support | 4K VLANs, flexible QinQ, VLAN mapping |
| Layer 3 Routing | Static, RIP, OSPF |
| Operating Temperature | 0°C to +50°C |
| Power Supply | Fixed internal AC module |
| Stacking | Up to 9 switches via iStack |
| Dimensions (WxDxH) | 442 mm × 420 mm × 43.6 mm |
| Weight | Approx. 6.2 kg |
| Warranty | 1–3 Years Manufacturer Warranty |
S5320-36C-PWR-EI-AC Huawei Applications
-
Enterprise Networks — Access-layer switching with high power PoE for wireless and IP phones
-
Commercial Buildings — Powering surveillance, smart sensors, and wall-mounted devices
-
Education & Healthcare — Stable networking for classrooms, labs, and clinics
-
Retail Chains — Aggregating POS, security, and access control systems
-
Government & Public Safety — Secured infrastructure with policy control and authentication
Customization & OEM Options
-
Custom Branding — Device labeling and software branding for large projects
-
Preconfigured VLANs & ACLs — Factory-loaded configurations for faster rollout
-
PoE Budget Expansion — Upgrade PoE capacity with external midspan options
-
Global Firmware Support — Tailored OS and SNMP support for international deployments
-
Bundled Solutions — Switch kits with transceivers, patch panels, and accessories
Wholesale & Global Procurement
-
Original Huawei Stock — Genuine hardware with verified serial numbers
-
Bulk Availability — Ideal for system integrators, distributors, and OEM partners
-
Protective Packaging — Anti-static, foam-lined packaging for safe transit
-
Fast Worldwide Shipping — Expedited air and sea logistics available
-
Technical Support — Documentation, MIBs, configuration guidance included
Why Choose S5320-36C-PWR-EI-AC Huawei
Comprehensive Port Mix — Ideal for hybrid environments with PoE and non-PoE ports
10GE Uplinks — Supports future-proof core or aggregation expansion
Advanced Layer 3 Routing — Enables flexible network segmentation and routing
Enterprise-Grade Security — Protects against spoofing, floods, and unauthorized access
Huawei OEM Reliability — Long service life and high MTBF design
Contact Us Now for Bulk Orders & OEM Supply
Boost your network’s performance and reliability with the Huawei S5320-36C-PWR-EI-AC — the perfect enterprise-class PoE switch with robust Layer 3 capability and flexible deployment options.
Reach out today for pricing, datasheets, lead time, and global shipping options.
