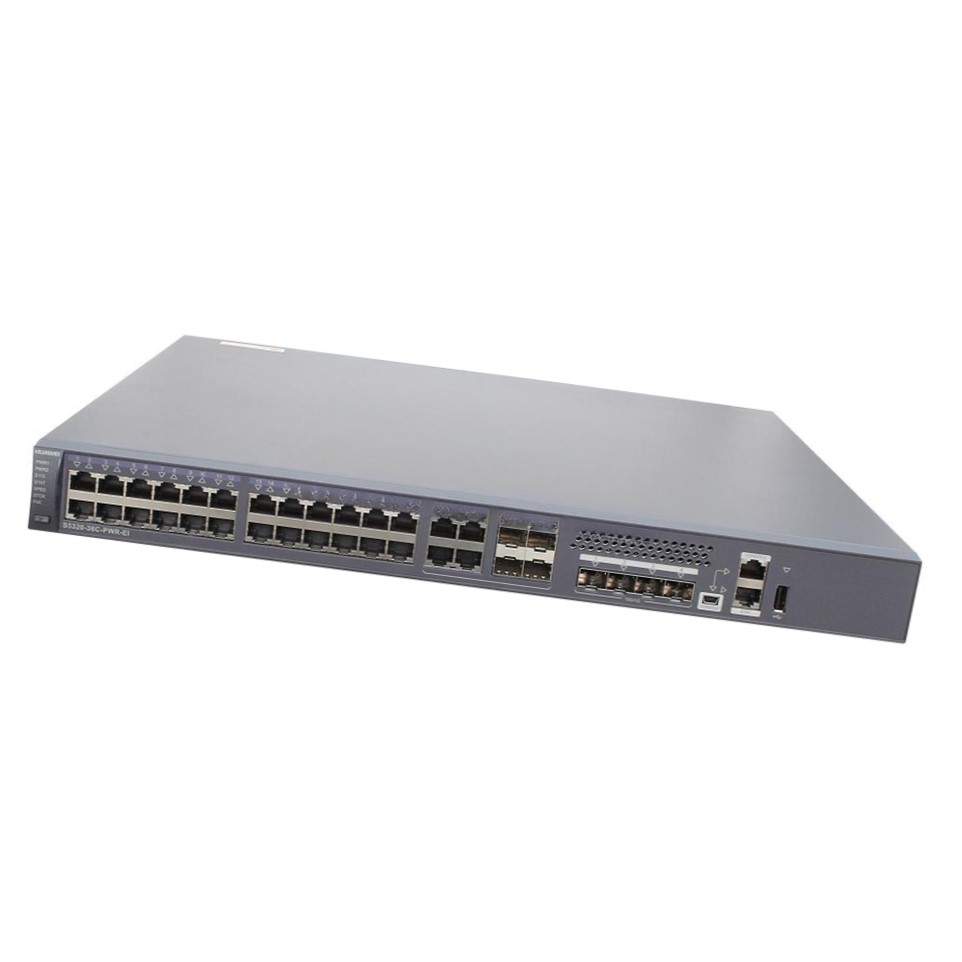

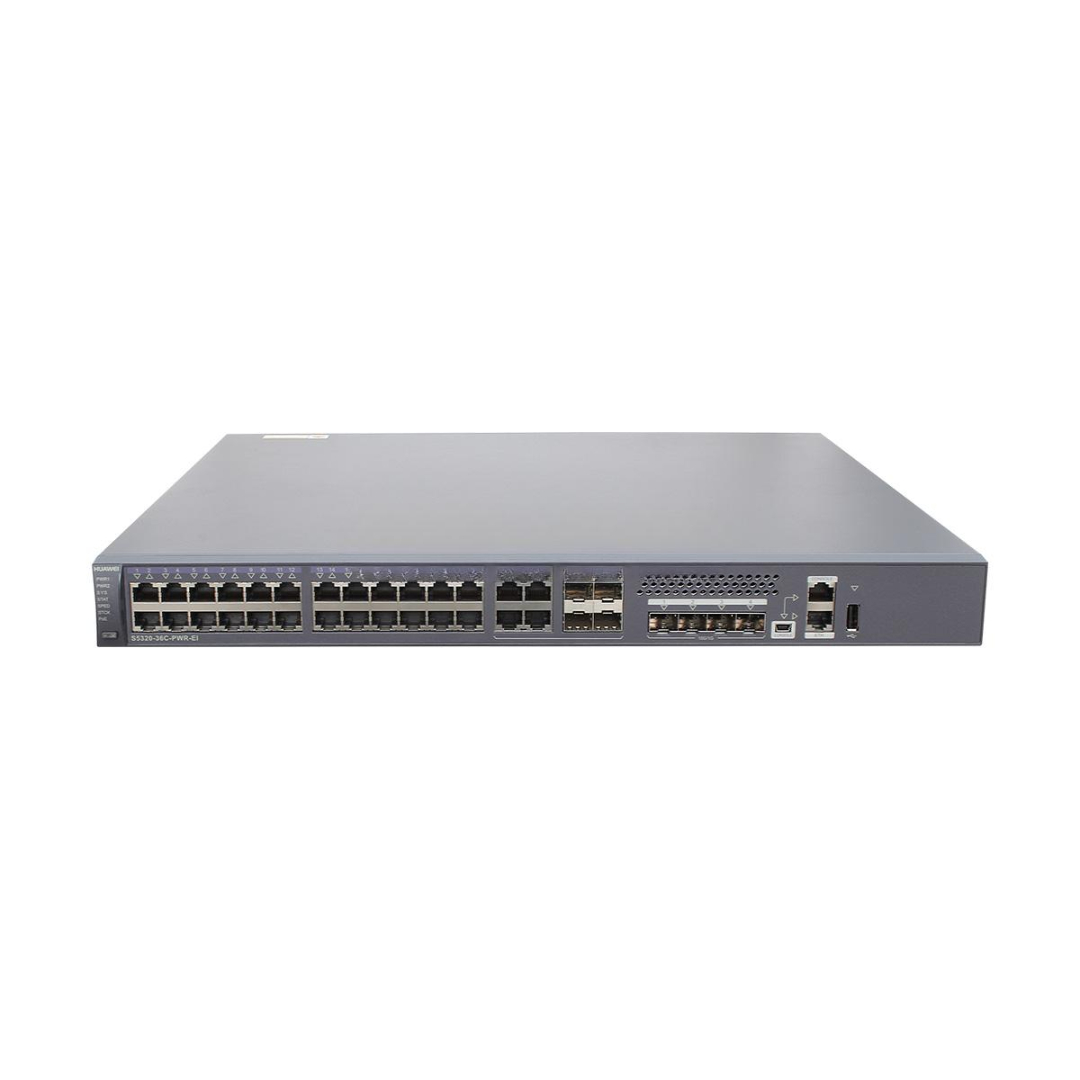

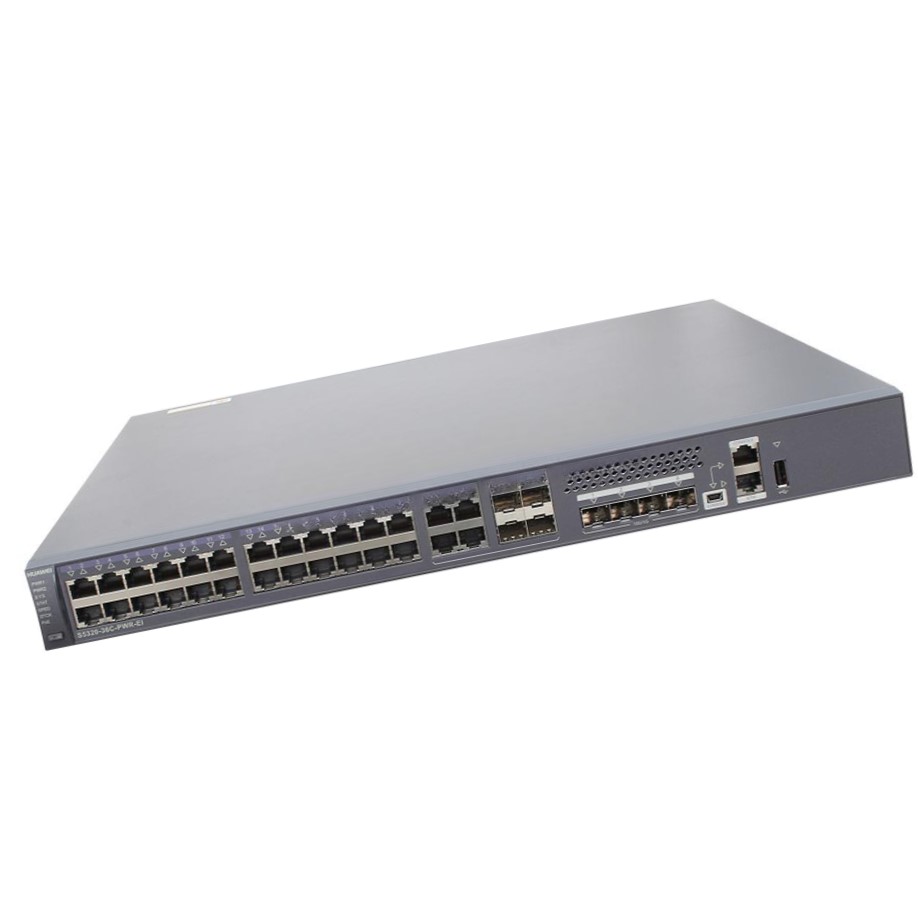

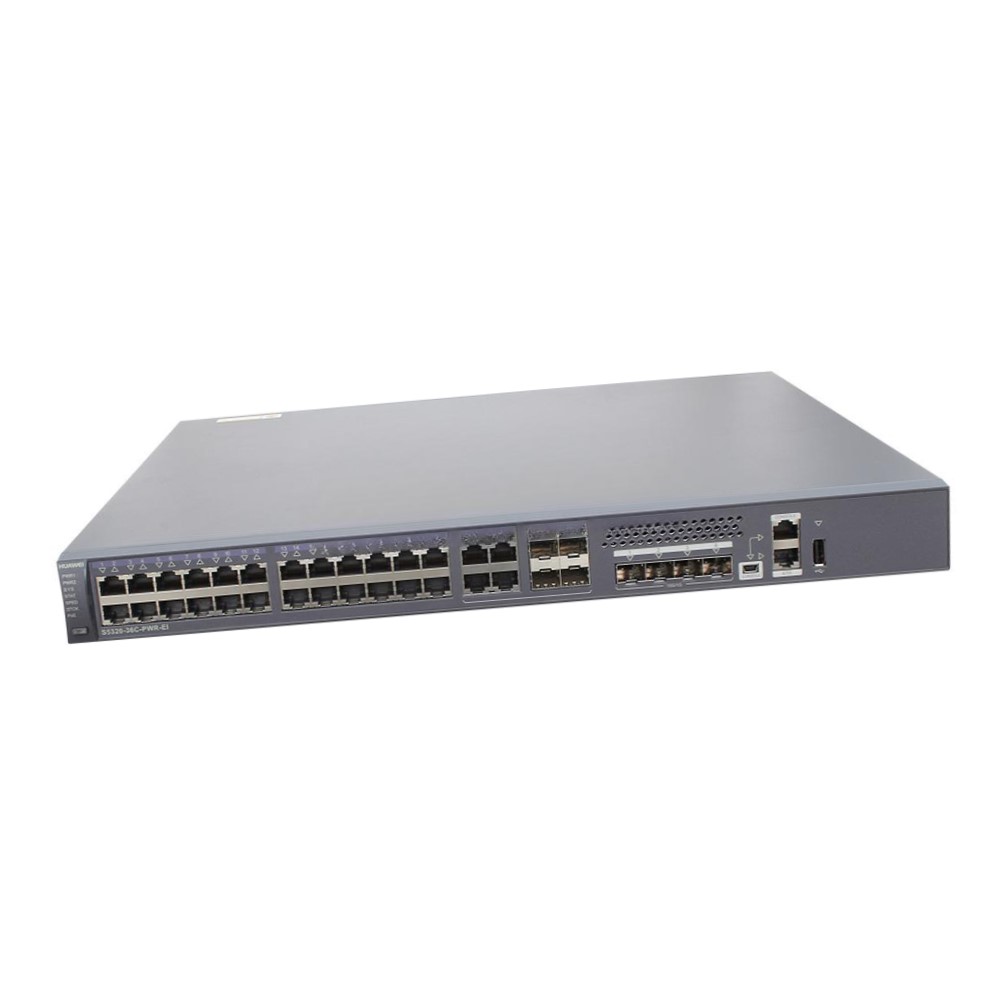

S5320-36C-PWR-EI-DC Huawei High Quality Switch Power Fixed
The S5320-36C-PWR-EI-DC Huawei is a Layer 3 Lite Gigabit Ethernet switch that integrates high-density PoE+ support with DC power input, making it ideal for telecom environments, smart buildings, and enterprise edge networks requiring reliable and efficient power sourcing. Designed with Huawei’s enterprise-class networking features, this switch delivers robust performance, advanced QoS, ACL, and stacking capabilities.
With 24 PoE+ ports, 4 combo GE ports, and 4 SFP uplinks, the switch provides flexible connectivity options and simplifies deployment of access points, IP cameras, and VoIP phones.
Key Features
-
Model: S5320-36C-PWR-EI-DC
-
Condition: 100% Brand New, Original Huawei
-
Power Input: DC Power Fixed Module (–48V)
-
PoE Capability: IEEE 802.3af/at compliant, full-port PoE+ support
-
Port Configuration: 24 × 10/100/1000BASE-T PoE+ + 4 × combo GE + 4 × SFP
-
Forwarding Performance: 42 Mpps
-
Switching Capacity: 256 Gbps
-
iStack Support: Stack multiple units into a single logical device
-
Security: Comprehensive 802.1x, DHCP snooping, and MAC address filtering
-
Management: SNMP v1/v2/v3, RMON, NMS integration
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5320-36C-PWR-EI-DC |
| Ports | 24 × GE PoE+, 4 × GE Combo, 4 × SFP |
| Power Supply | Built-in DC power module (–48V) |
| PoE Budget | Up to 370W |
| Switching Capacity | 256 Gbps |
| Forwarding Rate | 42 Mpps |
| MAC Address Table | 32K entries |
| Stacking | Supported (via service ports) |
| Dimensions (W × D × H) | 442 × 310 × 43.6 mm |
| Weight | 4.8 kg |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | –40°C to +70°C |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | 1–3 Years Manufacturer Warranty |
S5320-36C-PWR-EI-DC Huawei Applications
-
Enterprise Edge Access — PoE support for IP phones, cameras, and APs
-
Telecom Rooms & IDC — Reliable DC-powered switching for carrier sites
-
Education & Campus Networks — Cost-effective L3 switching with robust control
-
Smart City Infrastructure — Secure, power-efficient edge connectivity
-
Government & Finance — Advanced security with fine-grained traffic control
Customization & OEM Options
-
Label Customization — Tailored logo, part numbers, and packaging available
-
Pre-Configuration — VLANs, port isolation, PoE profiles, and security policies
-
Alternate PSU Setup — Optional AC version or dual power input options
-
Enhanced Burn-In — Stress-tested units for mission-critical environments
-
Accessory Kits — Optional SFPs, patch cords, and 19” rack brackets
Wholesale & Global Supply Info
-
Bulk Supply — Ready-to-ship stock for integrators and contractors
-
Huawei Original — 100% genuine, factory-certified with traceable serials
-
Logistics Friendly — Secure anti-static and shockproof packaging
-
Global Shipping — Fast dispatch with customs-clearance support
-
Support Services — Datasheets, configuration templates, and remote setup help
Why Choose the S5320-36C-PWR-EI-DC Huawei
Enterprise-Grade Reliability — Telecom-quality DC power design
Full PoE+ on All Ports — Effortless device powering with intelligent control
Rich Layer 3 Features — Static routing, policy-based QoS, IPv6-ready
Cost-Effective Scalability — Stackable and easy to manage
Trusted Huawei Quality — Designed for long-term deployments with low failure rate
Contact Us Today for Pricing & Bulk Orders
Take your access network to the next level with the Huawei S5320-36C-PWR-EI-DC, a power-efficient, PoE-enabled, and performance-rich solution designed for professional-grade networking.
Inquire now for wholesale pricing, OEM requests, and technical datasheets!
