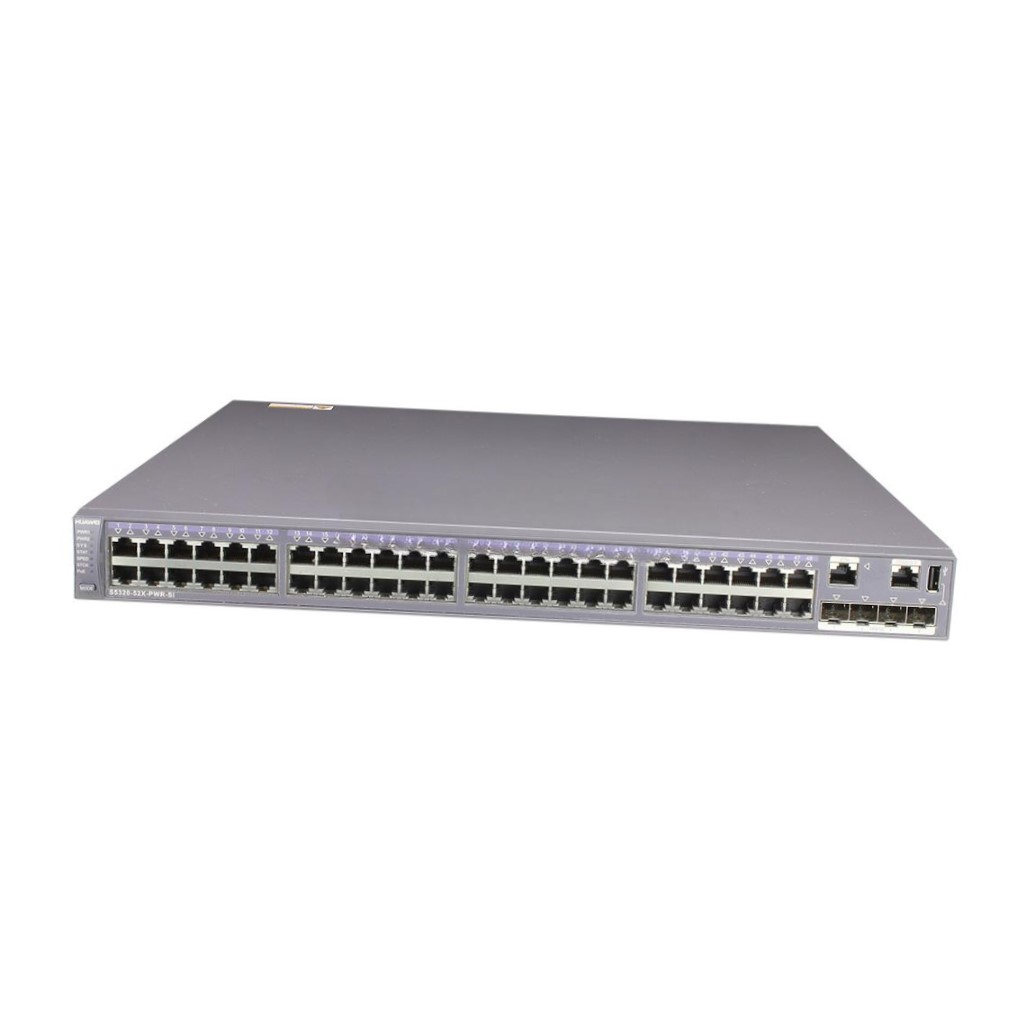

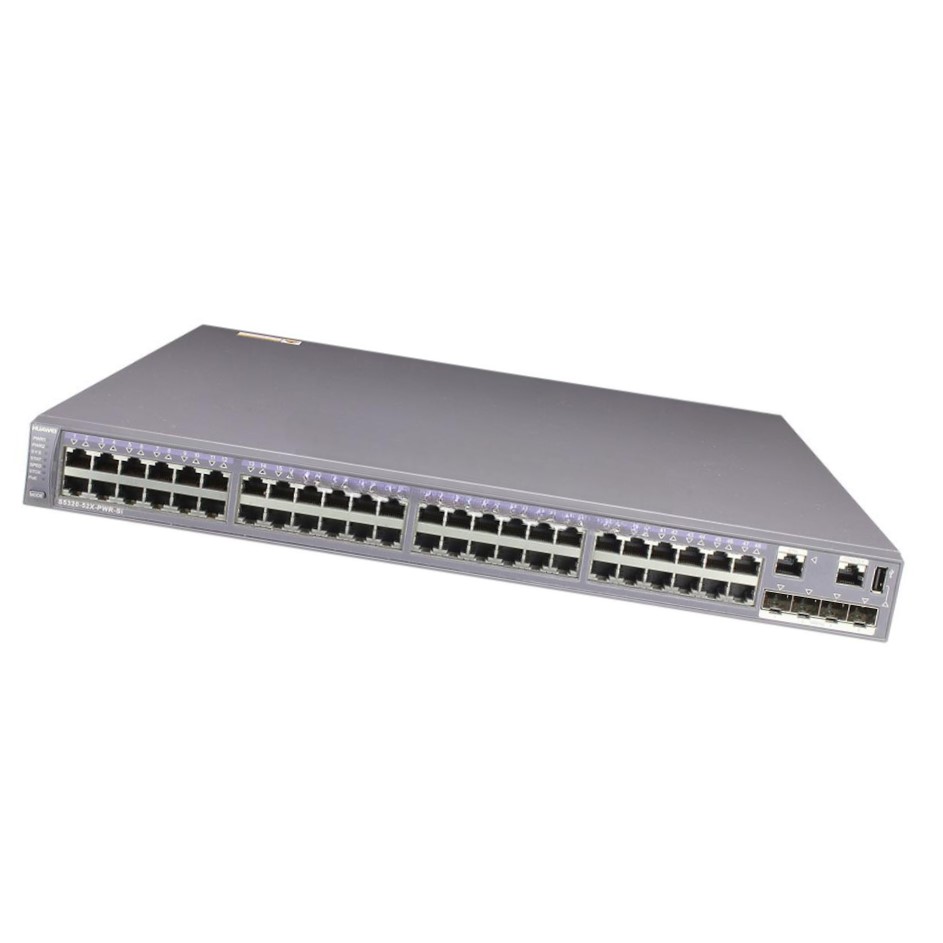

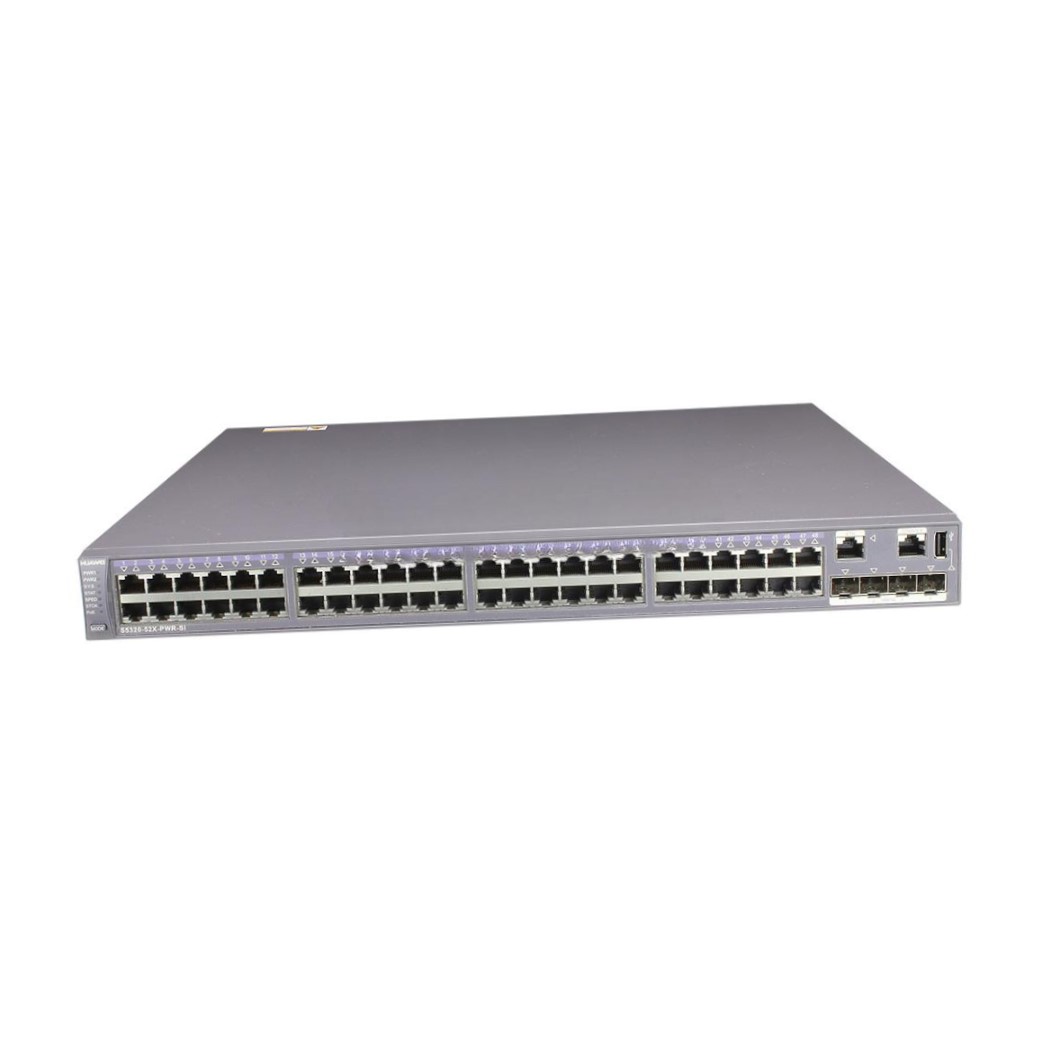

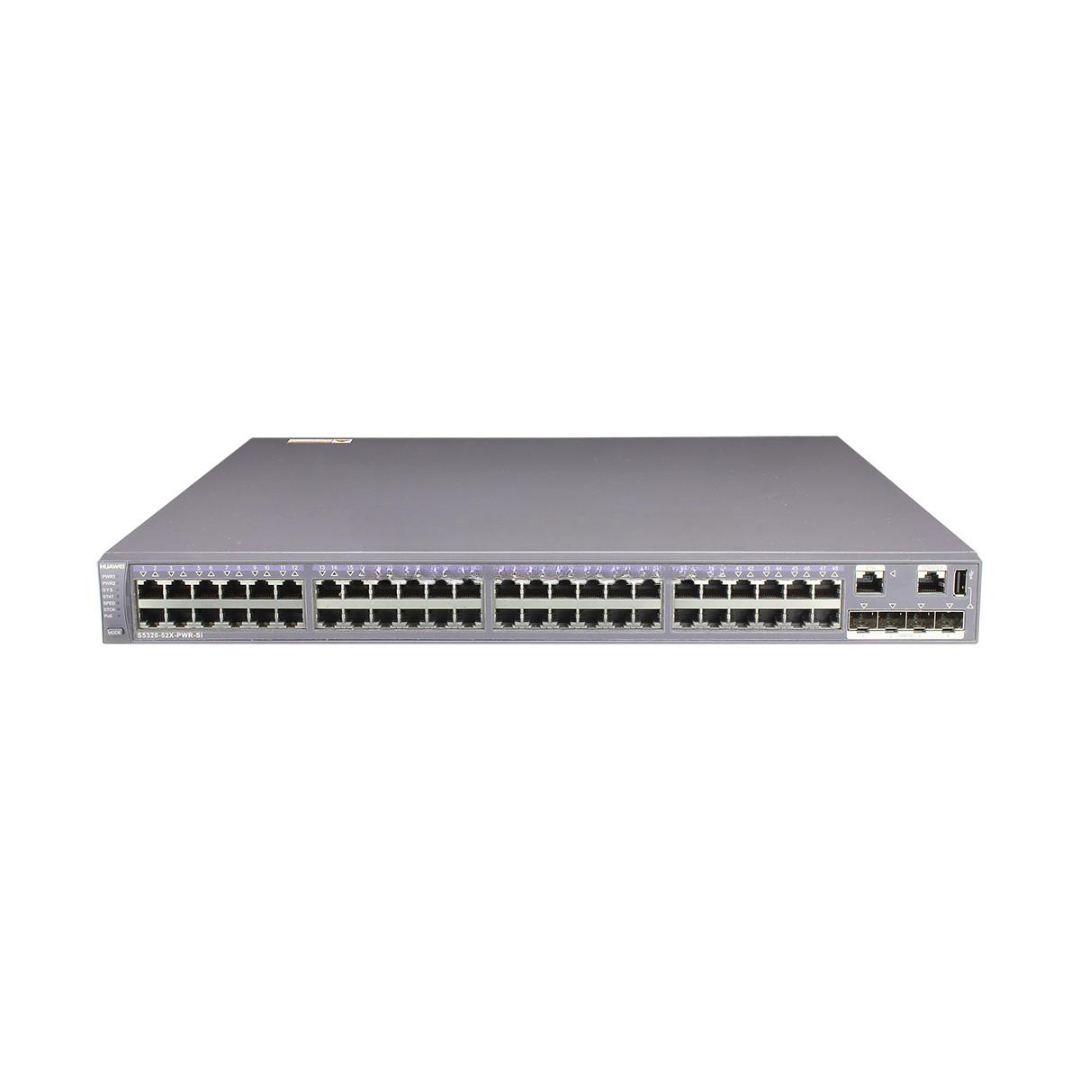

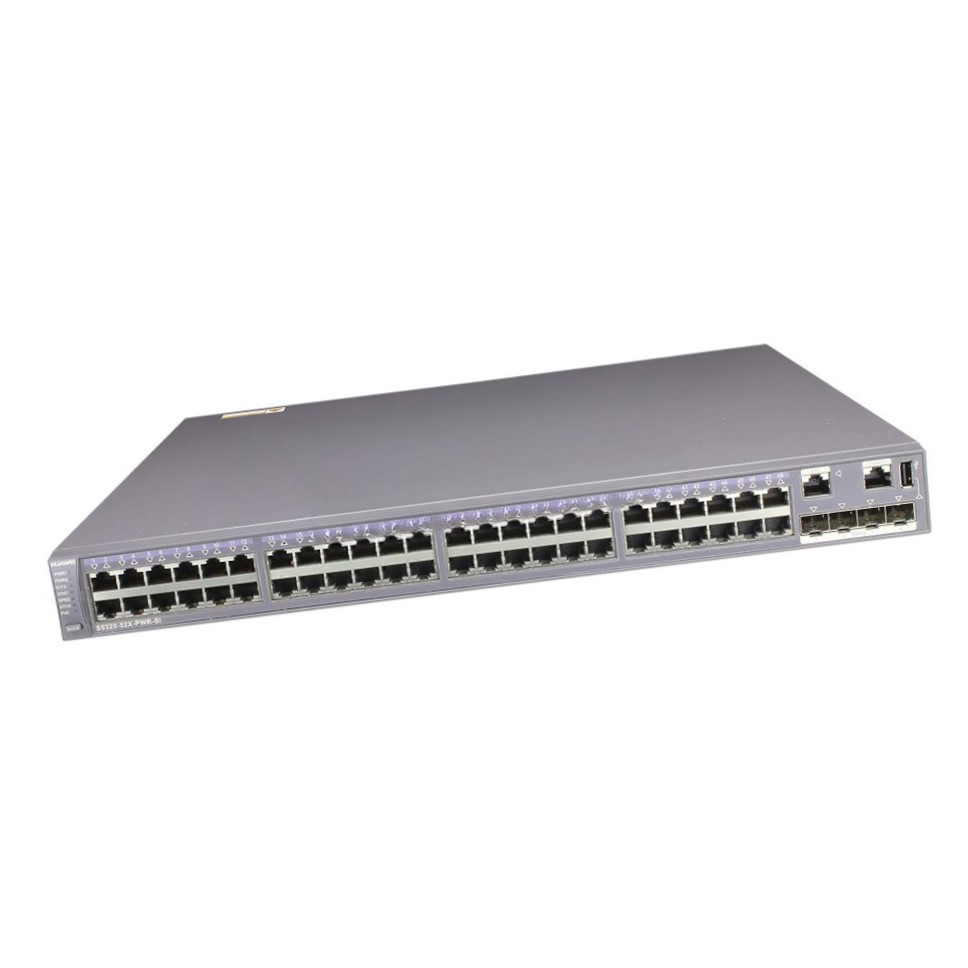

S5320-52X-PWR-SI-ACF Huawei Brand New 1 AC Power Module
The S5320-52X-PWR-SI-ACF Huawei is a fully managed 48-port PoE+ Ethernet switch with 1x AC power module, purpose-built for scalable enterprise and campus networks. Part of Huawei’s reliable S5300 series, it combines Layer 2 and basic Layer 3 capabilities with high-speed Gigabit access, PoE+ support, and advanced security features. Designed for IP telephony, Wi-Fi, and surveillance environments, this switch ensures efficient power delivery, intelligent switching, and easy integration with Huawei’s NMS systems.
This model includes 1x fixed AC power module for simplified deployment and dependable energy management.
Key Features
-
Model: S5320-52X-PWR-SI-ACF
-
Condition: 100% Brand New, Original Huawei
-
Port Configuration: 48 x 10/100/1000Base-T + 4 x GE SFP
-
PoE Support: IEEE 802.3af/at PoE+ on all RJ45 ports
-
AC Power Module: 1x fixed AC power (included)
-
Switching Capacity: 176 Gbps
-
Forwarding Rate: 96 Mpps
-
Layer 3 Capabilities: Static routing, VLAN routing
-
Power Budget: Up to 370W for PoE devices
-
Stacking Support: iStack virtual stacking
-
Management: CLI, SNMP, RMON, NMS, Web
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5320-52X-PWR-SI-ACF |
| Ports | 48 x GE RJ45 (PoE+) + 4 x GE SFP |
| PoE Standard | IEEE 802.3af/at (PoE/PoE+) |
| Max PoE Budget | Up to 370W (with 1x AC power module) |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 96 Mpps |
| Power Module | 1x AC power fixed module |
| Stacking Support | Yes (via Huawei iStack technology) |
| MAC Address Table | 32K entries |
| VLANs Supported | 4K VLAN IDs |
| Management | CLI, SNMP, Web, RMON, Huawei eSight |
| Dimensions | 442 mm × 420 mm × 43.6 mm |
| Operating Temperature | 0°C to 50°C |
| Humidity | 5% – 95% (non-condensing) |
| Warranty | 1–3 Years Manufacturer Warranty |
S5320-52X-PWR-SI-ACF Huawei Applications
-
Enterprise LAN Access — Ideal for powering IP phones, APs, and security cameras
-
SMB Networks — Simplified access switch with manageable PoE features
-
Surveillance Infrastructure — Robust power delivery for IP-based CCTV systems
-
Campus Network Edge — High port density for floor-level aggregation
-
Wireless Deployments — Reliable power and bandwidth for multiple access points
Customization & OEM Options
-
Private Labeling — Custom branding options available on request
-
Preloaded Configurations — VLANs, PoE priorities, port settings
-
Power Supply Variants — Custom AC or DC options for different setups
-
Integrated Patch Panels — Turnkey bundles for rapid deployments
-
Stacking Bundles — Optional iStack kits with stacking cables included
Wholesale & Global Supply Information
-
Bulk Orders — Available with significant pricing advantages for distributors
-
Secure Packaging — Anti-static, foam-cushioned, and sealed Huawei OEM boxes
-
Global Shipping — Export-ready and compliant with global freight regulations
-
Lead Time — Fast order processing and dispatch for urgent projects
-
Support Materials — Full access to datasheets, MIBs, and user guides
Why Choose the S5320-52X-PWR-SI-ACF Huawei Power Switch
Enterprise-Grade Reliability — Huawei OEM quality for mission-critical use
High PoE Density — 48-port PoE+ power distribution with AC power module
Layer 2/3 Intelligent Switching — VLANs, routing, QoS, and security built in
iStack Ready — Easy scaling with Huawei’s stacking architecture
Energy Efficient — Smart PoE and low-power idle port management
Get a Quote or Place Your Bulk Order Now
Whether you’re building out an enterprise LAN, surveillance backbone, or access layer for wireless, the Huawei S5320-52X-PWR-SI-ACF delivers performance and value.
Contact us today for datasheets, technical consultation, or wholesale pricing.
