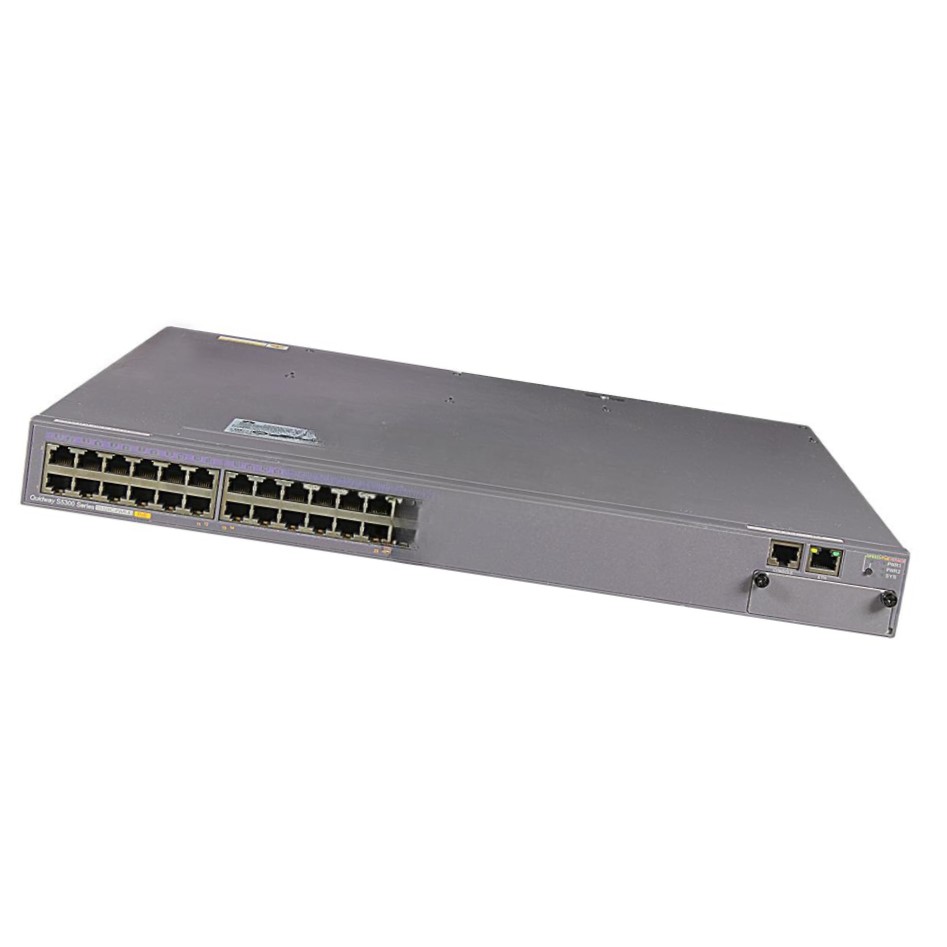

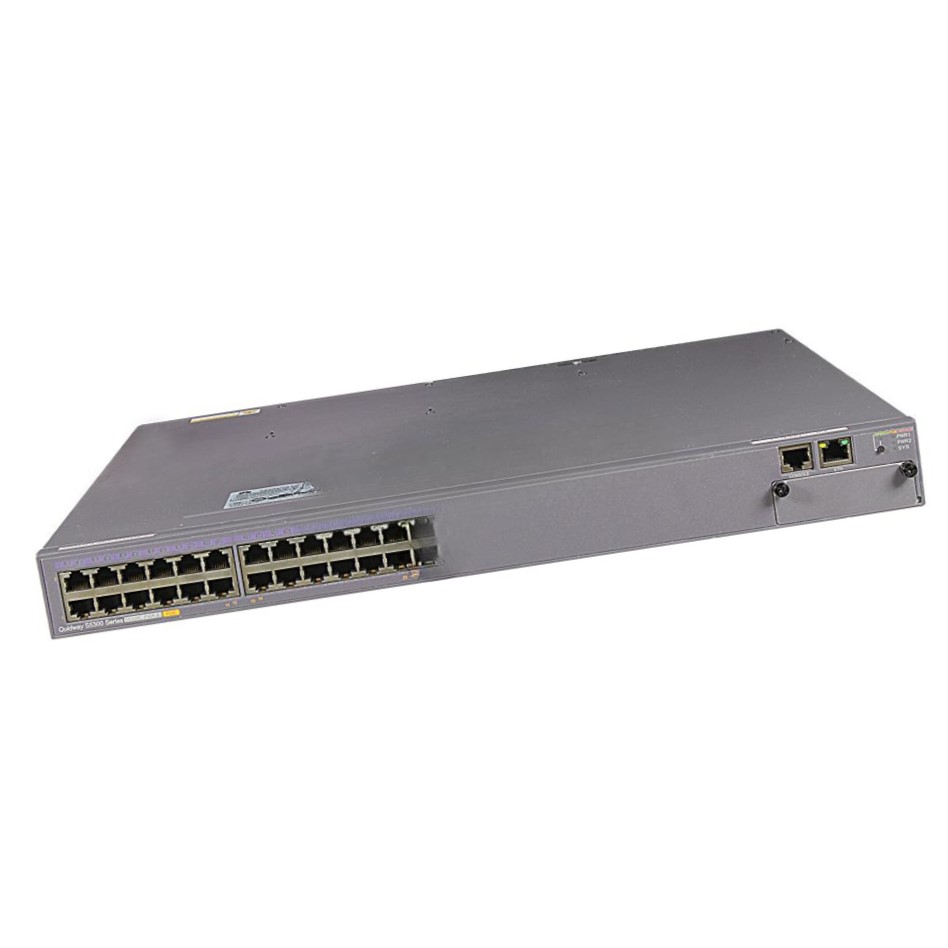

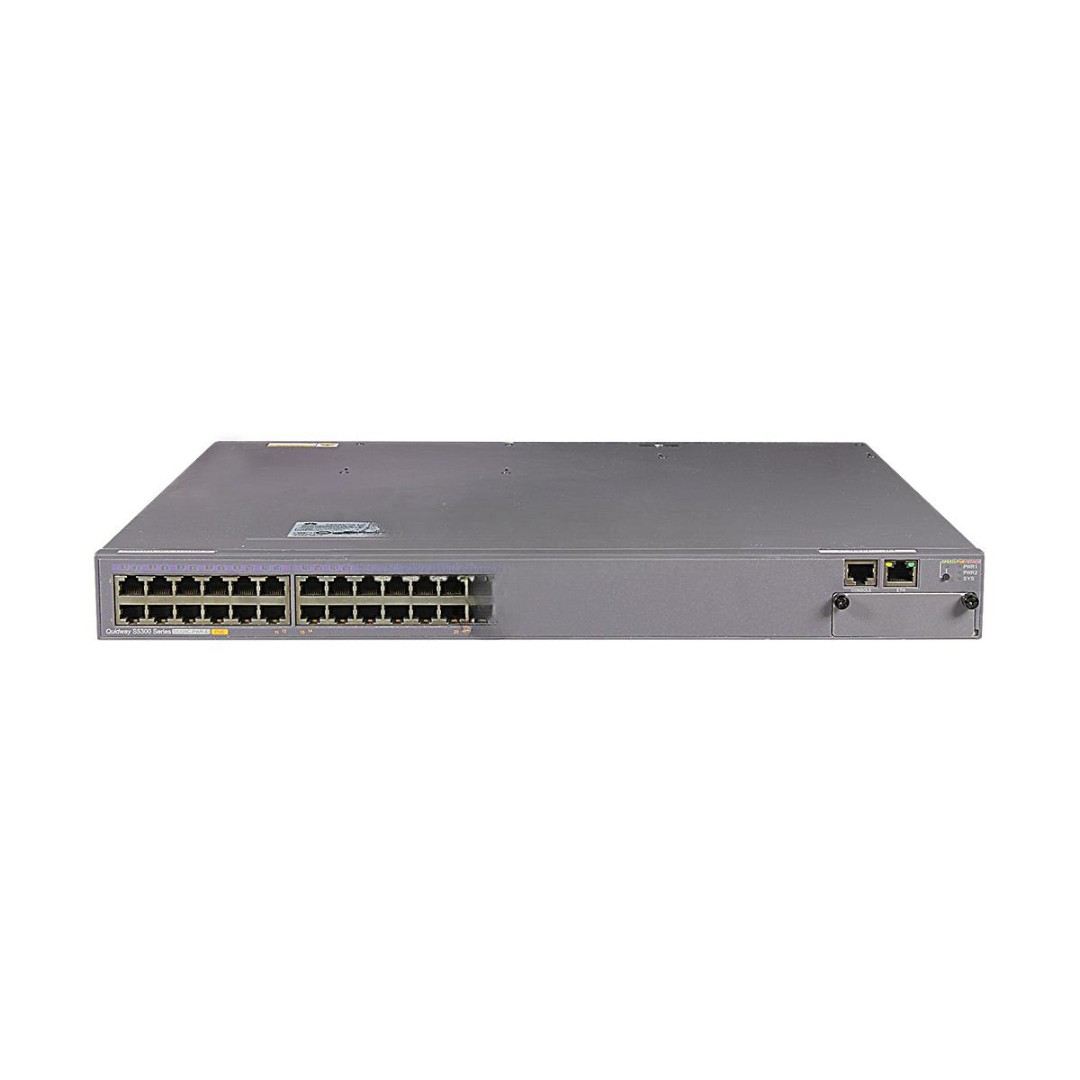

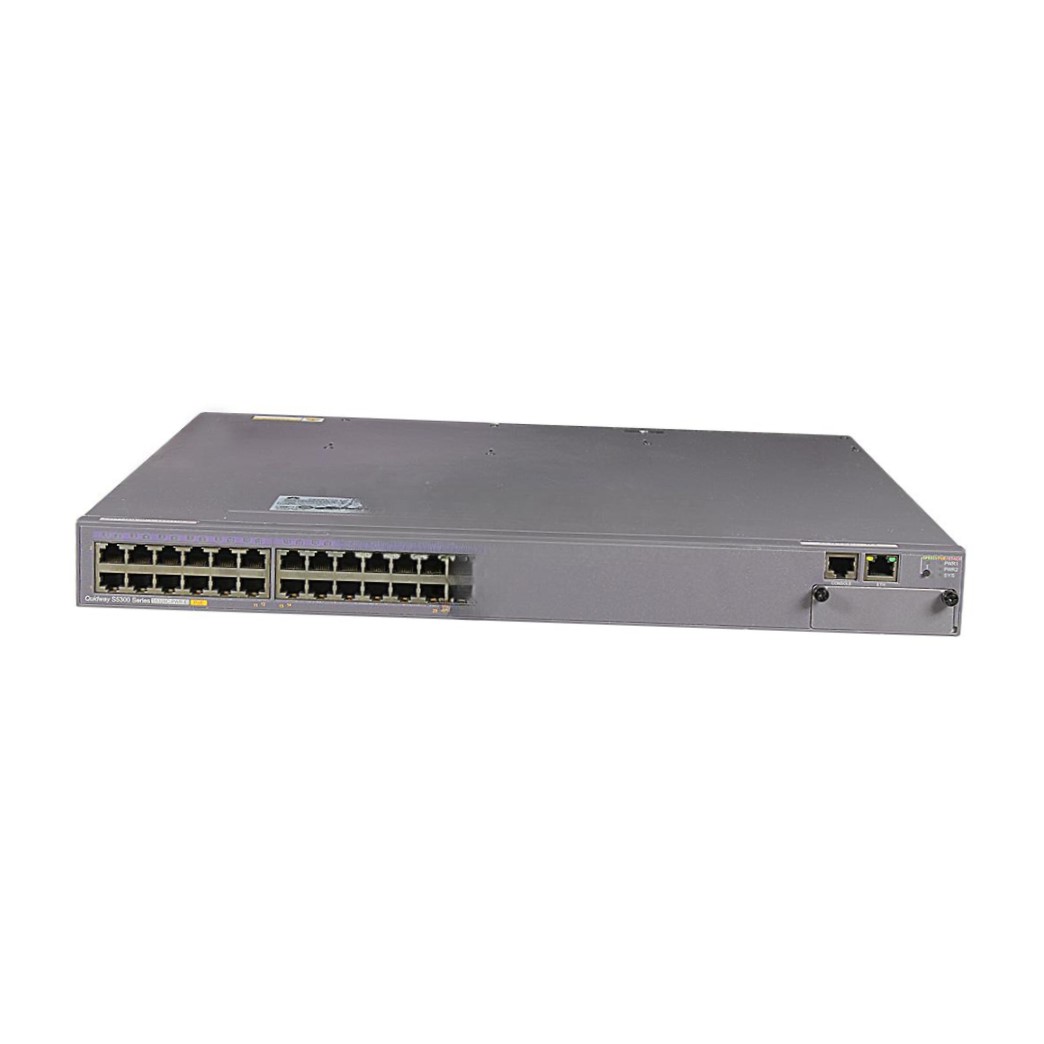

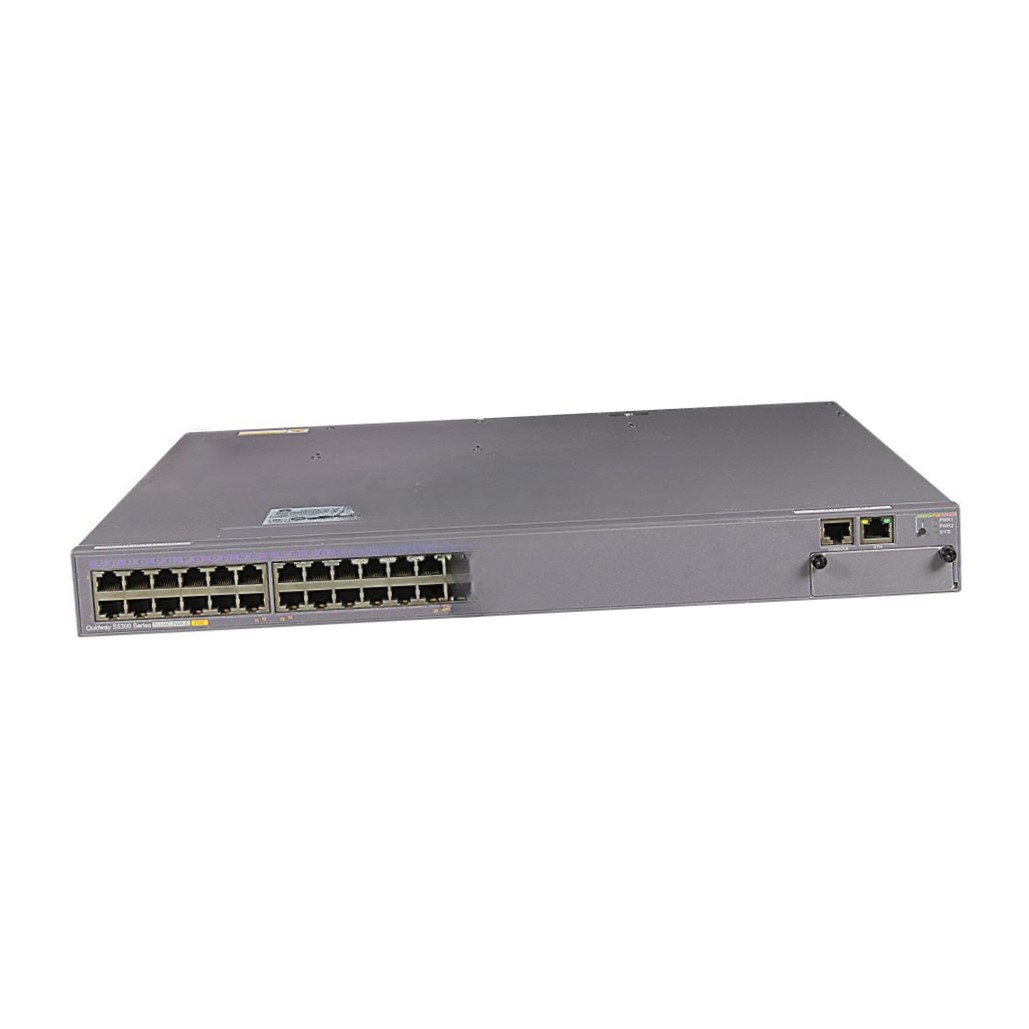

S5328C-PWR-EI Huawei Brand New 24-Ports Power Module
The S5328C-PWR-EI Huawei is a brand new 24-port full-power PoE+ Ethernet switch module, designed for enterprise-class networking with robust performance and advanced Layer 2 and Layer 3 capabilities. Built as part of the Huawei S5300 Series, it delivers high-density Gigabit Ethernet ports with full IEEE 802.3af/at PoE support, making it ideal for connecting IP phones, wireless access points, surveillance cameras, and other PoE-powered devices.
It also features enhanced security, QoS, and energy-saving technologies, and supports Huawei’s iStack stacking technology, which ensures flexible expansion and simplified management in large networks.
Key Features
-
Model: S5328C-PWR-EI
-
Condition: 100% Brand New, Original Huawei
-
Ports: 24x 10/100/1000Base-T Ethernet PoE+ Ports
-
Uplink Ports: 4x Gigabit SFP ports
-
PoE Support: IEEE 802.3af and 802.3at compliant
-
Max PoE Budget: Up to 370W total output
-
Layer 3 Features: Static routing, RIP, OSPF, and VRRP
-
Switching Capacity: 128 Gbps
-
Forwarding Rate: 36 Mpps
-
Management: SNMP, RMON, Web, CLI, and Huawei eSight
-
Reliability: Supports iStack, hot-swappable power supply
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5328C-PWR-EI |
| Port Count | 24 x GE RJ45 (PoE+) + 4 x GE SFP |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 36 Mpps |
| PoE Standard | IEEE 802.3af/at (PoE/PoE+) |
| Max PoE Power Output | Up to 370W (with dual power modules) |
| Layer Support | Layer 2 and Layer 3 (Static Routing, OSPF, RIP) |
| Stacking Capability | Supports iStack for virtualization |
| MAC Address Table | 32K entries |
| VLAN Support | 4K VLANs |
| Security Features | ACLs, DHCP snooping, MAC filtering, AAA, SSH |
| QoS | Traffic prioritization, rate limiting |
| Dimensions | 442 x 420 x 43.6 mm (1U standard) |
| Operating Temperature | 0°C to +50°C |
| Warranty | 1–3 Years Manufacturer Warranty |
S5328C-PWR-EI Huawei Applications
-
Enterprise Access Networks — Connect users, phones, and cameras with PoE
-
Small & Medium Business (SMB) — Cost-effective Gigabit edge switch
-
Campus Networks — Stackable access switch for building coverage
-
Surveillance Systems — Reliable PoE+ support for IP CCTV deployments
-
Wireless Infrastructure — Powers Huawei or third-party wireless APs
Customization & OEM Options
-
OEM Branding – Apply your company logo and custom labeling
-
Custom Power Supply Options – AC/DC variants available upon request
-
PoE Pre-Configuration – Tailored settings for port power limits and priority
-
Stacking Kit Bundles – Includes modules and cables for iStack setup
-
Deployment Packages – Patch cords and accessories for turnkey delivery
Wholesale & Global Supply Information
-
Bulk Orders Accepted – Discounts available for integrators and resellers
-
Secure Packaging – Factory-sealed anti-static boxes for international shipping
-
Inventory Available – Fast lead times and prompt dispatch
-
Worldwide Delivery – Export-compliant with safe logistics handling
-
Technical Documentation – Full support with datasheets, guides, and updates
Why Choose the S5328C-PWR-EI Huawei 24-Port PoE Module
Reliable Huawei OEM Quality — Built for long-term operation
Flexible Gigabit Access — PoE+ on all ports, perfect for modern IP deployments
Layer 3 Capable — Routing functions built in for simplified topology
iStack Ready — Future-proof scalability and redundancy
Energy Efficient — Smart power-saving features and thermal control
Request a Quote or Sample Now
Enhance your network with the Huawei S5328C-PWR-EI — a smart investment in reliable, scalable, and power-efficient access switching.
Contact us today for pricing, technical details, or to place your wholesale order.
