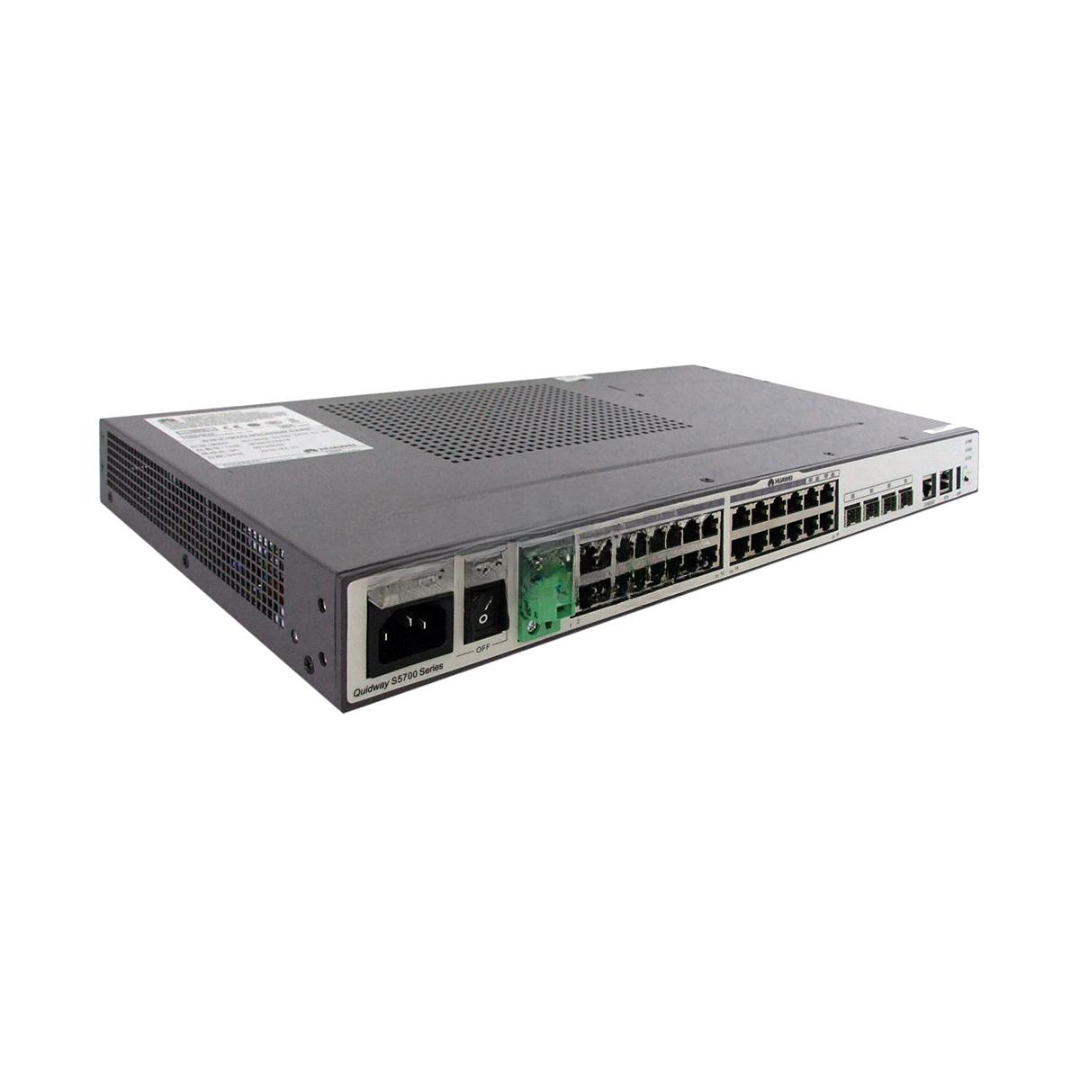

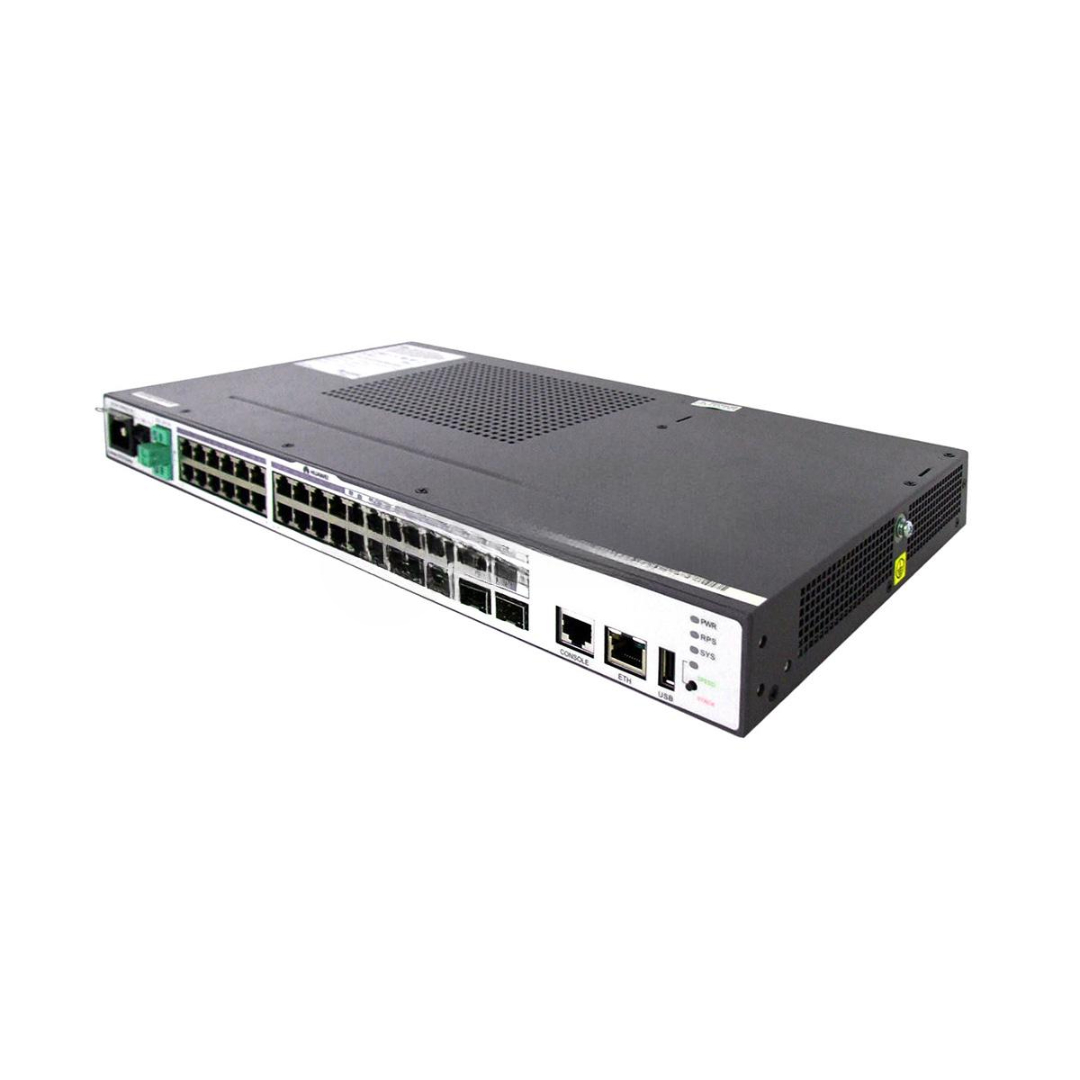

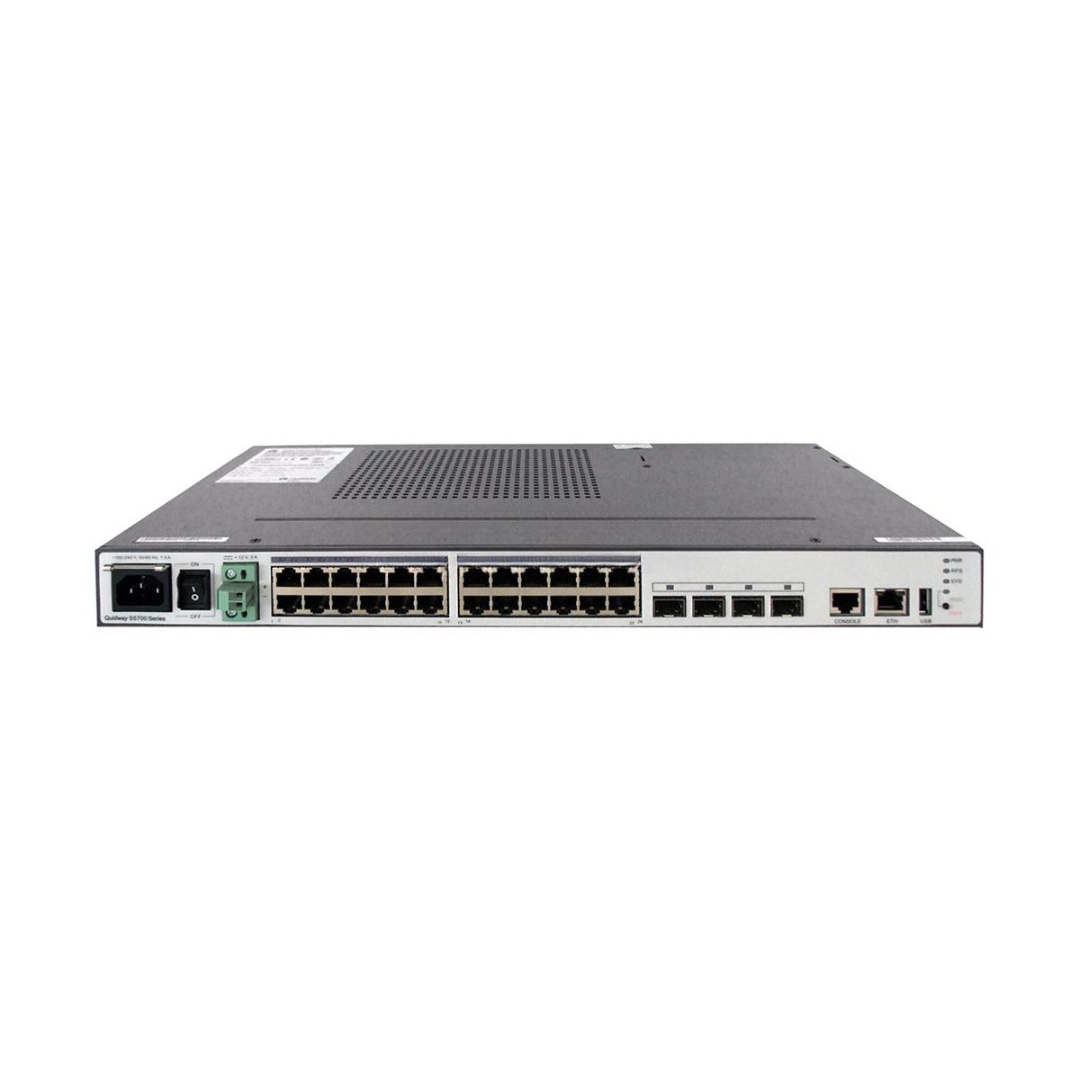

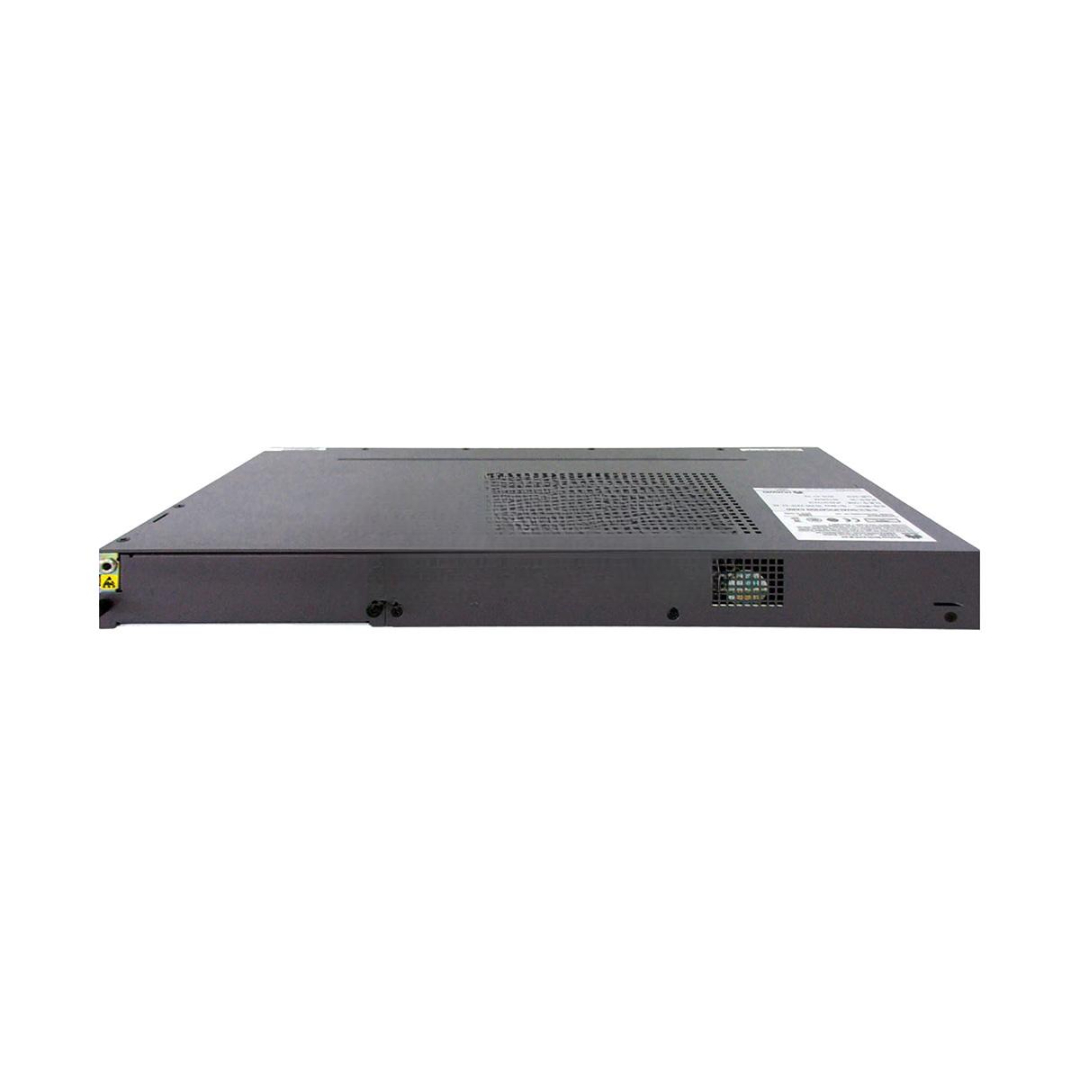

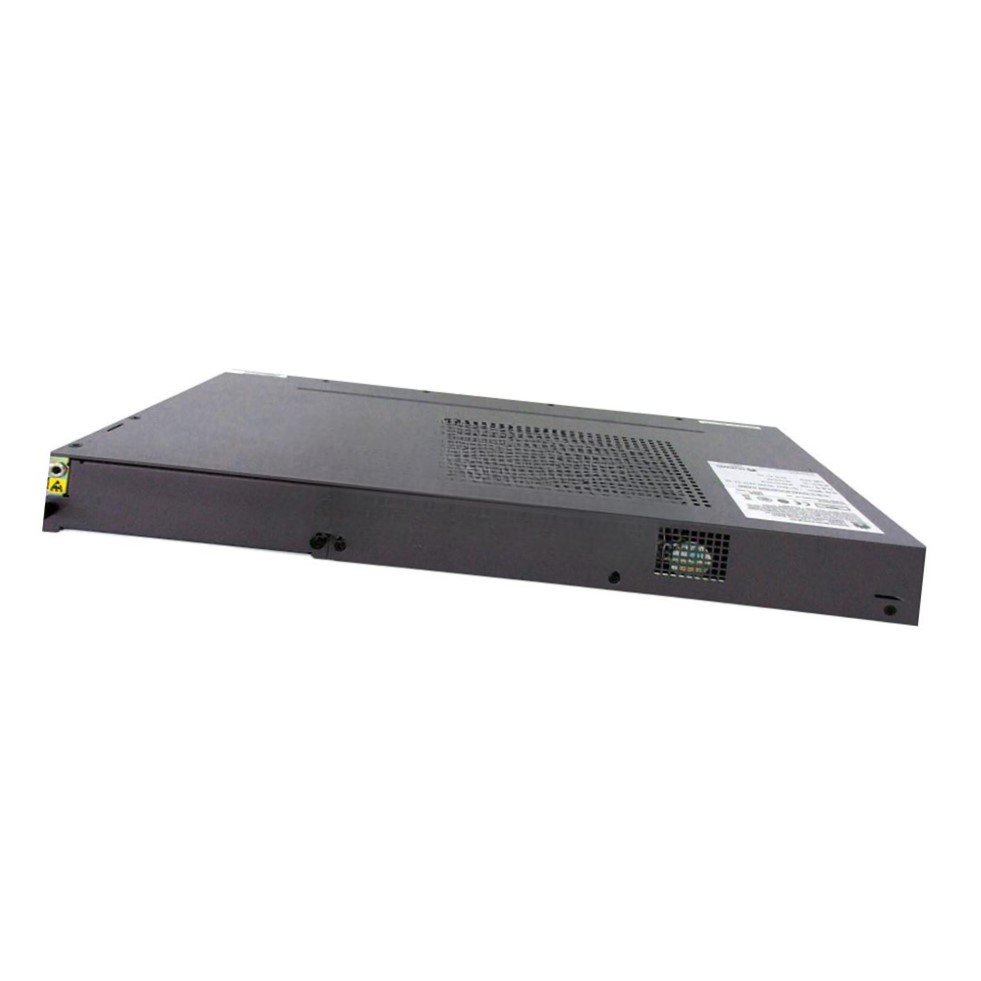

S5700-24TP-SI-AC Huawei Brand New Switch with 24-Ports
The S5700-24TP-SI-AC Huawei is a brand new Layer 2/3 switch from the S5700 series, designed to deliver high reliability, versatile service capabilities, and excellent energy efficiency. With 24 x 10/100/1000BASE-T Ethernet ports and 4 x GE SFP uplink slots, this model is ideal for enterprise campus networks, data center access, and carrier IP/MPLS edge environments. Built with AC power supply, it ensures long-term stable performance in demanding network setups.
Key Features
-
Model: S5700-24TP-SI-AC
-
Condition: 100% Brand New, Original Huawei
-
Port Configuration: 24 x 10/100/1000BASE-T + 4 x GE SFP
-
Forwarding Performance: Up to 42 Mpps
-
Switching Capacity: 96 Gbps / 336 Gbps (with stack)
-
Power Supply: Built-in AC power module
-
MAC Address Table: Up to 32K entries
-
Layer 2/3 Support: VLANs, Spanning Tree Protocols, Static Routing
-
Security Features: ARP inspection, DHCP snooping, broadcast storm suppression
-
Management: Web-based GUI, CLI, SNMP v1/v2/v3, RMON
-
Reliability: Supports dual-image and loopback detection
-
Energy Efficiency: IEEE 802.3az (Energy Efficient Ethernet)
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5700-24TP-SI-AC |
| Fixed Ports | 24 x GE RJ45 + 4 x GE SFP |
| Switching Capacity | 96 Gbps (standalone), 336 Gbps (stack) |
| Forwarding Rate | 42 Mpps |
| MAC Address Table | 32K |
| VLAN Support | 4K VLANs |
| Input Power | AC 100V–240V |
| Power Consumption | ≤ 30W (typical) |
| Dimensions | 442 mm x 220 mm x 43.6 mm |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Mounting Options | Rack-mountable (1U height) |
| Warranty | 1–3 Years Manufacturer Warranty |
S5700-24TP-SI-AC Huawei Applications
-
Enterprise Access – Ideal for branch offices and SMBs needing Gigabit Ethernet connectivity
-
Campus Networks – Aggregation or access layer switch in campus LANs
-
Data Center Edge – Non-blocking access switch for server connectivity
-
Carrier IP Edge – Deployed in ISP networks for IP/MPLS edge services
Customization & OEM Options
-
Custom Branding – Labeling with company logo and part numbers available
-
Pre-Configuration – VLANs, QoS policies, and access control lists can be factory-loaded
-
Stacking Support – Stack-ready deployment kits with modules and cables
-
Enhanced Testing – Extended reliability and stress tests for critical environments
S5700-24TP-SI-AC Huawei Wholesale & Global Procurement
-
Original Huawei Stock – Direct from Huawei certified supply chains
-
High Volume Discounts – Attractive bulk pricing for integrators and resellers
-
Fast Global Shipping – Ready stock for urgent telecom and enterprise rollouts
-
Secure Packaging – Anti-static and foam-protected for international transport
-
Technical Assistance – Integration support, configuration guides, and remote troubleshooting
Why Choose the S5700-24TP-SI-AC Huawei Switch
-
Enterprise-Grade Stability – Designed for uninterrupted service
-
Gigabit Performance – Supports high-speed access and uplink connectivity
-
Versatile Deployment – Ideal for access, aggregation, or edge scenarios
-
Reliable OEM Quality – Backed by Huawei’s global service network
-
Cost-Efficient Solution – High performance with low power usage
Contact Us Today for Pricing, Availability & Datasheets
Upgrade your network infrastructure with the Huawei S5700-24TP-SI-AC — a reliable and cost-effective Layer 2/3 switch tailored for modern enterprise and service provider needs.
