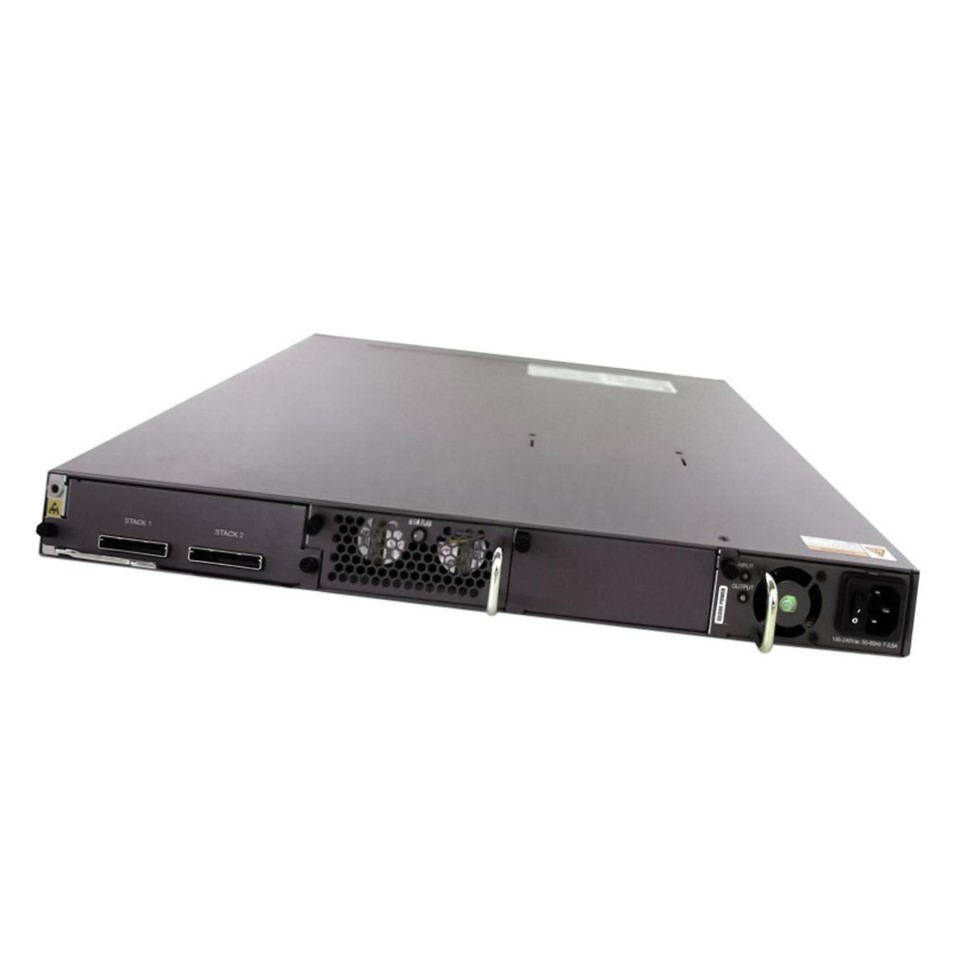

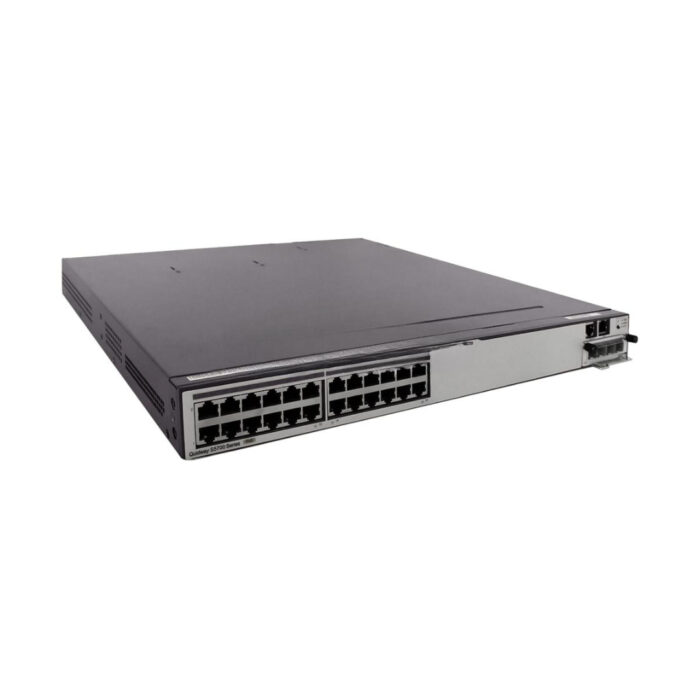

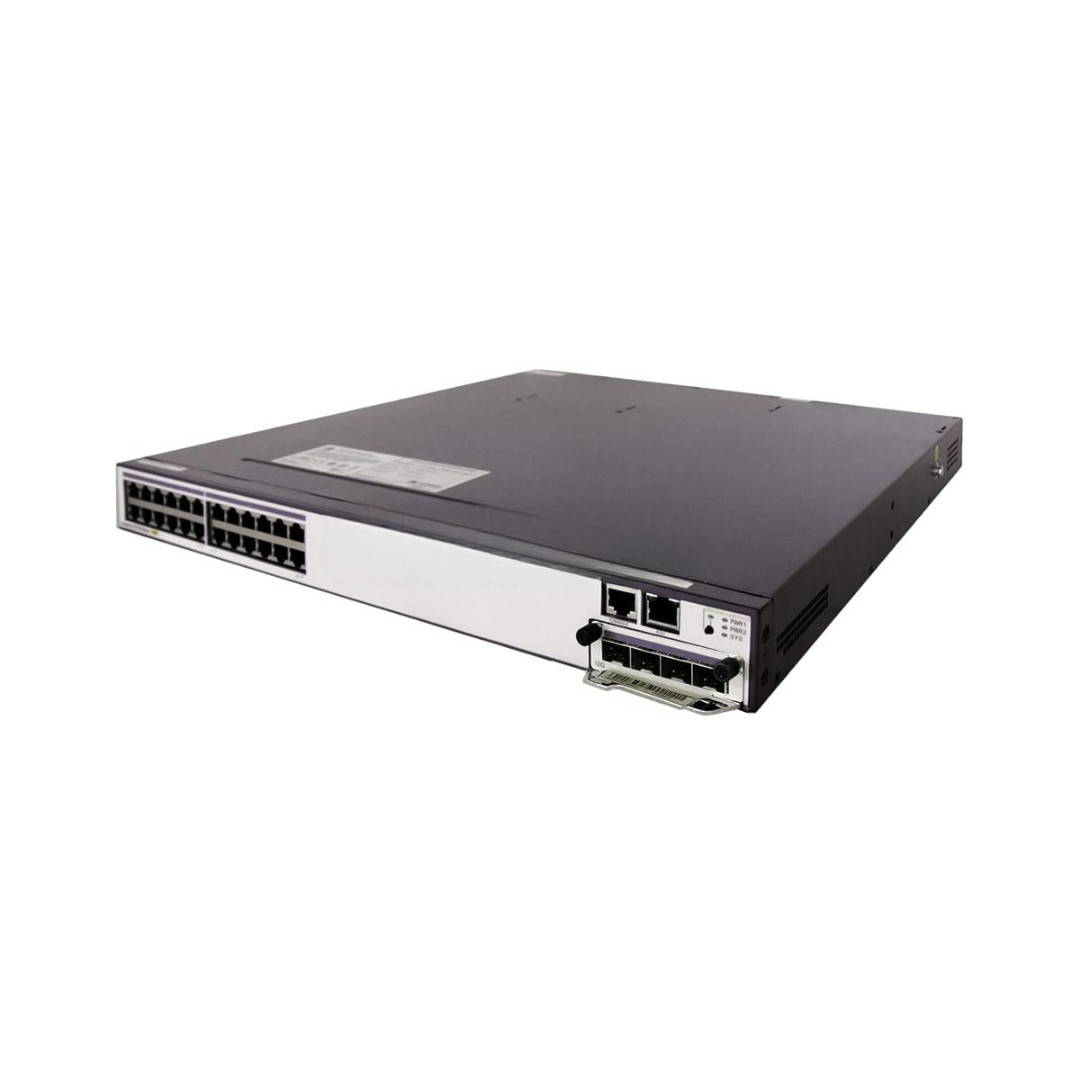

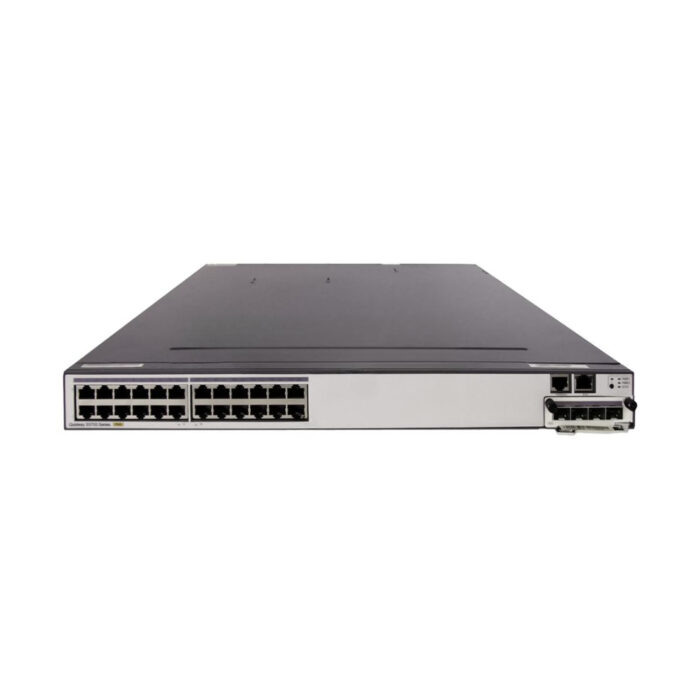

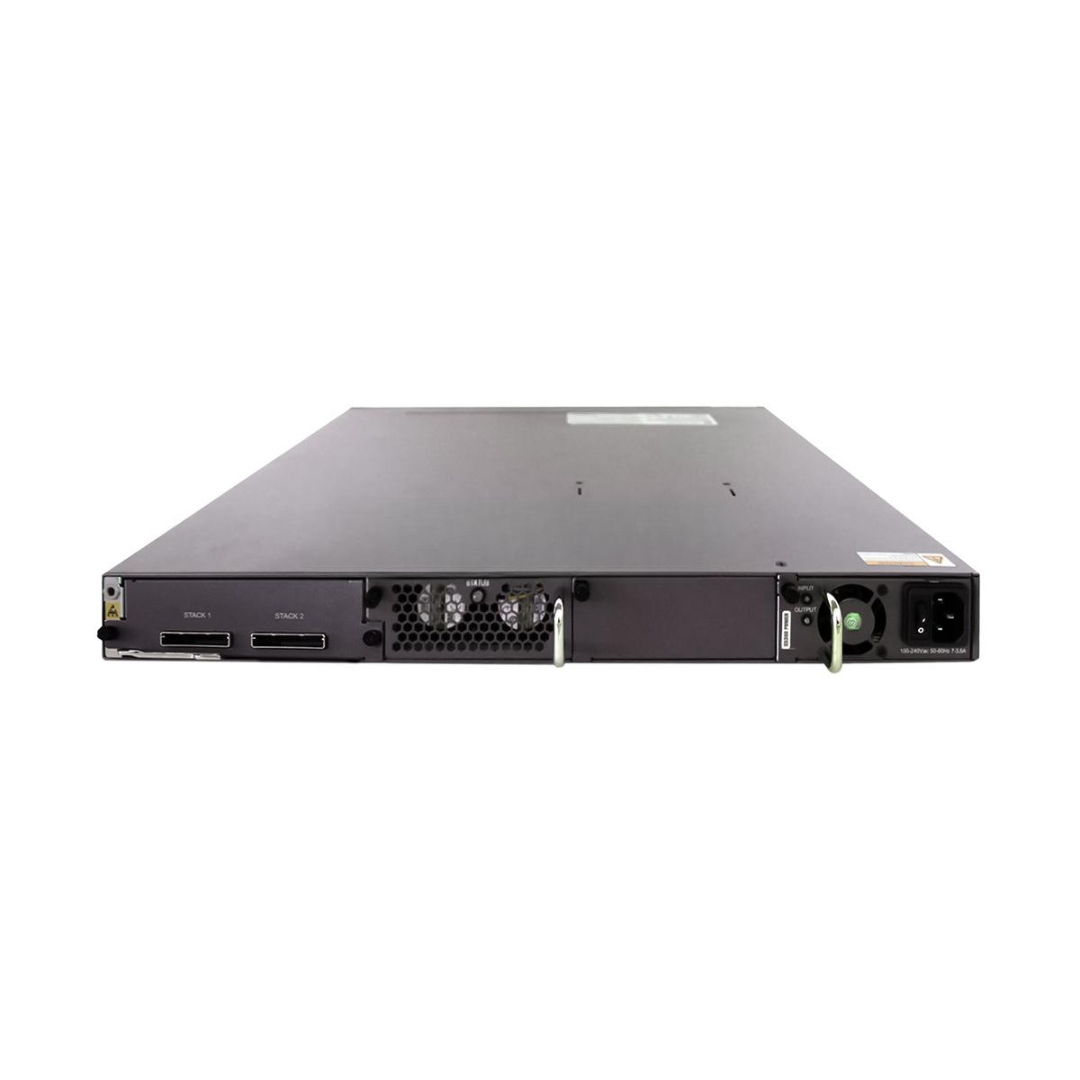

S5700-28C-PWR-EI Huawei High Quality X Interface Card Equipped
The S5700-28C-PWR-EI Huawei is a high-quality, full-Gigabit Layer 3 Ethernet switch designed for advanced enterprise applications, smart campus networks, and high-demand access scenarios. Equipped with a high-performance X Interface Card, this switch delivers enhanced uplink flexibility with support for Gigabit and 10 Gigabit optical modules, ensuring smooth network expansion and backbone access.
With 24 PoE-enabled 10/100/1000Base-T ports and 4 uplink ports via the X interface card, the S5700-28C-PWR-EI provides excellent switching capacity, PoE+ support, and robust Layer 2/3 functionality. It is ideal for networks requiring high security, stable performance, and flexible deployment.
Key Features
-
Model: S5700-28C-PWR-EI
-
Condition: 100% Brand New, Original Huawei
-
Interface Card: X Interface Card (Supports Gigabit/10G SFP/SFP+ uplinks)
-
Ports: 24 × 10/100/1000Base-T Ethernet + 4 × SFP uplinks
-
PoE Support: IEEE 802.3af/at (PoE & PoE+)
-
Switching Capacity: 256 Gbps
-
Forwarding Performance: 96 Mpps
-
Power Supply: Built-in AC Power Module
-
Stacking Support: iStack (horizontal scaling)
-
Layer 3 Functions: Static routing, RIP, OSPF, VRRP, and more
-
Management: SNMP v1/v2/v3, CLI, Web GUI, and centralized NMS
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5700-28C-PWR-EI |
| Ports | 24 x GE Base-T + 4 x SFP uplinks via X Interface Card |
| Switching Capacity | 256 Gbps |
| Forwarding Rate | 96 Mpps |
| PoE Standards | IEEE 802.3af/802.3at compliant |
| PoE Power Budget | Up to 370W |
| MAC Address Table | 32K entries |
| VLAN Support | Up to 4094 VLANs |
| Stacking Technology | iStack, supports stack bandwidth up to 80 Gbps |
| Routing Protocols | Static, RIP, OSPF, VRRP, BGP (license dependent) |
| Power Input | AC 100–240V |
| Operating Temperature | 0°C to +50°C |
| Dimensions (W×D×H) | 442 mm × 420 mm × 43.6 mm |
| Weight | ≤ 8.5 kg |
| Warranty | 1–3 Years Manufacturer Warranty |
S5700-28C-PWR-EI Huawei Applications
-
Enterprise Core or Access Layer – Full Gigabit access with 10G uplink capability
-
Smart Campus Networks – Central switch for dorms, classrooms, and admin buildings
-
Surveillance & IP Telephony – PoE+ ports for IP cameras and VoIP phones
-
Service Provider Access – Supports high-speed broadband aggregation
-
Government and Utilities – Secure, reliable switching in public-sector networks
Customization & OEM Options
-
Custom Uplink Modules – Supports 1G SFP or 10G SFP+ depending on project needs
-
Pre-Configured Settings – VLANs, QoS policies, routing protocols set before delivery
-
OEM Branding – Custom faceplate, logo, and serial labeling for partners and integrators
-
Extended Testing – Factory QA for industrial, high-availability, or large-scale projects
-
Rack-Mount Bundles – Optional delivery with patch cords, mounting brackets, and labels
Wholesale & Global Supply Options
-
Huawei Original Hardware – Direct factory stock with complete serial traceability
-
Bulk Orders Supported – Fast dispatch and freight options for large-volume procurement
-
Secure Packaging – ESD-safe, double-layer packaging for long-haul logistics
-
Global Certifications – Meets CE, FCC, RoHS, and ISO standards
-
Deployment Support – Remote configuration, documentation, and training on request
Why Choose S5700-28C-PWR-EI Huawei with X Interface Card
-
Flexible Uplink Expansion – X Interface Card offers modular SFP/10G options
-
Powerful PoE+ Support – Simplifies network with power and data over Ethernet
-
High Performance Layer 3 Switching – Routing, security, and stackable scalability
-
Ideal for Growth-Oriented Networks – Smoothly scales with future capacity needs
-
Carrier-Grade Reliability – Built to last in enterprise, telecom, and public environments
Request Pricing, Customization, or a Bulk Quote Now
Unlock flexible uplink, high-speed switching, and robust PoE with the Huawei S5700-28C-PWR-EI.
Contact us today for OEM branding, volume pricing, and datasheets tailored to your network deployment.
