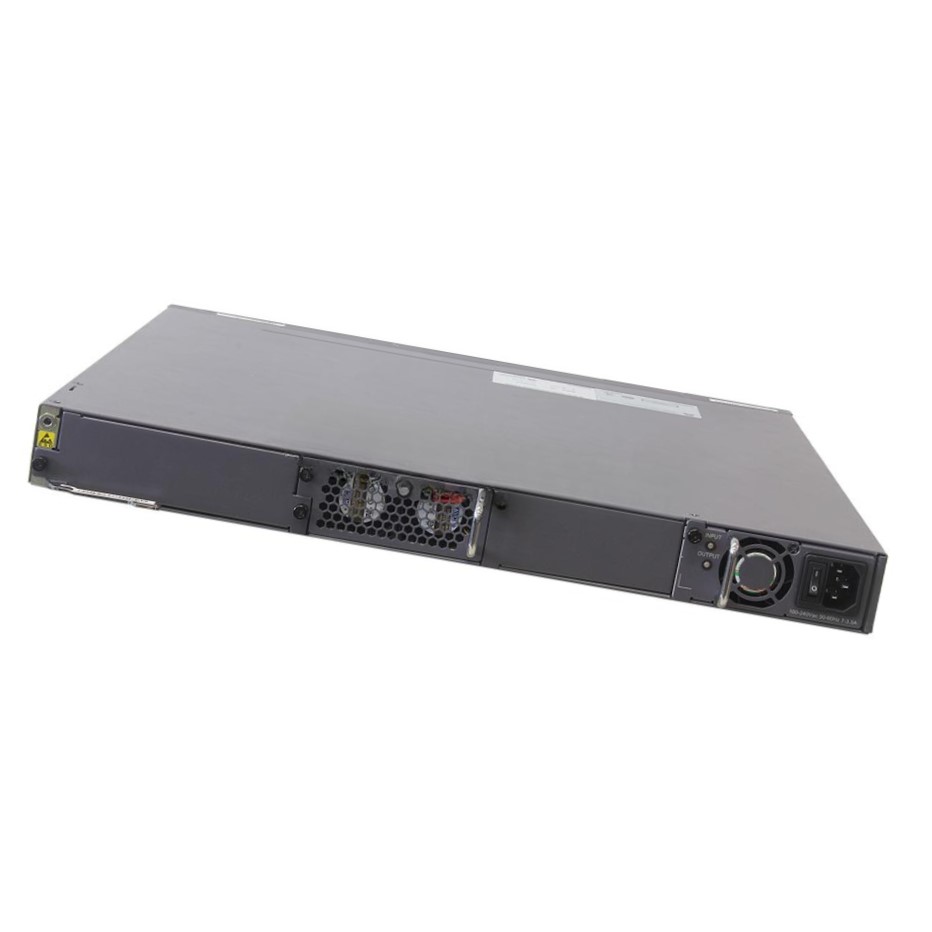

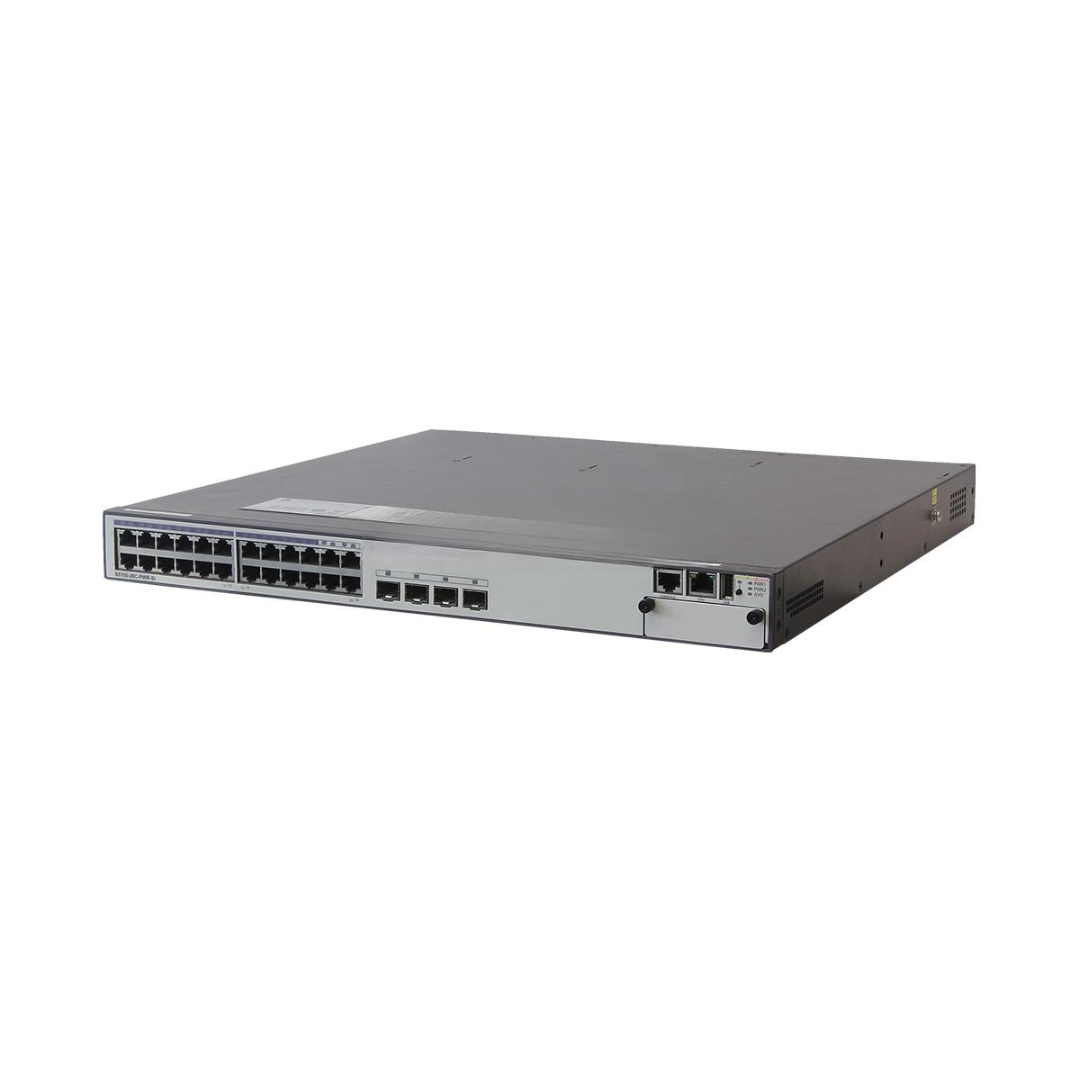

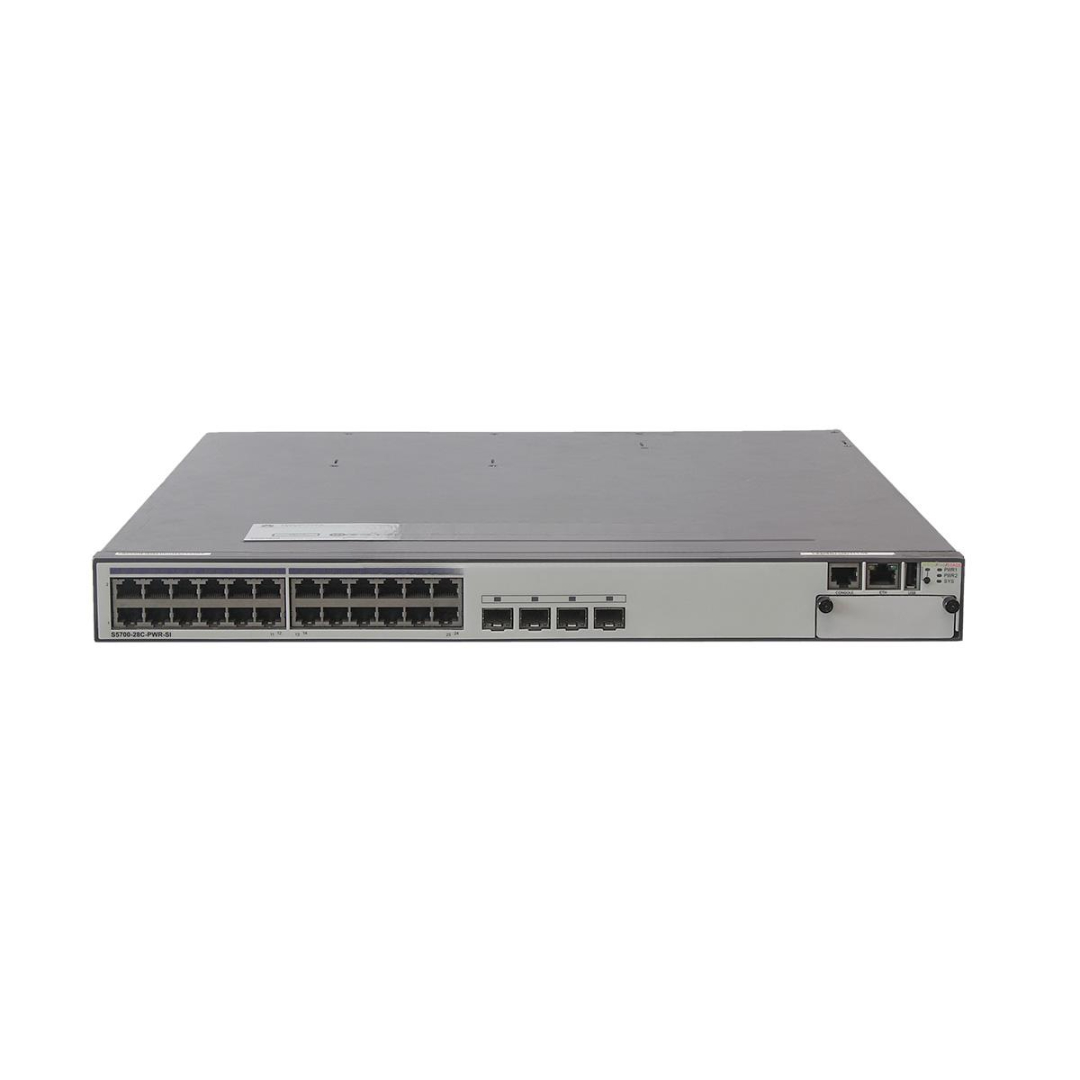

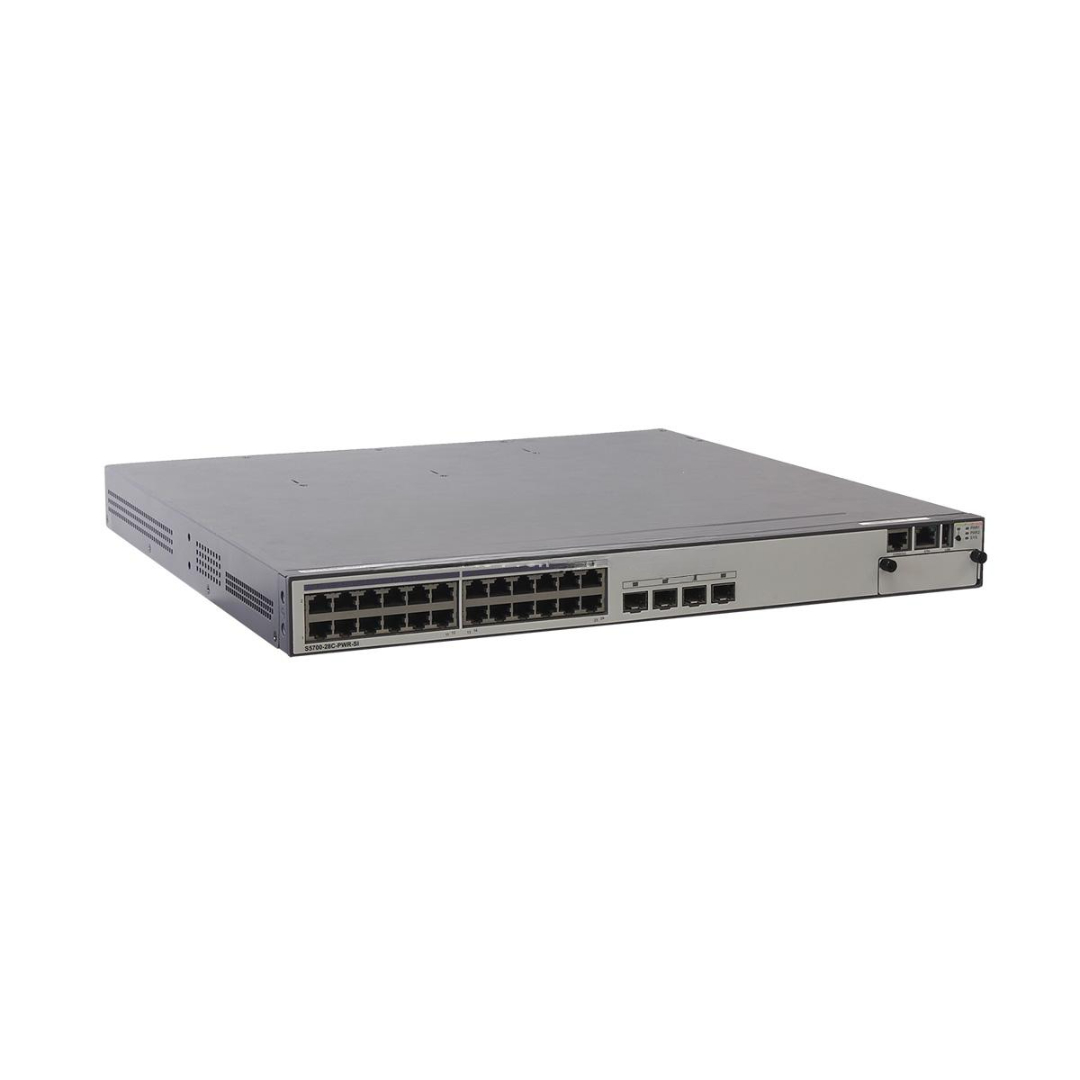

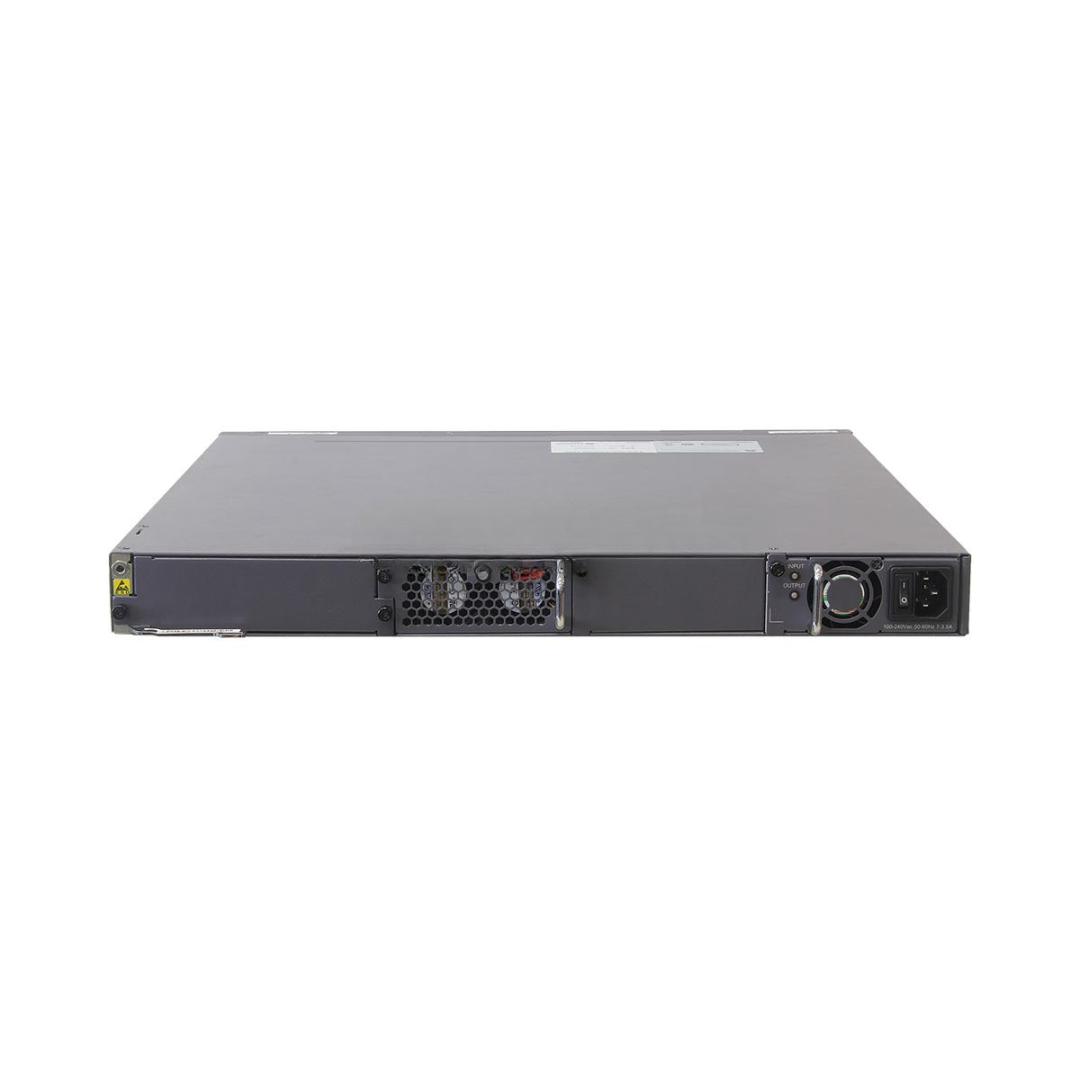

S5700-28C-PWR-SI Huawei High Quality X Interface Card Equipped
The S5700-28C-PWR-SI Huawei is a high-performance, full-Gigabit Layer 2/3 Ethernet switch designed for enterprise campus networks, intelligent buildings, and service provider access. It comes equipped with a high-quality X interface card, offering uplink flexibility and expansion to meet the increasing demands of scalable network topologies.
This model features 24 x 10/100/1000Base-T ports with PoE/PoE+ support and 4 x Gigabit SFP uplink ports via the X interface card, making it a reliable access switch for scenarios that require both data and power transmission over Ethernet.
Key Features
-
Model: S5700-28C-PWR-SI
-
Condition: 100% Brand New, Original Huawei
-
Interface Card: High-Quality X Interface Card Installed (Gigabit SFP/10G Ready)
-
Ports: 24 x 10/100/1000Base-T Ethernet + 4 x Gigabit SFP uplinks
-
PoE Support: IEEE 802.3af/at compliant
-
Switching Capacity: 128 Gbps
-
Forwarding Rate: 42 Mpps
-
Power Module: Built-in AC power module for PoE supply
-
Stacking Support: Supports iStack for horizontal scalability
-
Advanced QoS and Security: Ensures reliable access for real-time services
-
Network Management: SNMP v1/v2/v3, CLI, Web, NMS
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5700-28C-PWR-SI |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 42 Mpps |
| Ports | 24 x GE Base-T + 4 x GE SFP uplinks (via X card) |
| PoE Support | IEEE 802.3af (PoE) / 802.3at (PoE+) compliant |
| PoE Budget | Up to 370W |
| MAC Address Table | 32K entries |
| Stacking | iStack (supports stacking with other S5700 series) |
| Layer 3 Capabilities | Static routing, RIP, VRRP (Lite L3 functions) |
| Security Features | 802.1X, MAC filtering, port security, ACLs |
| Operating Temperature | 0°C to +50°C |
| Power Input | AC 100–240V |
| Dimensions | 442 mm × 420 mm × 43.6 mm |
| Weight | ≤ 8.5 kg |
| Warranty | 1–3 Years Manufacturer Warranty |
S5700-28C-PWR-SI Huawei Applications
-
Enterprise Campus Networks – Ideal for wiring closets with high-density user access
-
Video Surveillance Networks – Provides reliable power and data to IP cameras
-
Educational Institutions – Supports high-bandwidth classrooms and administrative access
-
Retail & Hospitality – Delivers consistent service to POS systems, APs, and smart devices
-
Government & Industrial Networks – Secure and robust switch for PoE-powered deployments
Customization & OEM Options
-
OEM Branding – Custom logo and part number printing for distributors and partners
-
Pre-Configured Profiles – VLAN, QoS, and PoE settings based on deployment specs
-
Module Customization – Support for various SFP or 10GE uplinks per region/project
-
Bundle Packaging – Includes rack mount kits, patch cords, and configuration guides
-
Extended Testing Options – Factory burn-in and quality assurance for mission-critical use
S5700-28C-PWR-SI Huawei Wholesale & Global Supply
-
Available in Volume – In-stock for large enterprise, government, and telecom bids
-
Secure Shipping – Anti-static, OEM-compliant international packaging
-
Flexible Delivery – Fast air/sea freight with export documentation
-
Global Certifications – CE, RoHS, FCC, and ISO approved
-
Technical Support – Huawei-certified engineers available for setup and tuning
Why Choose the S5700-28C-PWR-SI Huawei with X Interface Card
-
High Port Density with PoE+ – Ideal for networks with APs, phones, and surveillance
-
Modular Uplink Flexibility – X Interface Card allows adaptation to different uplink needs
-
Scalable and Stackable – Grow your network without infrastructure overhauls
-
Huawei Carrier-Class Quality – Long-term performance and operational consistency
-
Secure and Intelligent Access – Advanced traffic control and attack prevention
Contact Us Now for Quotes, OEM Branding & Bulk Orders
Ready to deploy a scalable, high-performance Huawei switch in your network?
The S5700-28C-PWR-SI with X Interface Card delivers power, performance, and flexibility.
Reach out today for pricing, lead time, technical documents, and customization options.
