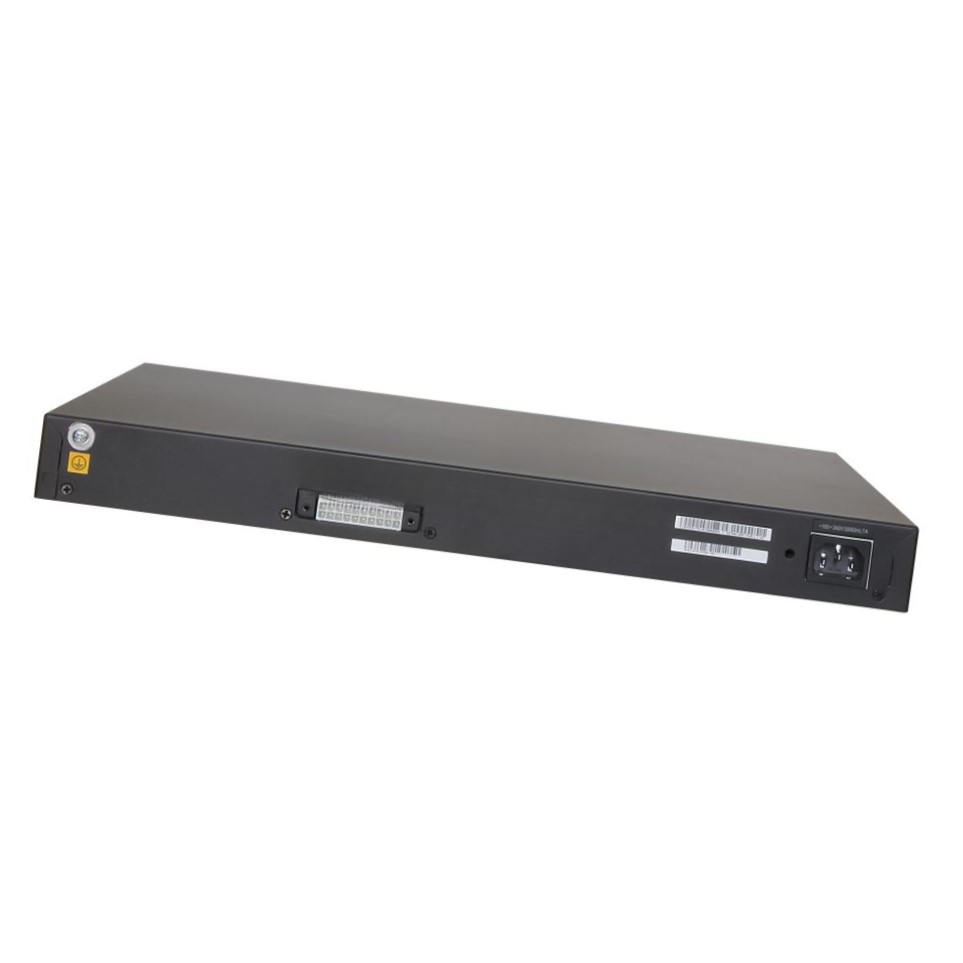

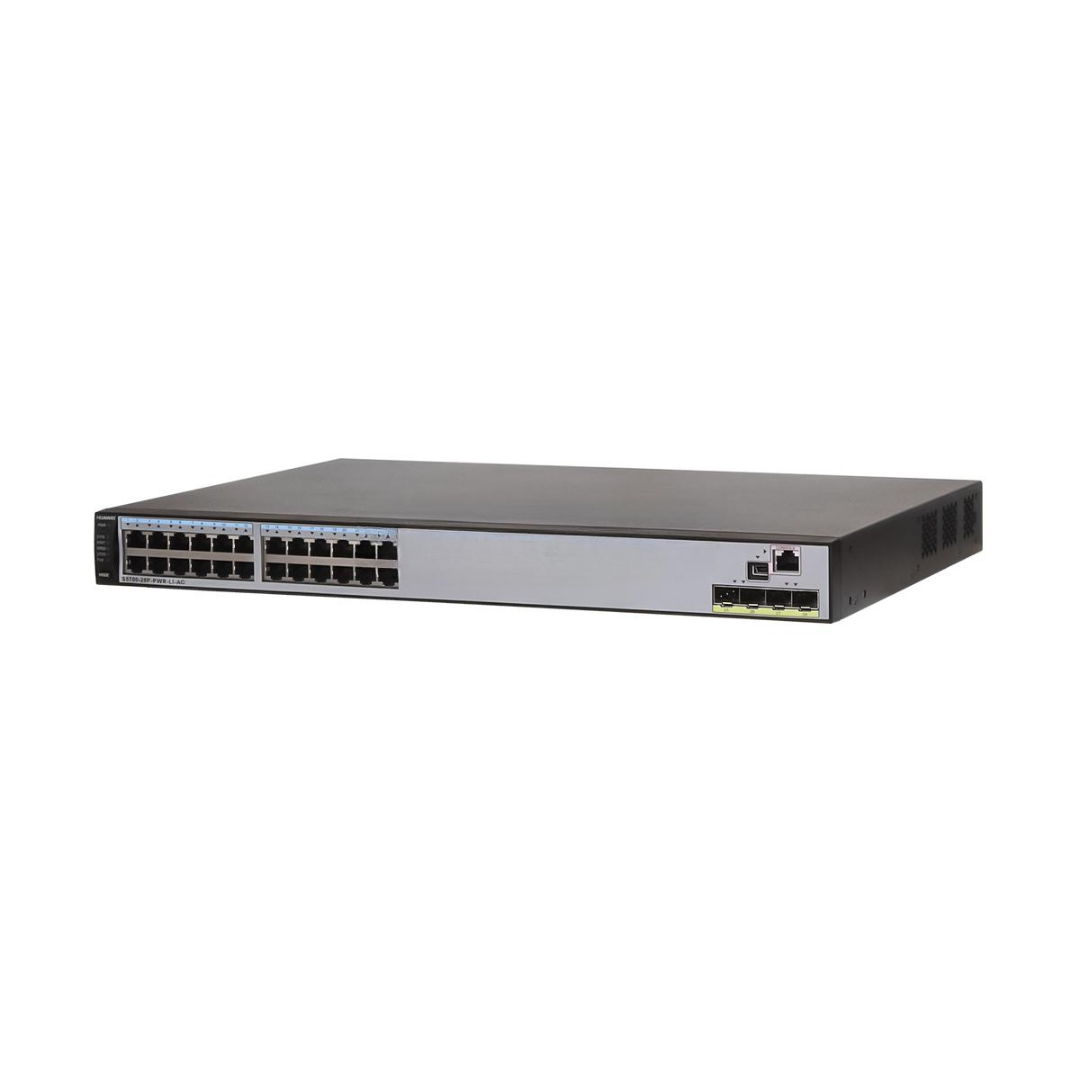

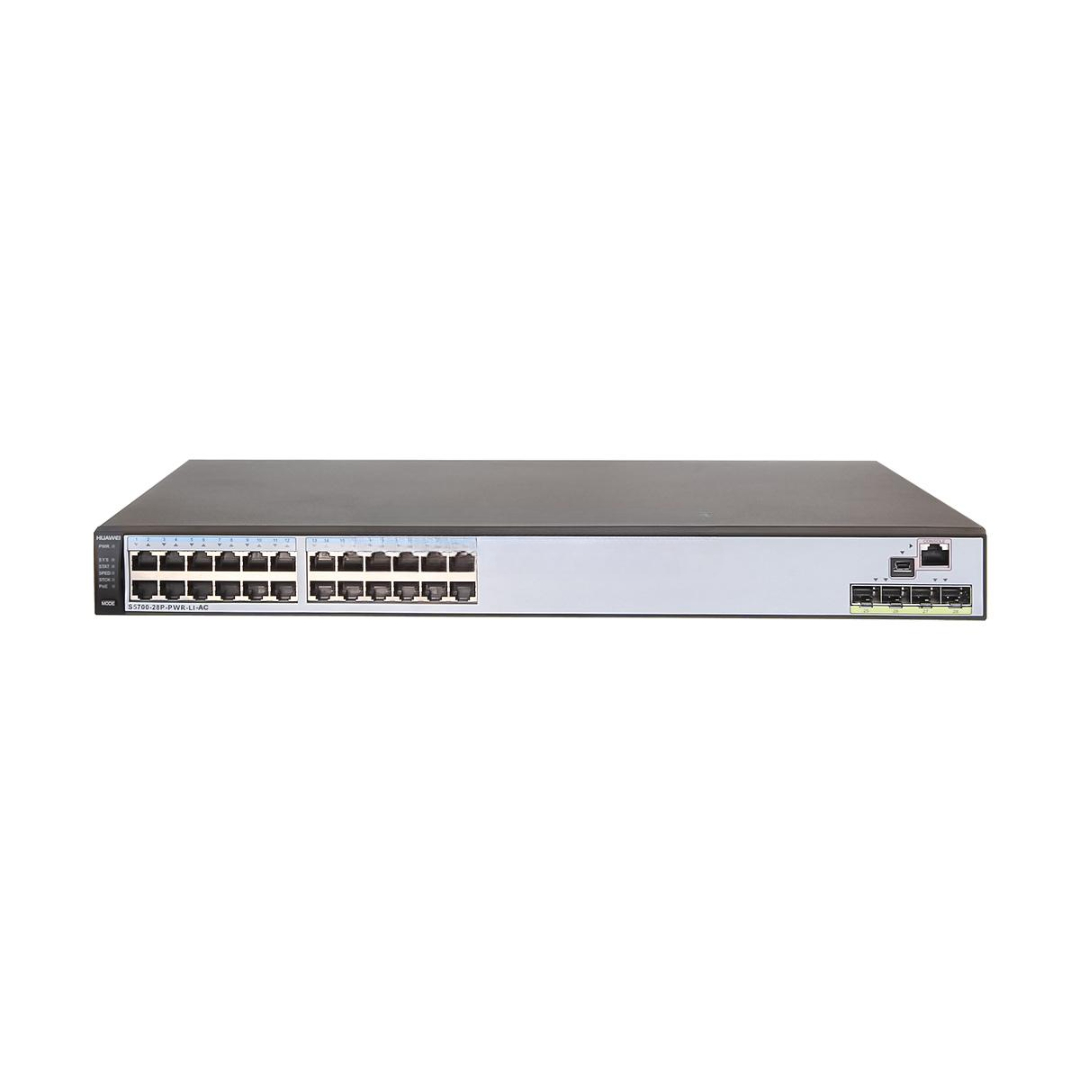

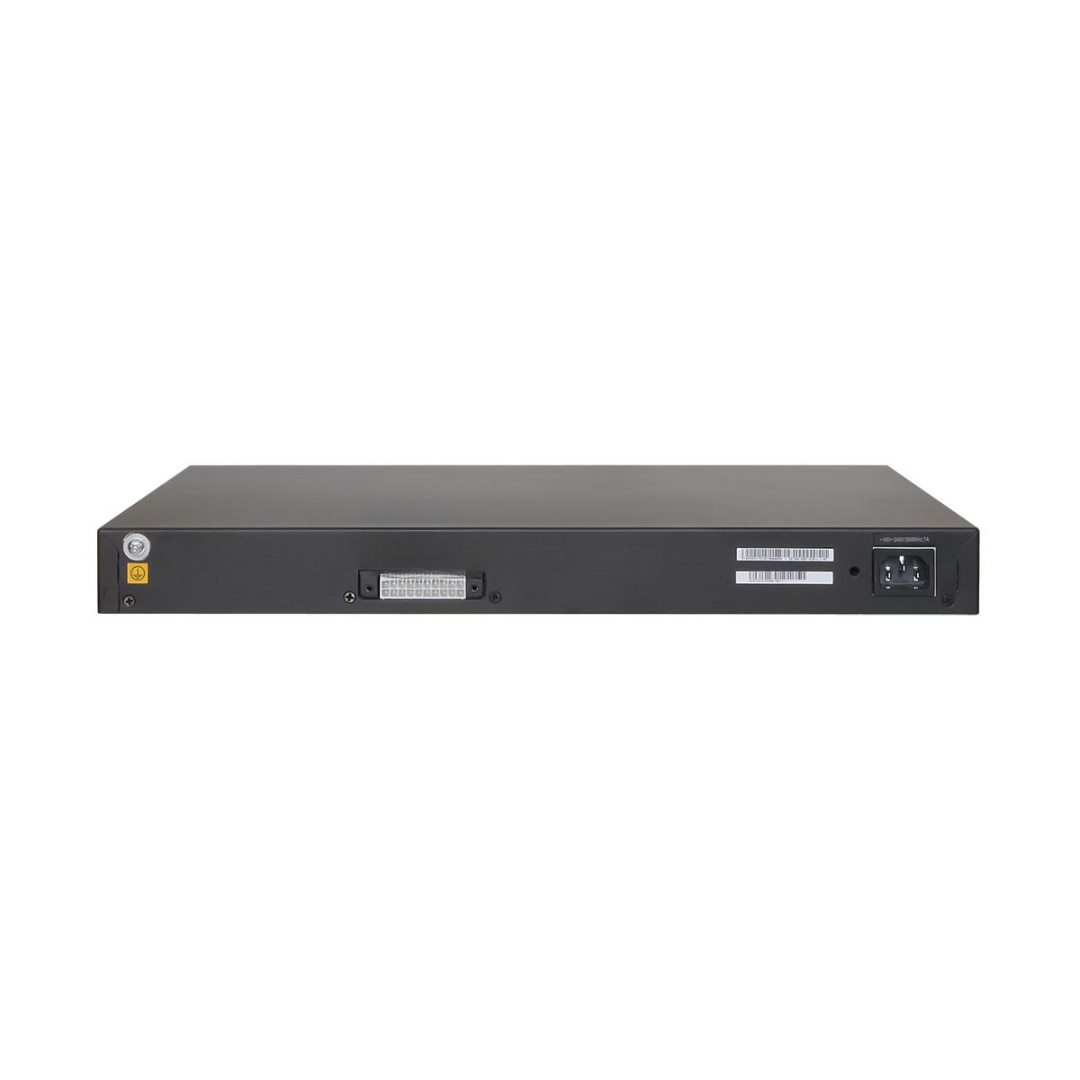

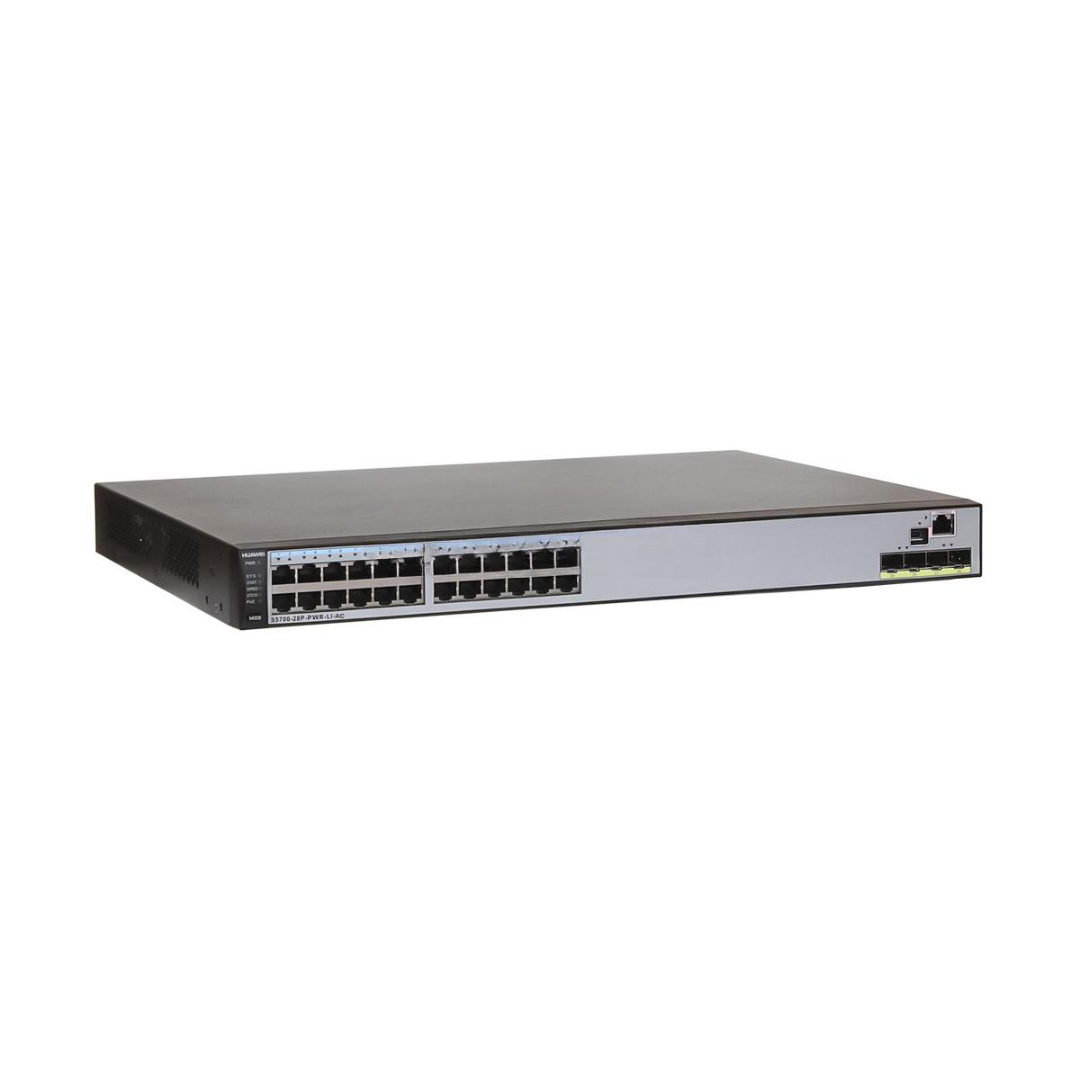

S5700-28P-PWR-LI-AC Huawei Brand New 1 AC Power Fixed PoE+ Ethernet Switch
The S5700-28P-PWR-LI-AC Huawei is a Layer 3 Lite Gigabit Ethernet switch designed to provide intelligent power-over-Ethernet (PoE+), high reliability, and flexible management in enterprise LAN access, security surveillance, and smart campus networks. It offers 24 Gigabit Ethernet PoE+ ports and 4 Gigabit SFP uplink interfaces, delivering data and power simultaneously for efficient infrastructure deployment. With a fixed AC power supply, it ensures stable performance in standard enterprise environments.
Key Features
Model: S5700-28P-PWR-LI-AC
Condition: 100% Brand New, Original Huawei
Ports: 24 x GE RJ45 PoE+ + 4 x GE SFP
Power Supply: 1 x Built-in Fixed AC Power
PoE Support: IEEE 802.3af/at, PoE+
Switching Capacity: 336 Gbps
Forwarding Performance: 96 Mpps
Layer 3 Lite: Static routing, RIP
Security: Port security, ACLs, DHCP snooping, 802.1X authentication
Energy Efficient: Fan speed auto-adjust, low power consumption
Management: CLI, SNMP, Web GUI, NMS (Huawei eSight)
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5700-28P-PWR-LI-AC |
| Device Type | Layer 3 Lite Managed PoE+ Switch |
| Port Configuration | 24 x 10/100/1000Base-T PoE+ + 4 x GE SFP |
| PoE Standard | IEEE 802.3af/at compliant |
| PoE Power Budget | Up to 370W |
| Switching Capacity | 336 Gbps |
| Forwarding Rate | 96 Mpps |
| MAC Address Table | 32K entries |
| VLANs Supported | 4K |
| Routing Protocols | Static routing, RIP |
| Security Features | ACLs, MAC filtering, DHCP snooping, 802.1X |
| QoS Capabilities | 8 queues per port, traffic shaping, rate limiting |
| Management Interfaces | SNMP, RMON, CLI, Web GUI, NMS integration |
| Power Supply | 1 x Fixed AC Power |
| Dimensions (W×D×H) | 442 mm × 220 mm × 43.6 mm |
| Weight | ≤ 5.9 kg |
| Operating Temperature | 0°C to +50°C |
| Humidity | 5%–95% RH, non-condensing |
| Warranty | 1–3 Years Manufacturer Warranty |
S5700-28P-PWR-LI-AC Huawei Applications
-
Enterprise Access Switching – PoE power and Gigabit connectivity for office devices
-
Surveillance Networks – Stable power/data transmission for IP cameras and NVRs
-
Education & Campus Networks – Multi-user access with seamless uplinks
-
Retail & Hospitality – Support for POS systems, VoIP, and wireless APs
-
Government & Public Safety – Secure and scalable access switching
Customization & OEM Options
-
Pre-Configured VLANs & QoS – Ships with specific customer VLAN/ACL policies
-
Private Branding – Custom logo printing and labeling available
-
PoE Budget Configuration – Custom power budgets for PoE-intensive deployments
-
Firmware Pre-Installation – Devices can be flashed with custom firmware version
-
Integrated Accessories – Mounting brackets, cables, and patch panel bundles
S5700-28P-PWR-LI-AC Huawei Wholesale & Global Supply
-
Genuine Huawei Units – Factory-new with full test reports
-
Bulk Pricing – Ideal for MSPs, integrators, and telecom distributors
-
Professional Packaging – Anti-static bags and shock-proof OEM cartons
-
Rapid Delivery – Stock ready for quick shipping worldwide
-
Global Compliance – CE, RoHS, and export-ready for all major regions
-
After-Sales Support – Technical consultation and configuration help available
Why Choose the S5700-28P-PWR-LI-AC Huawei Switch
-
Reliable Gigabit Access – 24 GE ports with full PoE+ support
-
High Switching Performance – 336 Gbps backplane capacity
-
Enterprise-Grade Security & QoS – ACLs, port protection, traffic control
-
Built-In AC Power Supply – Hassle-free deployment in enterprise environments
-
Trusted Huawei Engineering – Proven uptime and robust operating conditions
Contact Us Today for Wholesale Quotes & Technical Information
Ready to enhance your network with the Huawei S5700-28P-PWR-LI-AC PoE switch?
Reach out now for bulk pricing, lead time, technical documentation, and pre-configuration options.
