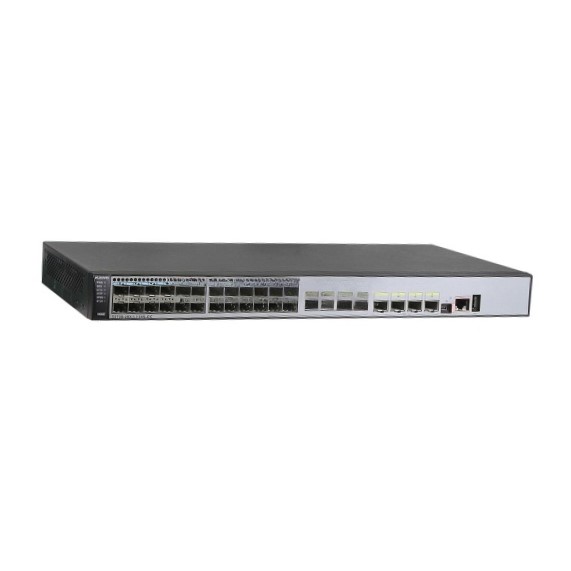

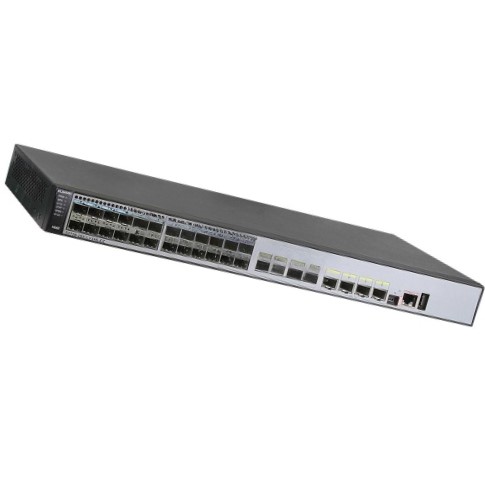

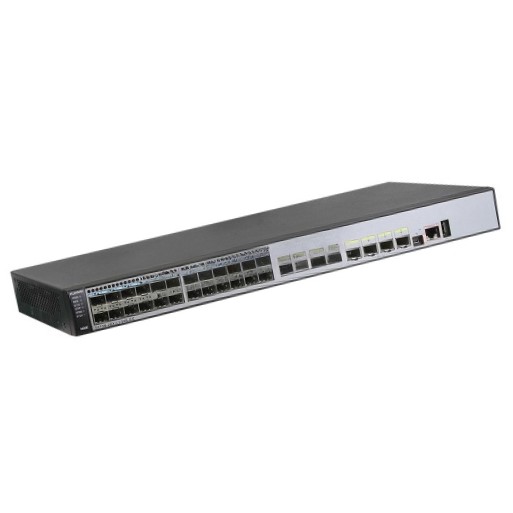

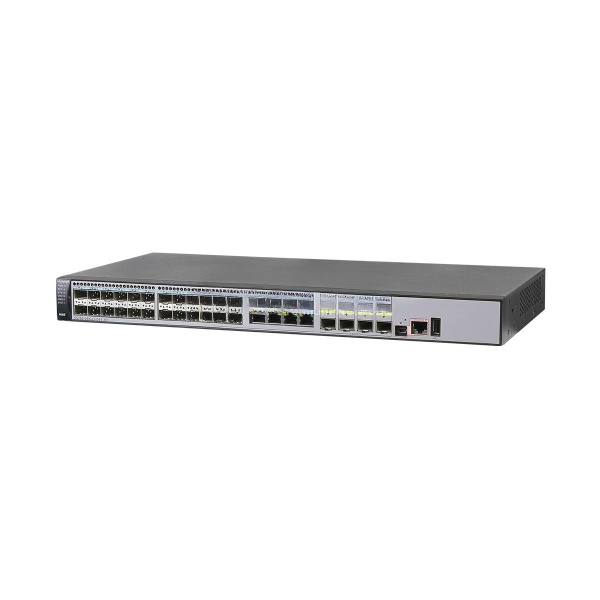

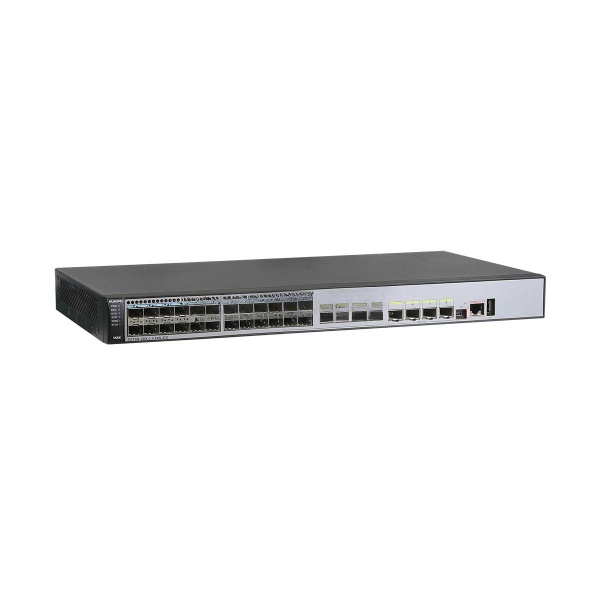

5700-28X-LI-24S-DC Huawei High Quality DC Switch 24 Ports
The S5700-28X-LI-24S-DC Huawei is a robust, cost-effective Layer 3 managed switch designed to address the dynamic networking needs of small to medium-sized enterprises and industrial DC-powered environments. With 24 Gigabit SFP ports and 4 high-speed 10GE SFP+ uplink ports, this switch delivers high-performance fiber connectivity, scalable uplinks, and advanced Layer 3 routing capabilities.
Equipped with a reliable DC power supply, the S5700-28X-LI-24S-DC ensures stable, continuous operation—making it ideal for telecommunications facilities, campus access, data center aggregation, and industrial edge deployments. Huawei’s proven hardware quality and intelligent software features provide seamless network integration, easy management, and solid security for mission-critical applications.
Key Features
Model: S5700-28X-LI-24S-DC
Condition: 100% Brand New, Original Huawei
Type: Layer 3 Managed Gigabit Ethernet Switch
Ports: 24 x 1000BASE-X SFP slots + 4 x 10GE SFP+ high-speed uplinks
Power Supply: Fixed DC Power Module for stable DC-powered environments
Switching Capacity: High-performance switching with large MAC and ARP tables
Forwarding Rate: Up to 96 Mpps for wire-speed performance
Energy Efficient: Intelligent fan speed control and port power management for reduced energy use
Layer 3 Routing: Supports static routing, RIP, OSPF, and policy-based routing for flexible network design
Security Features: User access control, ACLs, DHCP snooping, IP source guard, and port isolation
Management: CLI, SNMP, web-based GUI, and integration with Huawei iManager NMS
Reliability: Industrial-grade design with robust surge protection, loop prevention, and rapid fault detection
Tech Specs
| Item | Description |
|---|---|
| Fixed Ports | 24 × GE SFP ports, 4 × Combo 10/100/1000Base-T Ethernet ports, 4 × 10GE SFP+ ports |
| MAC Address Table | IEEE 802.1d compliant; 16K MAC entries; supports learning & aging; static, dynamic, blackhole entries; packet filtering by source MAC address |
| VLAN | 4K VLANs; Guest VLAN; Voice VLAN; GVRP; MUX VLAN; VLAN assignment based on MAC, protocols, IP subnets, policies, and ports; 1:1 and N:1 VLAN Mapping |
| Reliability | RRPP ring & multi-instance; Smart Link tree & multi-instance with millisecond-level protection; SEP; ERPS (G.8032) for S5700 series; STP, RSTP, MSTP; BPDU protection; root & loop protection |
| IP Routing | Static routing |
| IPv6 Features | Neighbor Discovery (ND); Path MTU (PMTU); IPv6 ping, tracert, Telnet; ACLs based on source/destination IPv6, Layer 4 ports, protocol type; MLD v1/v2 snooping |
| Multicast | IGMP v1/v2/v3 snooping; IGMP fast leave; multicast forwarding in VLANs & replication between VLANs; multicast load balancing on trunk ports; controllable multicast; port-based multicast traffic stats |
| QoS/ACL | Rate limiting on sent/received packets; packet redirection; port-based policing; two-rate three-color CAR; 8 queues per port; WRR, DRR, SP, WRR+SP, DRR+SP scheduling; re-marking 802.1p & DSCP; L2–L4 filtering (source/destination MAC/IP, port, protocol, VLAN ID); rate limiting per queue; traffic shaping |
| Security | User privilege management; password protection; DoS, ARP, ICMP attack defense; IP-MAC-interface-VLAN binding; port isolation & security; sticky MAC; blackhole MAC; limit on learned MACs; 802.1x authentication & user limit per interface; AAA, RADIUS, HWTACACS, NAC; SSH v2.0; HTTPS; CPU defense; blacklist & whitelist |
| Access Security | DHCP relay, DHCP server, DHCP snooping, DHCP security |
S5700-28X-LI-24S-DC Huawei Applications
The S5700-28X-LI-24S-DC is ideal for:
• Enterprise Campus Fiber Access — Secure high-speed fiber access with scalable uplinks
• Telecom Edge and DC Sites — Stable DC operation for carrier-grade reliability
• Data Center Aggregation — Compact, fiber-dense switch for flexible data center deployment
• Industrial Networks — Rugged performance for demanding industrial or outdoor applications
• SMB and Remote Office — Reliable Layer 3 routing and fiber backhaul for distributed networks
Customization & OEM Services
Get the flexibility you need for any project:
• Pre-Configuration — VLANs, routing policies, and port security for deployment-ready units
• OEM Branding — Custom labeling and packaging for integrators and value-added resellers
• Custom Bundling — Bulk packing and site-ready kits for large-scale rollouts
• Extended Burn-In Testing — Extra reliability for mission-critical or harsh environments
S5700-28X-LI-24S-DC Huawei Wholesale & Bulk Procurement
Source your S5700-28X-LI-24S-DC switches directly from our trusted supply chain:
• Factory-Direct Wholesale Pricing — Save on large-volume orders
• Global Shipping — Secure export packaging with fast international delivery
• Dedicated Project Support — Personalized account management for seamless procurement
• Consistent Stock Levels — Meet tight deployment timelines with reliable inventory
• Full Huawei Warranty — Genuine warranty coverage and technical support for peace of mind
S5700-28X-LI-24S-DC Huawei Why Choose Us
100% Original Huawei Equipment — Fully tested, authentic hardware
Flexible Customization — Solutions tailored to your technical and branding needs
Competitive Wholesale Rates — Ideal for system integrators, VARs, and enterprise rollouts
Reliable Global Logistics — Safe, on-time worldwide delivery
Expert Support — Technical assistance throughout planning, installation, and operation
Contact Us for Best Pricing
Upgrade your fiber network with the S5700-28X-LI-24S-DC Huawei High Quality DC Switch — the ideal balance of advanced performance, energy efficiency, and secure Layer 3 switching for modern enterprise and industrial applications.
