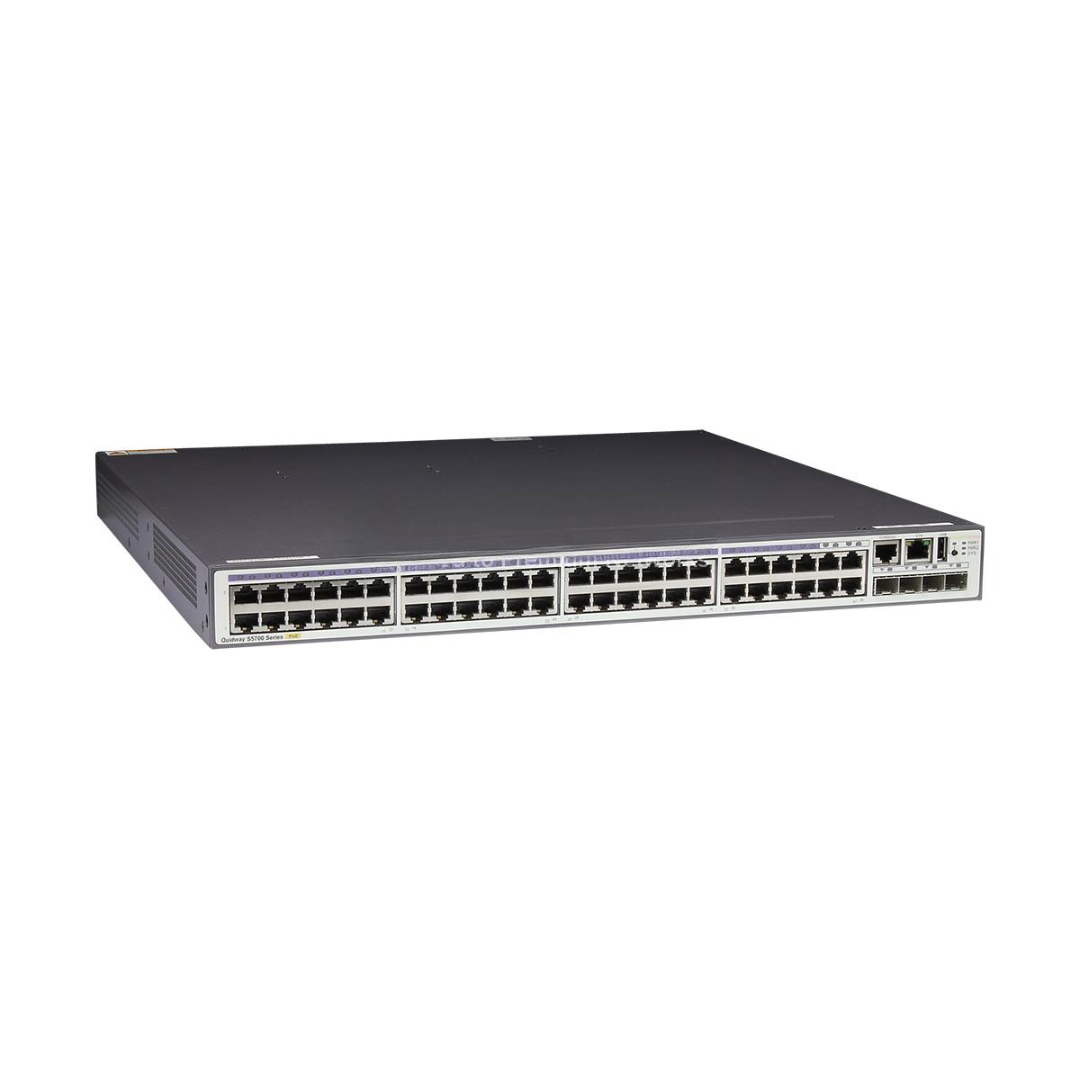

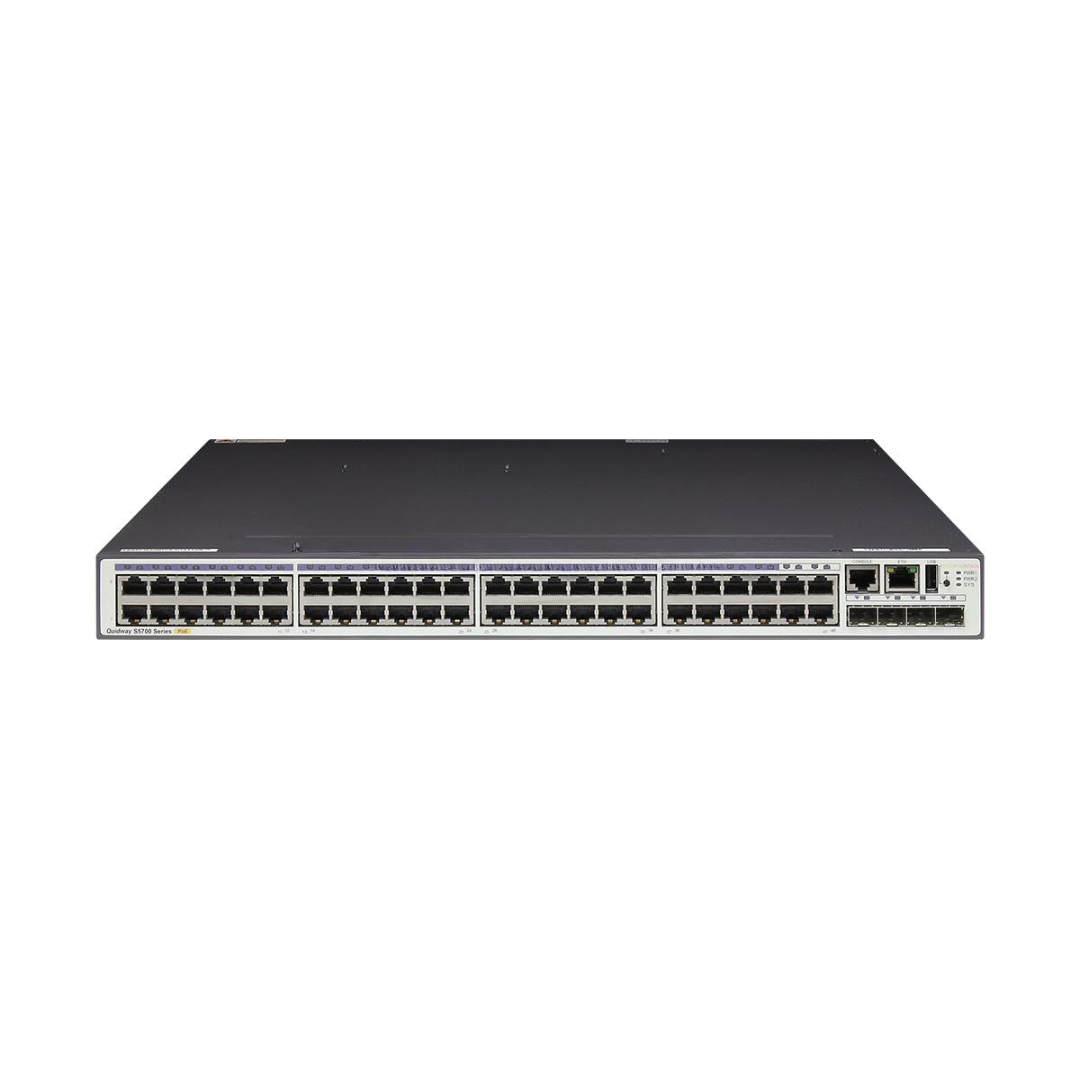

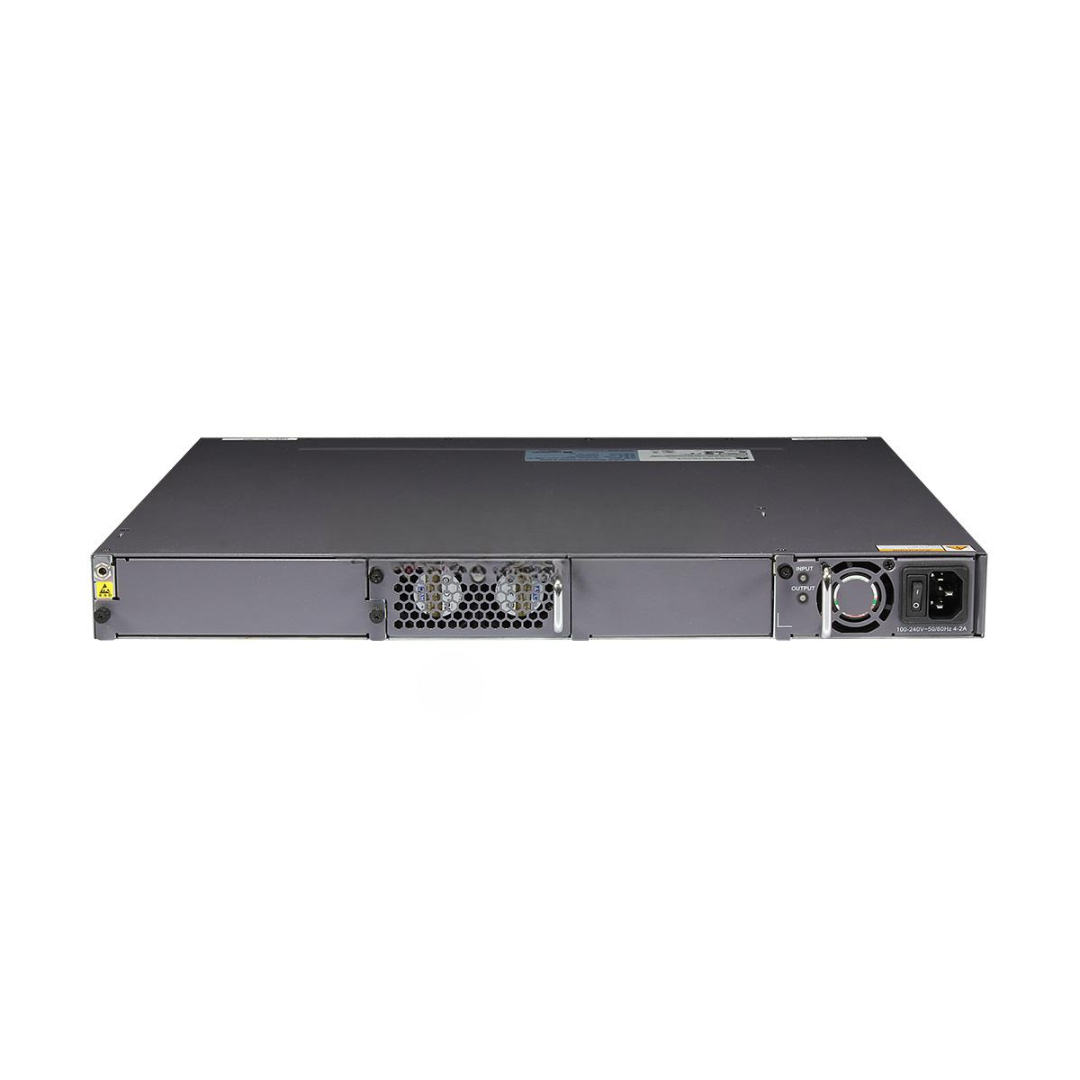

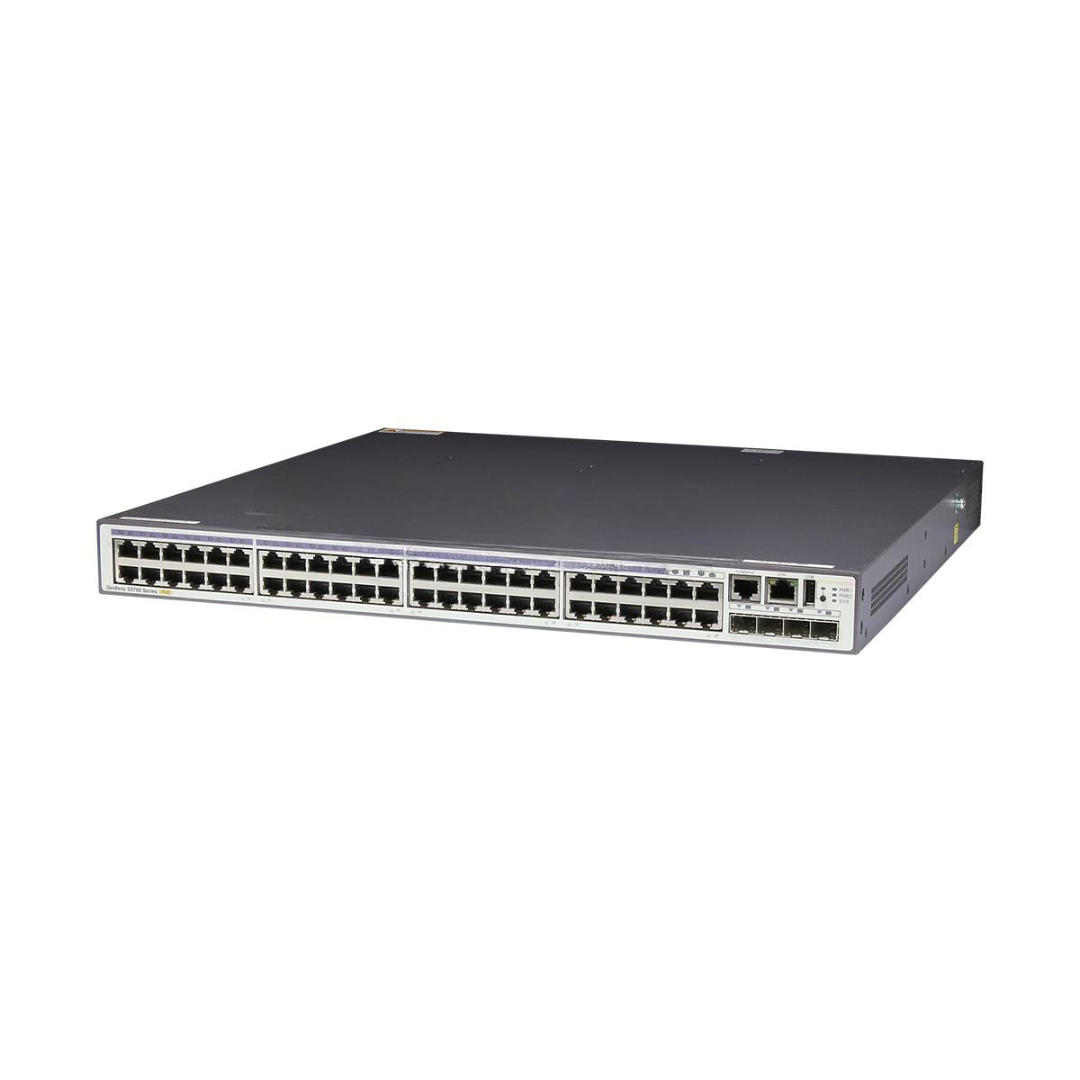

S5700-48TP-PWR-SI Huawei Brand New Switch 48Ports 1000BASE
The S5700-48TP-PWR-SI Huawei is a Layer 2/3 Gigabit Ethernet switch with full PoE+ support, designed for enterprise networks, intelligent campuses, and surveillance systems. Equipped with 48 × 10/100/1000BASE-T ports and 4 × GE SFP uplink ports, it offers high bandwidth, intelligent power supply, and comprehensive security features, making it a powerful and cost-effective access switch.
Key Features
-
Model: S5700-48TP-PWR-SI
-
Condition: 100% Brand New, Original Huawei
-
Port Configuration: 48 × 10/100/1000BASE-T (PoE+) + 4 × GE SFP
-
Switching Capacity: 176 Gbps
-
Forwarding Rate: 66 Mpps
-
PoE+ Support: IEEE 802.3af/at compliant on all access ports
-
Layer 2 & Layer 3 Switching: Includes static routing, VLANs, STP, and more
-
Security Features: 802.1x authentication, port isolation, ARP inspection
-
Energy Efficient Ethernet (EEE): Reduces power during low activity
-
Built-in AC Power Supply: Suitable for campus and building deployments
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5700-48TP-PWR-SI |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 66 Mpps |
| Downlink Ports | 48 × 10/100/1000BASE-T (PoE+) |
| Uplink Ports | 4 × Gigabit SFP |
| PoE Budget | Up to 370W total |
| MAC Address Table | 32K entries |
| VLAN Support | 4,096 VLANs |
| Power Supply | Built-in AC with PoE+ |
| Power Consumption | ≤ 470W (full PoE load) |
| Operating Temperature | 0°C to +50°C |
| Dimensions (W×D×H) | 442 × 420 × 43.6 mm |
| Weight | Approx. 7.5 kg |
| Software Features | STP/RSTP/MSTP, QoS, DHCP Snooping, Static Routing |
| Warranty | 1–3 Years Manufacturer Warranty |
S5700-48TP-PWR-SI Huawei Applications
-
Enterprise Access Layer — Powers VoIP phones, access points, and workstations
-
Smart Campus Networks — Delivers PoE to IP cameras and IoT devices
-
Surveillance Systems — Ideal for powering CCTV and NVR infrastructure
-
Hospitality & Healthcare — Centralized management and reliable PoE supply
-
Retail Environments — Simplifies cabling and device deployment
Customization & OEM Options
-
Custom Branding — OEM/ODM available with logo and packaging
-
Pre-configured VLAN/ACL — Ready for plug-and-play deployment
-
Flexible Power Setup — Optional DC version and extended PoE profiles
-
Enhanced Testing & QA Reports — For large-scale rollouts or government use
-
CLI/GUI Configuration Scripts — Delivered with pre-set management templates
S5700-48TP-PWR-SI Huawei Wholesale & Global Supply
-
Original Huawei Stock – Factory sealed with datasheet and warranty
-
Secure Packaging – Shock-absorbent, anti-static packaging for export
-
Bulk Availability – Ideal for ISPs, integrators, and project contractors
-
Fast Dispatch – Worldwide shipping with customs support
-
Professional Support – CLI/command line help and technical integration
Why Choose the S5700-48TP-PWR-SI Huawei Switch
-
High-Density Gigabit Ports with PoE+ for efficient edge access
-
Enterprise-Level Reliability with robust security and management
-
Future-Proof L2/L3 Capabilities at competitive pricing
-
Trusted Huawei Quality in infrastructure projects worldwide
-
Ideal for IP Surveillance, Wi-Fi, VoIP, and IoT Networks
Request Bulk Pricing, Datasheets & Technical Support
Empower your access layer with Huawei S5700-48TP-PWR-SI — a feature-rich, power-efficient PoE+ switch ready for modern enterprise demands.
