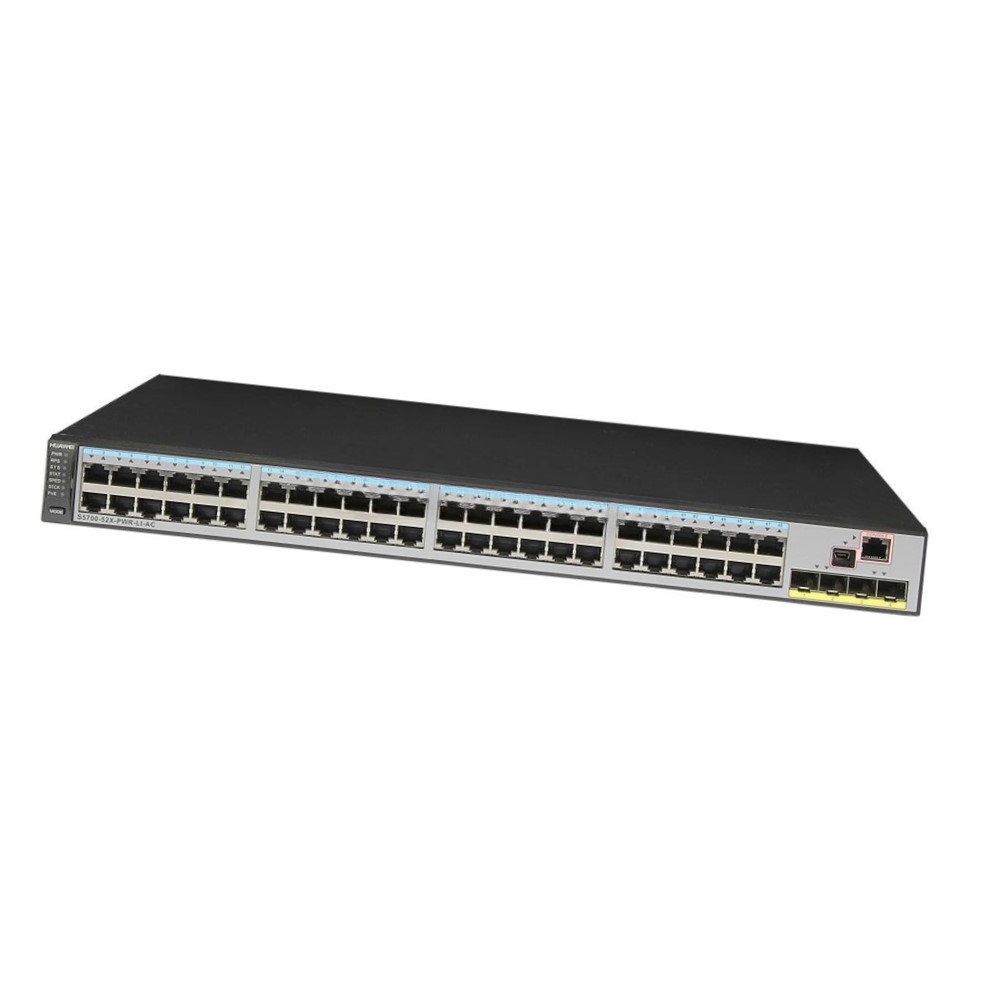

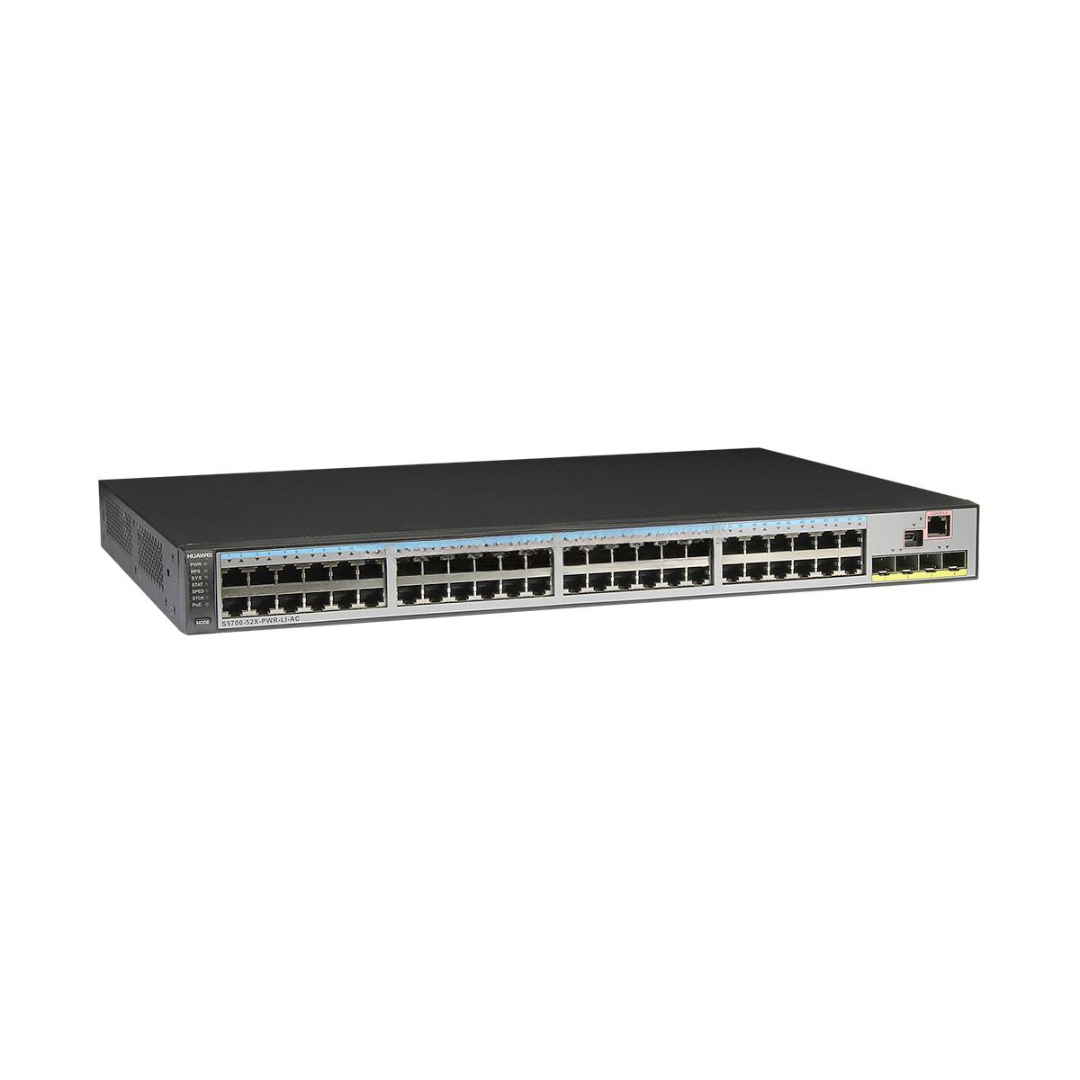

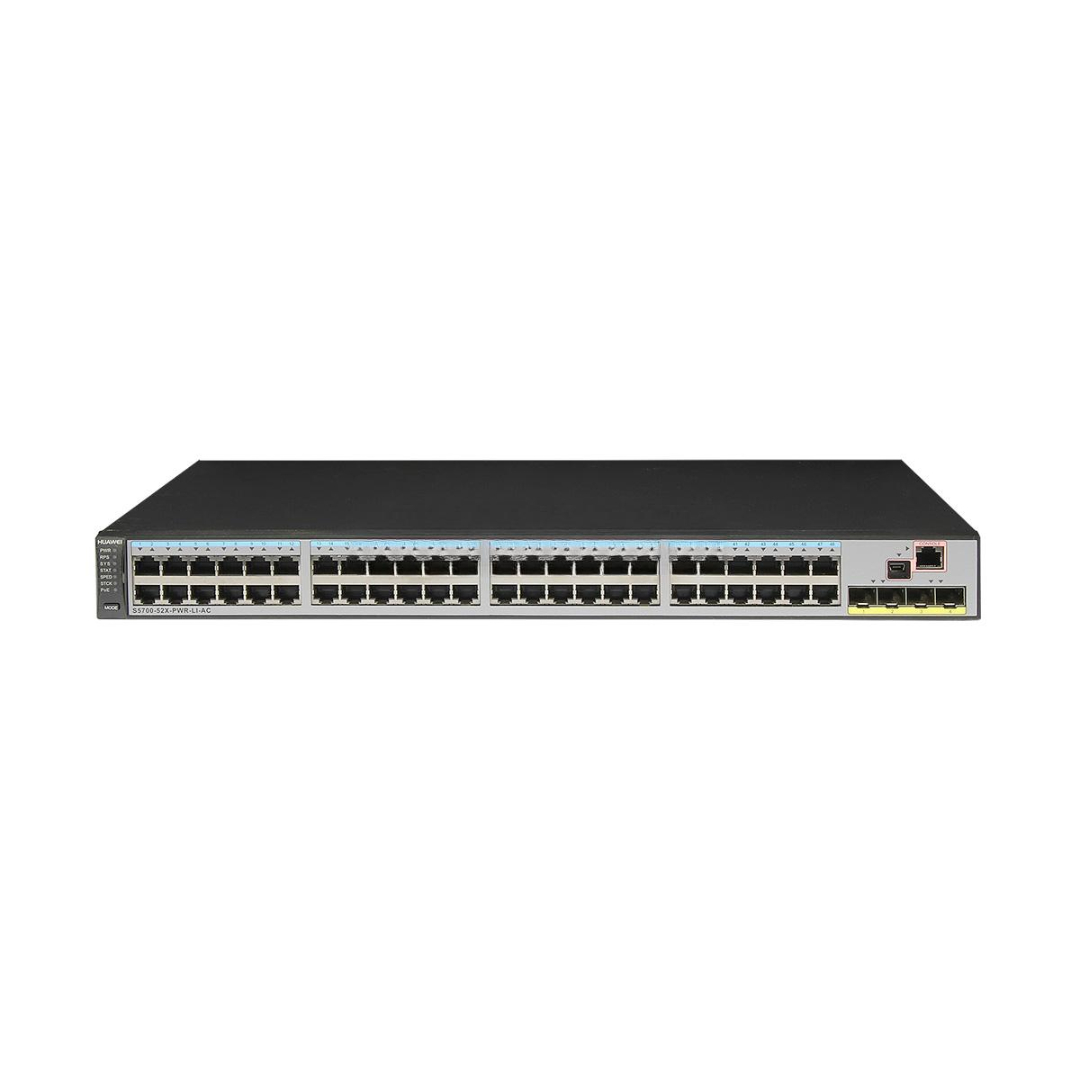

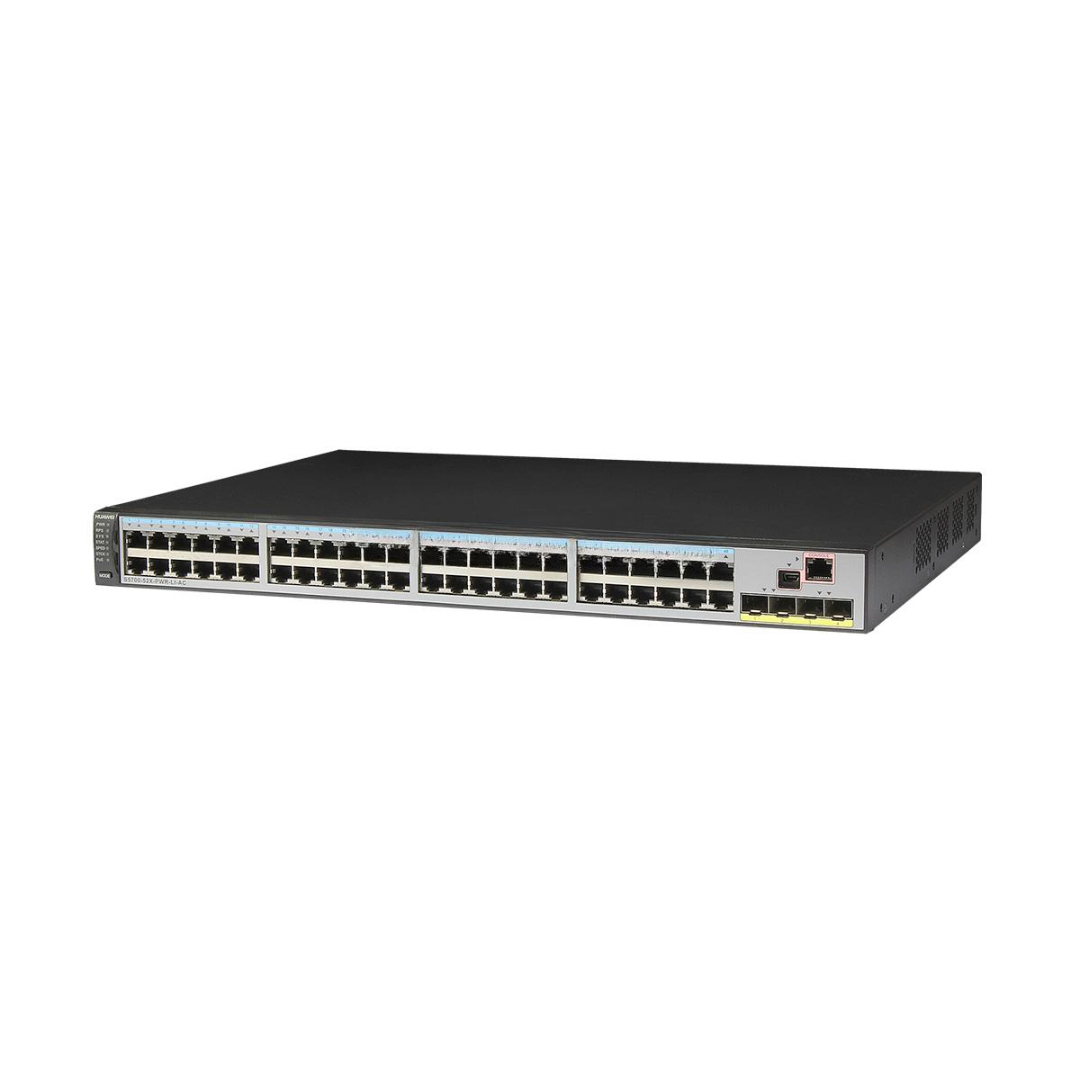

S5700-52X-PWR-LI-AC Huawei Brand New Power Module Equipped
The S5700-52X-PWR-LI-AC Huawei is a high-density, Layer 3 Lite enterprise switch equipped with an integrated AC power module and robust Power over Ethernet (PoE/PoE+) capabilities. Designed to power and connect a wide range of access devices such as IP phones, wireless access points, and security cameras, this model offers 48 Gigabit PoE ports and 4 10-Gigabit SFP+ uplinks, making it a powerful aggregation and access switch for mid-to-large-scale enterprise networks.
With intelligent Layer 2/3 features, energy-efficient design, and Huawei’s iStack virtualization technology, the S5700-52X-PWR-LI-AC ensures seamless deployment, easy scalability, and secure performance in access and convergence layers of campus and branch networks.
Key Features
-
Model: S5700-52X-PWR-LI-AC
-
Condition: 100% Brand New, Original Huawei
-
Power Module: Built-in AC power supply with full PoE+ support
-
Port Configuration: 48 x 10/100/1000Base-T (PoE/PoE+) + 4 x 10G SFP+ uplink ports
-
PoE Standards: IEEE 802.3af/at (PoE and PoE+)
-
PoE Power Budget: Up to 740W total output
-
Switching Capacity: 336 Gbps
-
Forwarding Rate: 96 Mpps
-
Layer 2/3 Features: VLANs, STP/RSTP/MSTP, static routing, DHCP snooping
-
Security Functions: 802.1X, MAC filtering, ARP inspection, IP source guard
-
Management Options: Web UI, SNMP, CLI, RMON, NMS compatibility
-
Stacking Support: iStack virtual stacking for simplified scalability
-
Energy Efficiency: Dynamic PoE power allocation, intelligent fan control
-
Rack-Mountable: 1U 19-inch standard chassis
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5700-52X-PWR-LI-AC |
| Type | Layer 3 Lite PoE+ Ethernet Switch |
| Port Configuration | 48 x GE (PoE+) + 4 x 10GE SFP+ |
| Switching Capacity | 336 Gbps |
| Forwarding Rate | 96 Mpps |
| PoE Standard | IEEE 802.3af/at (PoE/PoE+) |
| PoE Budget | Up to 740W |
| MAC Address Table | 32K entries |
| VLAN Support | 4K VLANs |
| Routing Capability | Static routing (IPv4) |
| Power Supply | Built-in AC: 100–240V auto-ranging |
| Max Power Consumption | ≤ 800W (with full PoE+ load) |
| Dimensions (W×D×H) | 442 mm × 420 mm × 43.6 mm |
| Operating Temperature | 0°C to +50°C |
| Humidity | 5%–95% RH, non-condensing |
| Mounting | 1U Rackmount |
| Warranty | 1–3 Years Manufacturer Warranty |
S5700-52X-PWR-LI-AC Huawei Applications
-
Enterprise Access Layer – Ideal for high-density workspaces with VoIP, IP cameras, and APs
-
IP Surveillance Networks – Centralized and stable PoE+ power for HD security systems
-
Campus & Educational Institutions – Supports network convergence across departments and buildings
-
Branch & Remote Offices – Full-featured local switching with high-speed 10G uplinks
-
Smart Cities & IoT Infrastructure – Delivers connectivity and power to smart endpoints efficiently
Customization & OEM Options
-
Private Label Branding – Customize product branding and front panel design for resale
-
Firmware Pre-Configuration – VLANs, QoS settings, and security policies applied in factory
-
Installation Kits & Accessories – Custom rack kits, fiber patch cords, or optical transceivers bundled
-
Localized Software UI/CLI – Regional language firmware and documentation available
-
Advanced QA & Environmental Testing – Optional burn-in and industrial temperature testing for critical environments
S5700-52X-PWR-LI-AC Huawei Wholesale & Global Procurement
-
Huawei OEM Inventory – Authentic, brand-new switches sourced directly from Huawei channels
-
Bulk Purchase Availability – Competitive pricing tiers for ISPs, system integrators, and IT solution providers
-
Secure Packaging & Export – Anti-static and foam-protected cartons for global shipment compliance
-
Global Delivery Service – Fast, traceable international shipping and logistics support
-
Post-Sales Technical Support – Expert help with deployment, NMS integration, and firmware upgrades
Why Choose the S5700-52X-PWR-LI-AC Huawei Switch
-
High PoE+ Power Density – Power up to 48 devices with full 802.3at support
-
10G-Ready Uplinks – Seamless integration into high-speed network backbones
-
Scalable with iStack – Stack multiple units virtually for better manageability and bandwidth
-
Huawei Engineering Excellence – Proven reliability and longevity in enterprise deployments
-
Great TCO Value – Lower operational costs through efficient power and cooling design
Contact Us Today for Bulk Pricing, Datasheets & Technical Support
Upgrade your network with the Huawei S5700-52X-PWR-LI-AC —
the enterprise-grade, PoE+ switch that combines power, performance, and scalability.
Get in touch now for wholesale pricing, OEM custom orders, and global shipping solutions.
