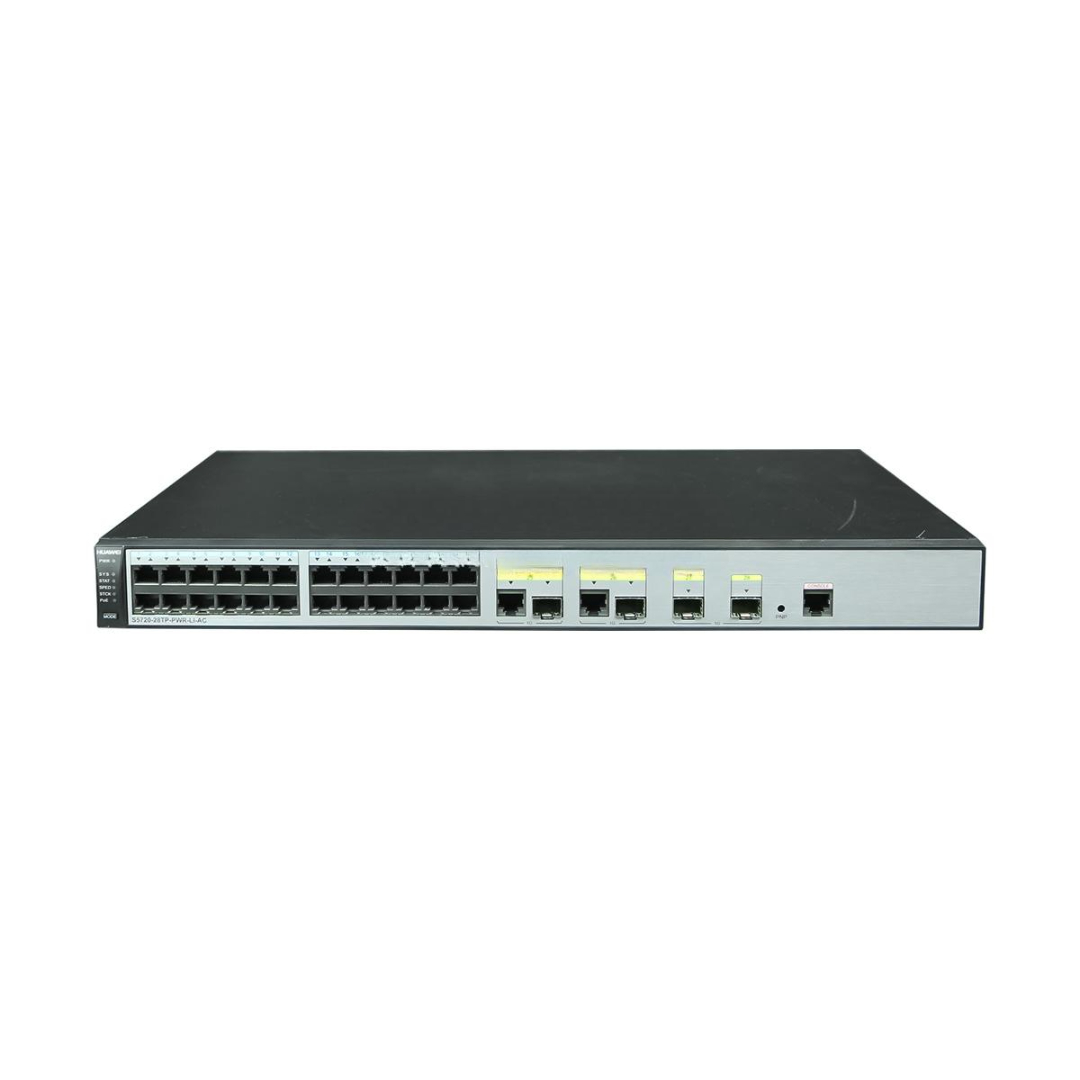

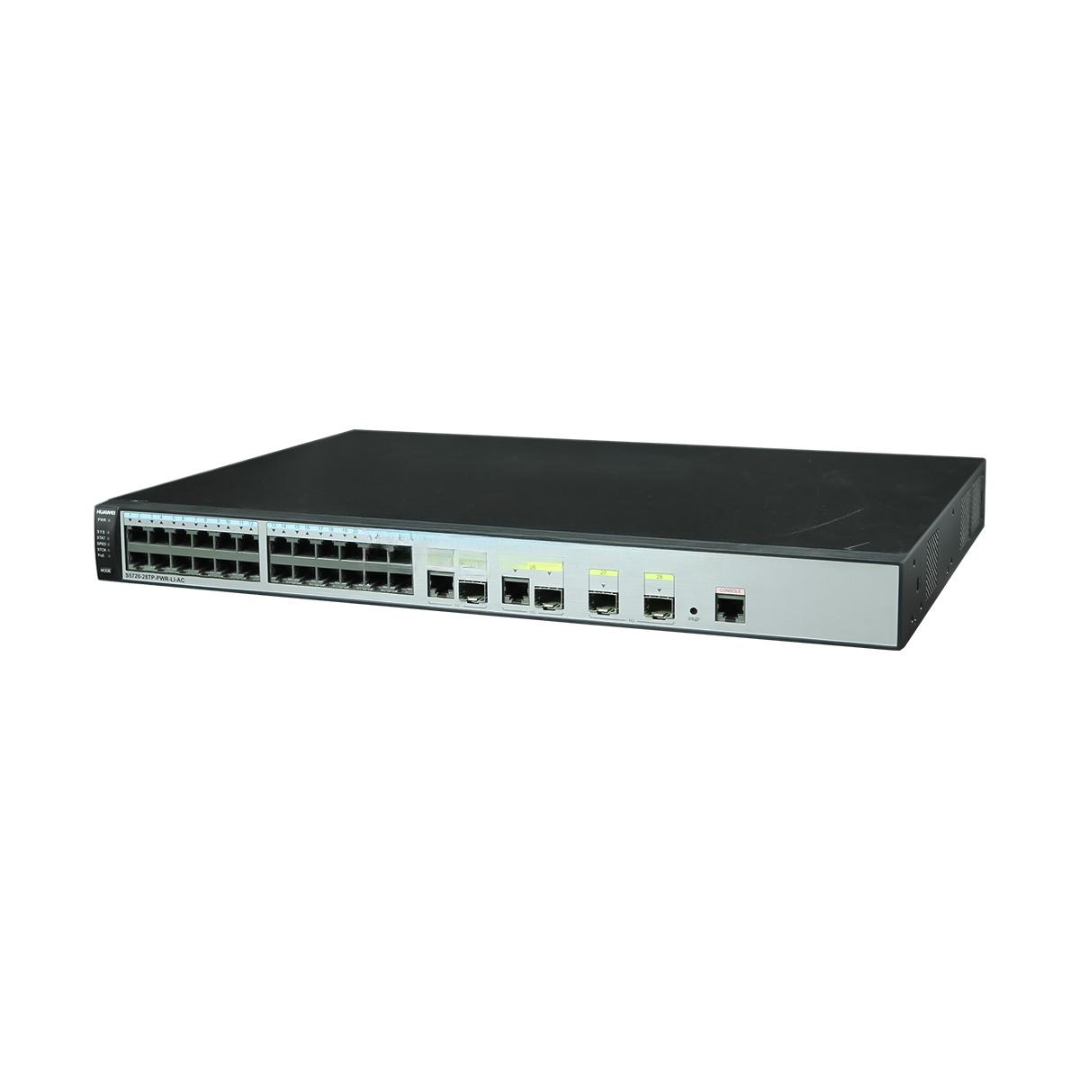

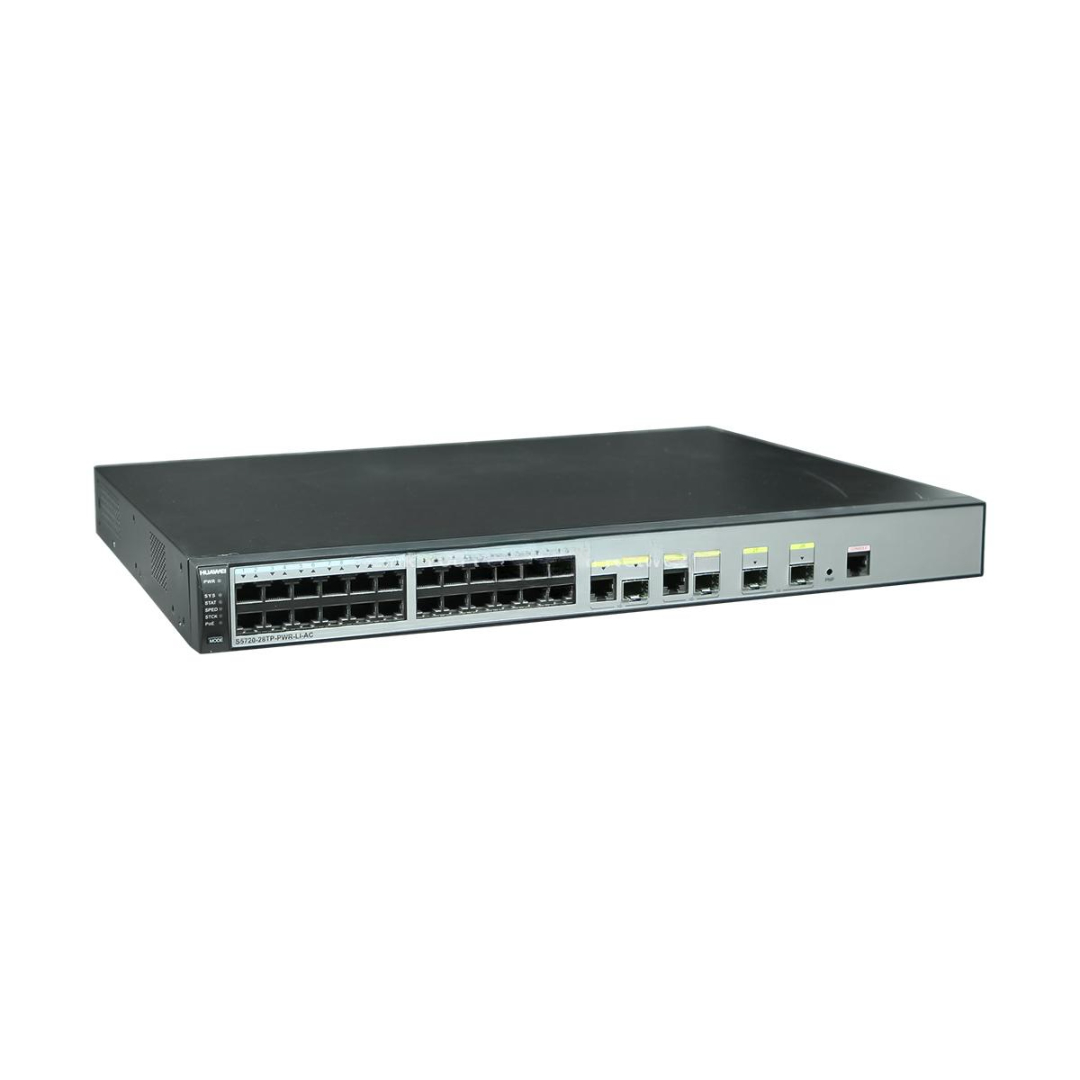

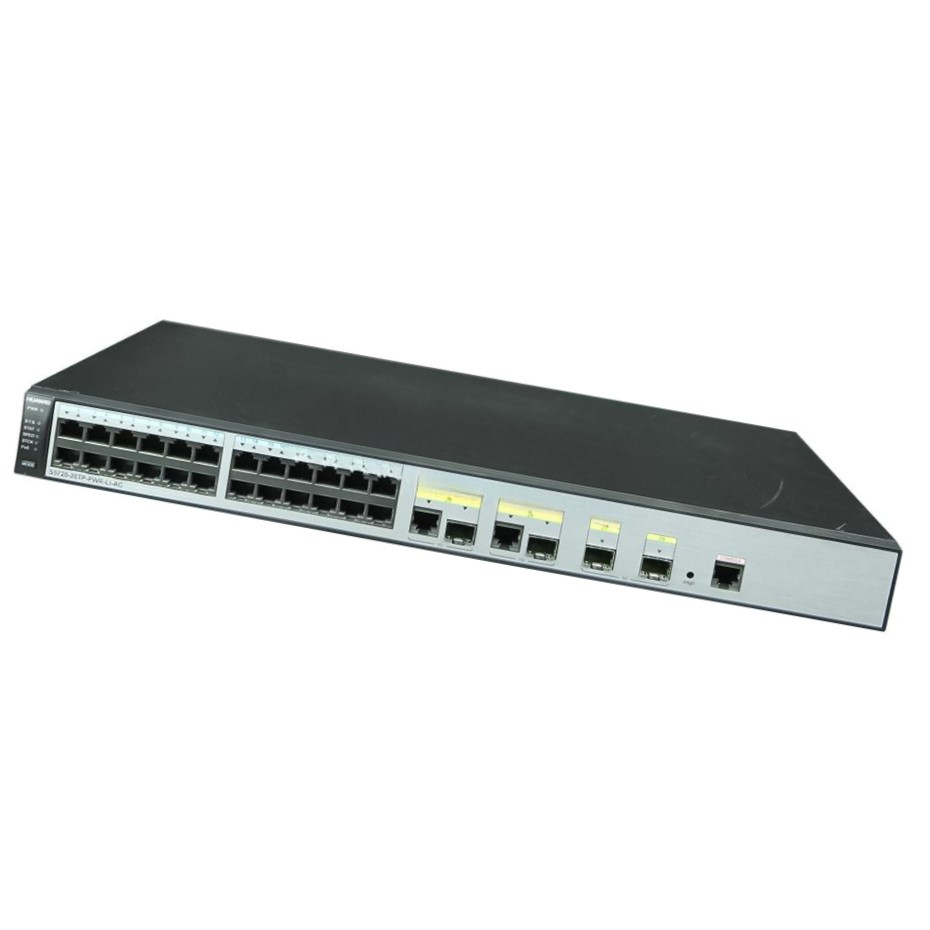

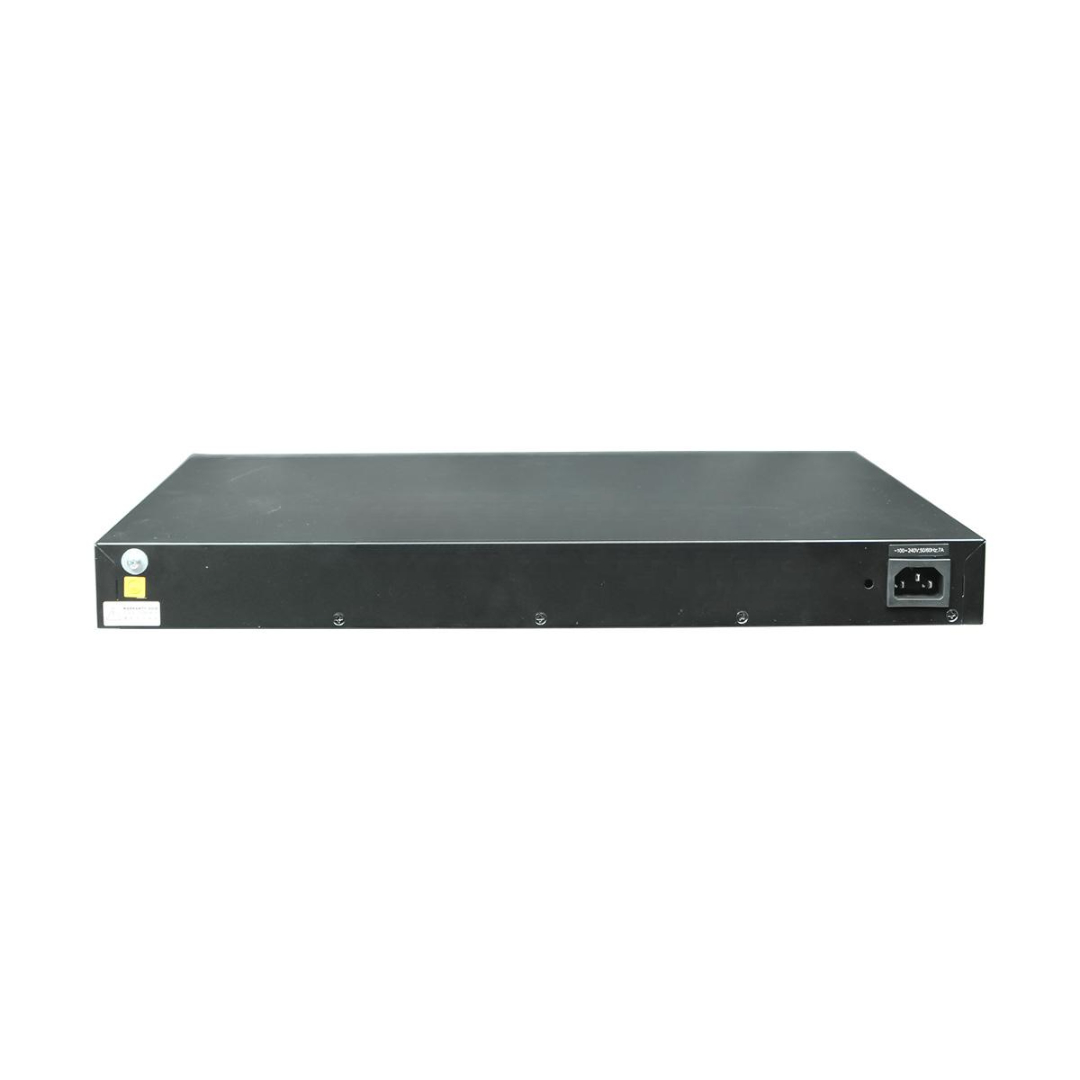

S5720-28TP-PWR-LI-AC Huawei Brand New Switch AC Power Fixed
The S5720-28TP-PWR-LI-AC Huawei is a full-featured Layer 3 Lite Ethernet switch with 24 PoE+ Gigabit ports, 4 high-speed uplinks, and a fixed AC power supply, offering reliable performance for small to medium-sized enterprise networks, campus access layers, and video surveillance systems.
Designed for simplicity and power efficiency, this switch supports IEEE 802.3af/at PoE, robust Layer 2/3 features, and Huawei’s Energy-Efficient Ethernet (EEE), making it an excellent cost-effective choice for PoE-powered applications.
Key Features
-
Model: S5720-28TP-PWR-LI-AC
-
Condition: 100% Brand New, Original Huawei
-
Fixed Power Module: Integrated AC power supply
-
Port Configuration: 24 × 10/100/1000BASE-T (PoE+) + 4 × GE SFP uplinks
-
PoE Support: IEEE 802.3af/at, max 370W power budget
-
Switching Capacity: 128 Gbps
-
Forwarding Rate: 42 Mpps
-
Layer 3 Lite Features: Static routing, RIP, and basic Layer 3 protocols
-
Fan Cooling: Intelligent speed-adjustable fans
-
Installation: 1U rack-mountable
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5720-28TP-PWR-LI-AC |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 42 Mpps |
| Fixed Ports | 24 × 10/100/1000BASE-T (PoE), 4 × GE SFP |
| PoE Output | Up to 370W |
| PoE Standards | IEEE 802.3af/at |
| Layer 2 Features | STP, RSTP, MSTP, VLAN, QoS, ACL |
| Layer 3 Lite | Static routing, RIP |
| MAC Address Table | 16K entries |
| Operating Temperature | 0°C to +50°C |
| Input Voltage | 100V–240V AC, 50/60 Hz |
| Power Consumption | < 460W (with full PoE load) |
| Dimensions (W×D×H) | 442 mm × 220 mm × 43.6 mm |
| Weight | ≤ 4.6 kg |
| Installation | Standard 19-inch rack-mountable |
| Warranty | 1–3 Years Manufacturer Warranty |
S5720-28TP-PWR-LI-AC Huawei Applications
-
Enterprise Networks — Secure, scalable Layer 2/3 switching for offices
-
Campus Access Layer — Reliable PoE+ power for access points, IP phones, and cameras
-
Retail & Branch Sites — Compact, energy-efficient network core
-
Surveillance Systems — Full PoE support for IP video surveillance deployments
-
Small Data Centers — Aggregation of access switches with SFP uplinks
Customization & OEM Options
-
Branded Labeling — Add your company name/logo on device and packaging
-
Pre-Configured VLANs — Factory-configured network settings for easy rollout
-
Power Profile Customization — Optimize PoE output for your device needs
-
Special Firmware Loads — Tailored software images for enterprise security
-
Accessories Bundling — Transceivers, patch cords, and mounting kits
Wholesale & Global Supply Info
-
Huawei OEM Distribution — 100% new with traceable serials and labels
-
Bulk Procurement — Volume pricing available for integrators & ISPs
-
Secure Shipping — Shockproof packaging, anti-static protection
-
Short Lead Times — In-stock for rapid deployment projects
-
Documentation Support — Full datasheets, MIBs, and user manuals available
-
Global Logistics — Export-ready with customs documentation & certificates
Why Choose S5720-28TP-PWR-LI-AC Huawei
Enterprise-Grade Reliability — Built to deliver 24/7 uptime in business-critical environments
Integrated PoE+ — Cost-effective powering of IP endpoints without additional wiring
High Performance — 128 Gbps switching with intelligent fan control
Flexible Uplinks — 4 SFP uplinks for fiber-ready networks
Energy-Efficient & Quiet — Smart power and cooling for long-term deployment
Contact Us Now for Bulk Pricing, Technical Datasheets & OEM Custom Orders
Deploy the Huawei S5720-28TP-PWR-LI-AC switch for powerful PoE-ready networking with AC reliability — a perfect fit for smart enterprises and agile deployments.
