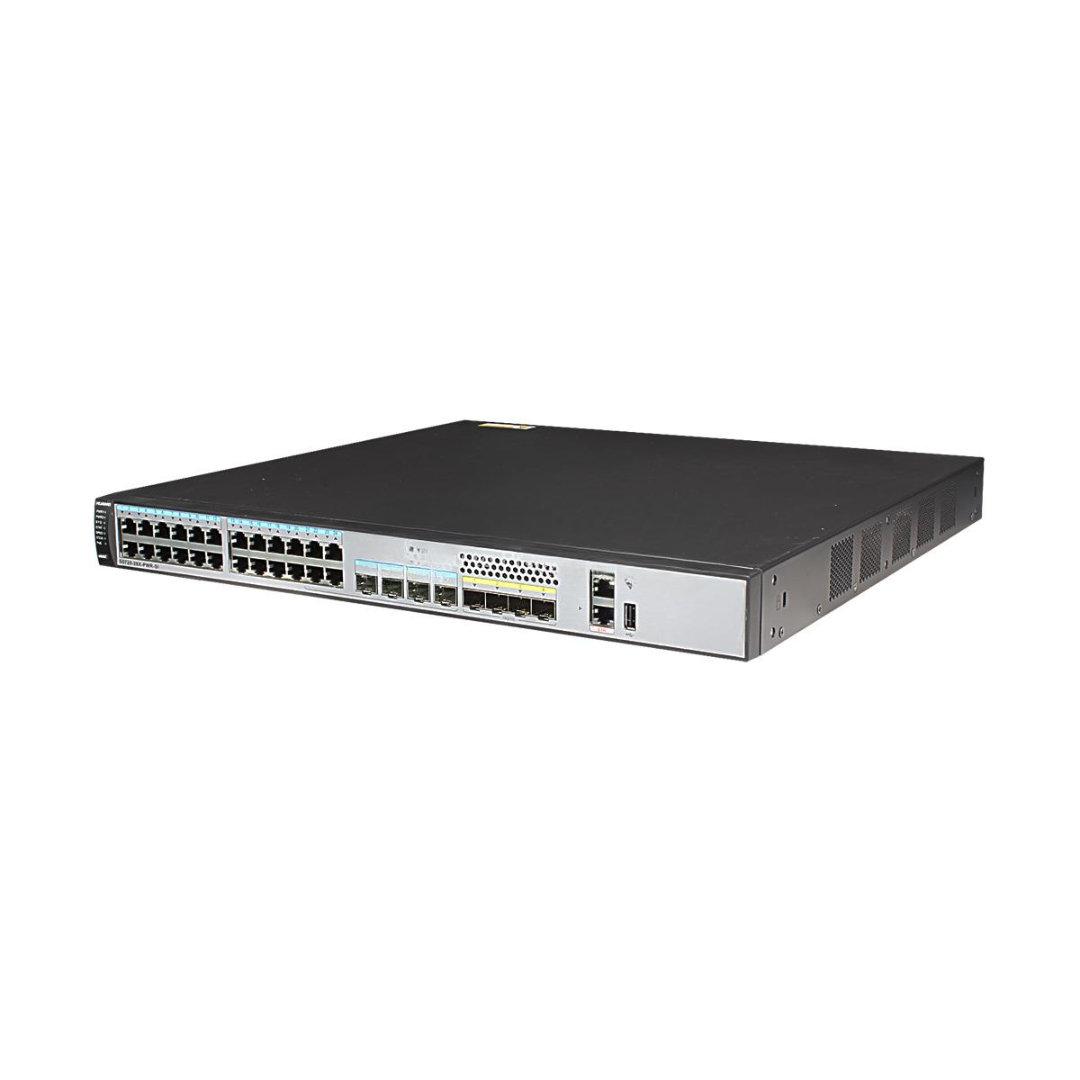

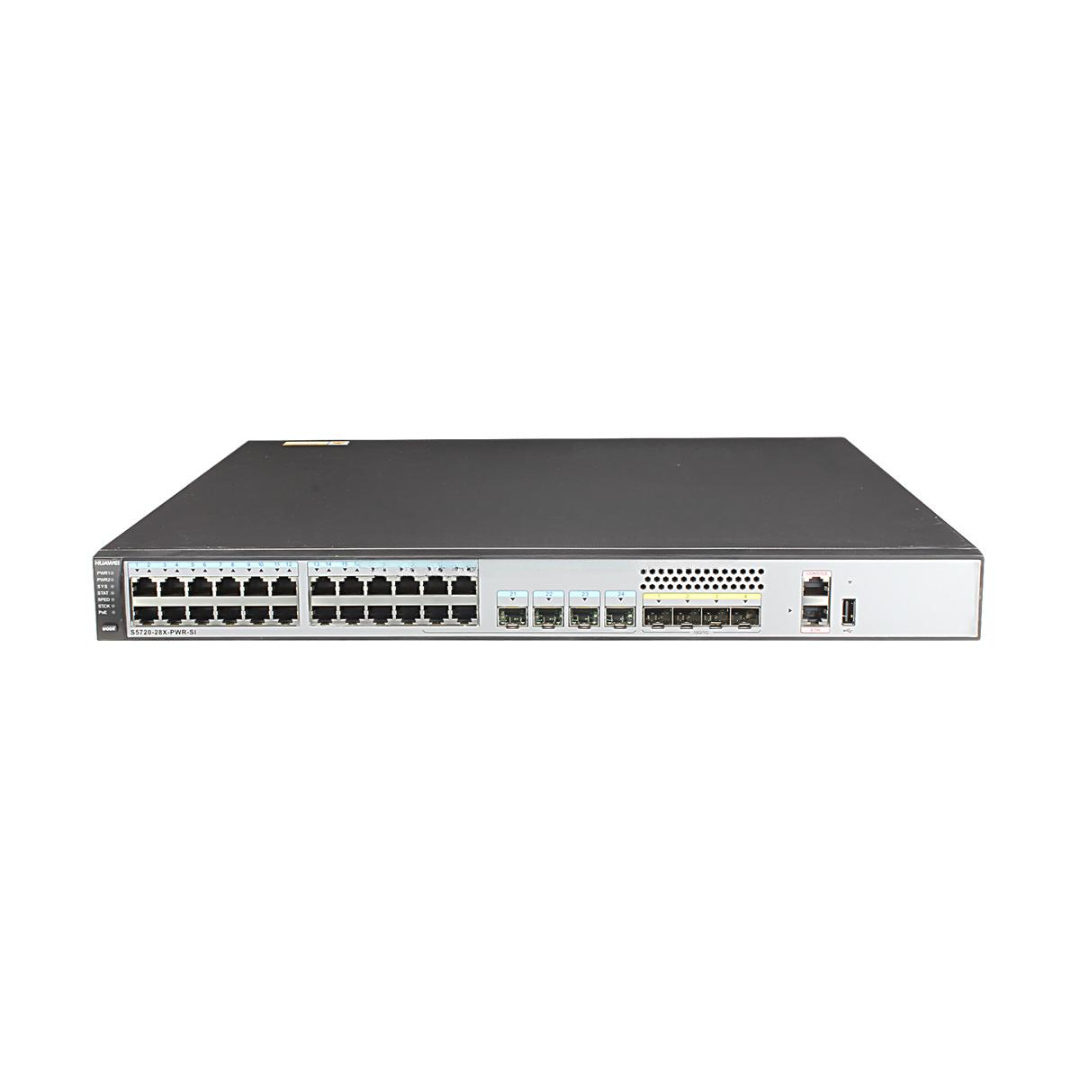

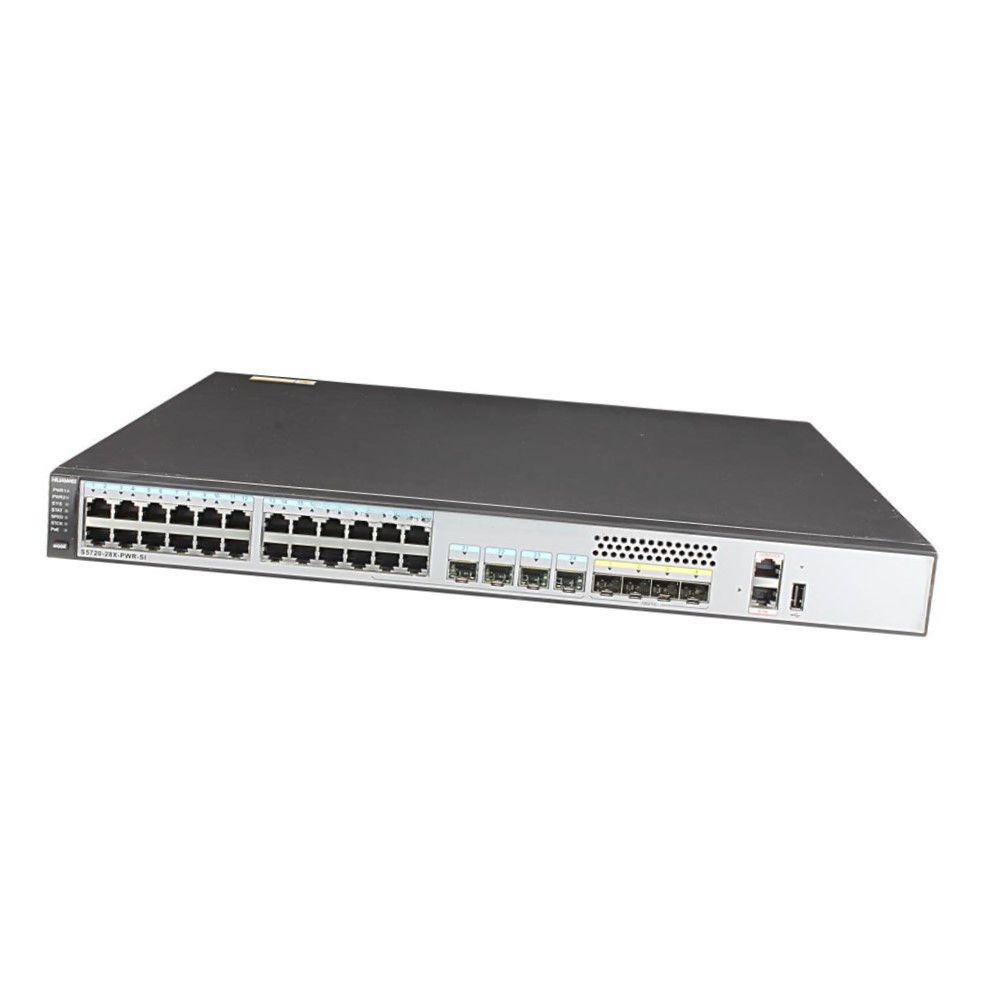

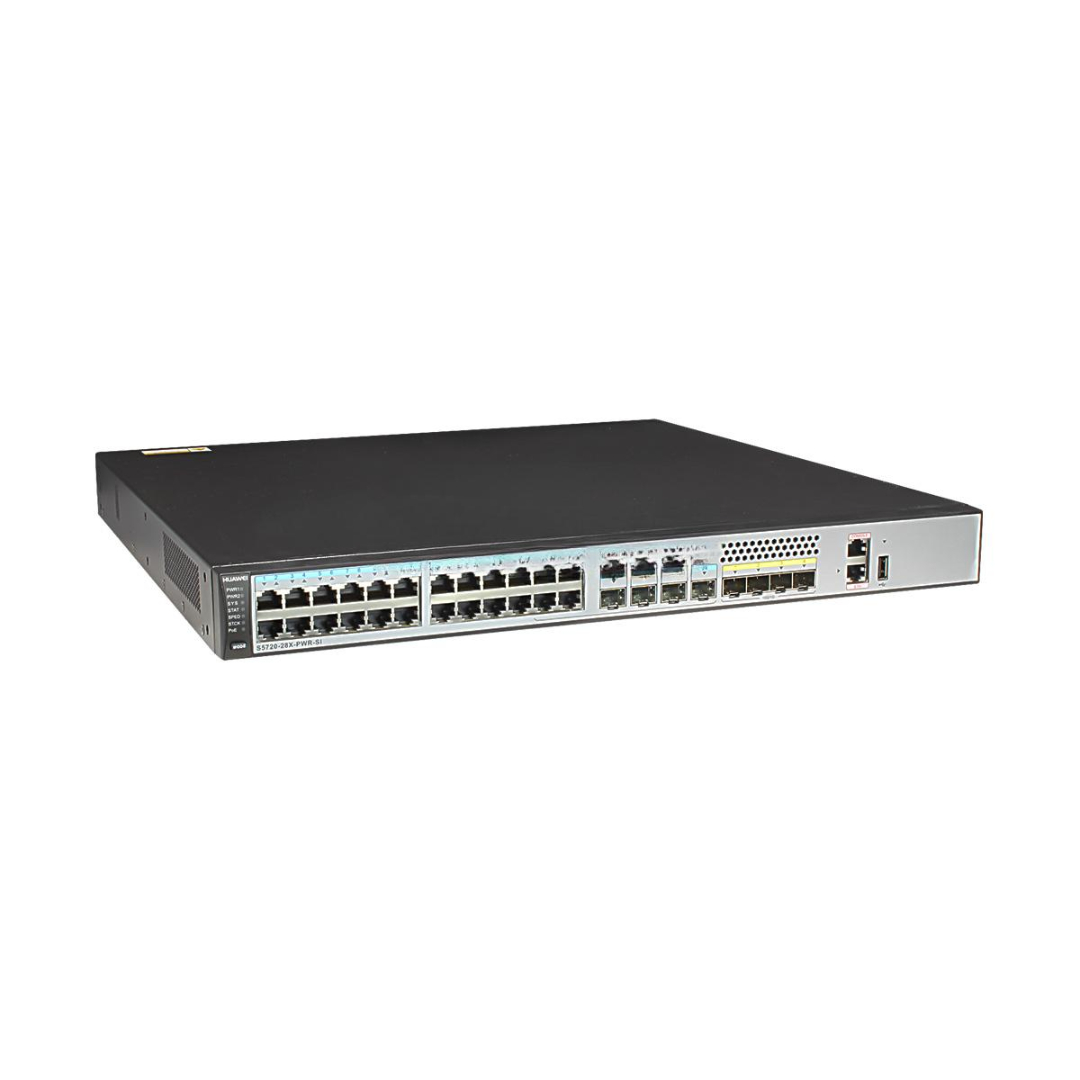

S5720-28X-PWR-SI-AC Huawei Brand New Power Module Equipped
The S5720-28X-PWR-SI-AC Huawei is a high-performance Layer 3 PoE+ switch, designed for enterprise campus networks, IP surveillance, and wireless access applications. Equipped with a built-in AC power module, this switch features 24 Gigabit Ethernet ports and 4 high-speed 10GE SFP+ uplinks, offering robust performance, flexible deployment, and intelligent services.
With advanced energy-saving technologies, enhanced security, and PoE+ support on all access ports, the S5720-28X-PWR-SI-AC is ideal for converged network solutions.
Key Features
-
Model: S5720-28X-PWR-SI-AC
-
Condition: 100% Brand New, Original Huawei
-
Access Ports: 24 × 10/100/1000BASE-T Ethernet ports
-
Uplink Ports: 4 × 10GE SFP+ slots
-
PoE Support: Full IEEE 802.3af/at on all 24 access ports
-

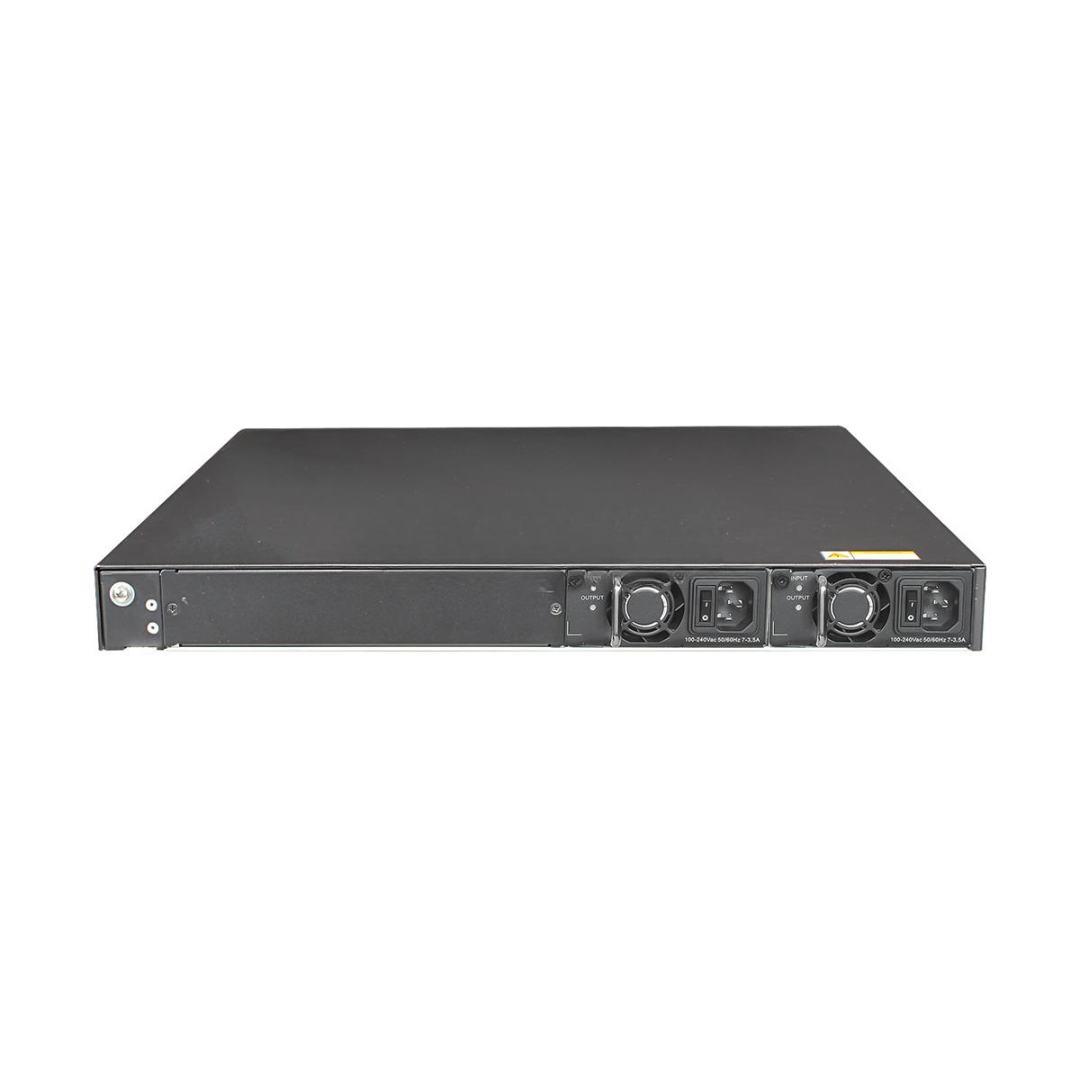

Power Supply: Built-in AC power module
-
Switching Capacity: 336 Gbps
-
Forwarding Rate: 96 Mpps
-
Stacking: iStack supported for simplified management
-
Layer 3 Features: Static routing, RIP, OSPF, DHCP, ACLs, and more
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5720-28X-PWR-SI-AC |
| Ports | 24 × GE RJ45, 4 × 10GE SFP+ |
| PoE Budget | Up to 370W with AC power module |
| Switching Capacity | 336 Gbps |
| Forwarding Performance | 96 Mpps |
| MAC Address Table | 32K entries |
| VLANs Supported | Up to 4K |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5%–95% RH, non-condensing |
| Fan System | Intelligent, variable-speed fans |
| Stacking Support | Yes, via iStack |
| Power Supply | Built-in AC (backup module optional) |
| Warranty | 1–3 Years Manufacturer Warranty |
S5720-28X-PWR-SI-AC Huawei Applications
-
Enterprise Networks — Aggregation or access switch for wired/wireless infrastructure
-
IP Surveillance — PoE-powered cameras with 10GE uplinks for video backhaul
-
Educational Institutions — Secure and scalable campus networking
-
Hospitality & Healthcare — High-density user environments with reliable PoE
Customization & OEM Options
-
Logo Branding — Custom device labels and packaging available
-
PoE Profiles — Preloaded power settings for CCTV, APs, and IoT devices
-
VLAN Configurations — Factory-preconfigured networks for plug-and-play setup
-
Pre-Bundled Kits — Ready-to-deploy switch + transceiver + patch cord kits
-
Extended Burn-In Testing — QA for mission-critical network deployments
Wholesale & Global Supply Information
-
Huawei Original OEM Stock — Brand new, directly sourced from authorized distribution
-
Bulk Orders Available — Volume pricing for projects and integrators
-
Secure Packaging — Anti-static, foam-padded, export-certified packaging
-
Fast Global Shipping — Express dispatch and customs-compliant logistics
-
Installation Support — Technical help with topology planning and setup
-
Certifications — CE, FCC, RoHS, ISO-certified for international use
Why Choose S5720-28X-PWR-SI-AC Huawei
High Port Density & PoE+ — Supports full PoE across 24 ports
Reliable Performance — 336 Gbps switching capacity with 10GE uplinks
Enterprise-Grade Features — Advanced security and routing capabilities
Efficient Power Design — Optimized PoE power delivery and energy savings
Huawei Proven Quality — Ideal for long-term deployments in demanding networks
Contact Us Today for Bulk Pricing & Technical Datasheets
Streamline your enterprise network with the Huawei S5720-28X-PWR-SI-AC — a powerful, efficient, and fully integrated Layer 3 PoE+ switch built to meet evolving IT demands.
Reach out now for wholesale rates, customization services, and global supply options!
