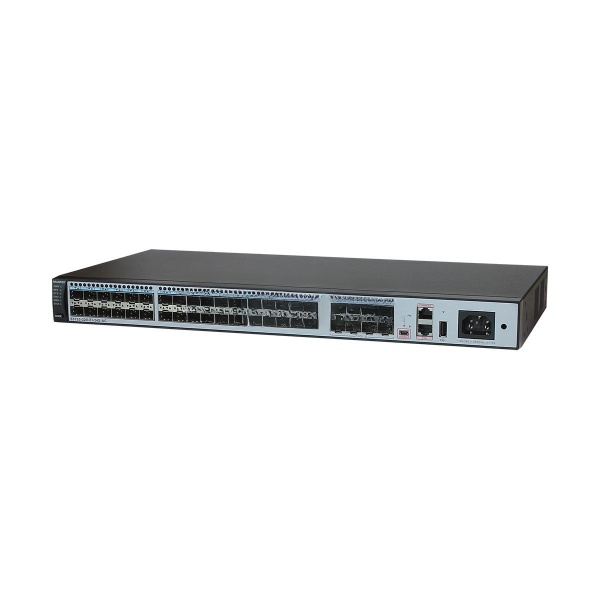

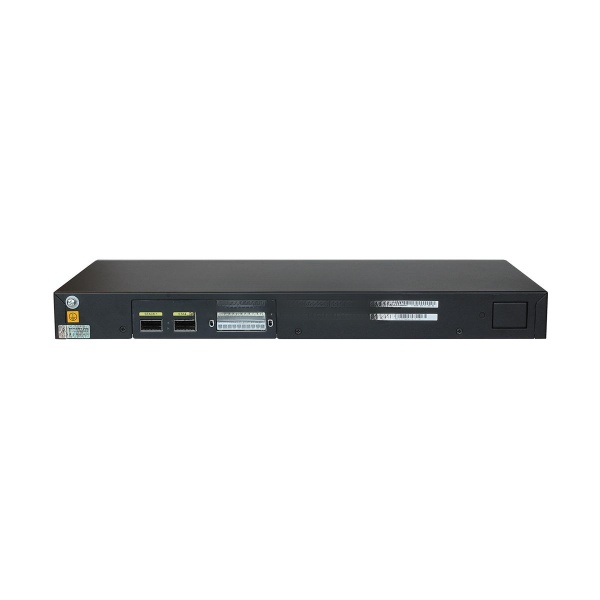

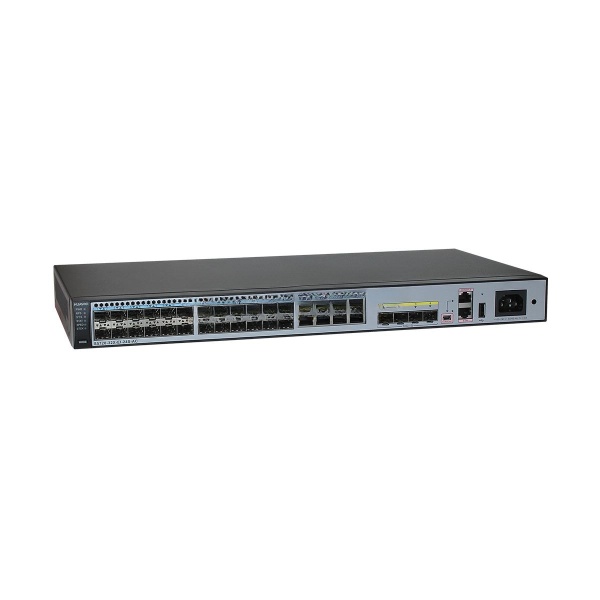

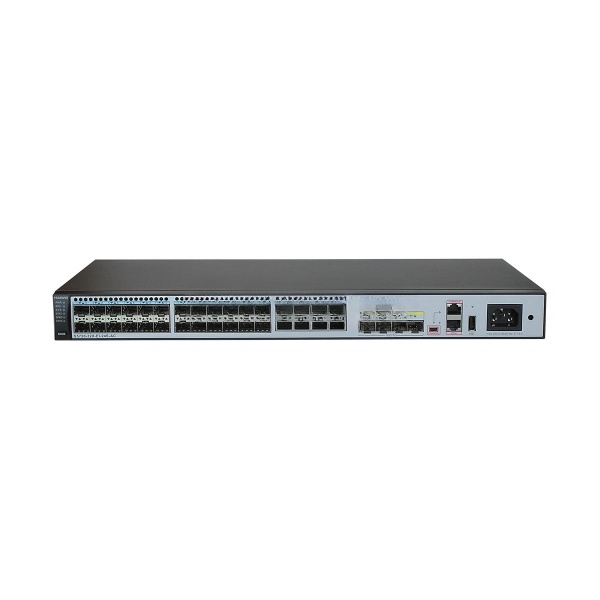

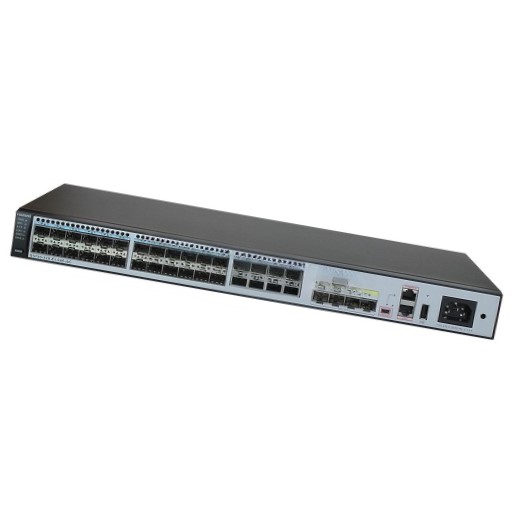

S5720-32X-EI-24S-AC Huawei Brand New 24-Ports AC Power Fixed Switch
The S5720-32X-EI-24S-AC is a brand new, high-performance Layer 3 Ethernet switch designed to deliver robust, flexible, and reliable connectivity for enterprise campus networks, ISPs, and industry verticals that demand high-speed, high-density access and aggregation.
With 24 fixed GE SFP ports, 8 combo GE SFP/BASE-T ports, and 4 × 10GE SFP+ uplink ports, the S5720-32X-EI-24S-AC provides excellent port flexibility, advanced routing capabilities, and carrier-grade security features — making it an ideal choice for future-proof network expansion.
Key Features
-
Model: S5720-32X-EI-24S-AC
-
Condition: 100% Brand New, Original Huawei
-
Port Configuration:
-
24 × GE SFP ports
-
8 × Combo GE SFP/10/100/1000BASE-T ports
-
4 × 10GE SFP+ uplink ports
-
-
Power Supply: Fixed AC power supply for stable operation
-
Layer 3 Capabilities: Supports advanced static routing, RIP, OSPF, and BGP for flexible network topologies
-
Performance: High switching capacity and wire-speed forwarding for large-scale deployments
-
Security:
-
DHCP snooping, ARP inspection, IP Source Guard
-
MAC address learning limit and port security
-
802.1X user authentication and flexible ACLs
-
-
Energy Saving: Supports Energy Efficient Ethernet (EEE), smart fan adjustment, and low power consumption design
-
Reliability: Carrier-grade hardware with robust surge protection and high MTBF
-
Management: Easy management through web UI, CLI, SNMP, RMON, and Huawei eSight NMS
-
Compatibility: Fully interoperable with Huawei CloudEngine and other Huawei enterprise switches
Tech Specs
| Item | Description / Specification |
|---|---|
| Fixed Ports | 24 × Ethernet 10/100/1000 ports + 4 × 10 Gig SFP+ |
| Extended Slot | Not Applicable (NA) |
| MAC Address Table | IEEE 802.1d • 16K MAC address entries • MAC learning and aging • Static, dynamic, blackhole MAC • Source MAC filtering |
| VLAN | 4K VLANs, Guest VLAN, Voice VLAN, GVRP, MUX VLAN, VLAN assignment (MAC, protocols, subnets, policies, ports), 1:1 & N:1 VLAN mapping |
| Jumbo Frame | 10K bytes |
| Ring Protection | RRPP ring & multi-instance, Smart Link, SEP, G.8032 ERPS, STP/RSTP/MSTP, BPDU, root & loop protection |
| IP Routing | Static, RIPv1/v2, RIPng, ECMP, OSPF/OSPFv3, BGP/BGP4+, ISIS/ISISv6, VRRP/VRRP6 |
| IPv6 Features | ND, PMTU, IPv6 Ping, Tracert, Telnet, 6to4, ISATAP, Manual tunnel, ACLs, MLD v1/v2 snooping |
| Multicast Forwarding | PIM DM/SM/SSM, IGMP v1/v2/v3 snooping, IGMP fast leave, VLAN multicast forwarding, replication between VLANs, load balancing, controllable multicast, port-based stats |
| QoS/ACL | Interface rate limiting, redirection, policing, 2-rate 3-color CAR, WRR/DRR/SP scheduling, 8 queues per port, shaping, re-marking (802.1p/DSCP), L2–L4 filtering (MAC, IP, TCP/UDP, VLAN) |
| Security Features | User privileges, password protection, DoS/ARP/ICMP defense, IP-MAC-interface-VLAN binding, port isolation/security, sticky MAC, blackhole MAC, MFF, learned MAC limit, 802.1x, AAA/RADIUS/HWTACACS+/NAC, SSH v2.0, HTTPS, portal auth, CPU defense, blacklist/whitelist, MACSec hardware ready |
| Super Virtual Fabric (SVF) | SVF client mode, plug-and-play, auto config loading, one-click delivery, independent client running |
| OAM | EFM OAM, CFM OAM, Y.1731 performance test |
| Management & Maintenance | iStack, Virtual cable test, SNMP v1/v2c/v3, Web-based management, logs & alarms, sFlow, LLDP/LLDP-MED, RMON |
| Interoperability | VBST (PVST/PVST+/RPVST compatible), LNP (like DTP), VCMP (like VTP) |
| Operating Environment | Temp: 0–1800m: 0–45°C 1800–5000m: –1°C per 220m increase Humidity: 5%–95% (non-condensing) |
| Input Voltage | AC: 100–240 V AC, 50/60 Hz (Max: 90–264 V AC) DC: –48 V to –60 V DC (Max: –36 V to –72 V DC) |
| Dimensions (mm) | 442 (W) × 220 (D) × 43.6 (H) |
| Typical Power Consumption | 22W |
S5720-32X-EI-24S-AC Applications
The S5720-32X-EI-24S-AC Huawei Switch is perfect for:
• Enterprise campus access and aggregation requiring high port density
• ISP access networks with secure, reliable uplinks
• Education, healthcare, and government networks with mission-critical demands
• Medium and large businesses expanding high-speed connectivity across buildings or remote sites
• Integrating legacy copper and fiber connections with combo ports for maximum flexibility
Customization & OEM Services
We offer flexible customization and OEM services for the S5720-32X-EI-24S-AC, including:
• Pre-configuration of VLANs, IP routing, and user policies for rapid deployment
• Private labeling and packaging for resellers and system integrators
• Bundling with compatible Huawei transceivers, fiber patch cords, and accessories
• Custom burn-in and testing for projects requiring higher reliability
S5720-32X-EI-24S-AC Wholesale & Bulk Orders
Source the S5720-32X-EI-24S-AC Huawei Switch directly from us for your large-scale or multi-site deployments:
• Factory-direct pricing with competitive volume discounts
• Consistent stock availability to meet tight rollout schedules
• Export-compliant, secure packaging to protect units in transit
• Trusted global logistics partners for reliable worldwide shipping
• Dedicated account managers for seamless coordination on complex projects
• Full technical support and warranty service included
S5720-32X-EI-24S-AC Why Choose Us
100% Original Huawei Hardware, fully certified and tested
Customizable Configurations & OEM Options
Attractive Wholesale Pricing for ISPs, system integrators, and large enterprise networks
Safe, Reliable Global Delivery
Expert Technical Support from planning to deployment
Contact Us for a Quote
Upgrade your network with the Huawei S5720-32X-EI-24S-AC Layer 3 Switch — a future-ready solution for high-speed, secure, and flexible access and aggregation.
