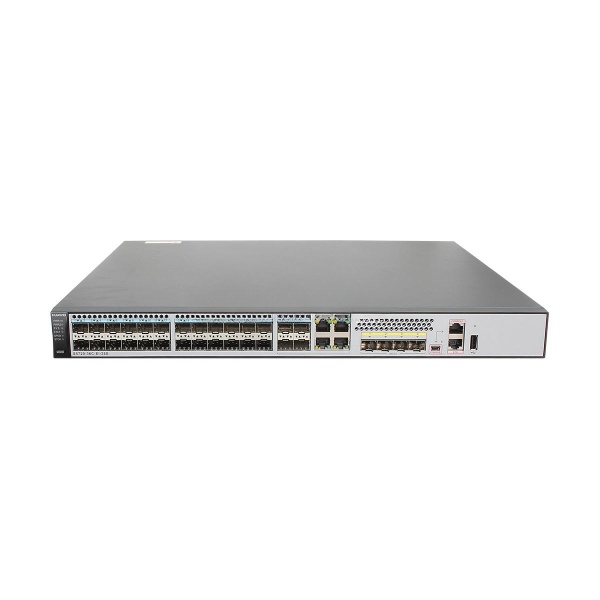

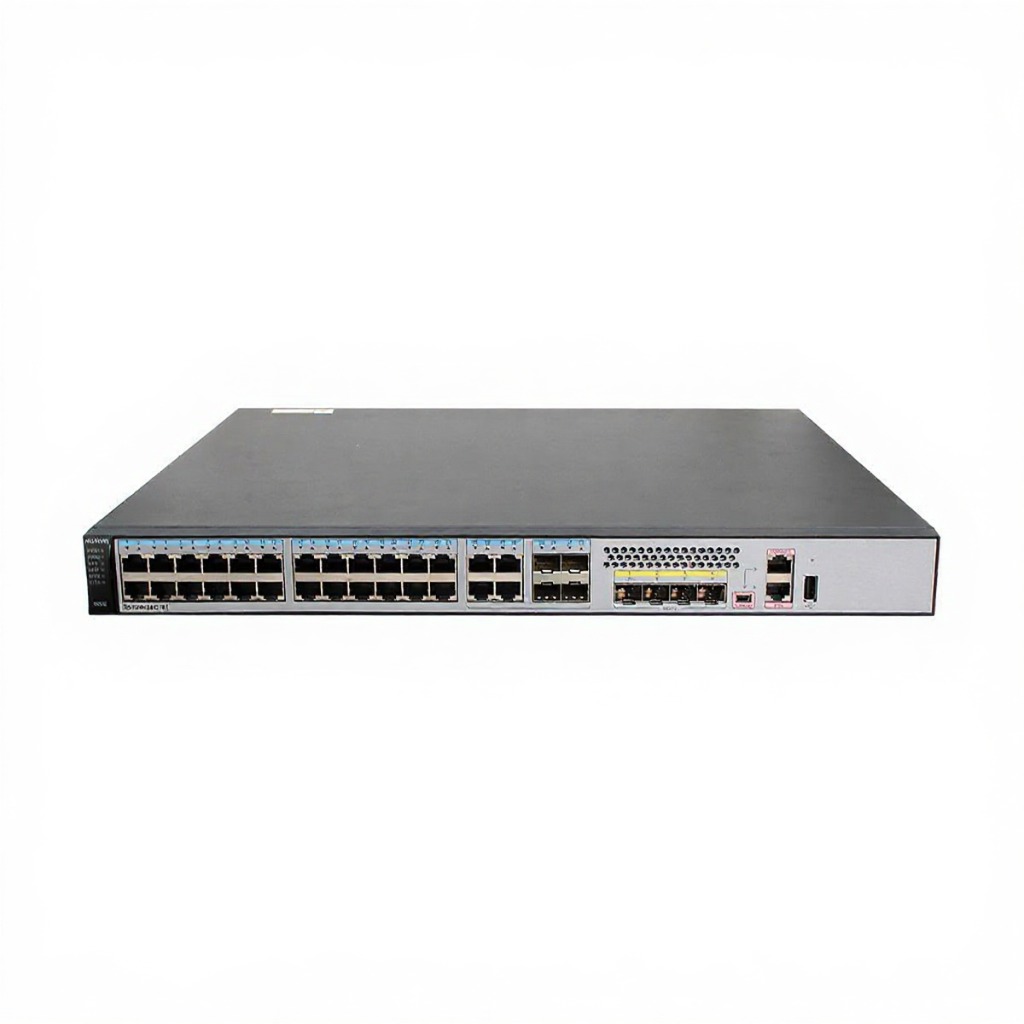

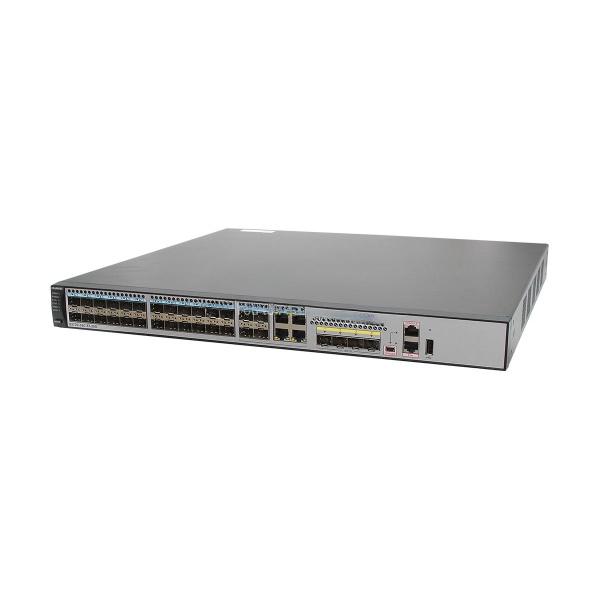

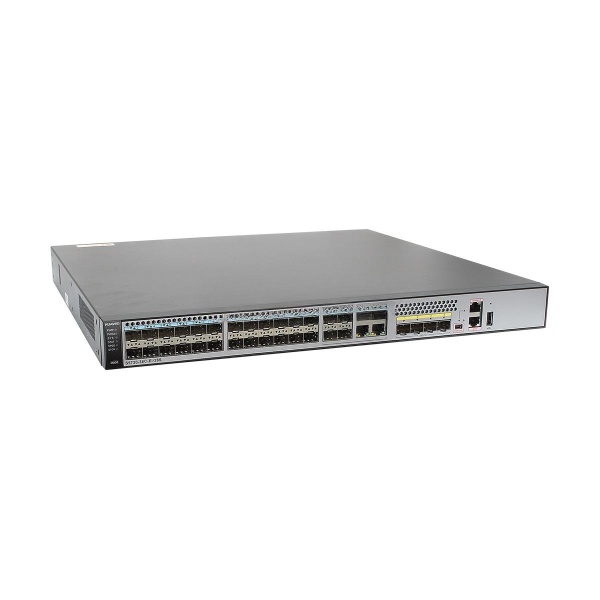

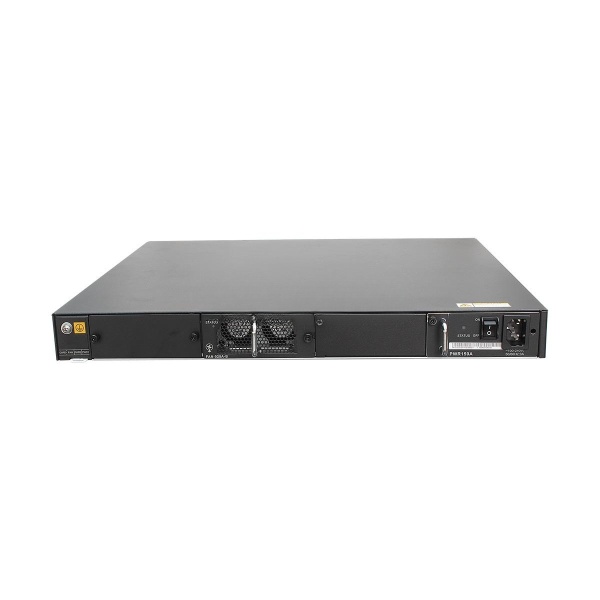

S5720-36C-EI-AC Huawei High Quality 1 Power Module Equipped
The S5720-36C-EI-AC Huawei is a high-performance, energy-efficient Layer 3 managed Gigabit Ethernet switch, purpose-built for enterprise campus networks, secure departmental connections, and small to medium-sized data center deployments.
Equipped with one high-quality, fixed AC power module, this model ensures stable and continuous operation in demanding network environments. Its versatile port configuration provides excellent flexibility for both copper and fiber connectivity while supporting advanced Layer 3 routing and robust security features to help organizations build scalable and secure network infrastructures.
Key Features
Model: S5720-36C-EI-AC
Condition: 100% Brand New, Original Huawei
Switch Type: Layer 3 Managed Gigabit Ethernet Switch
Ports: Combination of 10/100/1000BASE-T ports and Gigabit SFP slots (typical configuration: 24–36 GE interfaces)
Power Supply: Fixed 1 x AC Power Module for reliable operation
Switching Capacity: High forwarding performance with large MAC and ARP tables
Layer 3 Routing: Supports static routing, RIP, OSPF, and policy-based routing for efficient traffic management
Security: Advanced user access control, port isolation, DHCP snooping, and ACLs for secure access
Energy Efficiency: Intelligent fan speed adjustment and port power management reduce energy consumption
Management: Flexible management options including CLI, SNMP, web-based GUI, and Huawei iManager NMS
Reliability: Surge protection, loop prevention, and industrial-grade build for long-term stability
Technical Specifications
| Item | Description |
|---|---|
| Fixed Ports | 28 × 10/100/1000 Mbps Ethernet ports, including 4 dual-purpose 10/100/1000 or SFP ports, plus 4 × 10G SFP+ ports. |
| Forwarding Performance | 132 Mpps |
| Expansion Slot | 1 × extended slot for uplink interface card or private stack card. |
| Memory | SDRAM: 2 GB; Flash: 340 MB |
| MAC Address Table | IEEE 802.1d compliant; supports up to 64K MAC addresses; supports MAC learning/aging, static, dynamic, and blackhole MAC entries; source MAC-based packet filtering. |
| VLAN | Supports up to 4K VLANs; features Guest VLAN, Voice VLAN, GVRP, MUX VLAN; VLAN assignment based on MAC, protocol, IP subnet, policy, or port; supports 1:1 and N:1 VLAN mapping and VLAN-based protocol packet transparency. |
| Jumbo Frame | Up to 12K bytes |
| Ring Protection | Supports RRPP ring/multi-instance, Smart Link tree/multi-instance for millisecond-level protection, Smart Ethernet Protection (SEP), G.8032 ERPS, STP (802.1d), RSTP (802.1w), MSTP (802.1s), BPDU/root/loop protection, and BPDU tunnel. |
| IP Routing | Static routing, RIPv1/v2, RIPng, OSPF/OSPFv3, IS-IS/IS-ISv6, BGP/BGP4+, ECMP, policy-based routing; supports up to 16K IPv4 and 8K IPv6 unicast routes; 3K IPv4 and 1K IPv6 static routes. |
| IPv6 Features | ND, PMTU, IPv6 Ping/Traceroute/Telnet, 6to4/ISATAP/manual tunnels, ACLs based on IPv6 source/destination, Layer 4 ports, or protocols; MLD v1/v2 snooping. |
| Multicast Forwarding | IGMP v1/v2/v3 snooping with fast leave, VLAN-based multicast forwarding, replication across VLANs, trunk member load splitting, controllable multicast, Layer 2 multicast control, port-based multicast stats; IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP supported. |
| QoS & ACL | Port-based inbound/outbound rate limiting; packet redirection; broadcast storm control; traffic policing, CAR (two-rate, three-color); 8 queues per port; queue scheduling: WRR, DRR, SP, WRR+SP, DRR+SP; WRED; 802.1p/DSCP remarking; L2–L4 packet filtering; queue rate limiting; traffic shaping; 1:1/N:1/N:4 port mirroring; VLAN mirroring. |
| Security Features | Hierarchical user management, password protection, DoS/ARP/ICMP attack defense; IP–MAC–port–VLAN binding; port isolation/security/sticky MAC; MAC Forced Forwarding (MFF); blackhole MAC entries; MAC learning limits; IEEE 802.1X; per-interface user limits; AAA, RADIUS, HWTACACS+, NAC, SSH v2.0, HTTPS, CPU protection, black/white lists, MACSec ready. |
| Access Security | DHCP Relay, Server, Snooping, Client, and DHCP security features. |
| Port Aggregation | LACP; supports up to 128 trunk groups with up to 8 members per group. |
| Reliability | Ethernet OAM (IEEE 802.3ah/802.1ag), ITU-Y.1731, BFD for BGP/IS-IS/OSPF/static routes. |
| Super Virtual Fabric (SVF) | Acts as an SVF client with plug-and-play zero configuration; supports automatic system software and patch loading, one-click service config delivery, and independent client operation. |
| Management & Maintenance | iStack, virtual cable test, SNMP v1/v2c/v3, RMON/RMON2, web-based NMS, system logs, multi-level alarms, sFlow, LLDP/LLDP-MED, IEEE 802.3az EEE, SCP, TFTP, FTP, dual image/config file storage. |
| Interoperability | Supports VLAN-based STP with PVST/PVST+/RPVST; Link-type Negotiation Protocol (LNP) similar to DTP; VLAN Central Management Protocol (VCMP) similar to VTP. |
| Operating Environment | Temperature: 0–45°C (0–1800 m); reduces by 1°C per 220 m above 1800 m (up to 5000 m). Relative humidity: 5%–95% non-condensing. |
| Input Voltage | AC input: 100–240 V AC, 50/60 Hz (rated); 90–264 V AC, 47/63 Hz (max); no front power input. |
| Dimensions (mm) | 442 (W) × 420 (D) × 43.6 (H) |
| Typical Power Consumption | 39.5 W |
S5720-36C-EI-AC Huawei Applications
The S5720-36C-EI-AC is ideal for:
• Enterprise Campus Networks — Reliable connectivity for workstations, IP phones, and wireless APs
• Departmental or Secure Network Segments — Robust security and granular access control
• Small to Medium Data Centers — Flexible uplinks for high-bandwidth interconnections
• Core or Aggregation Layer for SMBs — Scalable Layer 3 routing and high forwarding performance
• Industrial or Commercial Networks — Rugged design for reliable operation under diverse conditions
Customization & OEM Services
We offer flexible services to support your unique project needs:
• Pre-configuration: VLANs, routing, and security policies set up for plug-and-play deployment
• OEM Branding: Private labeling and custom packaging for resellers and integrators
• Custom Kitting: Bulk packing and site-wide labeling for streamlined installations
• Enhanced Testing: Extended burn-in for mission-critical networks
S5720-36C-EI-AC Huawei Wholesale & Bulk Procurement
Secure your supply chain with our reliable sourcing services:
• Competitive Factory Pricing: Significant discounts for bulk orders
• Global Fulfillment: Secure packaging and fast, insured international shipping
• Dedicated Project Support: Experienced account managers for large rollouts
• Consistent Stock: Ready availability to meet tight project deadlines
• Genuine Huawei Warranty: Full technical support and warranty coverage for peace of mind
S5720-36C-EI-AC Huawei Why Choose Us
100% Original Huawei Equipment — Fully tested and certified
Flexible Customization — Tailored solutions for your technical and branding needs
Competitive Wholesale Rates — Ideal for VARs, system integrators, and enterprise end-users
Secure Global Logistics — Safe delivery with export-compliant packaging
Expert Technical Support — Assistance throughout planning, deployment, and maintenance
Contact Us for the Best Pricing
Upgrade your network with the S5720-36C-EI-AC Huawei High Quality 1 Power Module Equipped — the perfect balance of performance, security, and efficiency for modern enterprise environments.
