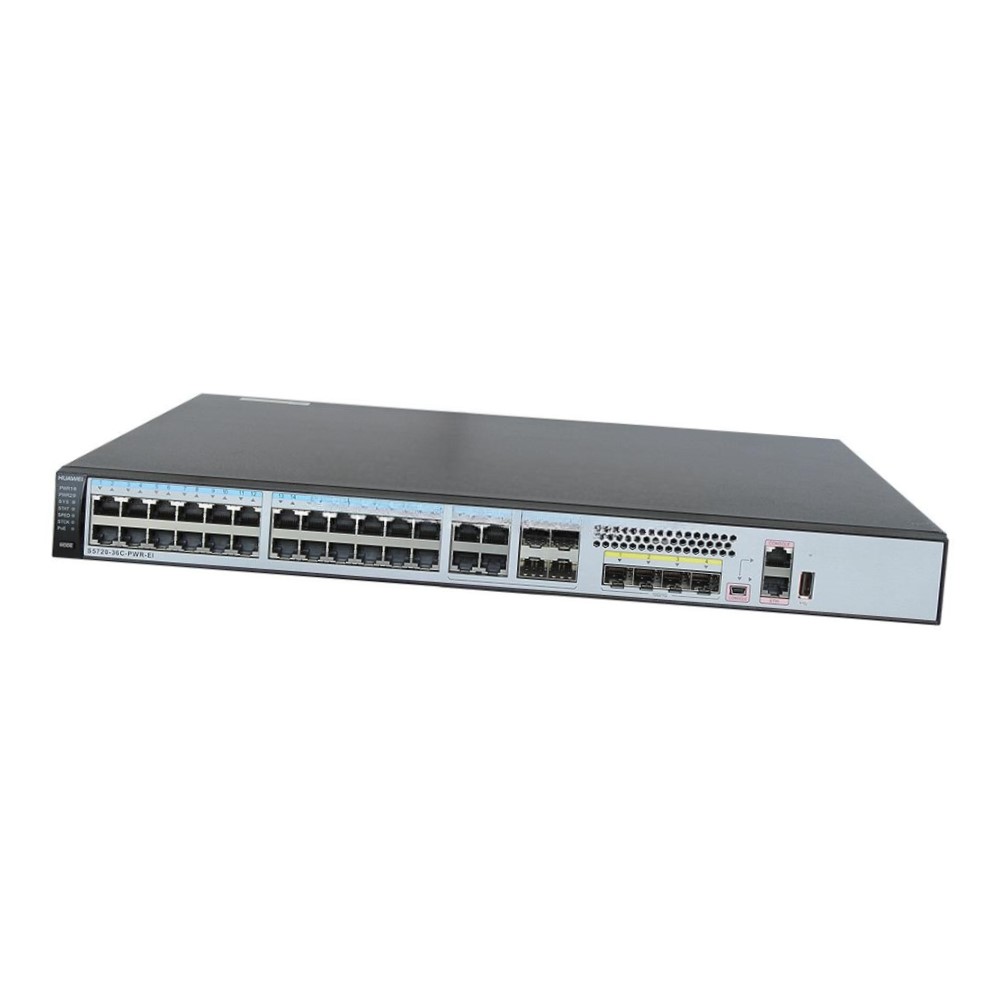

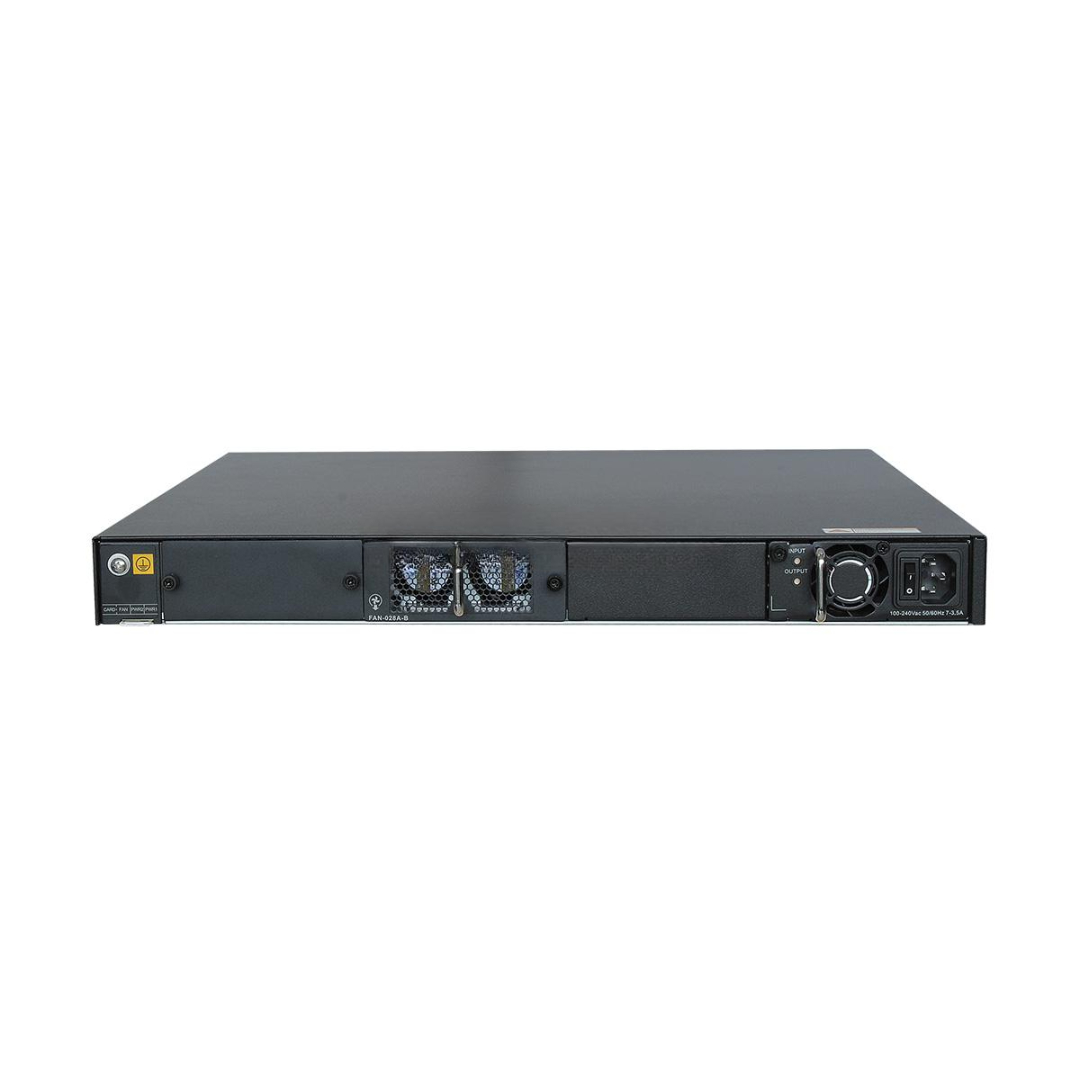

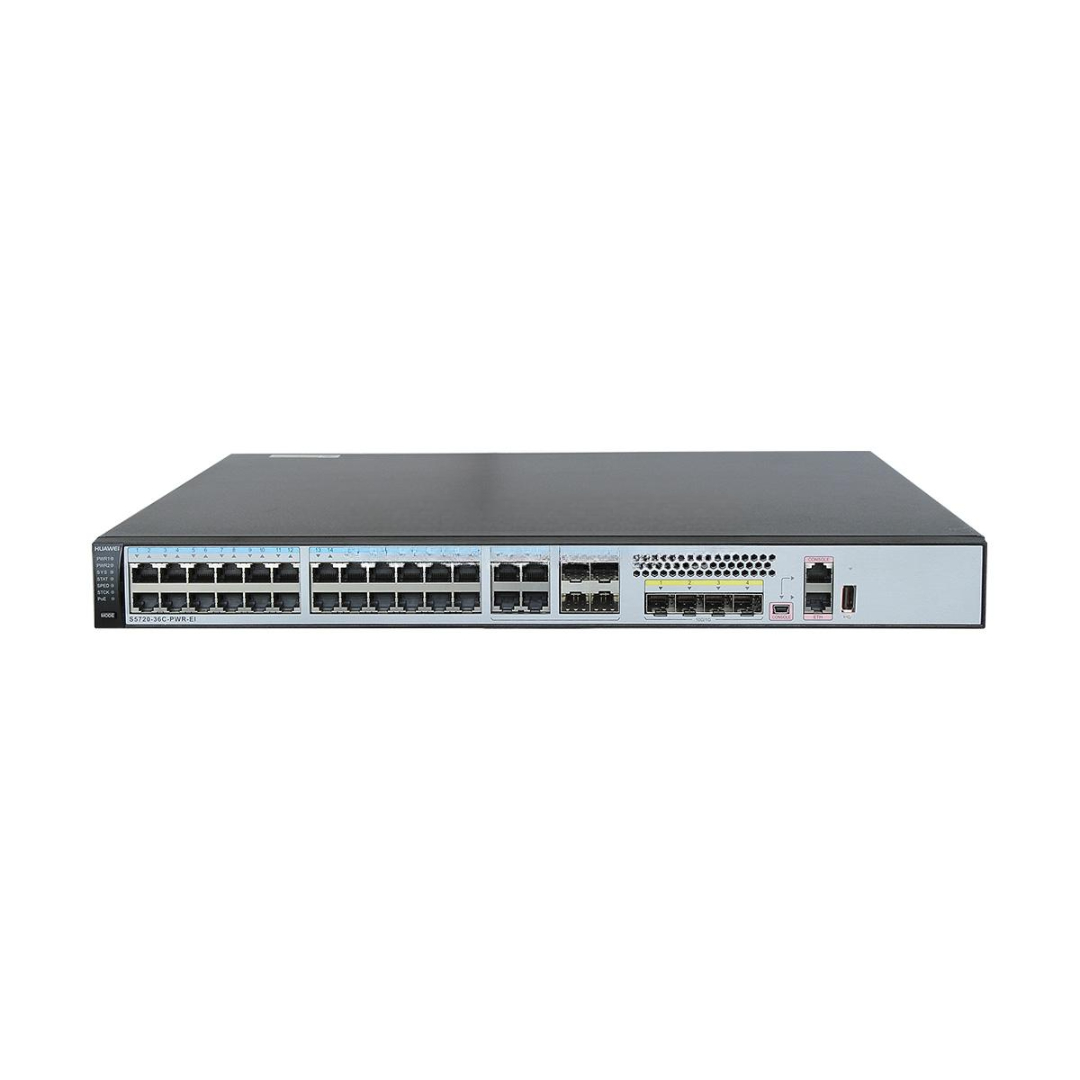

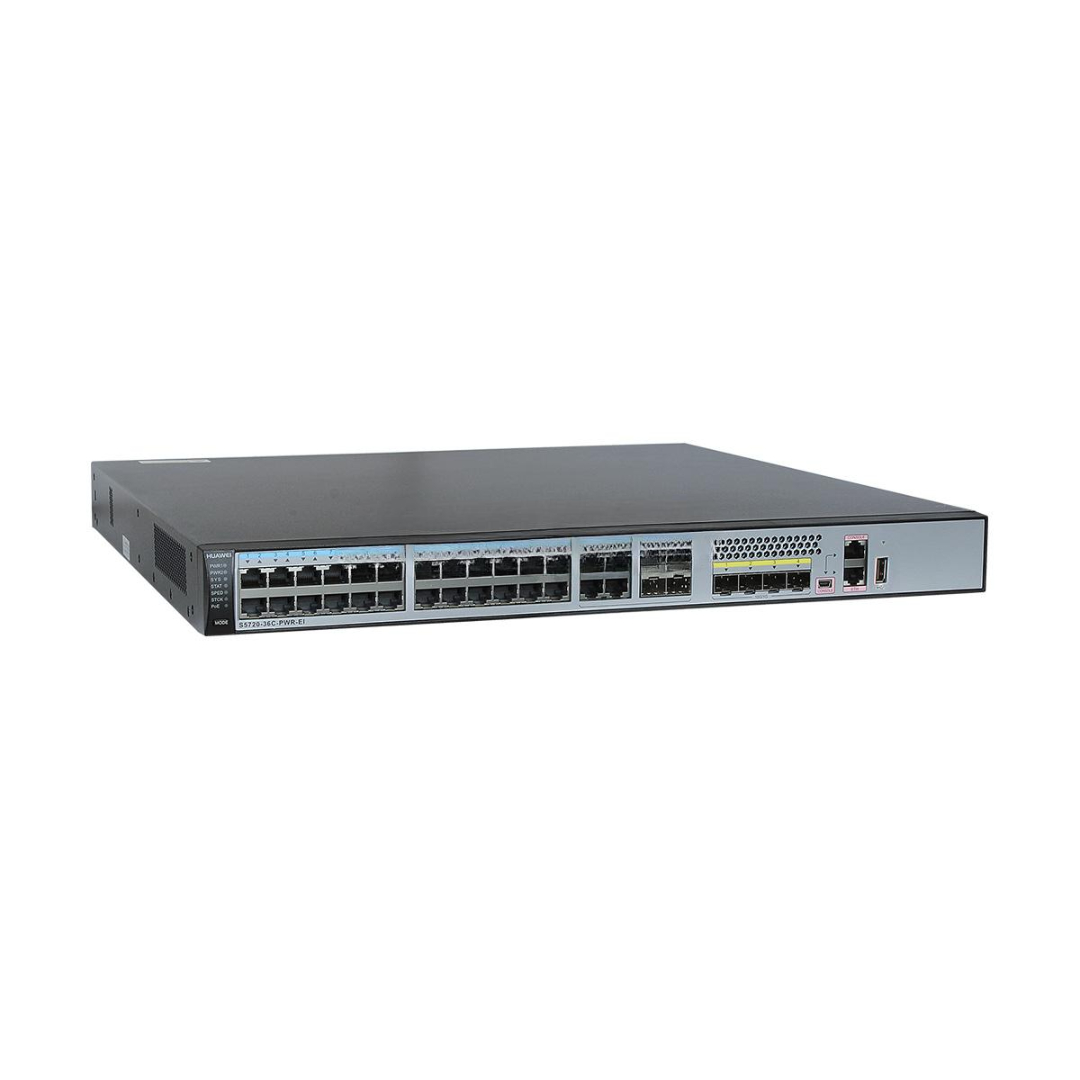

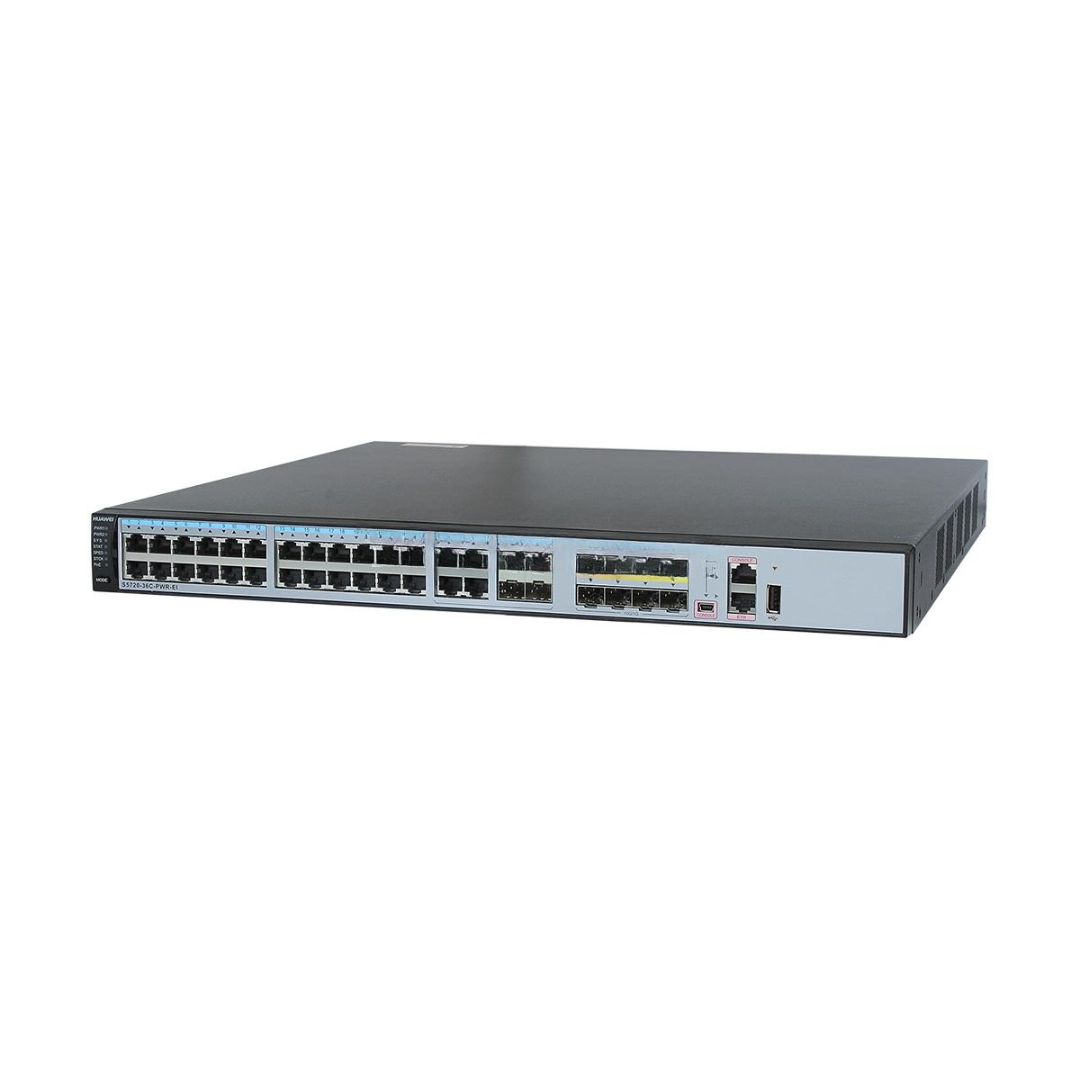

S5720-36C-PWR-EI-AC Huawei Brand New Power Module Equipped
The S5720-36C-PWR-EI-AC Huawei is a highly reliable and energy-efficient Layer 3 Gigabit switch with built-in power module and PoE+ support, designed for demanding enterprise campus, education, healthcare, and IP surveillance networks. As part of Huawei’s S5720-EI Series, this switch delivers enhanced switching, security, and energy-saving technologies, offering comprehensive Layer 2 and Layer 3 features with robust PoE capabilities. Ideal for converged networks, it supports flexible deployments and scalability with stacking and dual power support.
Key Features
-
Model: S5720-36C-PWR-EI-AC
-
Condition: 100% Brand New, Original Huawei
-
Port Configuration: 24 x 10/100/1000Base-T + 12 x Gigabit SFP ports
-
PoE Support: IEEE 802.3af/at (PoE+), total power budget up to 370W
-
Power Module: Integrated AC power supply unit
-
Switching Capacity: 256 Gbps
-
Forwarding Rate: 96 Mpps
-
Stacking Support: Up to 9 switches with iStack technology
-
Security Features: DHCP snooping, ARP inspection, IP source guard, MAC filtering
-
Routing Protocols: Static routing, RIP, OSPF, BGP
-
Energy Efficiency: Smart PoE power management, fan speed auto-adjustment
-
Reliability: Redundant power support (optional second PSU), hot-swappable fan trays
-
Management: SNMP, RMON, CLI, Web-based GUI, NMS-compatible
-
Mounting Options: Standard 19” rack-mountable
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5720-36C-PWR-EI-AC |
| Device Type | L3 Managed Gigabit Ethernet Switch |
| Downlink Ports | 24 x GE RJ45 (PoE+) |
| Uplink Ports | 12 x GE SFP optical ports |
| Switching Capacity | 256 Gbps |
| Forwarding Performance | 96 Mpps |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| PoE Power Budget | Up to 370W |
| Power Supply | Built-in AC power module (external PSU optional) |
| Stacking | iStack supported (max 9 units) |
| MAC Address Table | 32K entries |
| Layer 3 Features | Static, RIP, OSPF, BGP |
| Operating Temperature | -5°C to +50°C |
| Humidity | 5%–95% RH (non-condensing) |
| Dimensions (W x D x H) | 442 mm × 420 mm × 43.6 mm |
| Weight | Approx. 6.5 kg |
| Warranty | 1–3 Years Manufacturer Warranty |
S5720-36C-PWR-EI-AC Huawei Applications
-
Enterprise Networks — Access and aggregation layer in medium to large enterprise LANs
-
Campus Networks — Converged voice, video, and data switching with PoE+ for APs and IP phones
-
IP Surveillance — Ideal for camera backhaul with centralized PoE and QoS
-
Education & Healthcare — Intelligent power management and robust routing for connected environments
-
Branch Offices — All-in-one switching and PoE capabilities with secure Layer 3 routing
Customization & OEM Options
-
Private Labeling — Branding options for enterprise resellers or integrators
-
Pre-Configured Switch Kits — Includes patch cords, rack mounts, and SFP modules
-
Firmware Preload — Custom firmware installation or configuration templates
-
Extended Testing — Factory burn-in and performance testing for critical deployments
-
Global Compatibility — Power options and language settings tailored for export
S5720-36C-PWR-EI-AC Huawei Wholesale & Global Supply
-
Direct Huawei OEM Supply — 100% original, factory-sealed units
-
Bulk Purchase Discounts — Competitive pricing for resellers and project integrators
-
Safe Packaging — Anti-static wrap and foam-lined boxes for international logistics
-
Ready-to-Ship Inventory — Quick dispatch available for high-demand regions
-
Worldwide Delivery — Logistics partners certified for IT equipment shipping
-
Support & Documentation — Full access to datasheets, manuals, and NMS guides
Why Choose the S5720-36C-PWR-EI-AC Huawei Switch
-
Enterprise-Class Reliability — Huawei’s robust hardware with PoE+ support
-
All-in-One Access Layer — PoE, routing, stacking, and security in one unit
-
Scalable Network Design — Ideal for expanding LANs, campuses, and multi-floor offices
-
Future-Proof Investment — SDN-ready, IPv6 compatible, and highly energy-efficient
Contact Us Now for Pricing, Datasheets & Bulk Orders
Upgrade your enterprise network with the Huawei S5720-36C-PWR-EI-AC — a feature-rich, power-equipped switch designed for modern connectivity. Let us support your OEM projects, global deployments, and bulk procurement needs.
