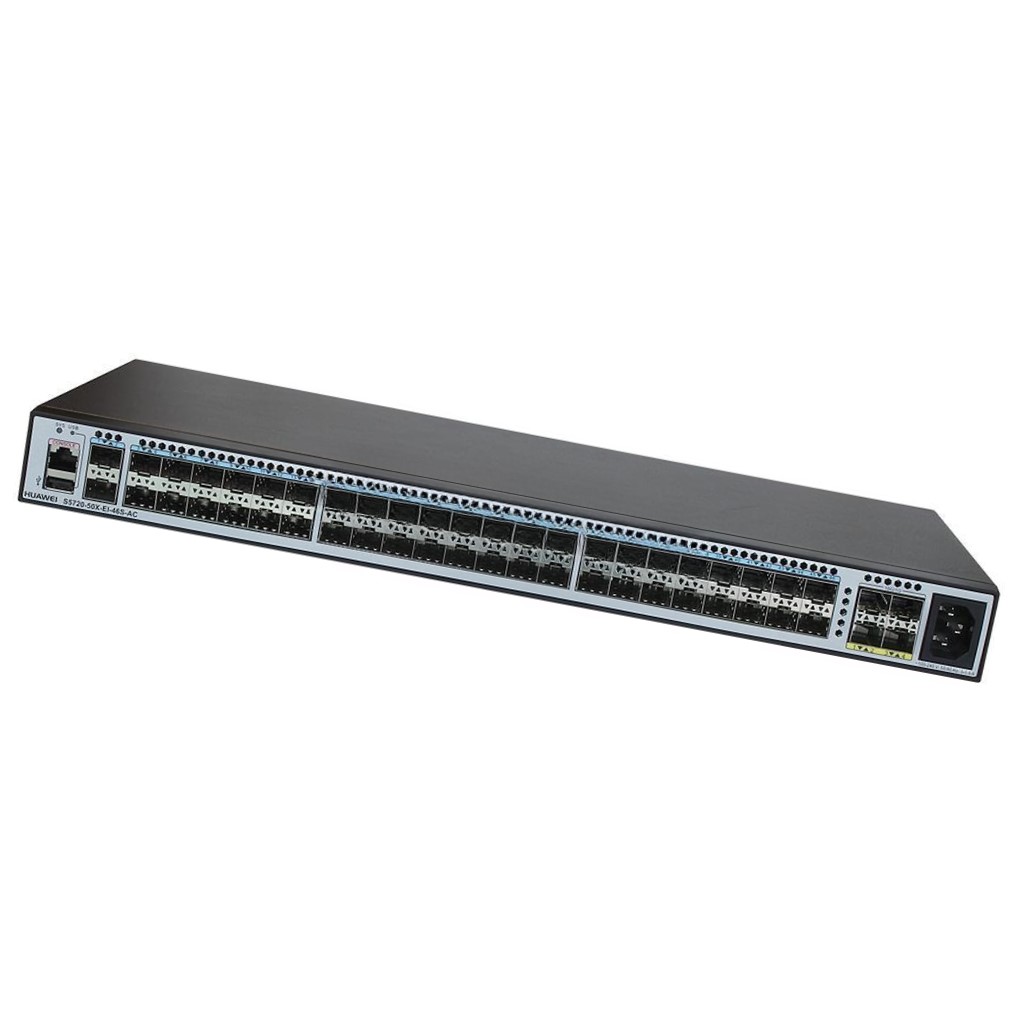

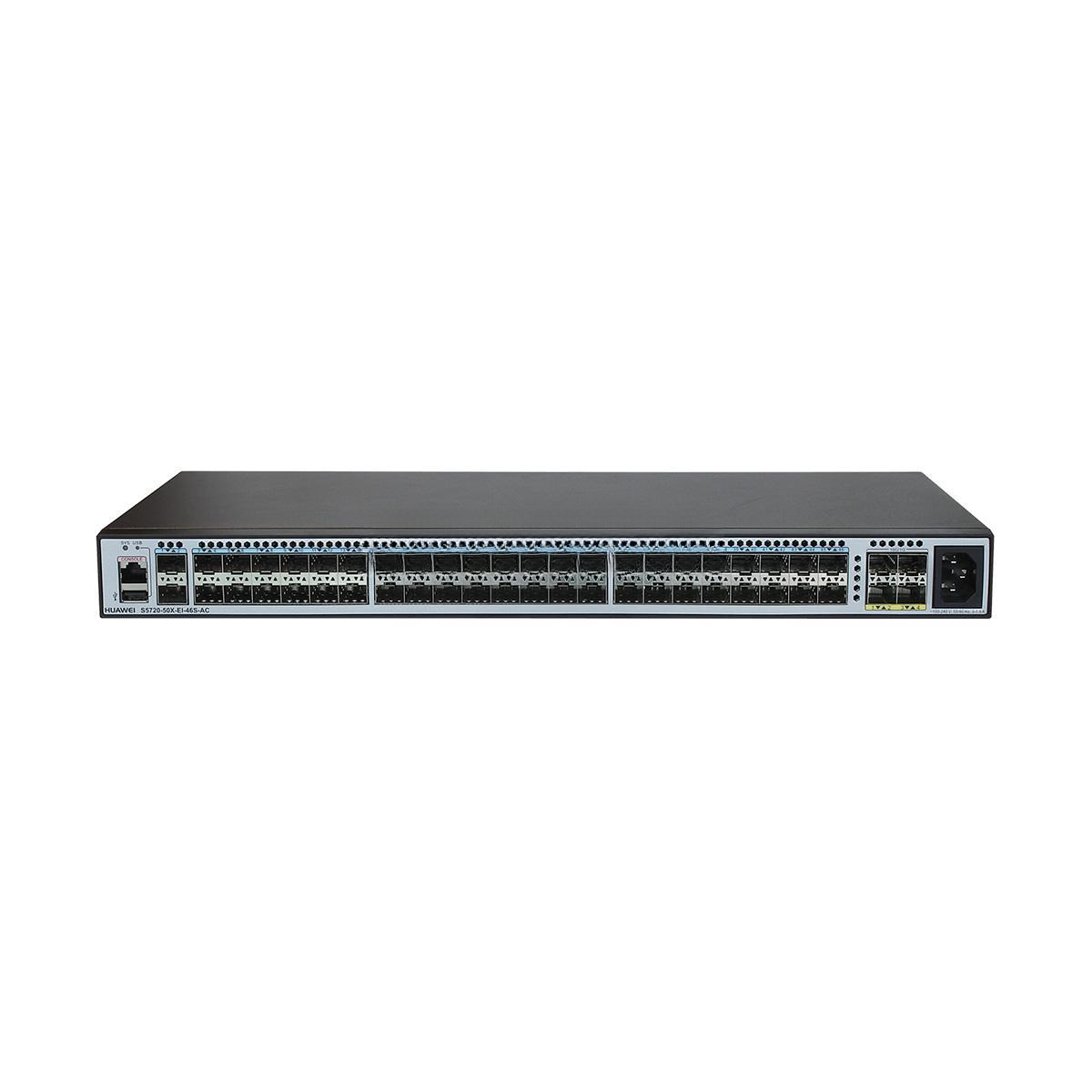

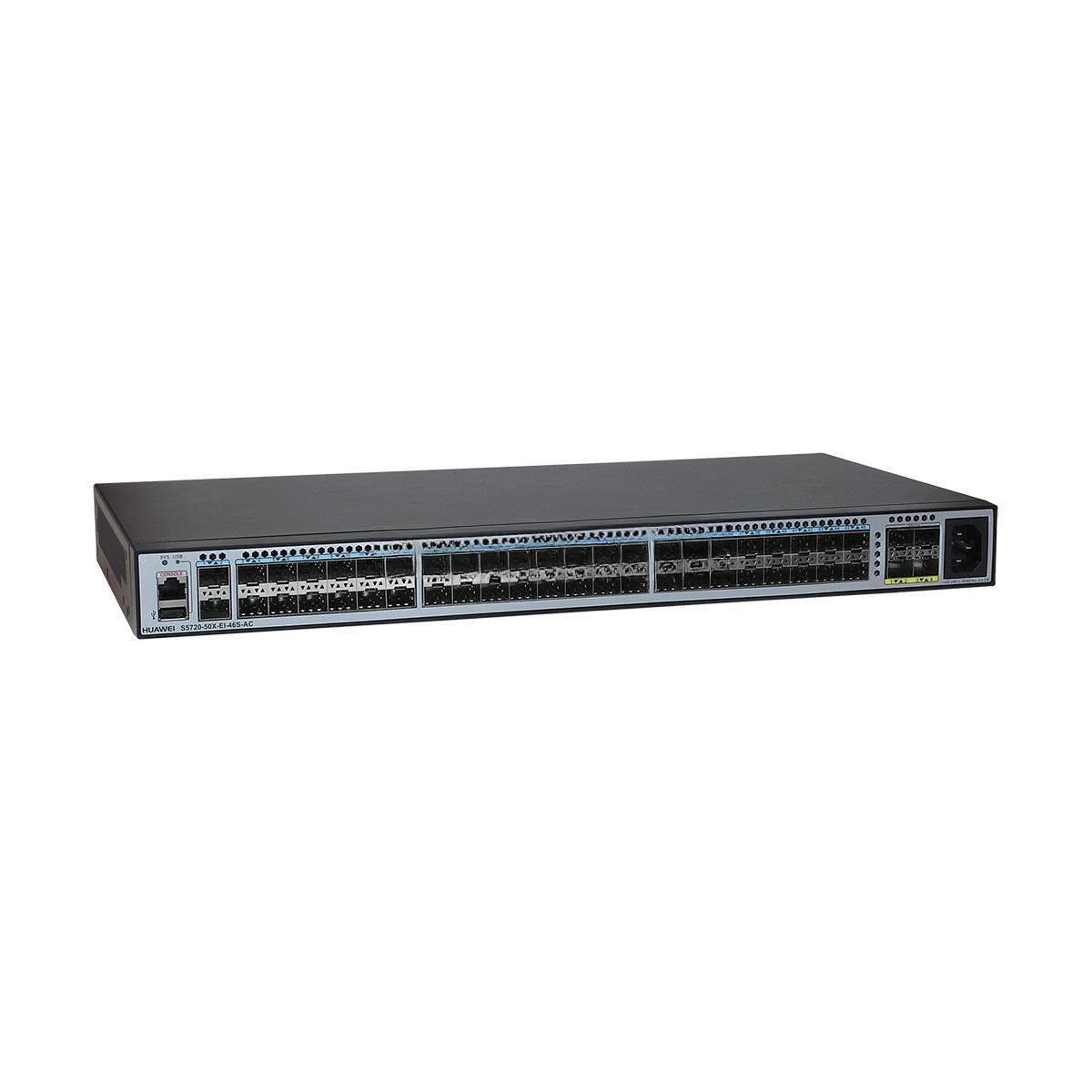

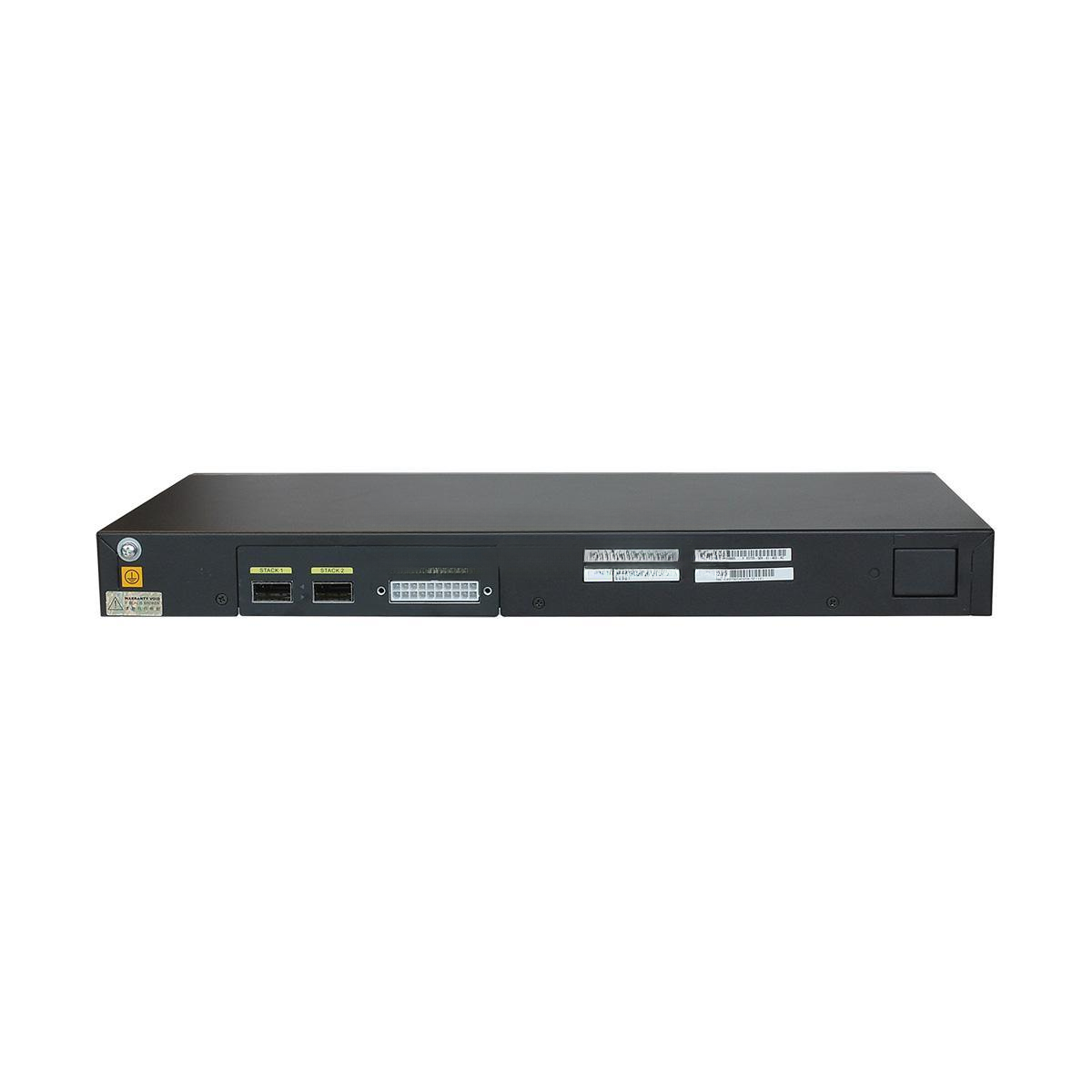

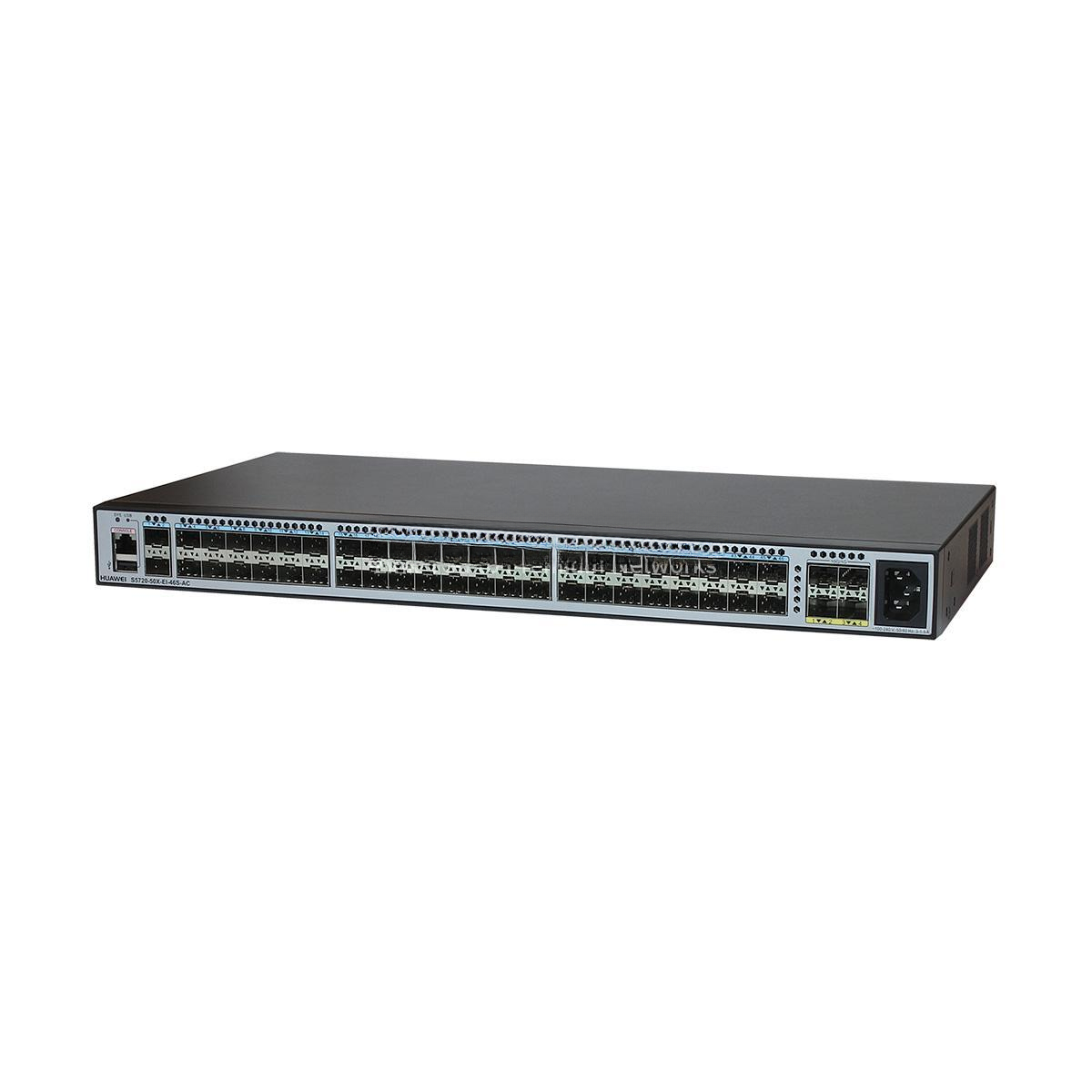

S5720-50X-EI-46S-AC Huawei High Quality 10GE Switch with 1 AC Power Fixed
The S5720-50X-EI-46S-AC Huawei is a high-performance Layer 3 Ethernet switch designed to deliver reliable 10 Gigabit connectivity with advanced security and flexible management for demanding enterprise, campus, and data center access networks. This switch comes with a fixed AC power module, providing consistent and stable power for mission-critical environments.
With 46 × 10GE SFP+ ports and 4 × combo GE ports, the S5720-50X-EI-46S-AC offers robust switching capacity, extensive Layer 2/3 features, and intelligent services to meet evolving network requirements. It supports flexible VLAN configurations, comprehensive QoS, secure access control, and energy-efficient operation.
Key Features
-
Model: S5720-50X-EI-46S-AC
-
Condition: 100% Brand New, Original Huawei
-
Port Configuration: 46 × 10GE SFP+ ports, 4 × combo GE ports
-
Power Module: Fixed AC power supply for reliable, always-on operation
-
Switching Capacity: Up to 598 Gbps
-
Forwarding Performance: Up to 252 Mpps
-
Layer 3 Routing: Supports OSPF, IS-IS, BGP, VRRP, static routing, and policy-based routing
-
Stacking: iStack technology for simplified scalability and management
-
Security: MAC security, ARP inspection, DHCP snooping, 802.1X authentication, and ACLs
-
QoS: Flexible traffic control, congestion management, and bandwidth optimization
-
IPv6 Support: Comprehensive dual-stack IPv4/IPv6 features
-
Energy Efficient: Intelligent fan speed adjustment and energy-saving Ethernet
-
Management: Web-based GUI, CLI, SNMP, and Huawei iManager NMS compatibility
Tech Specs
| Item | Description |
|---|---|
| Fixed Ports | • 46 × 1GE SFP ports • 4 × 10GE SFP+ uplinks • 2 × QSFP+ dedicated stack ports |
| Forwarding Performance | 129 Mpps |
| Extended Slot | Not supported |
| DRAM / Flash | SDRAM: 2 GB Flash: 340 MB |
| MAC Address Table | • IEEE 802.1d • 64K MAC address entries • Static, dynamic, and blackhole entries • Learning & aging; source MAC filtering |
| VLAN Features | • 4K VLANs • Guest VLAN, Voice VLAN, GVRP, MUX VLAN • Flexible VLAN assignment: MAC, protocol, IP subnet, policy, port • 1:1 & N:1 VLAN mapping • VLAN-based transparent protocol transmission |
| Jumbo Frame | 12K bytes |
| Ring Protection | • RRPP ring topology & multi-instance • Smart Link & Smart Link multi-instance (millisecond failover) • SEP, ERPS (G.8032) • STP/RSTP/MSTP, BPDU/root/loop protection, BPDU tunnel |
| IP Routing | • Static, RIPv1/v2, RIPng, OSPF/OSPFv3, IS-IS/IS-ISv6, BGP/BGP4+ • ECMP, policy-based routing • 16K IPv4 unicast routes, 8K IPv6 unicast routes • 3K IPv4 static, 1K IPv6 static |
| IPv6 Features | ND, PMTU, IPv6 Ping/Tracert/Telnet, 6to4, ISATAP, manual tunnels, ACLs, MLD v1/v2 snooping |
| Multicast | • IGMP v1/v2/v3 snooping, fast leave • VLAN multicast forwarding & replication • Multicast load balancing • Controllable multicast, port-based multicast stats • PIM-SM, PIM-DM, PIM-SSM, MSDP |
| QoS/ACL | • Port-based inbound/outbound rate limiting • Storm control, policing, 2R3C CAR • 8 queues/port, WRR, DRR, SP, WRR+SP, DRR+SP • WRED, 802.1p/DSCP remarking • L2–L4 filtering (MAC, IP, ports, VLAN) • Queue shaping, 1:1/N:1/N:4 port/VLAN mirroring |
| Security | • Hierarchical user management, password protection • DoS, ARP, ICMP defense • IP-MAC-Interface-VLAN binding • Port isolation, port security, sticky MAC • MFF, blackhole MAC, MAC learning limits • 802.1x, AAA, RADIUS, HWTACACS+, NAC • SSH v2.0, HTTPS, CPU defense, MACSec ready • DHCP relay/server/snooping/security |
| Port Aggregation | • LACP • Up to 128 trunk groups, 8 ports/group |
| Reliability | • Ethernet OAM (802.3ah/802.1ag), ITU-Y.1731 • BFD for BGP/IS-IS/OSPF/static |
| SVF | • SVF client (plug-and-play) • Auto software/patch load, one-click config push |
| Management & Maintenance | • iStack, virtual cable test • SNMP v1/v2c/v3, RMON/RMON2, sFlow • Web-based NMS, system logs, multi-level alarms • LLDP/LLDP-MED, 802.3az EEE • SCP, TFTP, FTP • Dual images & config storage |
| Interoperability | • VLAN-based STP (PVST/PVST+/RPVST) • LNP (DTP equivalent), VCMP (VTP equivalent) |
| Operating Environment | • Temp (0–1800m): 0–45°C • Above 1800m: –1°C per 220m up to 5000m • Humidity: 5%–95% RH, non-condensing |
| Input Voltage | • AC rated: 100–240 V AC, 50/60 Hz • AC max: 90–264 V AC, 47–63 Hz • Front power input |
| Dimensions (W×D×H) | 442 mm × 220 mm × 43.6 mm |
| Typical Power Consumption | 73.8 W |
S5720-50X-EI-46S-AC Huawei Applications
The S5720-50X-EI-46S-AC is ideal for:
• Enterprise core and aggregation layers needing high-density 10GE ports
• Campus networks with secure, high-speed interconnections
• Small to medium data centers for server aggregation and virtualization
• Service provider edge access, supporting diverse service requirements
• Industrial networks, providing reliable, high-bandwidth backbone connectivity
S5720-50X-EI-46S-AC Huawei Customization & OEM Services
Take advantage of our flexible customization options to fit your deployment needs:
• Pre-configuration Services: VLANs, routing protocols, security policies pre-set before shipping
• Private Labeling: OEM branding and custom packaging for resellers or integration projects
• Special Packaging: Bulk shipment or custom export packaging for multi-site deployments
• Enhanced Burn-In Testing: Available for high-security or mission-critical environments
Wholesale & Bulk Supply
We provide reliable supply chain support for your large-scale sourcing:
• Factory-direct pricing with attractive volume discounts for bulk orders
• Dedicated account managers to coordinate complex procurement projects
• Global shipping, with secure packaging and smooth customs handling
• Consistent stock availability for urgent project rollouts
• Full technical support and warranty, ensuring worry-free deployment
S5720-50X-EI-46S-AC Huawei Why Choose Us
100% Original Huawei Hardware — Genuine, certified, and rigorously tested
Fixed AC Power Supply — Stable, reliable power for continuous operation
Competitive Wholesale Pricing — Ideal for ISPs, data centers, and enterprises
Professional Global Logistics — Fast, secure, and export-compliant delivery
Expert Technical Support — Assistance from planning to post-installation
Contact Us for a Quote
Upgrade your network with the Huawei S5720-50X-EI-46S-AC — a high-performance switch ready to handle next-generation bandwidth and security demands.
