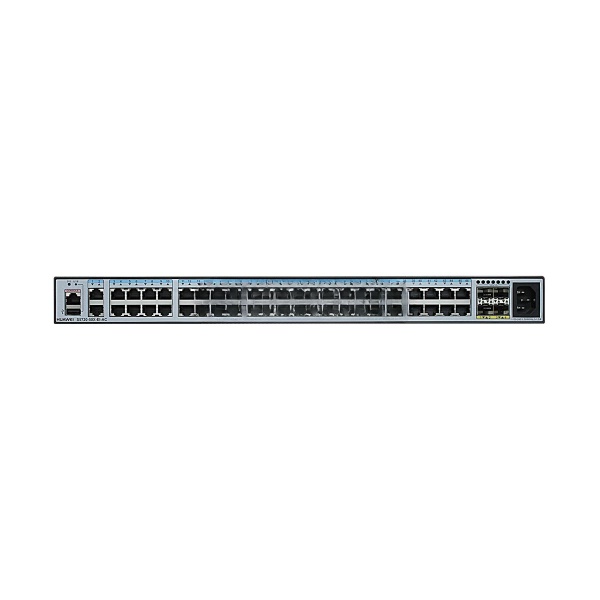

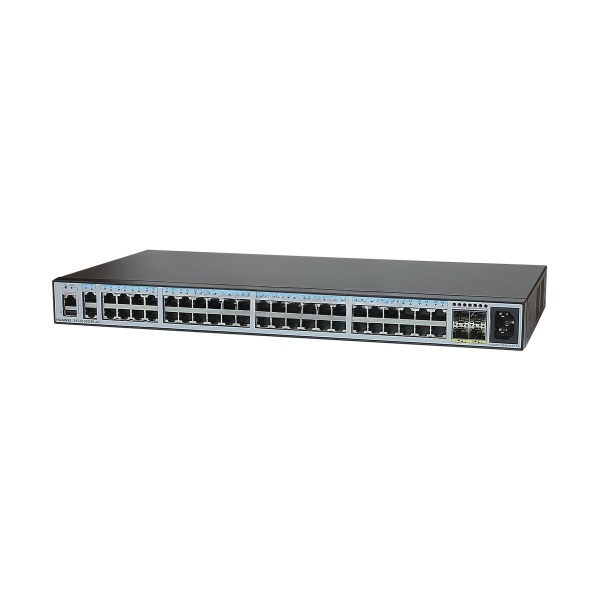

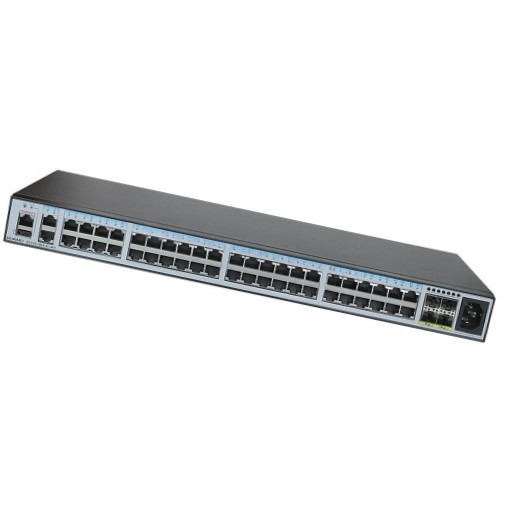

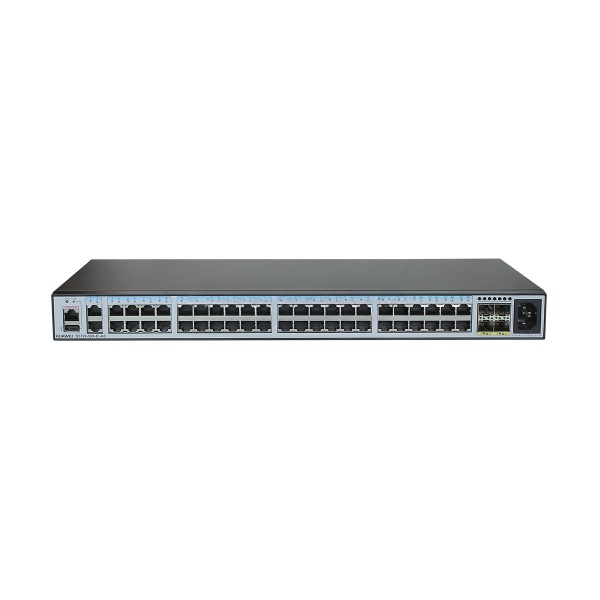

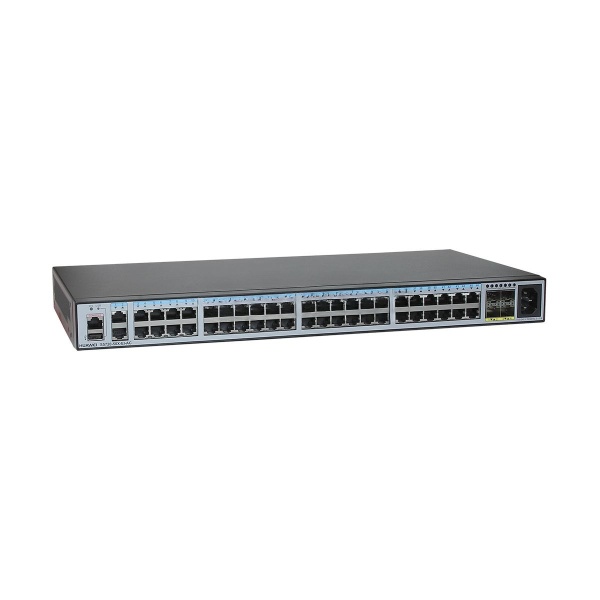

S5720-50X-EI-AC Huawei High Quality 1000BASE 1AC Power Fixed
The S5720-50X-EI-AC Huawei is a high-performance, enterprise-grade switch designed for flexible, reliable, and high-density Gigabit Ethernet (GE) access. As part of Huawei’s advanced S5720 series, this switch delivers exceptional 1000BASE connectivity with robust security, rich Layer 3 features, and energy-efficient operation — making it ideal for large campus networks, enterprise LANs, and carrier-grade access scenarios.
Equipped with 48 GE ports and additional uplink options, the S5720-50X-EI-AC ensures smooth, high-speed data transmission and seamless network expansion. Its fixed AC power module provides stable power delivery and simplifies deployment, while fanless or low-noise fan design options help maintain quiet operation in office environments.
Key Features
-
Model: S5720-50X-EI-AC
-
Condition: 100% Brand New, Original Huawei
-
Type: Managed Layer 3 Gigabit Ethernet Switch
-
Ports: 48 x 1000BASE-T Ethernet Ports + Uplink Ports
-
Power: 1 Fixed AC Power Module
-
Performance: High switching capacity and forwarding rate for smooth large-scale deployments
-
Security: Advanced security features including MAC address learning, ACLs, and secure user authentication
-
Reliability: Carrier-grade hardware with failover protection and stable long-term operation
-
Energy Efficiency: Intelligent fan control and energy-saving features
-
Management: Supports SNMP, CLI, web-based GUI, and centralized network management
Tech Specs
| Item | Description |
|---|---|
| Fixed Ports | 46 × 10/100/1000 Ethernet ports, 4 × 10G SFP+ ports, 2 × QSFP+ dedicated stack ports |
| Forwarding Performance | 129 Mpps |
| Extended Slot | Not applicable |
| DRAM and Flash | SDRAM: 2 GB; Flash: 340 MB |
| MAC Address Table | IEEE 802.1d, 64K MAC entries; supports MAC learning/aging, static/dynamic/blackhole entries, source MAC-based packet filtering |
| VLAN | 4K VLANs; Guest VLAN, Voice VLAN, GVRP, MUX VLAN; VLAN assignment by MAC, protocol, IP subnet, policy, port; 1:1 and N:1 VLAN mapping; VLAN-based transparent protocol packet transmission |
| Jumbo Frame | 12K bytes |
| Ring Protection | RRPP ring/multi-instance, Smart Link tree/multi-instance with millisecond switchover, SEP, G.8032 ERPS, STP (802.1d), RSTP (802.1w), MSTP (802.1s), BPDU protection/tunnel/root/loop protection |
| IP Routing | Static routing, RIPv1/2, RIPng, OSPF/OSPFv3, IS-IS/IS-ISv6, BGP/BGP4+, ECMP, policy-based routing; 16K IPv4 unicast, 8K IPv6 unicast, 3K IPv4 static, 1K IPv6 static |
| IPv6 Features | Neighbor Discovery (ND), PMTU, IPv6 Ping/Tracert/Telnet, 6to4, ISATAP, manual tunnels, ACLs (src/dst IPv6, L4 port, protocol), MLD v1/v2 snooping |
| Multicast Forwarding | IGMP v1/v2/v3 snooping, fast leave, VLAN multicast forwarding & replication, multicast load splitting, controllable multicast, port-based multicast stats, IGMP v1/v2/v3, PIM-SM/DM/SSM, MSDP |
| QoS / ACL | Port-based in/out rate limiting, redirection, storm control, policing, CAR, 8 queues/port, WRR, DRR, SP, WRR+SP, DRR+SP, WRED, 802.1p & DSCP re-marking, L2–L4 packet filtering (MAC, IP, TCP/UDP, VLAN), per-queue rate limit, interface shaping, 1:1/N:1/N:4 port/VLAN mirroring |
| Security Features | Hierarchical user/password management; DoS/ARP/ICMP attack defense; IP-MAC-interface-VLAN binding; port isolation/security/sticky MAC; MAC Forced Forwarding; blackhole MAC entries; learned MAC limit; IEEE 802.1x, user limits per interface; AAA/RADIUS/HWTACACS+/NAC; SSH v2.0; HTTPS; CPU defense; black/white lists; MACSec ready |
| Access Security | DHCP Relay, DHCP Server/Client/Snooping/Security |
| Port Aggregation | LACP; up to 128 trunk groups, each with up to 8 member interfaces |
| Reliability | Ethernet OAM (802.3ah, 802.1ag), ITU-Y.1731, BFD for BGP/IS-IS/OSPF/static |
| Super Virtual Fabric (SVF) | SVF client: plug-and-play, zero config, auto-load software/patches, one-click config delivery, supports independent client running |
| Management & Maintenance | iStack, virtual cable test, SNMP v1/v2c/v3, RMON/RMON2, web NMS, system logs, multi-level alarms, sFlow, LLDP/LLDP-MED, 802.3az EEE, SCP, TFTP, FTP, dual software images/config files |
| Interoperability | VLAN-based STP with PVST/PVST+/RPVST; LNP (similar to DTP); VCMP (similar to VTP) |
| Operating Environment | Temp (0–1800 m): 0–45°C; 1800–5000 m: reduce by 1°C per 220 m; RH: 5–95% non-condensing |
| Input Voltage | AC: Rated 100–240 V AC, 50/60 Hz; Max 90–264 V AC, 47/63 Hz; front power input |
| Dimensions (mm) | 442 (W) × 220 (D) × 43.6 (H) |
| Typical Power Consumption | 47.5 W |
S5720-50X-EI-AC Huawei Applications
The S5720-50X-EI-AC is ideal for:
• Enterprise LANs & Campus Networks — High-speed, secure access for workstations, IP phones, and wireless APs
• Data Center Edge Switching — Reliable Gigabit connectivity for servers and storage nodes
• Carrier & ISP Access Layers — Providing high-density GE interfaces for residential or business broadband
• Government & Finance Networks — Robust security and compliance-ready architecture
• Educational Institutions — Secure, scalable networks for classrooms, labs, and administrative systems
Customization & OEM Services
We offer flexible customization and OEM services for the S5720-50X-EI-AC, including:
• Pre-Configuration Services: VLAN setup, QoS policies, port aggregation, and security rules
• Private Label Branding: Customized labels and packaging for system integrators and resellers
• Enhanced Burn-In Testing: Extra reliability checks for mission-critical deployments
• Special Packaging: Bulk or custom kitting for streamlined rollouts
S5720-50X-EI-AC Huawei Wholesale & Bulk Orders
Source the S5720-50X-EI-AC with confidence for your wholesale or project procurement:
• Factory-Direct Pricing with competitive volume discounts
• Global Secure Shipping with export-compliant packing
• Dedicated Project Managers for smooth large-scale deployments
• Consistent Stock Availability for urgent or phased rollouts
• Full Technical Support & Warranty for worry-free operation
S5720-50X-EI-AC Huawei Why Choose Us
100% Original Huawei Hardware — Genuine, certified, and factory-tested
Custom-Tailored Configurations — To meet your exact project needs
Competitive Wholesale Rates — Ideal for resellers, ISPs, and enterprise IT teams
Safe, Professional Logistics — Secure and insured global delivery
Expert Support — Pre-sales consultation and after-sales technical service
Request a Quote Today
Upgrade your network with the S5720-50X-EI-AC Huawei High Quality 1000BASE 1AC Power Fixed — the smart choice for reliable, high-density Gigabit Ethernet access.
