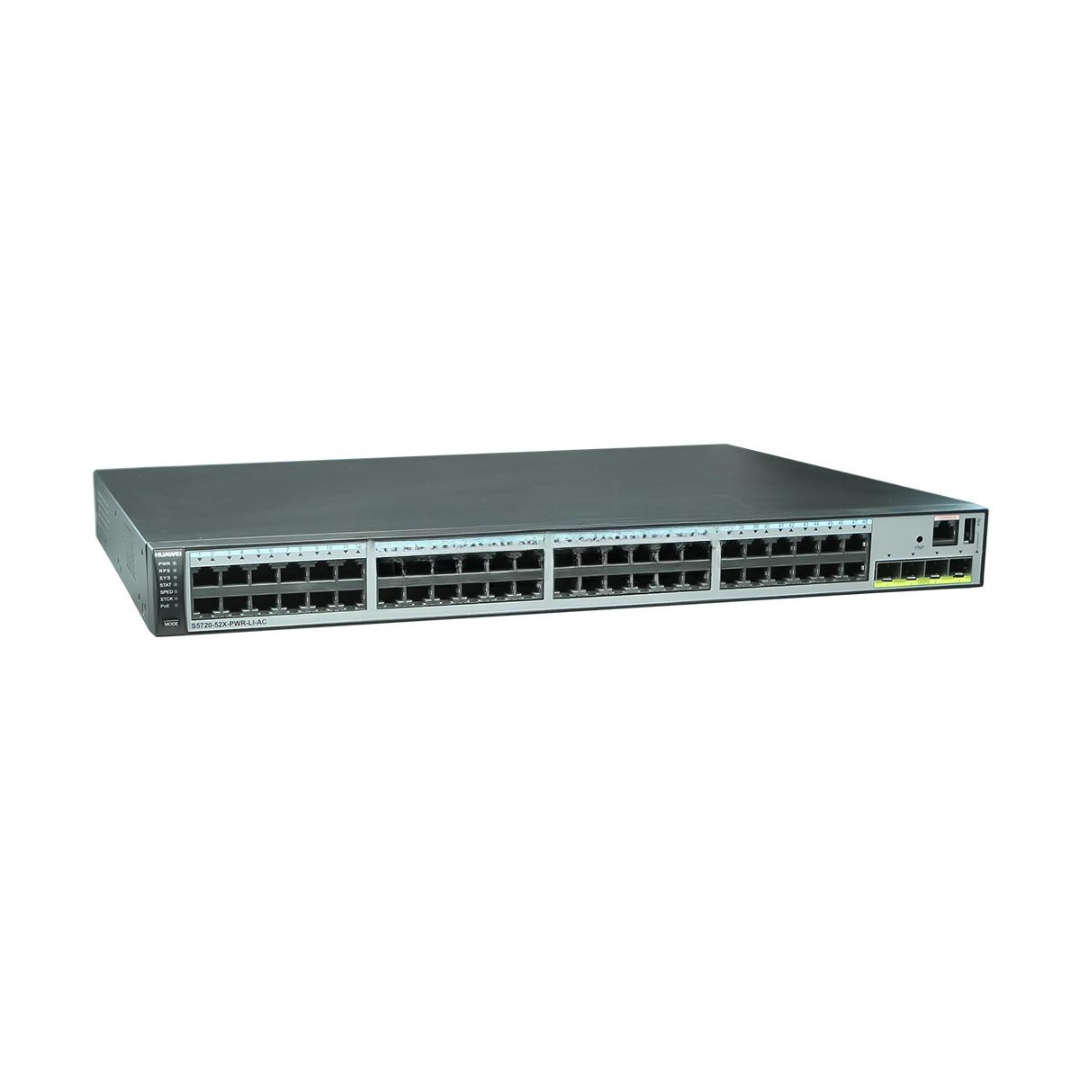

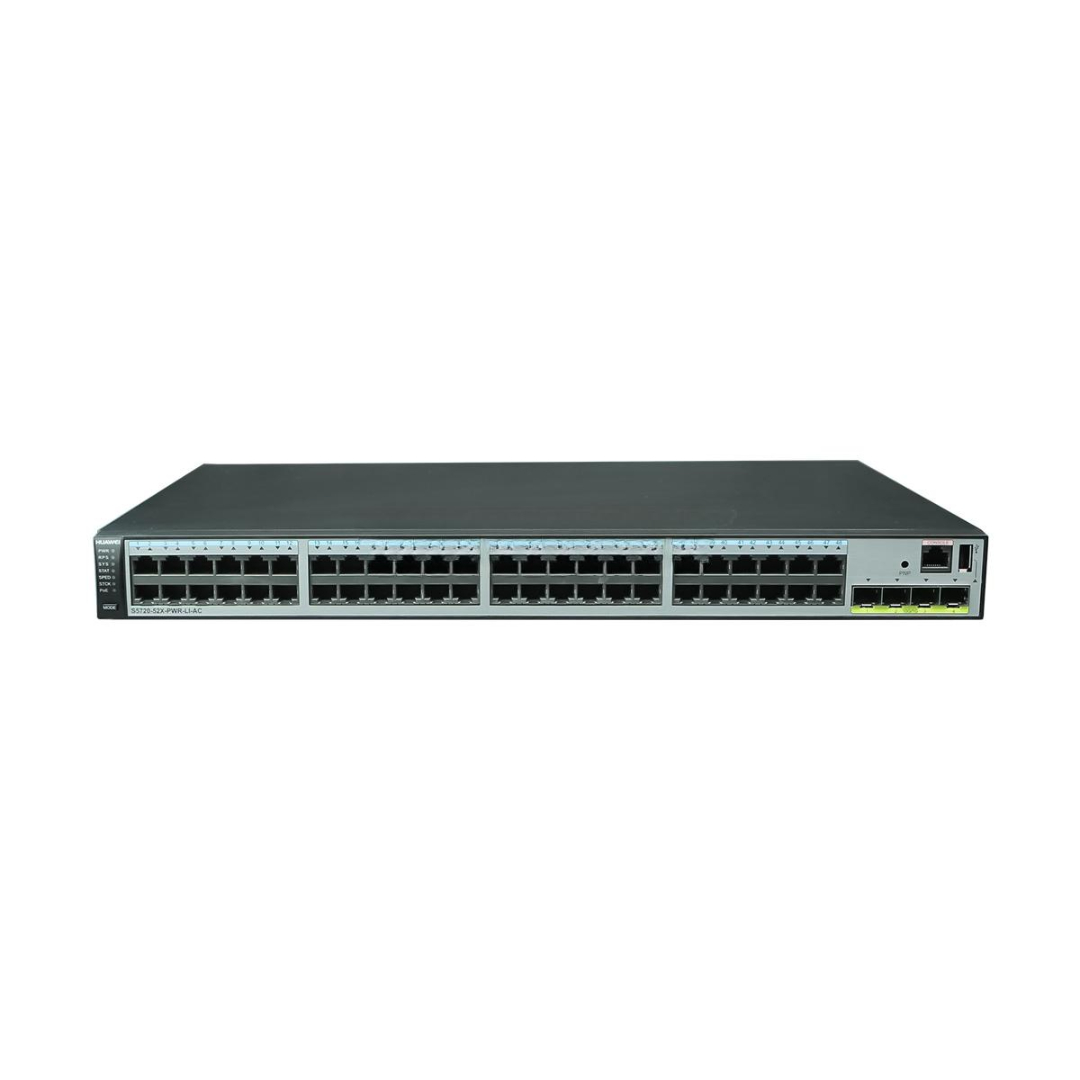

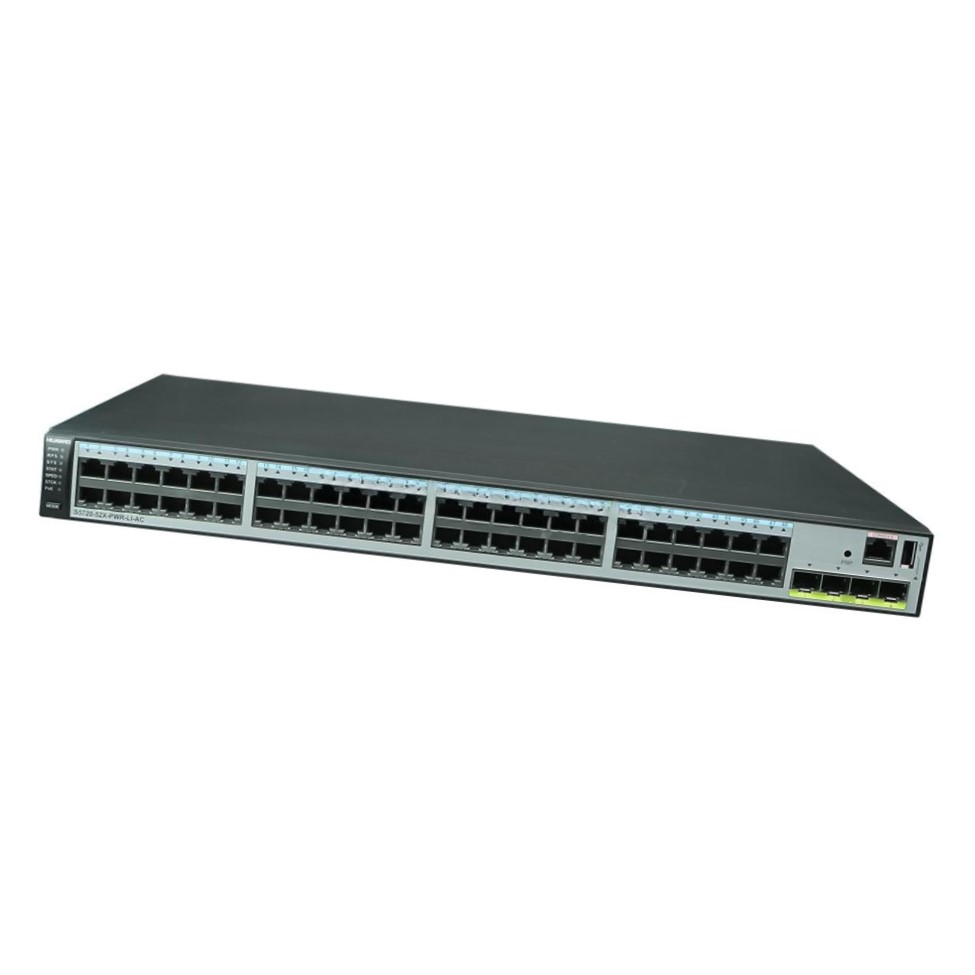

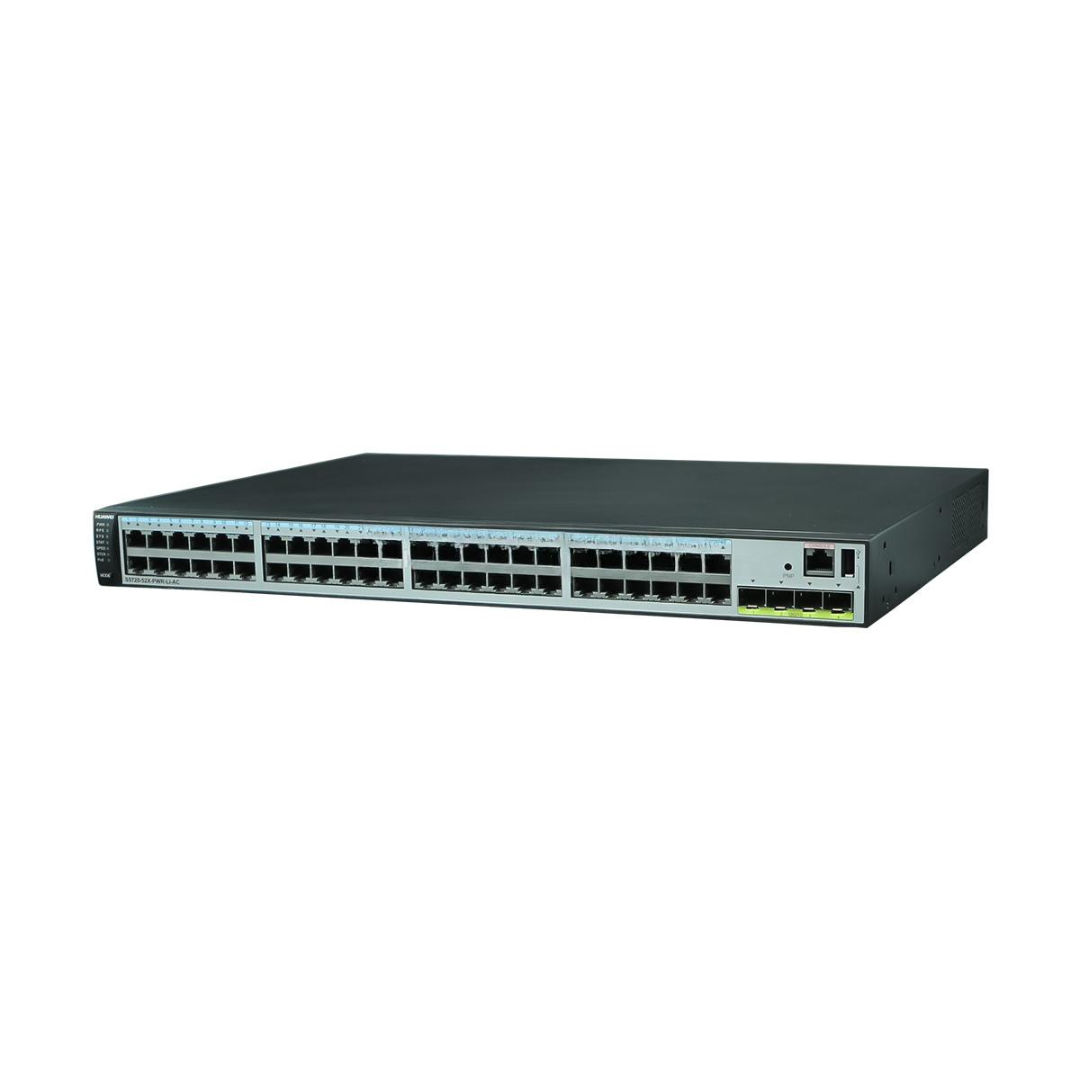

S5720-52X-PWR-LI-AC Huawei Brand New Switch AC Power Fixed
The S5720-52X-PWR-LI-AC Huawei is a full-Gigabit Layer 3 managed PoE switch equipped with fixed AC power, ideal for enterprise campus, SMB networks, and intelligent building scenarios. Featuring 48 Gigabit Ethernet ports with PoE/PoE+ support and 4 10GE SFP+ uplinks, this switch offers high reliability, energy efficiency, and enhanced Layer 3 routing capabilities to meet growing data demands.
With AC power module pre-installed, advanced energy-saving design, and strong security features, the S5720-52X-PWR-LI-AC is built for reliable access-layer performance in converged network infrastructures.
Key Features
-
Model: S5720-52X-PWR-LI-AC
-
Condition: 100% Brand New, Original Huawei
-
Ports: 48 × GE RJ45 PoE+ + 4 × 10GE SFP+
-

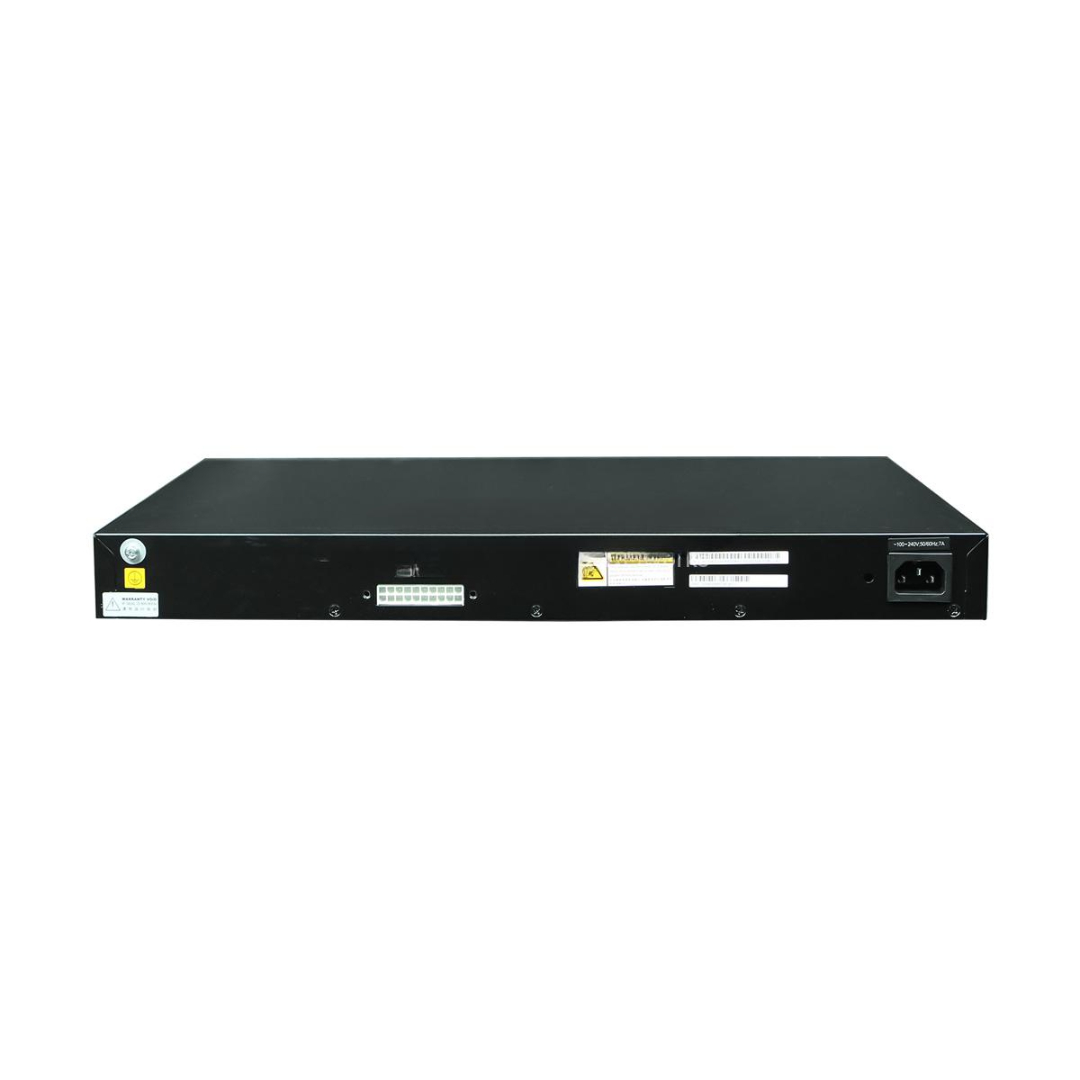

Fixed Power Supply: Built-in AC power module
-
PoE Capability: Supports IEEE 802.3af/at (PoE/PoE+)
-
Switching Capacity: 336 Gbps
-
Forwarding Performance: 96 Mpps
-
Layer 3 Routing: Static, RIP, OSPF, and policy-based routing
-
Advanced Features: iStack, 802.1X, DHCP snooping, QoS, ACL
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5720-52X-PWR-LI-AC |
| Fixed Ports | 48 × 10/100/1000BASE-T (PoE+) |
| Uplink Ports | 4 × 10GE SFP+ |
| PoE Budget | Up to 600W (with full-load support) |
| Power Supply | Built-in AC (Redundant power not supported) |
| Switching Capacity | 336 Gbps |
| Forwarding Rate | 96 Mpps |
| MAC Address Table | 32K entries |
| VLAN Support | 4K VLANs, QinQ, VLAN mapping |
| Layer 3 Protocols | Static Routing, RIP, OSPF |
| Energy Saving | EEE, port power control |
| Operating Temperature | 0°C to 50°C |
| Humidity | 5%–95% RH, non-condensing |
| Installation | Standard 1U Rackmount |
| Warranty | 1–3 Years Manufacturer Warranty |
S5720-52X-PWR-LI-AC Huawei Applications
-
Enterprise Campus Networks — Aggregation and access layer for large offices
-
Intelligent Buildings — Powering surveillance, Wi-Fi APs, and IoT terminals
-
SMB Networks — Scalable and secure solution for growing businesses
-
Education & Healthcare — Reliable and secure wired PoE connectivity
-
Retail Chains — Centralized PoE for POS, displays, and security systems
Customization & OEM Options
-
Private Branding — Custom labels, logos, and model numbers available
-
Pre-configured VLANs & Security — Factory setup for plug-and-play deployment
-
Custom Power Budget — Optional tuning of PoE limits and priority settings
-
Enhanced Testing — Burn-in and validation under simulated traffic loads
-
Bundling Options — With SFP modules, patch cables, and racks
Wholesale & Global Supply Information
-
Huawei Certified Stock — 100% original units with traceable serials
-
Bulk Procurement — Ideal for ISPs, system integrators, and government projects
-
Secure Packaging — OEM anti-static protection with shockproof layers
-
Fast Lead Times — Most models in stock for global fulfillment
-
International Compliance — CE, FCC, RoHS certified for global use
-
Technical Support — Configuration assistance and network design help
Why Choose S5720-52X-PWR-LI-AC Huawei
High Port Density with PoE+ — Perfect for powering cameras, phones, and APs
Advanced Layer 3 Features — Ensures robust, policy-driven network performance
Scalable Uplink — 4 × 10GE uplinks for flexible backbone connections
Energy-Efficient Design — Ideal for eco-conscious deployments
Huawei Reliability — Field-proven for enterprise and carrier-grade networks
Contact Us for Datasheets, Pricing & OEM Orders
Ready to scale your enterprise network with the Huawei S5720-52X-PWR-LI-AC?
Message us today to get datasheets, request a quote, or inquire about bulk and custom options!
