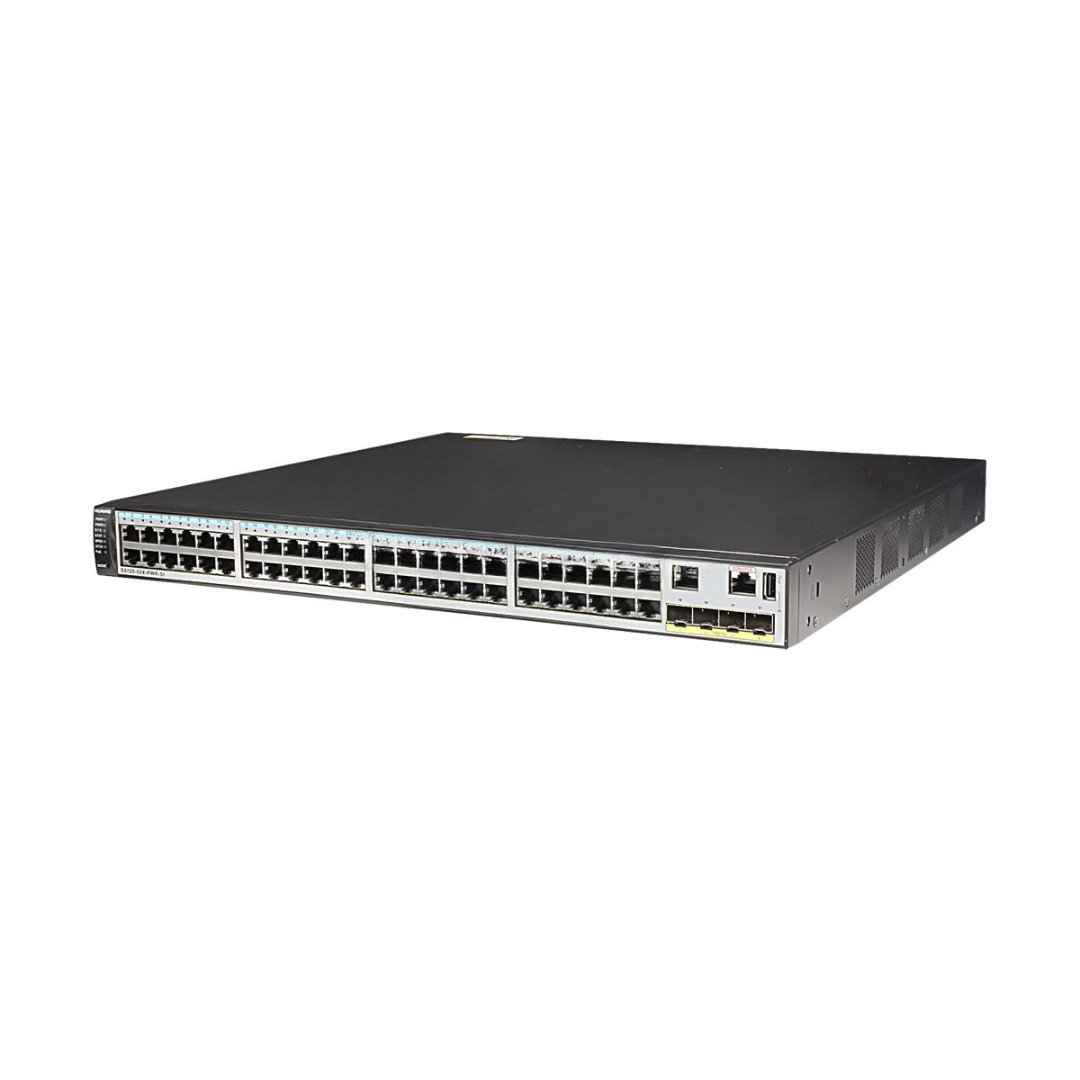

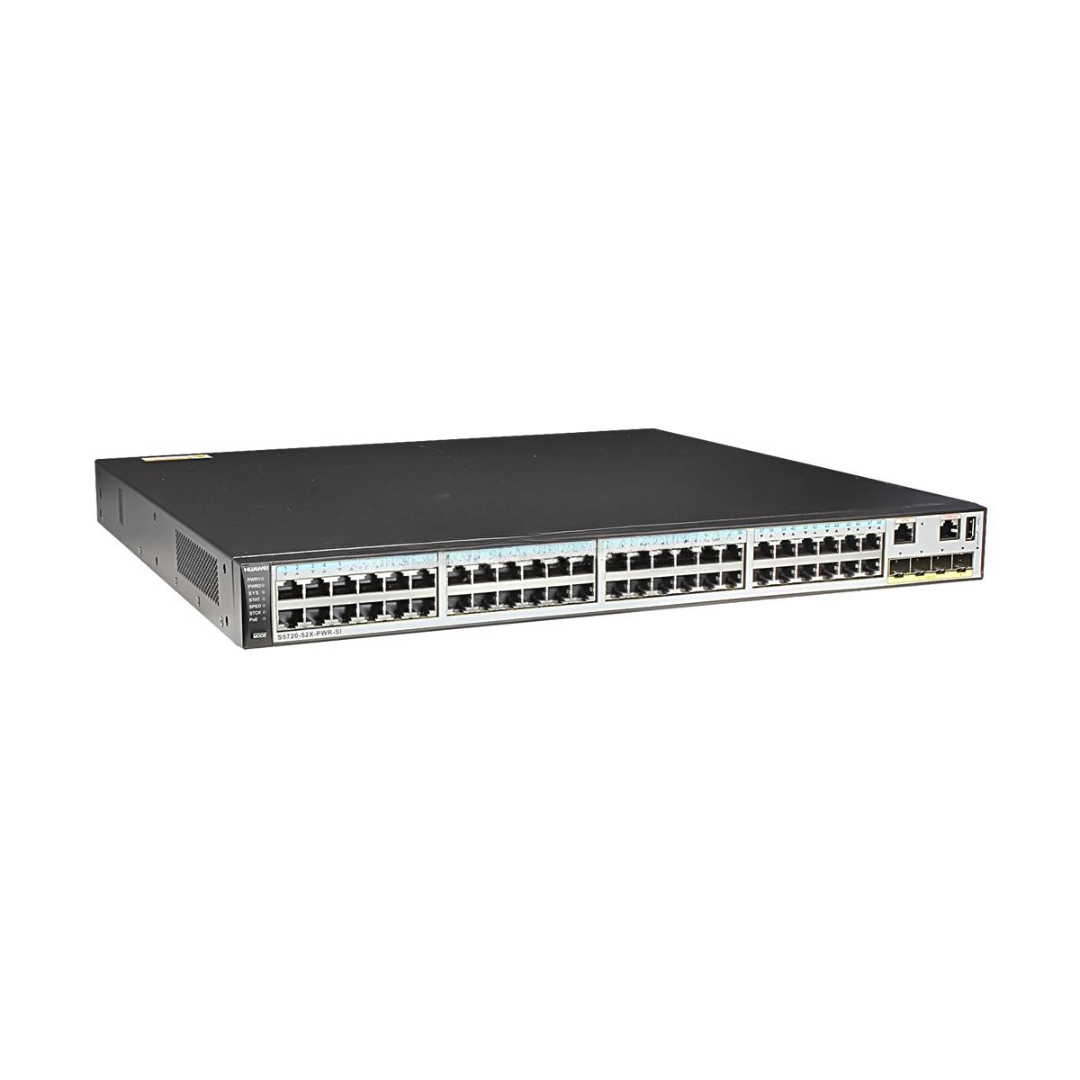

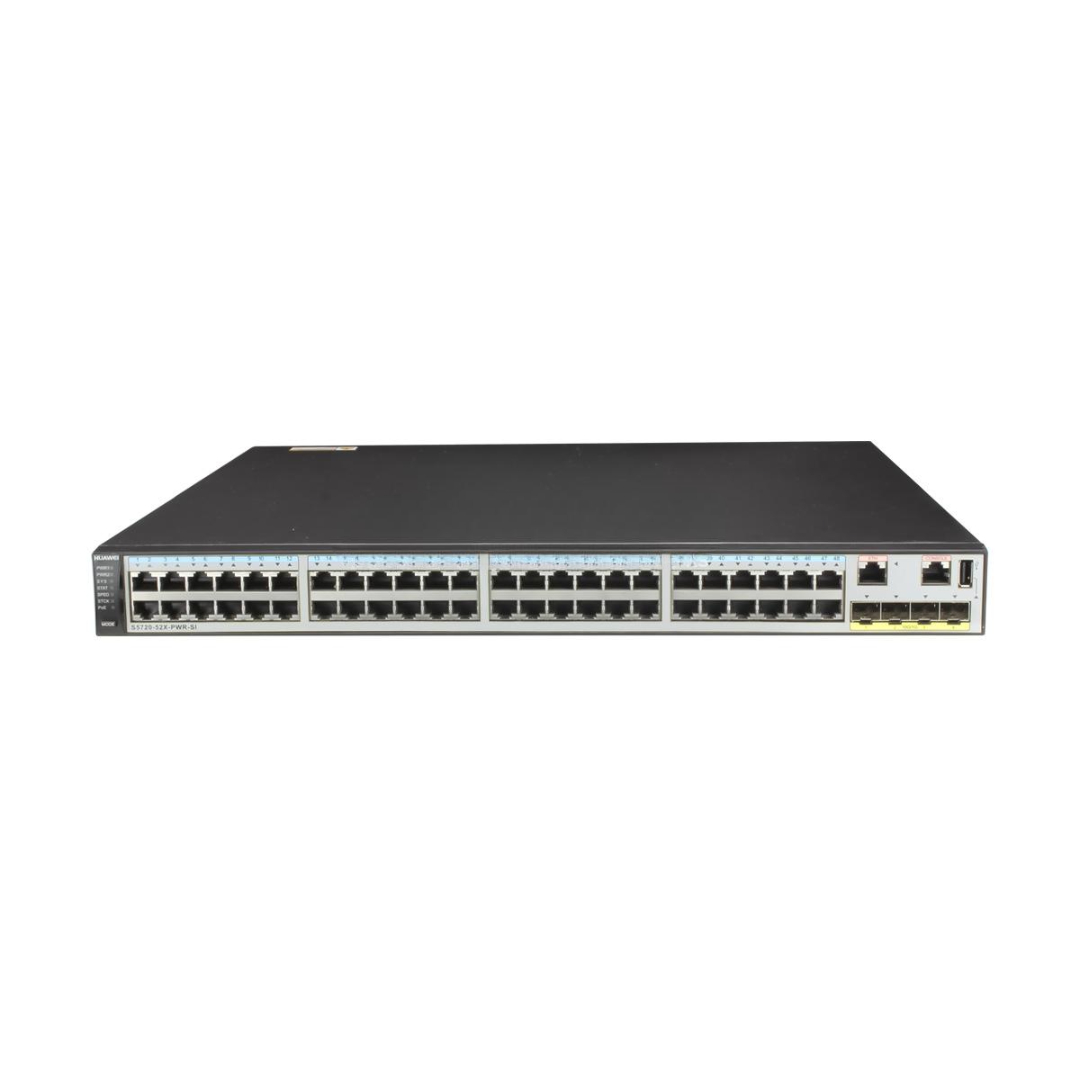

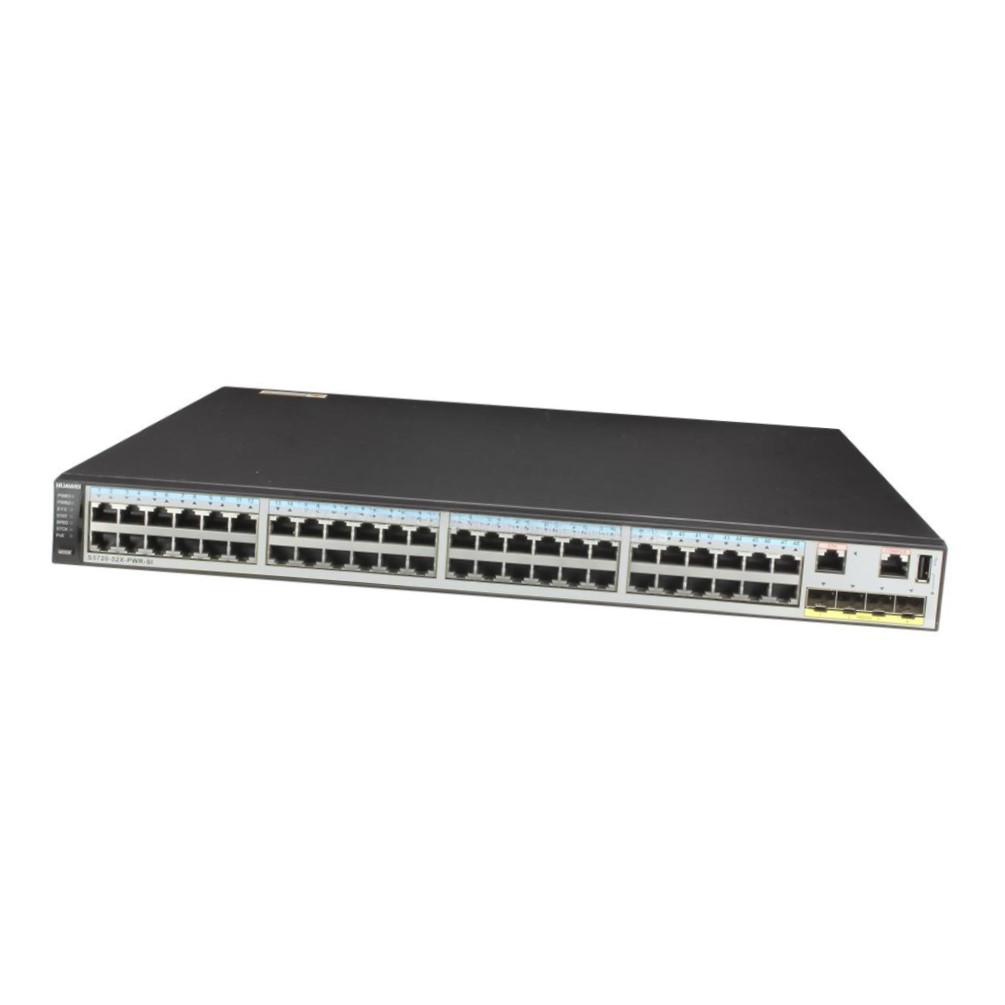

S5720-52X-PWR-SI-AC Huawei Brand New Power Module Equipped
The S5720-52X-PWR-SI-AC Huawei is a powerful Layer 3 managed Gigabit Ethernet switch equipped with a built-in AC power module and full PoE+ (Power over Ethernet Plus) support. Designed for enterprise, campus, and SMB networks, this switch supports high-speed access, energy efficiency, and secure, reliable connectivity for converged services like IP cameras, Wi-Fi access points, and VoIP systems.
This model provides 48 PoE-enabled 10/100/1000BASE-T ports and 4 10GE SFP+ uplink ports, ensuring seamless connectivity across data, voice, and video networks.
Key Features
-
Model: S5720-52X-PWR-SI-AC
-
Condition: 100% Brand New, Original Huawei
-
Downlink Ports: 48 × GE RJ45 with PoE+
-
Uplink Ports: 4 × 10GE SFP+
-

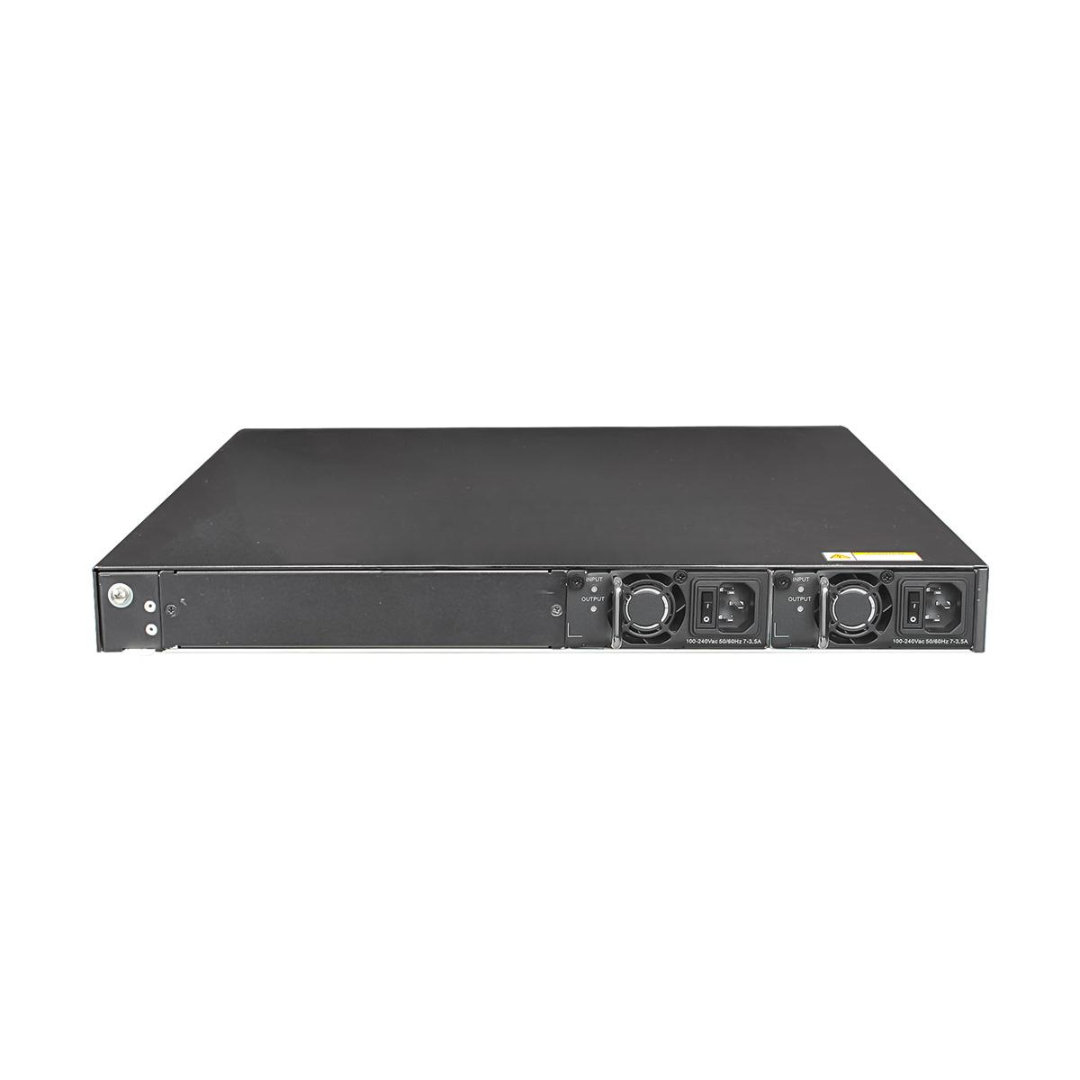

Power Module: Built-in AC power supply (fixed)
-
PoE Support: IEEE 802.3af/at with up to 370W total PoE budget
-
Layer 3 Capabilities: Static routing, RIP, OSPF (via license)
-
Security: ACLs, MAC address filtering, 802.1X authentication
-
Management: Web-based GUI, SNMP v1/v2/v3, CLI, RMON
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5720-52X-PWR-SI-AC |
| Ports | 48 × GE RJ45 + 4 × 10GE SFP+ |
| Switching Capacity | 336 Gbps |
| Forwarding Rate | 96 Mpps |
| PoE Standards | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| PoE Budget | Up to 370W (AC power built-in) |
| MAC Address Table | 32K entries |
| VLANs | 4K VLAN IDs |
| Layer 3 Routing | Static, RIP, OSPF (with license) |
| Operating Temperature | 0°C to +50°C |
| Humidity | 5% to 95% RH, non-condensing |
| Power Supply | Fixed built-in AC module |
| Dimensions (W×D×H) | 442 mm × 420 mm × 43.6 mm |
| Weight | Approx. 7.5 kg |
| Installation | 19-inch rack-mountable |
| Warranty | 1–3 Years Manufacturer Warranty |
S5720-52X-PWR-SI-AC Huawei Applications
-
Enterprise Access Layer — Ideal for large enterprises needing PoE for phones, cameras, and APs
-
Campus Networks — Supports convergence of voice, video, and data
-
Surveillance Systems — Powers IP cameras over long distances
-
Wireless Infrastructure — Connects and powers Wi-Fi 6 and Wi-Fi 5 access points
-
SMBs & Retail — Reliable, high-performance PoE solution for business IT environments
Customization & OEM Options
-
Branding Services — Company logo and part number labeling
-
Pre-configured Profiles — VLANs, ACLs, PoE settings loaded at factory
-
Special Firmware Loads — Regional configuration or language-specific CLI
-
Environment-Specific Testing — For industrial or rugged use deployment
-
PoE Accessories — Patch cords, cable managers, and surge protectors available in bundle
Wholesale & Global Supply Info
-
OEM Factory Direct — Guaranteed original Huawei with CO & serial traceability
-
High Availability — Stock ready for immediate shipment
-
Secure Packaging — Anti-static and shockproof box for global freight
-
Flexible MOQs — Bulk orders, project rollouts, and reseller supply
-
Global Shipping — Air, sea, and express delivery available
-
Technical Docs — Configuration guides, datasheets, and setup support included
Why Choose S5720-52X-PWR-SI-AC Huawei PoE Switch
High-Density Gigabit PoE Access — All 48 ports support PoE+ for scalable deployment
Integrated 10GE Uplinks — Ensure fast, uninterrupted backbone connectivity
Robust Huawei Architecture — Known for reliability in carrier-grade networks
Energy Efficient — Intelligent PoE scheduling and power-saving features
Advanced Security & QoS — Fine-grained control over user and traffic access
Contact Us for Pricing, OEM Branding & Datasheets
Boost your enterprise or campus infrastructure with the Huawei S5720-52X-PWR-SI-AC — the optimal PoE-enabled switch solution for large-scale, intelligent networking.
Inquire Now for latest prices, real-time stock, and global delivery options!
