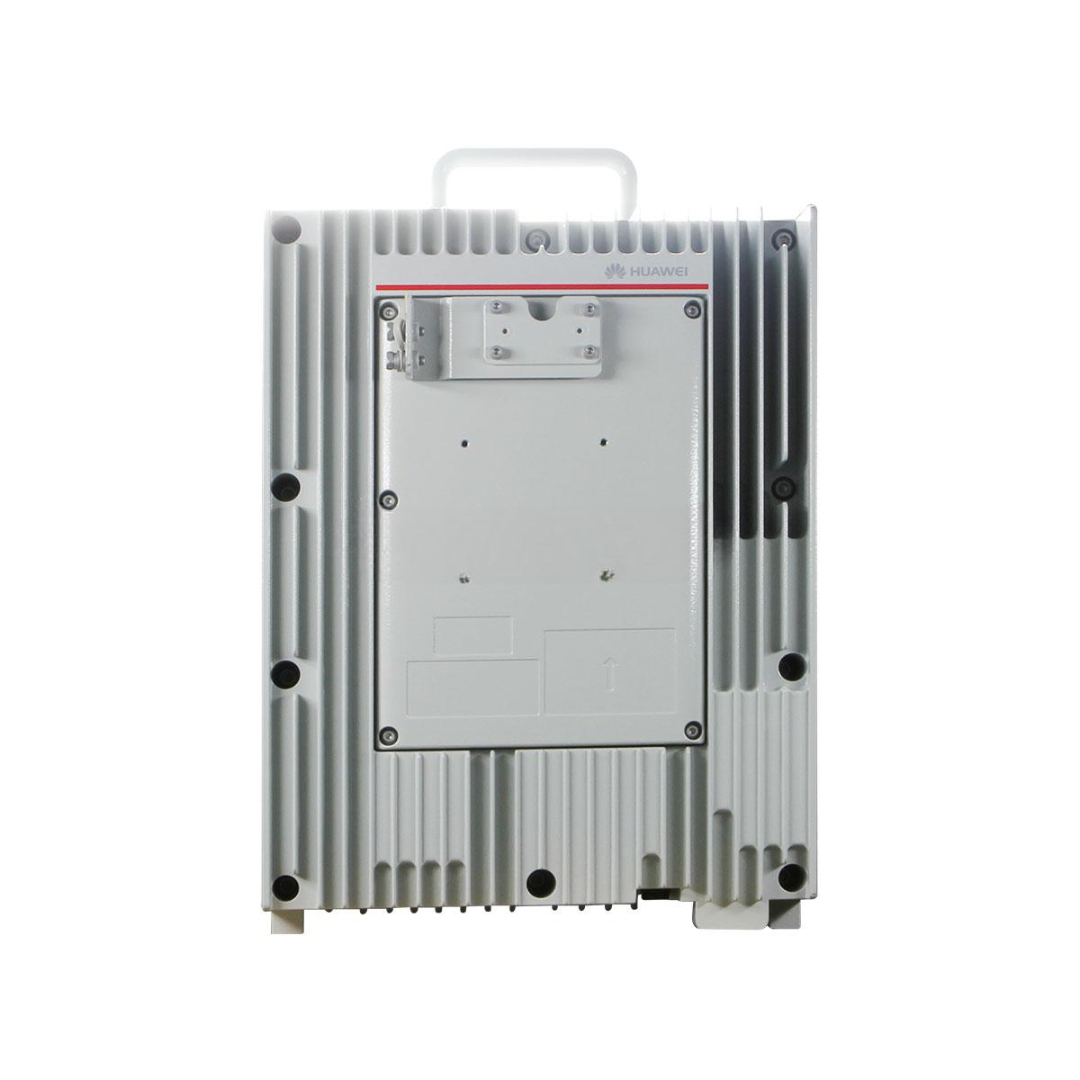

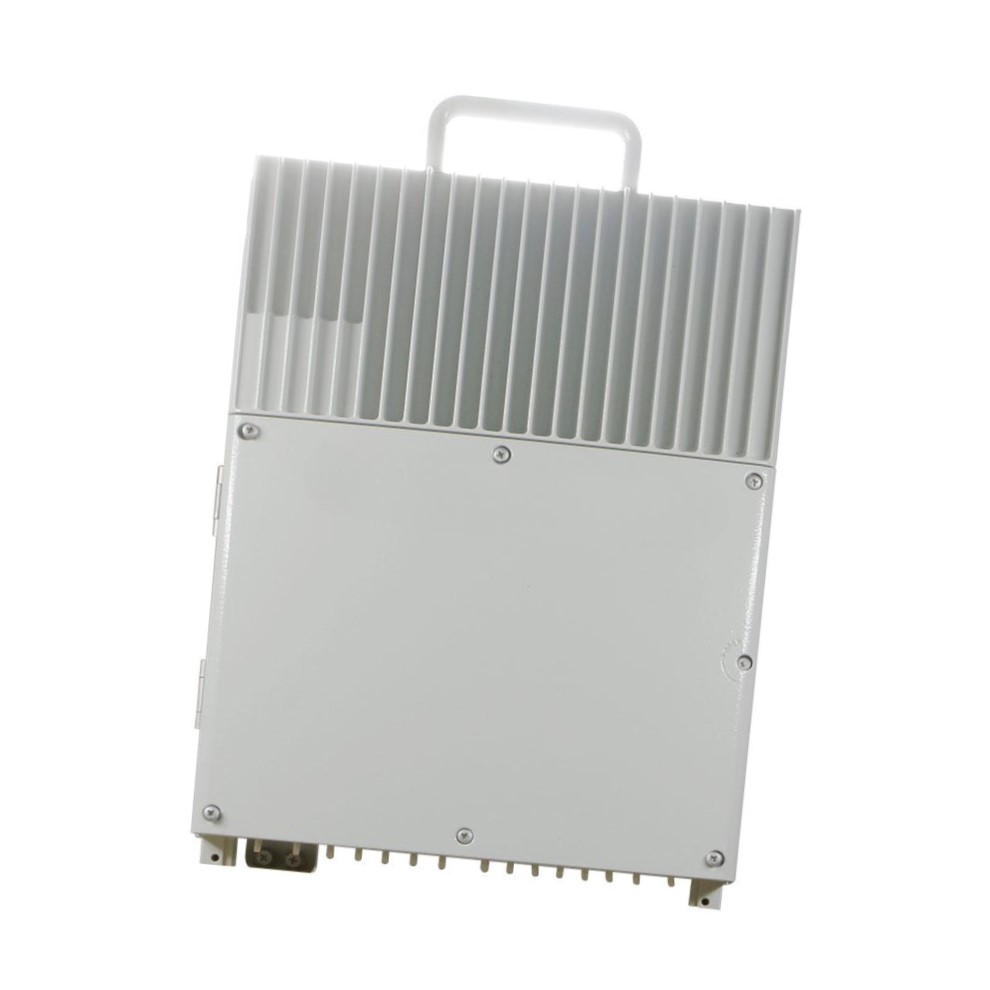

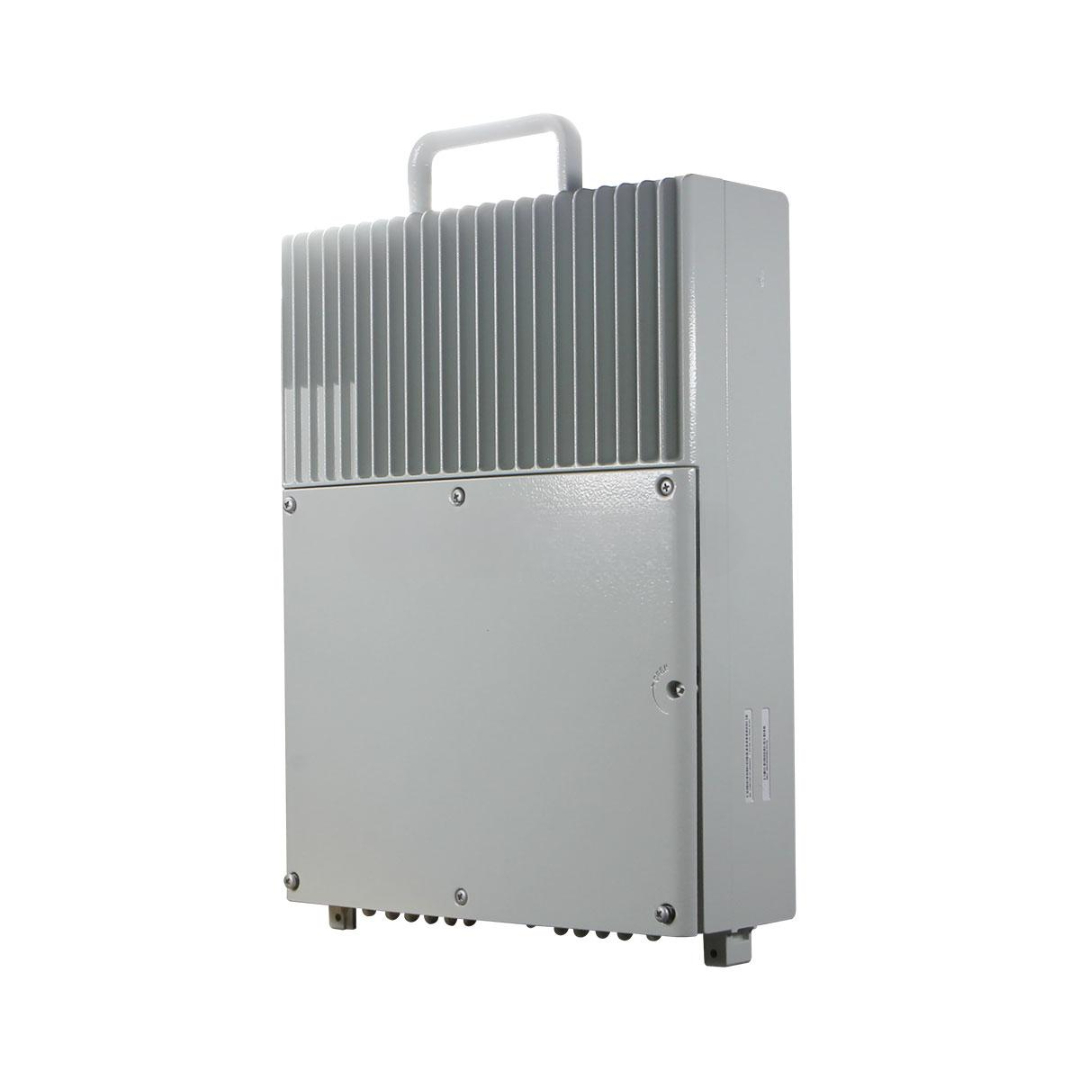

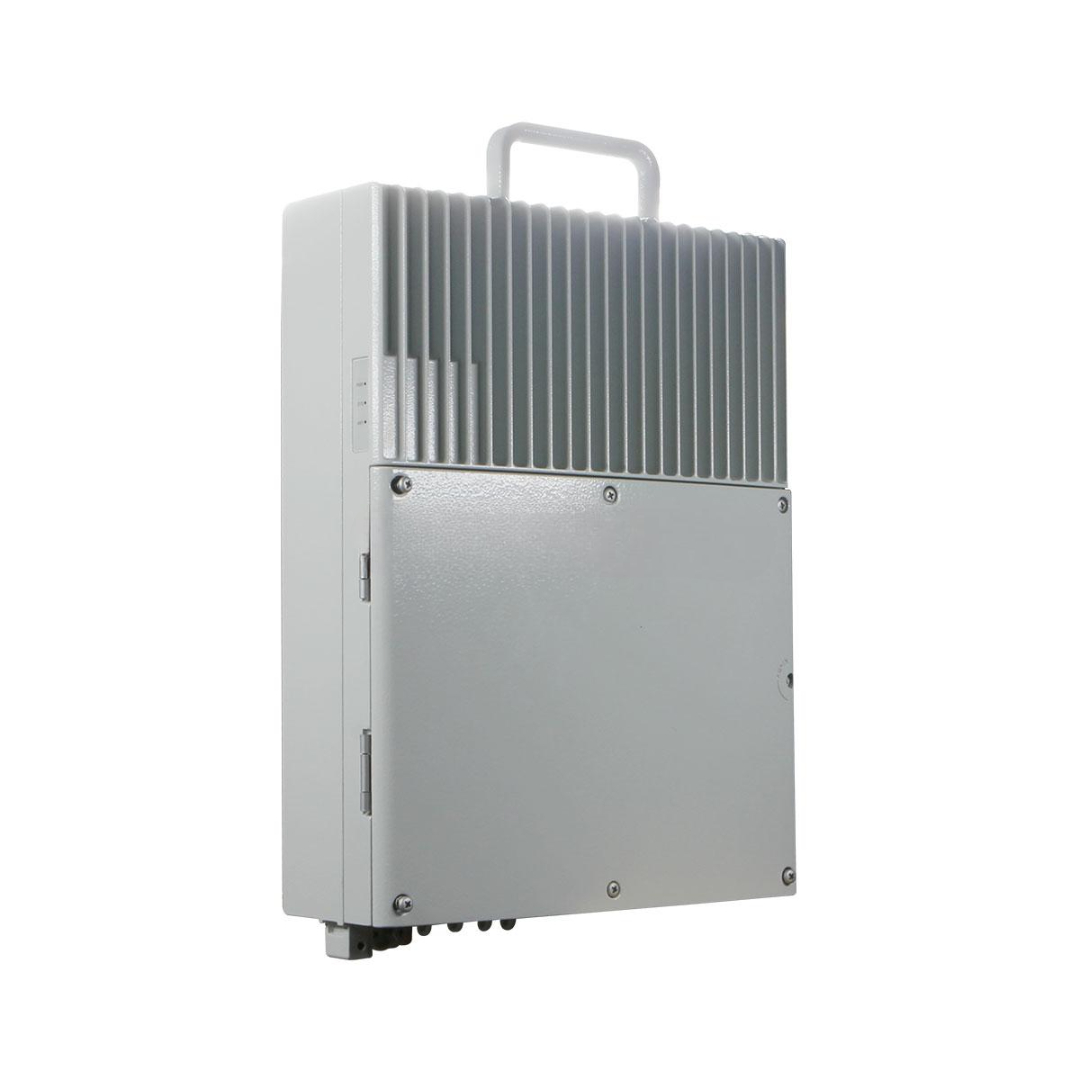

S5720I-10X-PWH-SI-AC Huawei Brand New 2-Ports Power Fixed Industrial Switch
The S5720I-10X-PWH-SI-AC Huawei is an advanced industrial-grade Ethernet switch designed for harsh environments. With 2 fixed uplink ports, this rugged switch provides reliable, high-speed connectivity in outdoor or industrial settings like smart transportation, mining, energy, and manufacturing.
Engineered with enhanced surge protection, wide temperature tolerance, and IP30-rated enclosures, this model ensures long-term, stable operation under extreme conditions. It supports PoE/PoE+ functionality on all downlink ports, making it ideal for surveillance, access points, and IoT device deployments.
Key Features
- Model: S5720I-10X-PWH-SI-AC
- Type: Industrial Ethernet Switch
- Port Configuration:
- 8 × 10/100/1000BASE-T PoE+ Ports
- 2 × 10GE SFP+ Uplink Ports
- PoE Standard: IEEE 802.3af/at (PoE/PoE+)
- Power Supply: Built-in AC Power Supply
- Industrial-Grade Design: Resistant to temperature, dust, and vibration
- Layer 2 and Basic Layer 3 Features
- Surge Protection: 6kV for service ports
- Mounting: DIN rail or wall-mounted
- Operating Temperature Range: –40°C to +75°C
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5720I-10X-PWH-SI-AC |
| Port Count | 8 × GE PoE+, 2 × 10GE SFP+ uplink ports |
| Switching Capacity | 128 Gbps |
| Forwarding Performance | 96 Mpps |
| MAC Address Table | 32K |
| PoE Power Budget | Up to 240W |
| Dimensions (W×D×H) | 440 × 220 × 44.4 mm |
| Weight | Approx. 3.3 kg |
| Power Supply | Built-in AC |
| Surge Protection | 6kV |
| Operating Temp. | -40°C to +75°C |
| Storage Temp. | -40°C to +85°C |
| Enclosure Protection | IP30 |
| Installation | DIN rail or wall mounting |
| Fanless Design | Yes (silent operation) |
| Warranty | 1–3 years Manufacturer Warranty |
S5720I-10X-PWH-SI-AC Applications
- Smart Cities & Transportation — Roadside cabinets, traffic control systems
- Industrial Automation — Factory floor networking and PLC integration
- Outdoor Surveillance — Camera and sensor backhaul via PoE
- Energy & Mining — Rugged deployment in high EMI or dusty environments
- IoT Edge Networks — Power and connect IoT sensors and gateways
Customization & OEM Options
- Labeling & Branding — Custom logos or serial numbers on request
- Temperature-Hardened Variants — For extreme outdoor or underground uses
- Custom Bundles — With SFP+ modules, DIN mounts, or PoE injectors
- Region-Specific Compliance — CE, FCC, RoHS, and others as needed
Wholesale & Global Supply Information
- 100% Original Huawei Hardware
- Global Delivery — Fast shipping with export documents
- Bulk Supply — Ideal for projects, telcos, and system integrators
- Volume Pricing — Discounts for quantity orders
- Technical Support — Compatibility and configuration guidance
Why Choose the S5720I-10X-PWH-SI-AC
- Hardened industrial switch built for hostile environments
- PoE+ on all downlink ports for seamless device deployment
- Compact, fanless design for noise-sensitive scenarios
- High-speed 10GE uplinks for aggregation and backhaul
- Huawei quality and long lifecycle for mission-critical networks
Request a Quote or Technical Datasheet
Upgrade your field infrastructure with the Huawei S5720I-10X-PWH-SI-AC — the rugged, power-efficient switch trusted by critical industries worldwide.
Contact us now for wholesale pricing, lead time, or OEM options.
