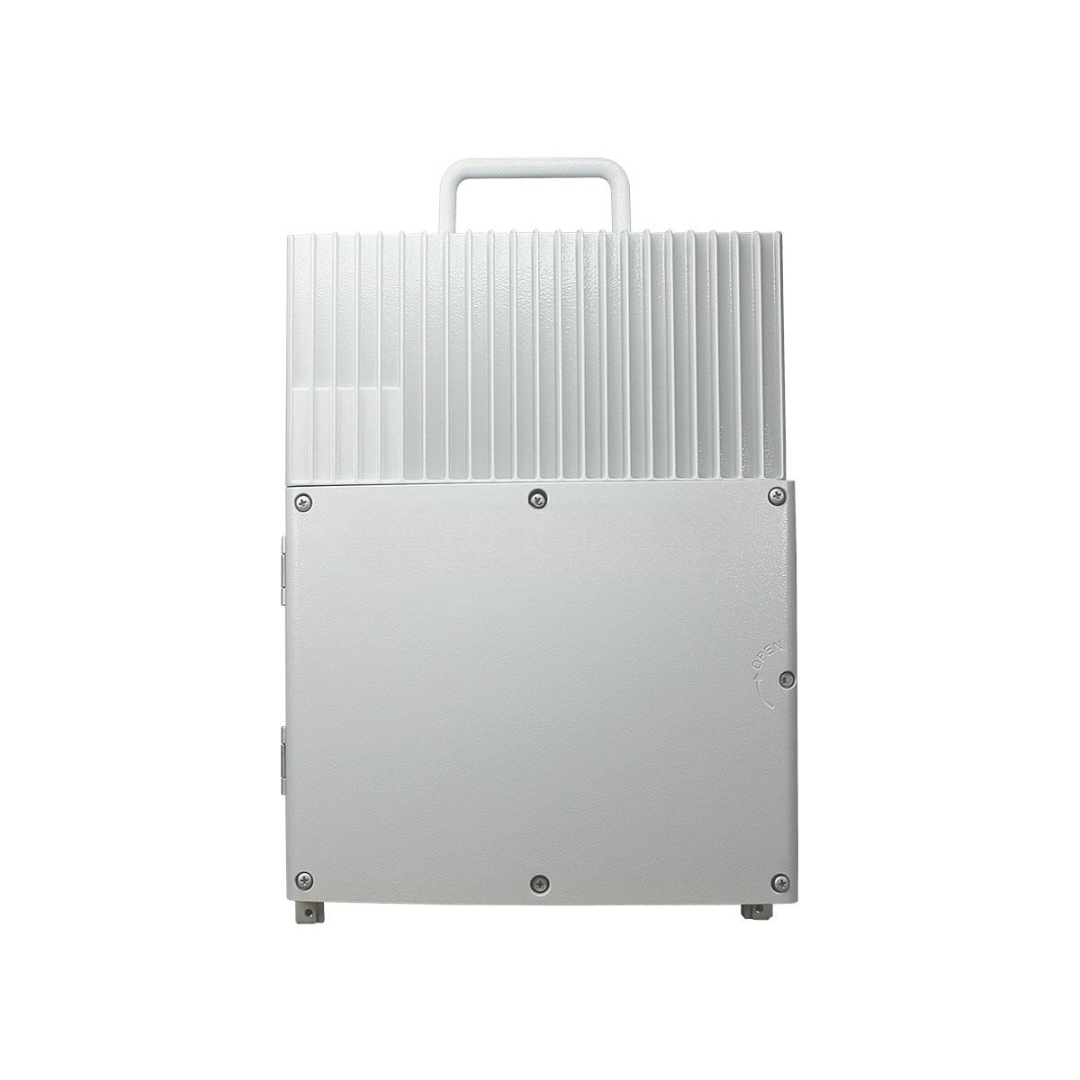

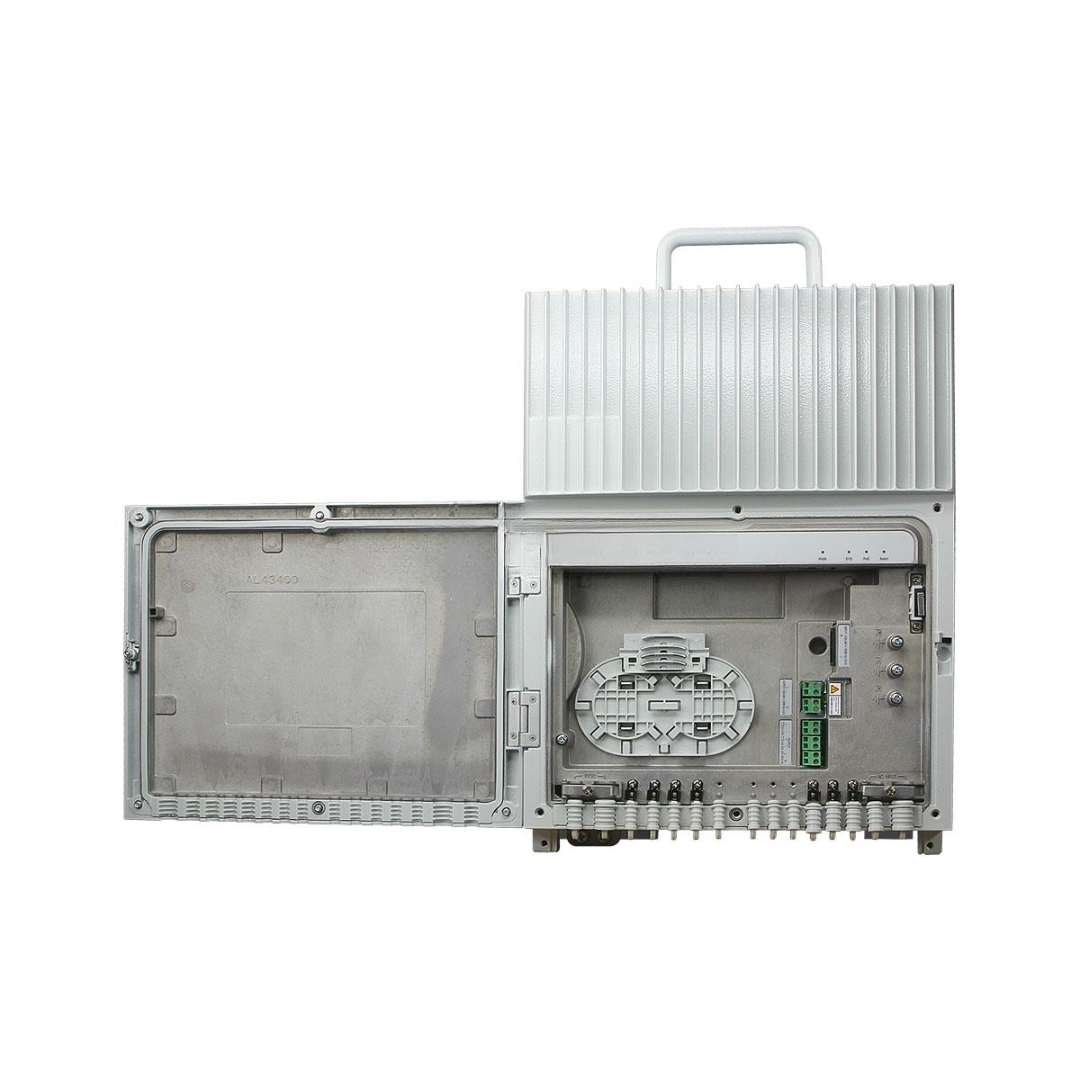

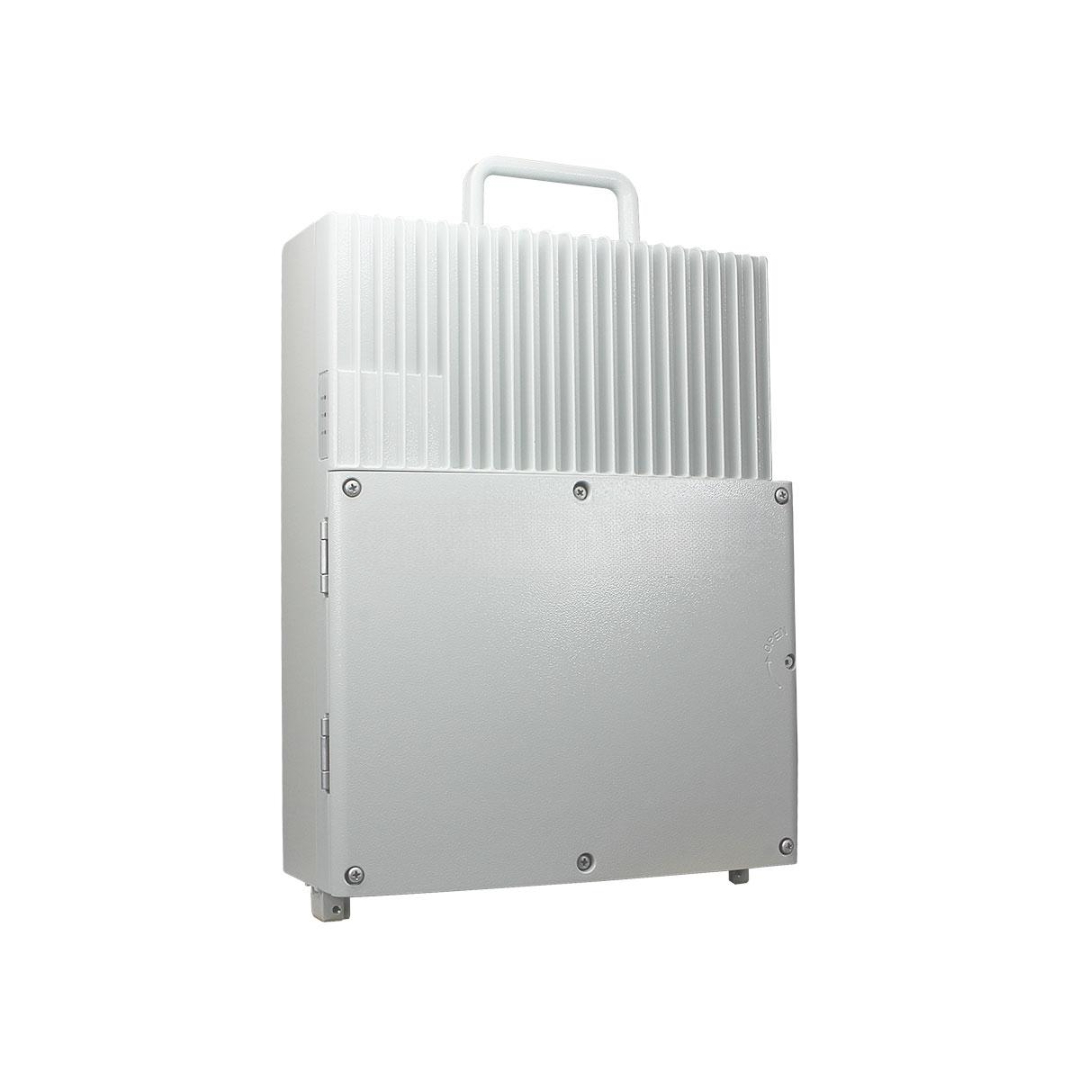

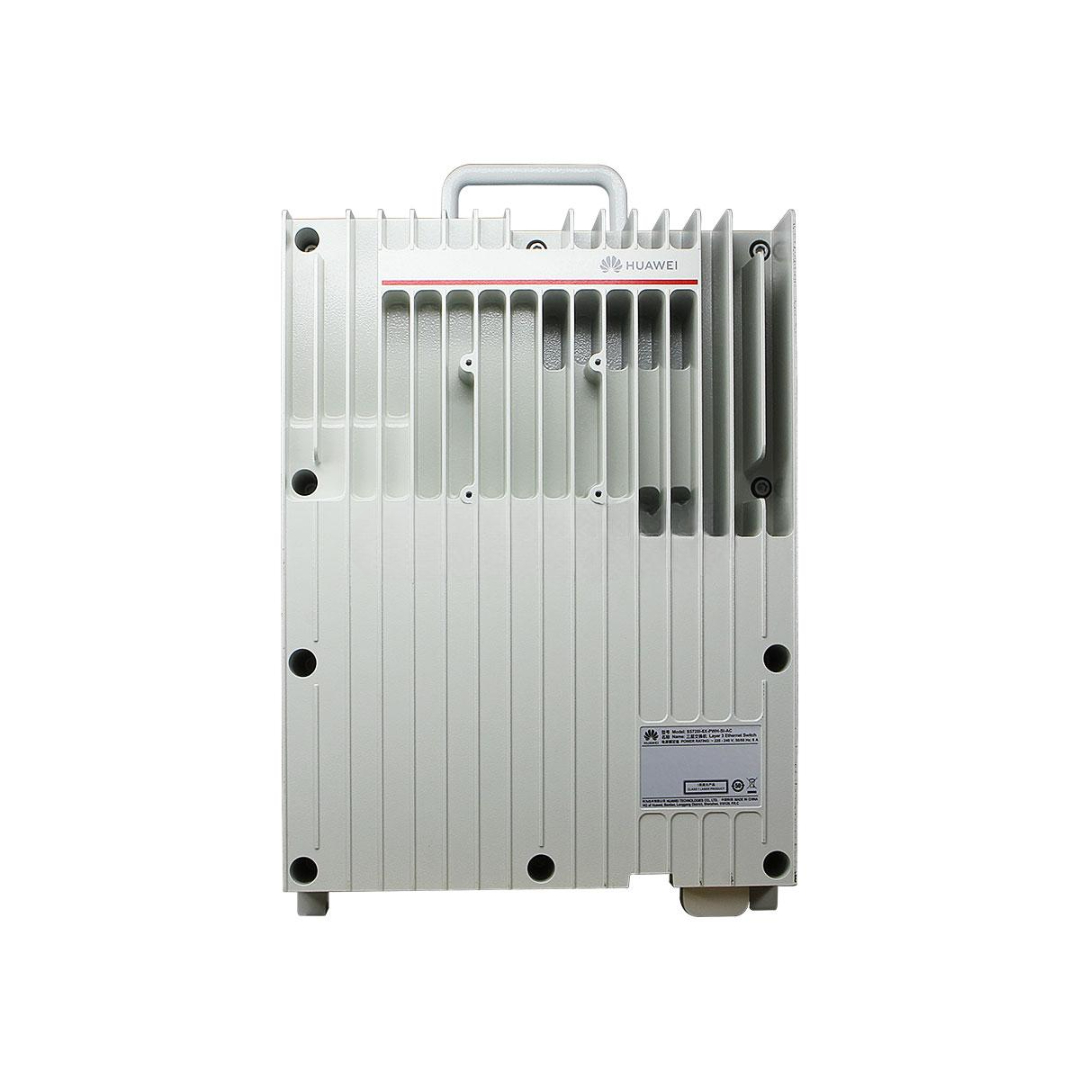

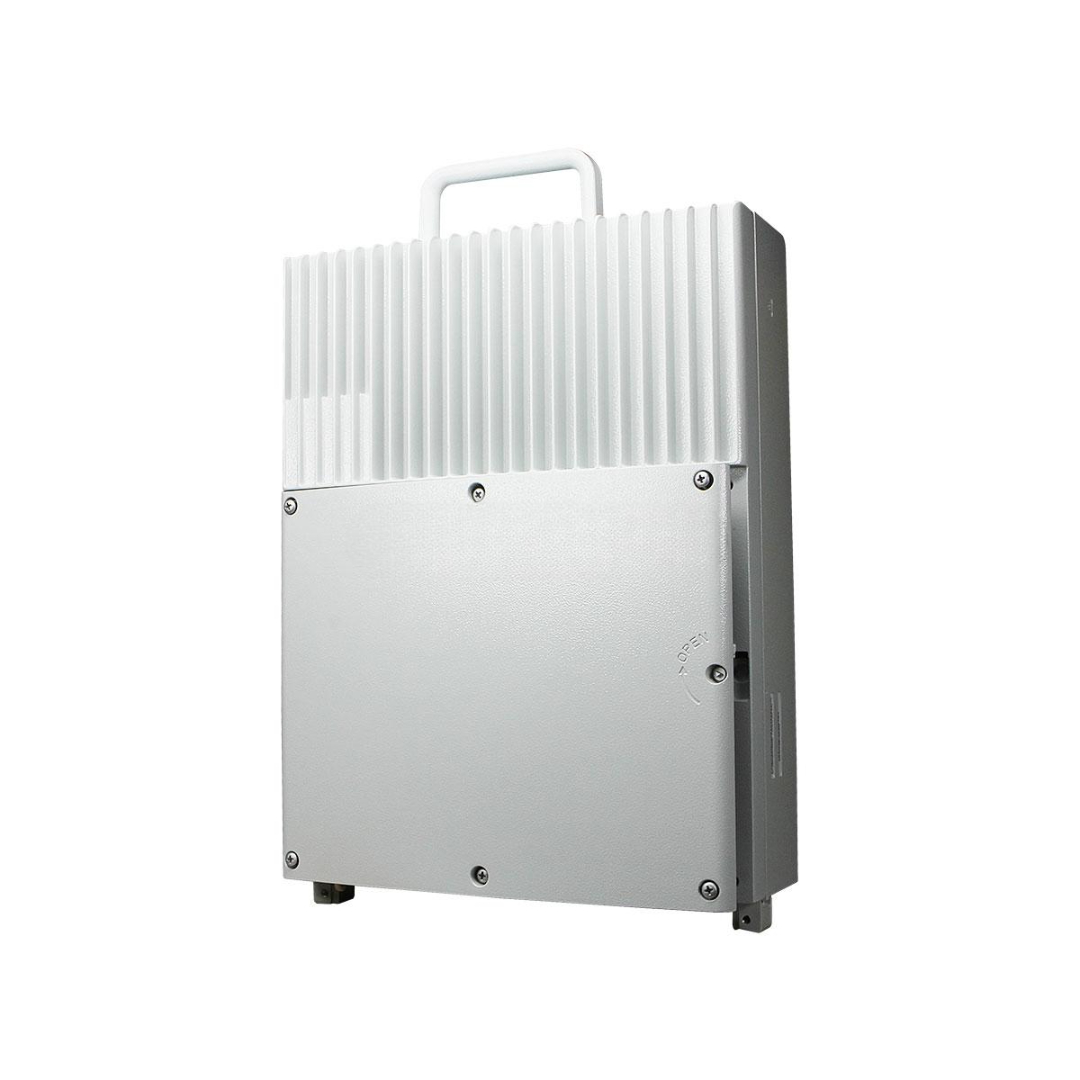

S5720I-6X-PWH-SI-AC Huawei Brand New 2-Ports Power Fixed Switch
The S5720I-6X-PWH-SI-AC Huawei is a ruggedized Layer 3 managed switch designed for industrial and outdoor deployments. With 6 Gigabit Ethernet ports including PoE+ support, this compact yet powerful switch ensures reliable connectivity and power delivery for IP surveillance, automation systems, and smart city applications.
This model features hardened components, wide temperature tolerance, IP30 protection, and built-in surge protection—making it an ideal choice for harsh environments.
Key Features
- Model: S5720I-6X-PWH-SI-AC
- Ports: 4 × GE PoE+ (10/100/1000BASE-T), 2 × GE SFP (1000BASE-X)
- PoE Support: IEEE 802.3af/at, up to 30W per port
- Switching Capacity: 12 Gbps
- Forwarding Performance: 9 Mpps
- MAC Address Table: 16K
- Industrial Design: IP30, fanless, DIN-rail or wall-mount
- Operating Temp: –40°C to +75°C
- Redundant Power Input: Supports dual AC or AC/DC
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5720I-6X-PWH-SI-AC |
| Form Factor | Industrial DIN-rail mount |
| Downlink Ports | 4 × 10/100/1000BASE-T (PoE+) |
| Uplink Ports | 2 × 1000BASE-X SFP |
| PoE Standards | IEEE 802.3af/at |
| Max PoE Power Budget | Up to 60W (AC power supply dependent) |
| Switching Capacity | 12 Gbps |
| Forwarding Rate | 9 Mpps |
| MAC Address Table | 16K |
| VLANs Supported | 4K |
| Power Supply | AC (dual power supported) |
| Power Consumption | < 65W (with full PoE load) |
| Operating Temperature | –40°C to +75°C |
| Storage Temperature | –40°C to +85°C |
| Humidity Range | 5%–95% RH, non-condensing |
| Surge Protection | 6kV Ethernet port surge protection |
| Enclosure Rating | IP30 industrial metal housing |
| Management | CLI, SNMP, Telnet, HTTPS, SSH |
| Certifications | CE, FCC, RoHS, IEC61000-6-2, IEEE1613 |
| Warranty | 1–3 Years Manufacturer Warranty |
S5720I-6X-PWH-SI-AC Applications
- Industrial IoT Networks — Ideal for connecting smart field devices and controllers
- Transportation — Supports network connectivity for smart roadways and rail systems
- Surveillance — Powers and connects IP cameras in outdoor deployments
- Smart Grid/Utilities — Suitable for use in substations and remote power sites
- Outdoor Installations — Ruggedized for challenging weather and EMI conditions
Customization & OEM Options
- Private Label Branding — Serial numbers and logos pre-printed on request
- Custom Firmware — Pre-configured image with VLANs, IP settings, ACLs
- PoE Budget Customization — Optional high-power models on request
- Pre-Sales Testing — Factory test reports and certification documentation
- Extended Temp Versions — -40°C to +85°C available by request
Wholesale & Global Supply
- Huawei Original Product — New and factory-sealed units
- Stock Availability — Fast delivery for integrators and projects
- Volume Discounts — Special pricing for bulk procurement
- Worldwide Export — Logistics and documentation support for all regions
- Technical Assistance — Huawei-certified support for setup and integration
Why Choose the S5720I-6X-PWH-SI-AC
- Reliable Layer 3 switch for demanding industrial use
- Built-in PoE+ simplifies installation for edge devices
- Compact DIN-rail form with fanless, quiet operation
- Designed to withstand wide temperature ranges
- Proven Huawei OEM quality for long lifecycle deployments
Contact us today for a quote, technical datasheet, or to discuss bulk purchasing and OEM options for the Huawei S5720I-6X-PWH-SI-AC switch — engineered for industrial-grade networking.
