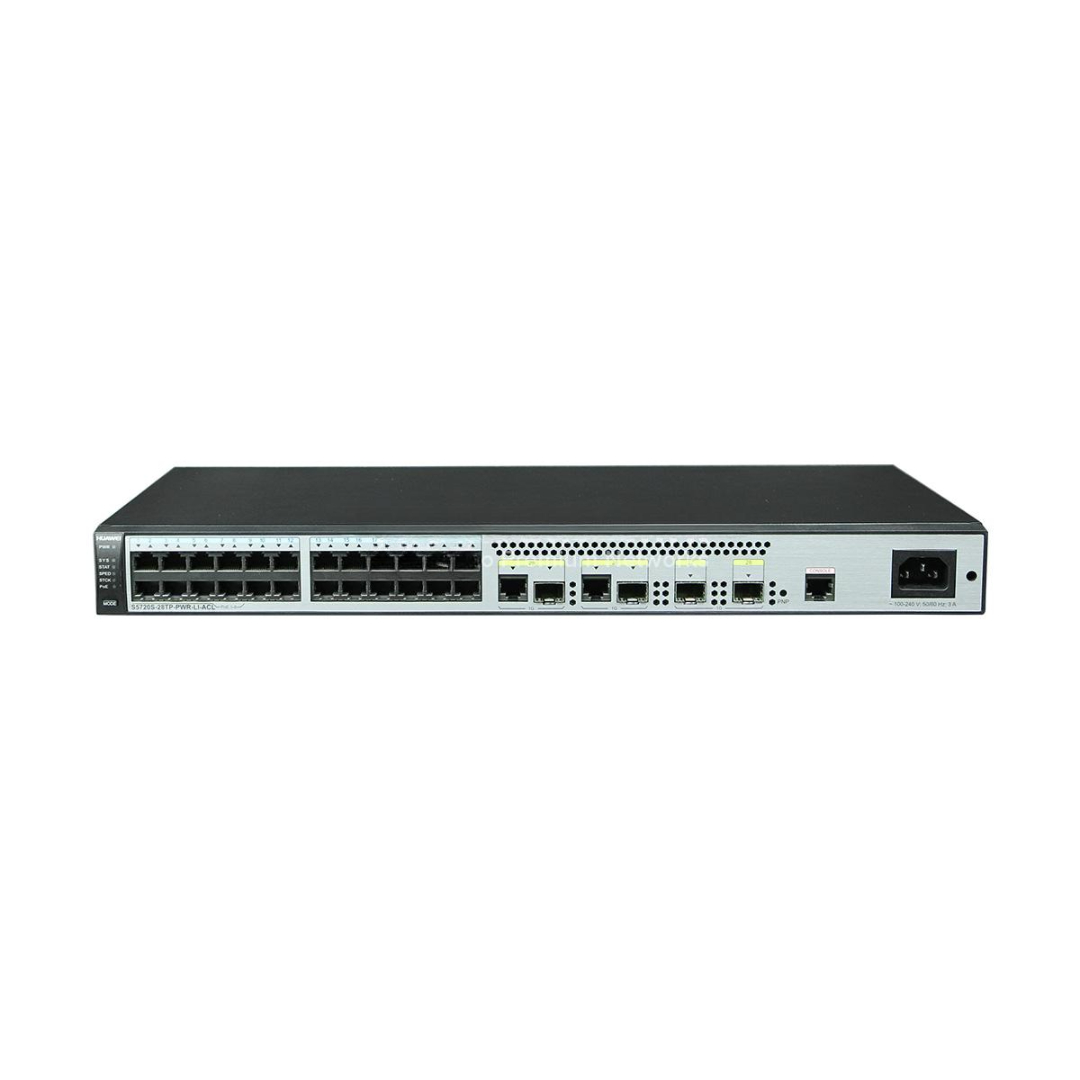

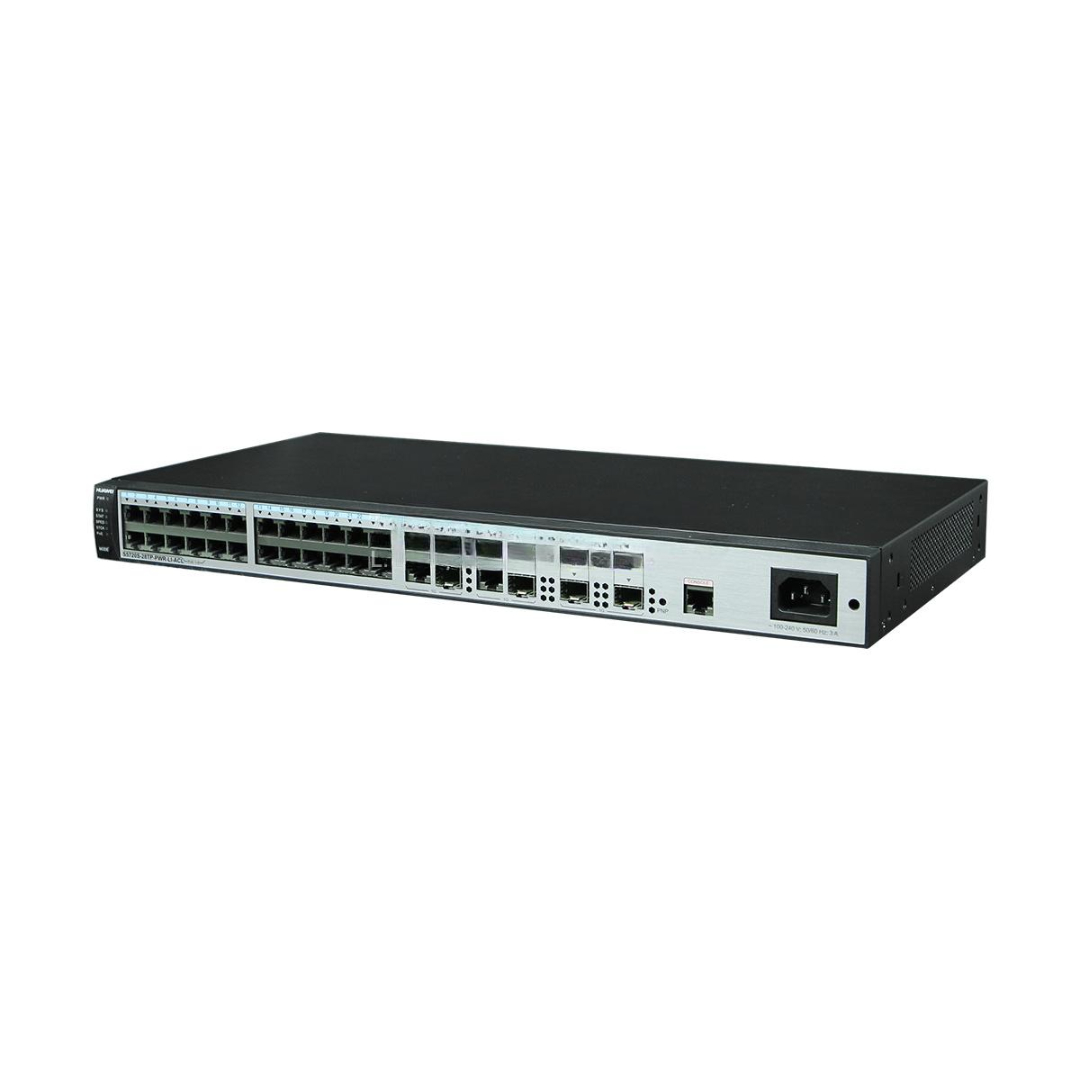

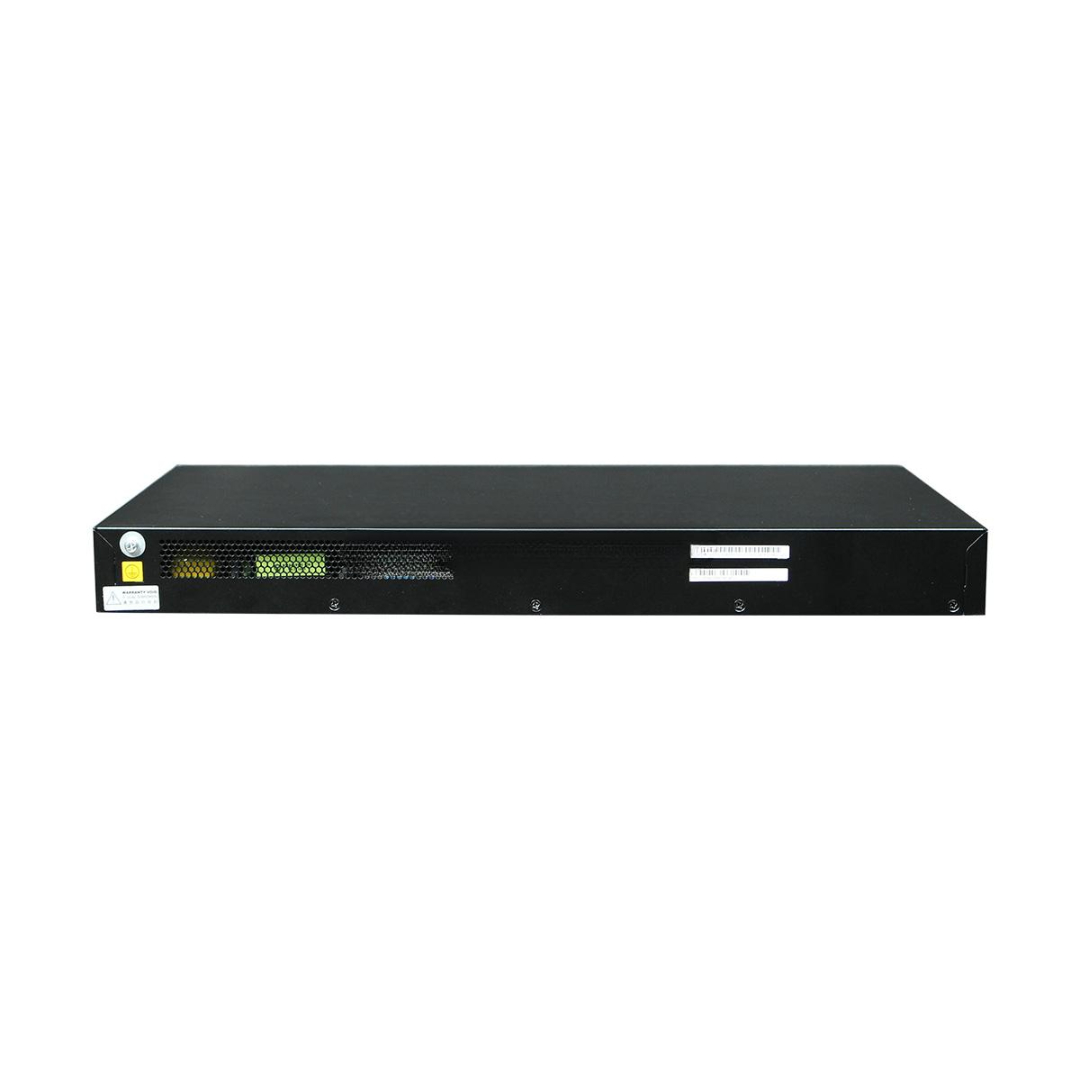

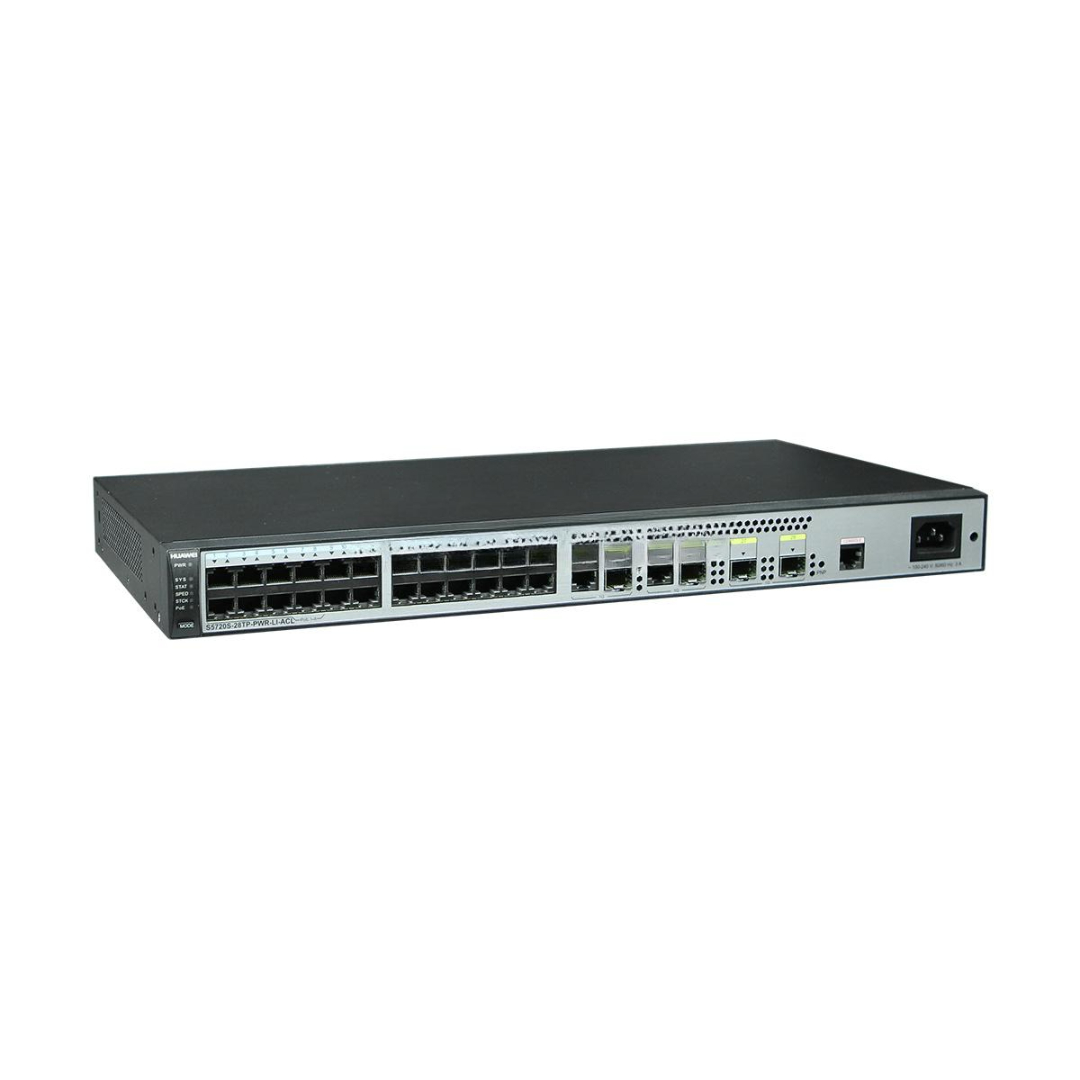

S5720S-28TP-PWR-LI-ACL Huawei Brand New 1 AC Power Fixed Switch
The S5720S-28TP-PWR-LI-ACL Huawei from Huawei is a Layer 3 Lite Gigabit Ethernet switch, featuring 24 x 10/100/1000Base-T ports with PoE+ (Power over Ethernet) and 4 x GE SFP uplink ports. This model is equipped with one built-in AC power supply and offers powerful switching capacity, reliable security features, and high energy efficiency. Designed for enterprise campus access and small to medium-sized business aggregation, it supports advanced ACLs, QoS, and various Layer 2 and Layer 3 protocols, making it a future-ready network investment.
Key Features
Model: S5720S-28TP-PWR-LI-ACL
Condition: 100% Brand New, Original Huawei
Port Configuration: 24 x Gigabit Ethernet (RJ45) + 4 x GE SFP uplinks
Power Supply: 1 x Built-in AC Power Supply (Fixed)
PoE Support: IEEE 802.3af/at compliant, full PoE on all 24 ports
Switching Capacity: 56 Gbps
Forwarding Rate: 42 Mpps
Advanced ACL: Supports traffic classification, filtering, and control
Layer 3 Lite Features: Static routing, RIP, and basic Layer 3 functionality
Energy Efficient: Intelligent fan control and power management
Deployment: Ideal for access layer in enterprise networks and SMBs
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5720S-28TP-PWR-LI-ACL |
| Product Type | Layer 3 Lite Managed Switch |
| Fixed Ports | 24 x 10/100/1000Base-T, 4 x GE SFP |
| PoE Support | Full 802.3af/at support, Max 370W output |
| Power Supply | 1 x Fixed AC Power Supply |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 42 Mpps |
| MAC Address Table | 16K |
| Packet Buffer | 3 MB |
| Layer 3 Protocols | Static Routing, RIP |
| ACL Support | Layer 2–4 ACLs, VLAN-based ACLs |
| QoS | Traffic classification, queuing, congestion avoidance |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Dimensions (W x D x H) | 442 mm × 220 mm × 43.6 mm |
| Weight | ≤ 4.5 kg |
| Warranty | 1–3 Years Manufacturer Warranty |
S5720S-28TP-PWR-LI-ACL Huawei Applications
-
Enterprise Campus Access – Ideal for wired access layer deployments with PoE for IP phones and cameras
-
Small & Medium Businesses (SMBs) – Cost-effective switch with rich Layer 2/3 feature set
-
IP Surveillance Networks – Power PoE cameras directly through Ethernet
-
VoIP Deployments – Simplified power and data delivery to VoIP phones
-
Education & Hospitality – Centralized access control and simplified wiring infrastructure
Customization & OEM Options
-
Pre-Configuration Services – VLANs, ACLs, IP addressing, and port security settings
-
Branded Packaging – OEM branding with your logo and labeling options
-
PoE Budget Adjustment – Custom power budgeting for energy-efficient designs
-
Long-Term Burn-In Testing – Extended QA cycles for industrial-grade deployments
-
Remote Firmware Preloading – Load specific software versions for field-readiness
S5720S-28TP-PWR-LI-ACL Huawei Wholesale & Global Procurement
-
Original Huawei Inventory – 100% genuine, sealed in factory packaging
-
Volume Discounts Available – Ideal for integrators, ISPs, and resellers
-
Ready Stock – Fast fulfillment for projects with urgent timelines
-
International Delivery – Shipped globally with regulatory-compliant packaging
-
Technical Support – Firmware updates, configuration support, and post-sale service
Why Choose the S5720S-28TP-PWR-LI-ACL Huawei Switch
-
PoE+ Enabled Ports – Power IP phones, cameras, and access points directly
-
Built-In AC Supply – No external PSU required, simplifying deployment
-
ACL Security & QoS – Ensure secure, efficient traffic handling
-
Energy Efficient – Intelligent fan speed and sleep mode support
-
Huawei Reliability – Backed by years of field-proven stability and performance
Contact Us Now for Pricing, Datasheets & Bulk Orders
Upgrade your enterprise or SMB access layer with the S5720S-28TP-PWR-LI-ACL Huawei PoE Switch — engineered for reliable, secure, and energy-efficient Gigabit connectivity.
Request your quote today and streamline your network deployment.
