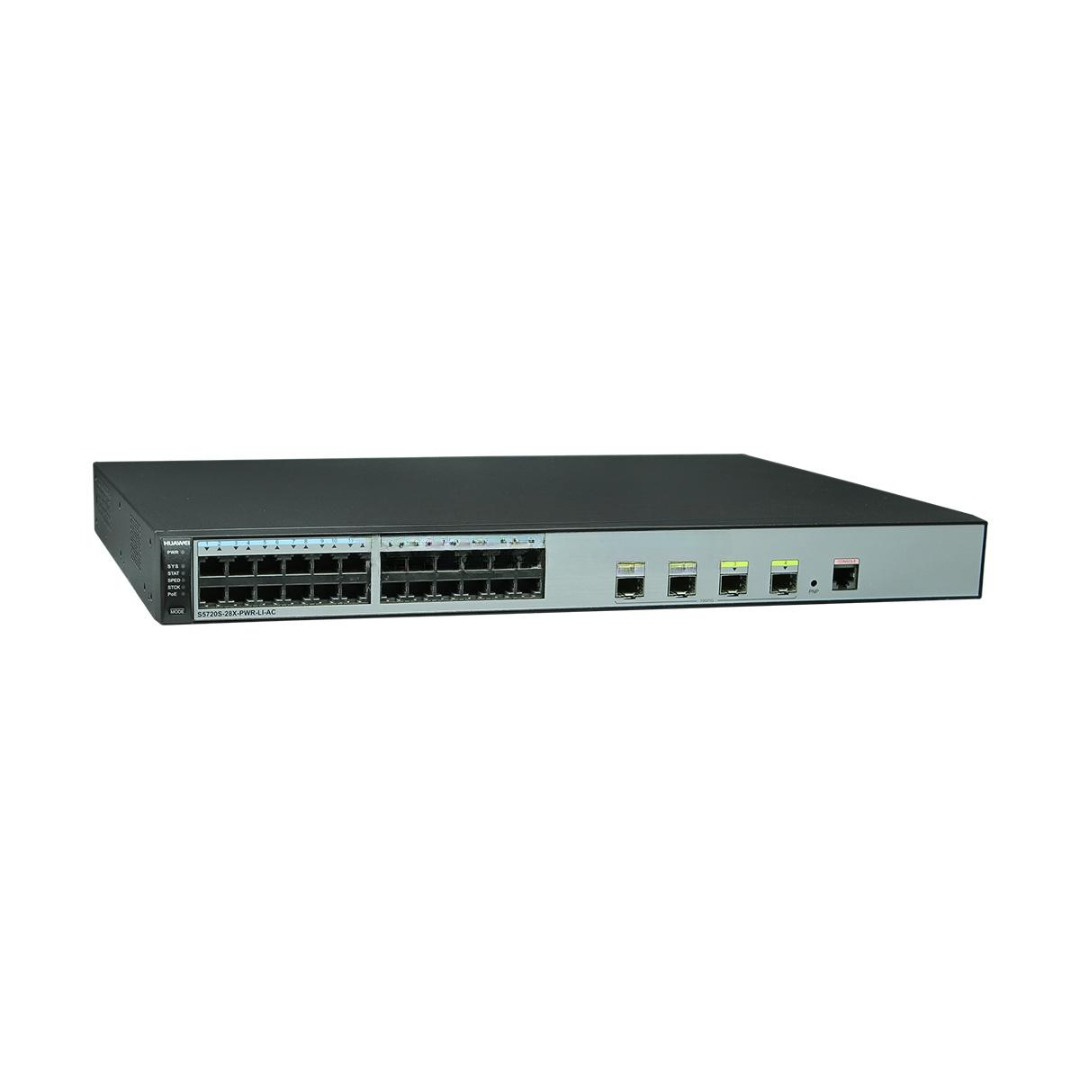

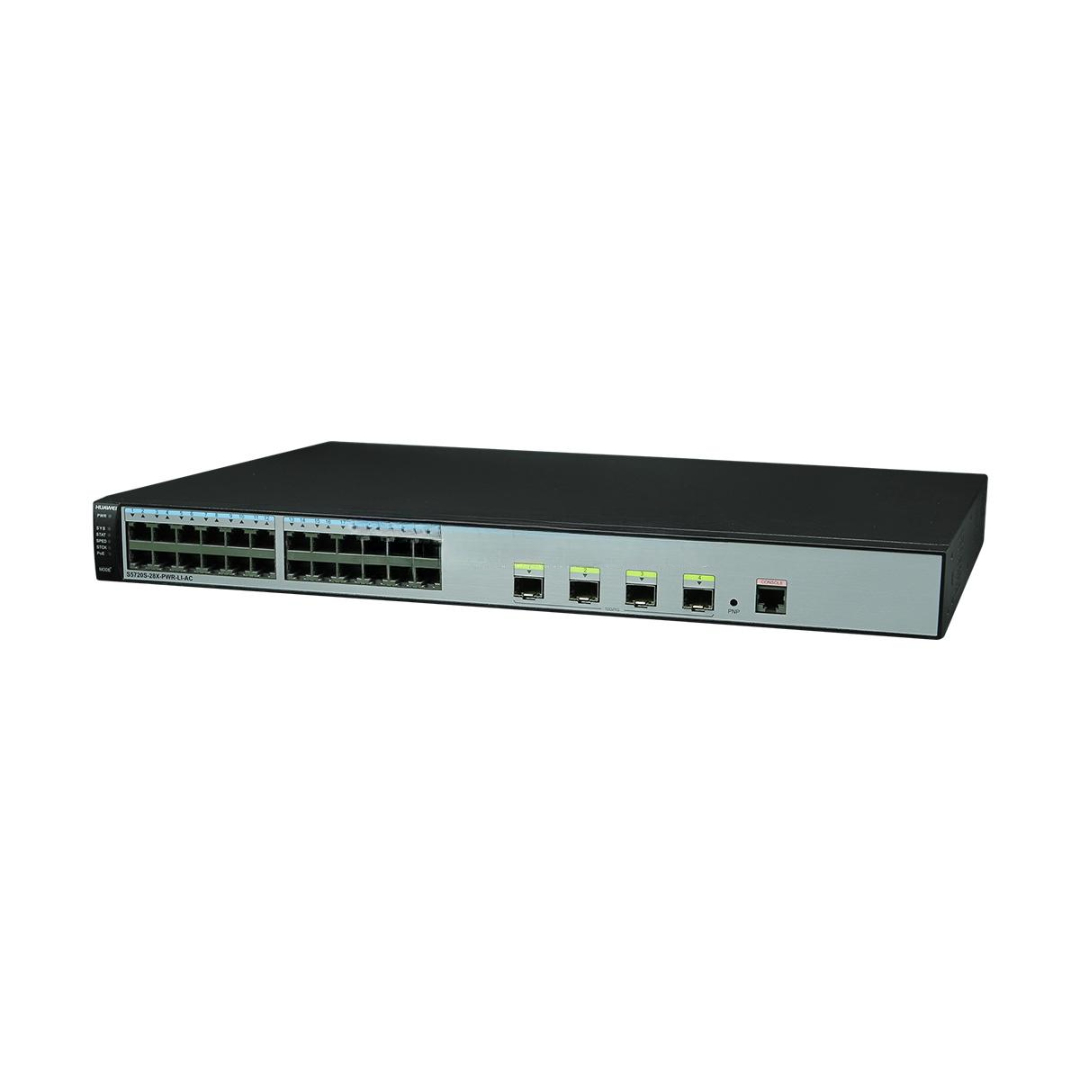

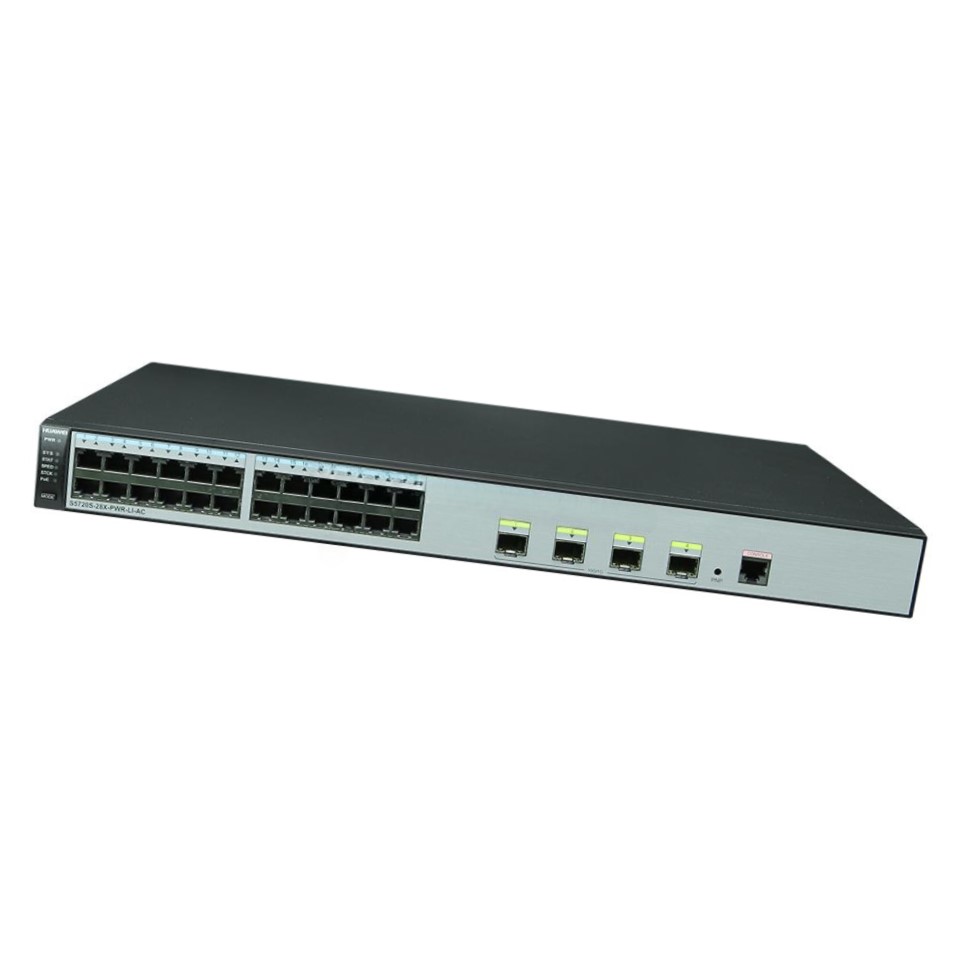

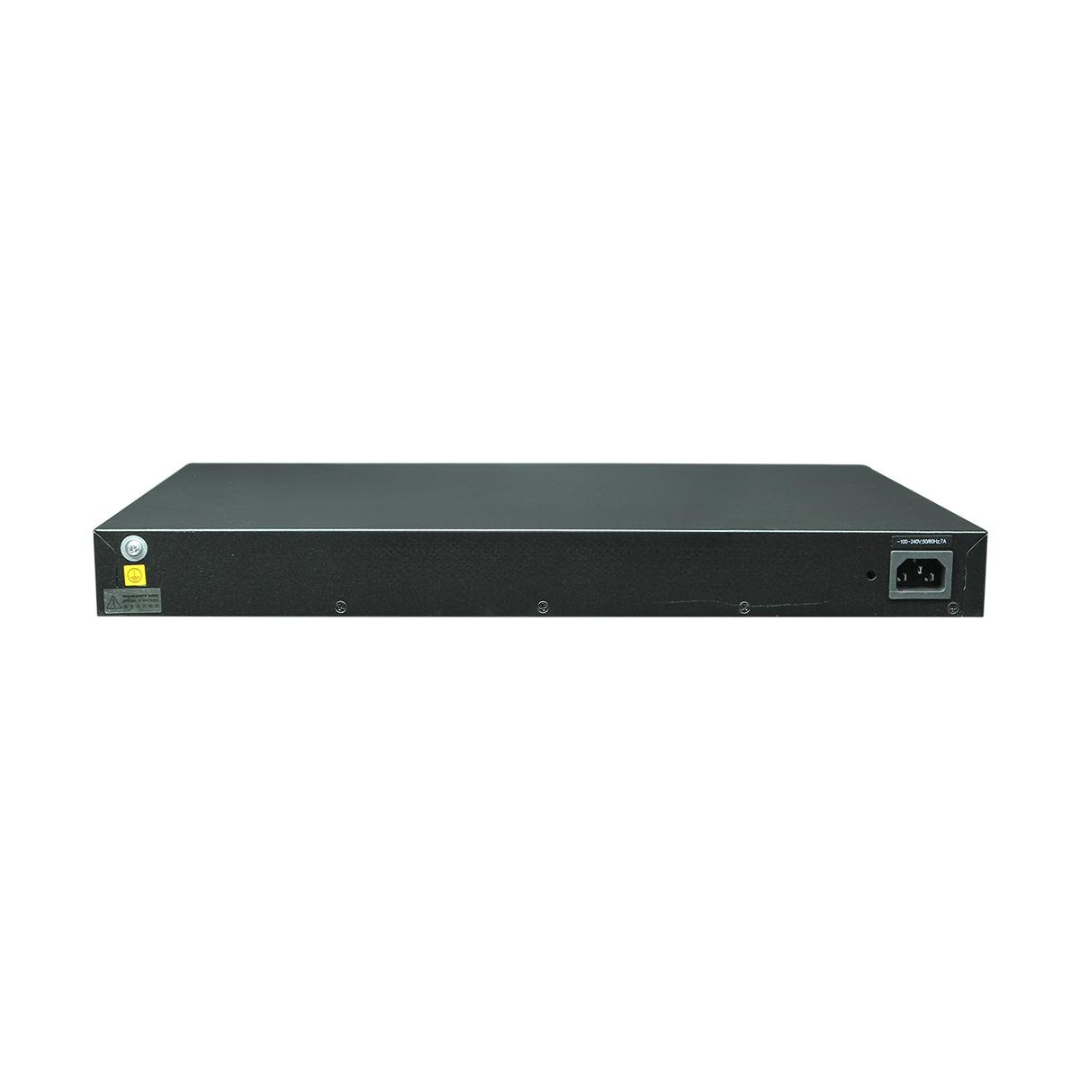

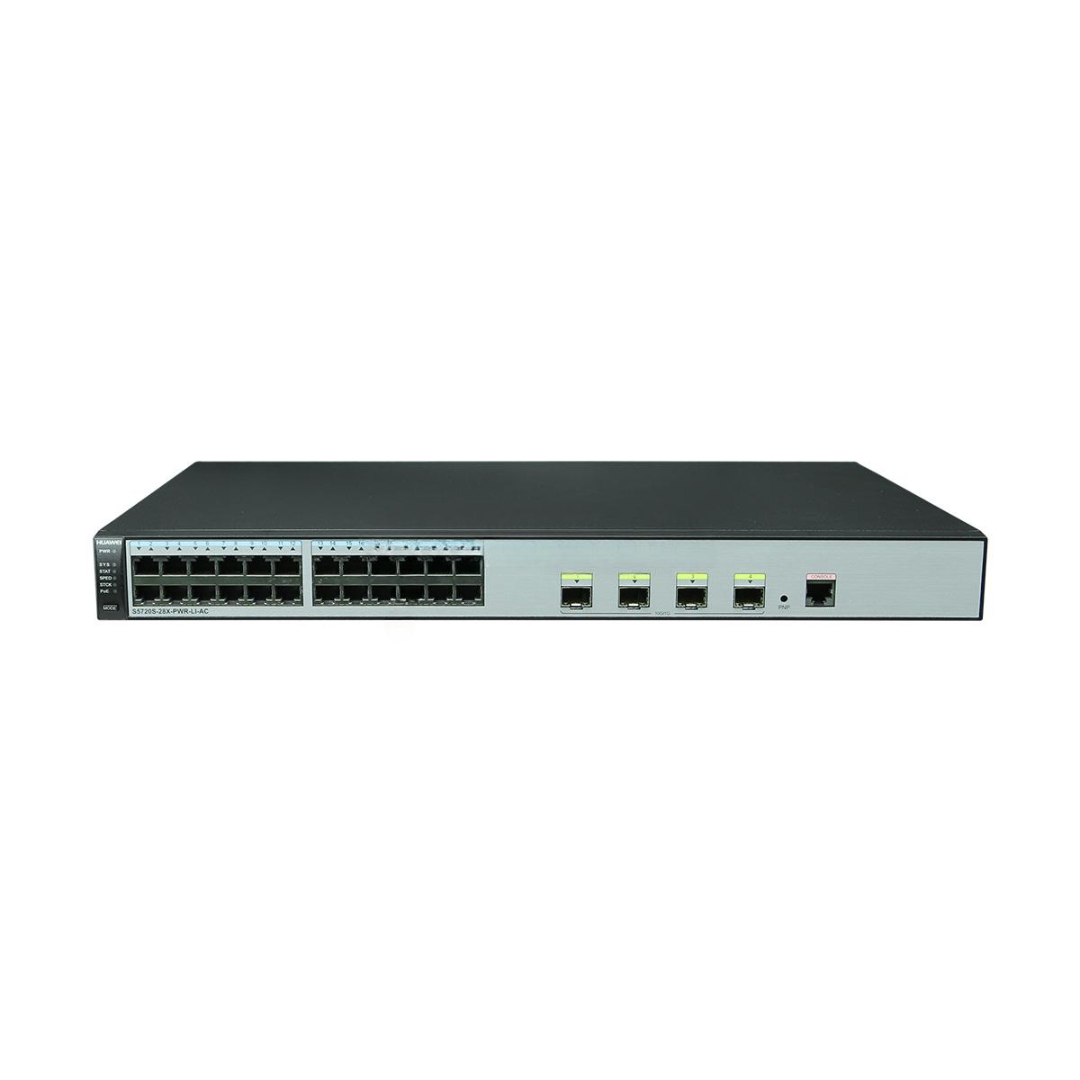

S5720S-28X-PWR-LI-AC Huawei Brand New 1 AC Power Fixed
The S5720S-28X-PWR-LI-AC Huawei is a brand new Layer 3 managed PoE+ switch, engineered for high-performance enterprise campus and access networks. Equipped with 1 fixed AC power module, it supports Power over Ethernet (PoE+) for simplified deployment of IP phones, wireless access points, and surveillance cameras. With 28 ports and advanced Layer 3 routing features, this switch is an ideal solution for scalable, cost-effective enterprise network builds.
Key Features
-
Model: S5720S-28X-PWR-LI-AC
-
Condition: 100% Brand New, Original Huawei
-
Power Supply: 1 Fixed AC Power Module
-
Port Configuration: 24 × 10/100/1000BASE-T + 4 × 10GE SFP+
-
PoE Support: IEEE 802.3af/at PoE+ on all 24 Ethernet ports
-
Switching Capacity: 336 Gbps
-
Forwarding Performance: 96 Mpps
-
Layer 3 Capabilities: Static routing, RIP, OSPF
-
Reliability: Dual-fan design, surge protection, and hardware-based Ethernet OAM
-
Mounting: 1U rack-mountable chassis
-
Hot-Swappable Fans: Yes
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | S5720S-28X-PWR-LI-AC |
| Ports | 24 × GE RJ45 + 4 × 10GE SFP+ uplink ports |
| PoE Standard | IEEE 802.3af (PoE) / 802.3at (PoE+) |
| PoE Power Budget | Up to 370W |
| Forwarding Rate | 96 Mpps |
| Switching Capacity | 336 Gbps |
| MAC Address Table | 32K |
| VLAN Support | Up to 4K VLANs |
| Routing Protocols | Static, RIPv1/v2, OSPF |
| Management | SNMP, CLI, Web GUI, RMON, NetStream |
| Power Supply | Built-in AC power (Fixed, non-redundant) |
| Redundancy | Software + hardware reliability (STP, VRRP, etc.) |
| Operating Temperature | 0°C to 50°C |
| Humidity | 5% to 95% RH, non-condensing |
| Dimensions (W×D×H) | 442 × 420 × 43.6 mm |
| Weight | Approx. 6.8 kg |
| Warranty | 1–3 Years Manufacturer Warranty |
S5720S-28X-PWR-LI-AC Huawei Applications
-
Enterprise Campus Networks – Power and connectivity for Wi-Fi APs and VoIP phones
-
Surveillance Systems – PoE+ for IP cameras and edge devices
-
Education & Healthcare – Layer 3 switching for reliable campus-wide access
-
Retail & Hospitality – Unified access and power infrastructure for multiple branches
-
Small-to-Medium Business (SMB) – Affordable high-speed switching and routing
Customization & OEM Options
-
Private Labeling – OEM branding with customer logo and serial number
-
Port Pre-Configuration – VLANs, PoE profiles, and routing set prior to shipment
-
Rack Integration Kits – Bundled delivery with patch panels, PDUs, and fiber modules
-
Extended Burn-In Testing – Reliability assurance for critical PoE applications
-
Localized Software – Language support and region-specific firmware customization
Wholesale & Global Supply
-
Bulk Stock Available – Original Huawei equipment with verified serials
-
Fast Lead Time – Inventory ready for urgent project deployments
-
Secure Packaging – Anti-static, foam-sealed original Huawei packaging
-
Global Compliance – CE, RoHS, ISO, and international standards supported
-
Support Services – Firmware updates, CLI templates, NMS guidance included
Why Choose the S5720S-28X-PWR-LI-AC Huawei
-
Integrated PoE+ for Edge Devices – Eliminate extra power wiring
-
Advanced Routing Support – Ideal for evolving network topologies
-
Reliable Huawei Hardware – Proven stability, even under full load
-
Flexible Uplink Architecture – High-speed 10G SFP+ uplinks
-
Compact, Enterprise-Ready Design – Built for high-density deployments
Request a Quote or Data Sheet Now
Enhance your enterprise network with the Huawei S5720S-28X-PWR-LI-AC — the perfect balance of PoE+ power, Layer 3 intelligence, and industrial-grade reliability.
Contact us today for datasheets, pricing, OEM options, or bulk orders.
