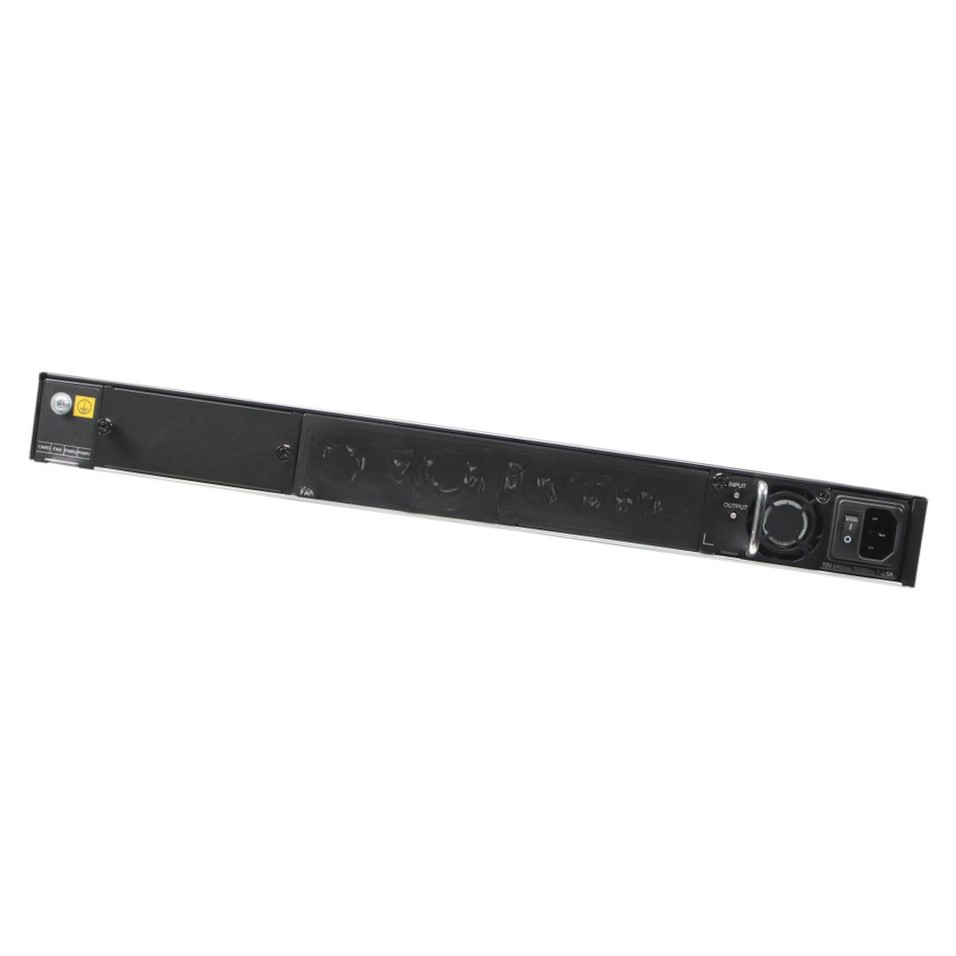

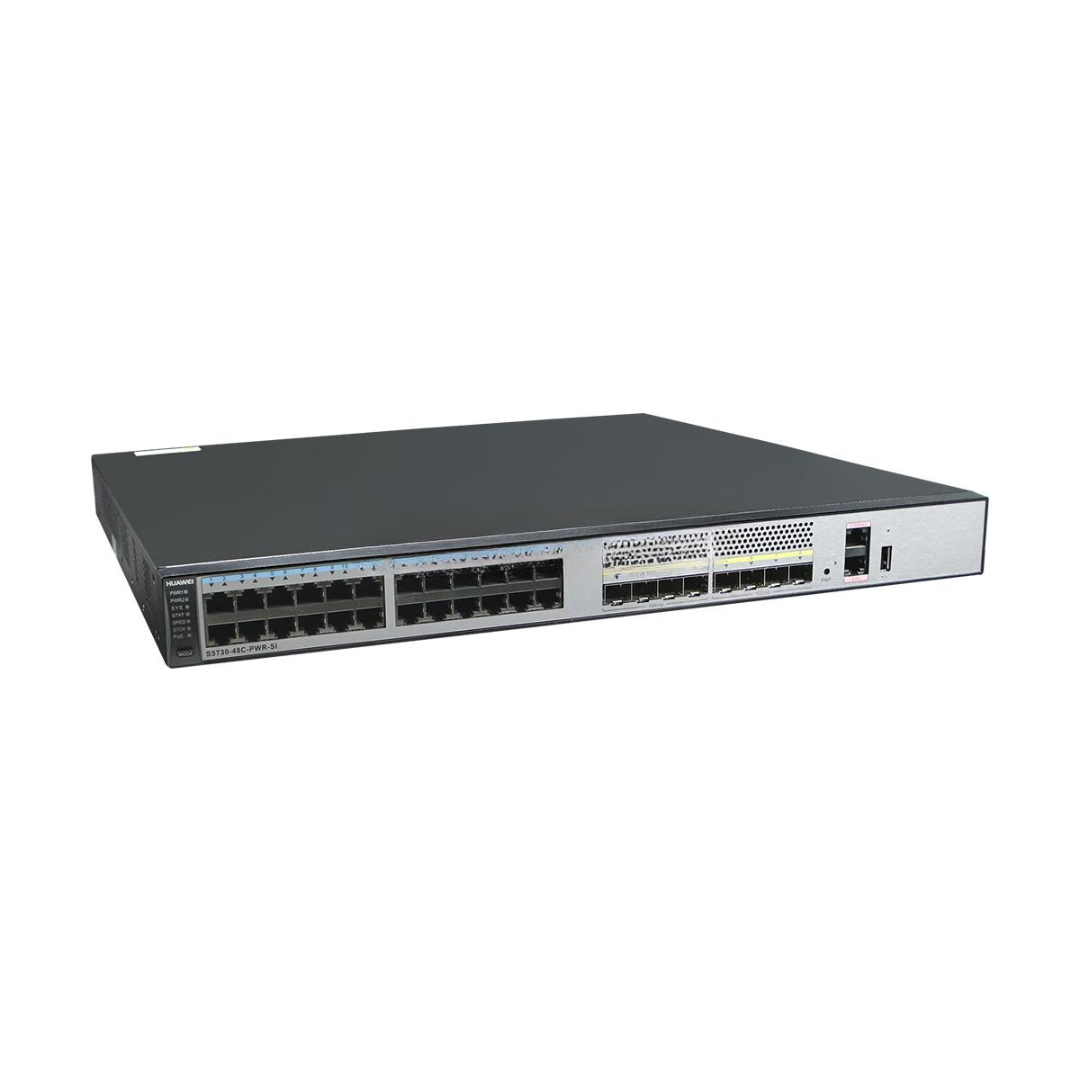

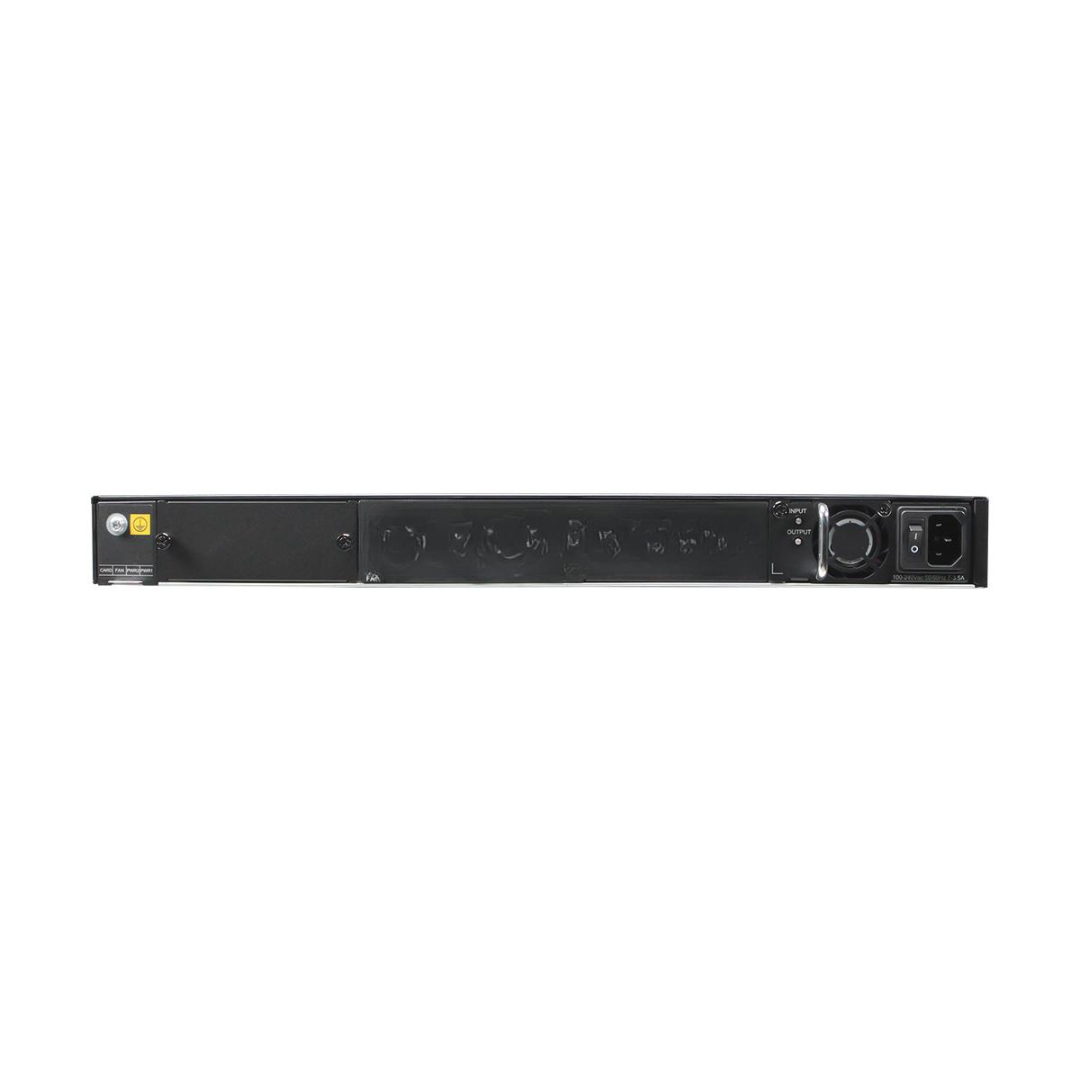

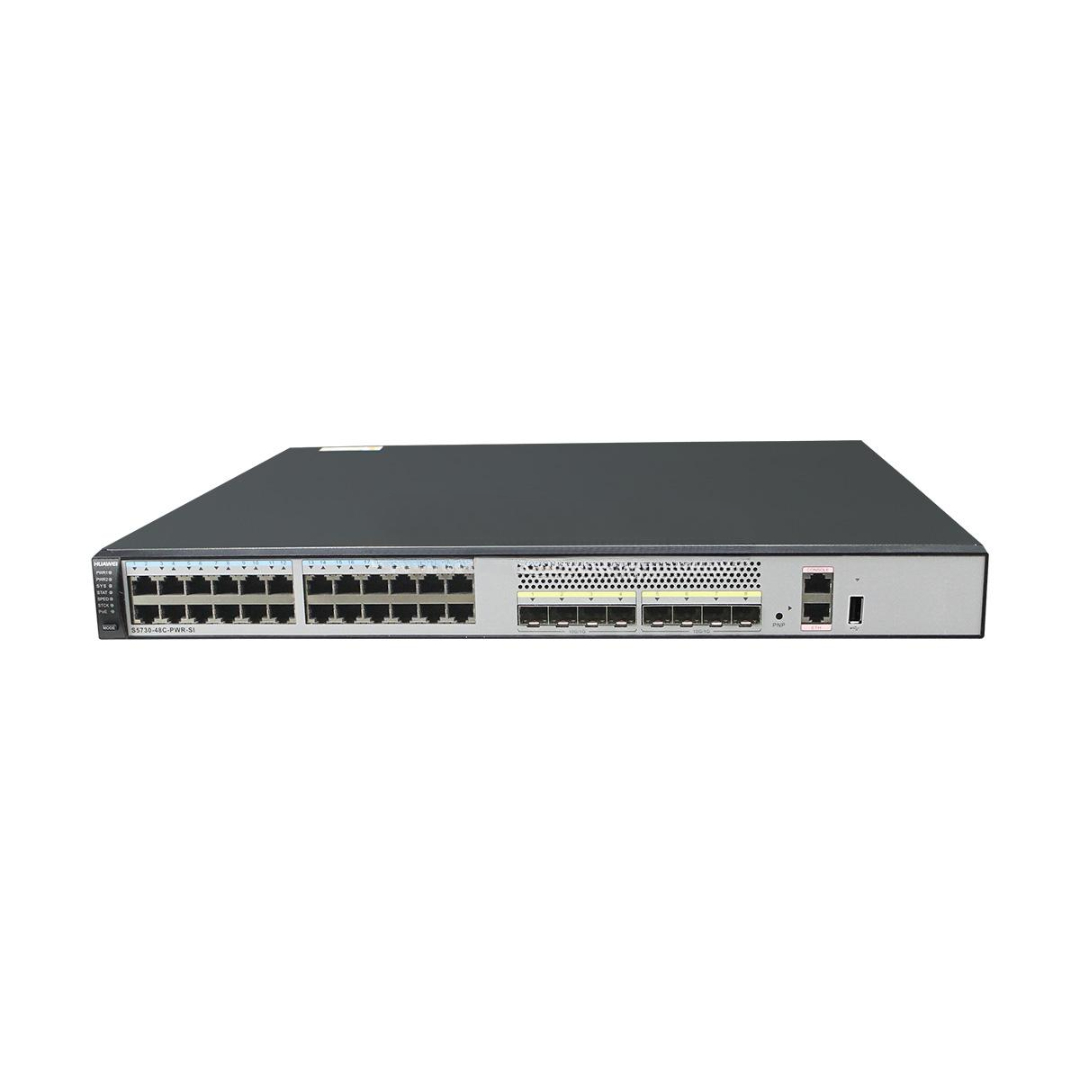

S5730-48C-PWR-SI-DC Huawei Brand New Power Module Equipped 48-Port Switch
The S5730-48C-PWR-SI-DC Huawei is a brand new, high-performance Layer 3 gigabit Ethernet switch designed for enterprise and campus networks. Equipped with 48 full Gigabit Ethernet ports, DC power module, and Power over Ethernet (PoE/PoE+ support), this switch offers intelligent services, flexible expansion, and advanced security features to meet the needs of next-gen networking.
Ideal for core or aggregation layer deployments in enterprise LANs, campuses, hotels, and IP surveillance networks, the S5730-48C-PWR-SI-DC delivers reliable performance, high switching capacity, and centralized power delivery for PoE devices like IP phones, wireless access points, and cameras.
Key Features
- Model: S5730-48C-PWR-SI-DC
- Condition: 100% Brand New, Original Huawei
- Ports: 48 × 10/100/1000BASE-T + 4 × 10GE SFP+ uplink ports
- PoE Support: IEEE 802.3af/at (PoE/PoE+) on all 48 ports
- Power Supply: Built-in DC power module, optional redundant PSU
- Forwarding Performance: Up to 132 Mpps
- Switching Capacity: 336 Gbps
- Layer 2/3 Features: VLANs, STP, MSTP, RIP, OSPF, static routing
- Security: ACL, MAC address binding, DHCP snooping, port security
- Management: SNMP, CLI, web-based GUI, RMON, NMS compatibility
- Installation: 1U rack-mountable metal chassis
Technical Specifications
| Specification | Details |
|---|---|
| Model | S5730-48C-PWR-SI-DC |
| Fixed Ports | 48 × GE RJ45 + 4 × 10GE SFP+ |
| PoE/PoE+ Support | Yes (IEEE 802.3af/at, up to 30W per port) |
| Switching Capacity | 336 Gbps |
| Forwarding Rate | 132 Mpps |
| Power Supply | Built-in DC power module (optional second PSU) |
| Max PoE Power Budget | Up to 740W (with dual PSU configuration) |
| Dimensions | 442 mm × 420 mm × 43.6 mm |
| Weight | Approx. 6.2 kg |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Installation | Standard 19-inch 1U rack-mountable |
| Certifications | CE, RoHS, FCC |
| Warranty | 1–3 years (depending on region/vendor policy) |
S5730-48C-PWR-SI-DC Huawei Applications
- Enterprise Access Layer — Delivers gigabit access and PoE to employee workstations and IP phones
- Campus Networks — Aggregates and powers edge devices with centralized management
- IP Surveillance — High-power PoE+ supports HD IP cameras and NVR backhaul
- Wireless Access Deployment — Powers wireless access points across large venues
- Hotels & Hospitality — Full wired and wireless coverage with simplified cabling
Customization & OEM Options
- Port Licensing – Custom PoE port enablement and firmware options
- Pre-Configuration – VLANs, SNMP, IP addressing, and security profiles setup
- Rack Kits & Accessories – Mounting kits, cable organizers, and management panels
- Private Labeling – Custom logo and model printing available for OEM partners
- Extended Temperature Model – Industrial-grade option available on request
- Redundant PSU – Option to include 2nd DC or AC power module for mission-critical setups
S5730-48C-PWR-SI-DC Huawei Wholesale & Global Supply Information
- Bulk Orders Supported – Stock available for telecom and enterprise rollouts
- Fast Dispatch – Same-day or next-day shipping for in-stock items
- Secure Packaging – Anti-static wrapping and foam-protected OEM packaging
- International Logistics – Air/sea shipping with export documentation
- Technical Assistance – Setup guides, remote support, and integration help
- Warranty & SLA – Optional extended service plans for critical deployments
Why Choose the S5730-48C-PWR-SI-DC Huawei
Enterprise-Class Performance — High switching capacity with full Layer 3 services
Built-in PoE+ with DC Power — Centralized power for network devices, even in DC-only environments
Advanced Security & QoS — Network protection, traffic shaping, and flexible ACLs
Smart Management — NMS support, CLI/web UI, and RMON for full visibility
Huawei OEM Quality — Long-term reliability and global support ecosystem
Request a Quote or Technical Datasheet Now
Upgrade your network infrastructure with the Huawei S5730-48C-PWR-SI-DC — a powerful and efficient enterprise switch that delivers PoE performance and intelligent management in one compact design. Contact us today for bulk pricing, OEM solutions, and fast delivery options.
