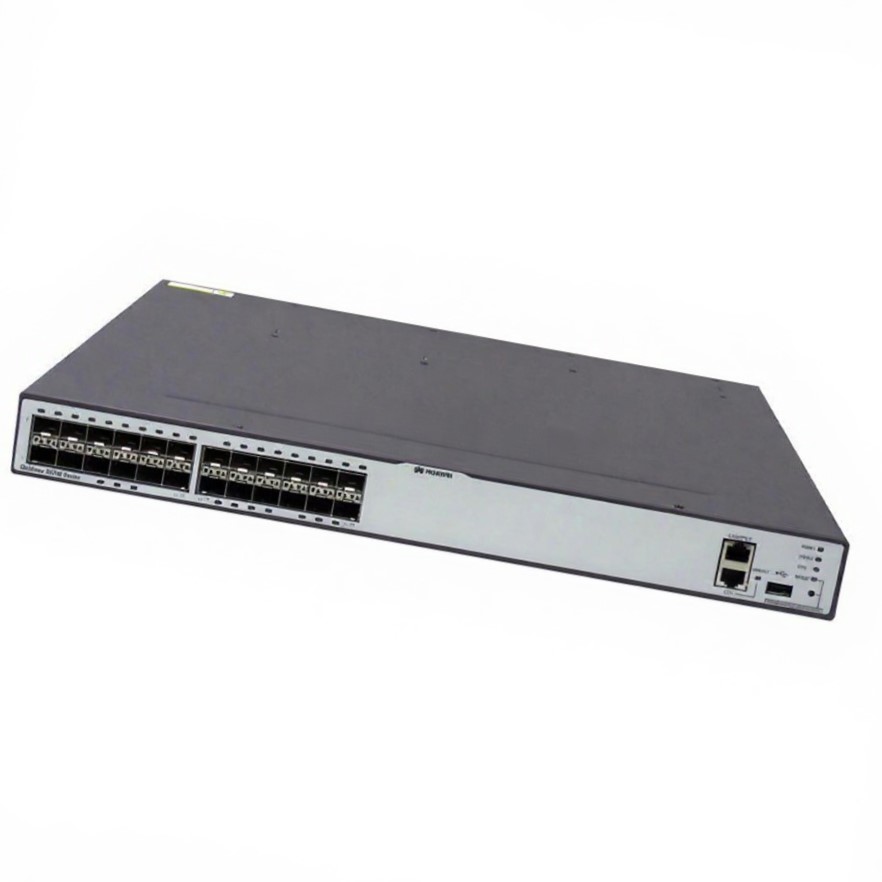

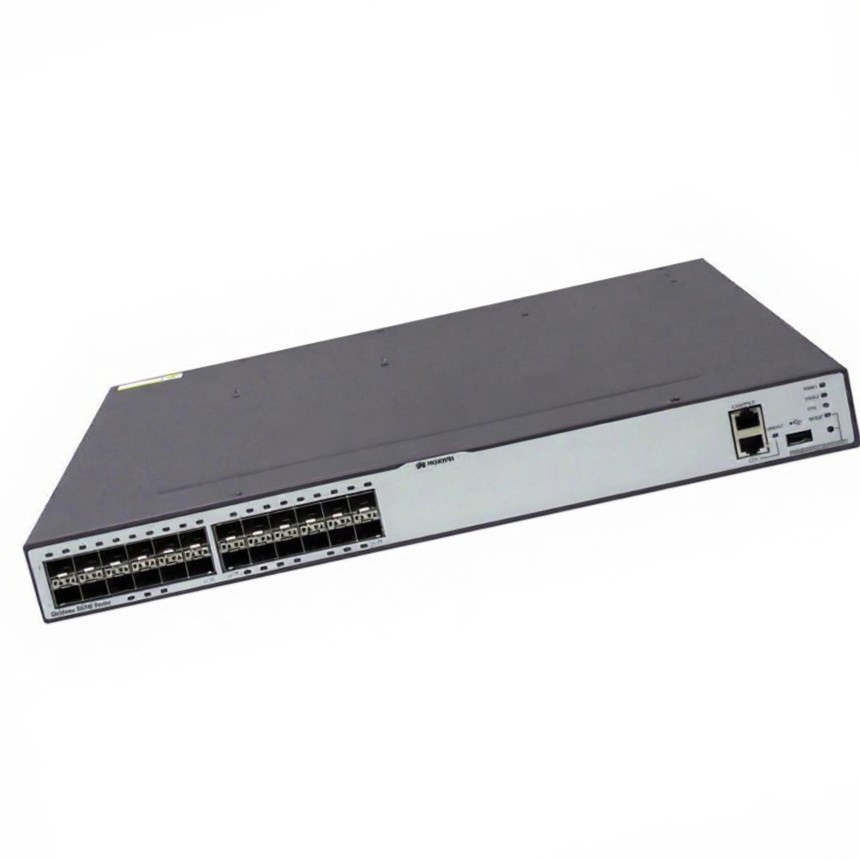

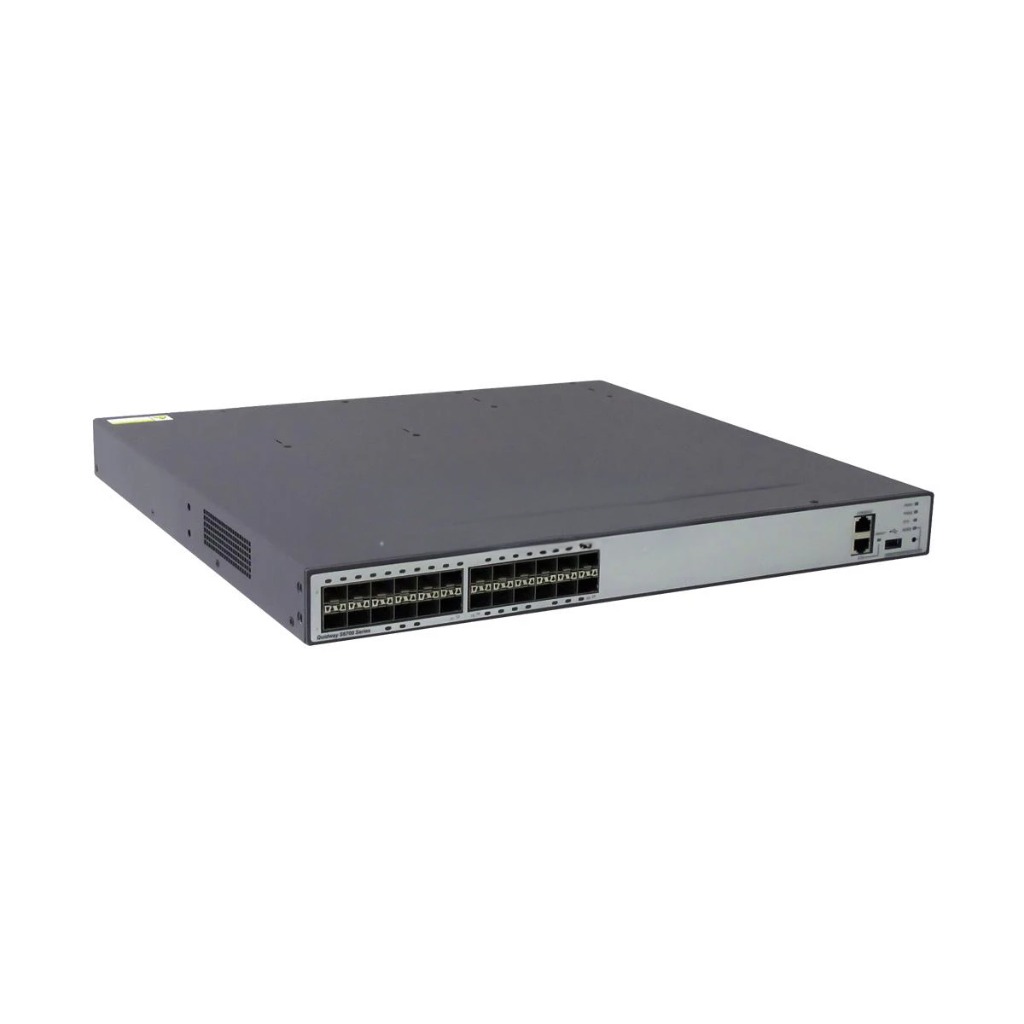

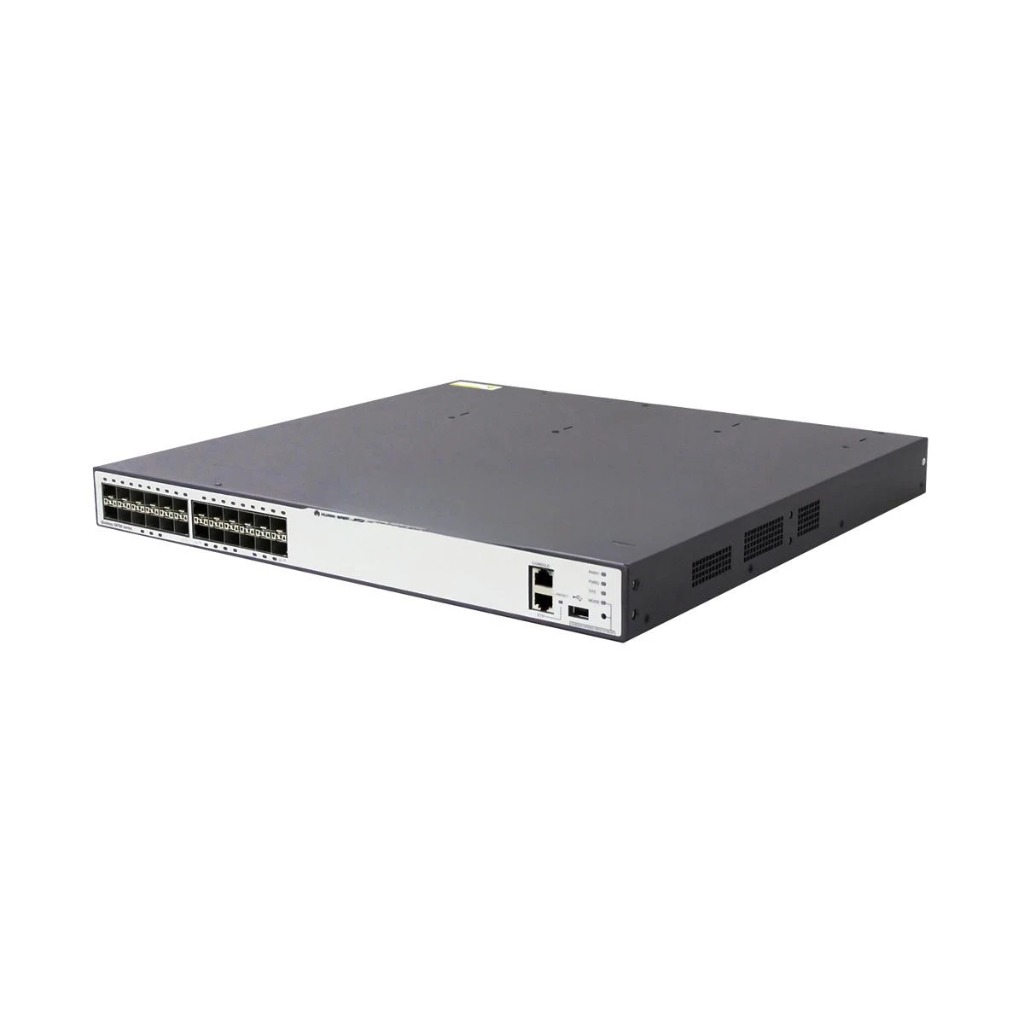

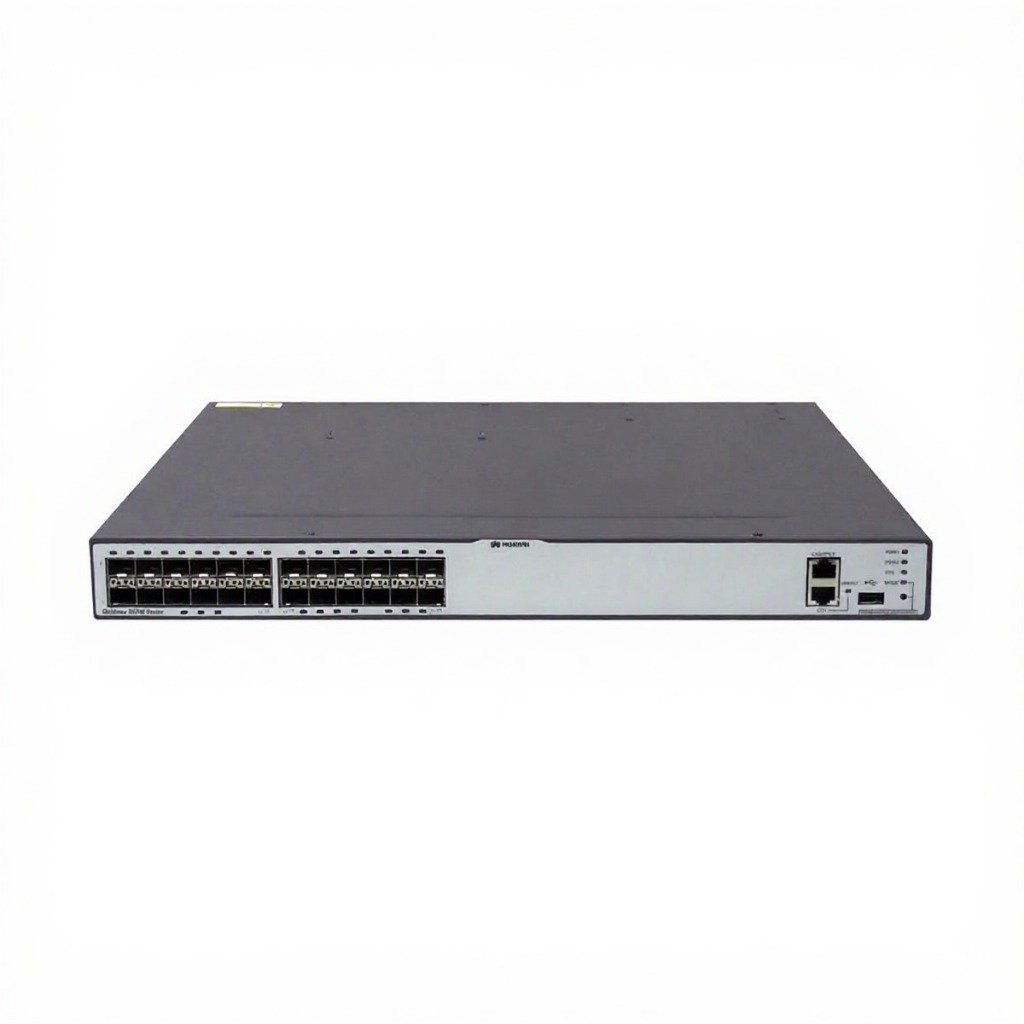

S6700-24-EI Huawei High Quality 24-Port 10GE Switch (No Power Module)
The S6700-24-EI Huawei is a high-performance, carrier-class Layer 3 10-Gigabit Ethernet switch designed for data centers, enterprise core networks, and high-speed aggregation layers. Equipped with 24 x 10GE SFP+ ports, this switch delivers exceptional switching capacity, low latency, and advanced feature support — making it ideal for high-bandwidth applications such as virtualization, cloud computing, and multimedia services.
This model comes without a built-in power module, offering flexible deployment by allowing customers to choose the power unit (AC or DC) best suited for their operational environment. Its modular power design, advanced Layer 3 routing, and versatile management options make it a reliable solution for scalable and mission-critical networking environments.
Key Features
-
Model: S6700-24-EI
-
Condition: 100% Brand New, Original Huawei
-
Port Configuration: 24 × 10GE SFP+ ports
-
Power Module: Not included – supports both AC and DC modules (sold separately)
-
Switching Capacity: Up to 960 Gbps
-
Forwarding Rate: Up to 720 Mpps
-
Layer 3 Features: OSPF, IS-IS, BGP, static routing, and VRRP
-
IPv6 Support: Dual-stack IPv4/IPv6 routing and security features
-
Stacking: iStack support for simplified management and horizontal scalability
-
Quality of Service (QoS): Flexible traffic classification and intelligent queuing
-
Security: Advanced access control, DoS protection, MAC filtering, and 802.1X authentication
-
Energy Efficient: Intelligent fan speed adjustment and energy-saving chipsets
-
Management: Web-based interface, CLI, SNMP, and centralized management via Huawei iManager
Tech Specs
| Item | Specification |
|---|---|
| Ports | • 24 × GE SFP ports • 10GE SFP+ ports |
| MAC Address Table | • 128K MAC address entries • Static, dynamic, and blackhole entries • MAC address learning and aging • Source MAC-based packet filtering |
| VLAN | • Up to 4K VLANs • Guest VLAN, voice VLAN • VLAN assignment by MAC, protocol, IP subnet, policy, or port • 1:1 and N:1 VLAN mapping • QinQ and selective QinQ |
| Reliability | • STP (802.1d), RSTP (802.1w), MSTP (802.1s) • BPDU/root/loop protection • RRPP ring/multi-instance • Smart Link tree/multi-instance with millisecond failover • SEP, E-Trunk • ERPS (G.8032 v2) • BFD for OSPF, IS-IS, VRRP, PIM |
| IPv4 Routing | • Static routing, RIPv1/v2, ECMP, URPF • OSPF, IS-IS, BGP, VRRP • Policy-based routing • Routing policy |
| IPv6 Routing | • Static route, RIPng, OSPFv3, BGP4+ |
| IPv6 Features | • Neighbor Discovery (ND), Path MTU (PMTU) • IPv6 Ping, Tracert, Telnet • ACLs based on source/destination IPv6, L4 ports, protocol type • MLD v1/v2 snooping • 6to4, ISATAP, manual tunnels |
| Multicast | • Static L2 multicast MAC • MAC-based multicast forwarding • IGMP snooping, IGMP fast leave • Multicast VLAN, MLD snooping, IGMP proxy • Controllable multicast • Port-based multicast traffic stats • IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP |
| QoS/ACL | • Interface ingress/egress rate limiting • Packet redirection • Port-based policing & two-rate three-color CAR • 8 queues per port • WRR, DRR, SP, WRR+SP, DRR+SP scheduling • 802.1p & DSCP re-marking • L2–L4 packet filtering: MAC, IP, port, protocol, VLAN ID • Per-queue rate limit, traffic shaping |
| MPLS Features | • MPLS L3VPN • MPLS L2VPN (VPWS/VPLS) • MPLS-TE • MPLS QoS |
| Security | • DoS, ARP, ICMP attack defense • 802.1x auth, per-port user limits • AAA, RADIUS, HWTACACS, NAC • SSH v2.0, HTTPS • CPU defense, blacklists/whitelists |
| Management & Maintenance | • MAC Forced Forwarding (MFF) • iStack (service ports as stack ports) • Virtual cable test • SNMP v1/v2c/v3, RMON • Web-based NMS • System logs & multi-level alarms • GVRP, MUX VLAN • Local port mirroring, RSPAN • Ethernet OAM (802.3ah/802.1ag), sFlow |
| Interoperability | • VBST (PVST/PVST+/RPVST compatible) • LNP (like DTP) • VCMP (like VTP) |
| Power Supply (DC) | • Rated: –48 V DC to –60 V DC • Max: –36 V DC to –72 V DC |
| Power Supply (AC) | • Rated: 100–240 V AC, 50/60 Hz • Max: 90–264 V AC, 50/60 Hz |
| Operating Environment | • Temperature: 0–45°C • Relative humidity: 5%–95% RH (non-condensing) |
| Dimensions (W × D × H) | 442 mm × 420 mm × 43.6 mm |
| Typical Power Consumption | 153 W |
S6700-24-EI Huawei Applications
The S6700-24-EI is ideal for:
• Data center access or aggregation layers requiring high-throughput 10GE switching
• Enterprise core networks with demanding bandwidth and performance needs
• Campus networks aggregating high-speed access points and distribution layers
• Service providers and cloud operators delivering virtualized services
• Flexible network builds where modular power options are essential
S6700-24-EI Huawei Customization & OEM Services
We offer professional customization to meet your network project requirements:
• Custom Configuration: Pre-loaded software, VLAN setup, port grouping
• OEM Branding: Private labeling for resellers and solution integrators
• Packaging: Bulk, palletized, or custom export-compliant packaging available
• Power Modules: Optional supply of matching AC or DC power units upon request
Wholesale & Bulk Procurement
Source the S6700-24-EI directly for large-scale deployments or reseller channels:
• Factory-direct pricing and attractive volume discounts
• Fast worldwide shipping with secure handling and customs clearance support
• Dedicated sales & support managers for ongoing B2B cooperation
• Reliable inventory for tight rollout schedules
• Full warranty and after-sales support included
S6700-24-EI Huawei Why Choose Us
100% Original Huawei Hardware – Fully certified and factory tested
Custom Deployment Options – Includes power module flexibility and pre-configuration
Volume Discounts Available – Best suited for resellers, MSPs, and integrators
Trusted Global Logistics – Timely, safe, and compliant worldwide shipping
Technical Expertise – End-to-end support from planning to deployment
Contact Us for Pricing and Availability
Secure next-gen switching performance with the Huawei S6700-24-EI 10GE Switch — powerful, modular, and built for the networks of tomorrow.
