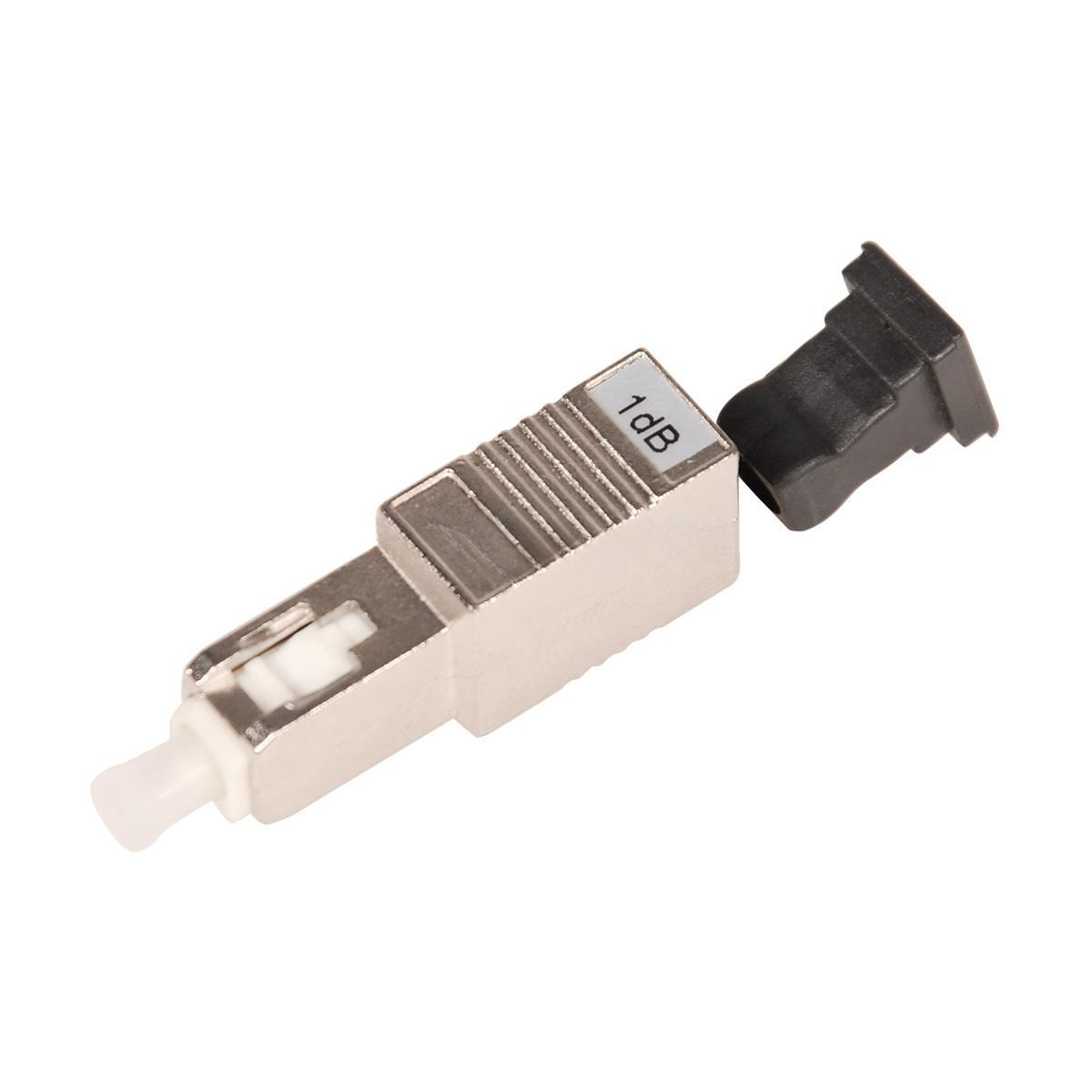

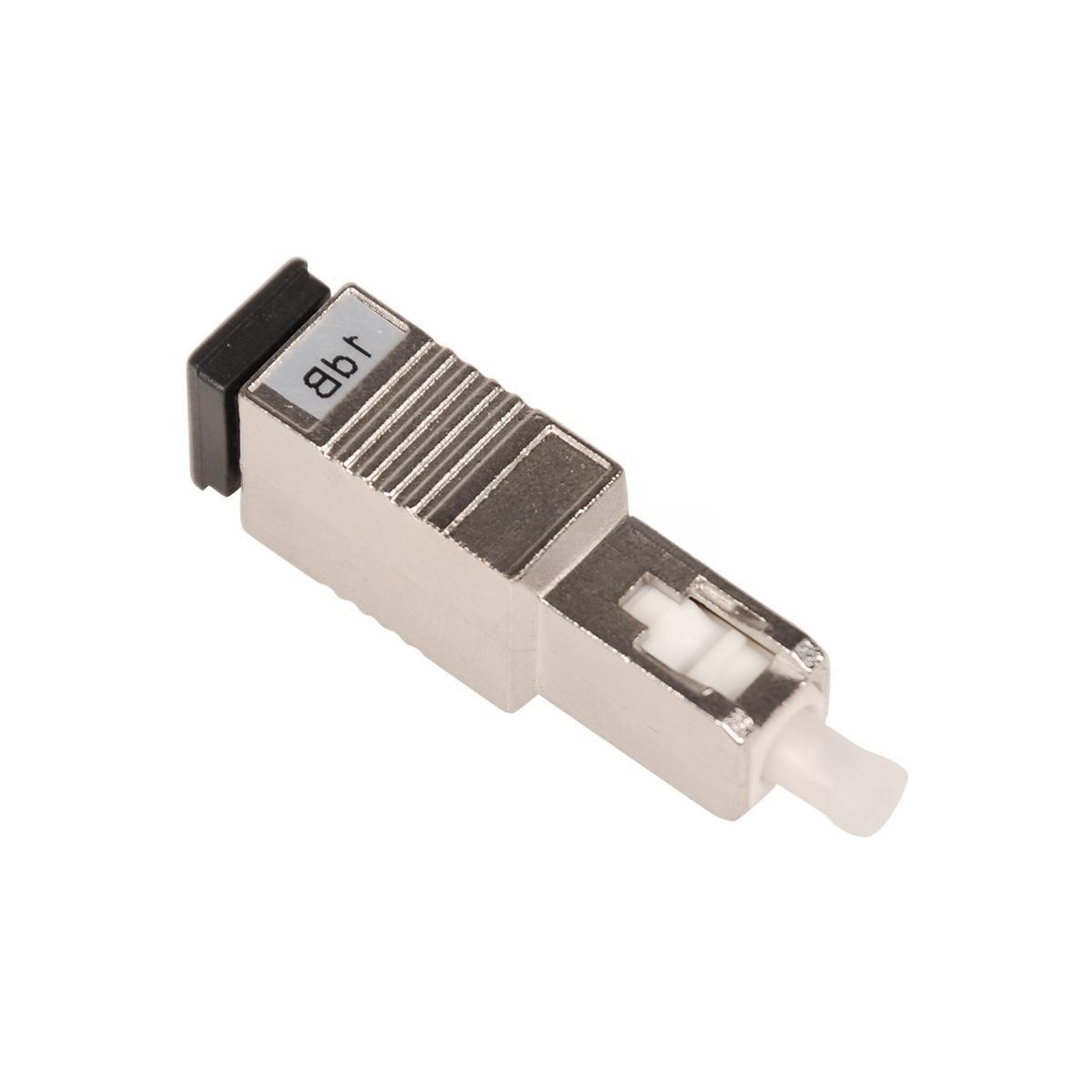

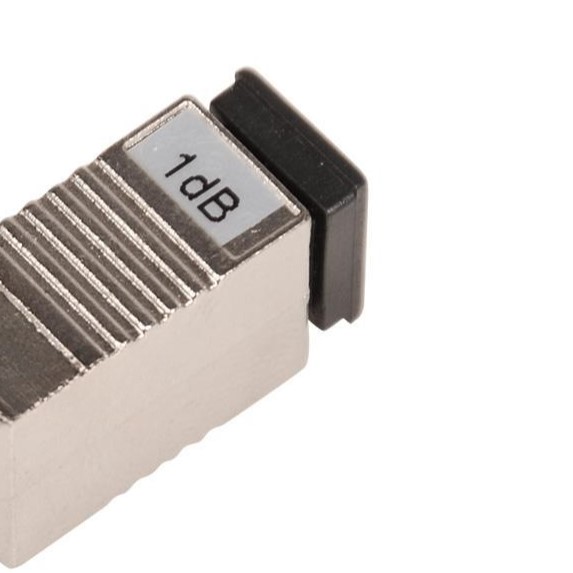

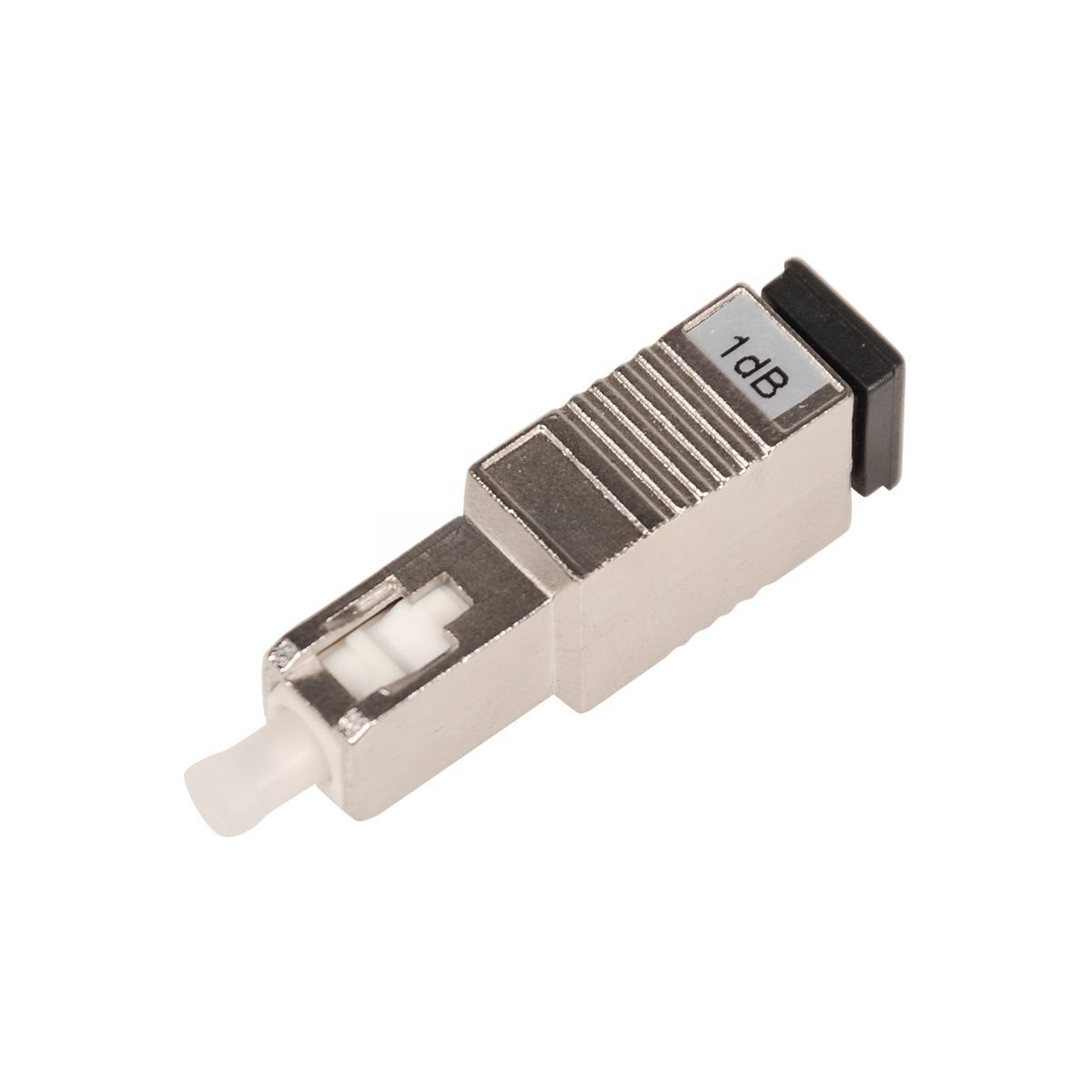

SC 1dB Male-Female Brand New Fixed Fiber Optical Attenuator | Brand New, Low-Level Signal Control
Product Overview
The SC 1dB Male-Female Brand New Fixed Fiber Optical Attenuator is a high-precision passive optical device designed to reduce optical signal strength by 1 decibel in singlemode fiber networks. It features a male-to-female SC interface, allowing direct inline installation between patch cables and equipment ports without additional connectors.
This brand new attenuator is ideal for managing low-power signal adjustments, protecting sensitive receivers, and ensuring optimal power balance in FTTH, data center, metro, and test environments. Engineered with high-return loss and low insertion loss, it meets international quality and compliance standards.
Key Features of SC 1dB Male-Female Attenuator
-
✅ Attenuation Level: 1dB (±0.5dB accuracy)
-
✅ Connector Type: SC/UPC or SC/APC – Male to Female
-
✅ Polish Type: UPC (blue housing) or APC (green housing)
-
✅ Fiber Type: Singlemode (OS2, 9/125μm)
-
✅ Plug Style: Compact, inline installation – no tools required
-
✅ Condition: Brand New – Factory sealed and optically tested
-
✅ Use Case: Ideal for short-reach links, sensitive receivers, and lab use
SC 1dB Male-Female Attenuator Technical Specifications
| Specification | Details |
|---|---|
| Attenuation Value | 1dB ± 0.5dB |
| Connector Interface | SC Male to SC Female |
| Return Loss (UPC) | ≥ 50dB |
| Return Loss (APC) | ≥ 60dB |
| Insertion Loss | ≤ 0.5dB |
| Operating Wavelength | 1260nm – 1625nm |
| Fiber Mode | Singlemode (OS2, 9/125μm) |
| Operating Temperature | -40°C to +80°C |
| Storage Temperature | -45°C to +85°C |
| Durability | ≥ 1000 mating cycles |
| Compliance Standards | CE, RoHS, Telcordia GR-910, IEC 60869-1 |
SC 1dB Male-Female Attenuator Applications
-
📡 Telecommunication Backbone & FTTH Networks
-
🧪 Fiber Optic Testing & Measurement Equipment
-
📶 Power-Level Tuning in ODF or Patch Panels
-
☁️ Data Centers, ISPs, and Core Routers
-
🛡 Receiver Protection for DWDM/CWDM Systems
Customization Options
Custom-built to meet professional network requirements:
-
🔧 Attenuation Levels: From 1dB to 30dB available
-
🔧 Connector Options: SC/UPC, SC/APC, LC, FC, ST – Male/Female or Female/Female
-
🔧 Housing Colors: Blue (UPC), Green (APC), or custom coded
-
🔧 Branding: Custom dB markings, logo printing, and model numbers
-
🔧 Packaging Options: Labeled zip bags, trays, retail boxes, or installer kits
-
🔧 Test Reports: Provided per unit or per batch with performance details
Wholesale & Bulk Supply Services
Tailored for ISPs, system integrators, distributors, and OEM buyers:
-
📦 Bulk Pricing & Factory Discounts
-
📦 OEM Labeling & Barcode Integration
-
📦 Low MOQ for Custom Orders
-
📦 Global Shipping & Logistics Support
-
📦 Documentation: CE, RoHS, COO, Test Certificates included
Why Choose Our SC 1dB Male-Female Attenuator?
-
✔️ Accurate Signal Control for Low-Level Adjustment
-
✔️ Plug-in Simplicity – No Patch Cord Required
-
✔️ Compatible with All SC Ports in Singlemode Systems
-
✔️ Backed by Industry Certifications & Quality Checks
-
✔️ Available in OEM Branding & Pre-packed Kits
Order Now
Control your optical power with confidence using the SC 1dB Male-Female Fixed Fiber Optical Attenuator – a trusted component for precise signal tuning in advanced fiber networks. Now available with bulk pricing, custom labeling, and international shipping.
