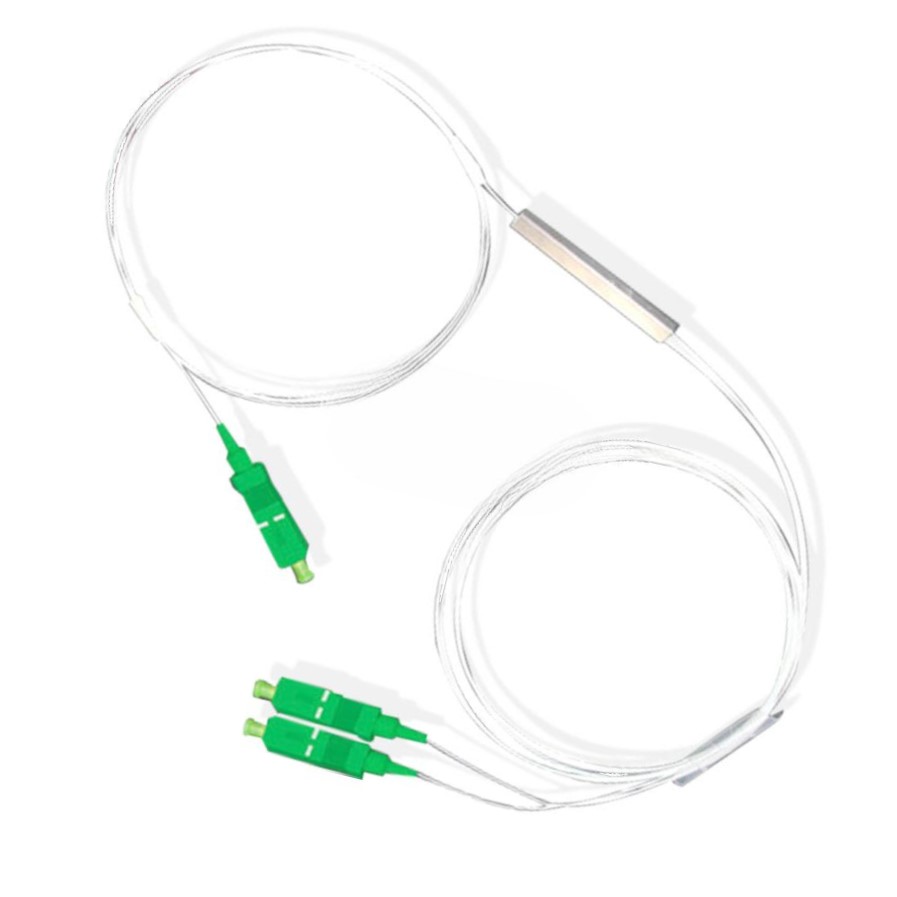

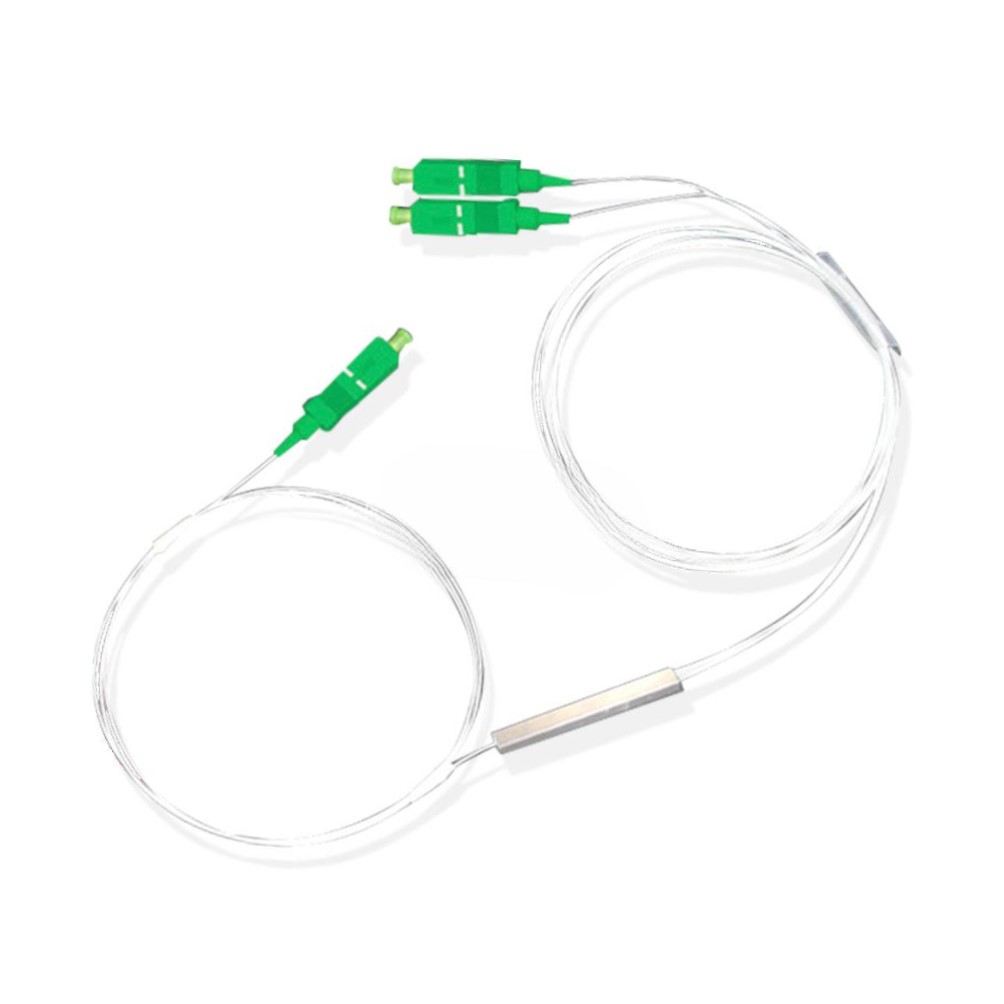

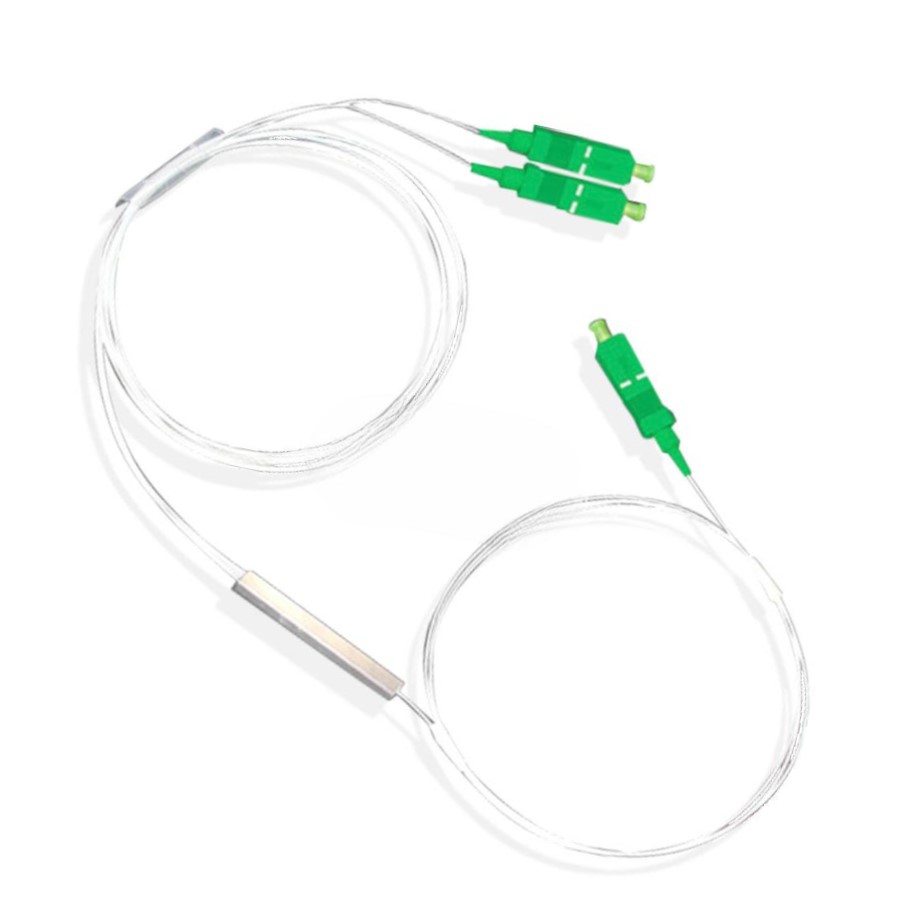

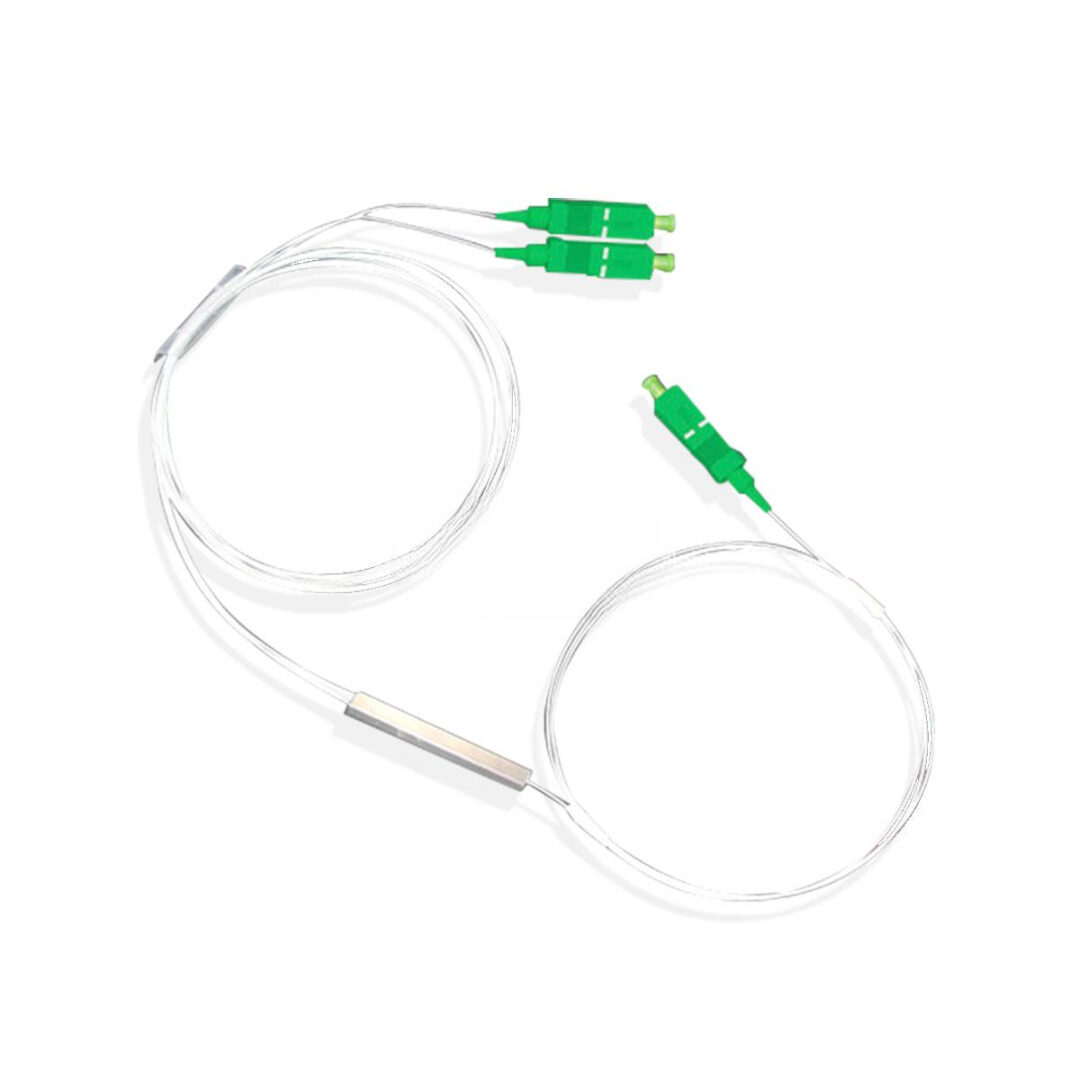

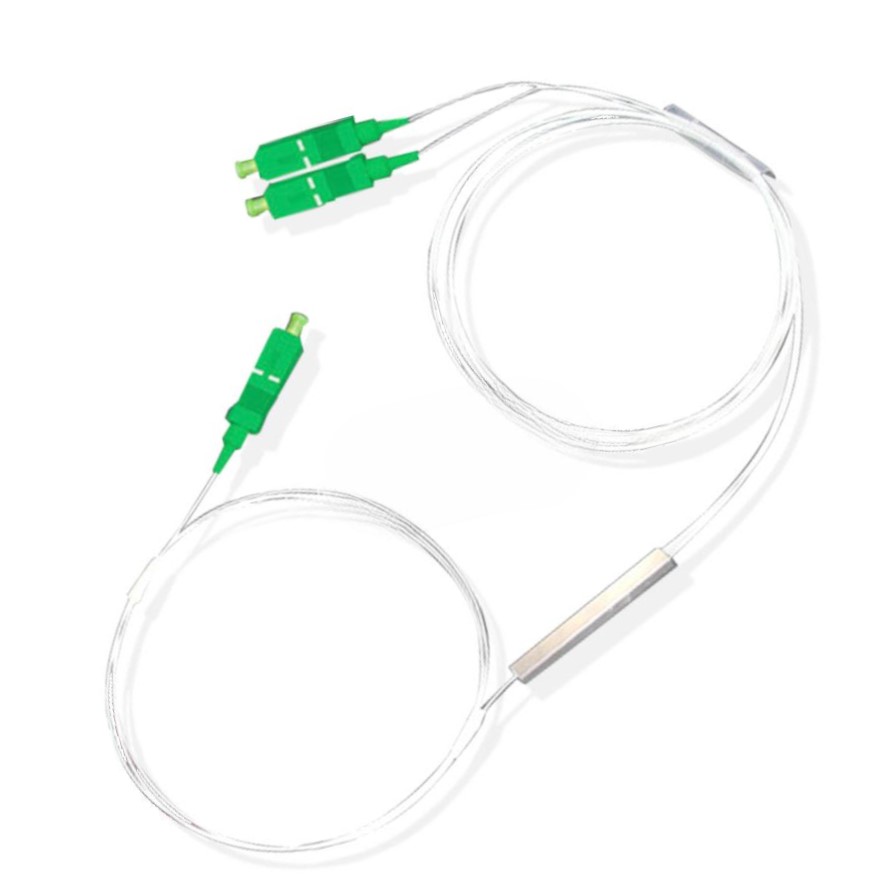

SC/APC 1×2 Fiber Splitter Brand New Blockless Type 250um SC
The SC/APC 1×2 Fiber Splitter Brand New Blockless is a premium-grade passive optical device that evenly splits a single optical input into two reliable output signals with outstanding stability and low insertion loss. Its blockless 250μm bare fiber design makes it extremely compact and flexible for installation in tight spaces, such as splice trays and fiber distribution boxes.
Key Features
-
Splitter Configuration: 1 input × 2 outputs
-
Connector Type: SC/APC for high return loss and superior connection quality
-
Fiber Type: 250μm bare fiber for easy splicing and handling
-
Compact Blockless Design: Lightweight, saves space in distribution frames
-
Excellent Splitting Performance: Low insertion loss with uniform signal distribution
-
High Reliability: Telcordia-compliant, rigorously tested for harsh environments
-
Wide Wavelength Compatibility: 1260–1650 nm, ideal for FTTH, PON, and CATV
Technical Specifications
| Parameter | Specification |
|---|---|
| Splitter Type | PLC Blockless 1×2 |
| Connector | SC/APC |
| Fiber Type | G657A1 or G652D, 250μm bare fiber |
| Insertion Loss | ≤ 4.0 dB (typical) |
| Uniformity | ≤ 0.5 dB |
| Return Loss | ≥ 55 dB |
| Wavelength Range | 1260 nm – 1650 nm |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | Telcordia GR-1209/1221, RoHS compliant |
SC/APC 1×2 Fiber Splitter Applications
FTTH/FTTx Networks: Ideal for cost-effective signal distribution to multiple subscribers
PON Networks (GPON/EPON): Efficiently split signals from OLTs to ONUs
CATV Systems: Stable signal distribution for cable TV networks
Data Centers & LAN: Perfect for passive optical LANs and enterprise fiber networks
Testing & Monitoring: Reliable for lab and field test applications
Customization & OEM Services
Connector Options: SC/APC, SC/UPC, LC/APC, LC/UPC, and custom lengths on request
Private Labeling: Custom logo and packaging for resellers and integrators
Pre-Terminated Kits: Available with fan-out tubing and protective sleeves
Extended Testing: Optional burn-in and project-specific inspections
SC/APC 1×2 Fiber Splitter Wholesale & Bulk Advantages
Competitive Factory Direct Pricing: Best rates for bulk orders and tenders
Global Shipping: Secure export packaging with fast delivery worldwide
Consistent Supply: Reliable availability for tight project schedules
Full Warranty & Support: 100% brand new, factory tested, and certified
Why Choose Our SC/APC 1×2 Blockless Fiber Splitter
High Precision & Low Loss: Uniform optical performance with minimal excess loss
Space-Saving & Flexible: Fits easily into existing fiber management systems
Field Proven Quality: Telcordia & RoHS compliant, trusted by major operators
Customizable Solutions: OEM options for unique network builds and branding
Contact Us for Best Pricing
Upgrade your passive fiber network with the SC/APC 1×2 Fiber Splitter Brand New Blockless Type 250um SC — the smart choice for modern FTTH and PON deployments.
