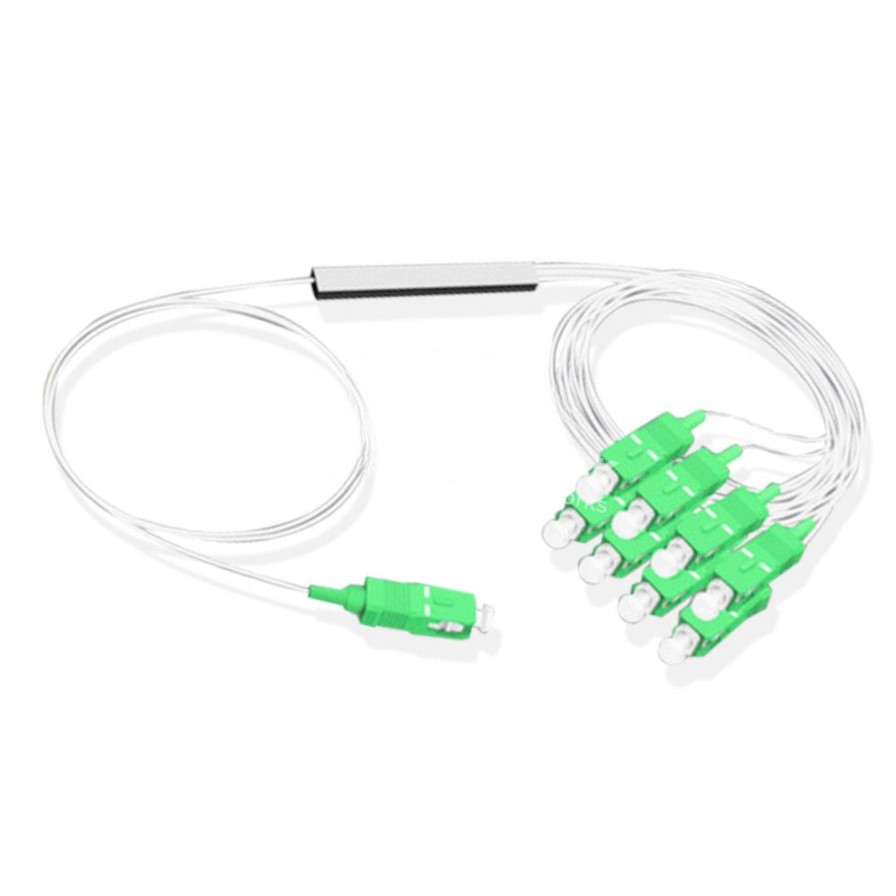

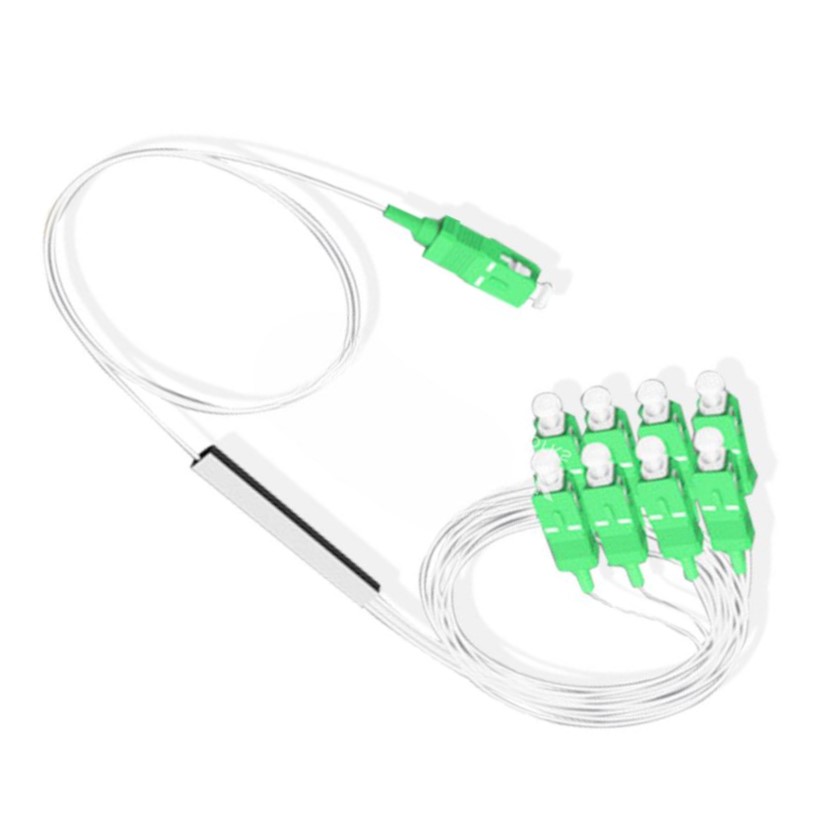

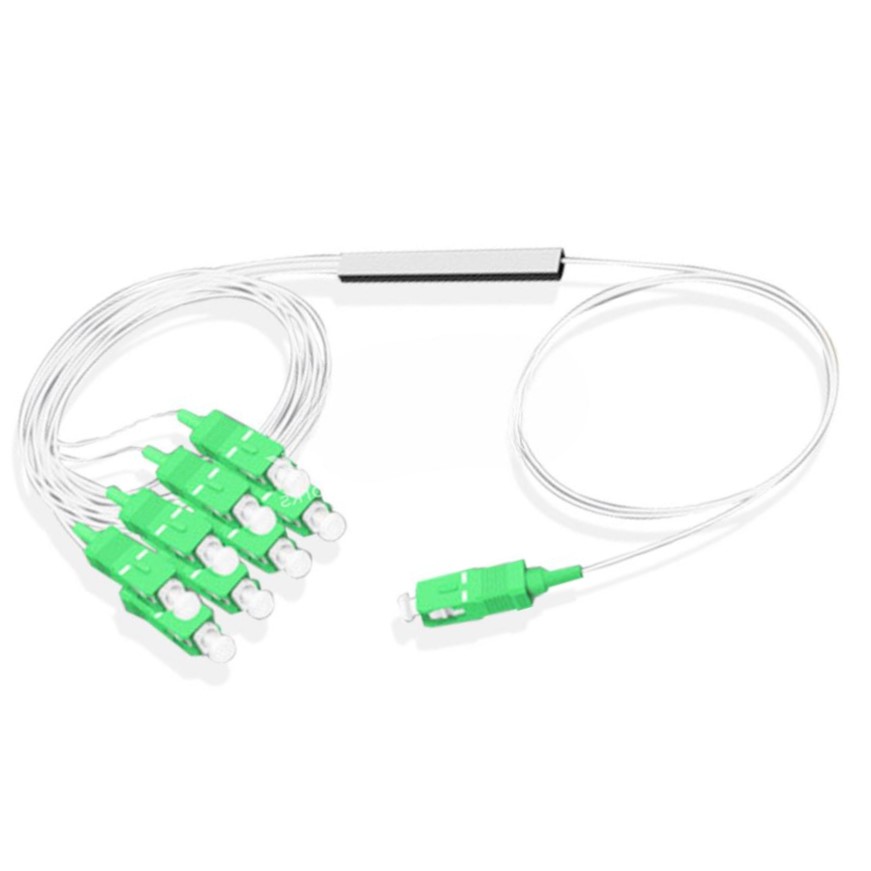

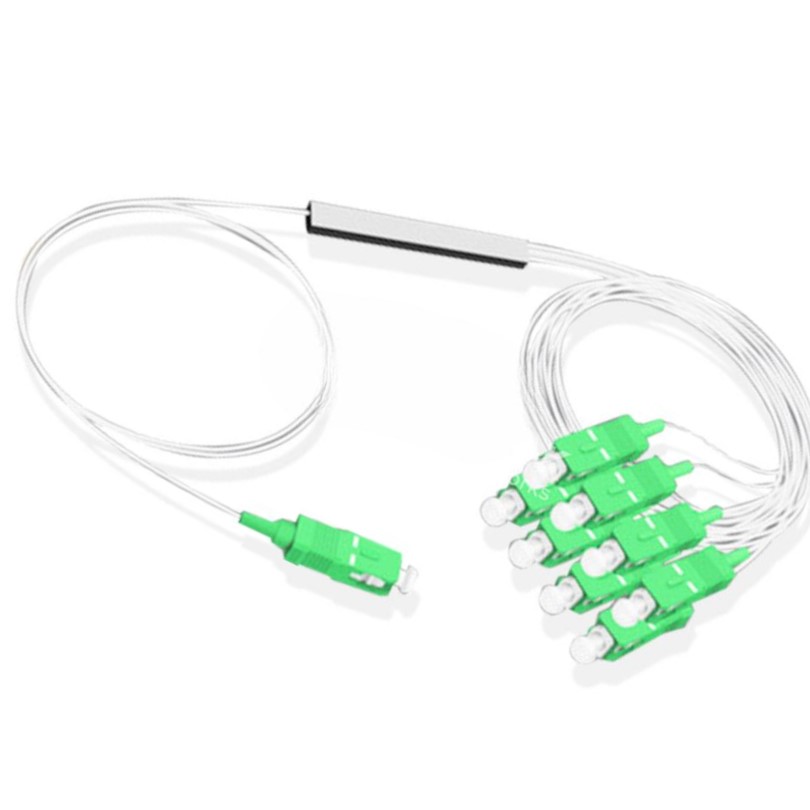

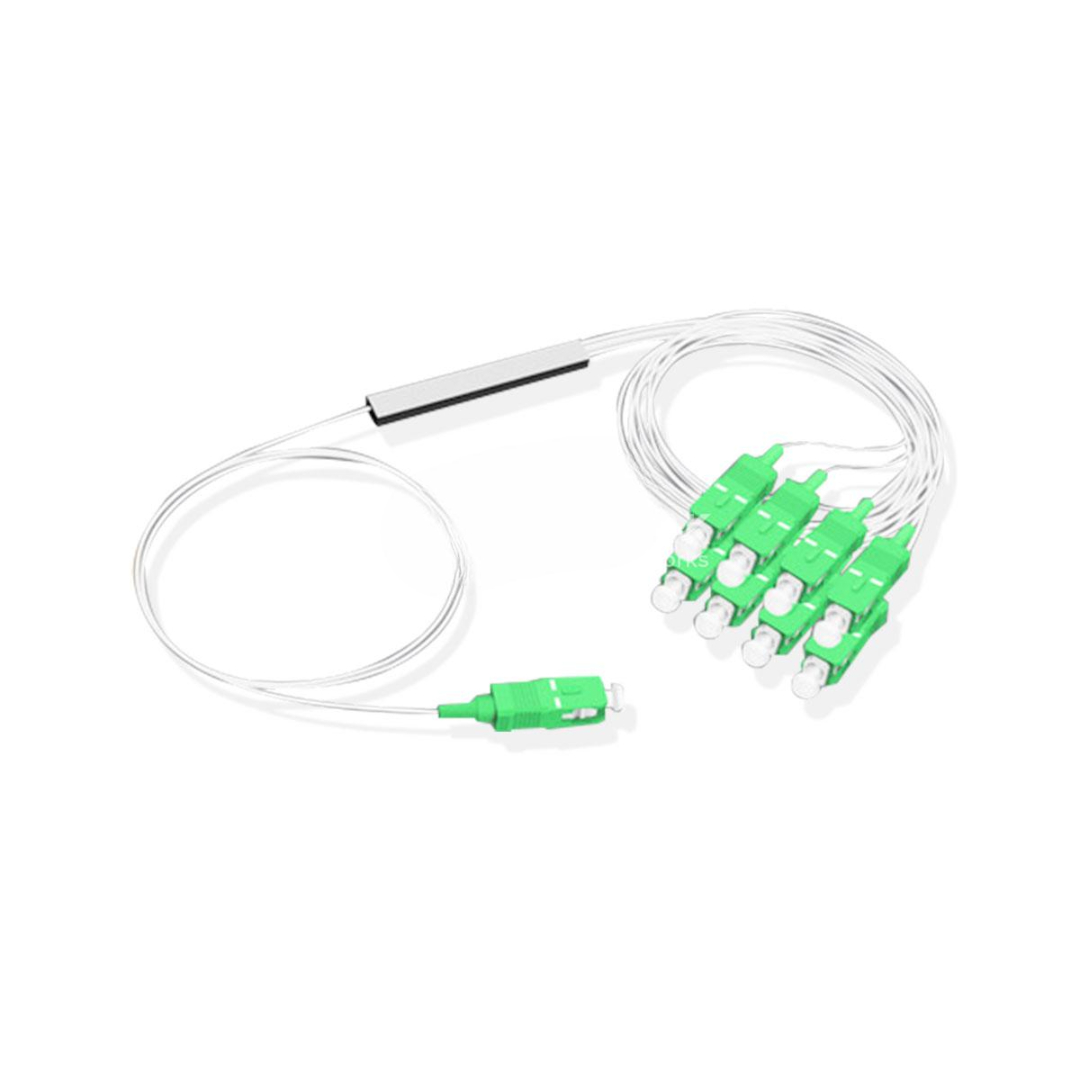

SC/APC 1×8 Blockless Fiber Splitter Brand New PLC 250um
The SC/APC 1×8 Fiber Splitter Blockless Brand New PLC 250um is a high-quality, compact passive optical component designed to evenly distribute an optical signal from one input to eight output fibers. This blockless design with 250µm bare fiber offers excellent installation flexibility for FTTH, PON, CATV, and FTTx network deployments where space and handling are critical factors.
Key Features
-
Configuration: 1 input × 8 outputs
-
Connector Type: SC/APC connectors for high return loss and low reflection
-
Fiber Type: 250µm bare fiber for easy splicing
-
Blockless Compact Design: Slim, lightweight, and easy to integrate into closures, splice trays, and fiber distribution boxes
-
Uniform Light Distribution: Excellent splitting uniformity and low excess loss
-
High Reliability: Fully tested to ensure stable performance across wide temperature ranges
-
Wide Wavelength Range: Operates from 1260–1650 nm, suitable for PON applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Splitter Type | PLC Blockless 1×8 |
| Connector | SC/APC |
| Fiber Type | G657A1 or G652D, 250µm bare fiber |
| Insertion Loss | ≤ 10.5 dB (typical) |
| Uniformity | ≤ 0.8 dB |
| Return Loss | ≥ 55 dB |
| Wavelength Range | 1260 nm – 1650 nm |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | Telcordia GR-1209/1221, RoHS compliant |
SC/APC 1×8 Fiber Splitter Applications
FTTH/FTTx Deployments: Distribute fiber optic signals to multiple end users in residential, commercial, and industrial settings
PON Networks (GPON/EPON): Splits optical line terminal (OLT) signals to optical network units (ONUs/ONTs) efficiently
CATV Systems: Ideal for distributing TV signals to multiple subscribers
LAN & Data Centers: Space-saving solution for passive optical networks and structured cabling
Test & Measurement: Useful for lab setups and on-site testing
Customization & OEM Options
Connector Customization: SC/APC, SC/UPC, LC/APC, LC/UPC available
Packaging & Branding: Private labeling, custom sleeves, and packaging for system integrators and resellers
Pre-Termination Services: Customized length, fan-out, and protective tubing options available
Extended Burn-In Testing: Available on request for large-scale critical network projects
SC/APC 1×8 Fiber Splitter Wholesale & Bulk Procurement
Factory-Direct Prices: Special rates for bulk orders and long-term contracts
Secure Global Shipping: Export-grade packaging for safe international transit
Reliable Stock: Fast delivery for projects with tight schedules
Full Warranty: 100% brand new with factory test reports and compliance certificates
Why Choose Our SC/APC 1×8 Fiber Splitter
Stable & Precise Splitting — Low insertion loss and excellent signal uniformity
Space-Saving Blockless Design — Ideal for crowded fiber trays and closures
Fully Compliant — Meets Telcordia standards, RoHS, and is field proven
Perfect for FTTH & PON — Widely used in GPON/EPON systems worldwide
Contact Us for Best Wholesale Pricing
Upgrade your optical distribution network with the SC/APC 1×8 Blockless Fiber Splitter Brand New PLC 250um — the cost-effective solution for high-performance fiber networks.
