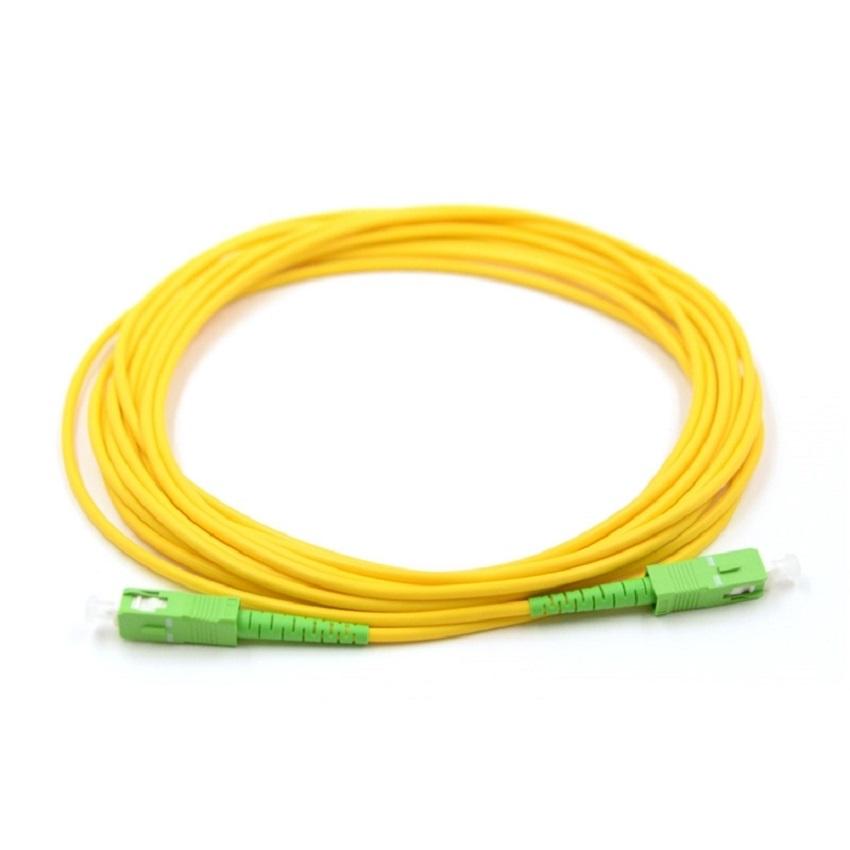

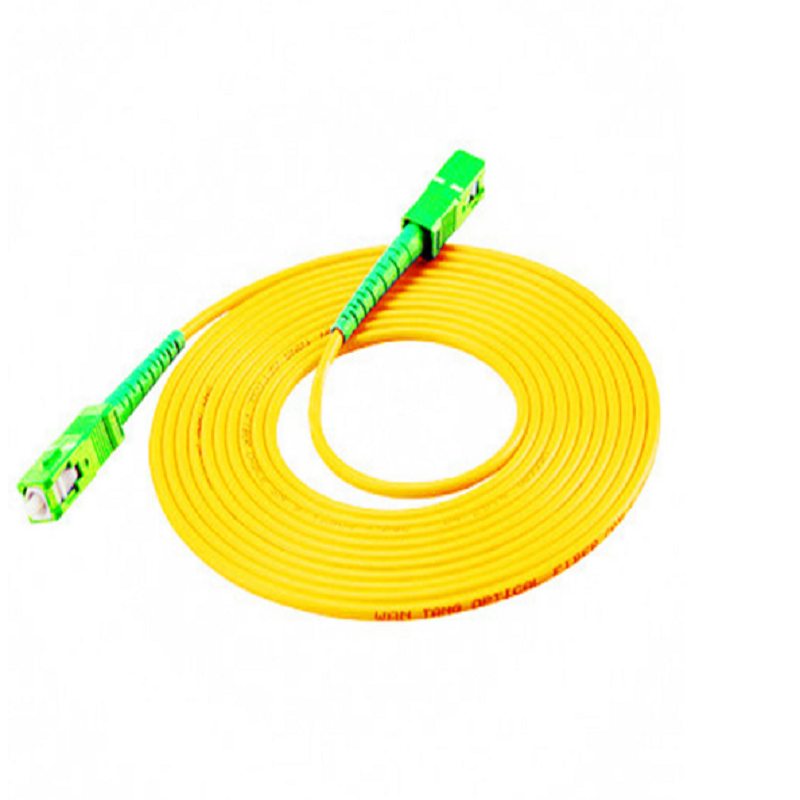

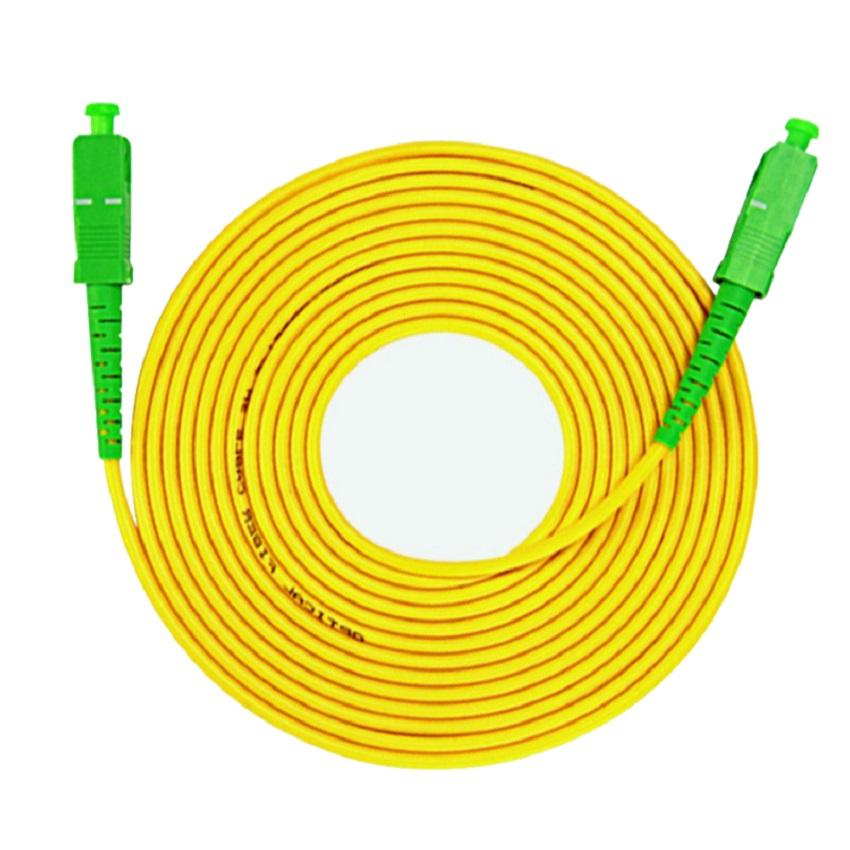

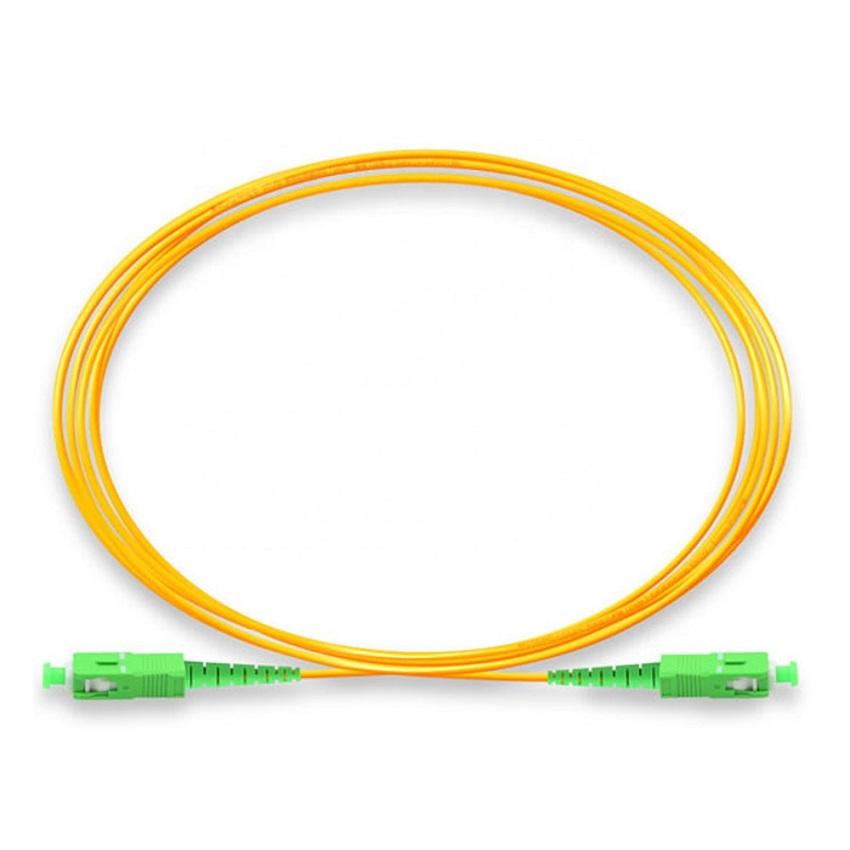

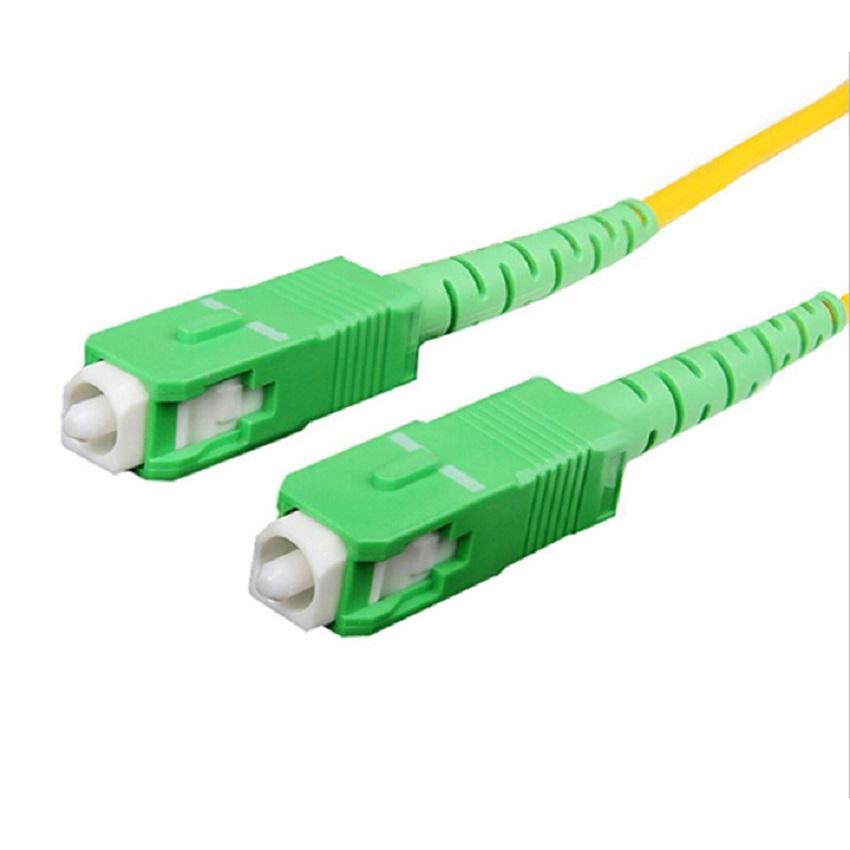

SC/APC to SC/APC Single Mode Simplex 2.0mm FiberJumper Fiber Optic Patch Cord 3mtr PVC
Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.
Patch Cords Features
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
ISO9001:2008,ROHS
Good echangeabilityGood Durability
High temperature stability
ISO9001:2008,ROHS
Patch Cords Applications
CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications
Specification
|
Mode
|
SM
|
MM
|
|||
|
Polish
|
UPC
|
APC
|
APC
|
||
|
Insertion Loss
|
Typical ≤0.2dB Maximum ≤0.3dB
|
≤0.25dB
|
|||
|
Return Loss
|
≥50dB
|
≥65dB
|
≥35dB
|
||
|
Interchangeability
|
≤0.2dB
|
||||
|
Repeatability
|
≤0.1dB
|
||||
|
Durability
|
≤0.2dB (1000 times mating)
|
||||
|
Tensile Strengh
|
> 10kg
|
||||
|
Temperature
|
≤0.2dB (-40+85 sustain 100 hours)
|
||||
|
Humidity
|
≤0.2dB (+25+65 93 R.H.100 hours)
|
||||
Ordering options

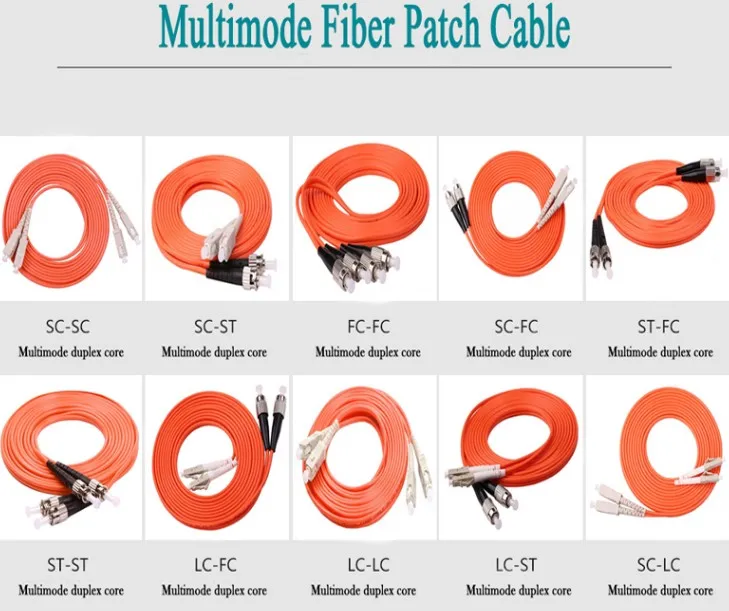

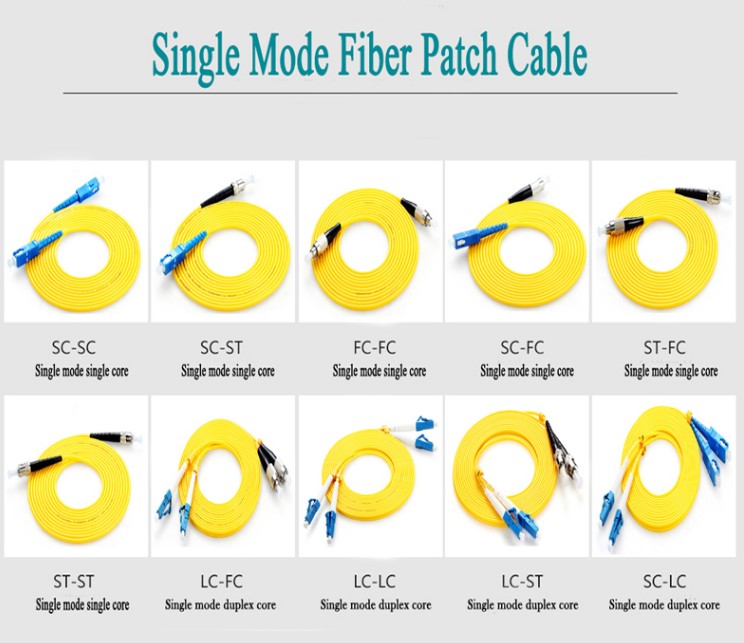

1) Connector type: FC, SC, LC, ST
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH.
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH.
How to correctly choose between PVC, LSZH and OFNP?
Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on.
Whether you choose PVC, LSZH or OFNP jacket depends on where you’re going to run the cable.
Whether you choose PVC, LSZH or OFNP jacket depends on where you’re going to run the cable.
Product Details
You will like this
Packing & Delivery
The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo or normal available
Inner packing: 1pcs in a plastic box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
The transportation : By air ,by sea ,by DHL ,Fedex TNT ,UPS …
Label printing : Customer logo or normal available
Inner packing: 1pcs in a plastic box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
The transportation : By air ,by sea ,by DHL ,Fedex TNT ,UPS …
Company Information
High Quality MPO Cable Guarantee
1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.
2. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.
