- Warranty Time:1 year
- MOQ:1SET
- Cable type:FTTH FLAT DROP CABLE
- Outer Jacket:PVC, LSZH,OFNP,PE
- Jacket color:customized
- Strength member:FRP Strength member
- Application:indoor /outdoor used
- Cable Length:20m.30m,50m or customized
-
- Packaging Details
Neutral Box ;Customized Package is Offered.
- Lead time:Quantity(units)1 – 100>100Lead time (days)10To be negotiated
|
FTTH drop cable fiber optic patch cord Performance Parameter
|
|||
|
Name
|
FTTH drop cable fiber optic patch cord
|
||
|
Ferrule type
|
zirconia ceramics ferrule
|
||
|
IL
|
≤0.3dB
|
RL
|
≥55dB
|
|
Fiber core
|
1,2,4 to 12
|
Durability
|
≥1000 times
|
|
Jacket
|
3.1*2.0 or 5.0*2.0mm PVC or LSZH
|
Wavelength
|
1310 1550nm
|
|
Length
|
1~1000 meter
|
Working temperature
|
-40℃~+80℃
|

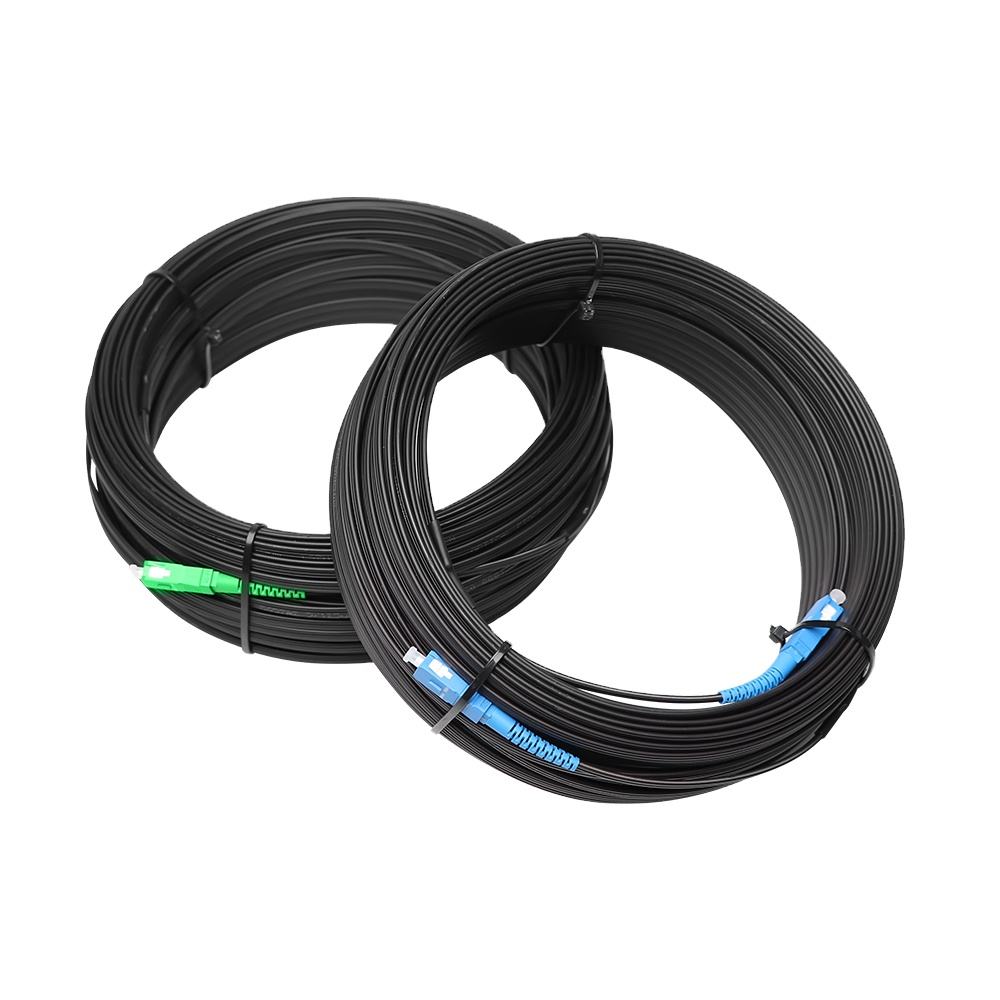

SC/PC APC Pigtail GJYXFCH Type Fiber Optic Drop Cable Patch Cord
(1) FTTH drop cable patch cord is specially for FTTH application, it can be used indoor or outdoor to access building.
(2) FTTH drop cable patch cord is used to connect to the end users’ homes, widely applied in access networks and FTTH indoor
cabling.
(3) FTTH drop cables are good to use for fiber to the home last mile solution, we provide FTTH drop cable with different counts
from 1, 2, 4, to 12.
(4) FTTH drop cable patch cord can be made with LC, SC, FC, ST, LC/APC, SC/APC, FC/APC and other types of connectors.
FEATURES
1.Price-Competitive
2.Low Insertion Loss & PDL
3.Factory-terminated and Tested
4.Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber
5.Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
6.Polishing Options: PC/UPC/APC
7.Feature Connector with Ceramic Ferrules
