SC/UPC 1×16 Cassette Brand New Fiber Splitter – 1.5m Length

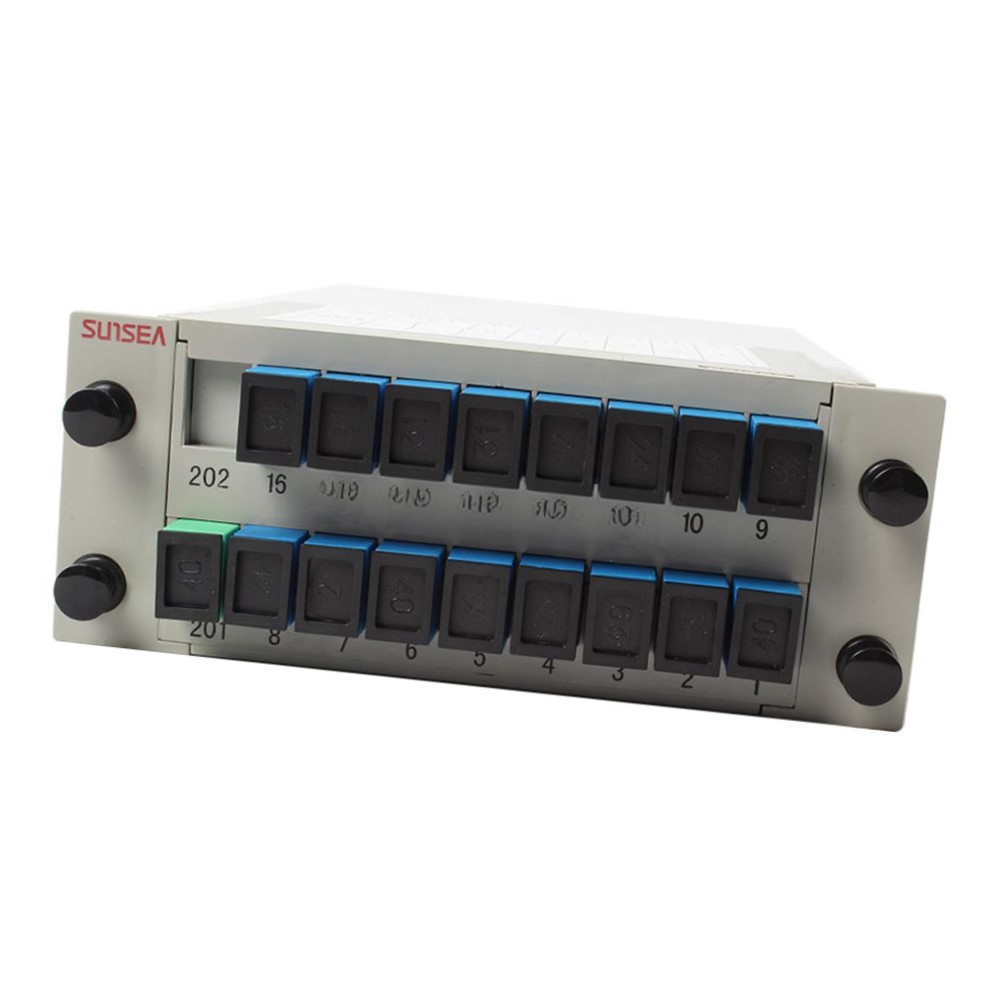

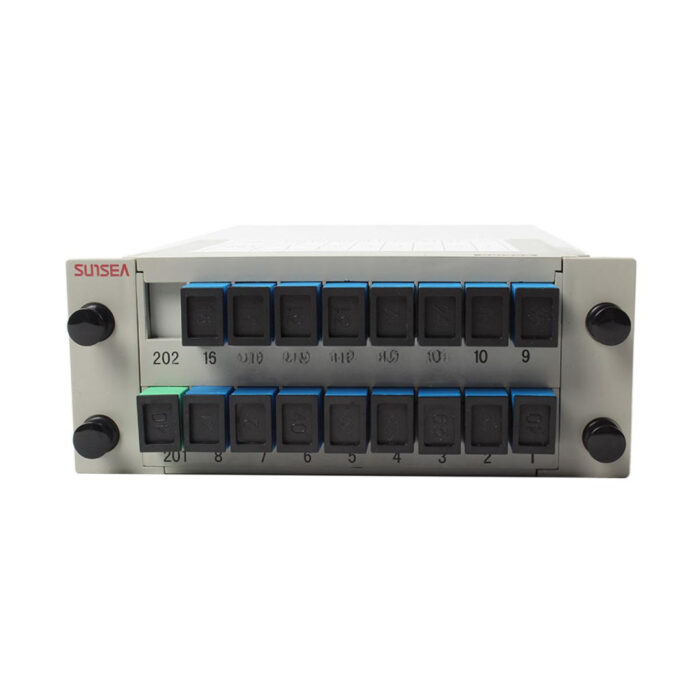

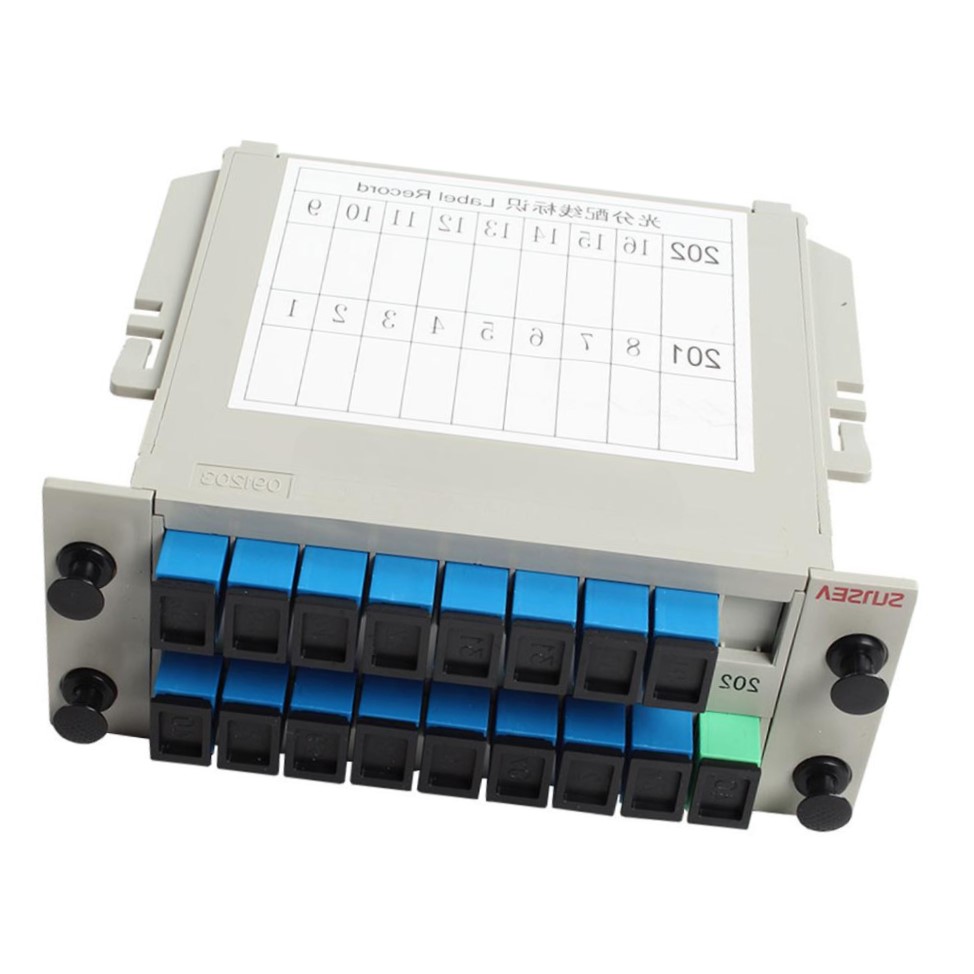

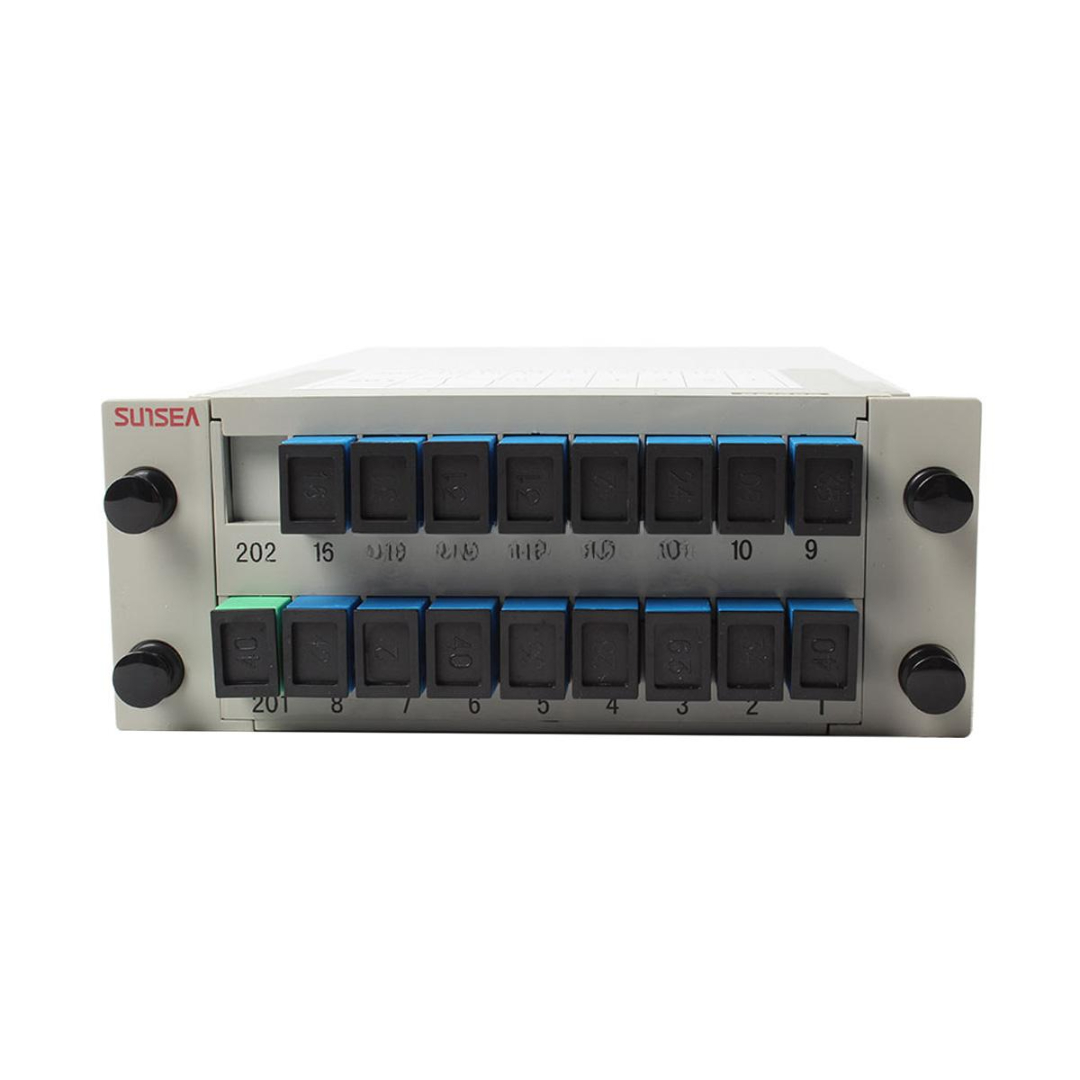

The SC/UPC 1×16 Cassette Fiber Splitter is a premium-grade PLC (Planar Lightwave Circuit) splitter, designed to evenly divide a single optical input signal into 16 output channels. It features SC/UPC pre-terminated connectors and 1.5-meter G.657A1 bend-insensitive single-mode fibers, housed in a durable ABS cassette enclosure that ensures easy integration in patch panels, ODFs, and fiber distribution boxes.
Ideal for FTTH networks, GPON/EPON systems, CATV, and enterprise applications, this splitter provides low insertion loss, high uniformity, and stable wavelength performance across the 1260–1650 nm spectrum.
Key Features
-
Model: SC/UPC 1×16 Cassette Fiber Splitter
-
Connector Type: SC/UPC on both input and output sides
-
Splitter Type: PLC (Planar Lightwave Circuit)
-
Enclosure: ABS Cassette Housing
-
Fiber Type: G.657A1 Bend-Insensitive Single-Mode
-
Insertion Loss: ≤ 13.5 dB (typical ≤ 13.0 dB)
-
Return Loss: ≥ 55 dB
-
Fiber Length: 1.5 meters (standard, customizable)
-
Operating Temperature: -40°C to +85°C
-
Standards Compliance: Telcordia GR-1209/1221, ITU-T G.671, RoHS
Technical Specifications
| Specification | Details |
|---|---|
| Split Ratio | 1×16 |
| Connector Type | SC/UPC |
| Polish Type | UPC (Ultra Physical Contact) |
| Fiber Type | G.657A1 Single-mode |
| Fiber Length | 1.5 meters |
| Insertion Loss | ≤ 13.5 dB |
| Return Loss | ≥ 55 dB |
| Uniformity | ≤ 1.5 dB |
| PDL (Polarization Dependent Loss) | ≤ 0.3 dB |
| Directivity | ≥ 55 dB |
| Wavelength Range | 1260–1650 nm |
| Storage Temperature | -40°C to +85°C |
| Cassette Material | Flame-retardant ABS Plastic |
| Warranty | 1-Year Manufacturer Warranty |
SC/UPC 1×16 Cassette Applications
-
FTTH / FTTx Access Networks – Distributes OLT signal to 16 end users
-
GPON/EPON Systems – Passive optical branching for medium-scale networks
-
CATV Systems – Reliable signal splitting for video/data services
-
Enterprise & Campus Networks – Efficient signal routing for large buildings
-
Telecom Closures / Cabinets – Space-efficient installations in field environments
-
Optical Monitoring & Testing – Test port branching for diagnostics
Customization & OEM Options
-
Connector Alternatives: SC/APC, LC/UPC, LC/APC, FC, ST available
-
Cassette Type Options: LGX cassette, mini steel tube, or bare fiber version
-
Jacket Diameter Choices: 0.9mm, 2.0mm, 3.0mm fiber jacket
-
Fiber Length Customization: Available from 0.5m to 3.0m per request
-
Labeling & Port Marking: Numbered ports, colored sleeves, barcode or QR label
-
OEM Branding: Company logo, part number, and custom packaging
-
Custom Wavelength Support: For DWDM/CWDM monitoring or specialty networks
SC/UPC 1×16 Cassette Splitter Wholesale & Global Supply
-
Bulk Factory Pricing: Competitive OEM rates for telecom installers and ISPs
-
100% Tested: Each unit tested for insertion/return loss before dispatch
-
Safe Export Packaging: Anti-static bags, foam-protected cassettes
-
Fast Shipping: Ready inventory and expedited international logistics
-
Support Services: Optical network design consultation and deployment advice
Why Choose the SC/UPC 1×16 Cassette Fiber Splitter?
-
Stable Performance with Low Loss – High-quality PLC chip for reliable signal transmission
-
Compact and Organized Design – Easy installation in standard rackmount ODFs
-
Pre-Terminated for Speed – Plug-and-play deployment with zero field polish
-
Telecom-Grade Durability – Designed for harsh environments and long service life
-
Scalable & Customizable – Built for various topologies and deployment needs
Request a Quote or Place a Bulk Order Today
Elevate your fiber distribution network with the SC/UPC 1×16 Cassette Fiber Splitter – an essential component for efficient, cost-effective, and professional-grade optical systems.
Contact us now for datasheets, OEM customization, and wholesale pricing details!
