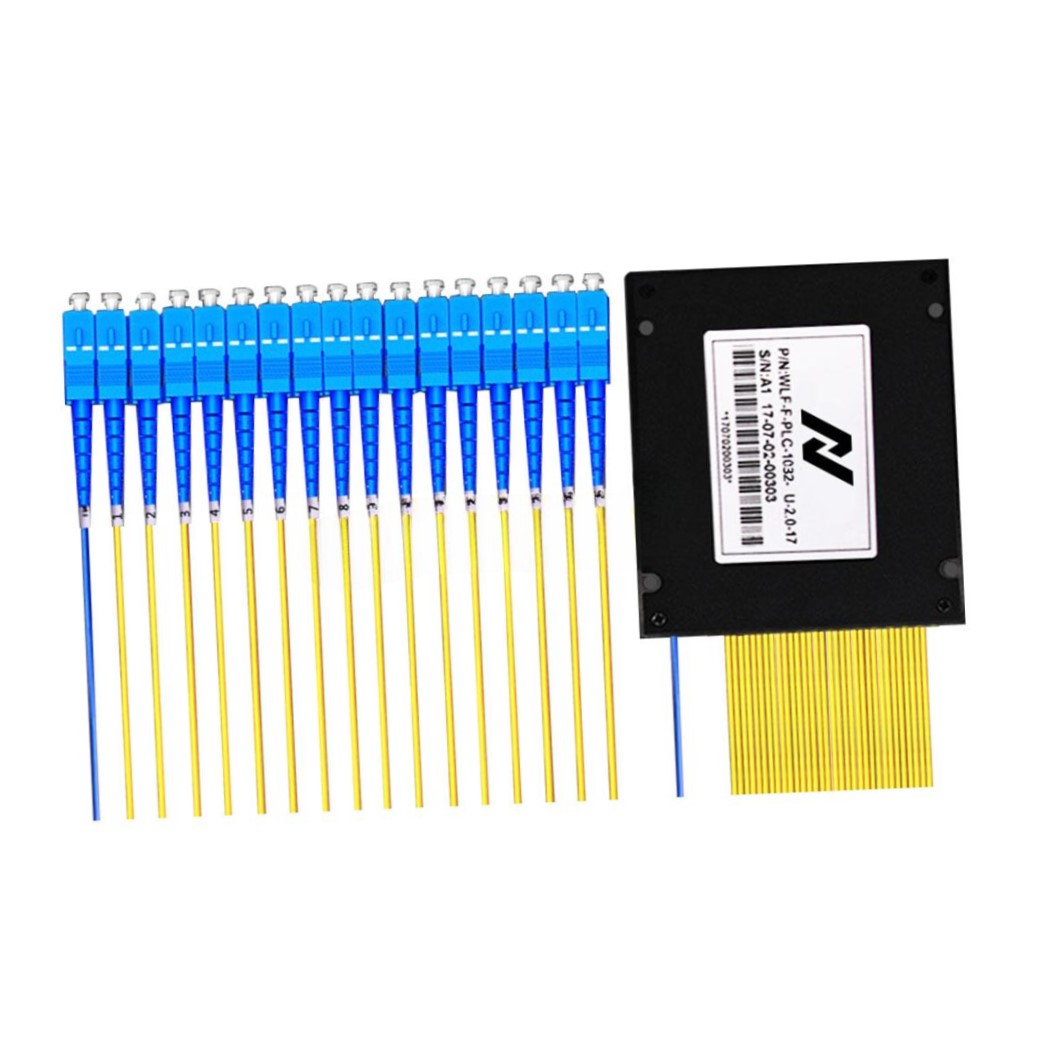

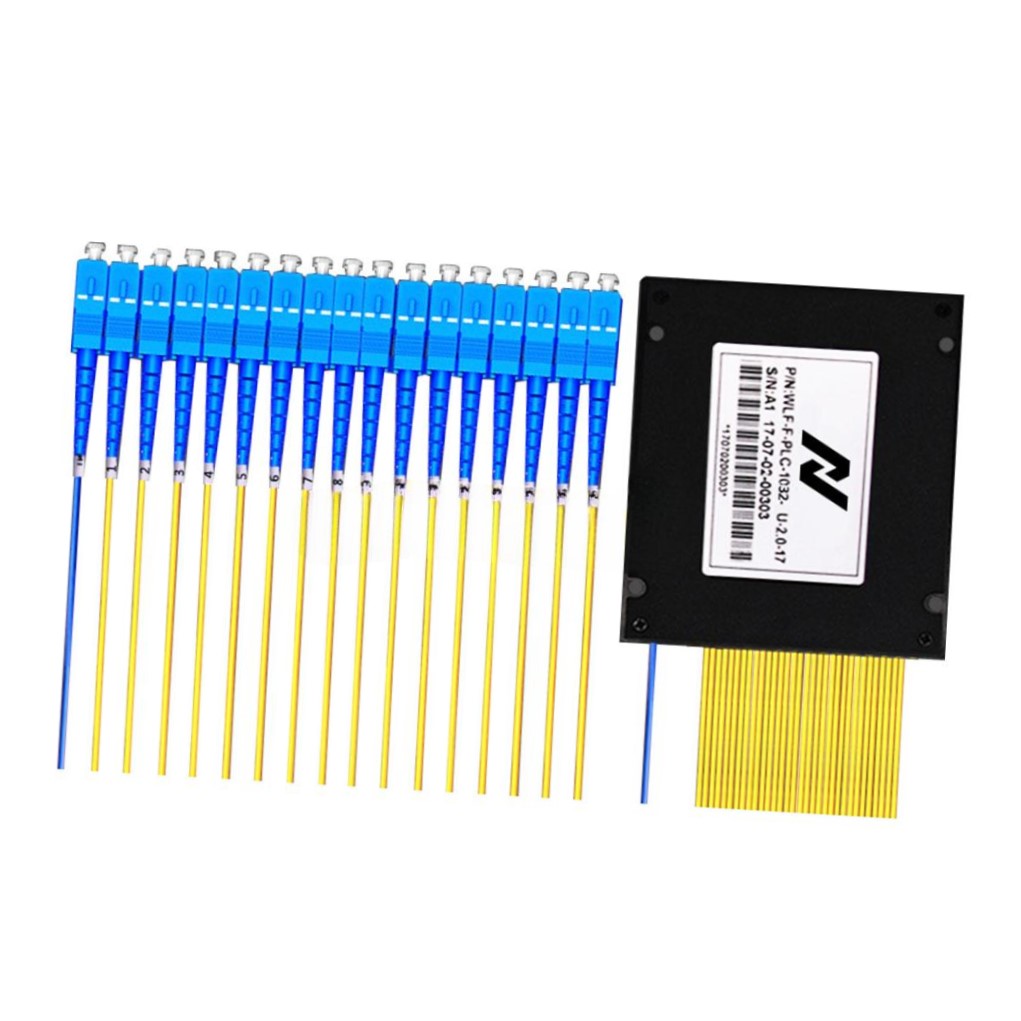

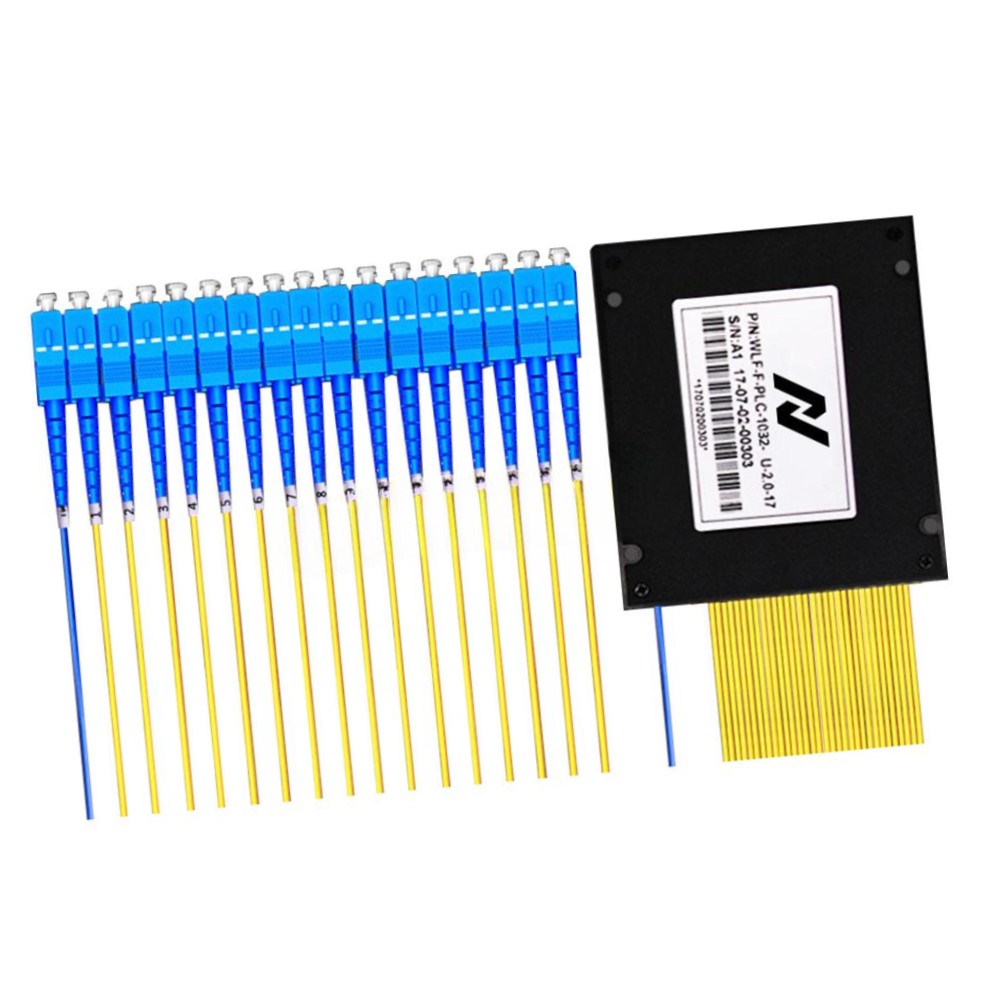

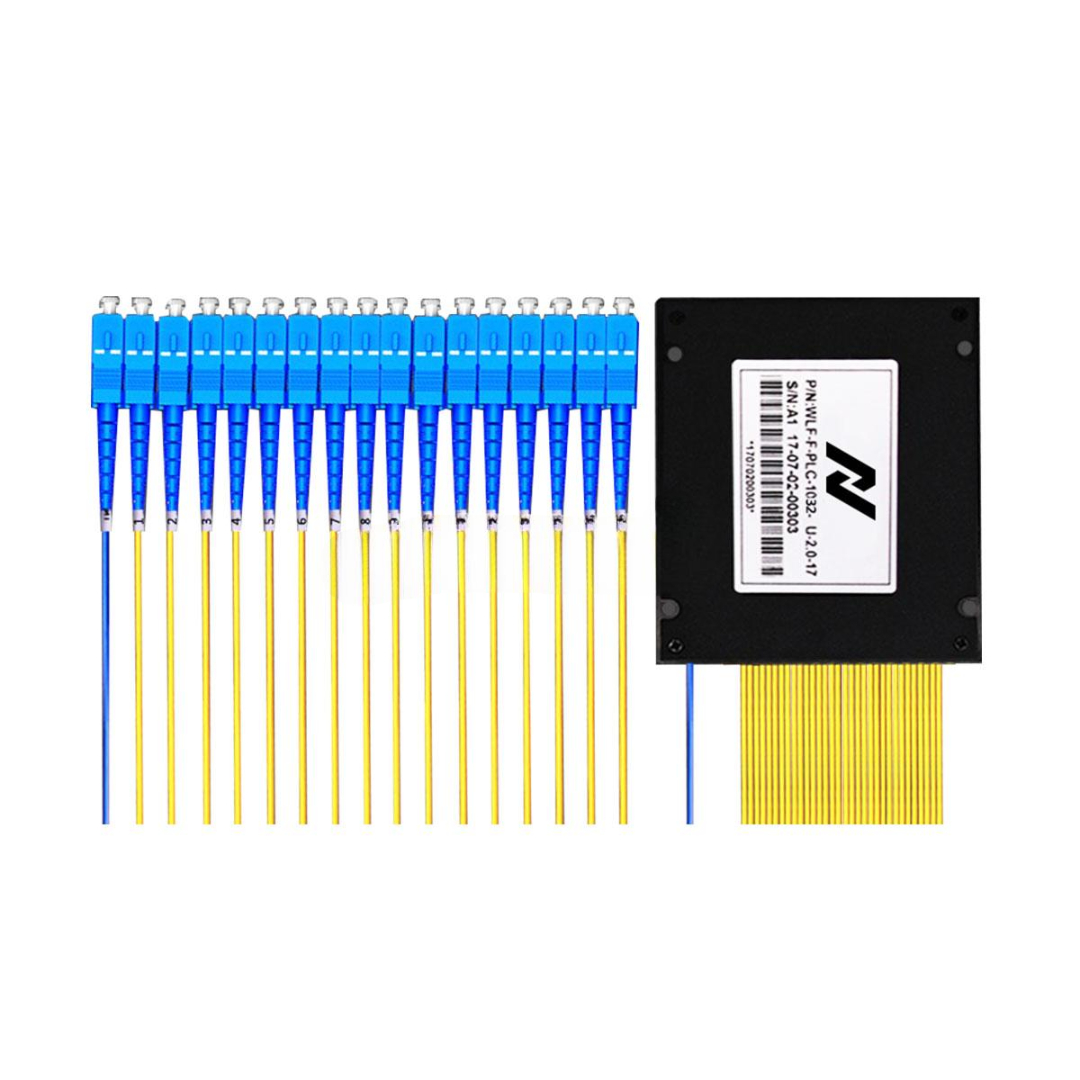

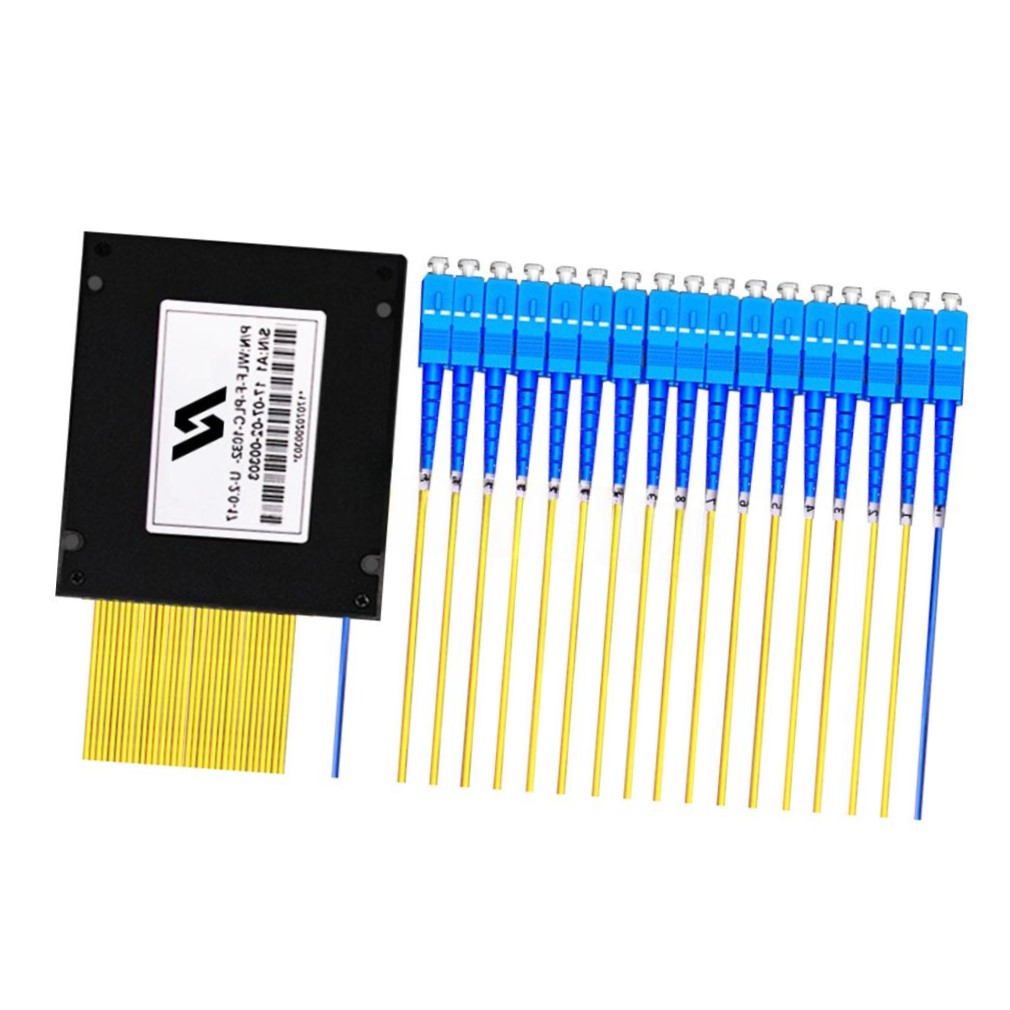

SC/UPC 1×16 Pigtail Fiber Brand New Type Splitter 1.5m Length
The SC/UPC 1×16 Pigtail Fiber Splitter (1.5m Length) is a high-quality passive optical component designed to split a single optical signal into 16 output channels with minimal signal loss. Equipped with SC/UPC connectors and 1.5-meter pre-terminated pigtails, this splitter offers exceptional performance, stability, and ease of integration in FTTH, FTTx, and GPON/EPON networks.
Engineered for telecom, enterprise, and data center applications, this 1×16 pigtail splitter is built using bend-insensitive single-mode fiber (G.657A1) to ensure reliable performance in high-density or space-constrained environments.
Key Features
-
Model: SC/UPC 1×16 Pigtail Fiber Splitter
-
Connector Type: SC/UPC on all 16 output and 1 input fiber
-
Fiber Length: 1.5 meters (standard, customizable)
-
Splitter Type: PLC (Planar Lightwave Circuit) Technology
-
Insertion Loss: ≤ 13.5 dB (typical ≤ 13.0 dB)
-
Return Loss: ≥ 55 dB (UPC polish)
-
Uniformity: ≤ 1.0 dB across output channels
-
Fiber Type: G.657A1 single-mode, bend-insensitive
-
Packaging: Bare fiber or ABS fanout module (optional)
-
Temperature Range: -40°C to +85°C (stable operation)
Technical Specifications
| Specification | Details |
|---|---|
| Split Ratio | 1×16 |
| Connector Type | SC/UPC (others optional) |
| Fiber Length | 1.5 meters per leg (custom lengths available) |
| Fiber Type | Single-mode G.657A1 |
| Insertion Loss | ≤ 13.5 dB |
| Return Loss | ≥ 55 dB |
| PDL (Polarization Dependent Loss) | ≤ 0.3 dB |
| Uniformity | ≤ 1.0 dB |
| Operating Wavelength | 1260–1650 nm |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | Telcordia GR-1209/GR-1221, RoHS, CE |
| Warranty | 1-Year Manufacturer Warranty |
SC/UPC 1×16 Pigtail Fiber Applications
-
FTTH & FTTx Deployments – Distribute optical signals to multiple subscribers
-
Passive Optical Networks (GPON/EPON) – OLT to ONU signal splitting
-
Optical Distribution Frames (ODFs) – Easy integration with SC/UPC patch panels
-
Telecom & CATV Systems – Signal broadcasting or monitoring points
-
Data Centers & Enterprises – Reliable optical signal distribution infrastructure
Customization & OEM Options
-
Connector Options: SC/APC, LC/UPC, LC/APC, FC, ST (on request)
-
Fiber Lengths: 0.5m, 1m, 2m, 3m, or customized per leg
-
Packaging Types: ABS box, LGX module, mini steel tube, bare fiber
-
Labeling: Private labeling with your brand or serialized port IDs
-
Jacket Colors: Yellow (default), custom jacket colors available
-
Mixed Polish Options: UPC on input, APC on outputs (or custom combos)
SC/UPC 1×16 Pigtail Fiber Wholesale & Global Supply
-
Bulk Availability: Stocked for large-scale telecom and fiber rollouts
-
Secure Packaging: Individually bagged and anti-static protected
-
Worldwide Shipping: Compliant with international logistics standards
-
Factory Direct Supply: Original, tested OEM products at competitive pricing
-
Full Documentation: Datasheets, test reports, and certificates included
-
After-Sales Support: Expert assistance for integration or technical issues
Why Choose the SC/UPC 1×16 Pigtail Fiber
-
High Precision Performance – Low insertion loss and high reliability
-
Easy Field Integration – Pre-terminated SC/UPC pigtails, splice-ready
-
Durable and Compact – Ideal for dense fiber management systems
-
Cost-Efficient Solution – Reduces installation time and labor costs
-
Customization Flexibility – Tailored solutions for all network scales
Request Pricing, Samples & Custom Orders Today
Whether you’re building an FTTH network, upgrading a central office, or deploying broadband in a multi-tenant environment, the SC/UPC 1×16 Pigtail Fiber Splitter (1.5m) delivers dependable performance and integration ease.
Contact us now for bulk pricing, OEM customization, and fast worldwide delivery!
