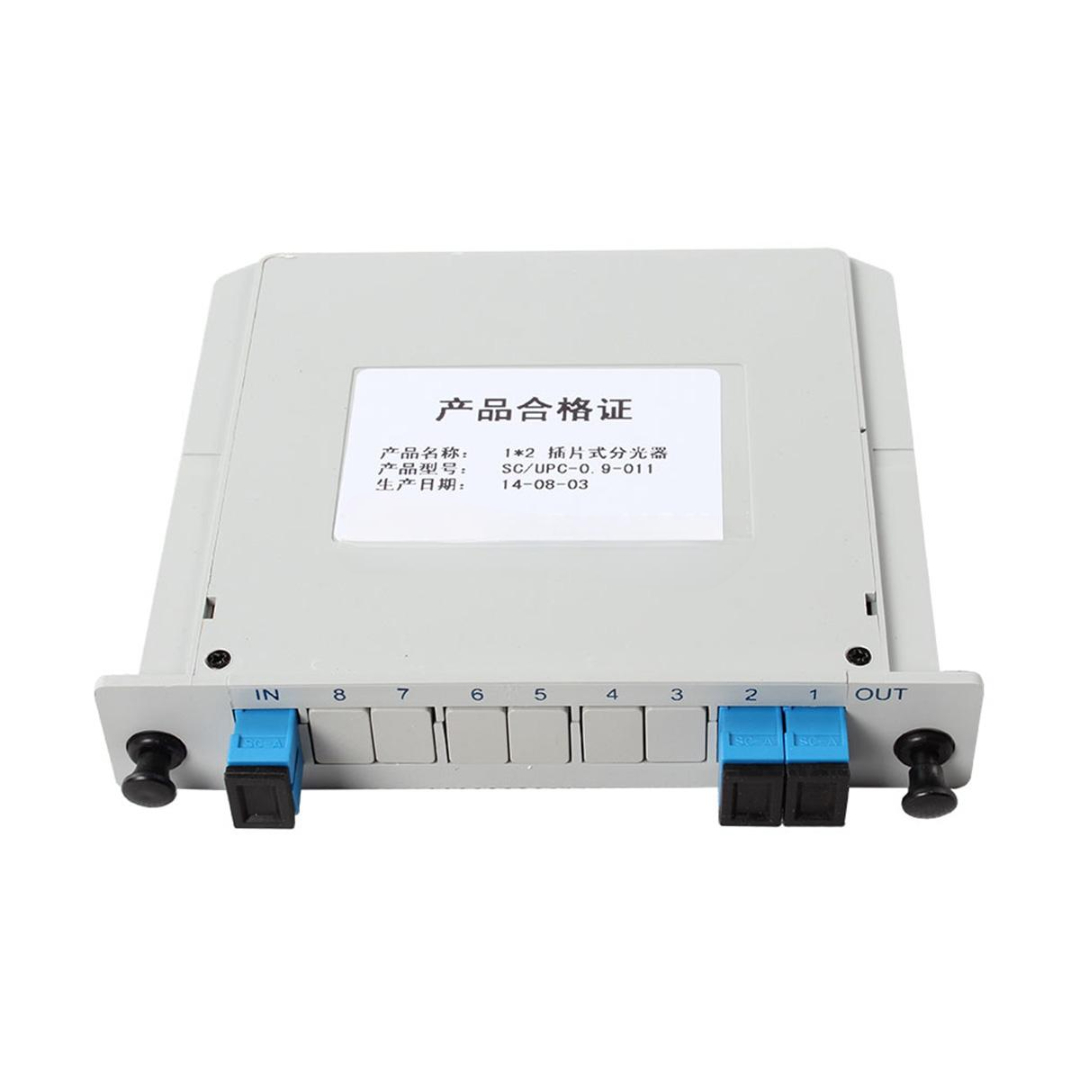

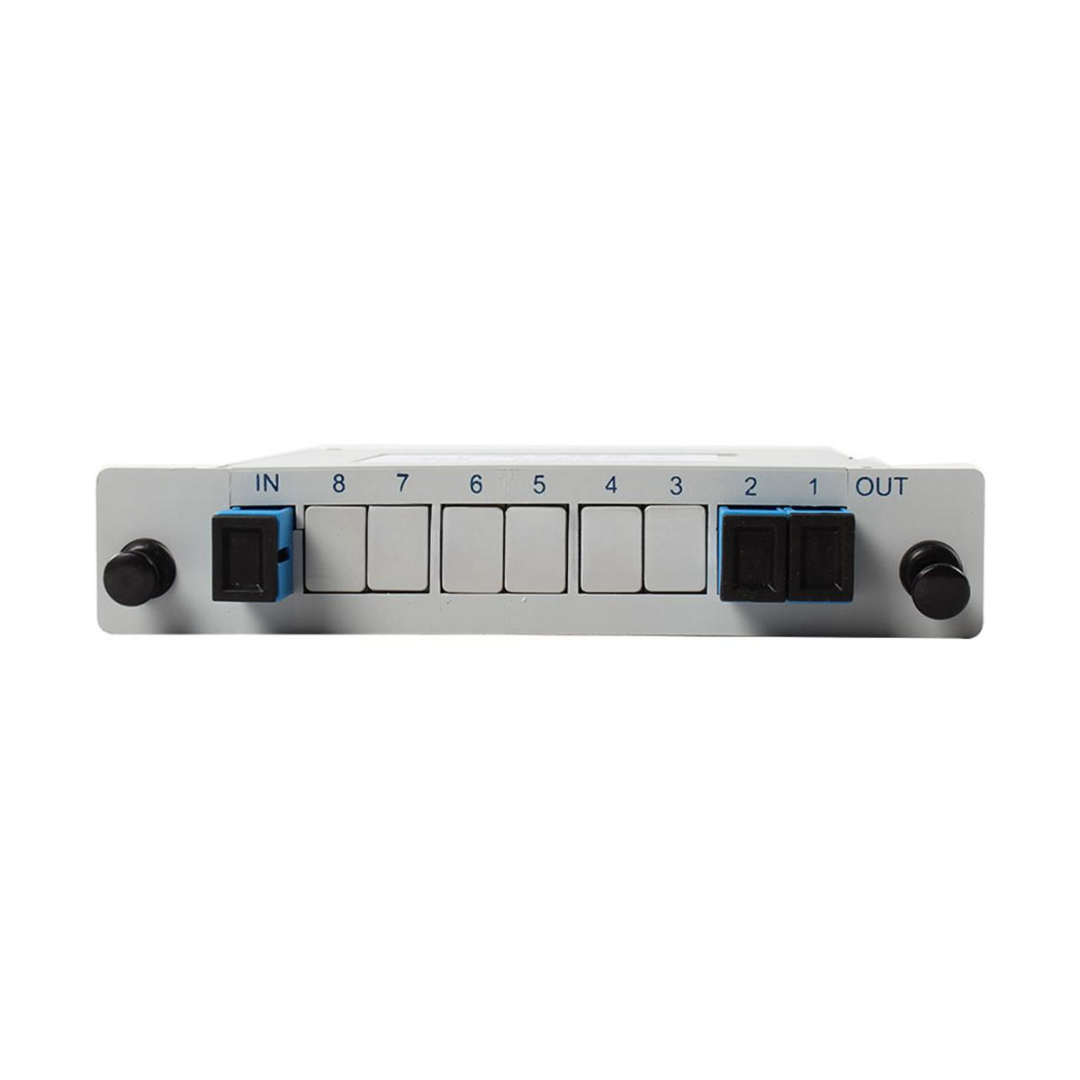

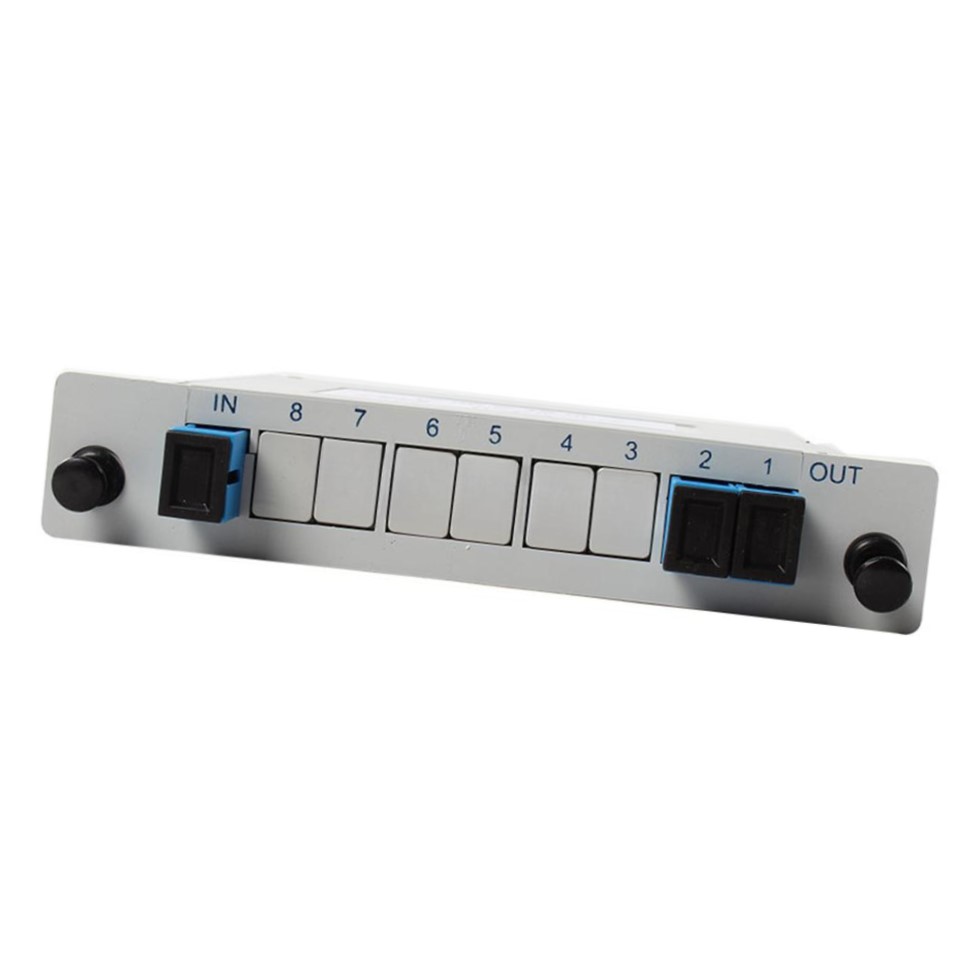

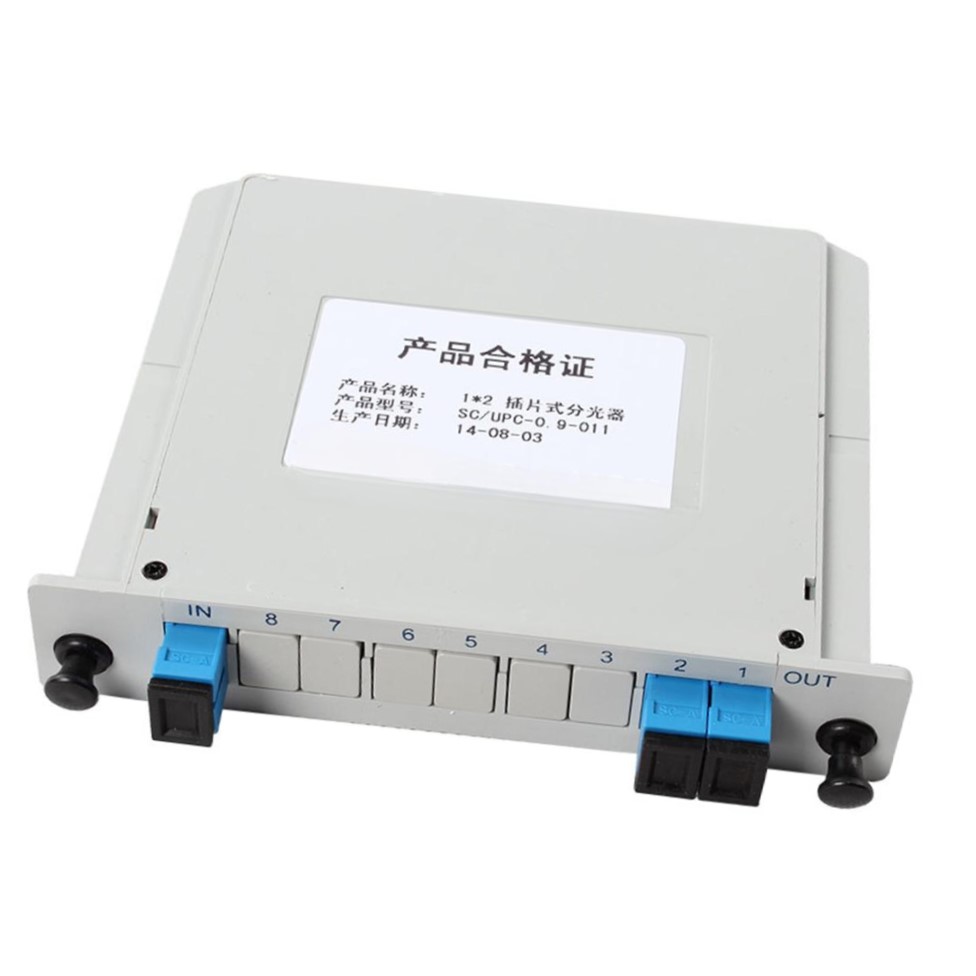

SC/UPC 1×2 Cassette Brand New Fiber Splitter – 1.5m Length
The SC/UPC 1×2 Cassette Fiber Splitter is a high-performance PLC (Planar Lightwave Circuit) splitter housed in a compact and durable ABS cassette enclosure, designed for easy installation and superior optical signal distribution. With 1 input and 2 output SC/UPC connectors and 1.5-meter bend-insensitive G.657A1 fiber pigtails, it ensures low insertion loss, excellent uniformity, and stable wavelength performance.
Ideal for FTTH networks, PON systems, and data center applications, this factory-terminated and pre-assembled splitter allows for plug-and-play deployment in rack units, distribution boxes, or wall-mounted panels.
Key Features
-
Model: SC/UPC 1×2 Cassette Fiber Splitter
-
Connector Type: SC/UPC (pre-terminated on all legs)
-
Structure Type: PLC Splitter (Planar Lightwave Circuit)
-
Enclosure: ABS Cassette for organized fiber management
-
Fiber Type: Single-mode G.657A1 (bend-insensitive)
-
Insertion Loss: ≤ 4.2 dB (typical ≤ 3.8 dB)
-
Return Loss: ≥ 55 dB
-
Uniformity: ≤ 0.5 dB
-
Fiber Length: 1.5 meters standard (customizable)
Technical Specifications
| Specification | Details |
|---|---|
| Split Ratio | 1×2 |
| Connector Type | SC/UPC |
| Polish Type | UPC (Ultra Physical Contact) |
| Fiber Type | G.657A1 Single-mode |
| Fiber Length | 1.5 meters (standard) |
| Insertion Loss | ≤ 4.2 dB |
| Return Loss | ≥ 55 dB |
| Uniformity | ≤ 0.5 dB |
| PDL (Polarization Dependent Loss) | ≤ 0.2 dB |
| Wavelength Range | 1260–1650 nm |
| Directivity | ≥ 55 dB |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Housing Material | Flame-retardant ABS plastic |
| Standard Compliance | Telcordia GR-1209, GR-1221, RoHS |
| Warranty | 1-Year Manufacturer Warranty |
SC/UPC 1×2 Cassette Applications
-
FTTH (Fiber to the Home) – Divides a single input from OLT into two customer endpoints
-
GPON/EPON Networks – Simple signal branching for small-scale deployments
-
CATV Systems – Supports optical video signal distribution
-
Enterprise & Campus Networks – Easy signal splitting in LAN/WAN setups
-
Test Labs & Optical Monitoring – Tap signals for diagnostics or feedback
Customization & OEM Options
-
Connector Types: SC/APC, LC/UPC, LC/APC, FC available
-
Fiber Jacket Options: 0.9mm/2.0mm/3.0mm with PVC or LSZH jackets
-
Fiber Length: Standard 1.5m or custom lengths (0.5m, 1m, 2m, etc.)
-
Cassette Options: LGX cassette, mini steel tube, or bare fiber formats
-
Logo & Labeling: OEM branding, serialized port labeling, color-coded sleeves
-
Port Polish Mix: Input/output combinations with APC and UPC available
SC/UPC 1×2 Cassette Splitter Wholesale & Global Supply
-
Factory OEM Supply: Bulk availability with cost-effective pricing
-
Pre-Assembled & Tested: 100% inspected for insertion/return loss compliance
-
Secure Export Packaging: Dust-capped connectors, foam-protected, moisture-sealed
-
Fast Dispatch: Ready stock and expedited international delivery available
-
Technical Support: Configuration guidance and fiber network design help upon request
Why Choose the SC/UPC 1×2 Cassette Fiber Splitter?
-
High Precision & Low Loss – Consistent optical power balance
-
Pre-Terminated for Speed – Eliminates time-consuming field assembly
-
Durable Cassette Format – Organized, safe, and easy to mount
-
Standards Compliant – Reliable for telecom and industrial-grade networks
-
Flexible Customization – Connector, polish, label, and housing per project
Request a Quote or Bulk Order Today
Deploy the SC/UPC 1×2 Cassette Fiber Splitter in your next optical network build for simplified installation, reliable signal splitting, and professional performance.
Contact us now for pricing, technical datasheets, OEM services, and volume procurement support!
