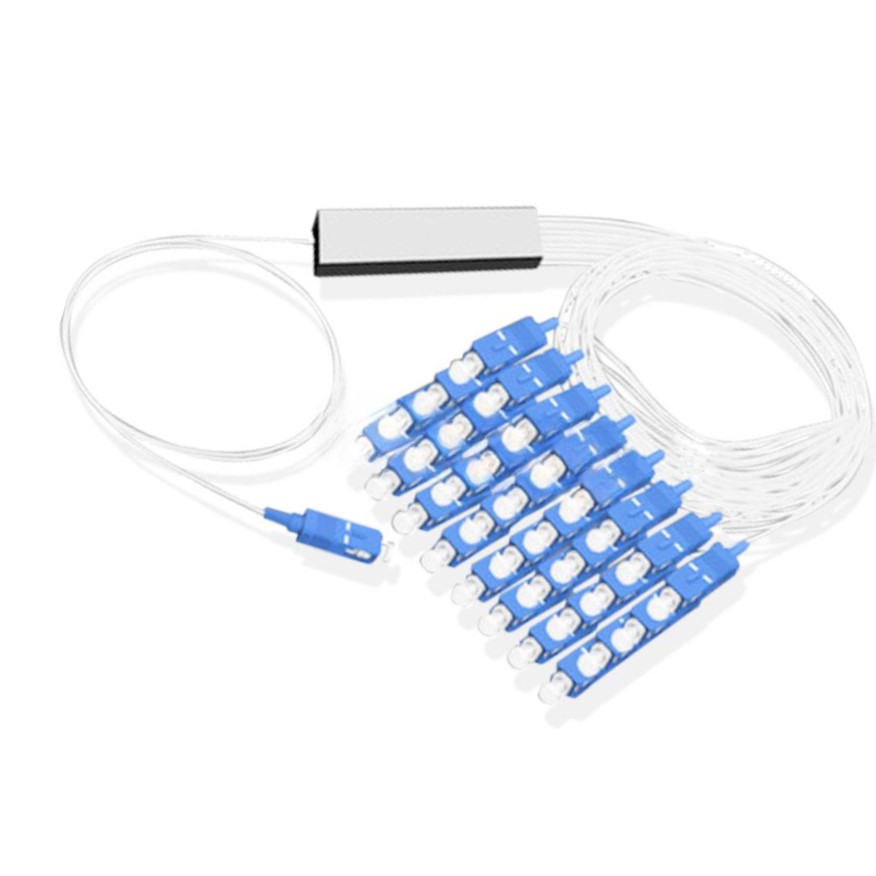

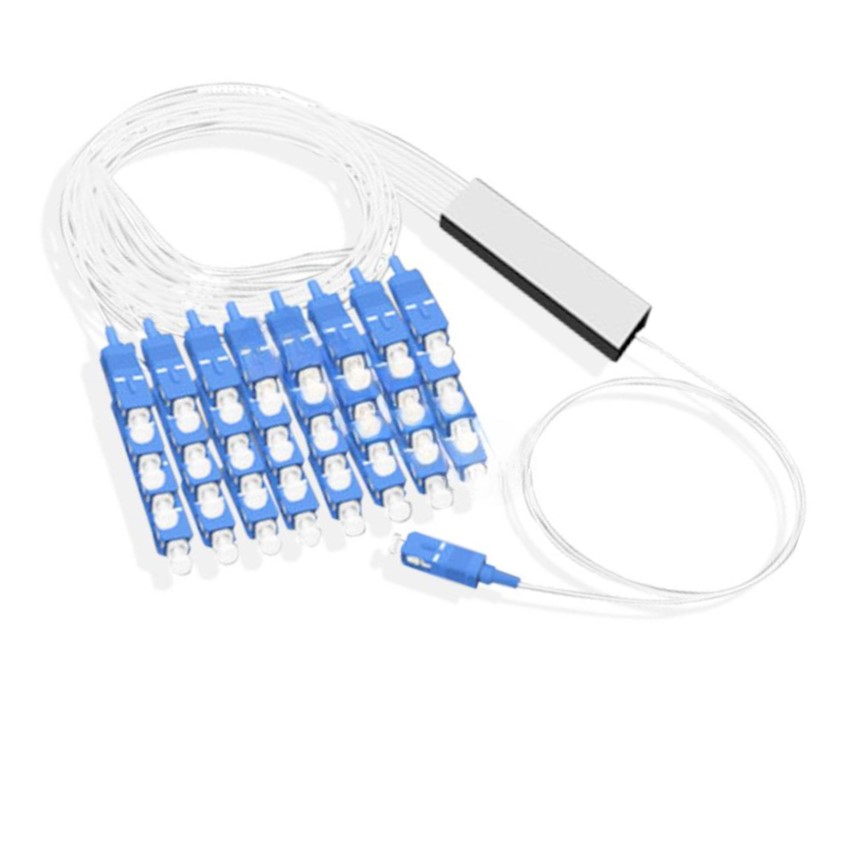

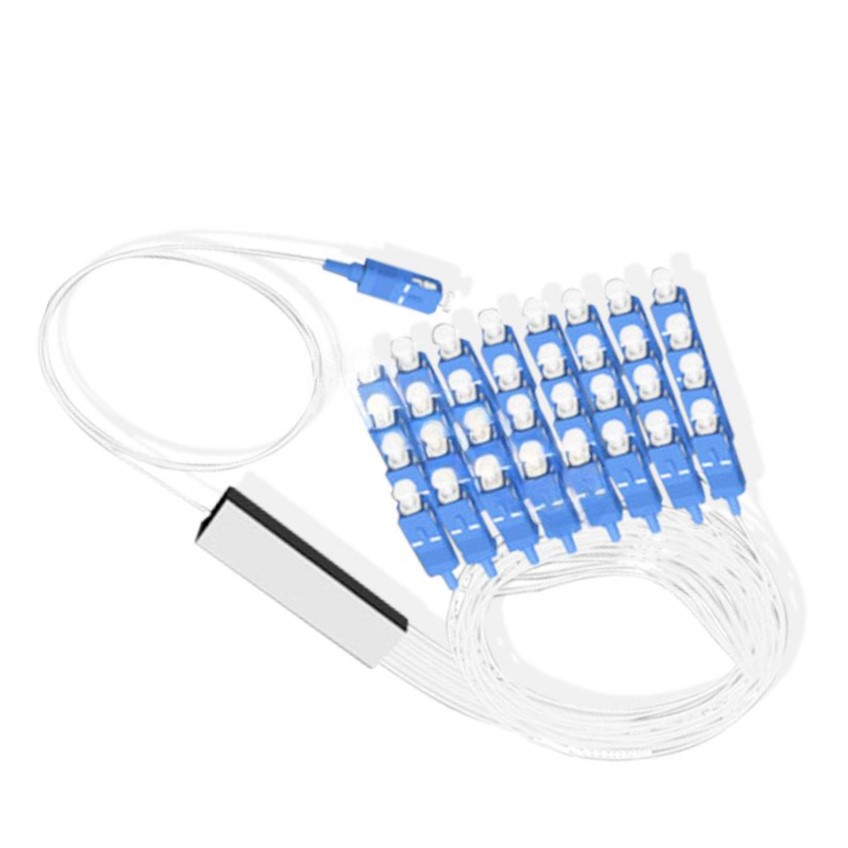

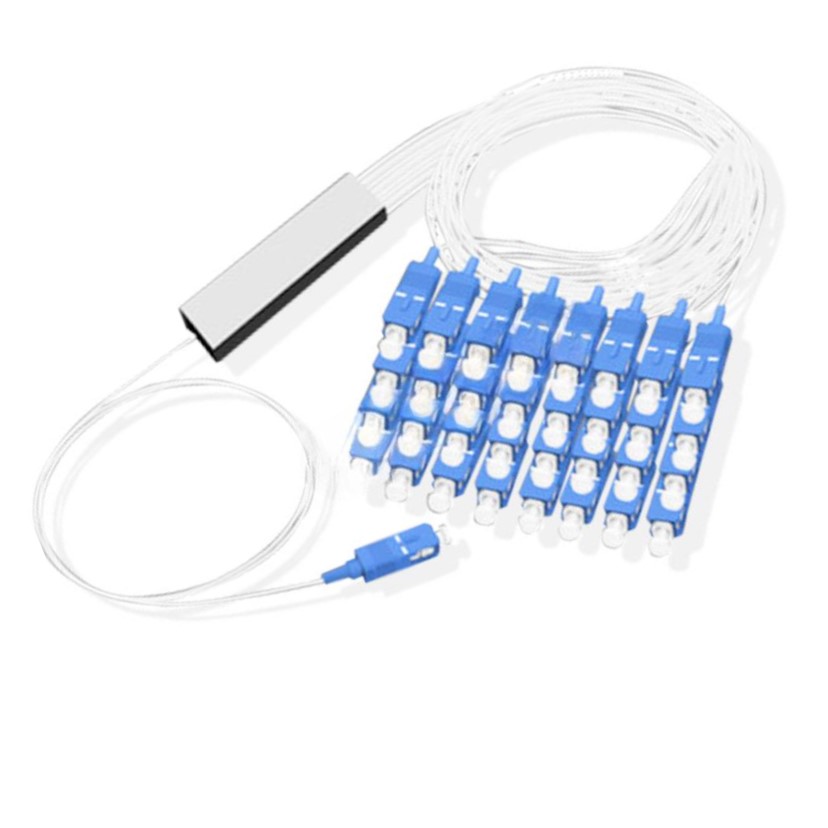

SC/UPC 1×32 Blockless Brand New Type 250um Fiber Splitter
The SC/UPC 1×32 Blockless Fiber Splitter is a premium passive optical component designed for FTTH (Fiber to the Home), FTTx, PON, and other fiber optic network applications where stable and uniform optical signal distribution is required. Its compact blockless design, 250um bare fiber, and SC/UPC connectors make it an ideal choice for tight space deployments, splicing in fiber trays, or use inside fiber distribution boxes.
This 1×32 PLC (Planar Lightwave Circuit) splitter evenly divides a single optical input into 32 outputs with minimal insertion loss and excellent uniformity, helping you extend your fiber network efficiently and cost-effectively.
Key Features
-
Configuration: 1×32 PLC splitter
-
Design: Blockless type with 250um bare fiber, ultra-compact footprint
-
Connector Type: SC/UPC connectors on input and outputs
-
Fiber Type: G.657A1/B1 or G.652D compliant fiber
-
Operating Wavelength: 1260~1650nm (wideband)
-
Low Insertion Loss: Uniform optical splitting with minimal excess loss
-
Excellent Uniformity: Stable signal distribution across all output channels
-
High Reliability: Meets Telcordia GR-1209 and GR-1221 standards
-
Flexible Installation: Ideal for tray splicing, pigtail applications, or integration into enclosures
-
Condition: 100% Brand New, factory-tested, and certified
Technical Specifications
| Category | Specification |
|---|---|
| Splitter Type | PLC (Planar Lightwave Circuit) |
| Configuration | 1×32 |
| Fiber Type | 250um bare fiber, singlemode |
| Connectors | SC/UPC on input & outputs |
| Operating Wavelength | 1260–1650nm |
| Insertion Loss | ≤ 17.0 dB |
| Uniformity | ≤ 1.5 dB |
| Return Loss | ≥ 55 dB |
| Polarization Dependent Loss (PDL) | ≤ 0.3 dB |
| Directivity | ≥ 55 dB |
| Operating Temperature | -40°C to +85°C |
| Compliance | Telcordia GR-1209, GR-1221, RoHS |
SC/UPC 1×32 Blockless Application
FTTH/FTTx Networks: Efficiently split PON signals to multiple subscribers
Passive Optical LANs: Distribute signals in enterprise or campus fiber systems
CATV Networks: Support RF over fiber signal splitting
Test Systems: Versatile for lab and field testing setups
Space-Constrained Installations: Blockless design perfect for fiber trays, closures, and splice boxes
Customization & OEM Services
Length Options: Custom input/output fiber lengths available
Connector Options: SC/APC, LC/UPC, LC/APC, or mixed on request
Private Label: Custom branding and packaging for OEM and system integrators
Project Bundles: Site-ready splitter kits for large rollouts
Full QC Reports: Insertion loss and test data supplied with every unit
SC/UPC 1×32 Blockless Wholesale & Bulk Supply
Factory Direct Pricing: Competitive rates for bulk orders
Worldwide Shipping: Export-ready packaging and fast delivery worldwide
Dedicated Account Support: Personal assistance for your projects and repeat orders
Full Warranty: 100% brand new, factory tested, and compliant with international standards
SC/UPC 1×32 Blockless Why Choose Us
Premium-Quality Fiber Components — Fully Tested & Certified
Flexible OEM & Customization Options
Attractive Wholesale Pricing — Ideal for ISPs, installers, and distributors
Reliable Supply Chain & Safe Export Logistics
Technical Support — From Design to Deployment
Contact Us for Best Pricing
Upgrade your fiber network with the SC/UPC 1×32 Blockless Type 250um Fiber Splitter — the reliable solution for cost-effective optical signal distribution with minimal loss and maximum performance.
