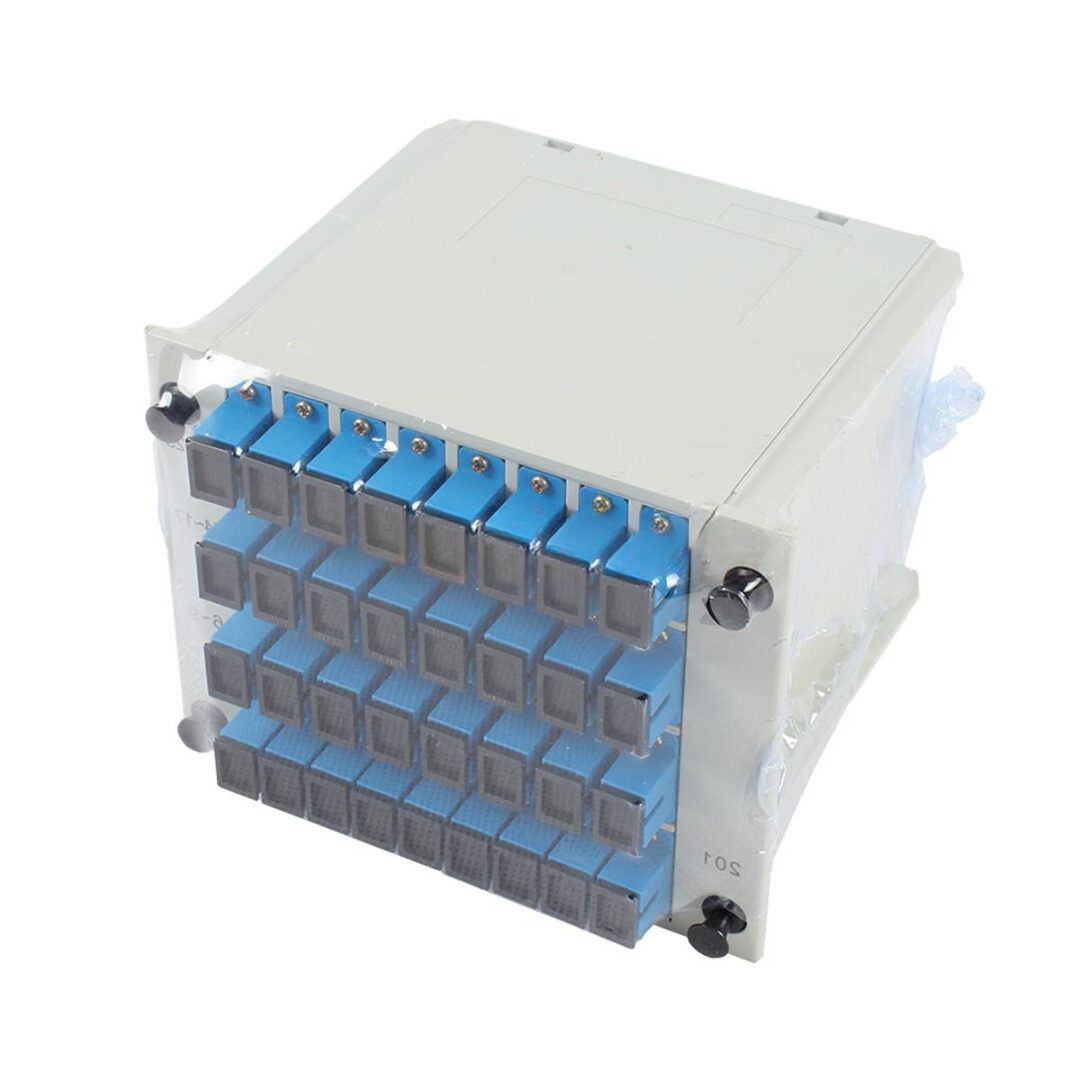

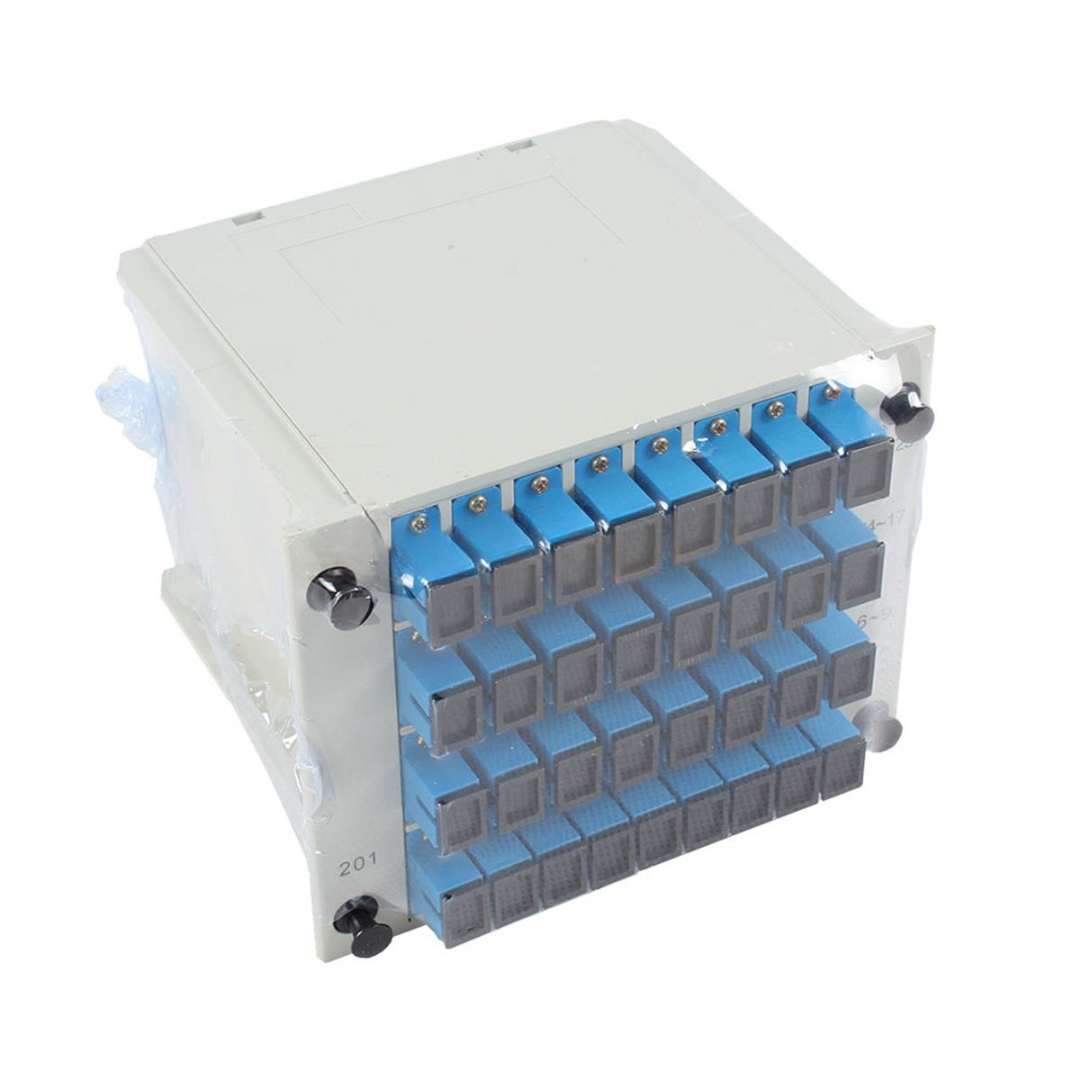

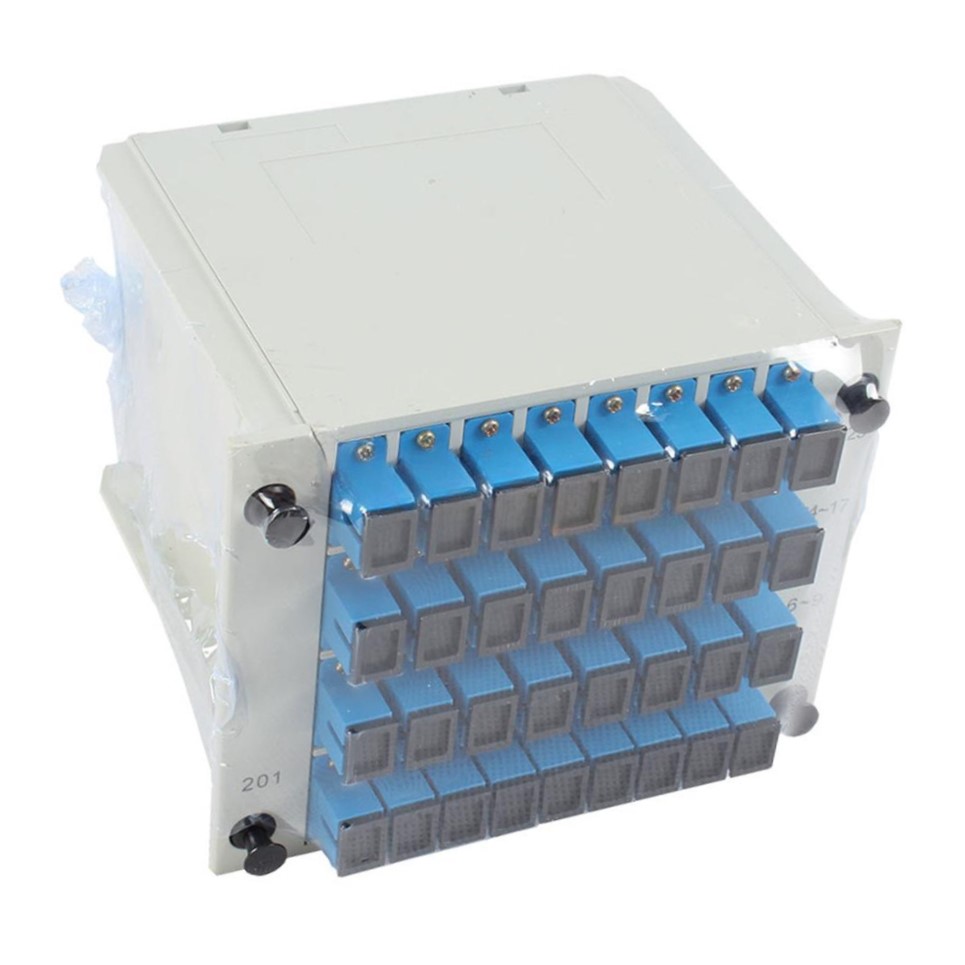

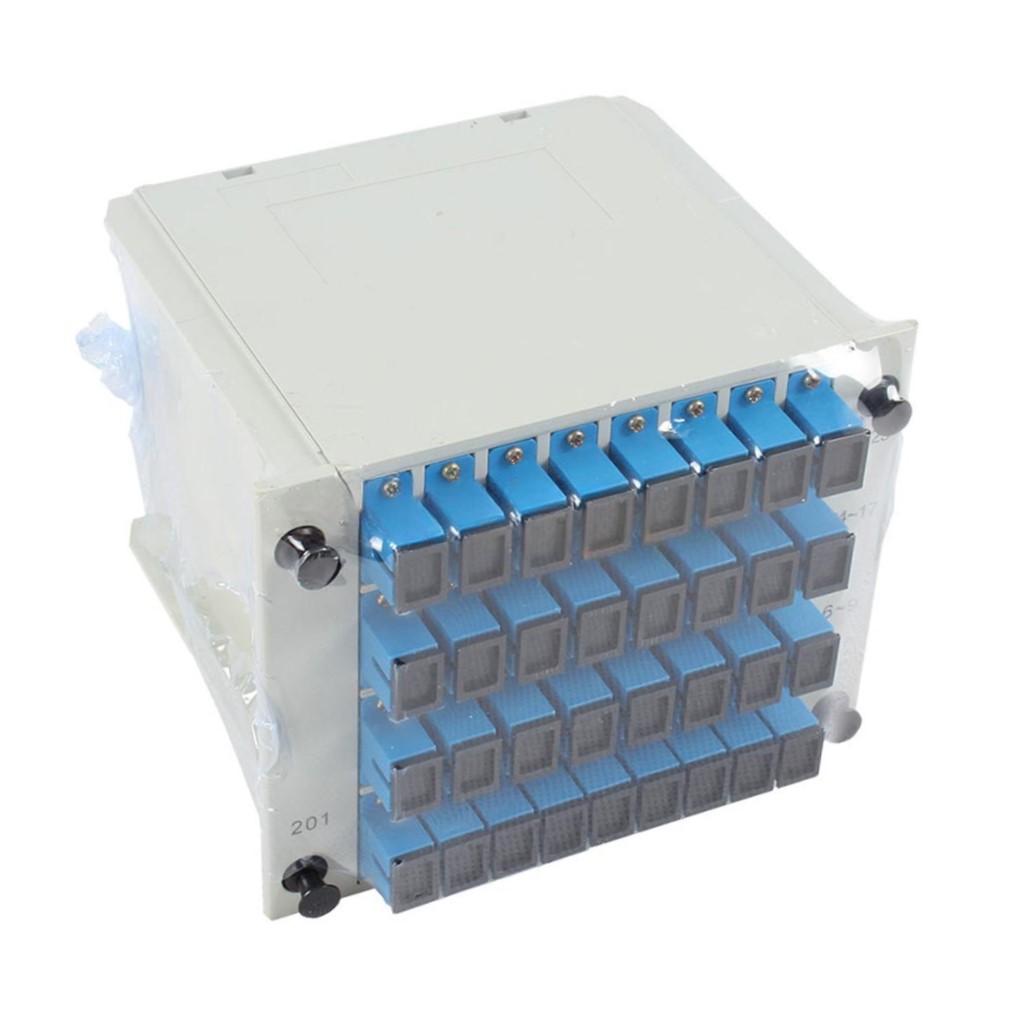

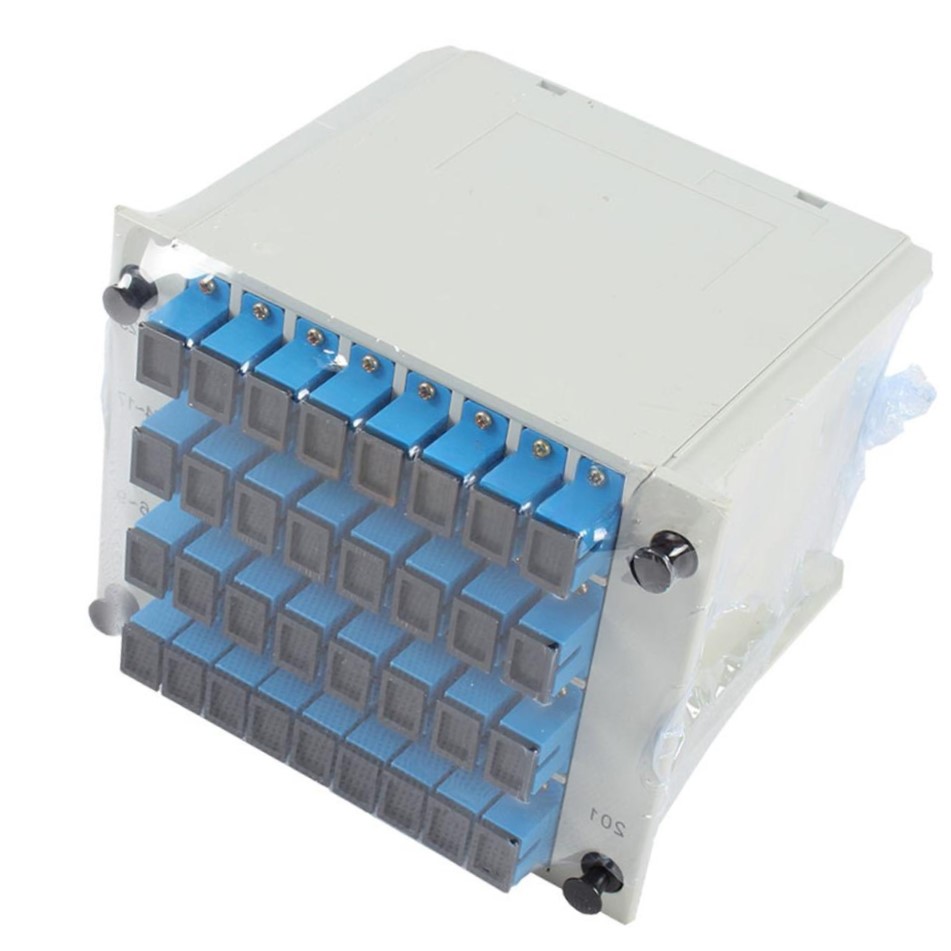

SC/UPC 1×32 Cassette Brand New Fiber Splitter – 1.5m Length
The SC/UPC 1×32 Cassette Fiber Splitter is a high-density PLC (Planar Lightwave Circuit) optical splitter designed for large-scale optical signal distribution in FTTH, GPON/EPON, and CATV systems. Featuring 1 input and 32 output SC/UPC pre-terminated connectors, this splitter ensures low insertion loss, excellent uniformity, and stable optical performance over a wide wavelength range (1260–1650 nm). It comes with 1.5-meter bend-insensitive G.657A1 fiber pigtails and is enclosed in a robust ABS cassette housing for easy integration and cable management.
Key Features
-
Model: SC/UPC 1×32 Cassette Fiber Splitter
-
Connector Interface: SC/UPC (Input & Output Ports)
-
Splitter Type: PLC (Planar Lightwave Circuit)
-
Housing Format: ABS Cassette Enclosure
-
Fiber Length: 1.5 meters (standard, customizable)
-
Insertion Loss: ≤ 17.0 dB (typical ≤ 16.5 dB)
-
Return Loss: ≥ 55 dB
-
Uniformity: ≤ 2.0 dB
-
Operating Temp: -40°C to +85°C
-
Standard Compliance: Telcordia GR-1209/1221, RoHS Certified
Technical Specifications
| Specification | Details |
|---|---|
| Split Ratio | 1×32 |
| Connector Type | SC/UPC |
| Polish Type | UPC (Ultra Physical Contact) |
| Fiber Type | G.657A1 Single-mode (bend-insensitive) |
| Fiber Length | 1.5 meters |
| Insertion Loss | ≤ 17.0 dB |
| Return Loss | ≥ 55 dB |
| Uniformity | ≤ 2.0 dB |
| PDL (Polarization Dependent Loss) | ≤ 0.3 dB |
| Directivity | ≥ 55 dB |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Housing Material | Flame-retardant ABS Plastic |
| Compliance | ITU-T G.671, GR-1209-CORE, GR-1221-CORE |
| Warranty | 1-Year Manufacturer Warranty |
SC/UPC 1×32 Cassette Applications
-
FTTH/FTTx Access Networks – Distribute signal from one OLT to 32 ONTs
-
GPON/EPON Deployments – Scalable passive optical signal branching
-
CATV Systems – Split optical video/data signals across multiple endpoints
-
Data Centers – Centralized optical routing to server racks
-
Central Office & Cabinets – Simplified structured cabling in rack/cassette frames
-
Campus/Enterprise Networks – Ideal for multi-building fiber distribution
Customization & OEM Options
-
Connector Types Available: SC/APC, LC/UPC, LC/APC, FC/ST optional
-
Cassette Variants: LGX cassette, mini steel tube, or bare fiber format
-
Fiber Jacket Size: 0.9mm, 2.0mm, or 3.0mm PVC/LSZH jackets
-
Fiber Length Options: 0.5m, 1m, 1.5m, 2m, 3m (or per request)
-
Color Coding & Labeling: Port number labels, color sleeves, barcodes, custom IDs
-
Branding Support: OEM laser logo printing & packaging customization
-
Wavelength Matching: Configurable for CWDM/DWDM test taps or monitoring
SC/UPC 1×32 Cassette Splitter Wholesale & Global Supply
-
Factory Direct Bulk Supply: Cost-effective OEM pricing for integrators
-
Fully Assembled & Tested: 100% optical tested with IL/RL reports
-
Packaging & Protection: Anti-static, foam-lined, sealed for transport
-
Ready-to-Ship Stock: Fast lead time for urgent telecom projects
-
International Logistics: Shipped globally with customs documentation
-
Engineering Support: Design guidance and port mapping consultation
Why Choose the SC/UPC 1×32 Cassette
-
High-Precision PLC Technology – Uniform, stable signal distribution
-
Compact Cassette Format – Fits seamlessly into ODFs and enclosures
-
Low Loss & Reliable Performance – Meets all telecom-grade standards
-
Customization Flexibility – Built to match project specs & branding
-
Field-Proven Durability – Installed in networks worldwide
Contact Us for Quotes, Samples & OEM Orders
Upgrade your fiber optic deployment with the SC/UPC 1×32 Cassette Splitter – engineered for high performance, clean installation, and scalable network expansion.
Get in touch now for datasheets, tiered pricing, and bulk order support!
