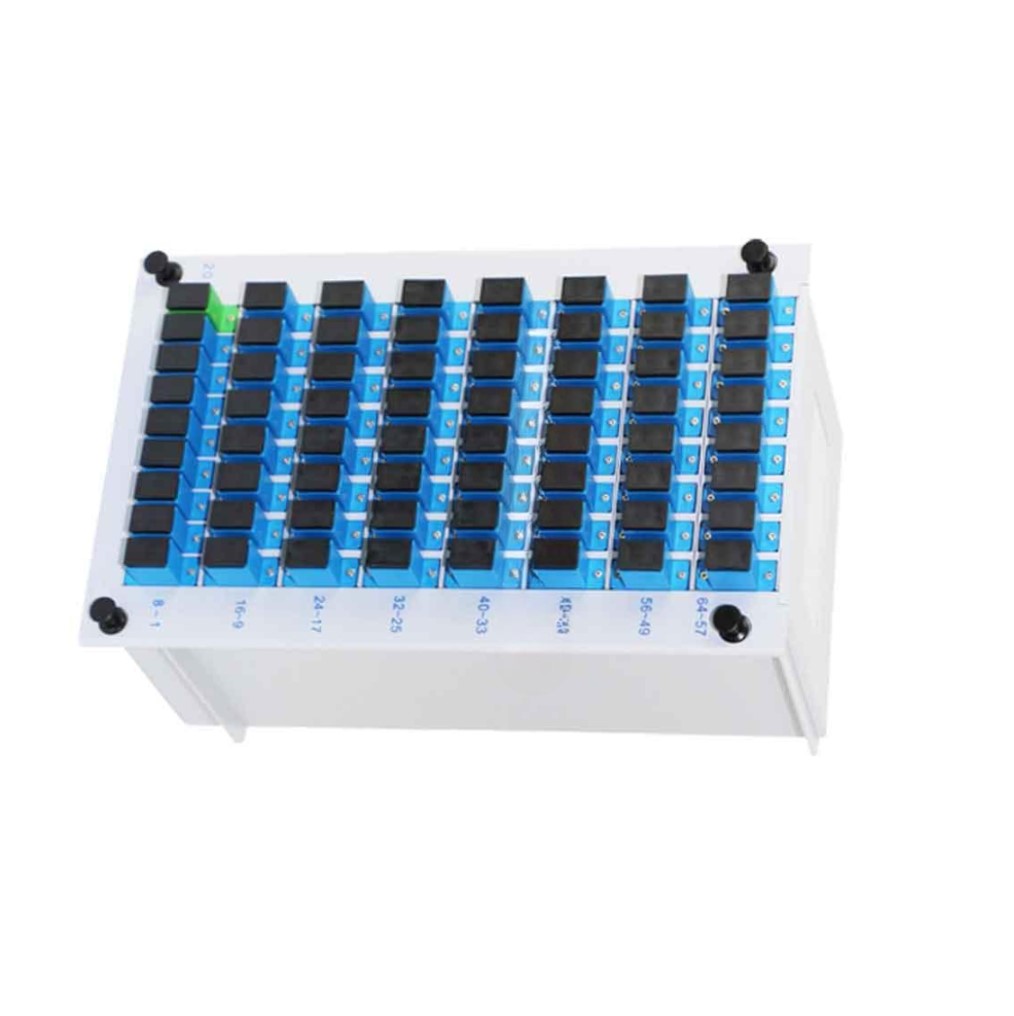

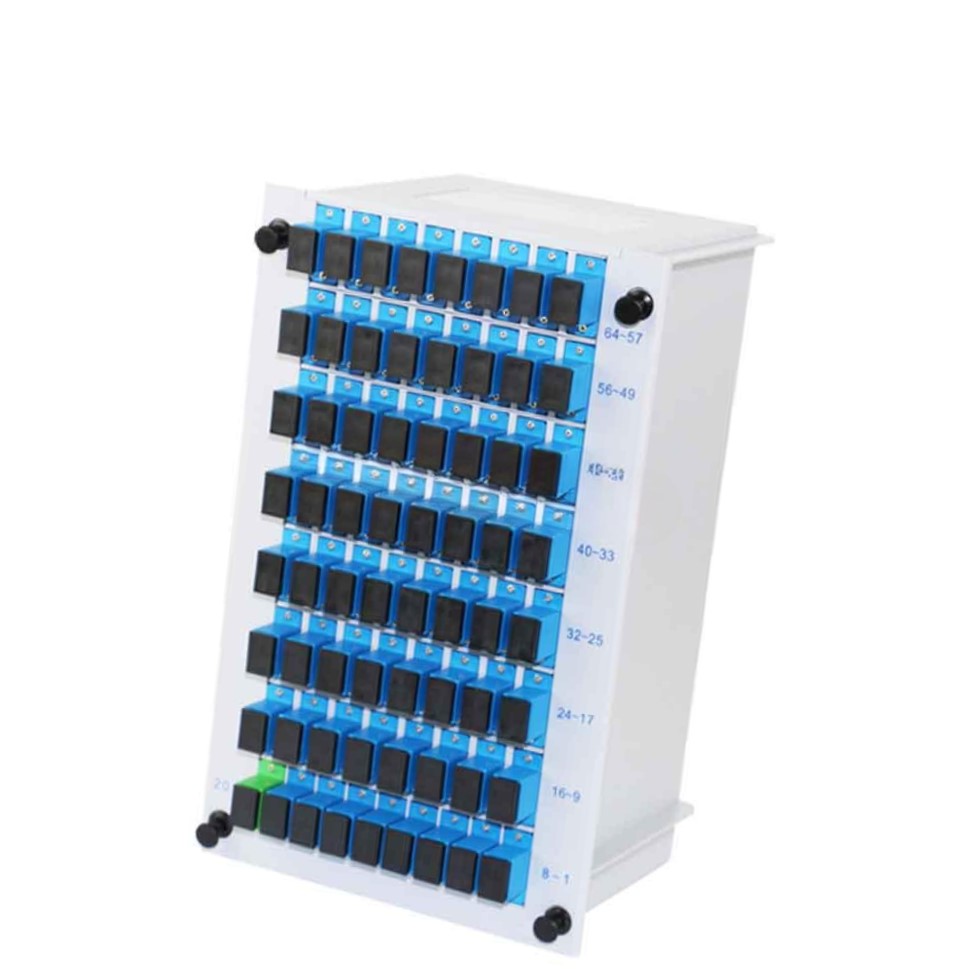

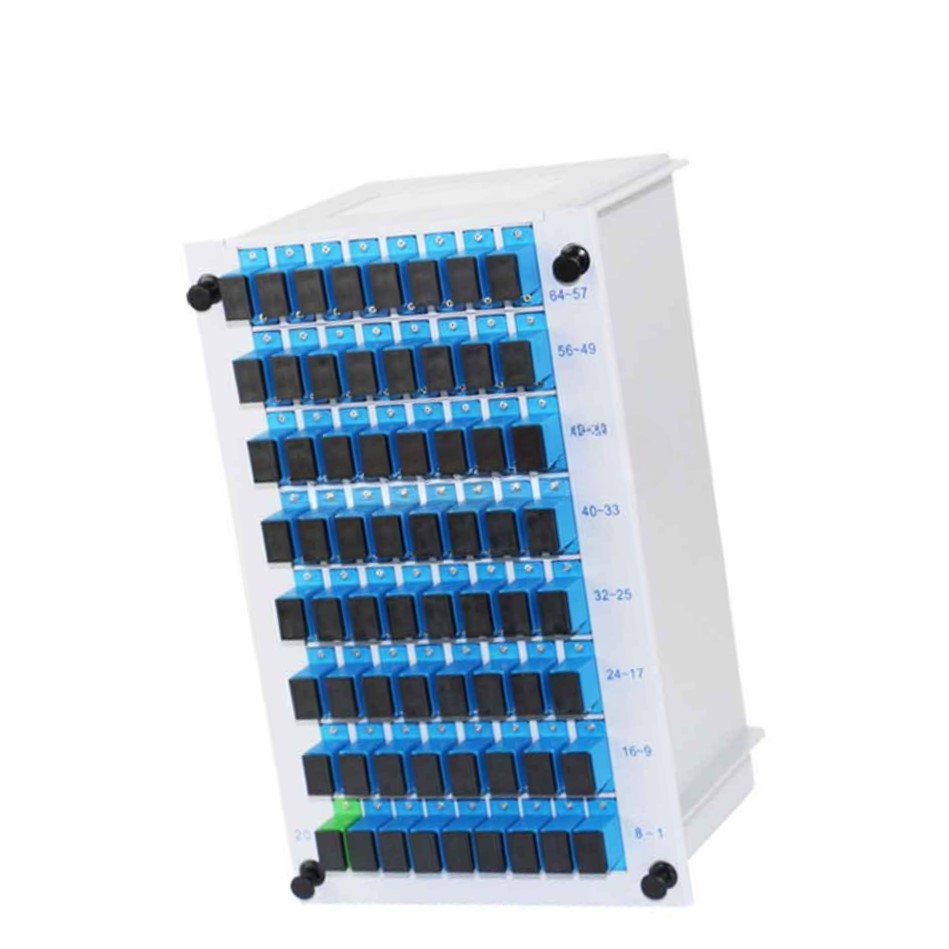

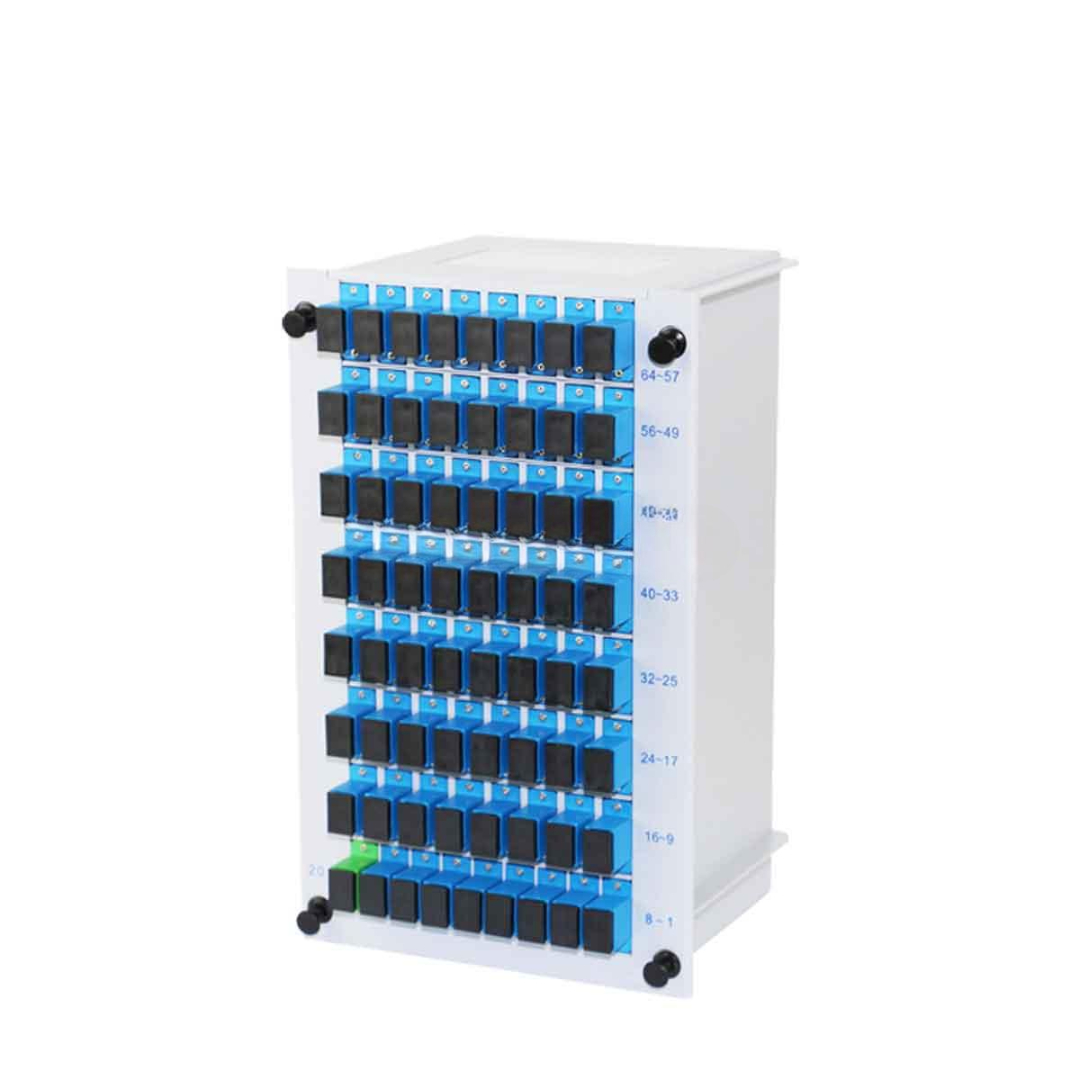

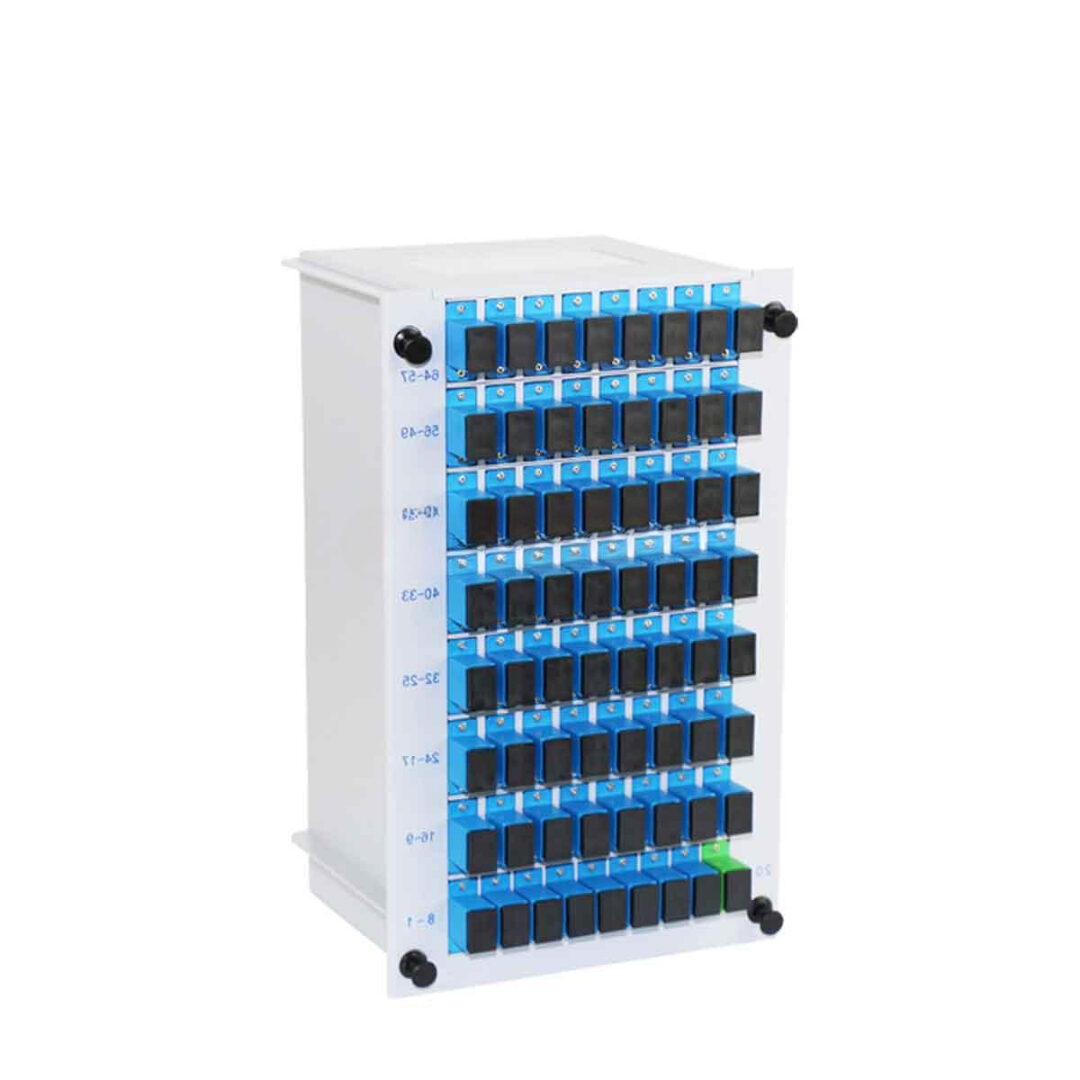

SC/UPC 1×64 Cassette Brand New Fiber Splitter – 1.5m Length
The SC/UPC 1×64 Cassette Fiber Splitter is a premium-grade PLC (Planar Lightwave Circuit) optical splitter engineered for high-density fiber distribution systems. Housed in a protective ABS cassette, it features pre-terminated SC/UPC connectors and 1.5-meter bend-insensitive G.657A1 fiber pigtails, ensuring low insertion loss, excellent channel uniformity, and stable optical performance across all 64 outputs. This splitter is widely used in FTTH, GPON/EPON, CATV, and central office network deployments.
Designed for easy installation into standard fiber distribution frames or wall-mounted enclosures, this cassette-style splitter ensures organized cable management, high reliability, and long-term performance in indoor or protected environments.
Key Features
-
Model: SC/UPC 1×64 Cassette Fiber Splitter
-
Connector Type: SC/UPC (input & output ports)
-
Splitter Type: PLC (Planar Lightwave Circuit)
-
Packaging Format: ABS Cassette (modular housing)
-
Fiber Type: G.657A1 Single-mode (bend-insensitive)
-
Fiber Length: 1.5 meters on each leg (customizable)
-
Insertion Loss: ≤ 21.5 dB (typical ≤ 20.5 dB)
-
Return Loss: ≥ 55 dB (UPC polish)
-
Uniformity: ≤ 2.5 dB across outputs
-
Operating Temperature: -40°C to +85°C
-
Standards: Telcordia GR-1209/1221, RoHS Compliant
Technical Specifications
| Specification | Details |
|---|---|
| Split Ratio | 1×64 |
| Connector Type | SC/UPC |
| Polish Type | UPC (Ultra Physical Contact) |
| Fiber Type | G.657A1 Single-mode |
| Fiber Length | 1.5 meters (standard) |
| Insertion Loss | ≤ 21.5 dB |
| Return Loss | ≥ 55 dB |
| Uniformity | ≤ 2.5 dB |
| PDL (Polarization Dependent Loss) | ≤ 0.3 dB |
| Wavelength Range | 1260–1650 nm |
| Directivity | ≥ 55 dB |
| Operating Temp. | -40°C to +85°C |
| Storage Temp. | -40°C to +85°C |
| Housing Material | ABS Flame-Retardant Plastic |
| Warranty | 1-Year Manufacturer Warranty |
SC/UPC 1×64 Cassette Applications
-
FTTH/FTTx Networks – Split signal from central OLT to 64 ONTs
-
GPON & EPON Systems – Efficient optical signal distribution
-
CATV Networks – Multi-output signal branching for IPTV or video broadcasting
-
Data Centers – High-density fiber access and signal routing
-
Telecom Central Offices – Rack-mounted passive optical network termination
-
Enterprise Networks – Optical signal management for large-scale buildings
Customization & OEM Options
-
Connector Variants: SC/APC, LC/UPC, LC/APC, FC, ST available on request
-
Cassette Colors/Labels: White, black, or custom-colored ABS housings
-
Fiber Jacket Options: 0.9mm, 2.0mm, 3.0mm in PVC or LSZH
-
Fiber Length: Custom lengths: 0.5m, 1m, 2m, 3m, etc.
-
Port Labeling: Laser-engraved, barcode or numeric port ID customization
-
Branding Services: OEM logo printing, serialized traceable labels
-
Cassette Types: LGX, mini steel tube, 19″ rack-mountable chassis available
SC/UPC 1×64 Cassette Splitter Wholesale & Global Supply
-
Factory Direct OEM Supply: Cost-effective pricing for bulk orders
-
Mass Inventory Available: In-stock units for urgent deployment
-
Export-Ready Packaging: Shockproof, moisture-resistant sealed boxes
-
Fast Worldwide Delivery: Delivered globally by air/sea with customs compliance
-
Documentation: Includes test report, compliance certs, and product datasheet
-
Tech Support: Integration assistance and layout consultation available
Why Choose the SC/UPC 1×64 Cassette Fiber Splitter?
-
High-Density Splitting – One-to-many optical distribution with 64 channels
-
Pre-Configured for Fast Deployment – Saves on labor and setup time
-
Stable & Durable – Designed for continuous performance in telecom-grade systems
-
Custom-Tailored Options – OEM flexibility for diverse installation needs
-
Widely Deployed – Trusted in global FTTH and telecom rollouts
Contact Us Now for Pricing, Samples & Bulk Inquiries
The SC/UPC 1×64 Cassette Fiber Splitter is your optimal choice for large-scale, high-efficiency optical signal branching.
Request a quote now for volume discounts, OEM packages, or technical datasheets!
