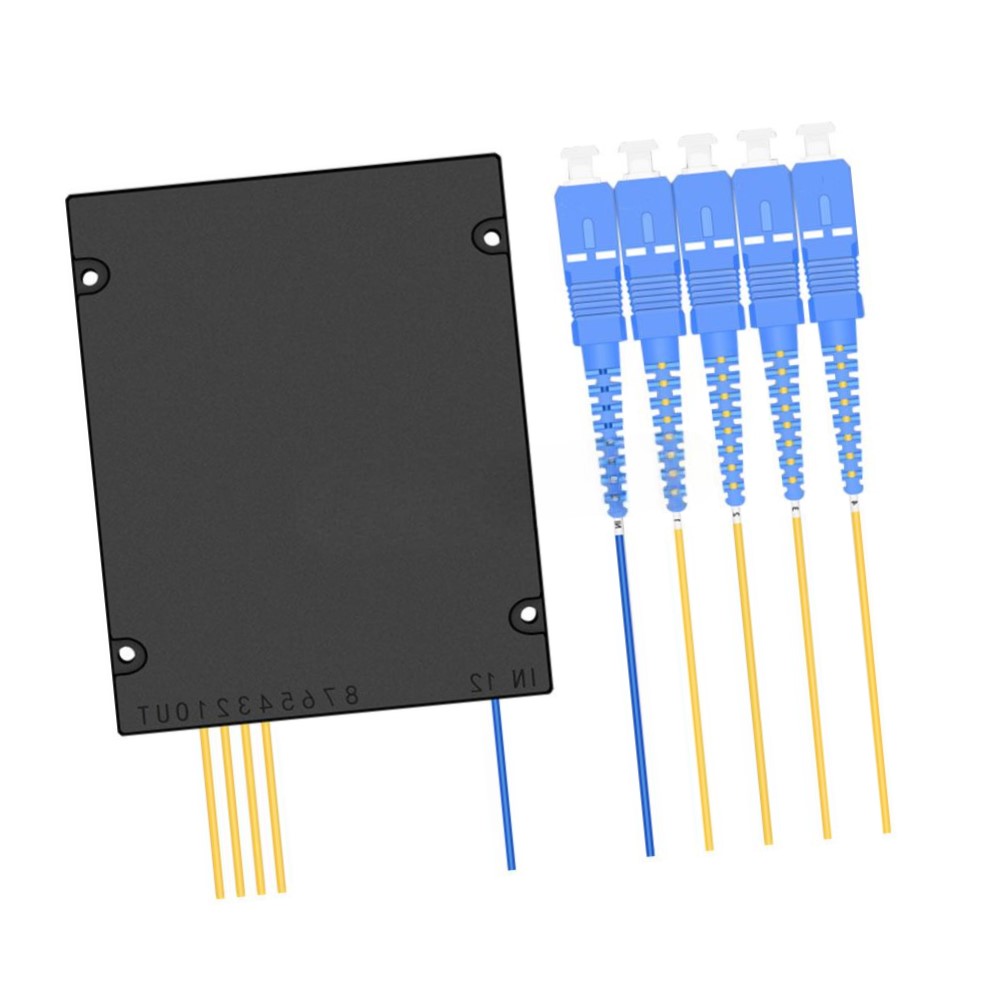

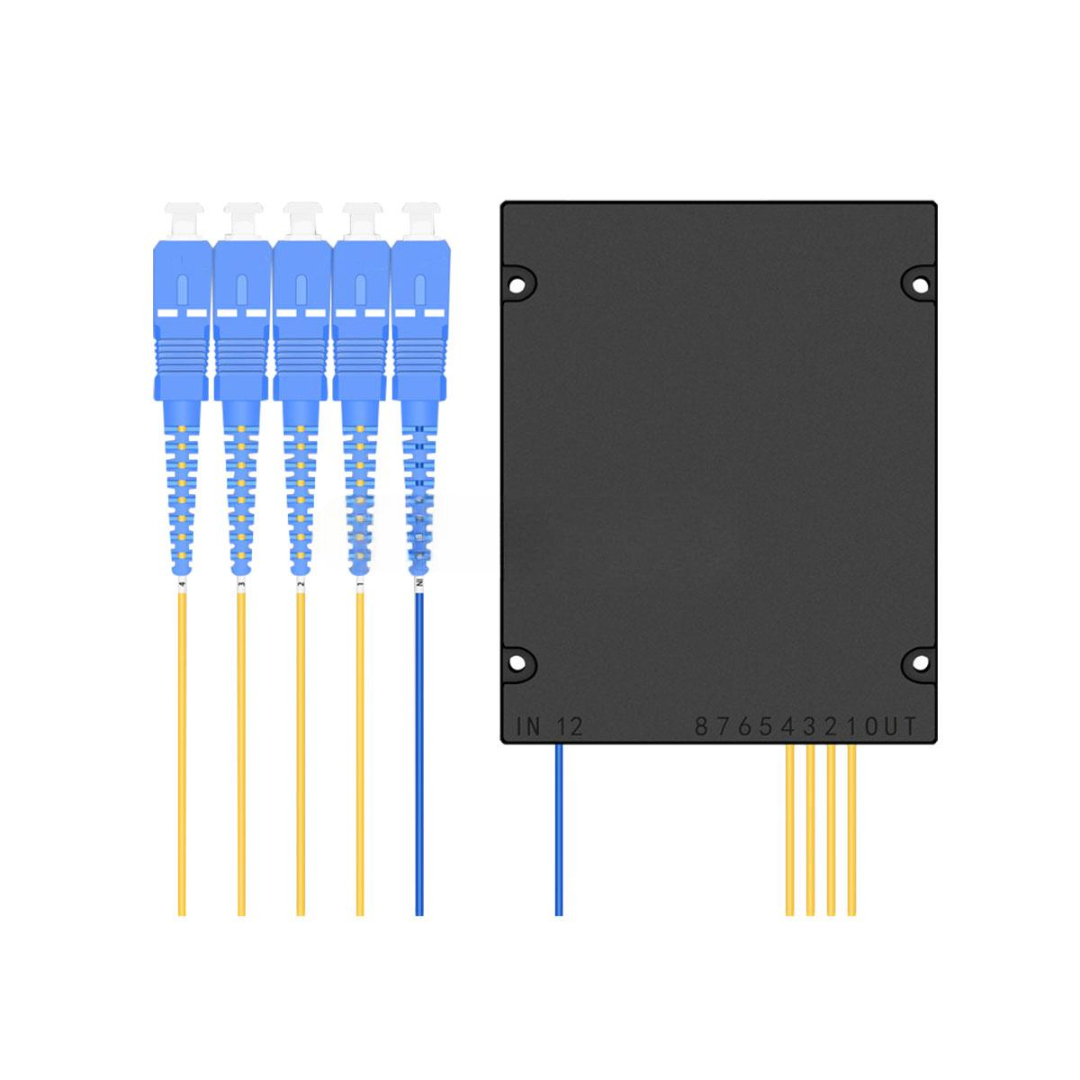

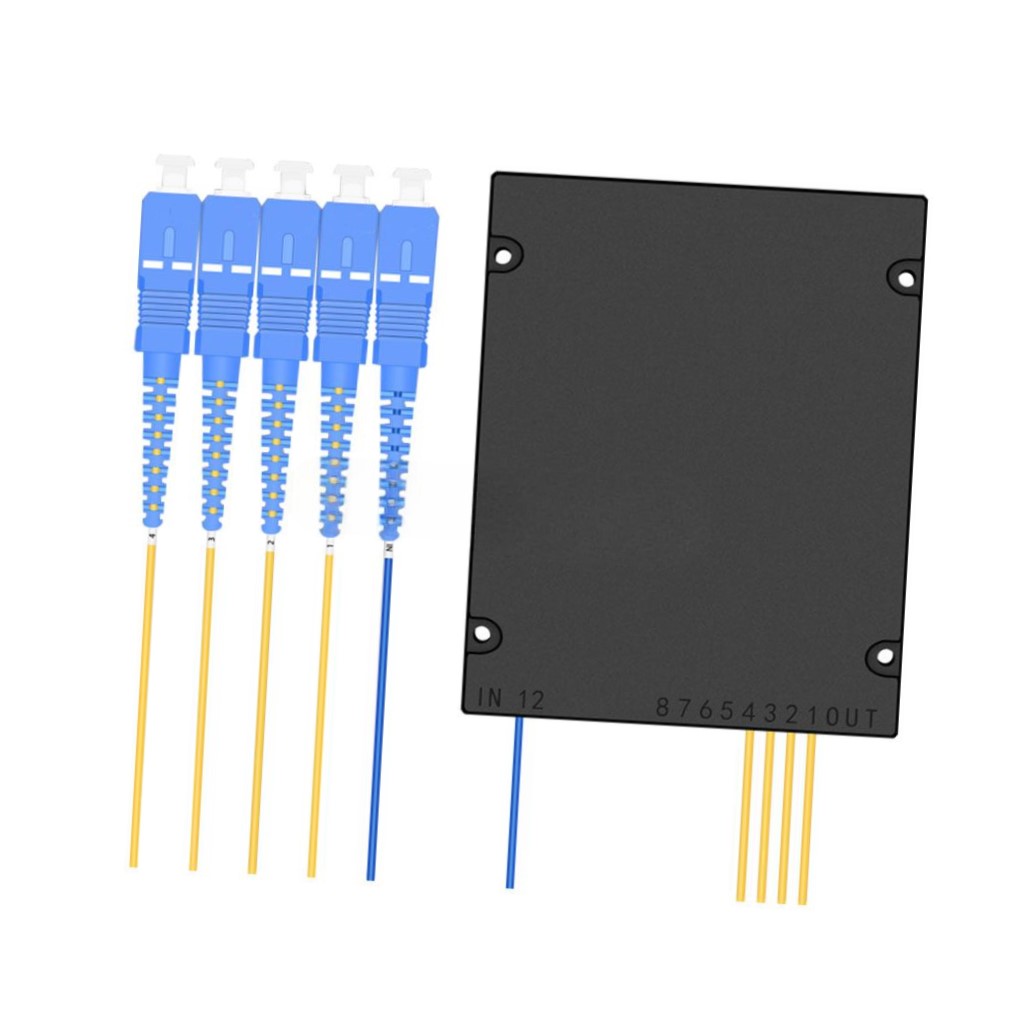

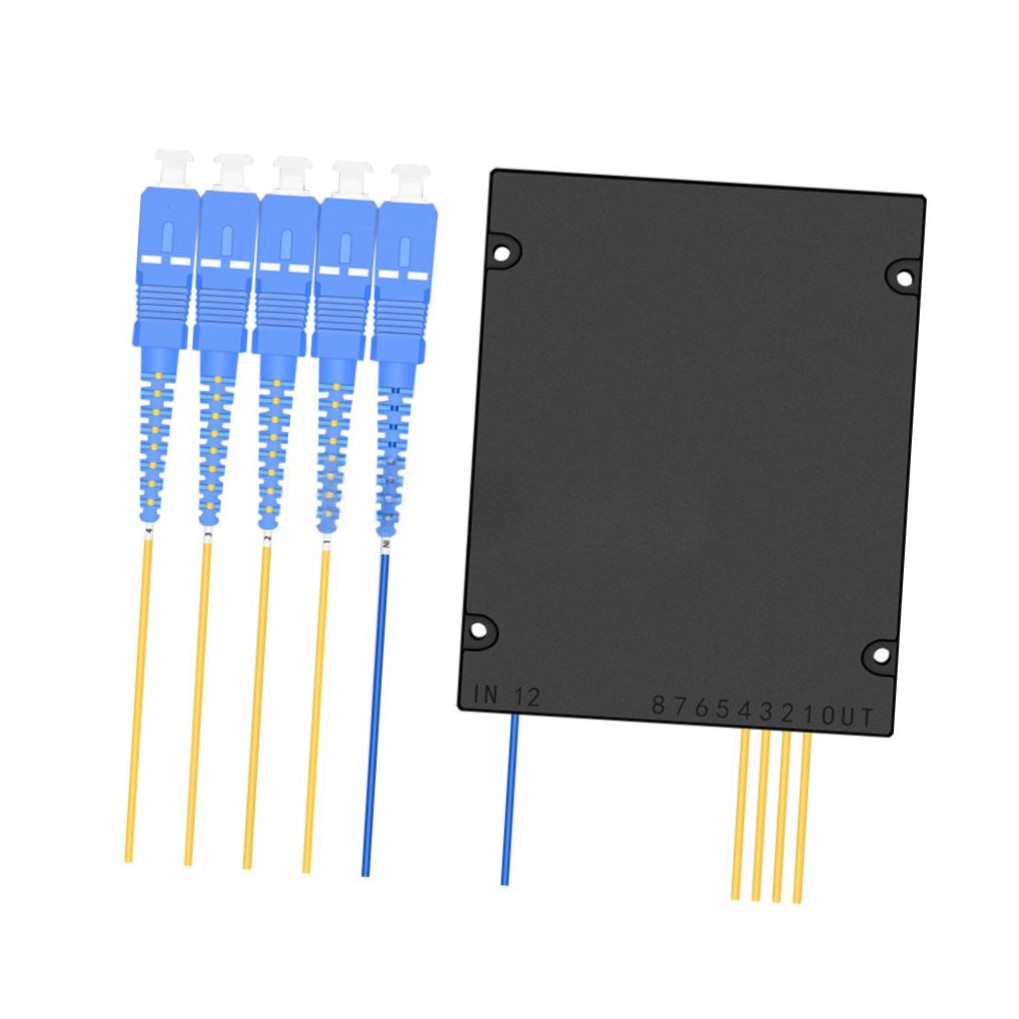

SC/UPC 1×8 Fiber Splitter Brand New Pigtail Type (SC/UPC)
The SC/UPC 1×8 Fiber Splitter is a premium-grade passive optical component designed for evenly distributing optical signals from a single input fiber to eight output fibers. Using SC/UPC connectors on each leg and pigtail-type configuration, this splitter offers exceptional optical performance, low insertion loss, and high reliability for FTTH, PON, and FTTx applications.
Ideal for splicing into existing fiber trays or patch panels, it supports a wide wavelength range (1260–1650 nm) and is built with G.657A1 bend-insensitive single-mode fiber for flexible installation, even in high-density environments.
Key Features
-
Model: SC/UPC 1×8 Pigtail Fiber Splitter
-
Connector Type: SC/UPC (on all ports)
-
Splitter Technology: PLC (Planar Lightwave Circuit)
-
Fiber Type: G.657A1 Single-mode (Bend-Insensitive)
-
Insertion Loss: ≤ 10.5 dB (typical ≤ 10.0 dB)
-
Return Loss: ≥ 55 dB
-
Uniformity: ≤ 0.8 dB
-
Operating Wavelength: 1260–1650 nm
-
Length per Fiber: 1.5 meters (custom lengths available)
-
Packaging: Bare fiber, ABS module, or mini steel tube (optional)
Technical Specifications
| Specification | Details |
|---|---|
| Split Ratio | 1×8 |
| Connector Type | SC/UPC |
| Fiber Length | 1.5 meters (standard, customizable) |
| Fiber Type | Single-mode G.657A1 |
| Insertion Loss | ≤ 10.5 dB |
| Return Loss | ≥ 55 dB (UPC polish) |
| Uniformity | ≤ 0.8 dB |
| Polarization Dependent Loss (PDL) | ≤ 0.2 dB |
| Directivity | ≥ 55 dB |
| Wavelength Range | 1260–1650 nm |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Warranty | 1-Year Manufacturer Warranty |
SC/UPC 1×8 Fiber Splitter Applications
-
FTTH (Fiber To The Home) – Signal distribution to customer premises
-
PON Networks (EPON/GPON) – OLT to ONU signal branching
-
Telecom Closures & Cabinets – Space-efficient optical management
-
CATV Networks – Centralized optical signal distribution
-
Enterprise Networks – Structured cabling in office or data center settings
Customization & OEM Options
-
Connector Types Available: SC/APC, LC/UPC, LC/APC, FC, ST (upon request)
-
Fiber Lengths: 0.5m, 1.0m, 2.0m, 3.0m, or custom
-
Packaging Options: Bare fiber, ABS box, LGX cassette, mini steel tube
-
Color Coding: Color-coded fibers or standard yellow jacket
-
Labeling: Private logo, serial number tags, port ID marking
-
Polishing Mixes: UPC input with APC output or custom arrangements
SC/UPC 1×8 Fiber Splitter Wholesale & Global Supply
-
OEM Factory Direct: Reliable supply from certified production lines
-
Bulk Stock Availability: For telecom carriers, integrators & distributors
-
Export-Ready Packaging: Anti-static bags, foam protection, moisture barriers
-
Quick Dispatch: Immediate shipping for time-sensitive rollouts
-
Technical Support: Expert advice on integration, splicing & installation
Why Choose the SC/UPC 1×8 Pigtail Fiber Splitter?
-
Consistent Optical Performance – Stable signal distribution with minimal loss
-
Installation Flexibility – Pigtail leads simplify field splicing or patching
-
Wide Compatibility – Integrates with most patch panels, closures & trays
-
Custom-Ready – OEM label, fiber count, polish type, and packaging available
-
Trusted Globally – Proven in FTTx projects and telecom networks worldwide
Request Pricing, Samples & Bulk Orders Today
Enhance your network with the SC/UPC 1×8 Pigtail Fiber Splitter — a durable and efficient solution for optical signal distribution in FTTx, PON, and telecom deployments.
Contact us now for OEM customization, wholesale pricing, and fast worldwide shipping!
