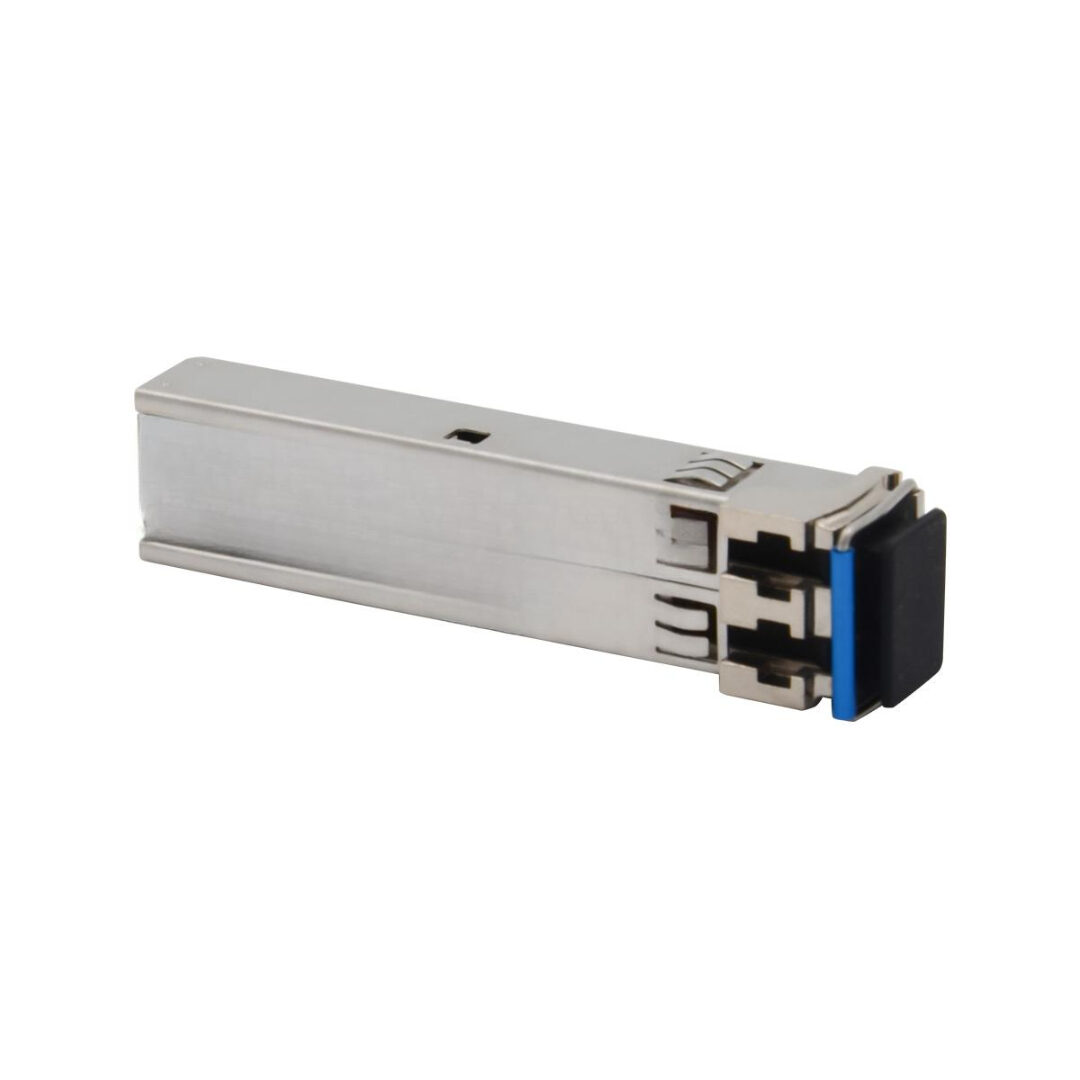

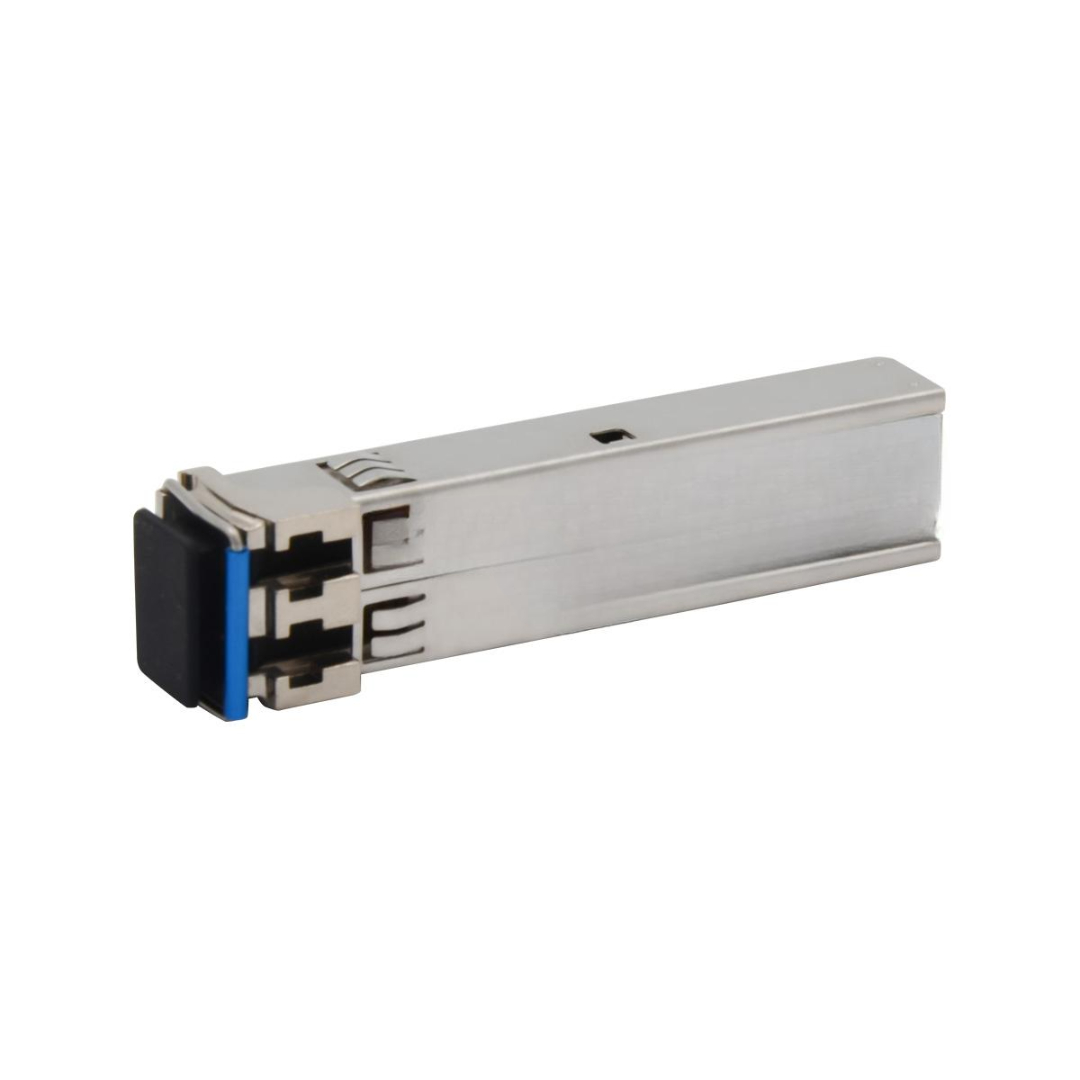

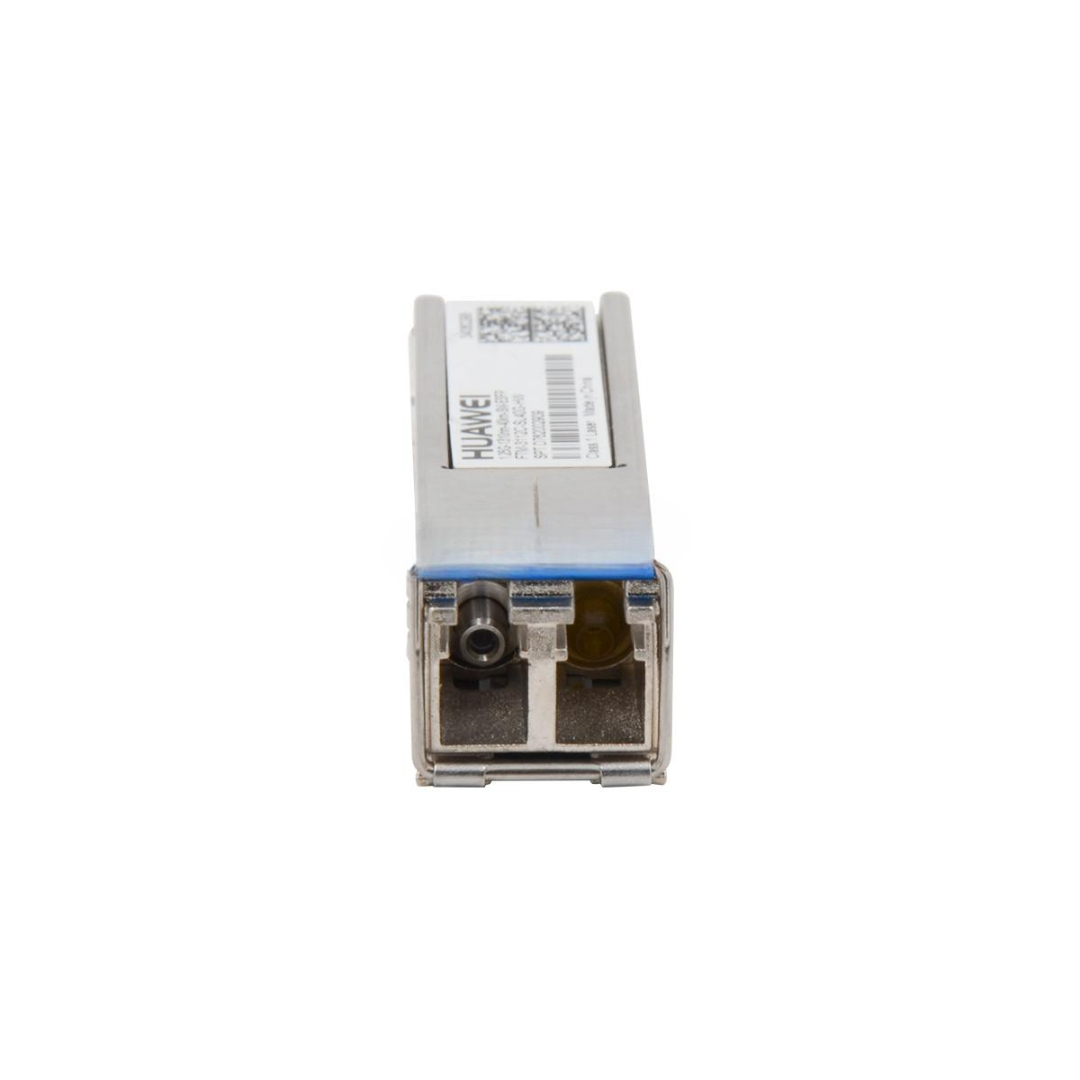

SFP/FTM-3112C-SL40G-HW Huawei High Quality 40KM Transceiver
The SFP/FTM-3112C-SL40G-HW Huawei is a high-quality single-mode Gigabit Ethernet transceiver, specifically designed for long-distance data transmission up to 40 kilometers. This LC-duplex SFP module supports a data rate of 1.25 Gbps and operates on a 1310 nm wavelength, making it ideal for carrier-grade networks, enterprise backbone, and FTTx applications. Fully compatible with Huawei switches, OLTs, and transport devices, this SFP module ensures stable performance, extended reach, and easy integration into Huawei optical platforms.
Key Features
-
Model: FTM-3112C-SL40G-HW
-
Condition: 100% Brand New, Original Huawei
-
Form Factor: SFP (Small Form-Factor Pluggable)
-
Data Rate: 1.25 Gbps
-
Transmission Distance: Up to 40 km
-
Wavelength: 1310 nm (single-mode fiber)
-
Connector Interface: LC Duplex
-
Digital Diagnostic Monitoring (DDM): Supported
-
Hot-Pluggable: Insert or remove without rebooting the device
-
Compatible With: Huawei switches, routers, OLTs (e.g., MA5600T, S5720, OSN platforms)
-
Compliance: RoHS, CE, FCC, Class 1 laser safety
Technical Specifications
| Specification | Details |
|---|---|
| Model | FTM-3112C-SL40G-HW |
| Form Factor | SFP |
| Transmission Distance | 40 km |
| Data Rate | 1.25 Gbps (Gigabit Ethernet) |
| Wavelength | 1310 nm |
| Connector Type | LC Duplex |
| Tx Optical Power | -5 to 0 dBm |
| Rx Sensitivity | ≤ -23 dBm |
| Fiber Type | Single-mode (9/125 μm) |
| Power Supply | 3.3V |
| Power Consumption | <1.5W |
| DDM/DOM | Supported |
| Operating Temperature | 0°C to +70°C (standard); industrial version optional |
| Storage Temperature | -40°C to +85°C |
| EMI/EMC Compliance | FCC, CE |
| MTBF | >1,000,000 hours |
| Warranty | 1–3 Years Manufacturer Warranty |
SFP/FTM-3112C-SL40G-HW Applications
-
Telecom Access Networks – GPON/EPON OLT uplinks and access connections
-
Metro Ethernet – Point-to-point links in Huawei S-series and CloudEngine switches
-
Enterprise Backhaul – Reliable high-speed optical links over long distances
-
FTTH/FTTB Infrastructure – Long-range fiber connectivity for last-mile networks
-
SDH/SONET Systems – Compatible with STM-1/STM-4 service over SMF
Customization & OEM Options
-
Private Labeling – Custom branding, serial numbers, and logo engraving
-
Pre-Installed Configuration – Compatibility tuning for Huawei and third-party platforms
-
Temperature-Hardened Models – Industrial-grade transceivers for harsh environments
-
Custom Packaging – Bulk packs, zip bags, or individual cartons based on project size
-
CWDM/DWDM Options – Available for wavelength-division multiplexing applications
Wholesale & Global Supply Availability
-
Huawei Original Inventory – 100% verified, factory-sealed modules
-
Large-Scale Procurement – In-stock and ready for bulk project orders
-
Global Shipping – Safe, anti-static packaging and certified international delivery
-
Volume Discounts – Cost-effective solutions for ISPs, carriers, and system integrators
-
Documentation Support – Full datasheets, test reports, and installation guides included
Why Choose the SFP/FTM-3112C-SL40G-HW
-
Long-Distance Transmission — 40 km reach over standard single-mode fiber
-
High Reliability — Stable Huawei OEM quality with excellent signal integrity
-
Full DDM/DOM Support — Real-time optical diagnostics for easy maintenance
-
Low Power & Compact Design — Energy-efficient and hot-swappable
-
Seamless Integration — Plug-and-play with Huawei OLTs, switches, and NEs
Contact Us Now for Bulk Pricing, OEM Branding & Technical Datasheets
Enhance your network infrastructure with the Huawei FTM-3112C-SL40G-HW SFP transceiver — engineered for long-range performance, reliability, and telecom-grade compatibility.
