- Use:FTTX
- Warranty Time:5 YEARS
- Product name:SU-SU SM SX Fiber Optic Jumper
- Mode:Singlemode
- Connector Type:Sc Upc to Sc Upc
- Cores:SX
- Diameter:0.9mm/2.0mm/3.0mm
- Certification:ISO9001
- Length:Can be customized
- Installation temperature:-40 degree
- Packing:Can be customized
- Insertion loss:<0.3dB
-
- Supply Ability
- 10000 Meter/Meters per Month SU-SU SM SX Fiber Optic Jumper
-
- Packaging Details
Poly bag for each item, carton case for outer package
-
- Port
Wuhan/Shanghai/shenzhen

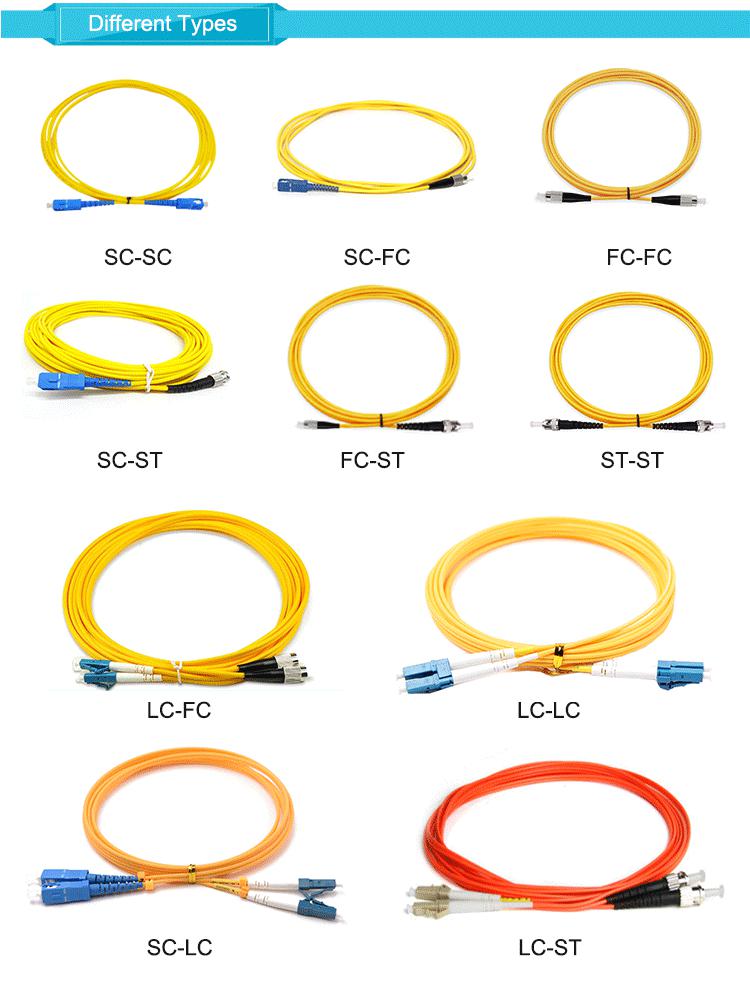

- Picture Example:
- Lead time:Quantity(pieces)1 – 10000>10000Lead time (days)15To be negotiated
SM SX Singlemode Simplex SU-SU Sc Upc to Sc Upc Fiber Optic Jumper
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.
The 9/125μm single mode fiber patch cord meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
Features
Low Insertion Loss, High Return Loss
Good Repeatability and Interchangeability
Applications
Long-haul, Metro and Access System
Fiber CATV and Fiber Network System
Specifications:
|
Parameters |
|
|||
|
Connector Type |
SC/UPC-SC/UPC |
|||
|
Fiber Type |
Mult Mode |
Single Mode |
||
|
Insertion Loss |
Max.≤0.2dB |
Max.≤0.3 |
||
|
Return Loss |
≥36dB(no APC connector) |
PC |
UPC |
APC |
|
≥45dB |
≥50dB |
≥60dB |
||
|
Interchangeability |
≤0.2dB |
|||
|
Connection Durability |
≥1000 times |
|||
|
Operating/Storage Temperature |
-40~80ºC |
|||
|
|
50/125µm |
|||
|
Length |
1m, 2m, 3m,Customized |
|||
|
Cover materials |
PVC/LSZH/OFNP |
|||
|
|
single-mode |
|||
|
Wavelength |
1310nm/1490nm/1550nm |
Length tolerance: 0-5M: +5cm/-0cm ; 5-100m:+10cm/-0cm
We also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
