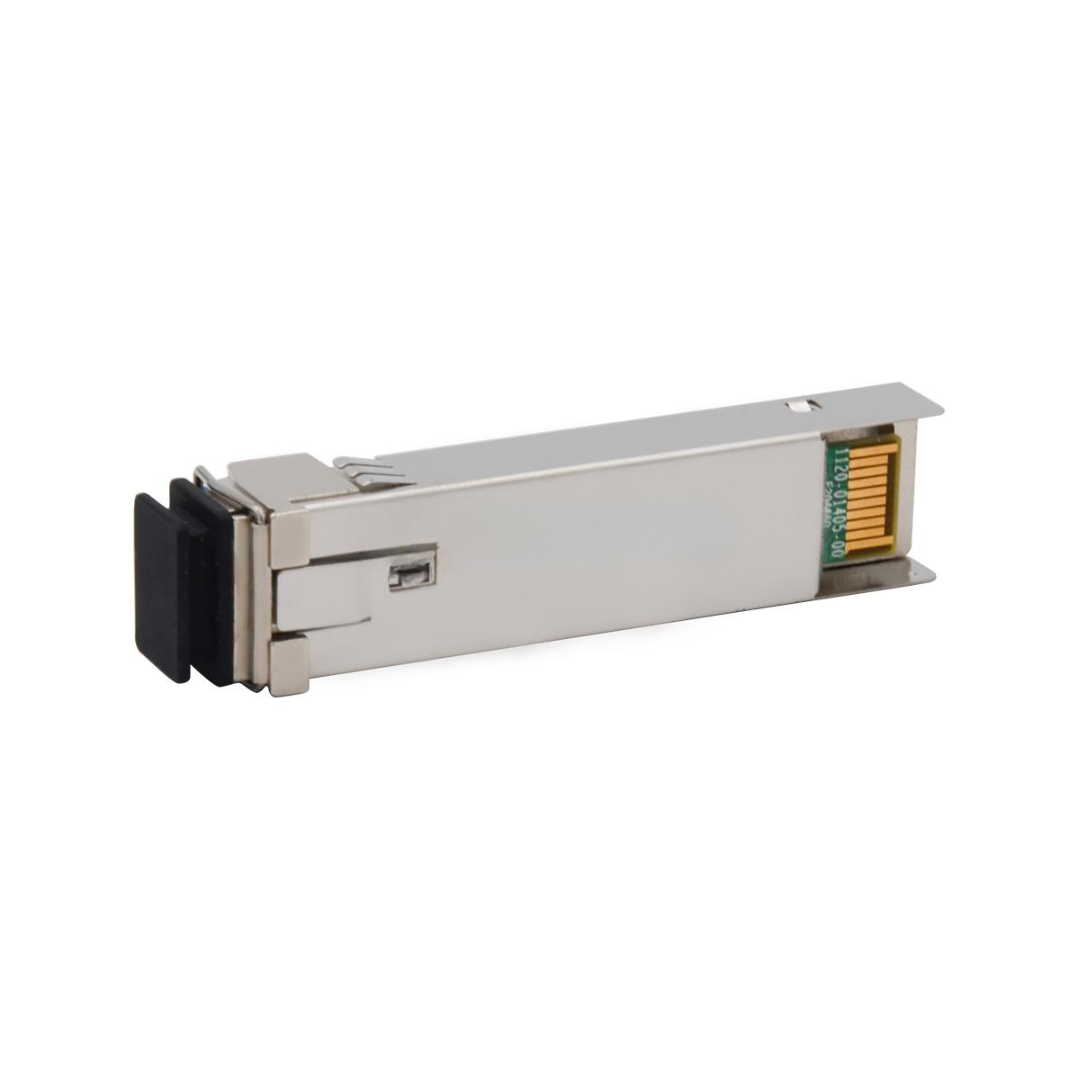

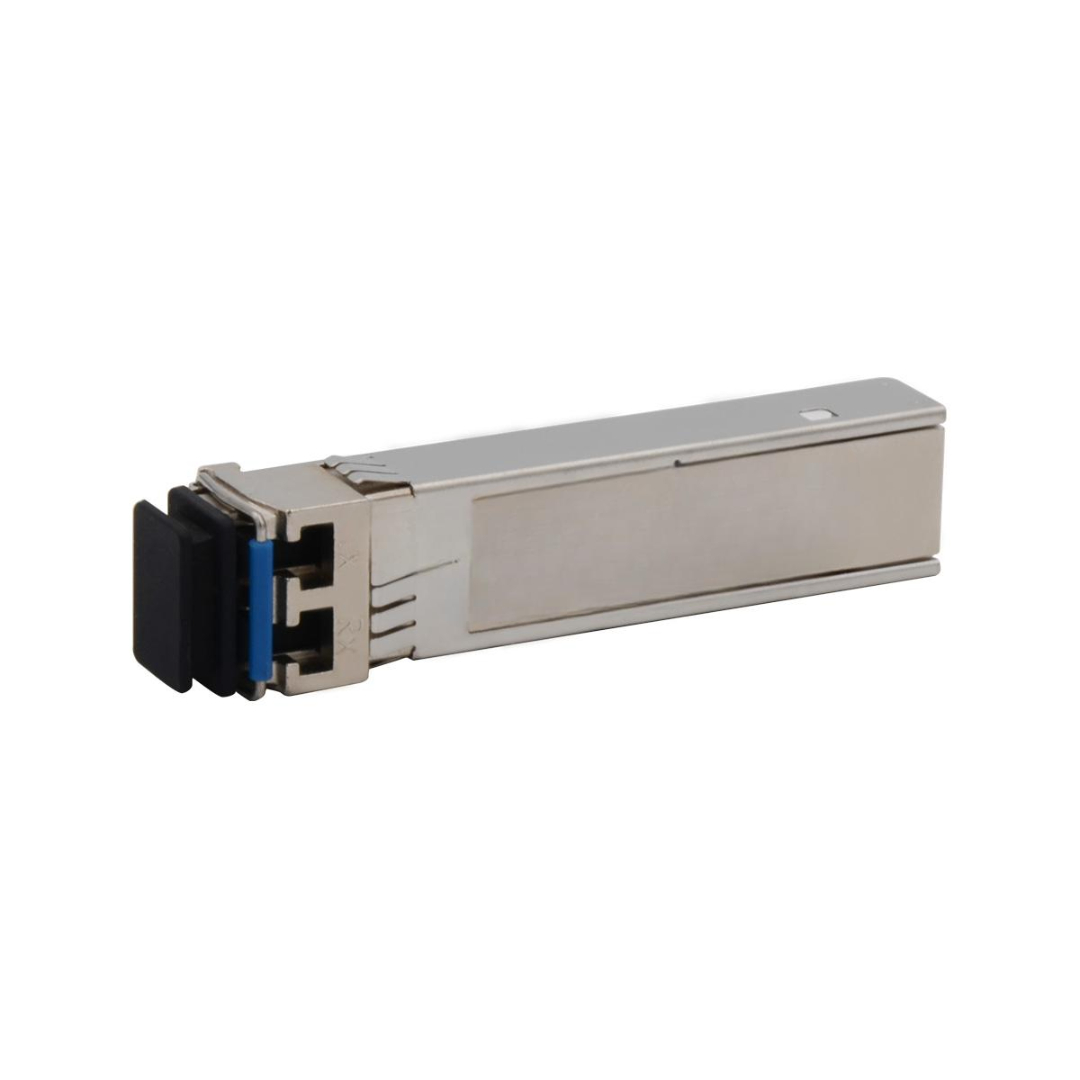

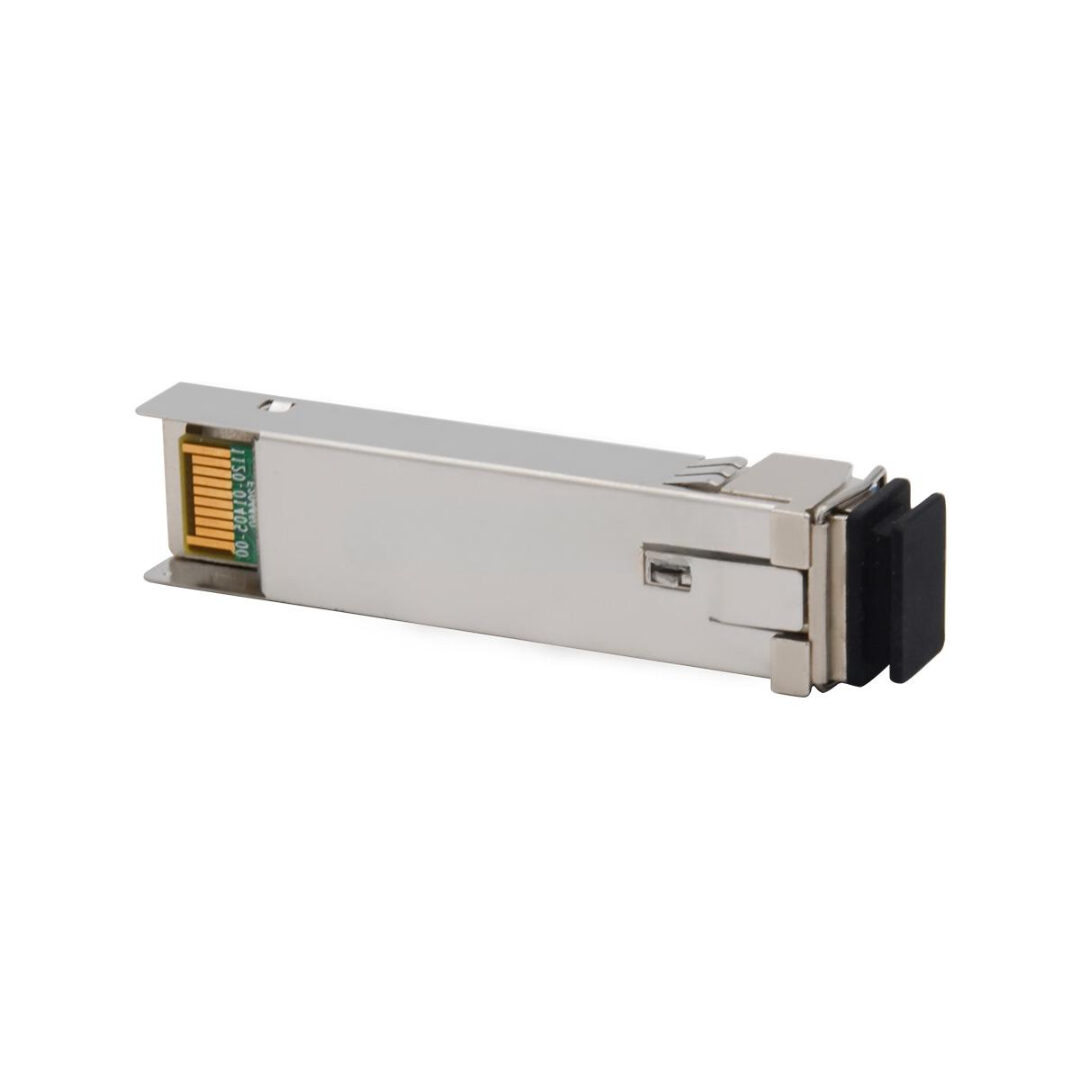

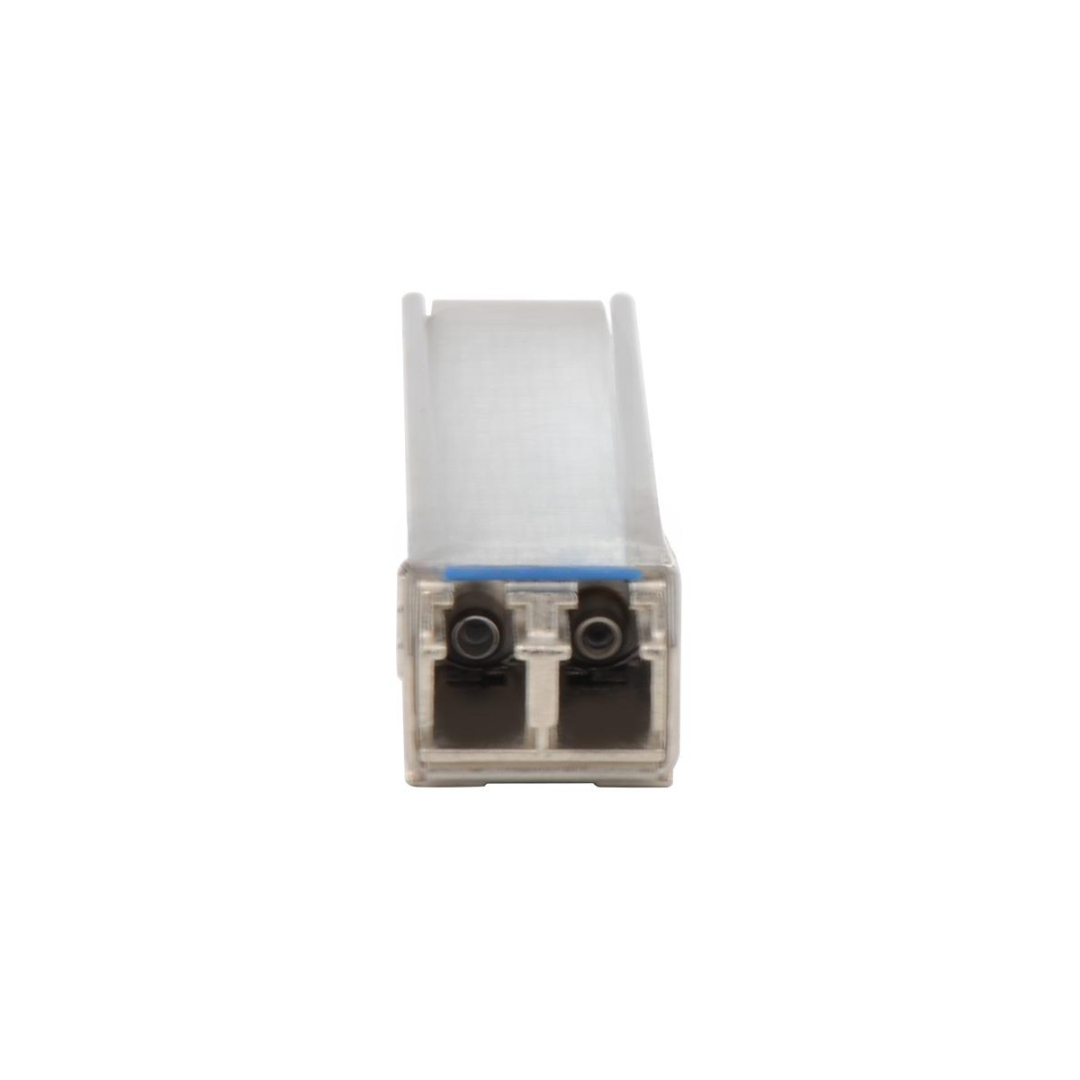

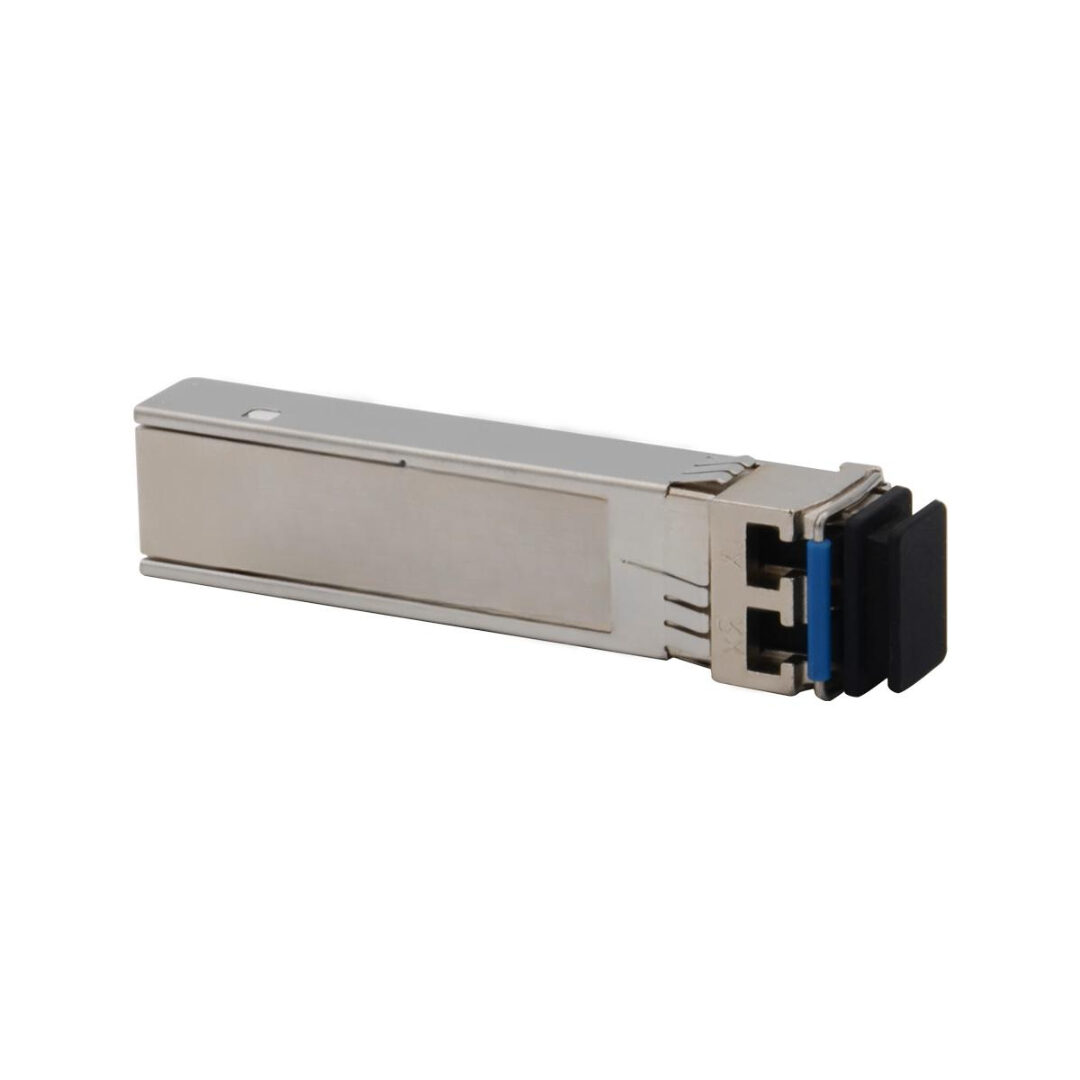

SPP-10E-LR-IDFF-HW Huawei 1.4KM Brand New SFP+ Transceiver
The SPP-10E-LR-IDFF-HW Huawei 10G SFP+ optical transceiver, purpose-built for medium-range, high-speed optical communication over single-mode fiber (SMF). With a transmission capability of 10.3 Gbps over distances of up to 1.4 kilometers, it is ideally suited for enterprise campus networks, metro aggregation, and short-haul carrier links.
This module operates on a 1310 nm wavelength, utilizes an LC duplex connector, and features Digital Diagnostics Monitoring (DDM) for real-time tracking of key performance parameters. As a fully hot-pluggable transceiver, it offers seamless deployment and reliable performance within Huawei’s network switches, routers, and transport platforms.
Key Features
- Model: SPP-10E-LR-IDFF-HW
- Condition: 100% Brand New, Original Huawei
- Form Factor: SFP+ (Enhanced Small Form-Factor Pluggable)
- Transmission Rate: 10.3 Gbps
- Wavelength: 1310 nm
- Maximum Distance: 1.4 km (SMF)
- Connector Type: LC Duplex
- Fiber Type: Single-mode Fiber (SMF)
- DDM Support: Yes (Temperature, Voltage, Bias Current, TX/RX Power)
- Hot-Pluggable: Yes
- Standards Compliance: IEEE 802.3ae (10GBASE-LR), SFP+ MSA, RoHS
Technical Specifications
| Specification | Details |
|---|---|
| Model | SPP-10E-LR-IDFF-HW |
| Data Rate | 10.3 Gbps |
| Reach | Up to 1.4 km |
| Wavelength | 1310 nm |
| Connector Interface | LC Duplex |
| Fiber Mode | Single-mode Fiber (SMF) |
| TX Power Range | -6 dBm to +0.5 dBm |
| Receiver Sensitivity | ≤ -14.4 dBm |
| Digital Diagnostics | Supported (DDM/DOM) |
| Laser Type | DFB (Distributed Feedback Laser) |
| Power Supply Voltage | 3.3V |
| Power Consumption | <1.5W |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | IEEE 802.3ae, CE, FCC, RoHS |
| Warranty | 1–3 Years Manufacturer Warranty |
SPP-10E-LR-IDFF-HW Huawei Applications
- Enterprise Campus Networks — Reliable 10G links across large office buildings or campuses
- Metro Aggregation Networks — Short-haul backbone and aggregation layers
- Data Center Edge Links — 10G connections between top-of-rack switches and core aggregation
- Telecom Service Providers — Ideal for short-range access and aggregation in FTTx infrastructure
- Government & Institutional Networks — Secure and stable optical transmission over SMF
Customization & OEM Options
- Custom Labeling — Apply your own branding or project-specific part numbers
- EEPROM Reprogramming — Ensure compatibility with third-party switches (e.g., Cisco, Juniper)
- Performance Testing — Pre-shipment verification with optical budget reports
- Regional Packaging — Custom labeling, barcoding, and documentation for local compliance
- Bulk Supply Packaging — Anti-static trays or boxes for volume deployments
- Extended Temp Versions — Requestable for industrial environments (-40°C to +85°C)
SPP-10E-LR-IDFF-HW Huawei Wholesale & Global Supply
- Direct OEM Source — 100% Huawei original with verified part numbers
- Large Volume Availability — Ideal for ISPs, integrators, and network resellers
- International Shipping — Secure and compliant packaging for global logistics
- Fast Lead Times — Available for immediate dispatch or scheduled projects
- Tech Support Access — Configuration, troubleshooting, and integration assistance available
Why Choose the SPP-10E-LR-IDFF-HW SFP+ Transceiver
Huawei OEM Build — Guaranteed reliability and compatibility
1.4 km Range — Perfect balance for short-haul fiber infrastructure
Energy-Efficient Design — <1.5W typical consumption
Secure & Accurate — Real-time monitoring with DDM
Multi-Platform Support — Huawei and third-party device compatibility
Contact Us Today for Bulk Pricing & Data Sheets
Deploy your 10G short-haul network efficiently with Huawei’s SPP-10E-LR-IDFF-HW — engineered for robust, mid-range optical transmission.
Request pricing, technical documentation, and MOQ today for seamless integration into your network architecture.
Huawei Optical — Where Precision Meets Performance.
